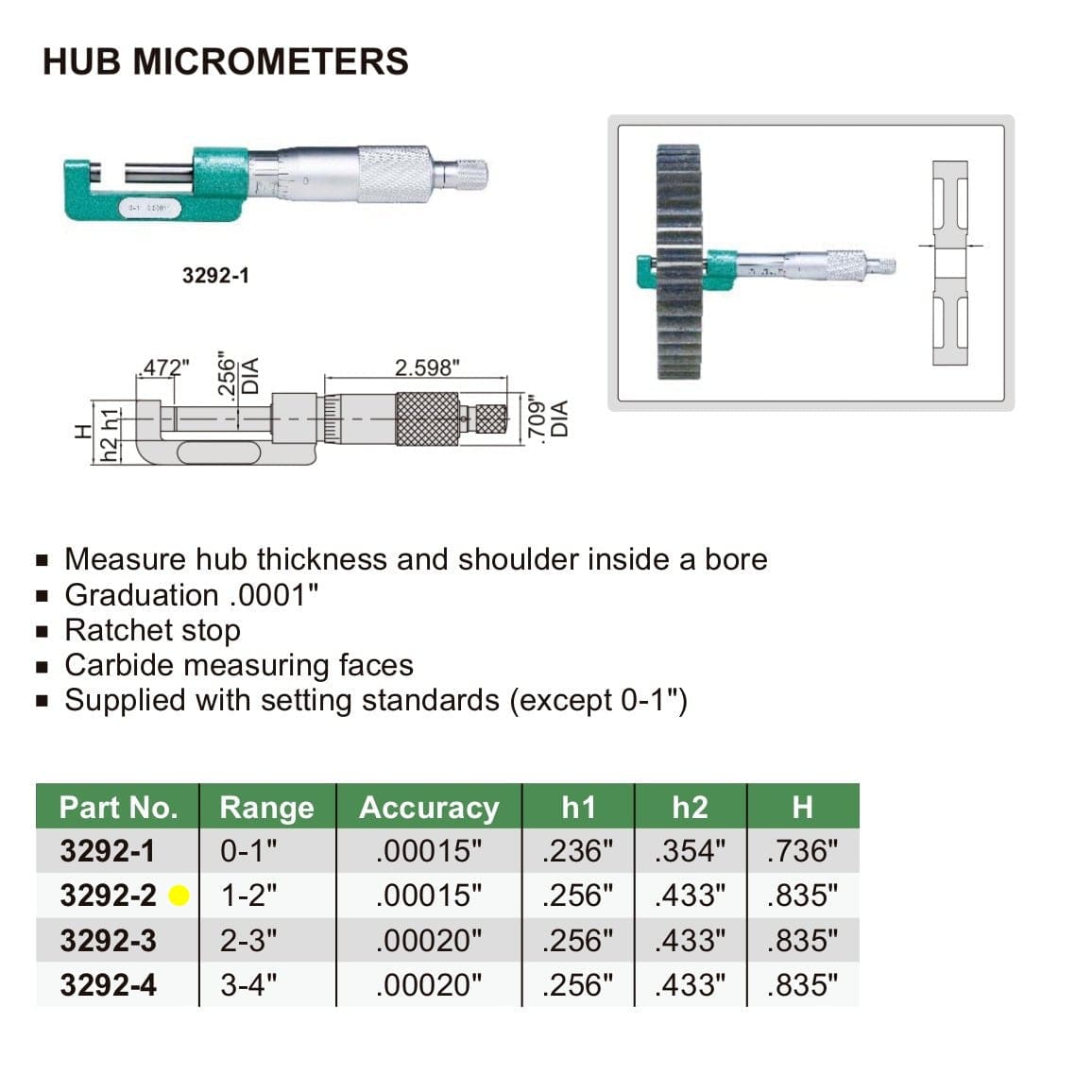

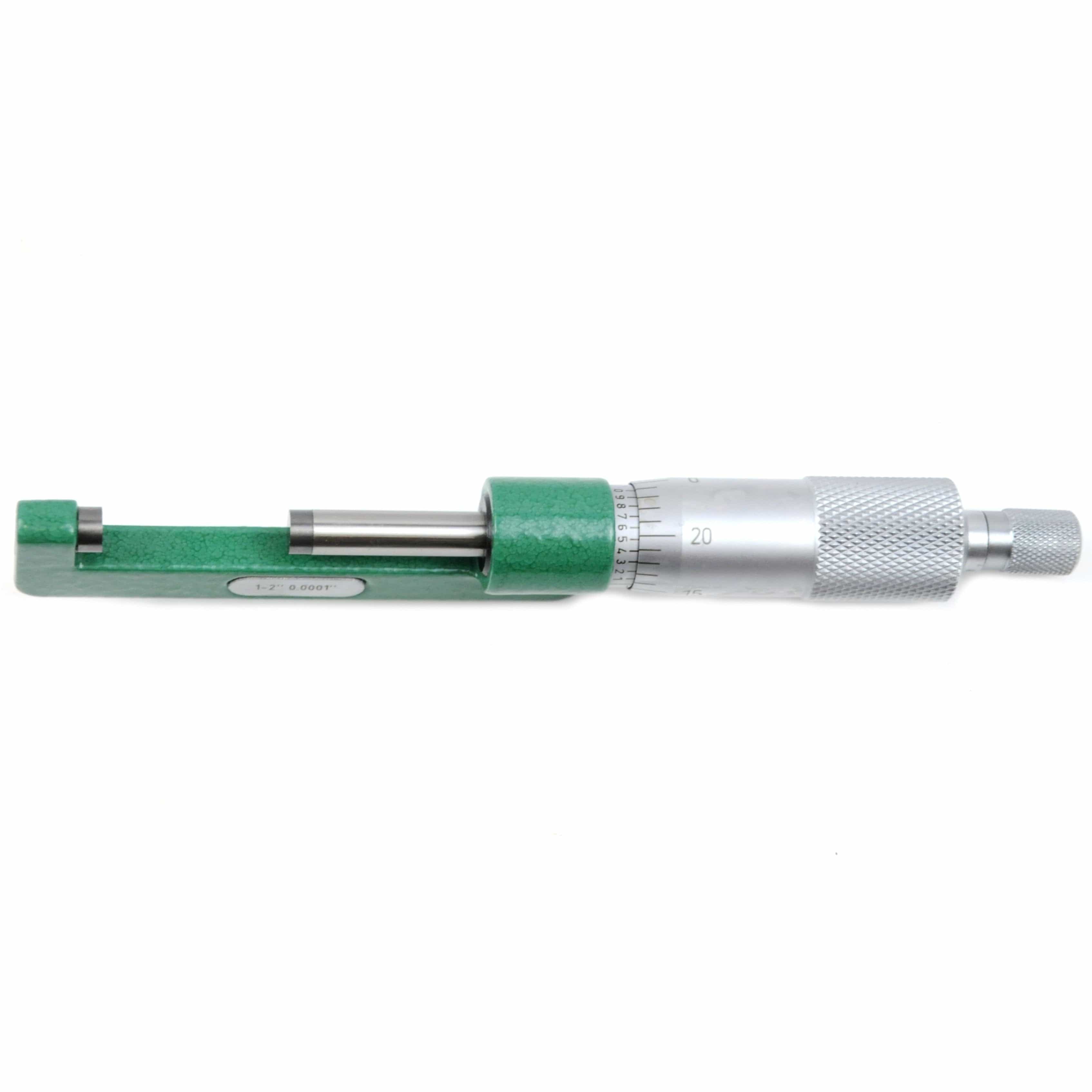

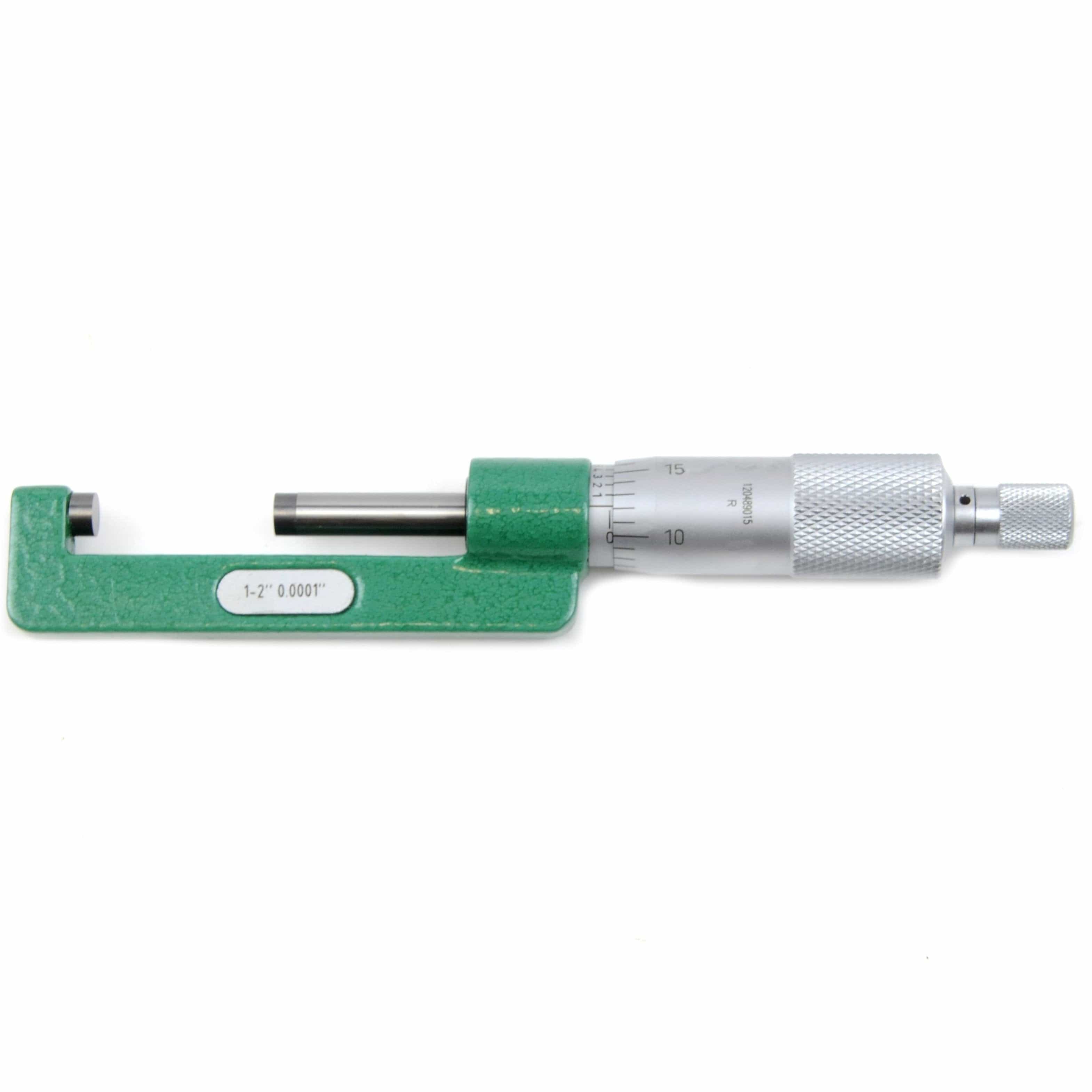

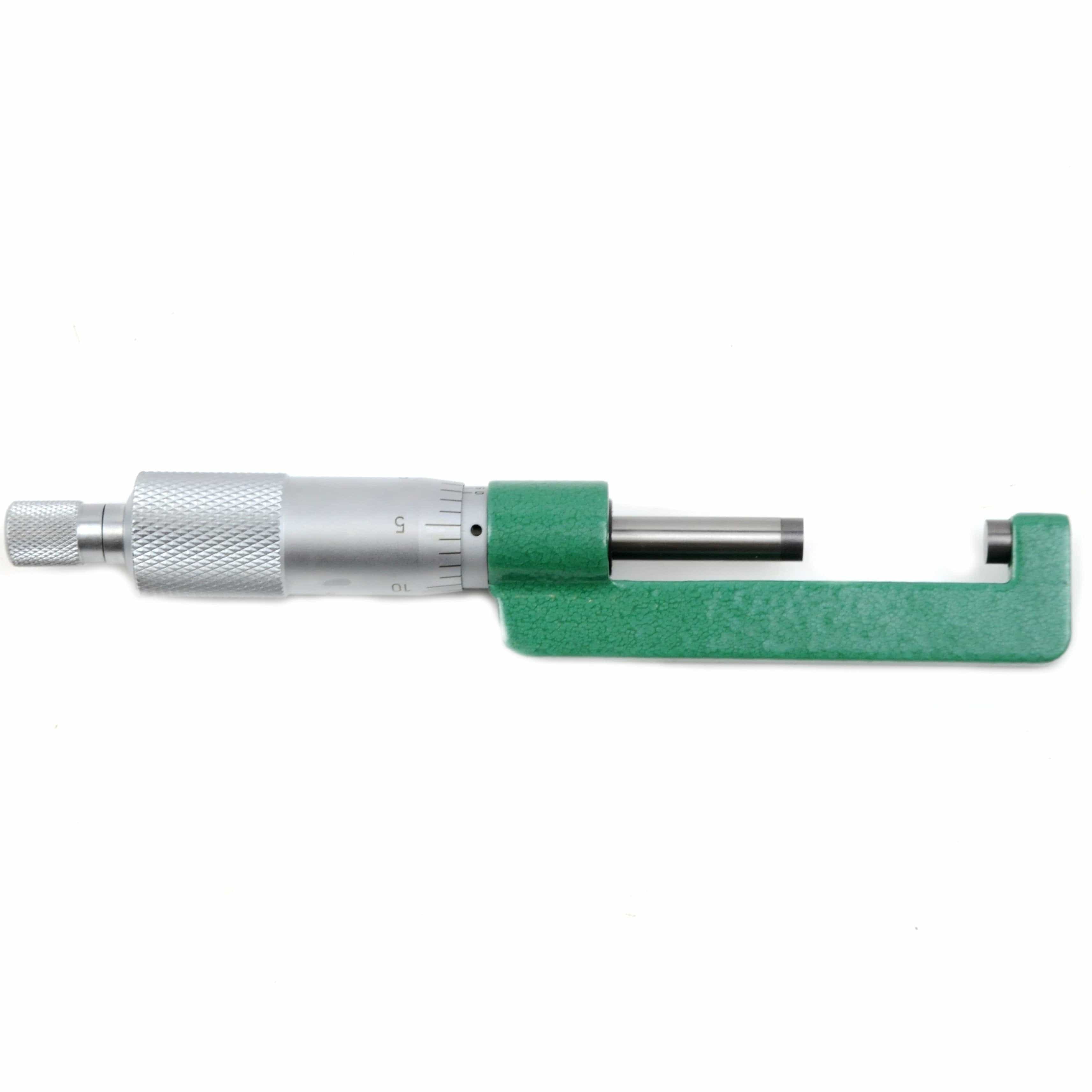

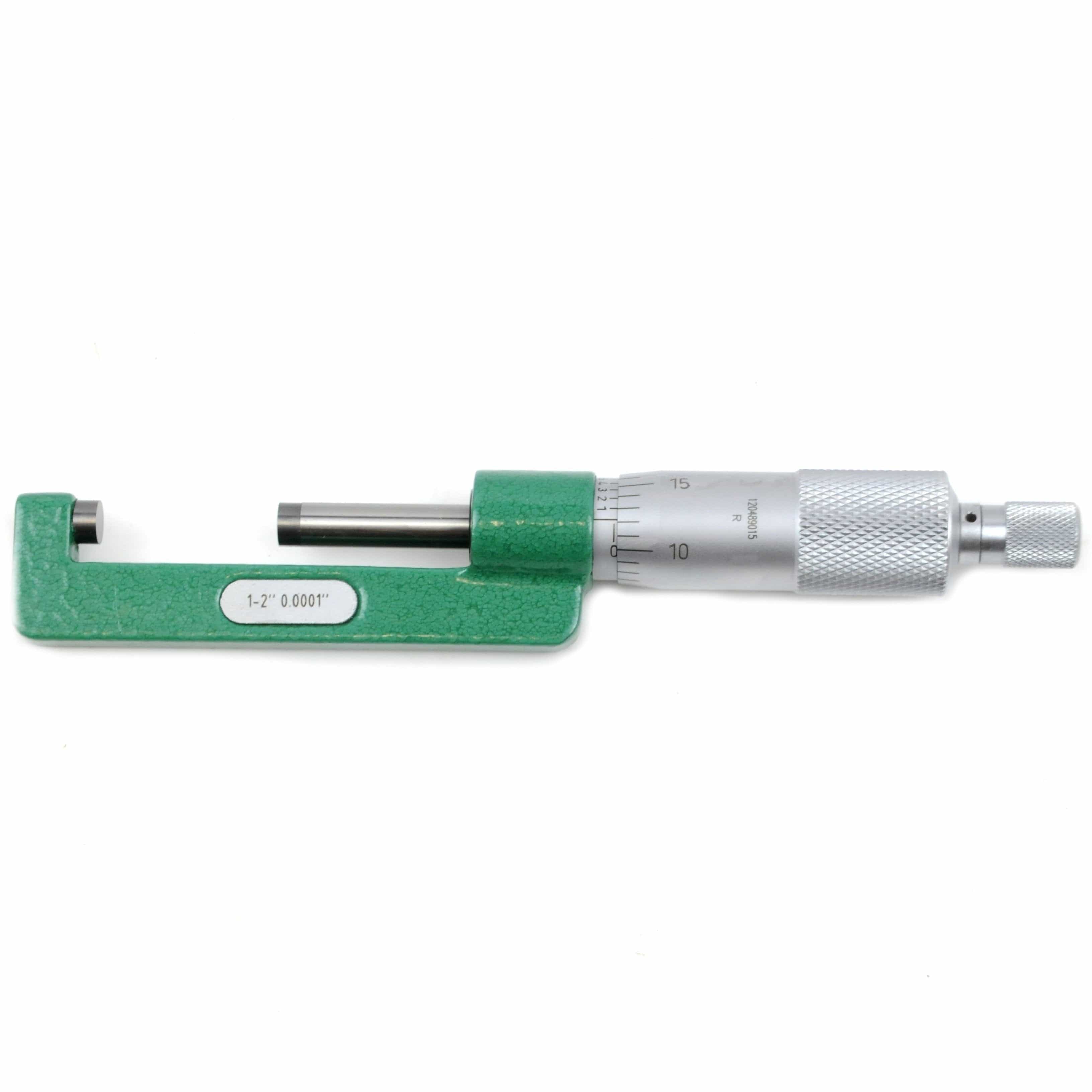

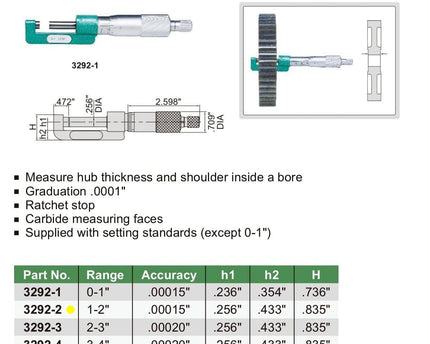

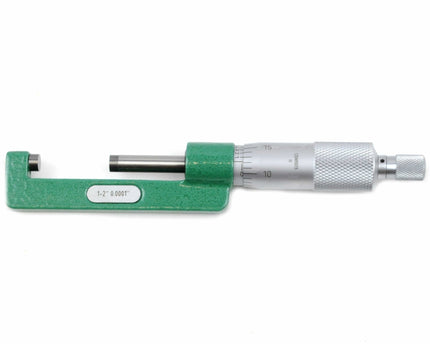

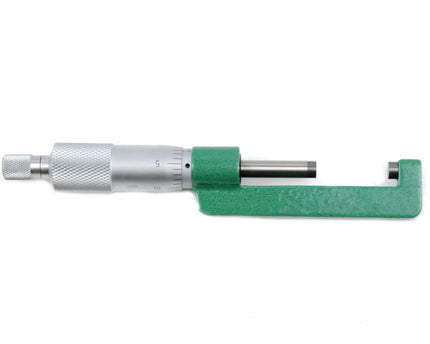

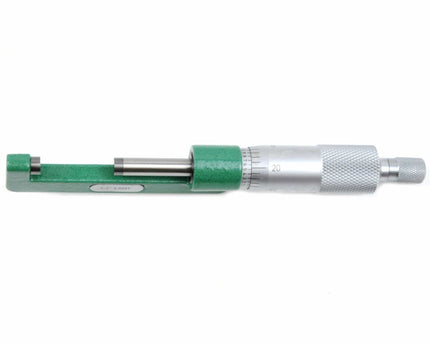

Insize Hub Micrometer 1–2" Range – Series 3292-2
The Insize 1–2" Hub Micrometer is designed for accurate measurement of hub thicknesses and internal shoulders inside bores where standard external micrometers cannot be used. Engineered for precision and repeatability, it is ideal for machining, inspection, and quality control applications requiring reliable internal shoulder measurement.
Key Features:
-
Part Number: 3292-2
-
Measurement Range: 1–2"
-
Graduation: 0.0001"
-
Accuracy: 0.00015"
-

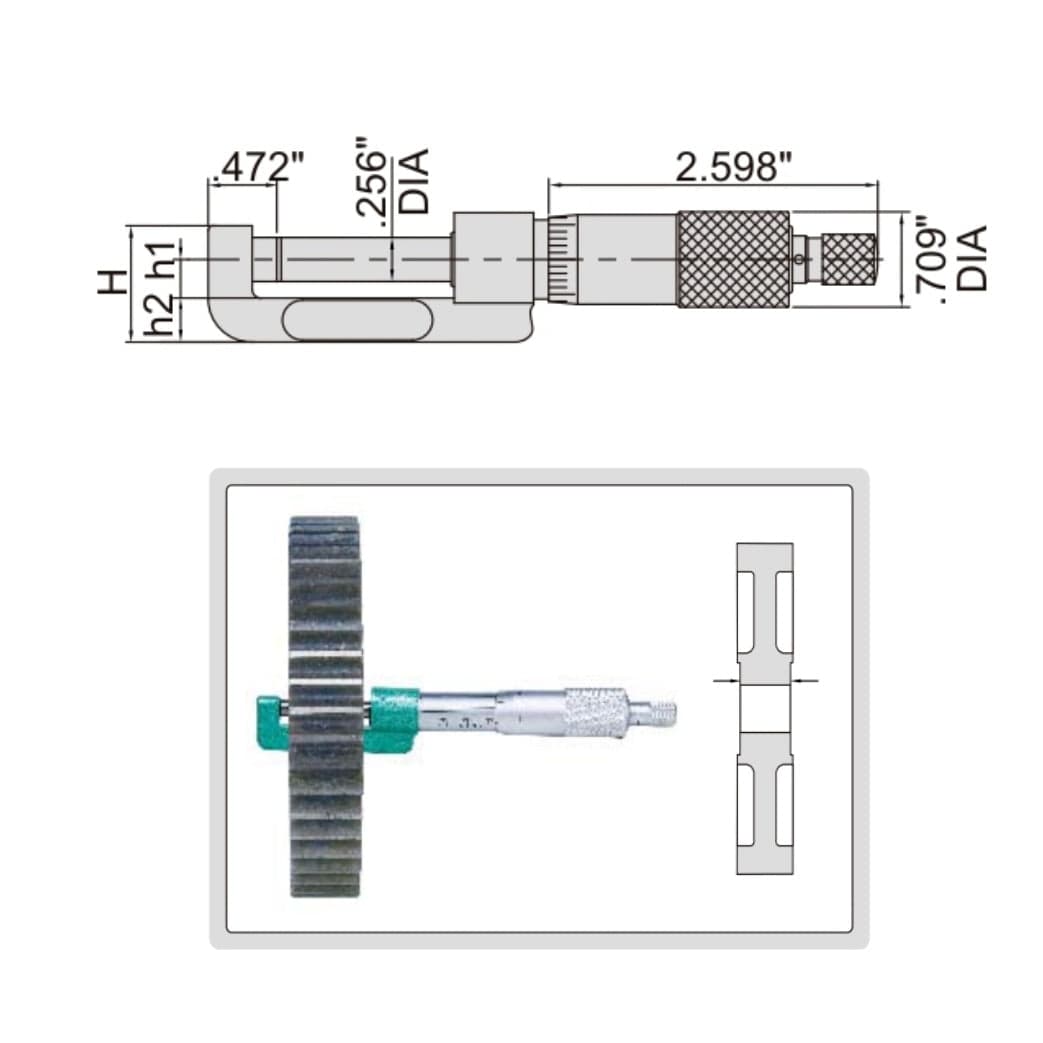

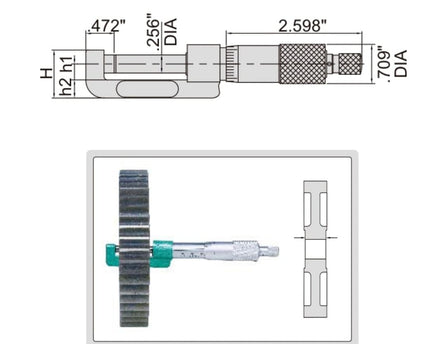

Dimensions: h1: 0.236", h2: 0.354", H: 0.736"
-

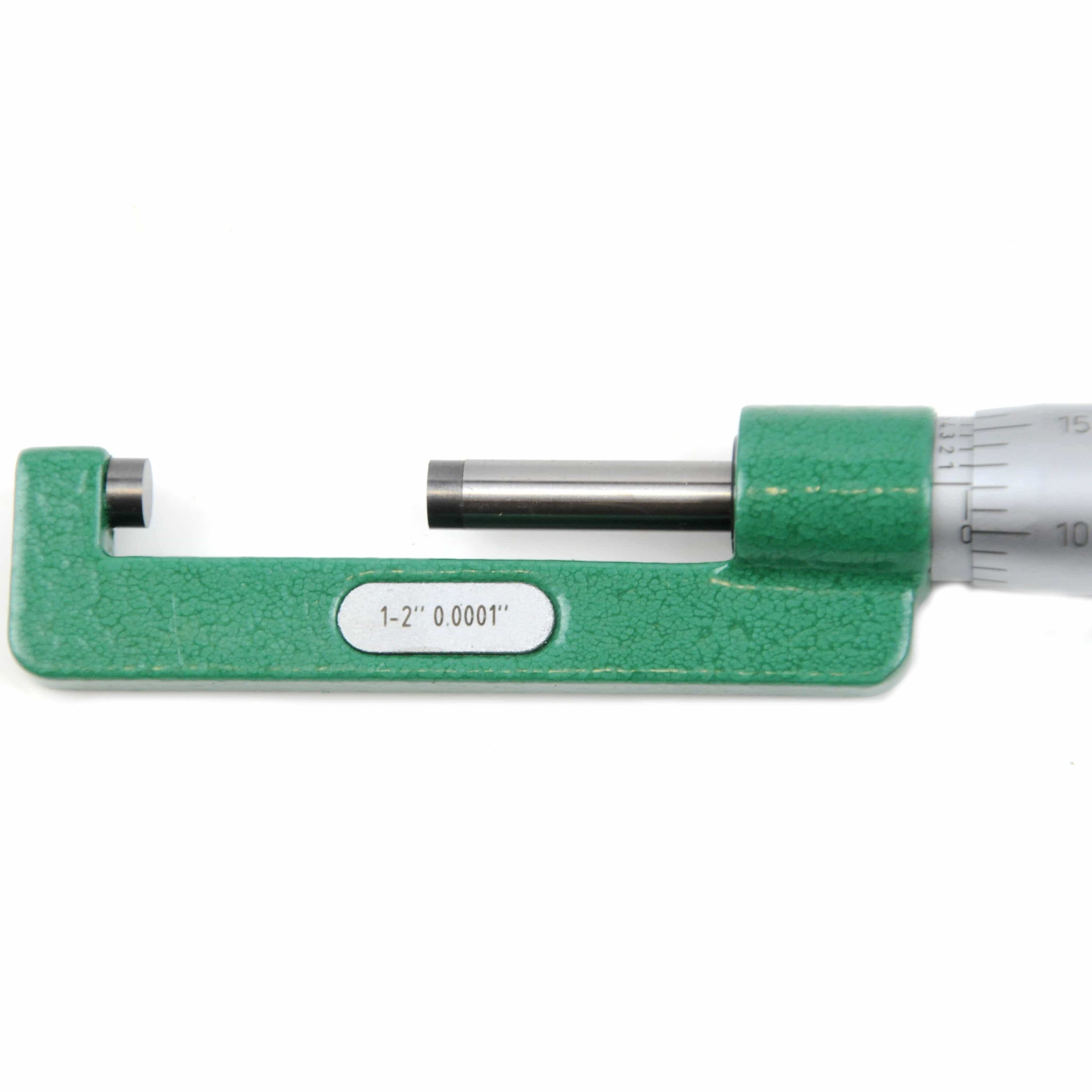

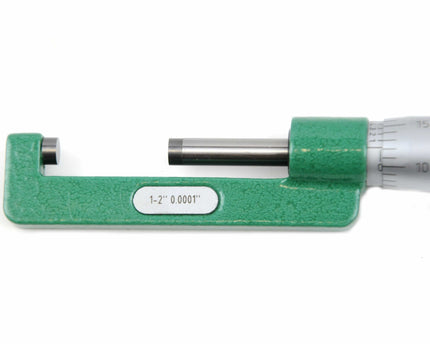

Carbide Measuring Faces: Provide durability, wear resistance, and long service life
-

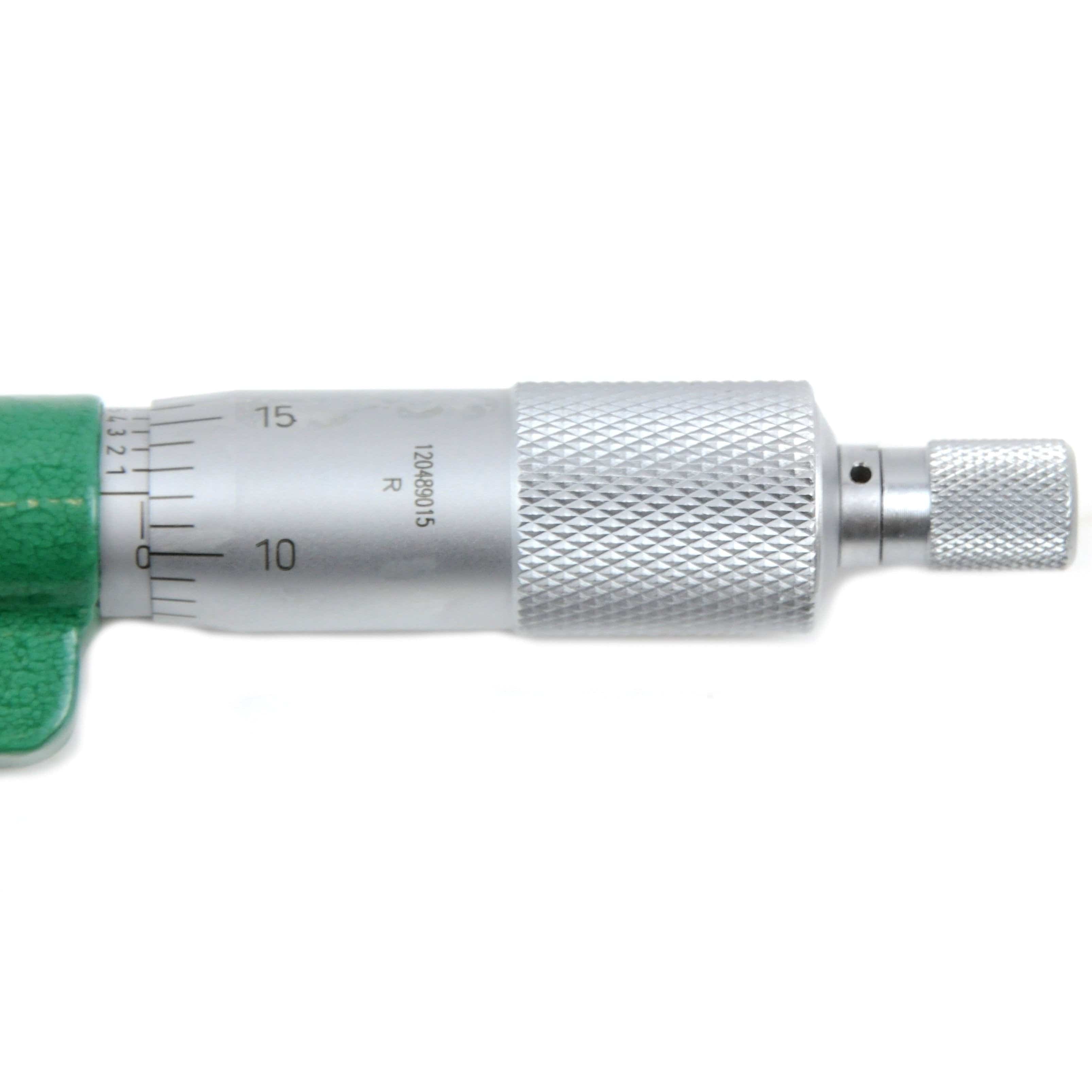

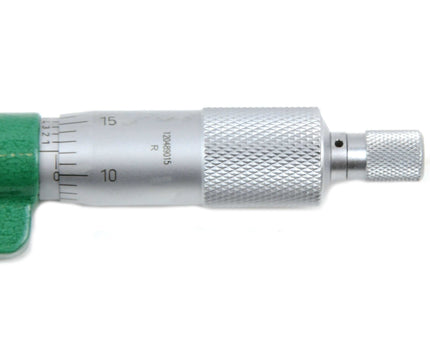

Ratchet Stop: Ensures consistent measuring pressure for accurate, repeatable results
-

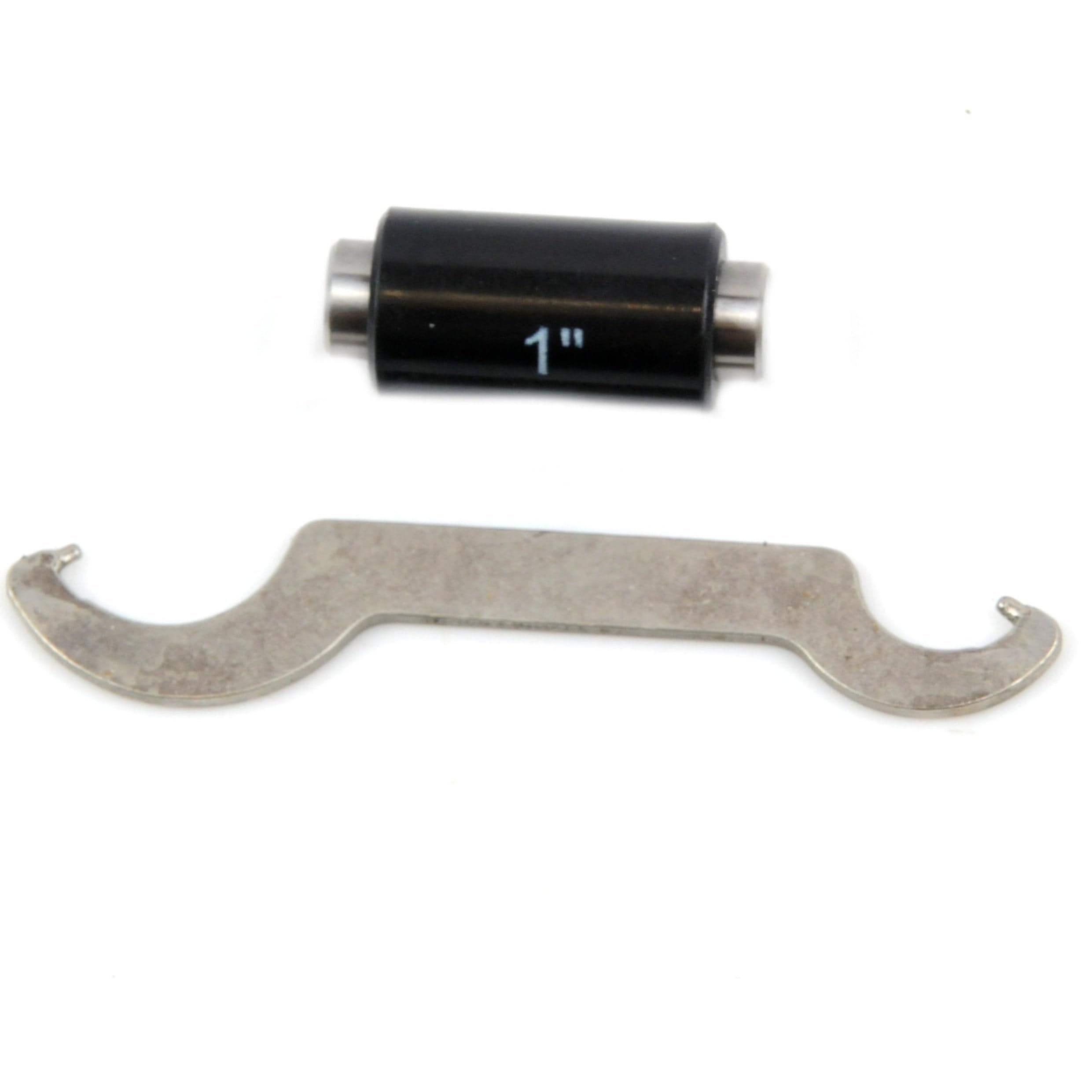

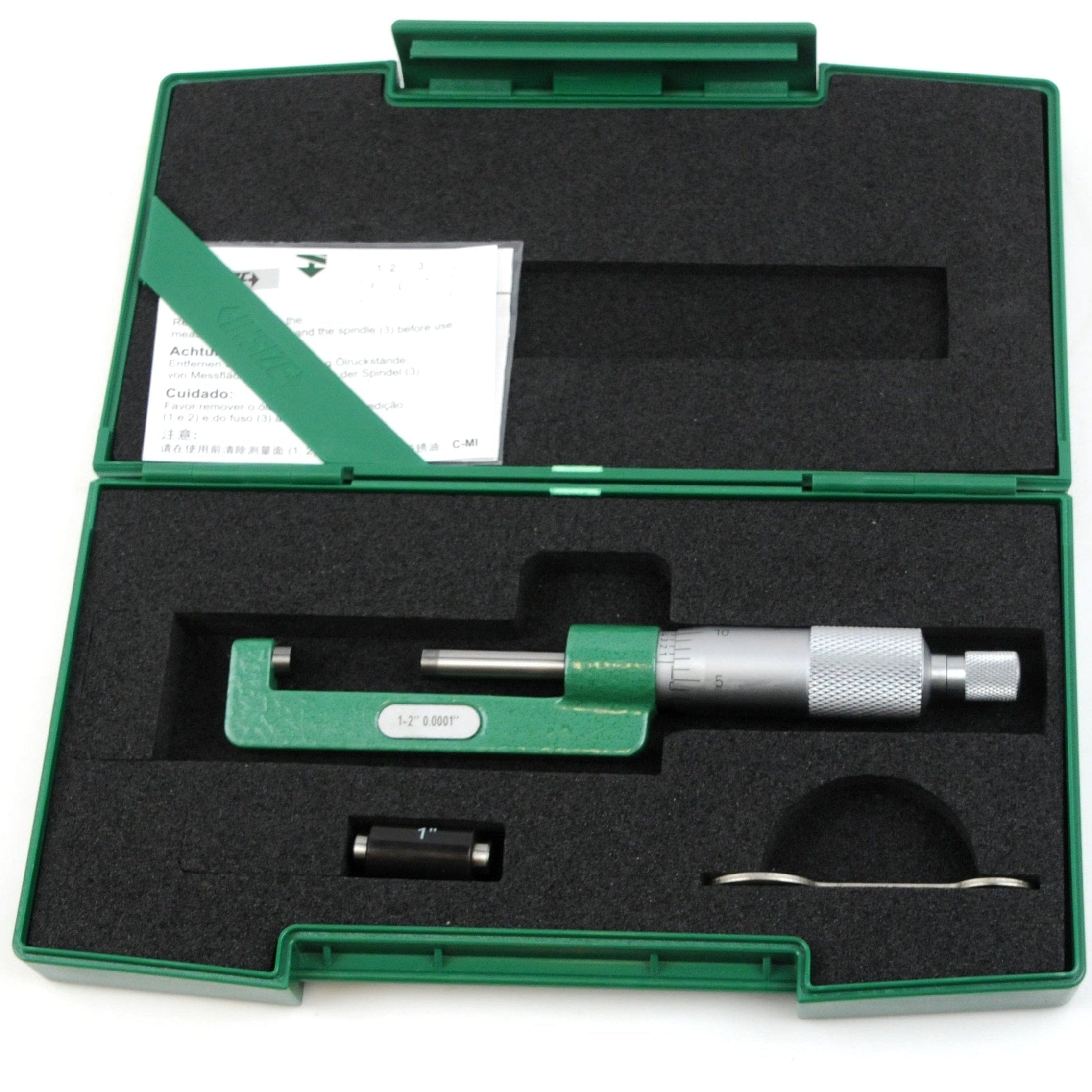

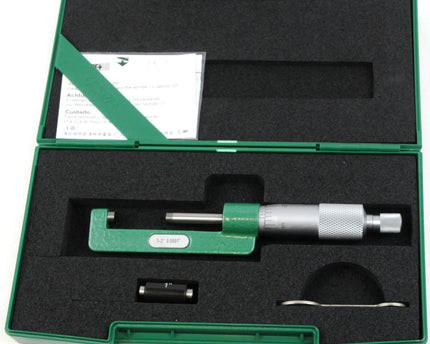

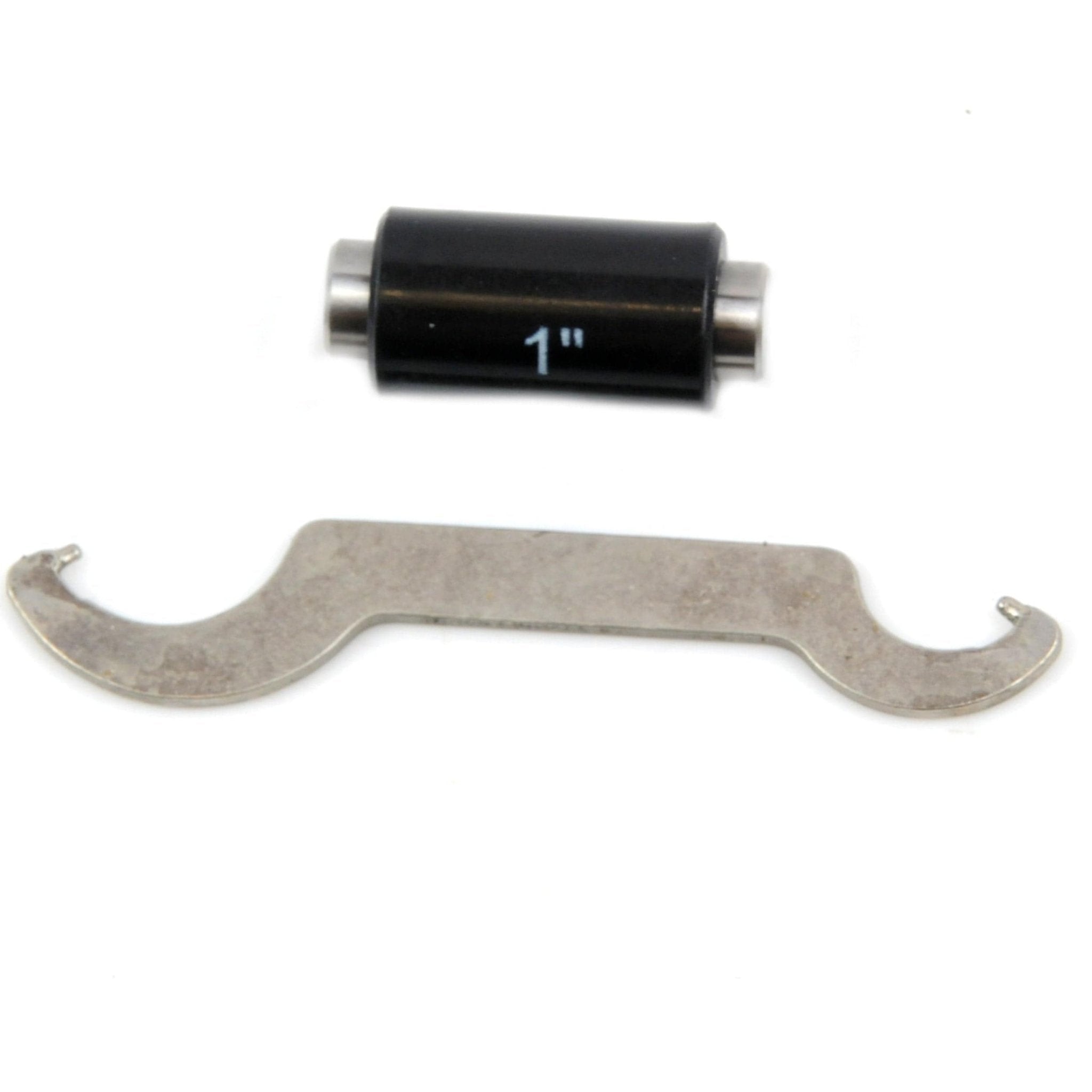

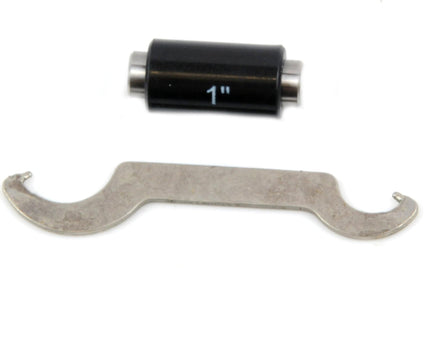

Setting Standards: Supplied for calibration and accuracy verification (except 0–1" range)
Well designed and built for durability, the Insize 3292-2 Hub Micrometer is trusted in workshops, toolrooms, and inspection environments for precise measurement of hub thicknesses and internal shoulders. Insize micrometers are recognised for their precision and consistency.
