Description

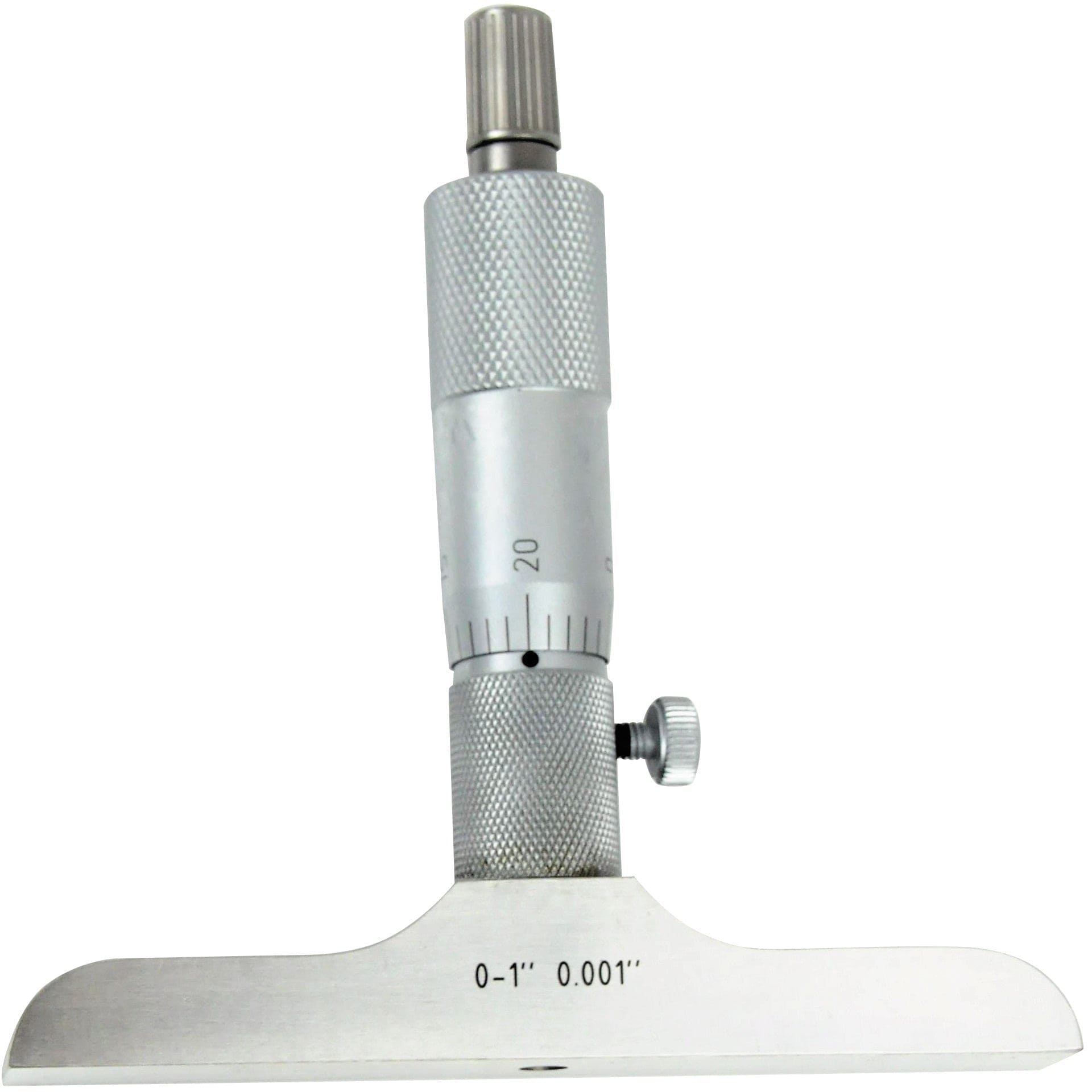

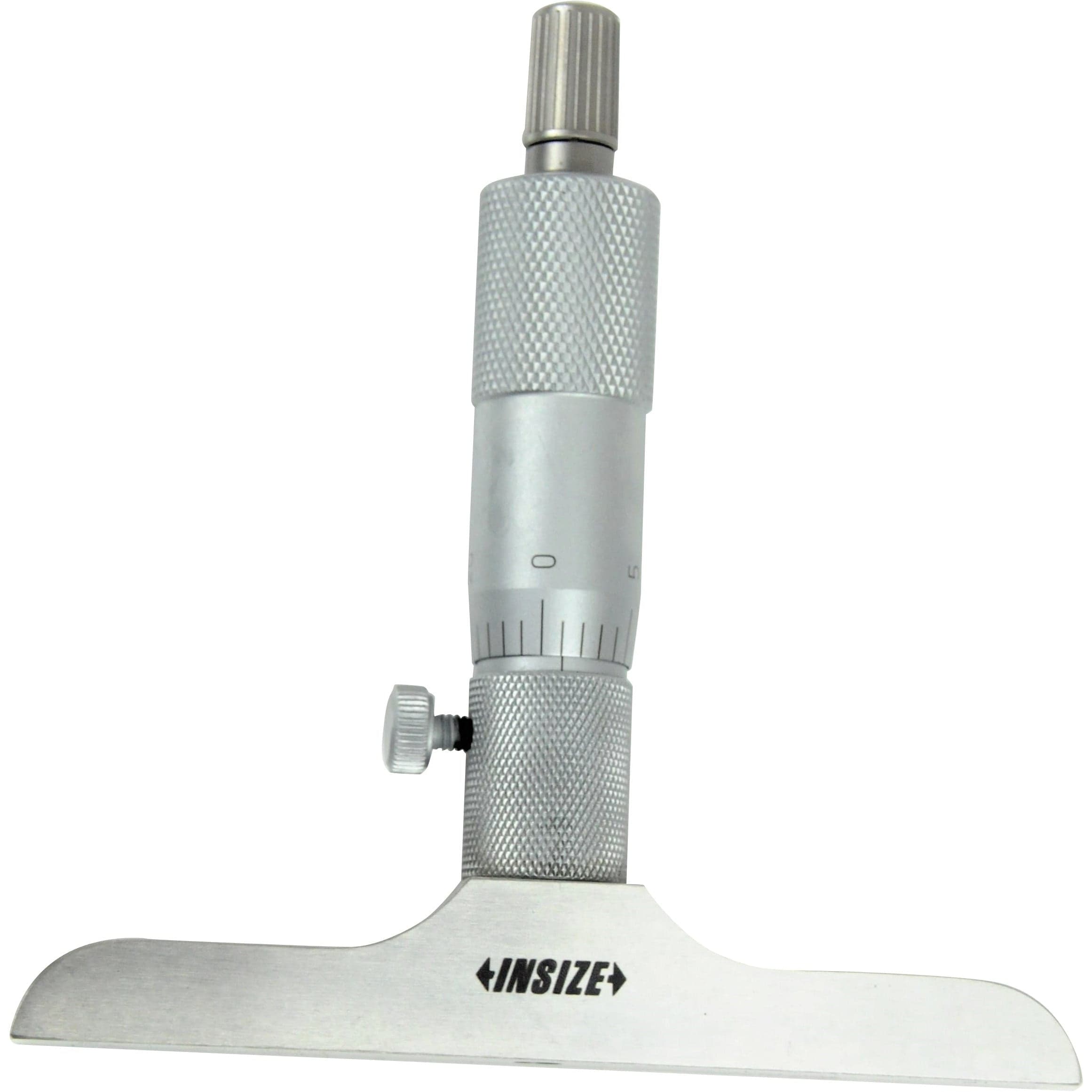

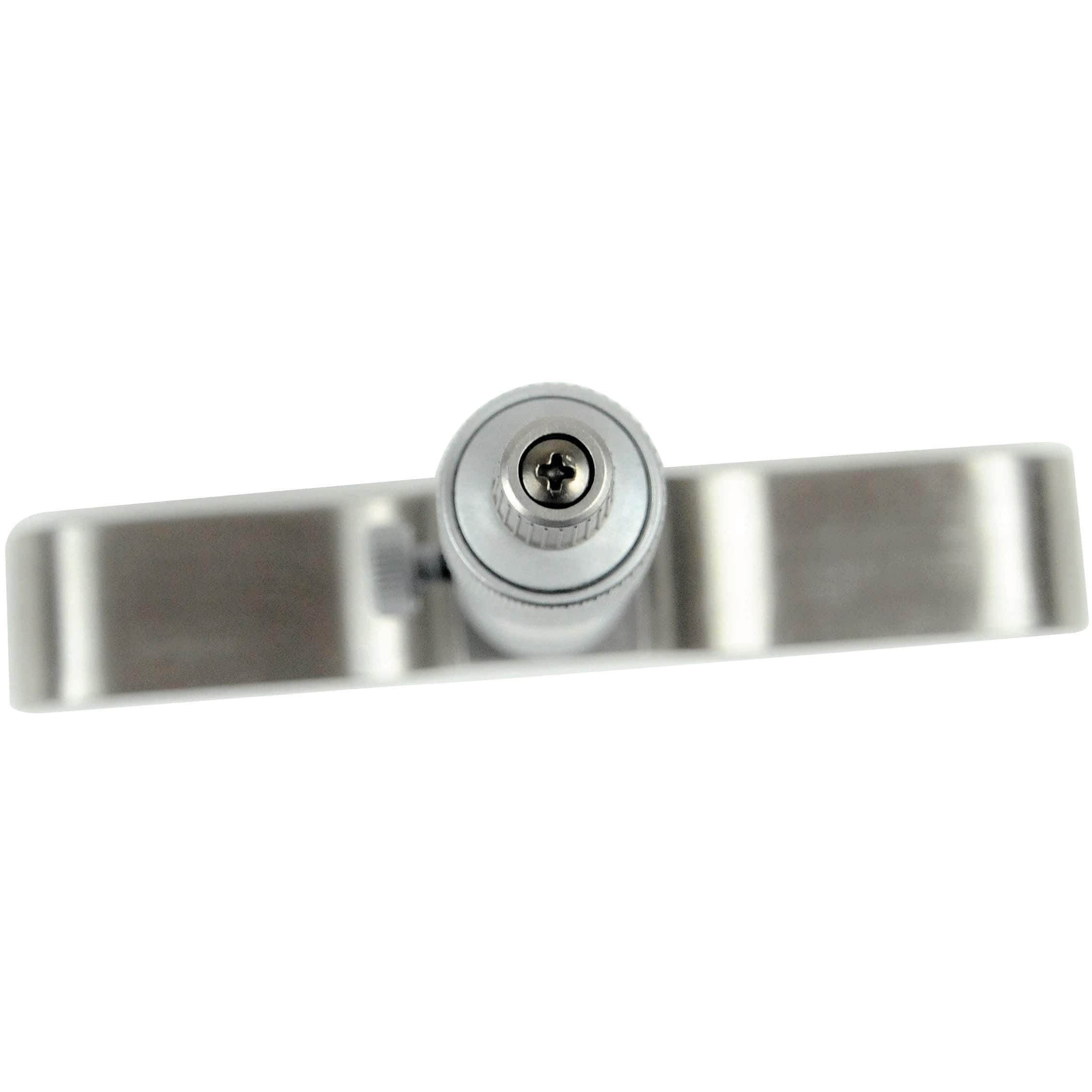

Insize 0–6" Depth Micrometer
The Insize 0–6" Depth Micrometer is a high-precision measuring instrument designed for accurate depth measurement in inspection and machining applications. Manufactured to stringent standards, it provides reliable performance, ease of operation, and consistent measurement accuracy for professional use.

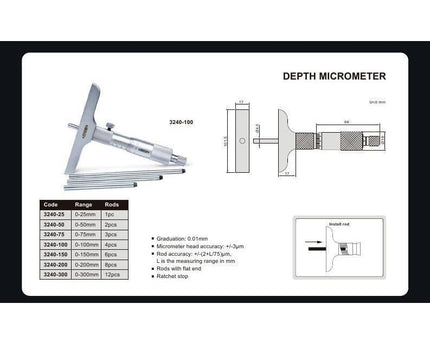

Specifications:
-
Part No.: 3240-6
- Strictly made in accordance with DIN 863-2
- Spindle thread hardened, ground, and lapped for absolute accuracy
- Barrel and thimble with satin chrome finish
- Clear graduations on a satin chrome surface for easy reading

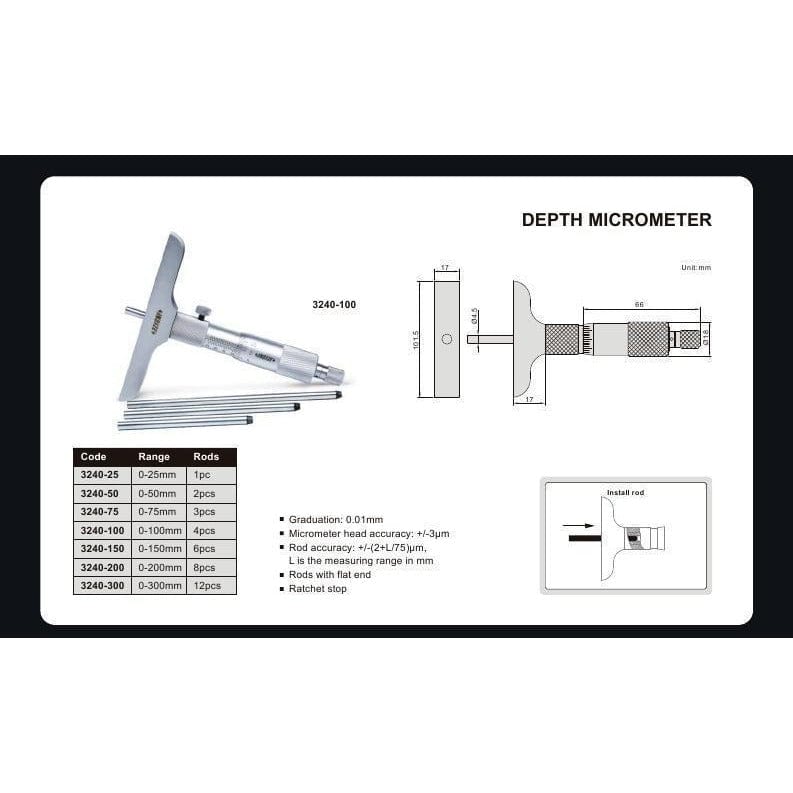

- Micrometer head accuracy: ±3μm
- Rod accuracy: ±(2 + L/75)μm, where L is the measuring range in mm

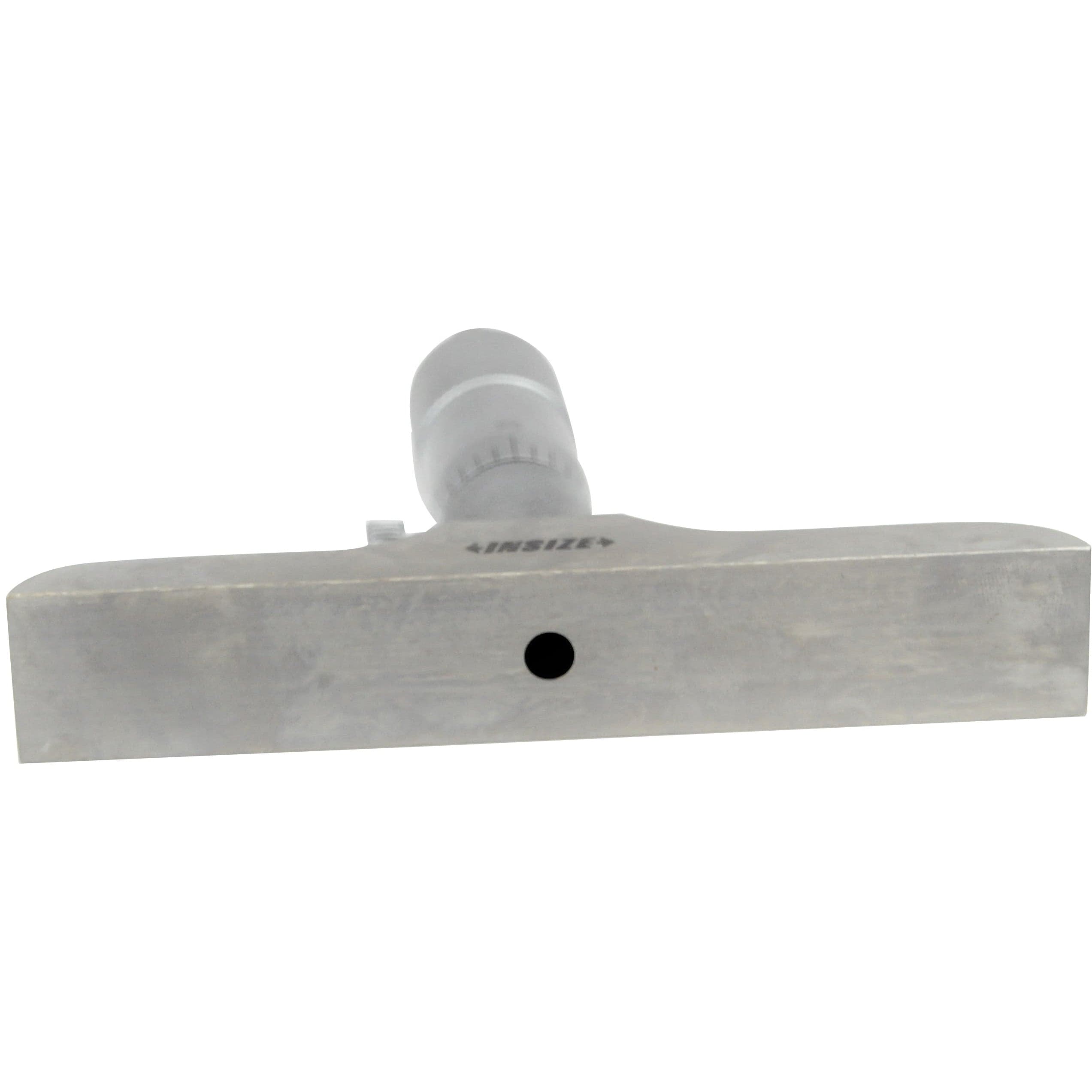

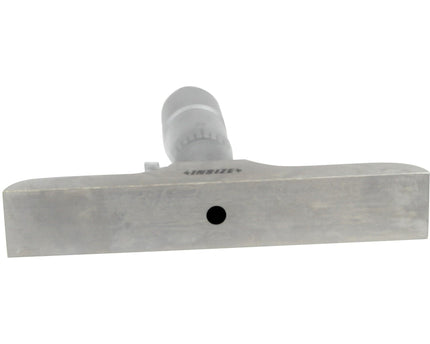

- Rod with flat end
- Quick and easy adjustment
- Carbide measuring face
- With a measuring rod clamp
- Ratchet stop
Includes:
- Zero adjusting wrench

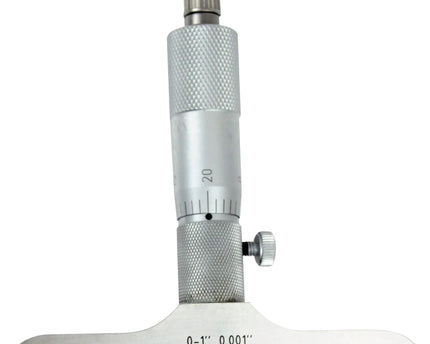

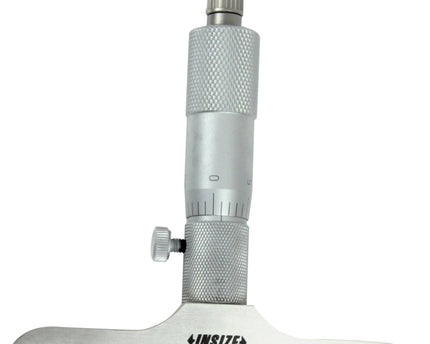

- 3240-6 0–6" depth micrometer head with 0.001" graduation

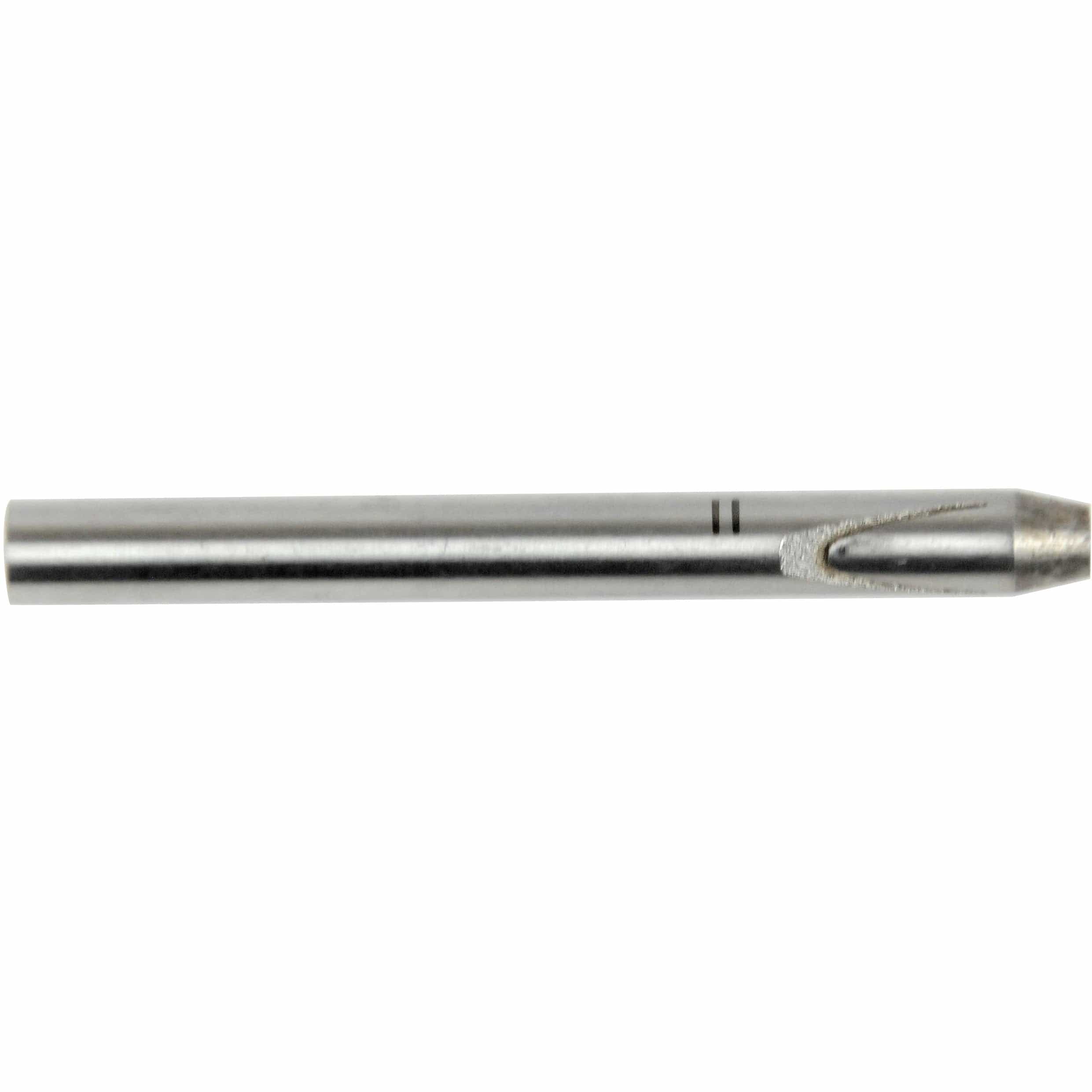

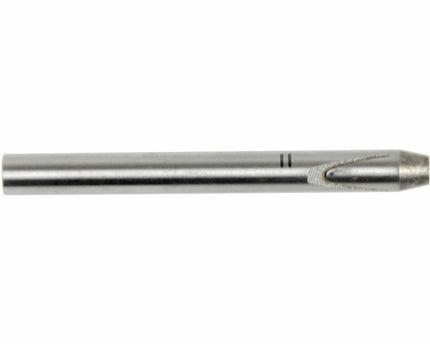

- Four depth rods in 1" increments

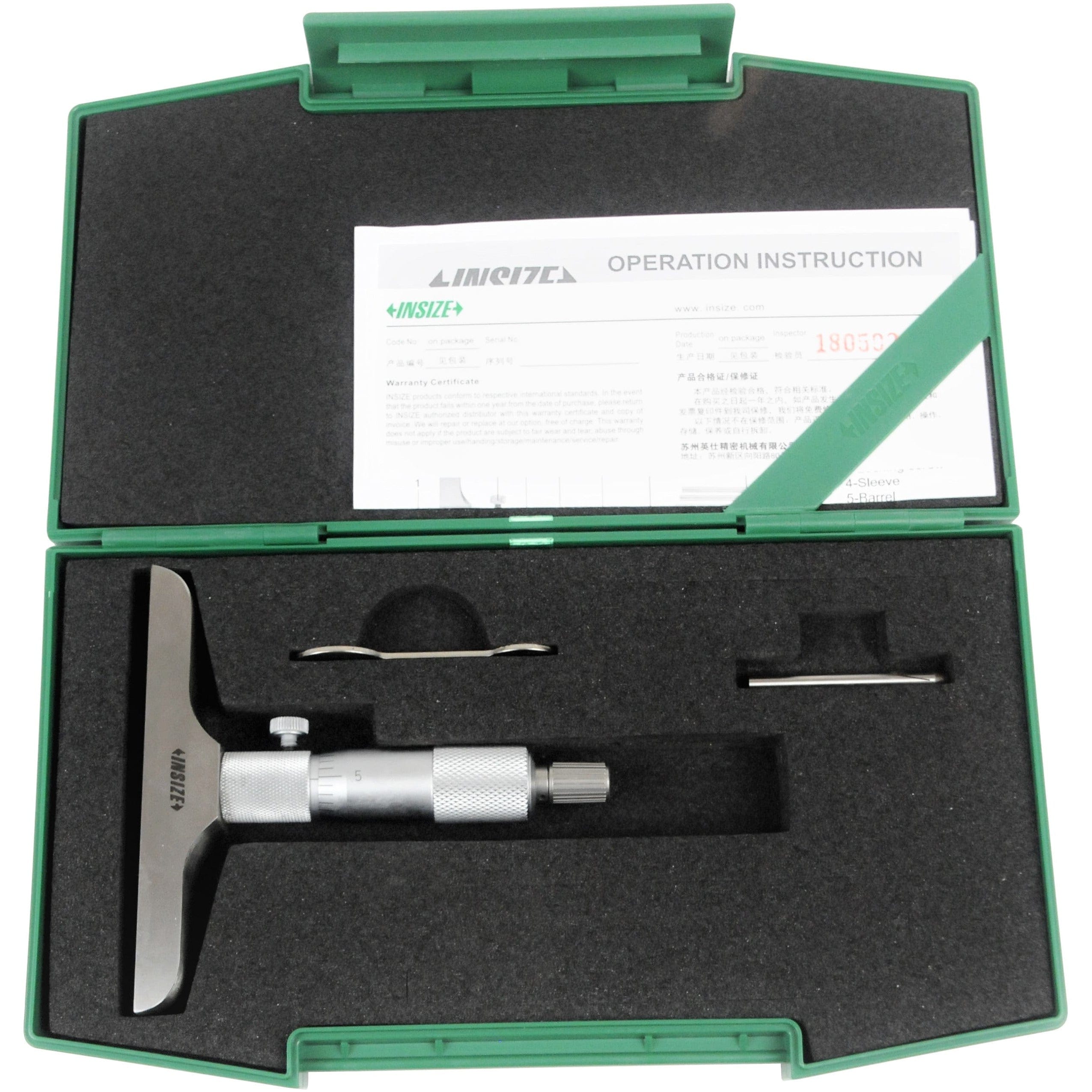

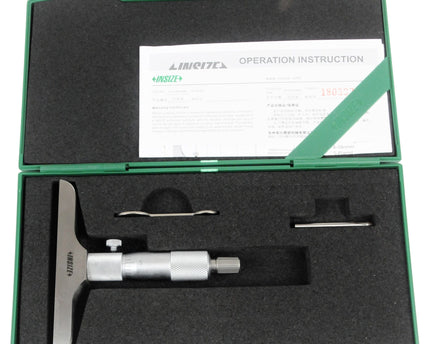

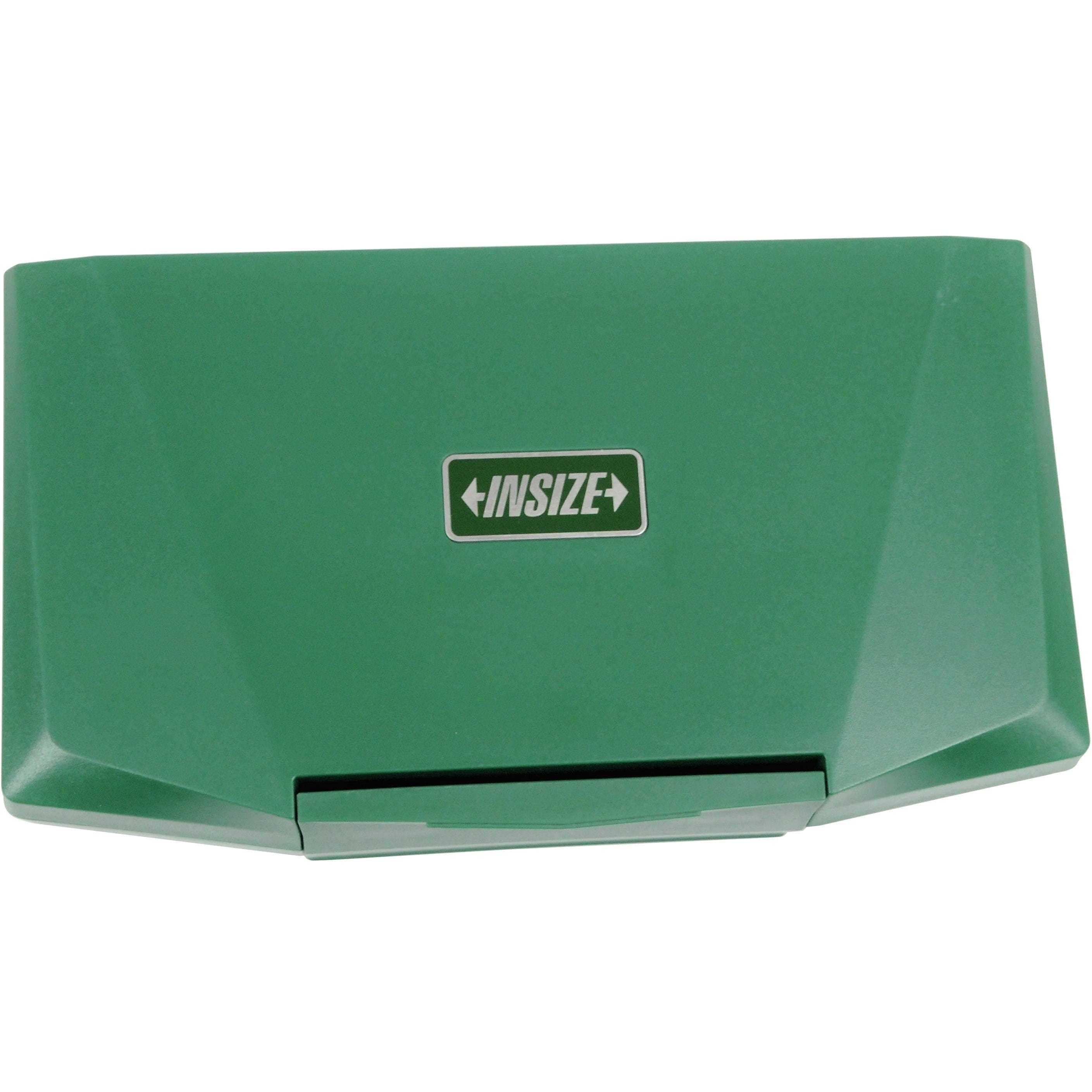

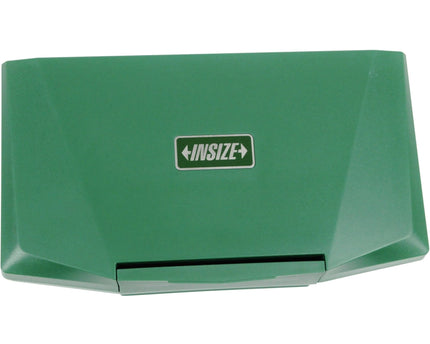

- Housed in a custom-styled protective case
Well-designed, durable, high-precision tools suitable for various measuring ranges, INSIZE depth micrometers provide dependable performance for precision depth measurement. Easy to use and built for accuracy, they are ideal for professional inspection and engineering applications.
