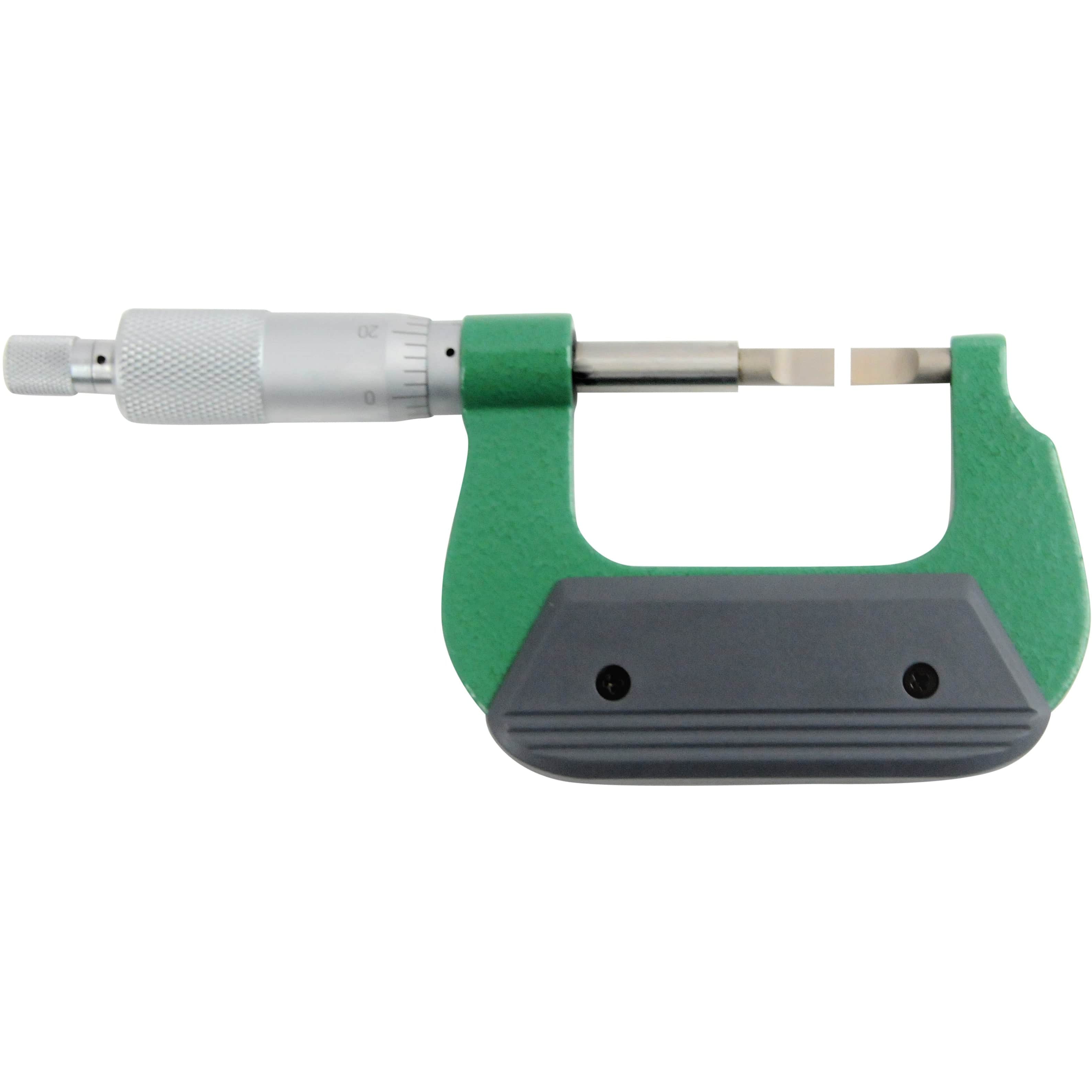

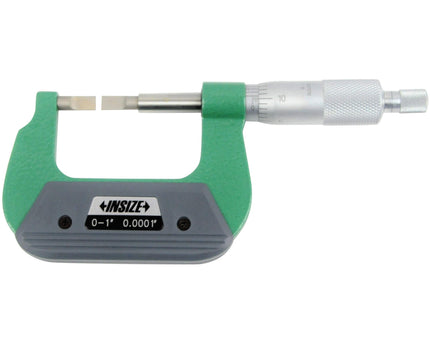

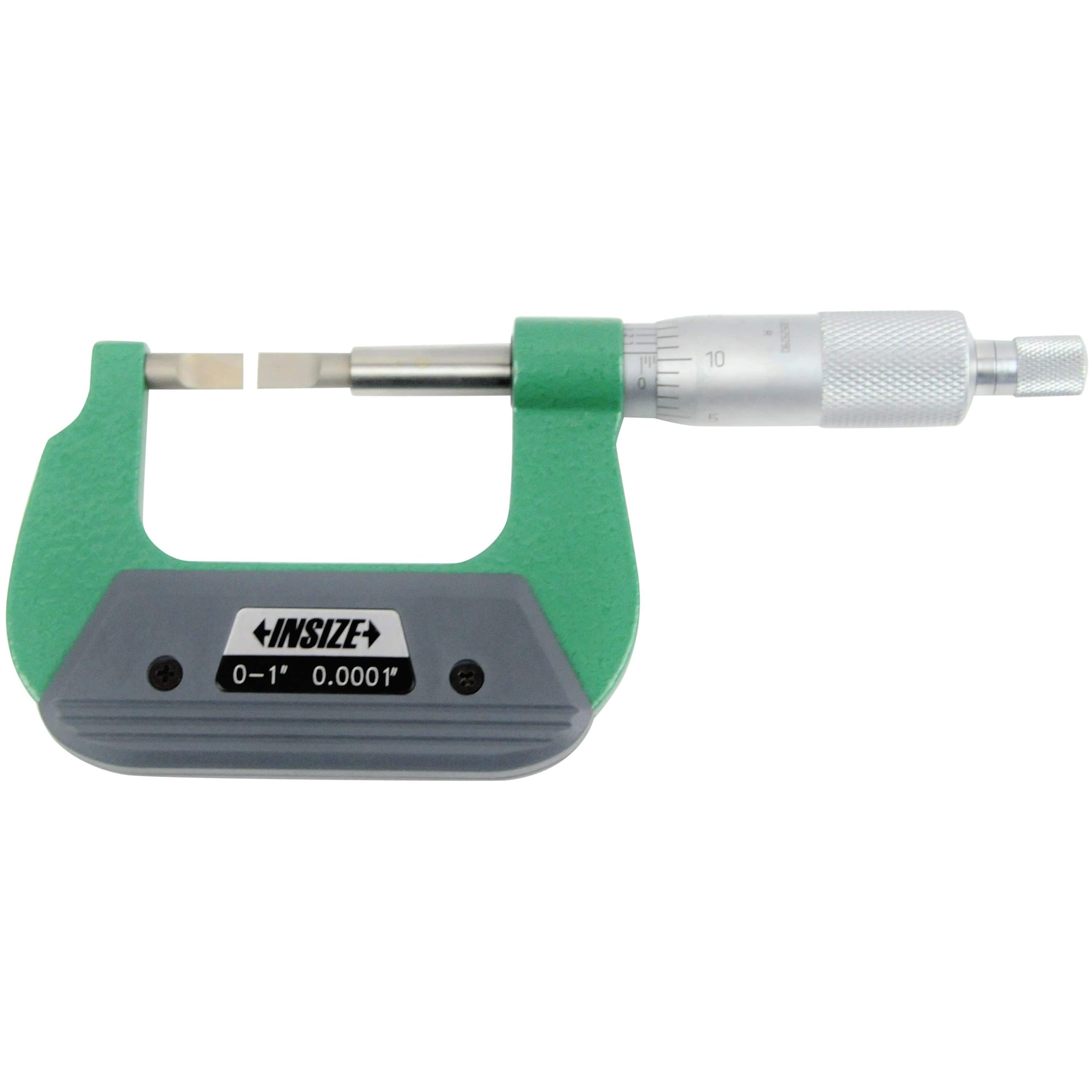

Insize 0–1" Outside Blade Micrometer
The Insize 0–1" Outside Blade Micrometer is designed for precise measurement of narrow features such as keyway grooves, slots, and recessed shaft diameters where standard flat anvils cannot reach. The thin blade-style measuring faces and non-rotating spindle provide accurate, repeatable measurements in confined applications commonly encountered in machining, toolmaking, and inspection environments.

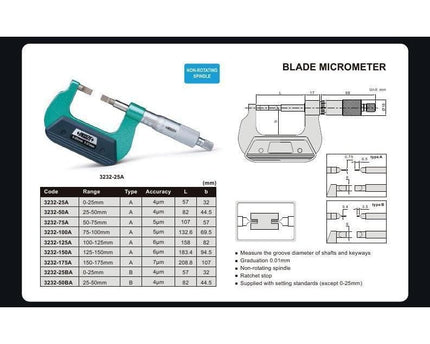

Specifications :
-
Part No: 3232-1
-
Measuring Range: 0–1"
-
Graduation: 0.0001"
- Manufactured in accordance with DIN 863
- Ideal for measuring keyway grooves and shaft diameters
- Non-rotating spindle for improved accuracy
- Hardened, ground, and lapped spindle thread

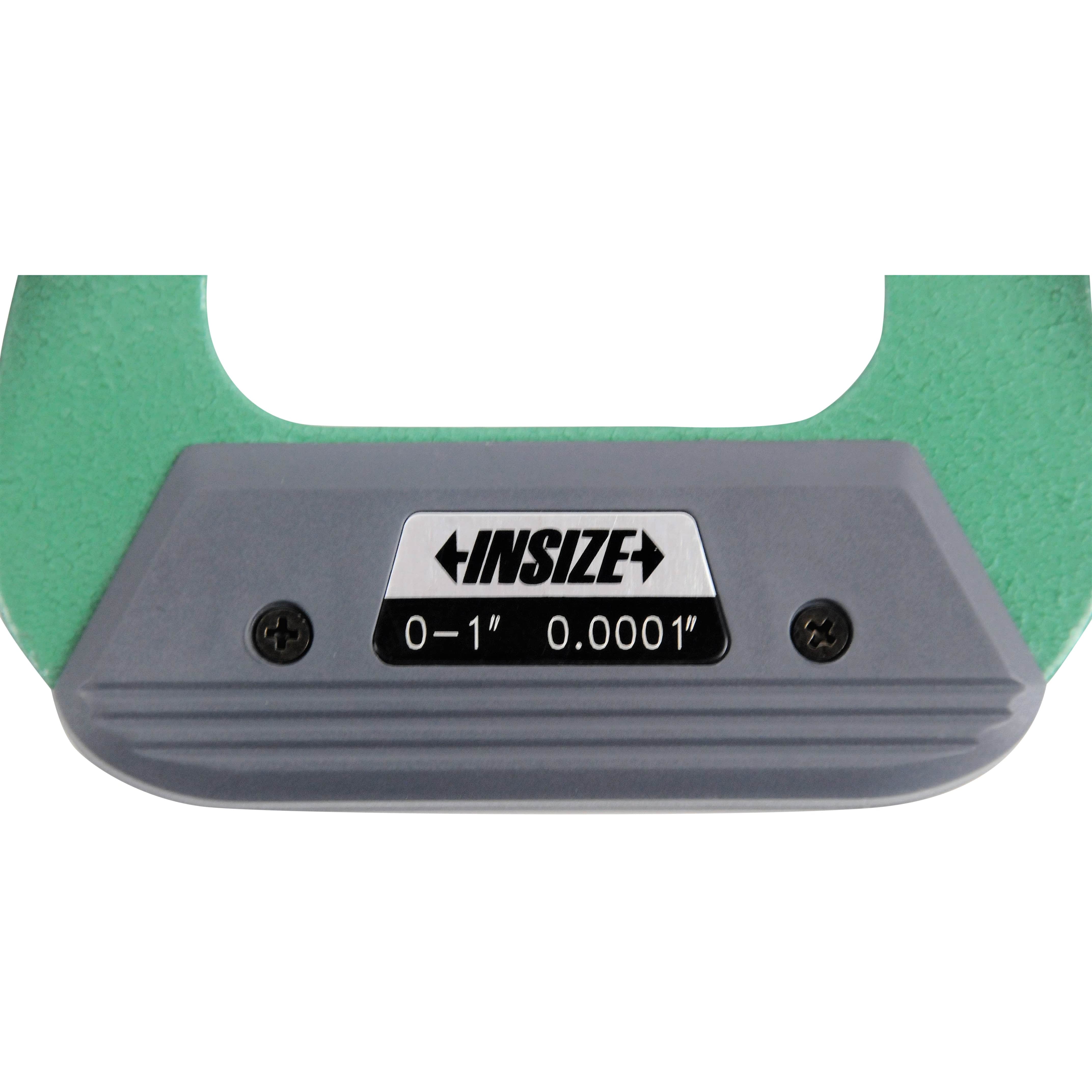

- Baked enamel finish frame
- Satin chrome barrel and thimble
- Clear, easy-to-read graduations
- Quick and easy adjustment

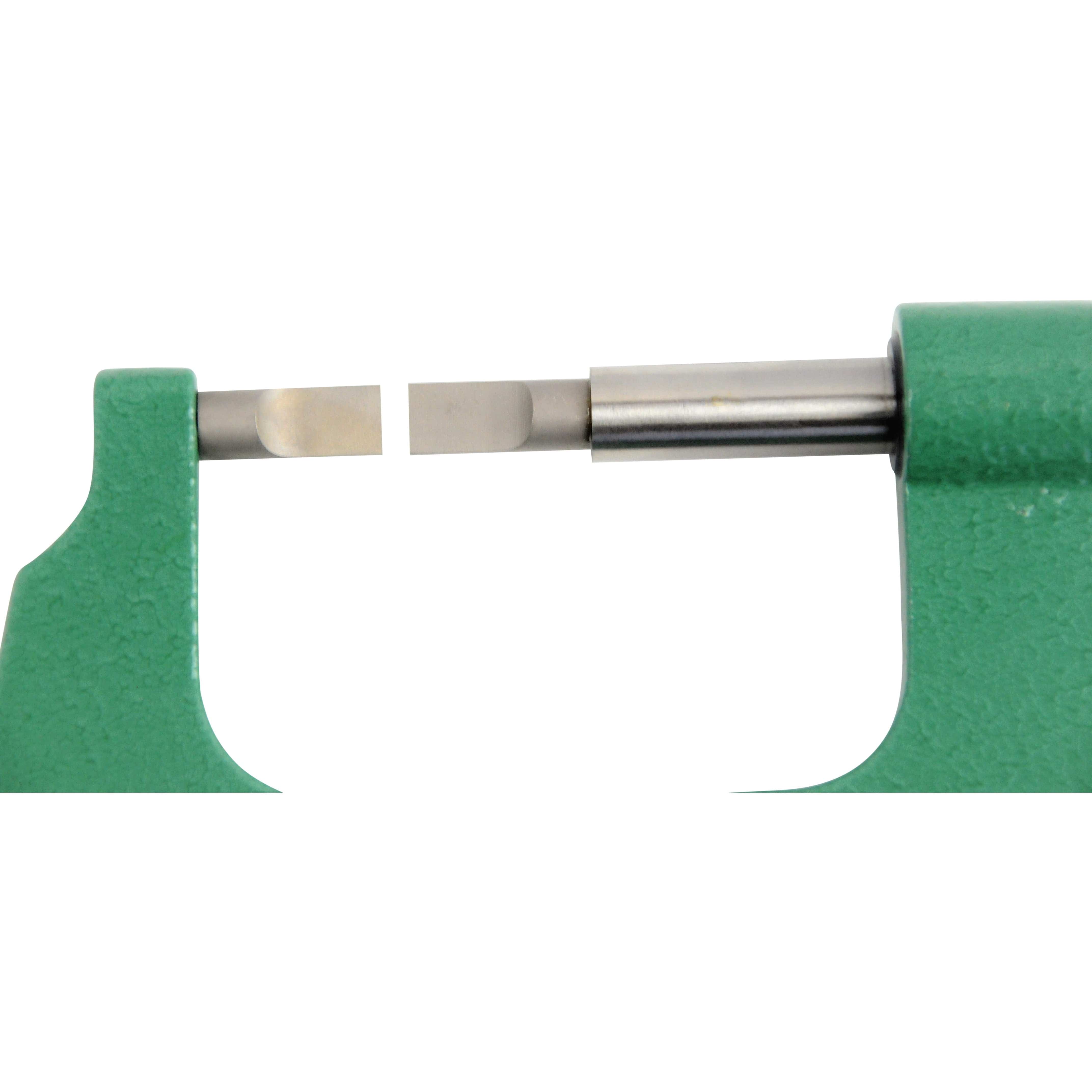

- Carbide measuring faces
- Spindle lock
- Ratchet stop for consistent measuring force

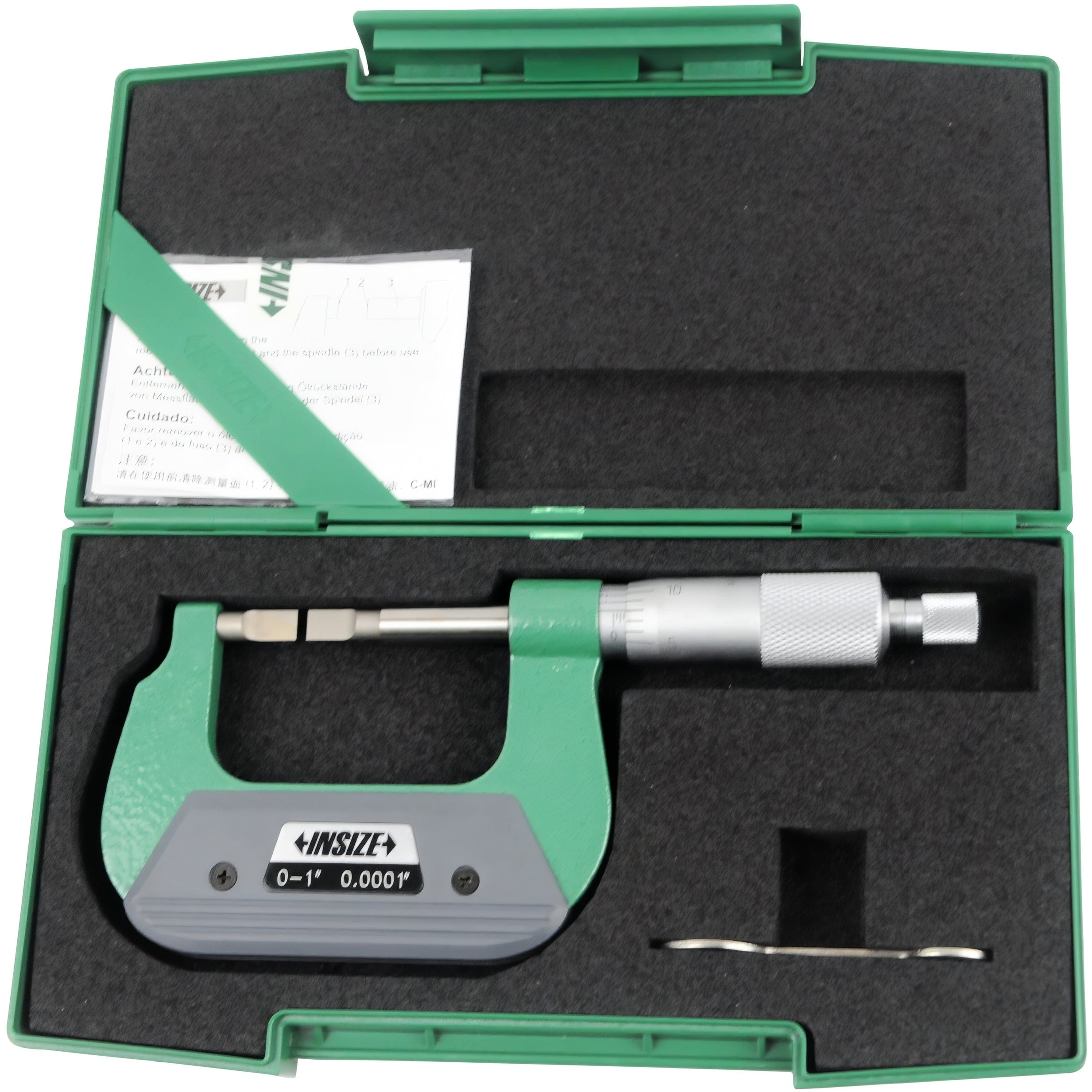

Includes :
- Zero adjusting wrench

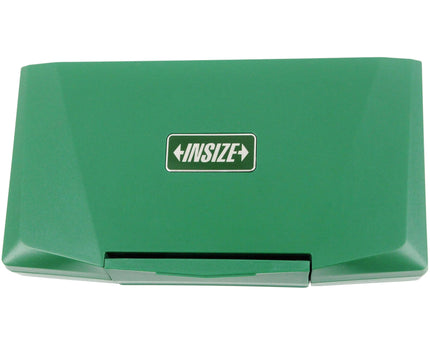

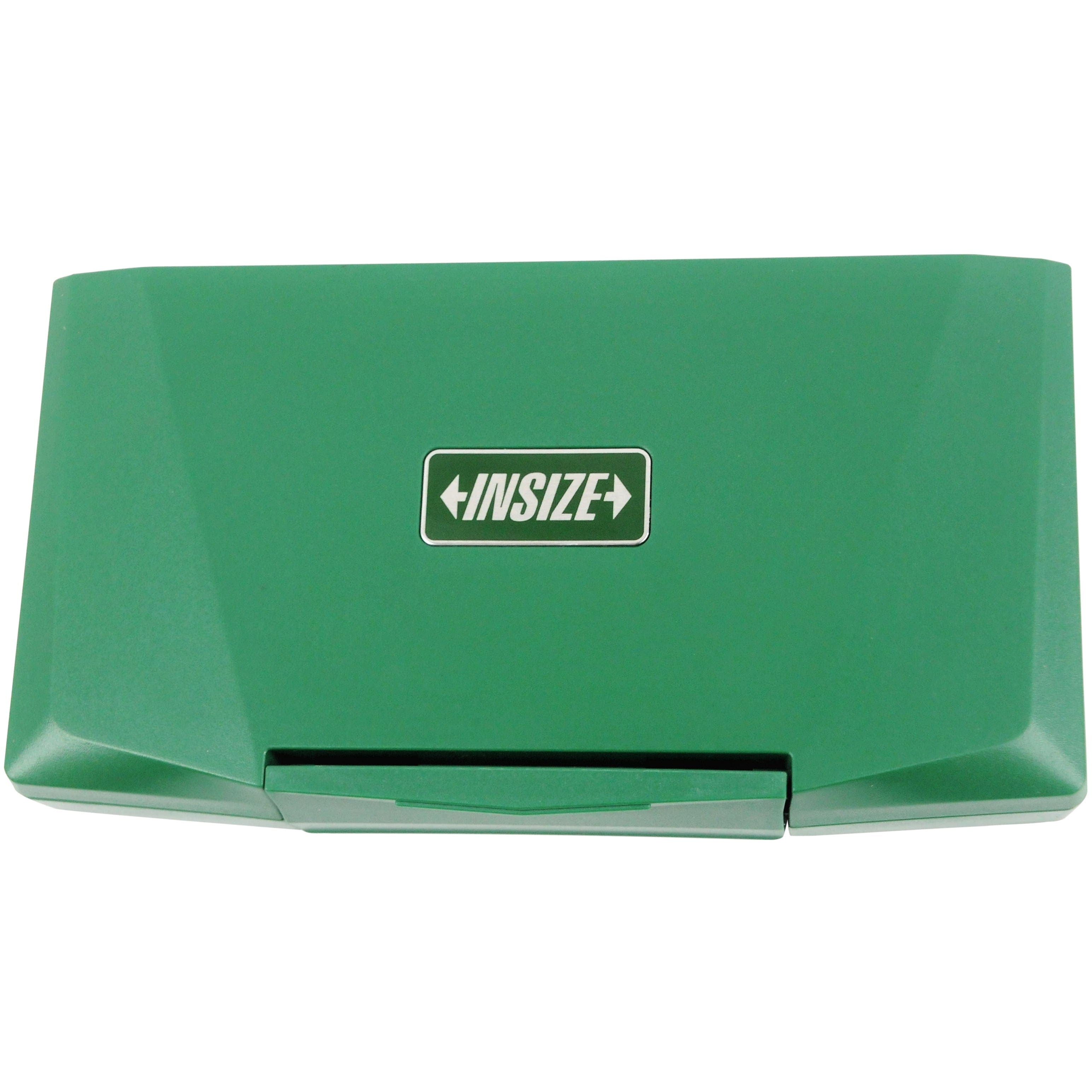

- Protective custom storage case
Well-designed, durable, and high-precision measuring instruments suitable for specialised measurement tasks. Insize blade micrometers provide dependable accuracy and ease of use when measuring narrow grooves, slots, and keyways.
