Description

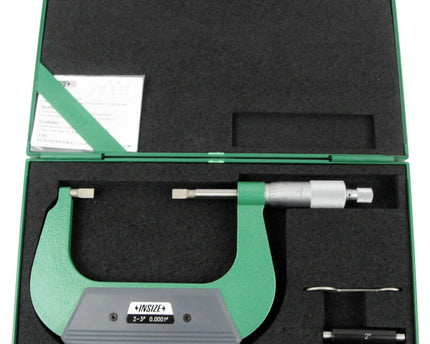

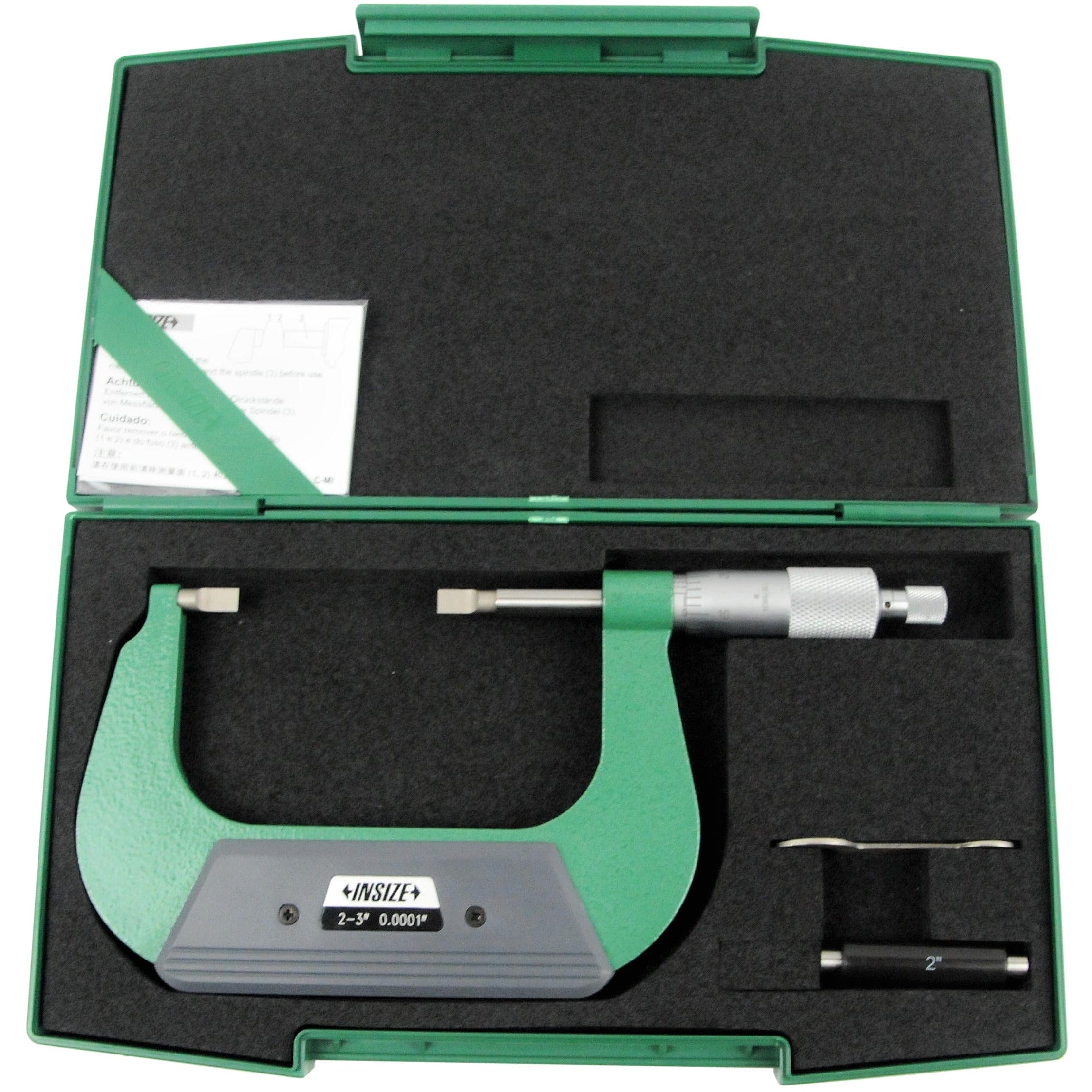

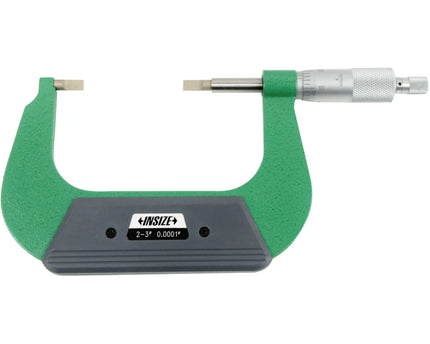

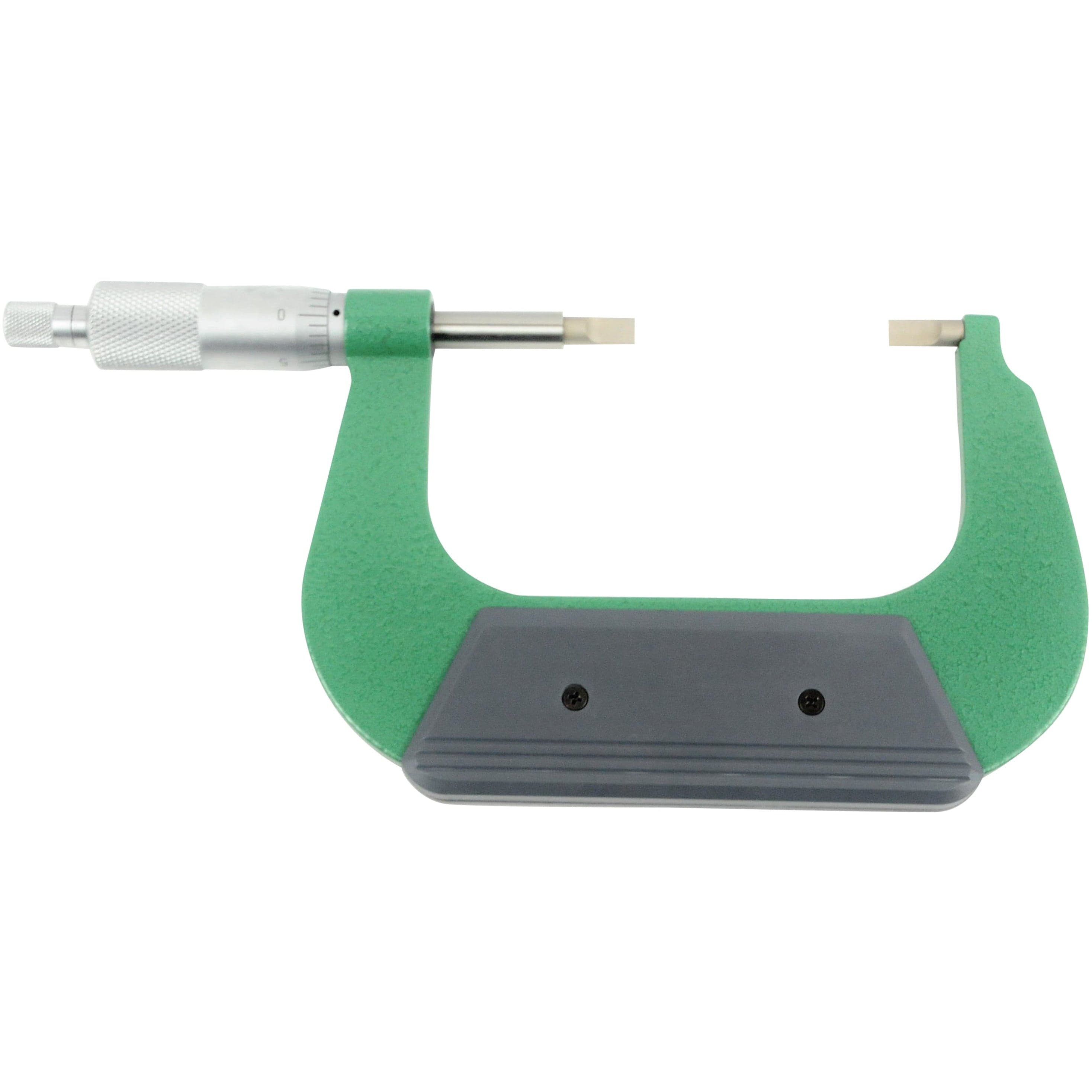

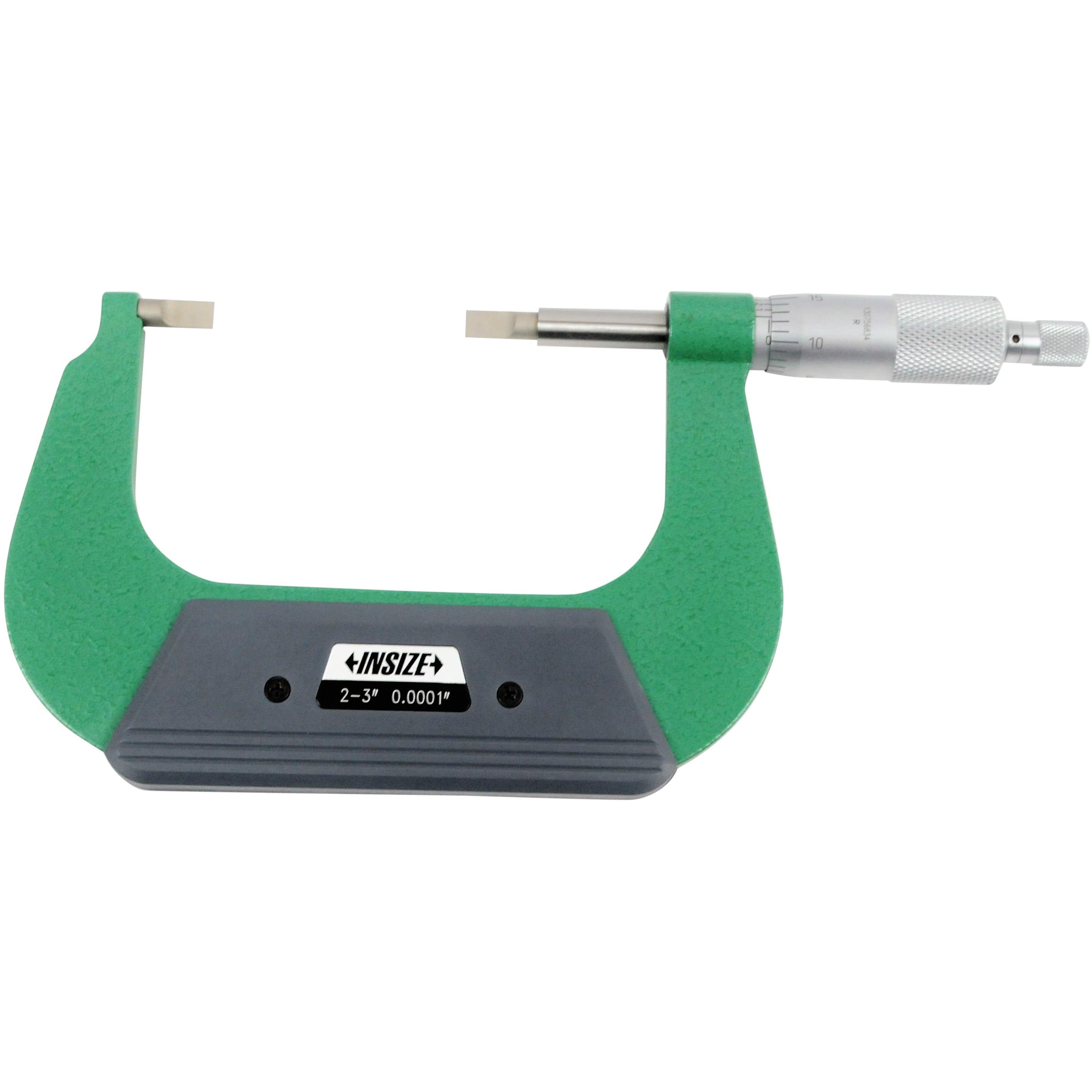

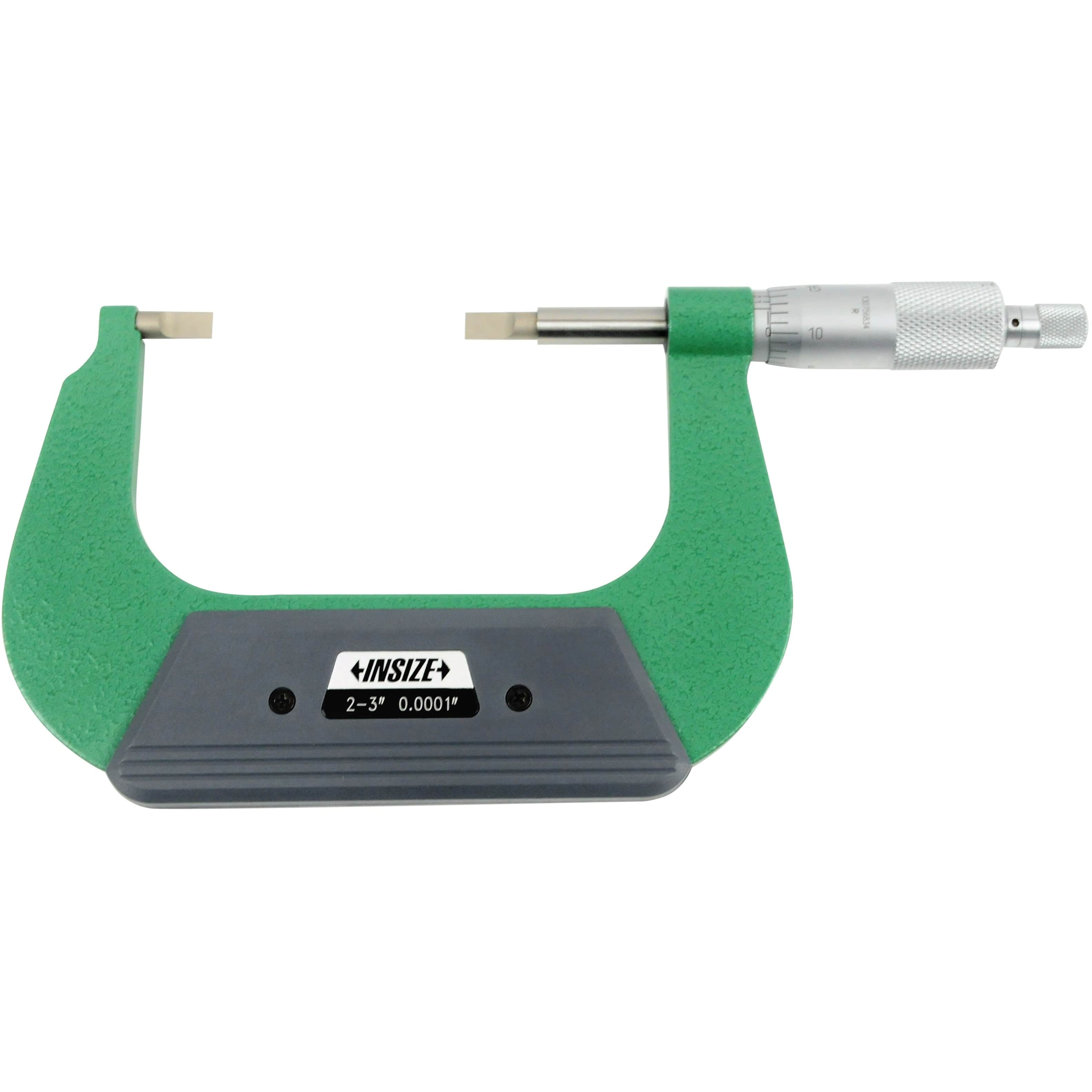

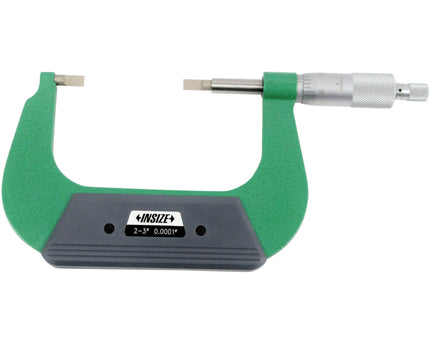

Insize 2–3" Outside Blade Micrometer
The Insize 2–3" Outside Blade Micrometer is designed for precise measurement of narrow features such as keyway grooves, slots, and recessed shaft diameters where standard flat anvils cannot be used. The blade-style carbide measuring faces and non-rotating spindle ensure stable, repeatable measurements in machining, inspection, and toolroom environments.

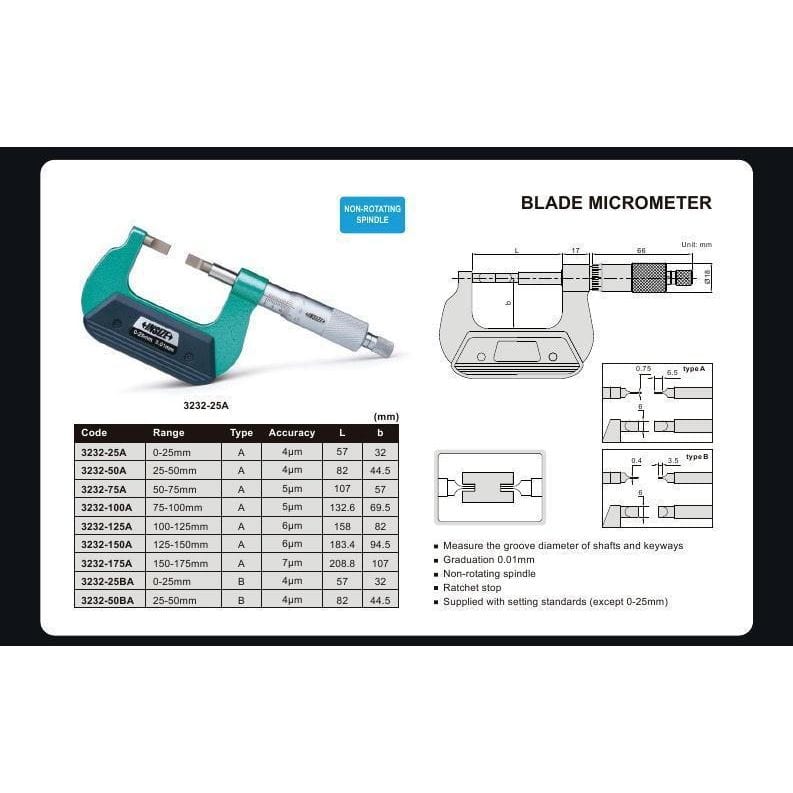

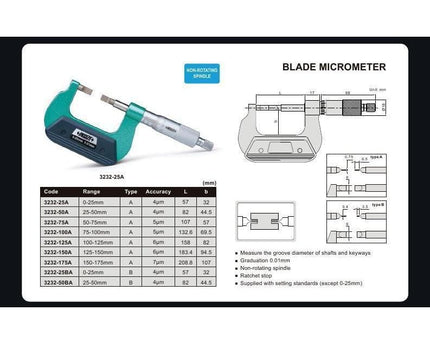

Specifications :
-
Part No: 3232-3
-
Measuring Range: 2–3"
-
Graduation: 0.0001"
- Manufactured in accordance with DIN 863
- Ideal for measuring grooves and shaft diameters of keyways
- Non-rotating spindle
- Spindle thread hardened, ground, and lapped for high accuracy
- Baked enamel finish frame

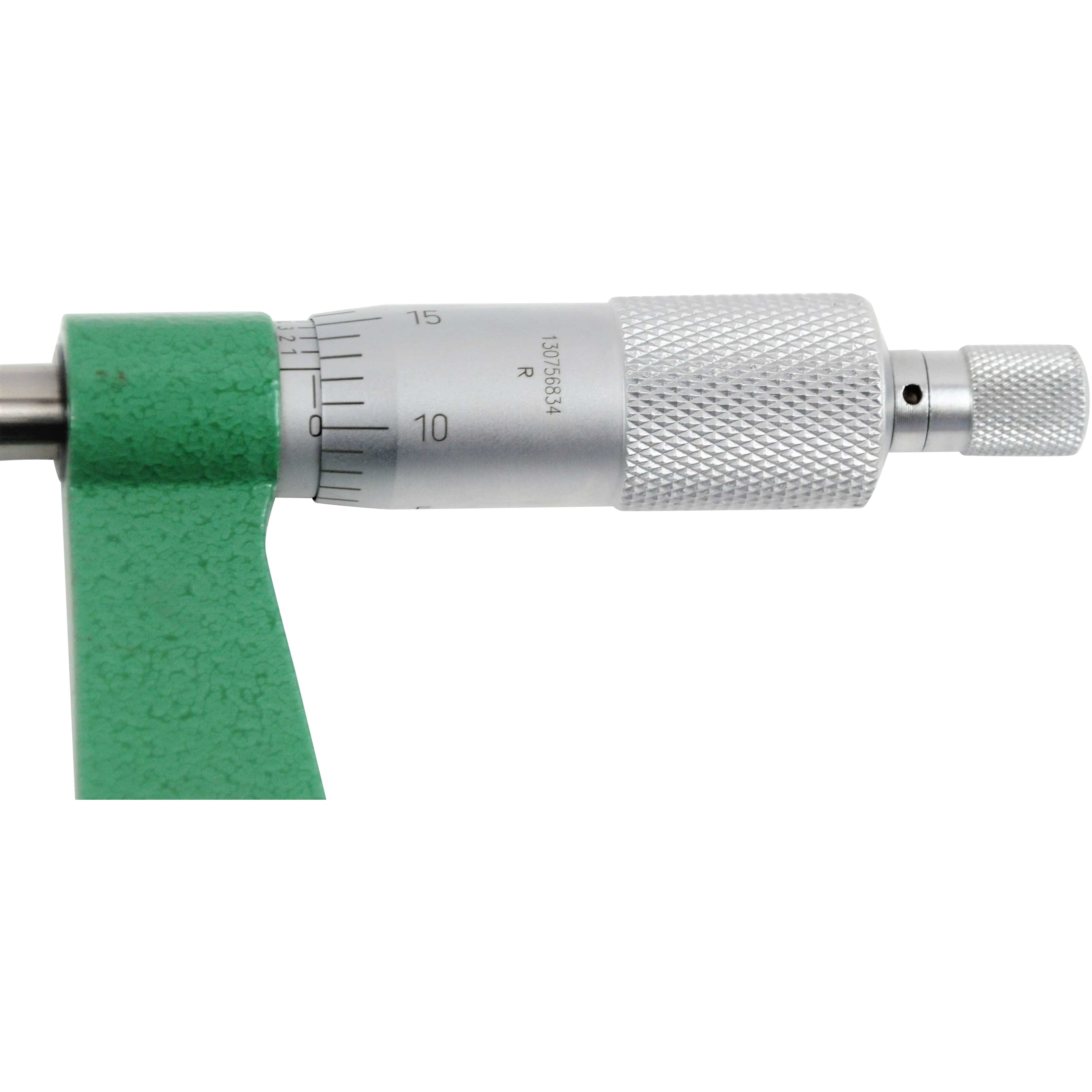

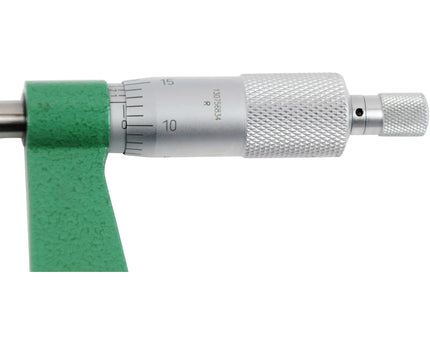

- Satin chrome barrel and thimble
- Clear graduations for easy operation
- Quick and easy adjustment

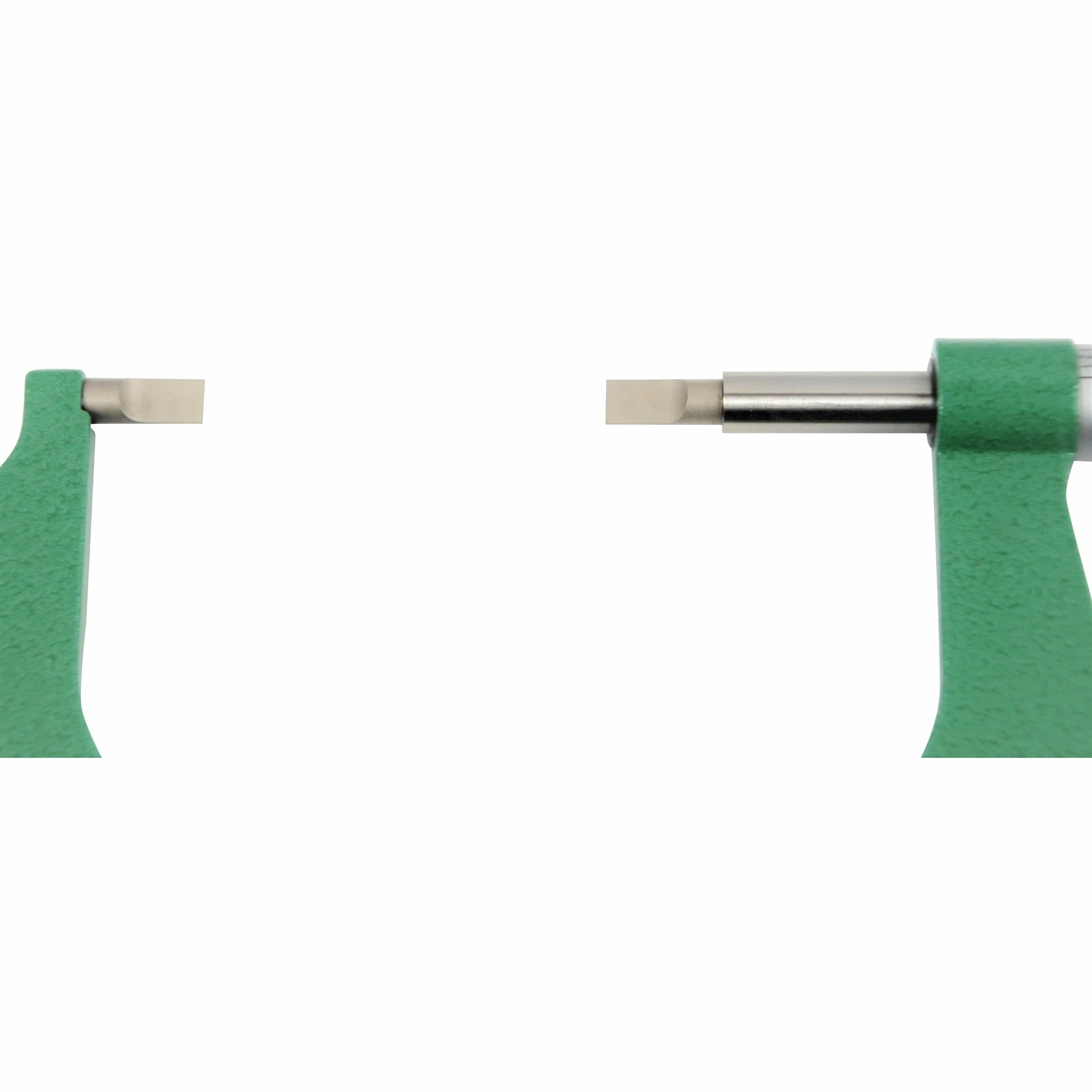

- Carbide measuring faces
- Spindle lock
- Ratchet stop for consistent measuring force
Includes :
- Zero adjusting wrench

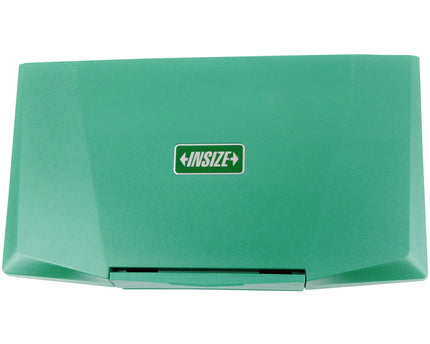

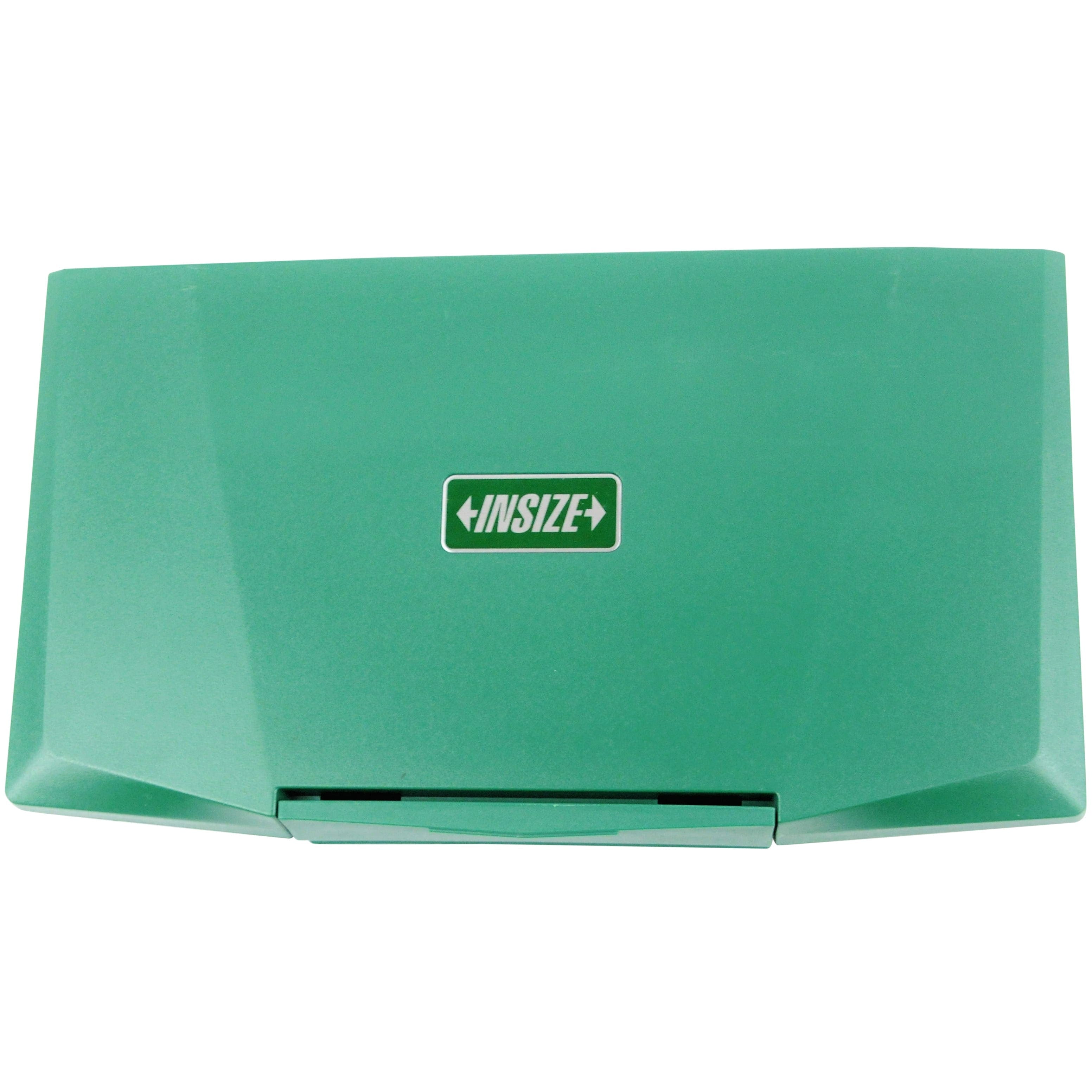

- Protective custom storage case
Well-designed, durable, and high-precision measuring tools suitable for specialised measurement tasks. Insize outside blade micrometers provide dependable accuracy and ease of use when measuring narrow grooves, slots, and keyways.
