Description

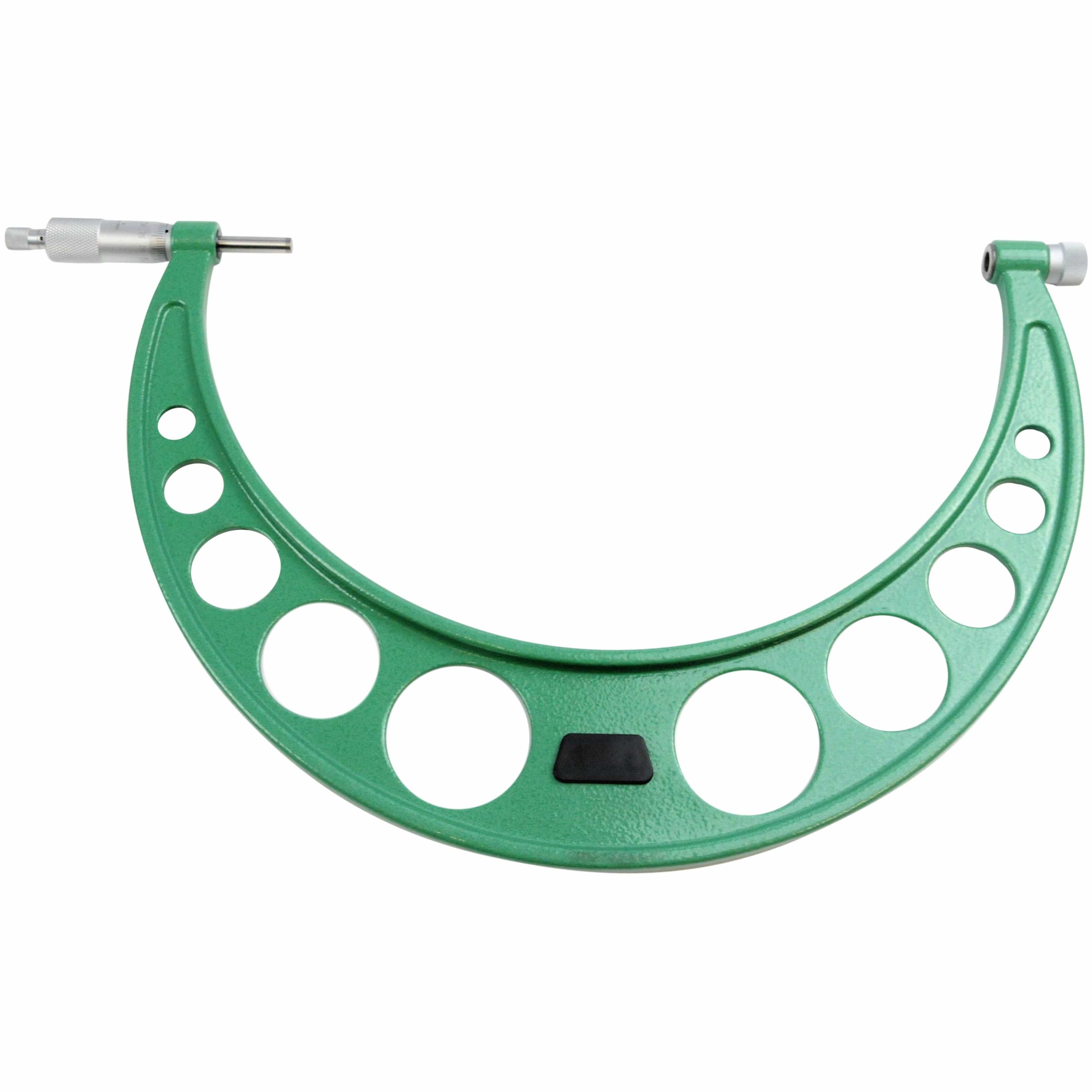

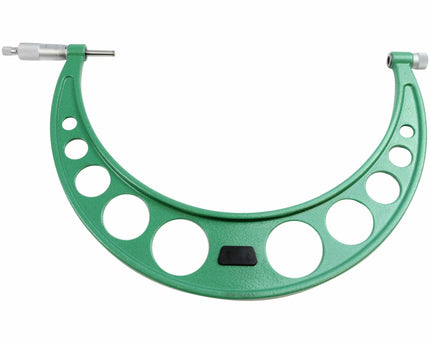

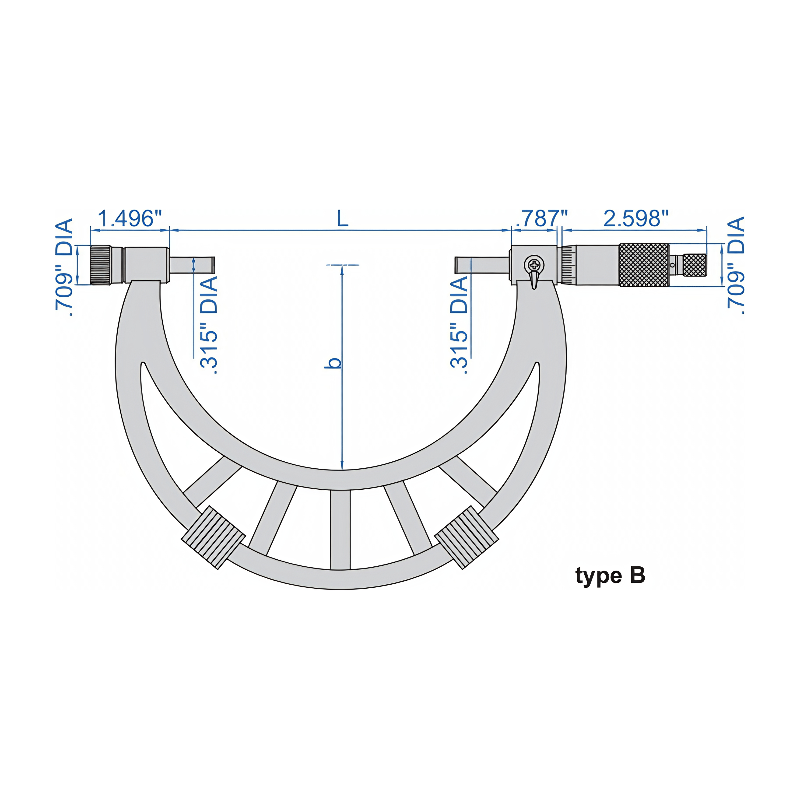

Insize 12–16" Outside Micrometer
The Insize 12–16" Outside Micrometer is a heavy-duty precision measuring instrument designed for accurate external measurement of large components. Featuring an interchangeable anvil system and robust construction, it is ideal for machining, inspection, and quality control applications where reliability, accuracy, and repeatability are essential.

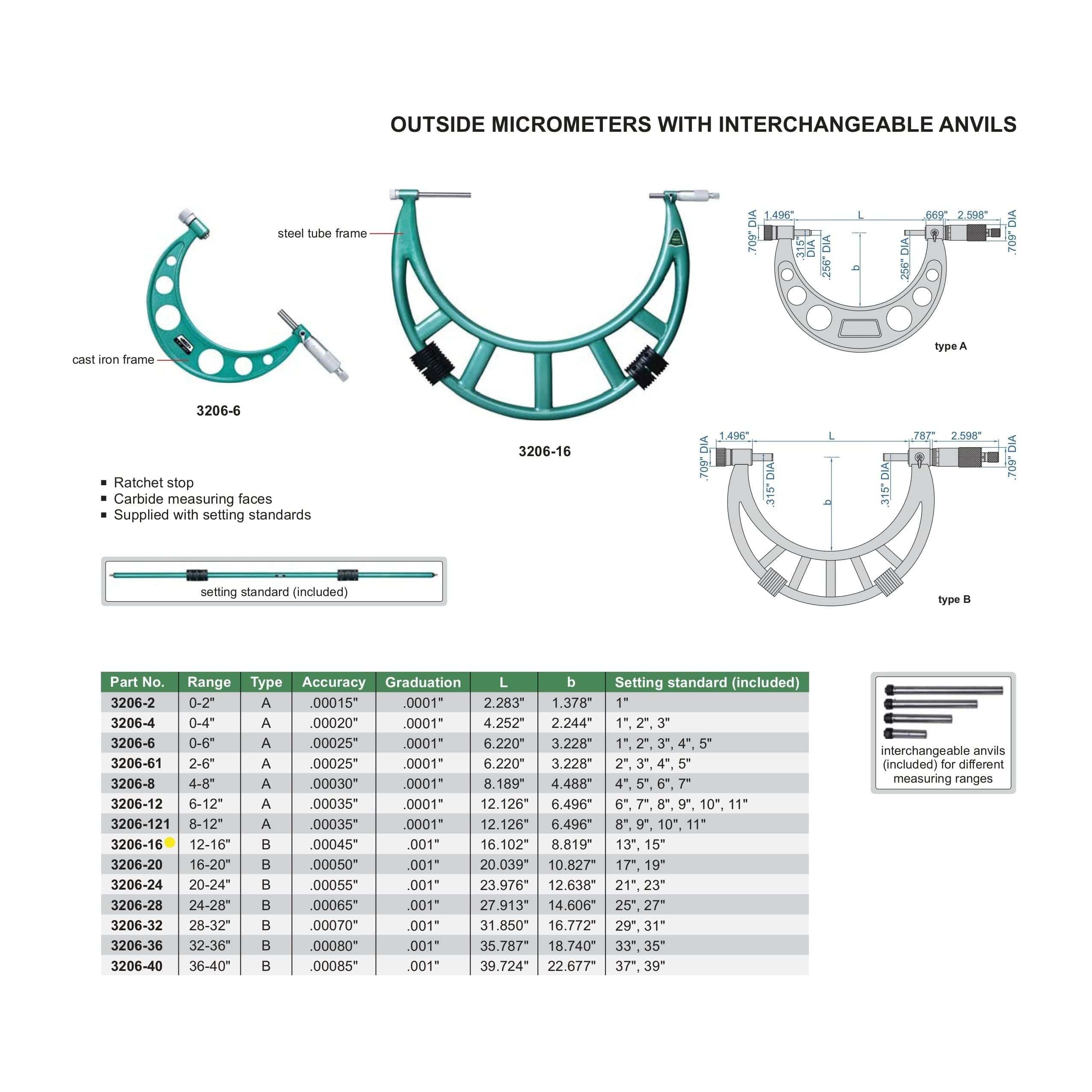

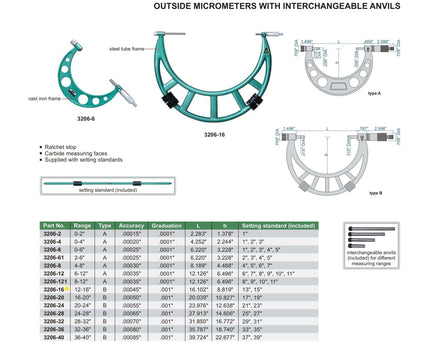

Specifications :
- Part No.: 3206-16
- Measuring range: 12–16"
- Graduation: 0.0001"
- Manufactured strictly in accordance with DIN 863
- Interchangeable anvil system for extended measuring capability
- Spindle thread hardened, ground, and lapped for maximum accuracy and repeatability
- Baked enamel finish frame for strength and corrosion resistance
- Barrel and thimble with satin chrome finish for clear, glare-free readings
- Clearly defined graduations for easy and precise measurement
- Carbide measuring faces for high wear resistance and long service life

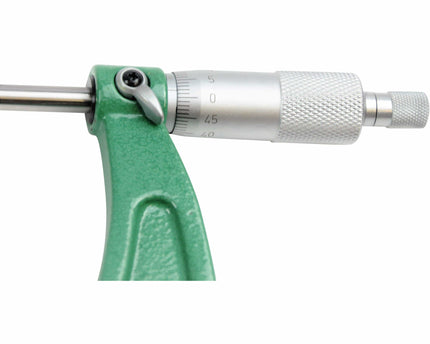

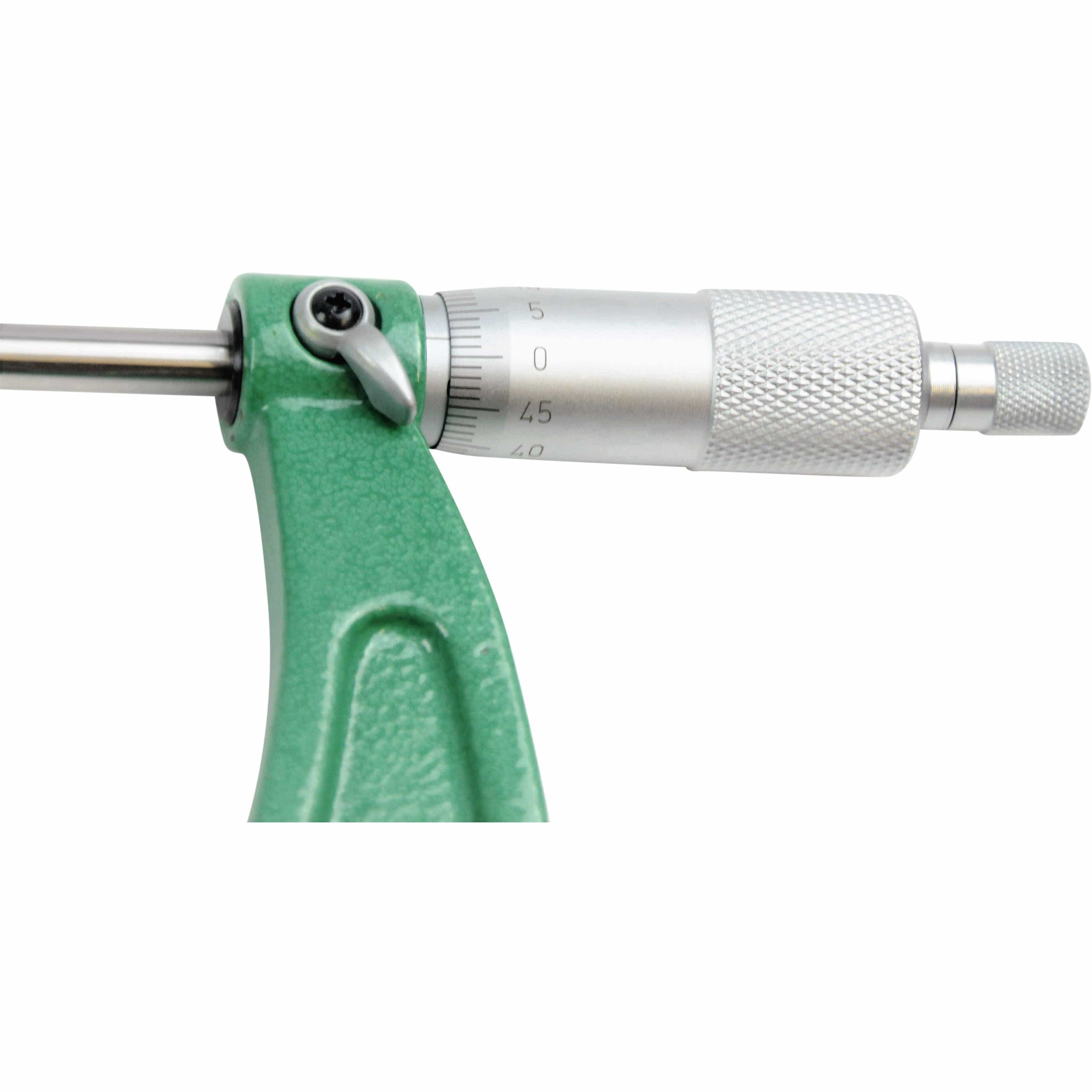

- Spindle lock for securing measurements
- Ratchet stop to ensure consistent measuring pressure
- Smooth and quick adjustment across the measuring range

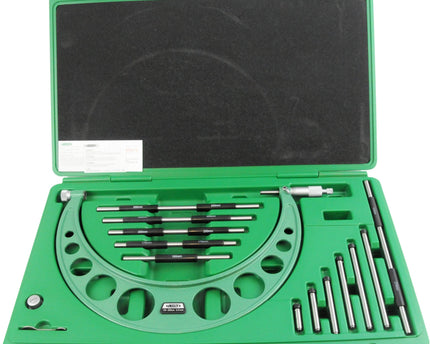

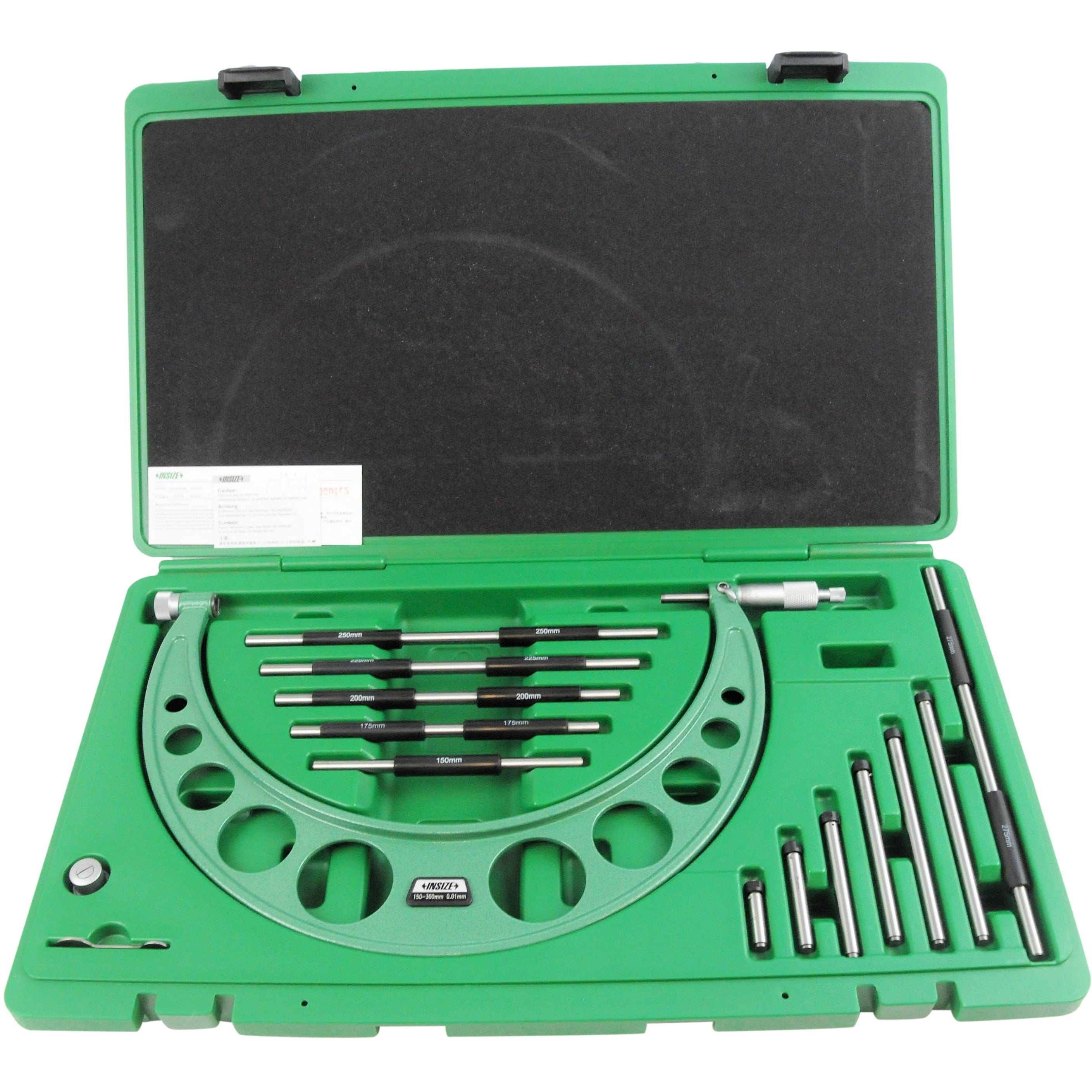

Includes

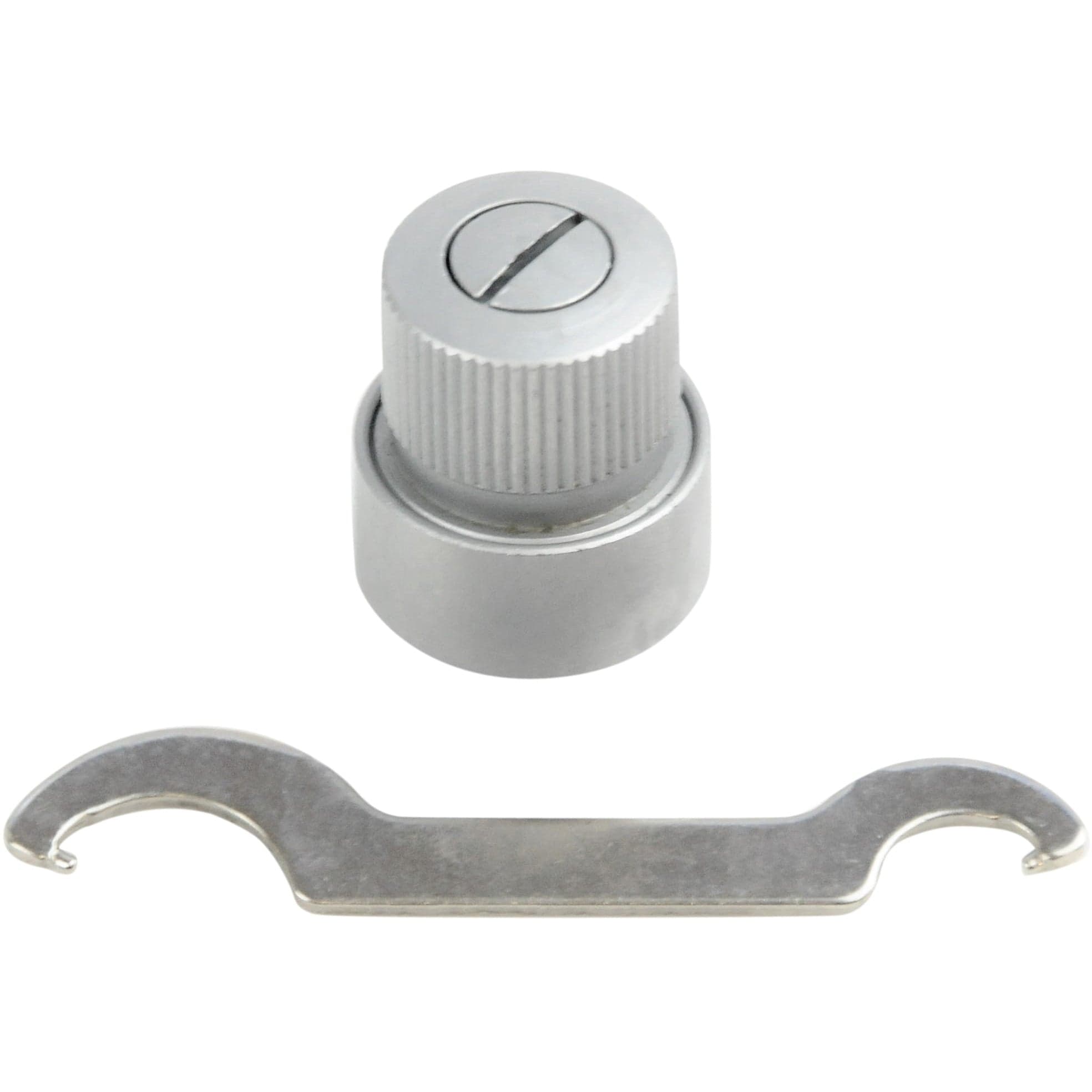

- Zero adjusting wrench
- Insize 3206-16 outside micrometer (12–16" range, 0.0001" graduation)
- Full set of calibration rods
- Full set of interchangeable anvils
- Custom-styled protective case
Built for durability and precision, this Insize outside micrometer provides dependable performance for measuring large external dimensions. It is an essential tool for professional users who require accurate, repeatable measurements in demanding workshop and inspection environments.
