Description
Insize Imperial Welding Gauge

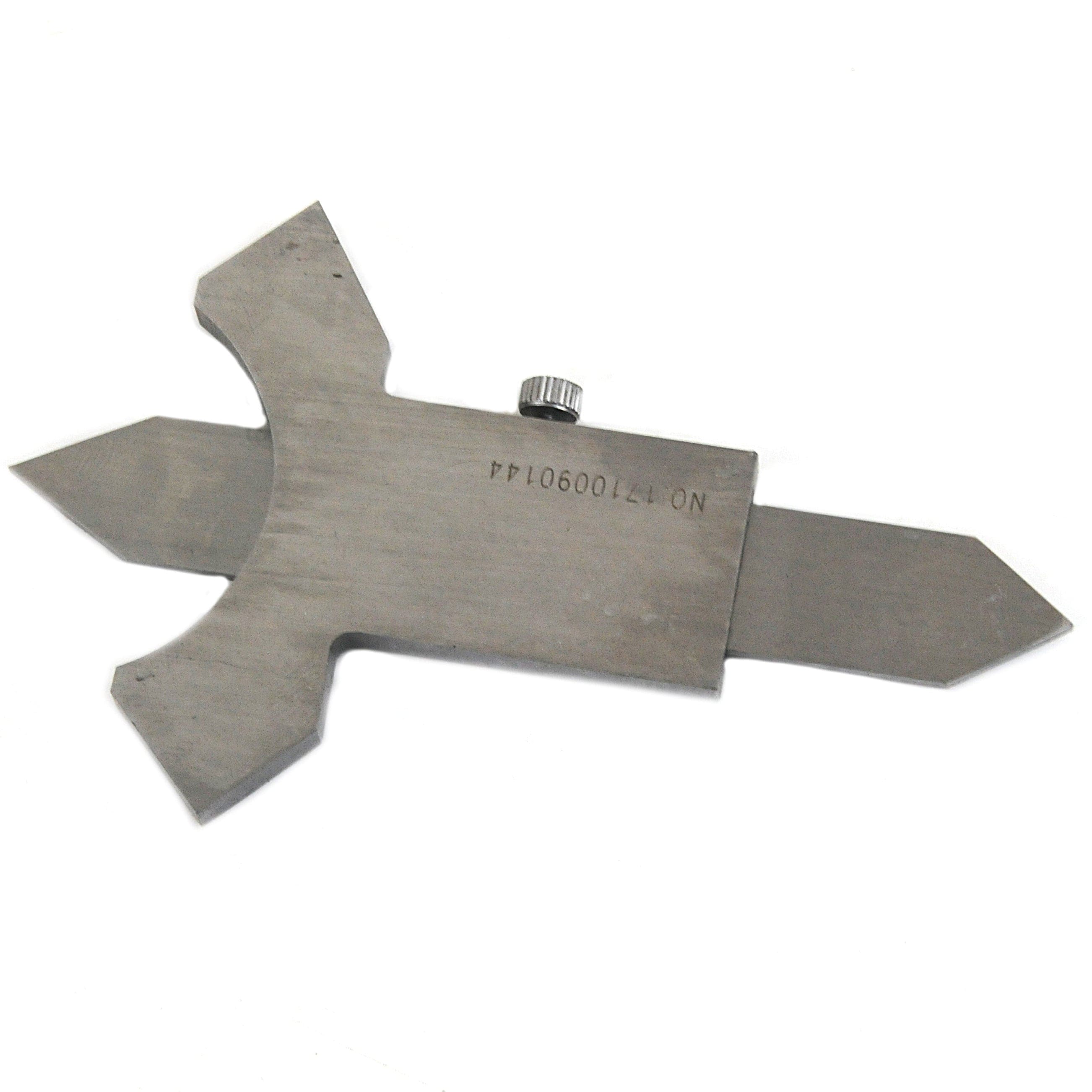

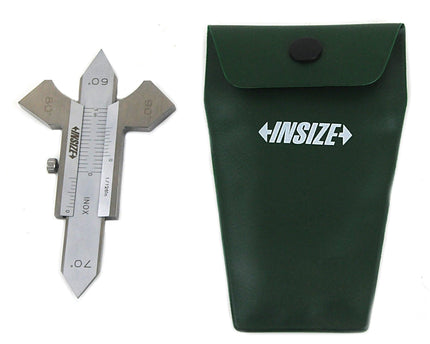

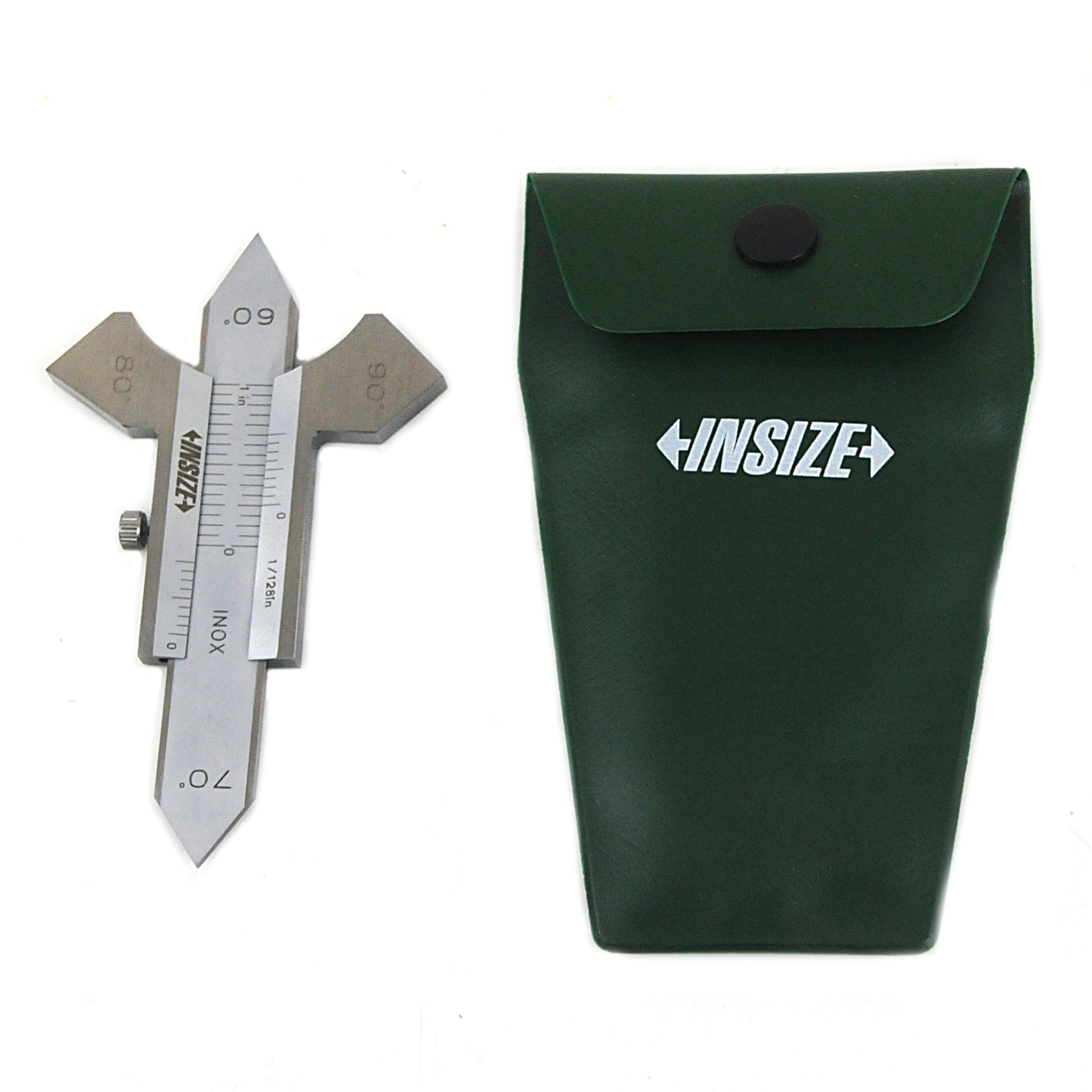

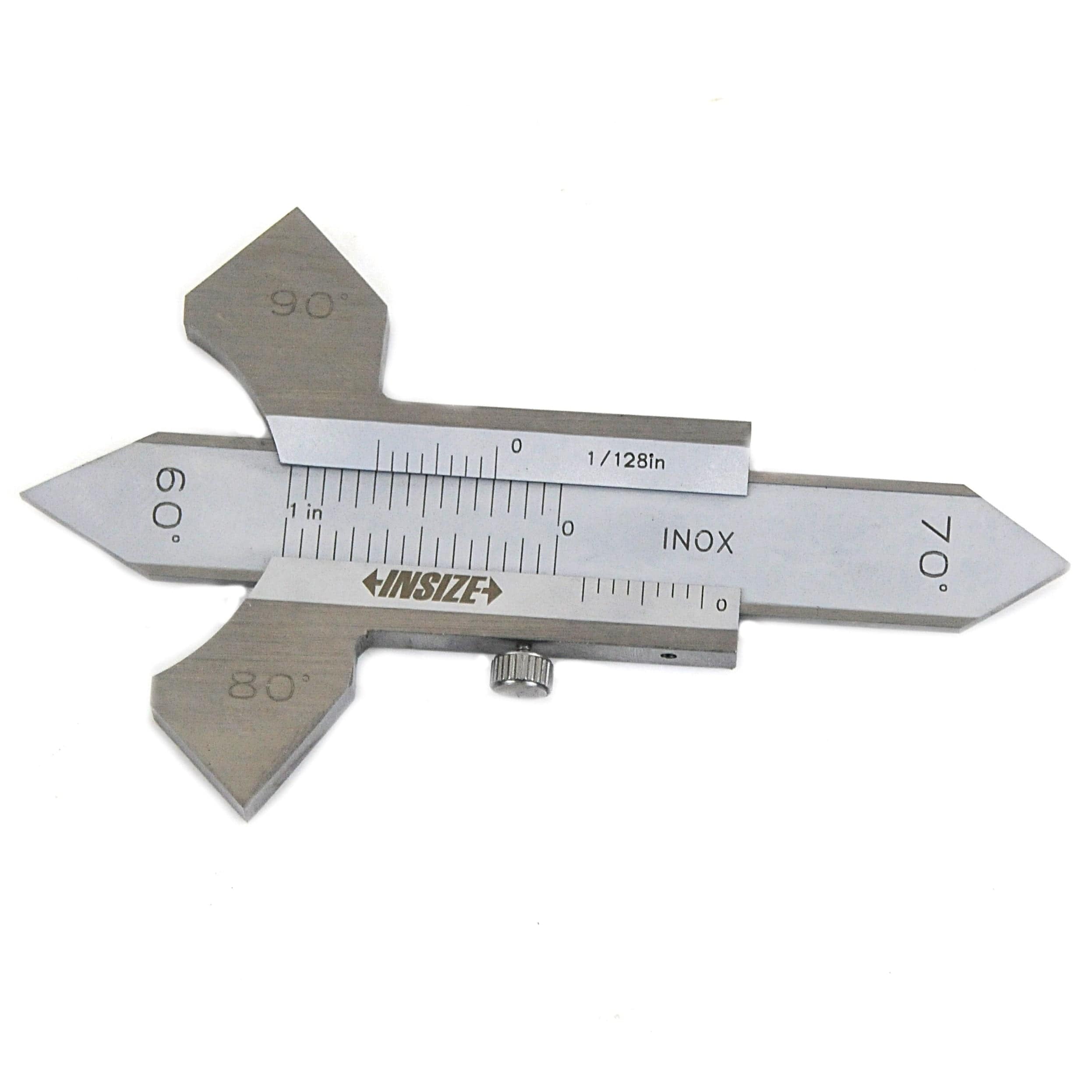

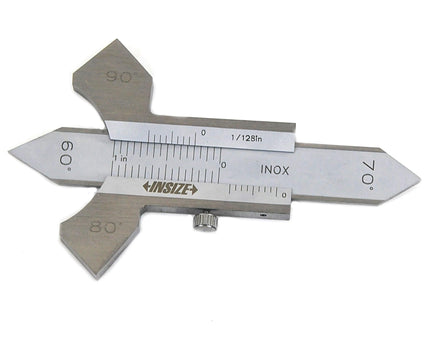

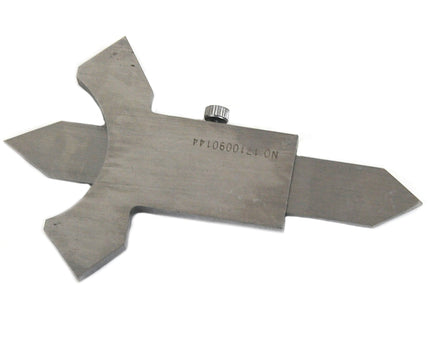

The Insize Imperial Welding Gauge is a precision inspection tool designed for accurate measurement of weld dimensions and angles in fabrication and inspection tasks. Its stainless steel construction and satin chrome-plated reading surfaces provide durability, corrosion resistance, and clear readability in workshop and on-site environments.
Specifications:
-
Part Number: 4830-E
-
Material: Stainless steel
-
Finish: Satin chrome-plated reading surface

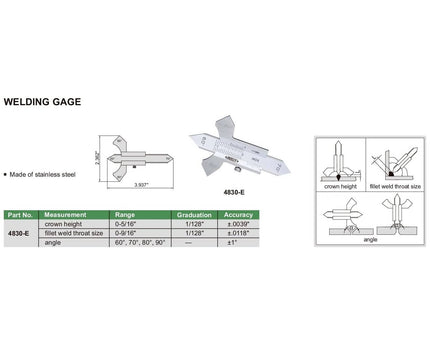

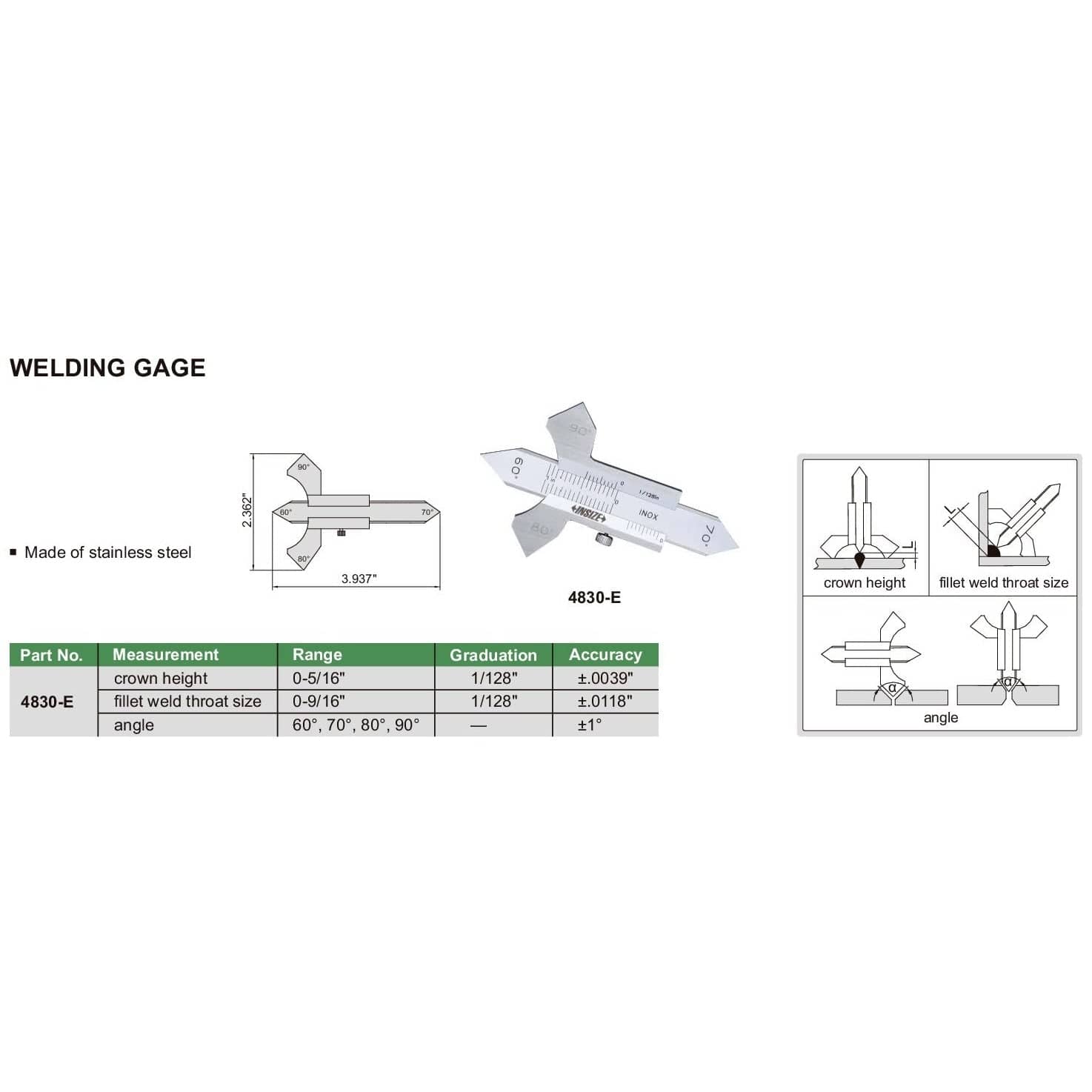

| Measurement |
Range |
Graduation |
Accuracy |
| Crown height |
0 – 5/16" |
1/128" |
±0.0039" |
| Fillet weld throat size |
0 – 9/16" |
1/128" |
±0.0118" |
| Angle |
60°, 70°, 80°, 90° |
– |
±1° |
Designed for reliable and repeatable measurements, this imperial welding gauge enables accurate verification of weld size, throat depth, crown height, and joint angles, making it suitable for fabrication, inspection, and quality control applications.
