Description

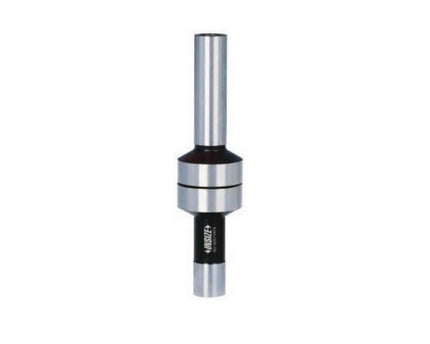

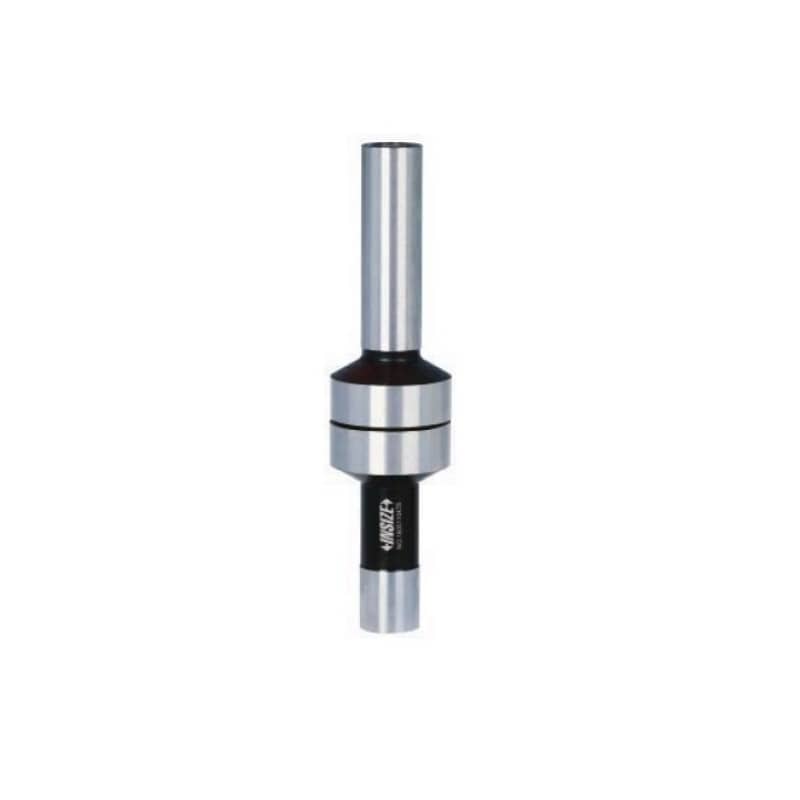

The Insize 6562-3 Diameter Edge Finder is a precision tool designed for accurately locating edges, workpiece positions, and reference points on milling machines and machining centres. It is essential for setting zero points and ensuring precise alignment before machining operations.
Manufactured with a hardened shank and contact point, this edge finder provides excellent durability and consistent accuracy. Its reliable mechanical design allows for clear visual indication when the edge is located, making it easy to use for machinists and operators in workshop environments.
Key Features & Benefits
- Designed for precise edge and centre finding on workpieces
- Ø10mm shank and Ø10mm contact point for standard applications
- Hardened shank and contact tip for durability and long service life
- Provides clear visual indication when edge is reached
- High accuracy of 5µm for reliable positioning
- Suitable for milling machines and machining centres
- Recommended operating speed: 400–600 rpm

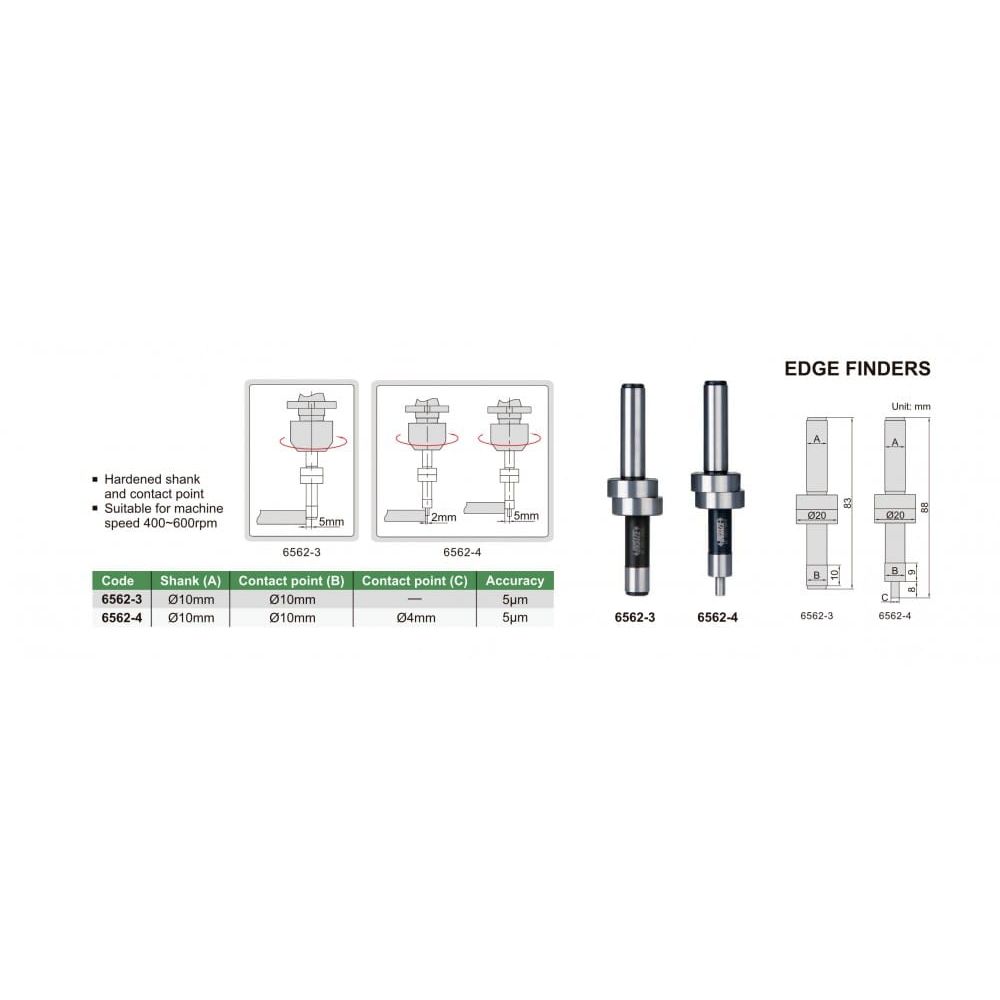

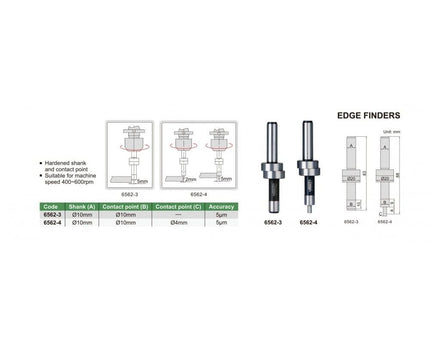

Technical Specifications
- Part Number: 6562-3
- Product Type: Diameter Edge Finder
- Shank Diameter (A): Ø10mm
- Contact Point (B): Ø10mm
- Accuracy: 5µm
- Recommended Speed: 400–600 rpm
Insize is a globally recognised manufacturer of precision measuring tools, delivering reliable and high-quality instruments trusted across machining, engineering, and industrial applications worldwide.
