Description

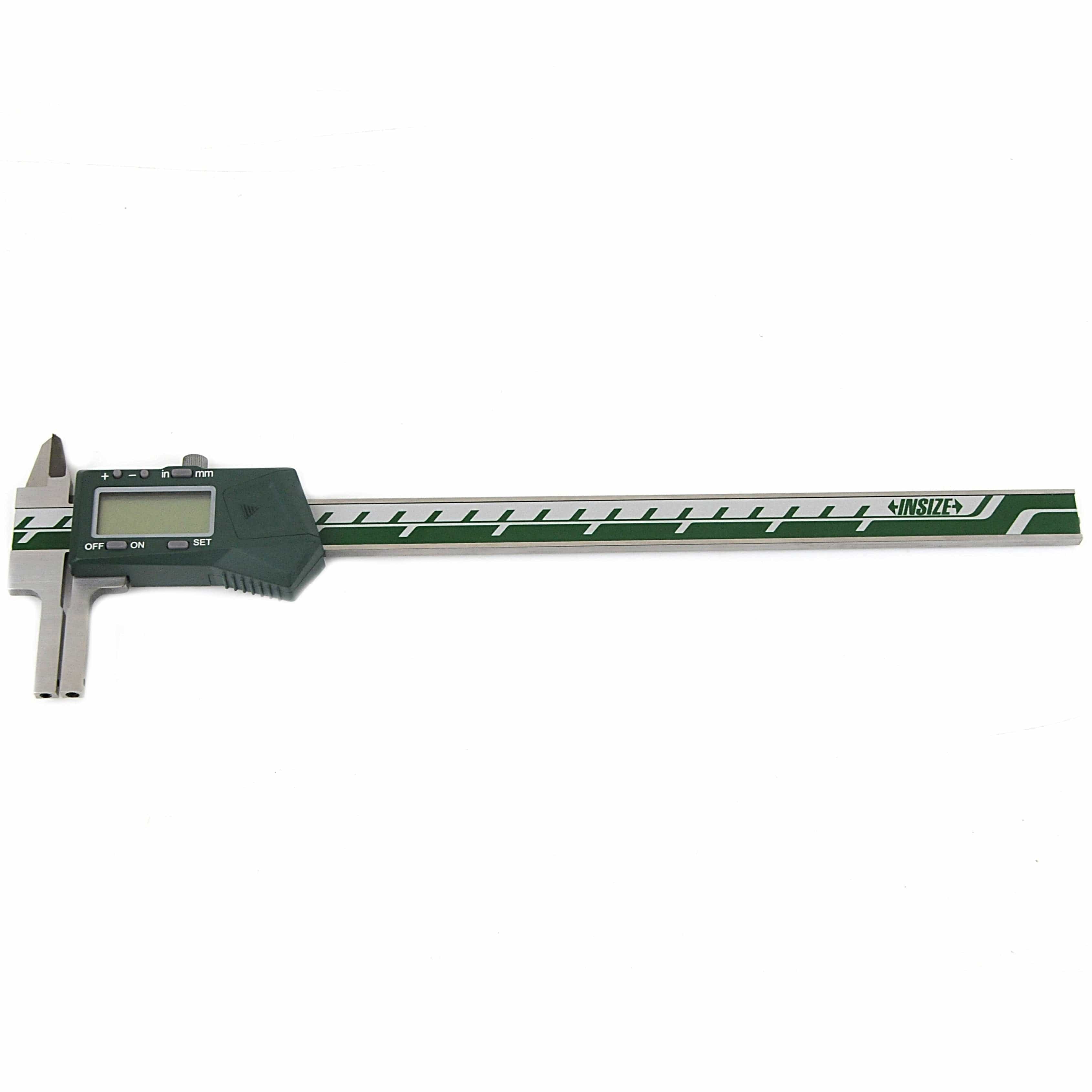

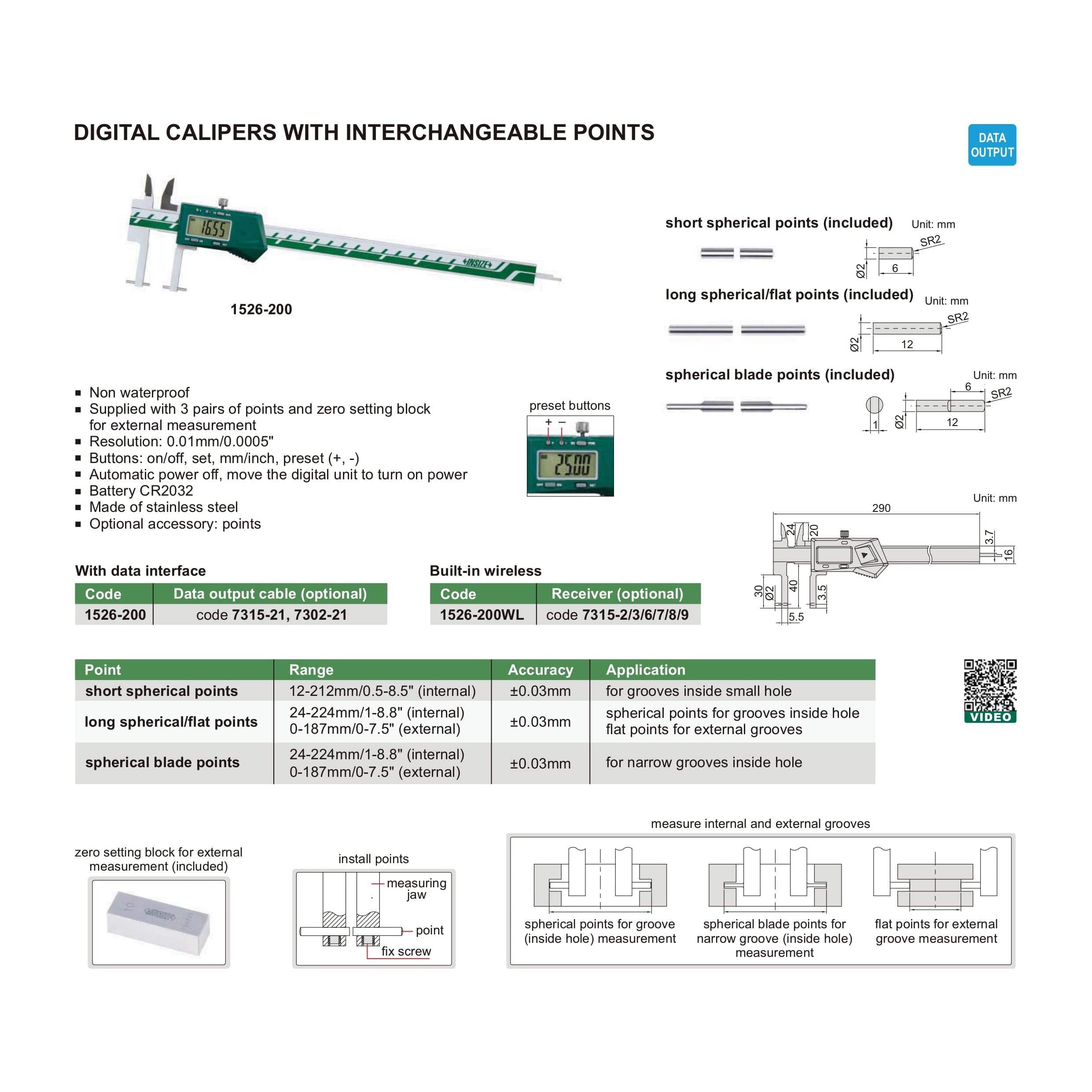

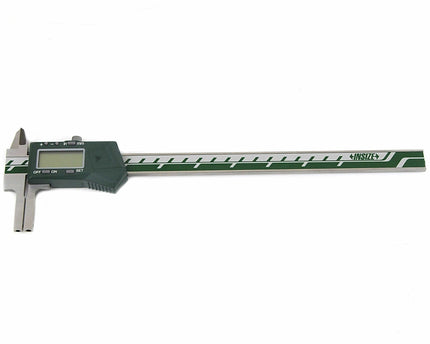

Insize Interchangeable Point Digital Caliper
A versatile high-precision digital caliper designed for specialised internal and external groove measurements. Featuring interchangeable measuring points, this instrument allows accurate measurement of a wide variety of groove profiles, recesses, and hard-to-reach features. Its digital display provides fast, clear readings, while the robust stainless steel construction ensures durability in demanding workshop environments.

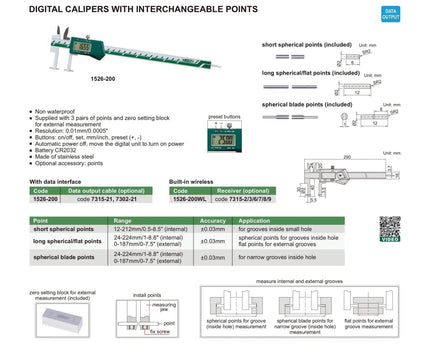

Specifications :
- Part no: 1526-200
- Resolution: 0.0005"/0.01mm
- Functions: on/off, set, mm/inch, preset (+, –)
- Automatic power off; activates when the digital unit is moved
- Battery type: CR2032

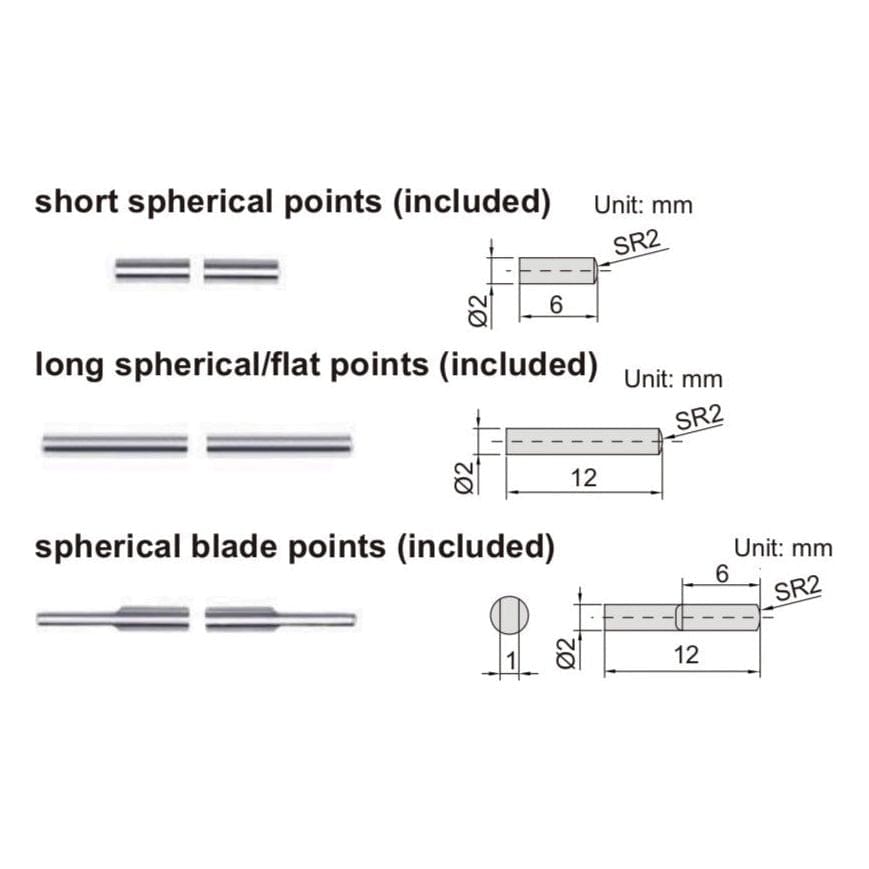

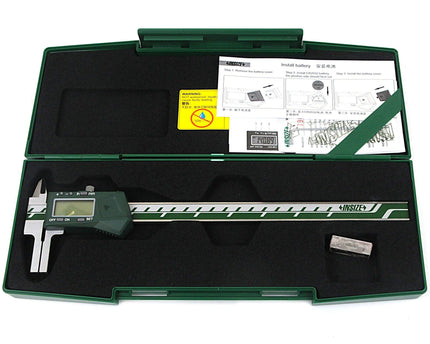

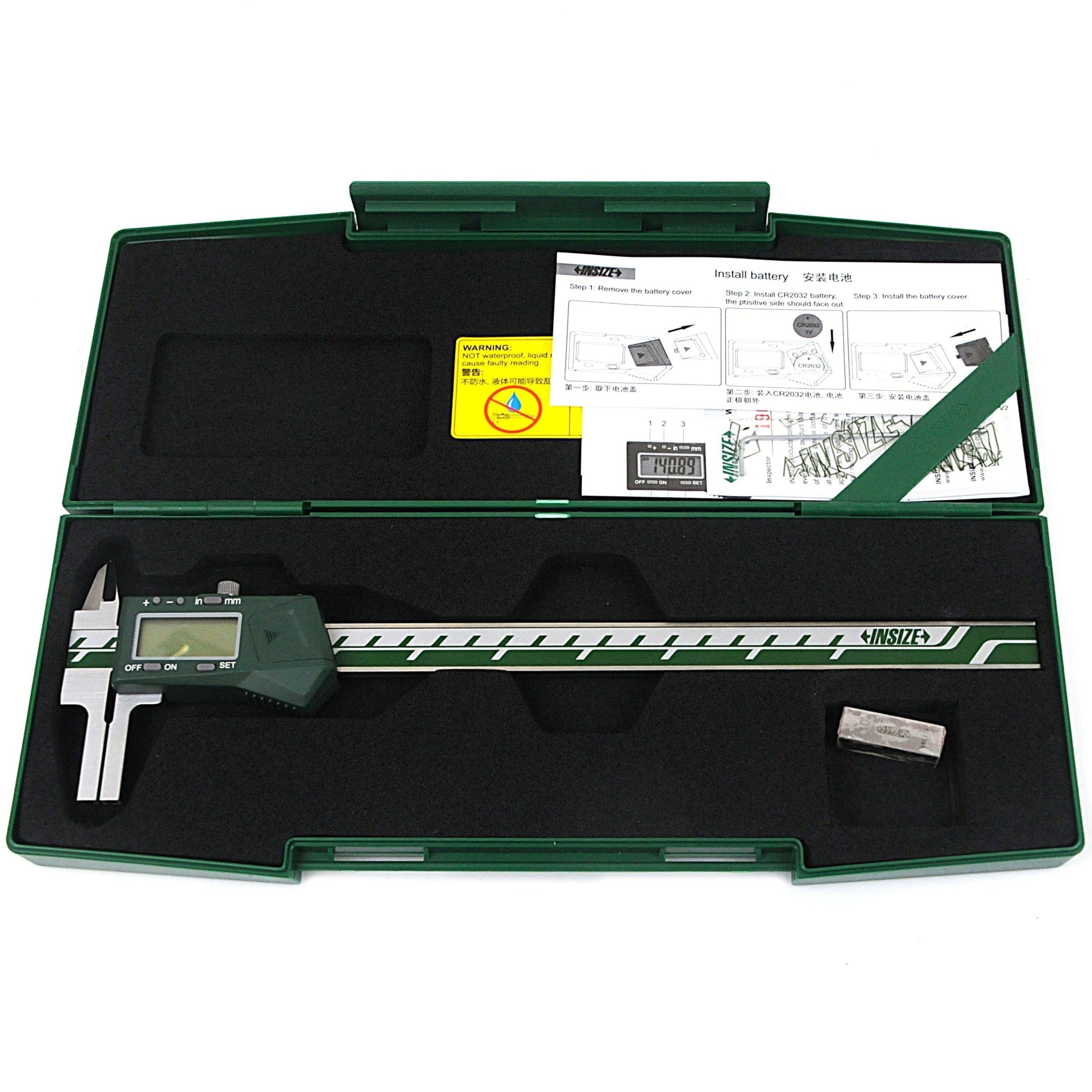

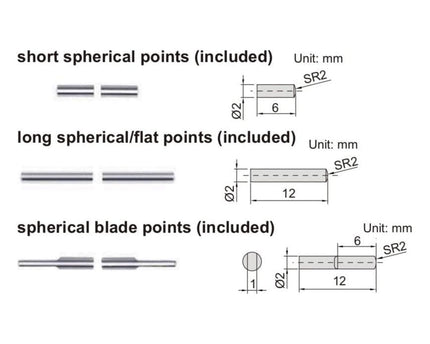

- Supplied with 3 pairs of interchangeable points and a zero-setting block for external measurement
- Optional accessories: additional points, data output cable (7306-20 etc.)
| Point |
Range |
Accuracy |
Application |
| Short Spherical Points |
12–212mm / 0.5–8.5" (internal) |
±0.03mm |
For measuring grooves inside small holes |
| Long Spherical / Flat Points |
24–224mm / 1–8.8" (internal)
0–187mm / 0–7.5" (external) |
±0.03mm |
Spherical points for internal grooves
Flat points for external grooves |
| Spherical Blade Points |
24–224mm / 1–8.8" (internal)
0–187mm / 0–7.5" (external) |
±0.03mm |
For measuring narrow grooves inside holes |
Well-designed and engineered for accuracy, this digital caliper provides exceptional versatility for inspecting internal grooves, recesses, and specialised features. Smooth operation, clear digital readout, and interchangeable points make it a valuable tool for precision measurement in machining, tooling, and inspection environments.
