Description

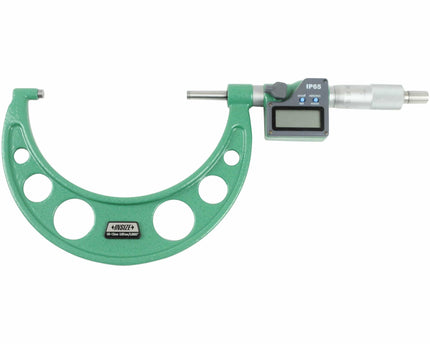

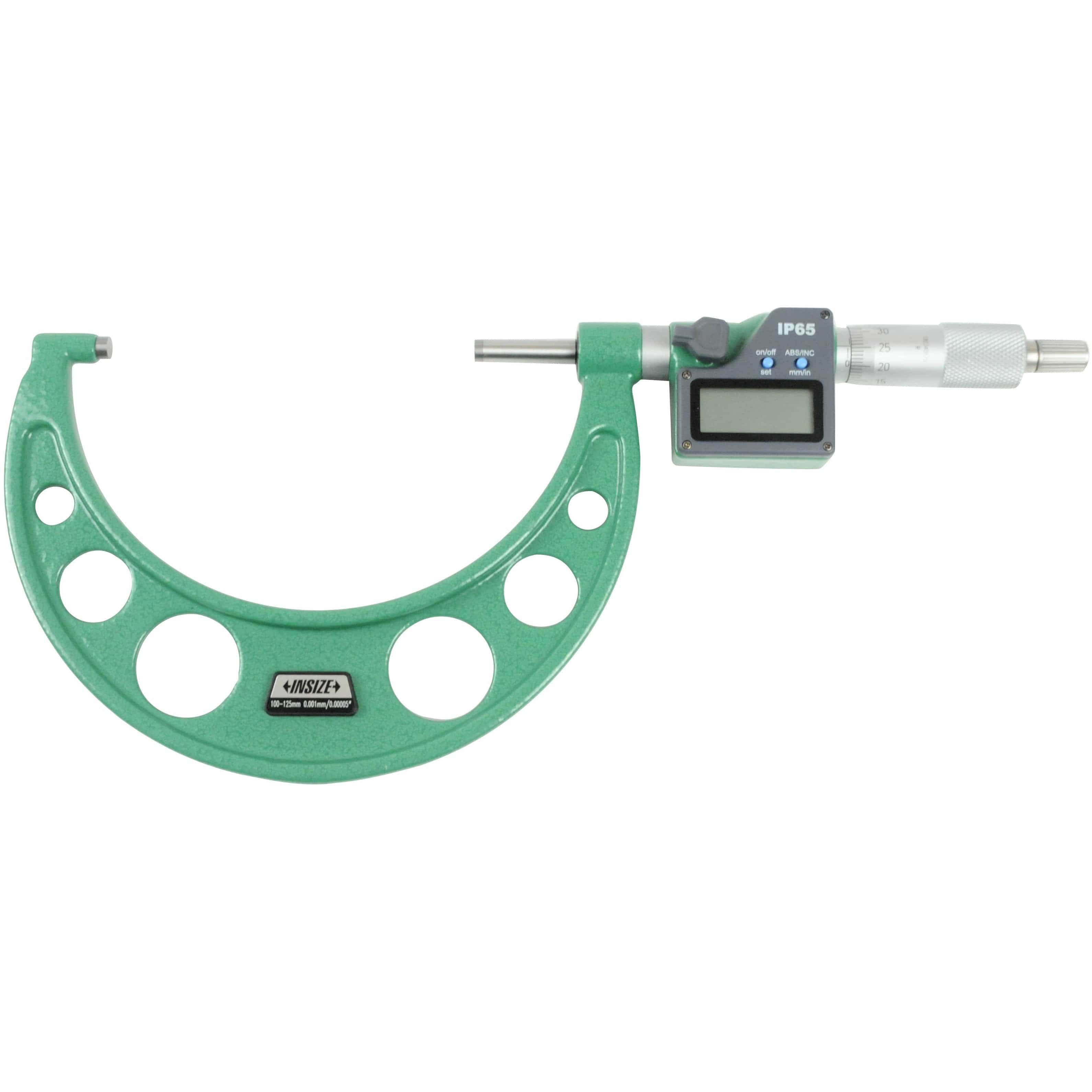

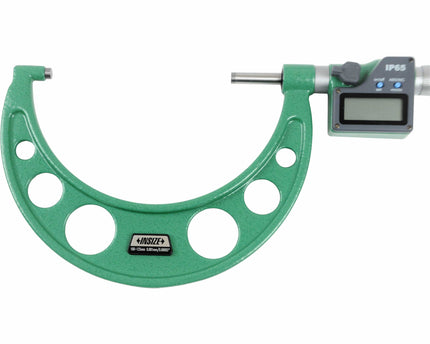

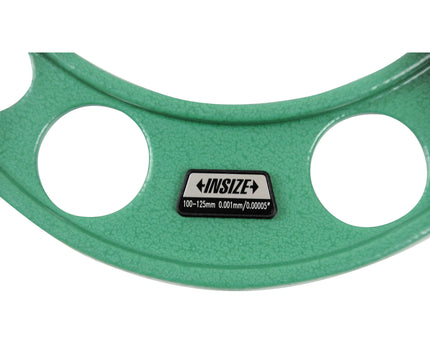

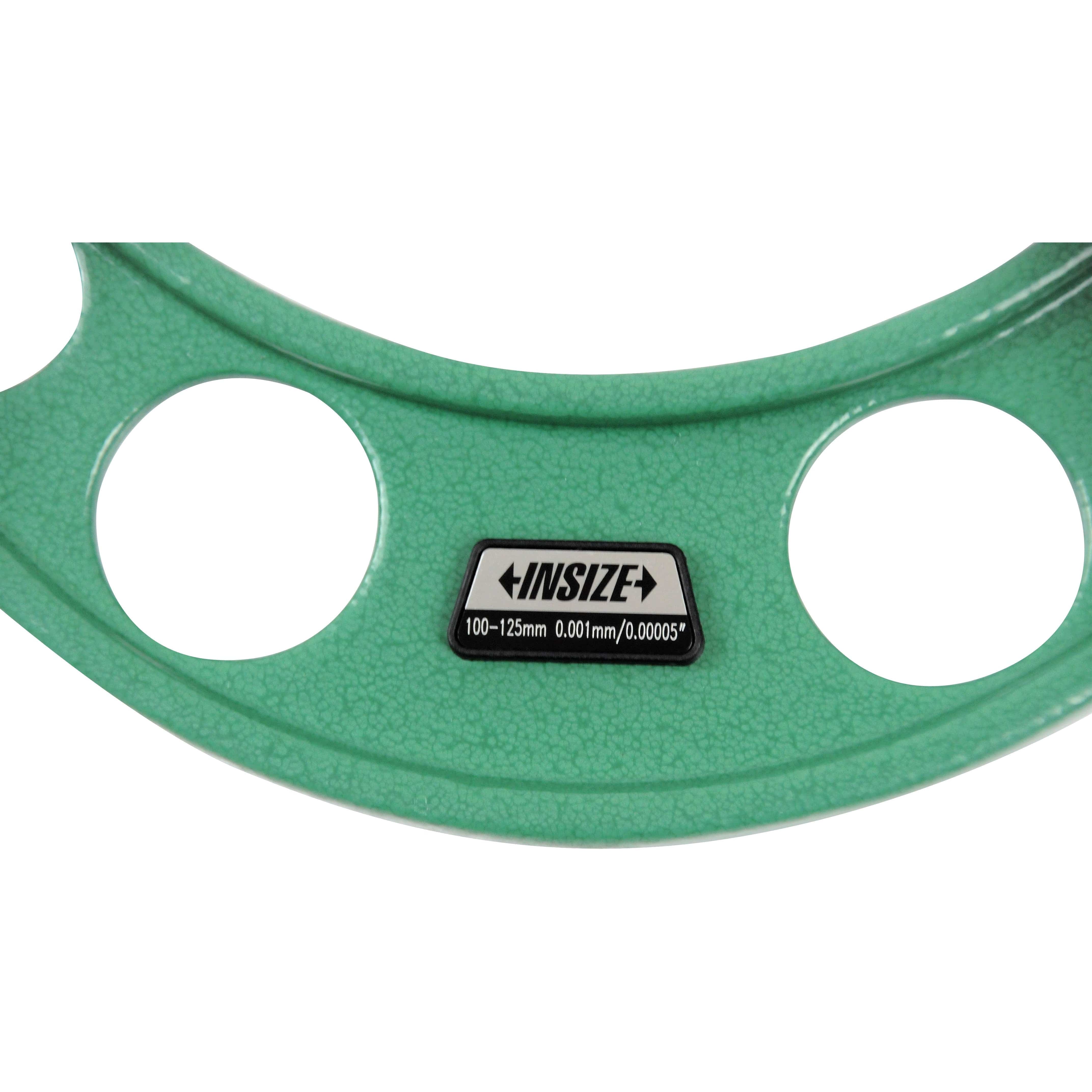

Insize 100–125 mm / 4–5" IP65 Outside Micrometer
The Insize IP65 Outside Micrometer is designed for precise external measurements in workshop and inspection environments where reliability and durability are essential. Its IP65-rated construction protects against dust and water, making it suitable for use in harsh conditions while maintaining excellent accuracy and repeatability.

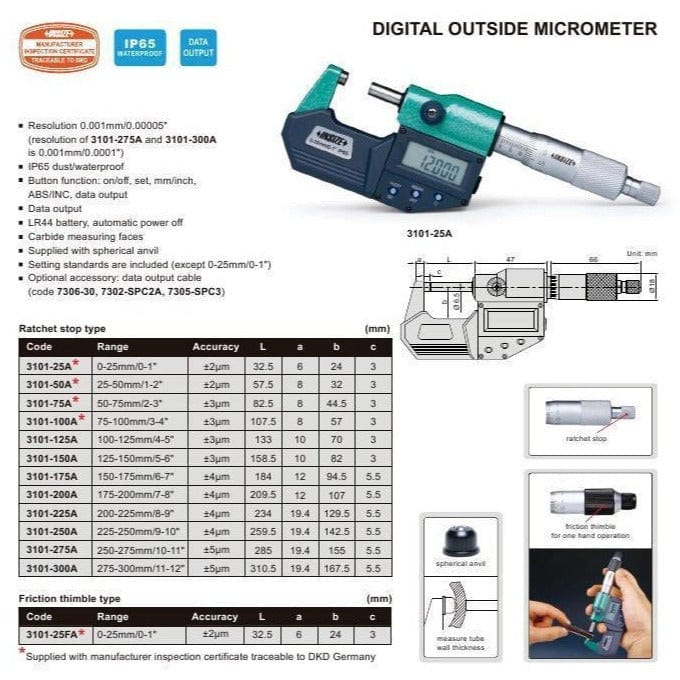

Specifications :
- Part No.: 3101-125A
- Strictly made in accordance with DIN 863
- IP65 dust and waterproof protection
- Resolution: 0.001 mm / 0.00005"
- Measuring range: 100–125 mm / 4–5"
- Button functions: on/off, set, mm/inch, ABS/INC
- Spindle thread hardened, ground, and lapped for high accuracy
- Baked enamel finish frame

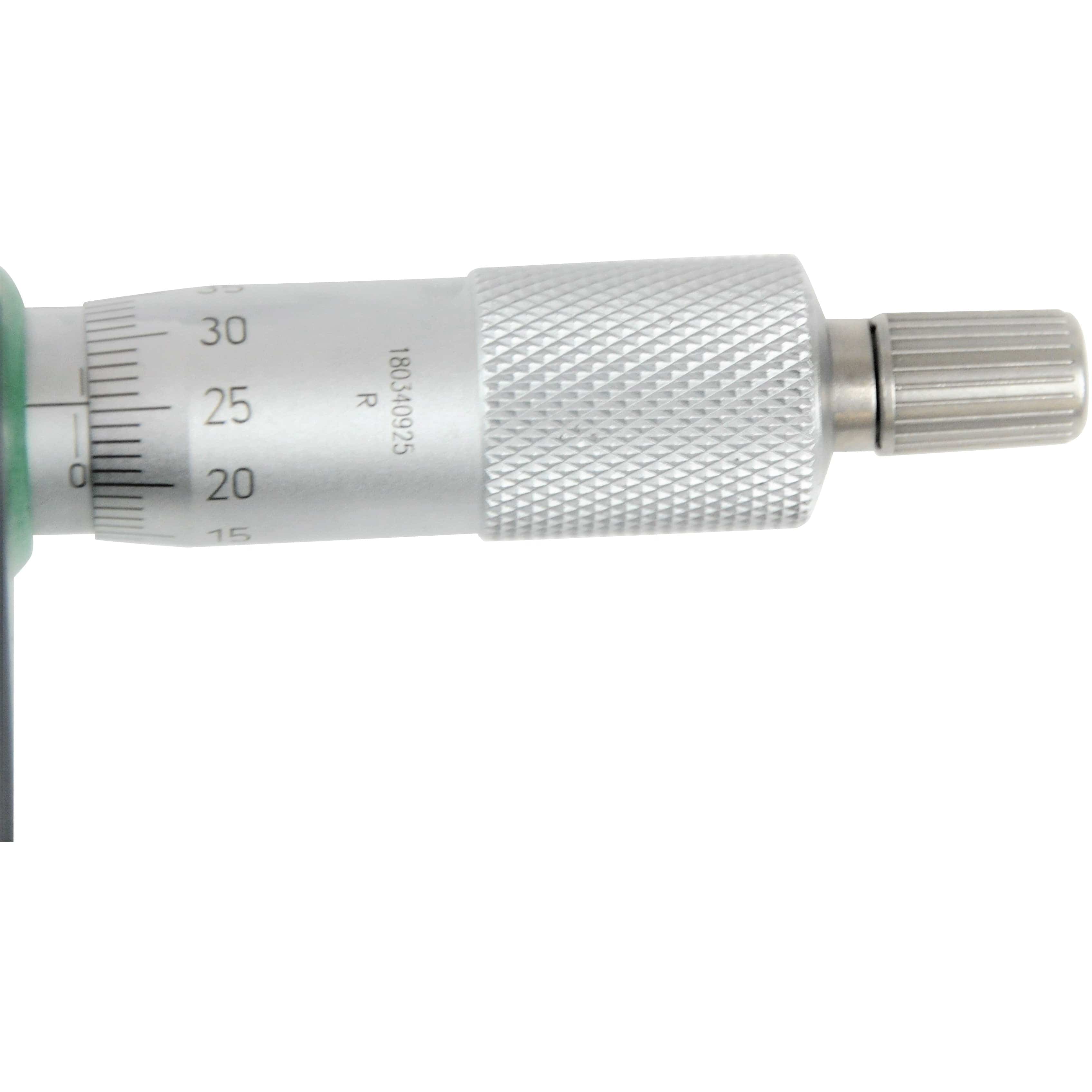

- Barrel and thimble with satin chrome finish
- ABSOLUTE measurement with inch/metric conversion

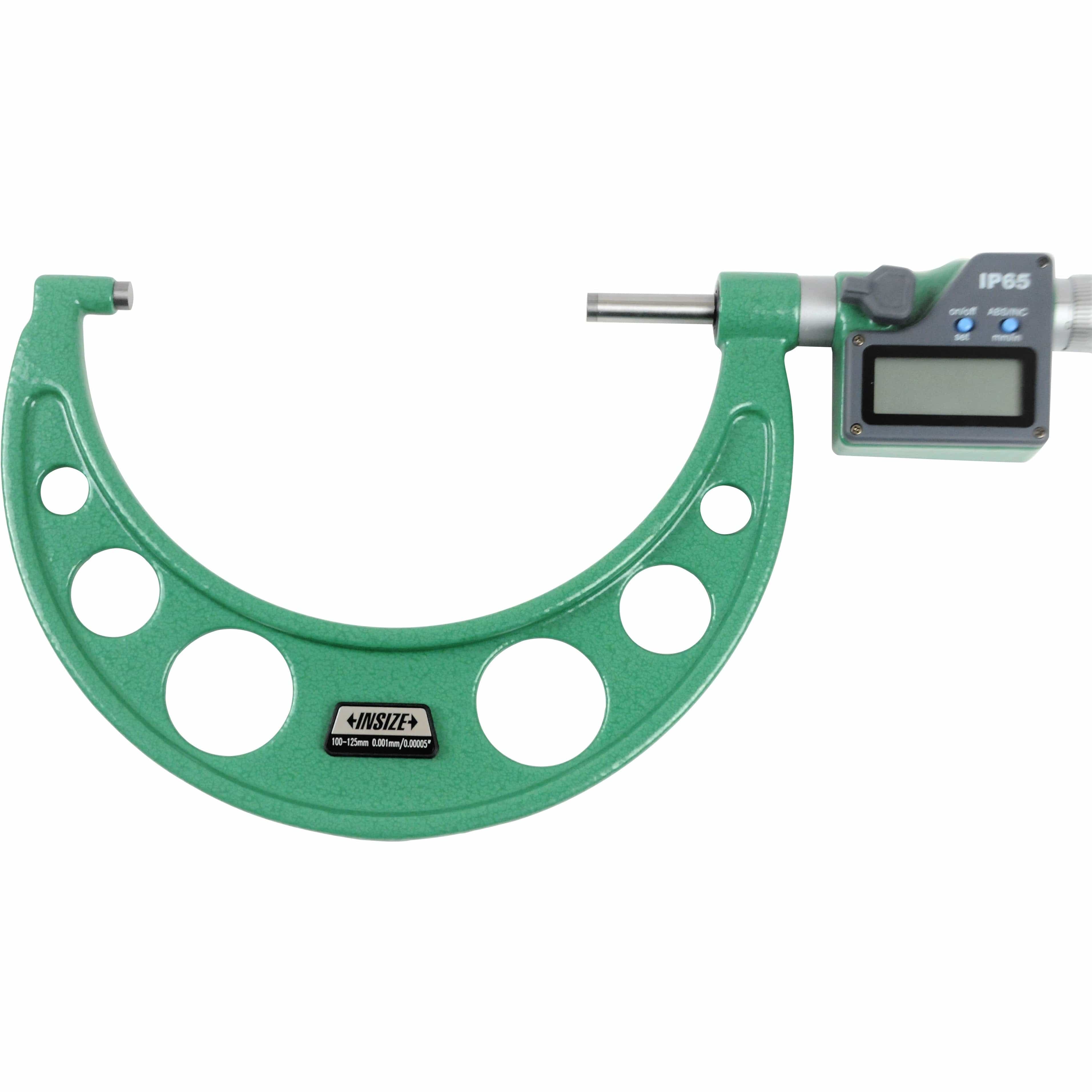

- Large, easy-to-read LCD display
- Clear graduations on satin chrome finish for smooth operation
- Automatic power-off function
- Carbide measuring faces
- Spindle lock
- Ratchet stop for consistent measuring force

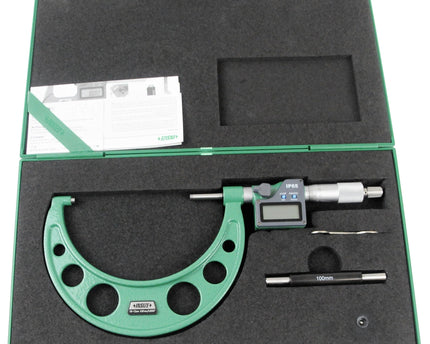

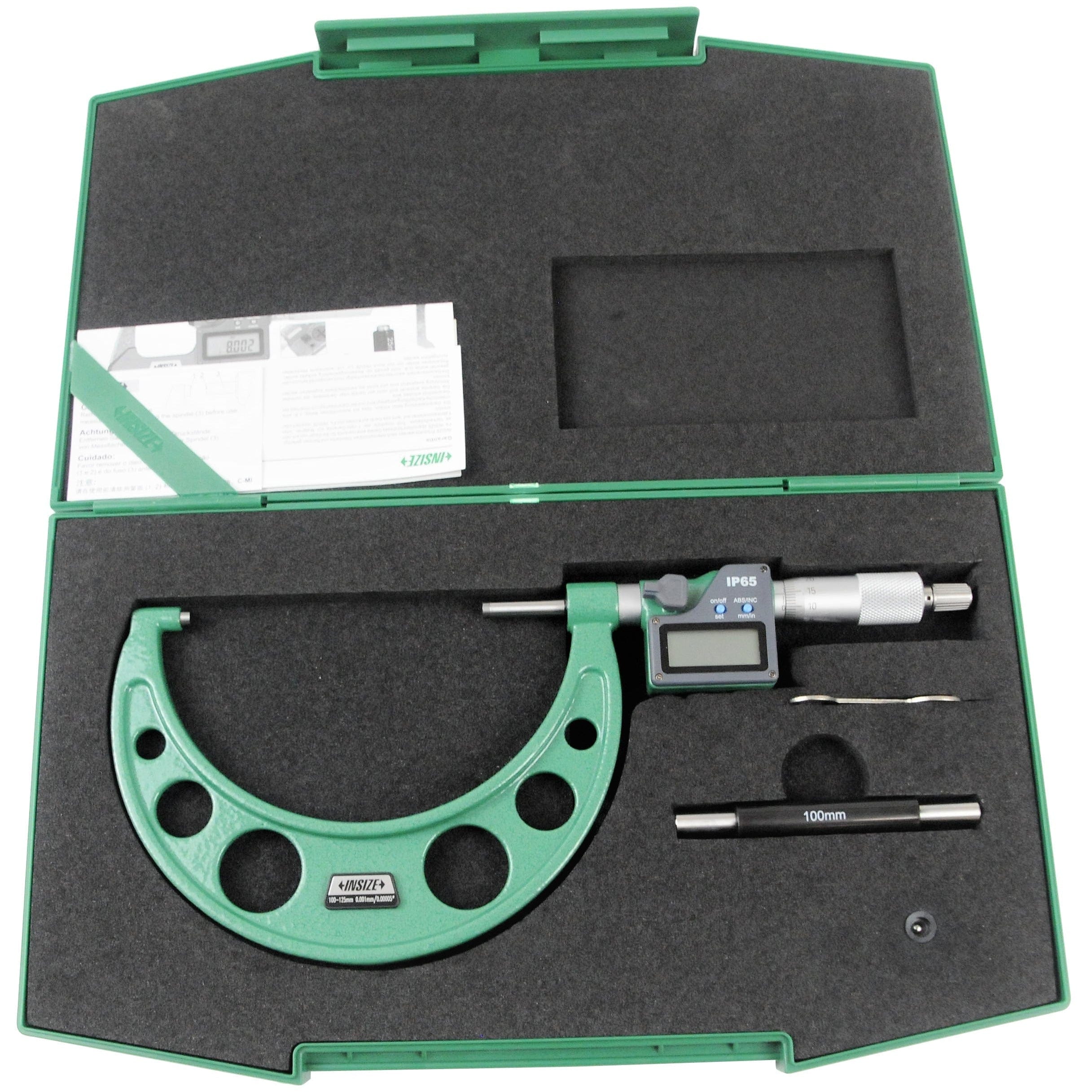

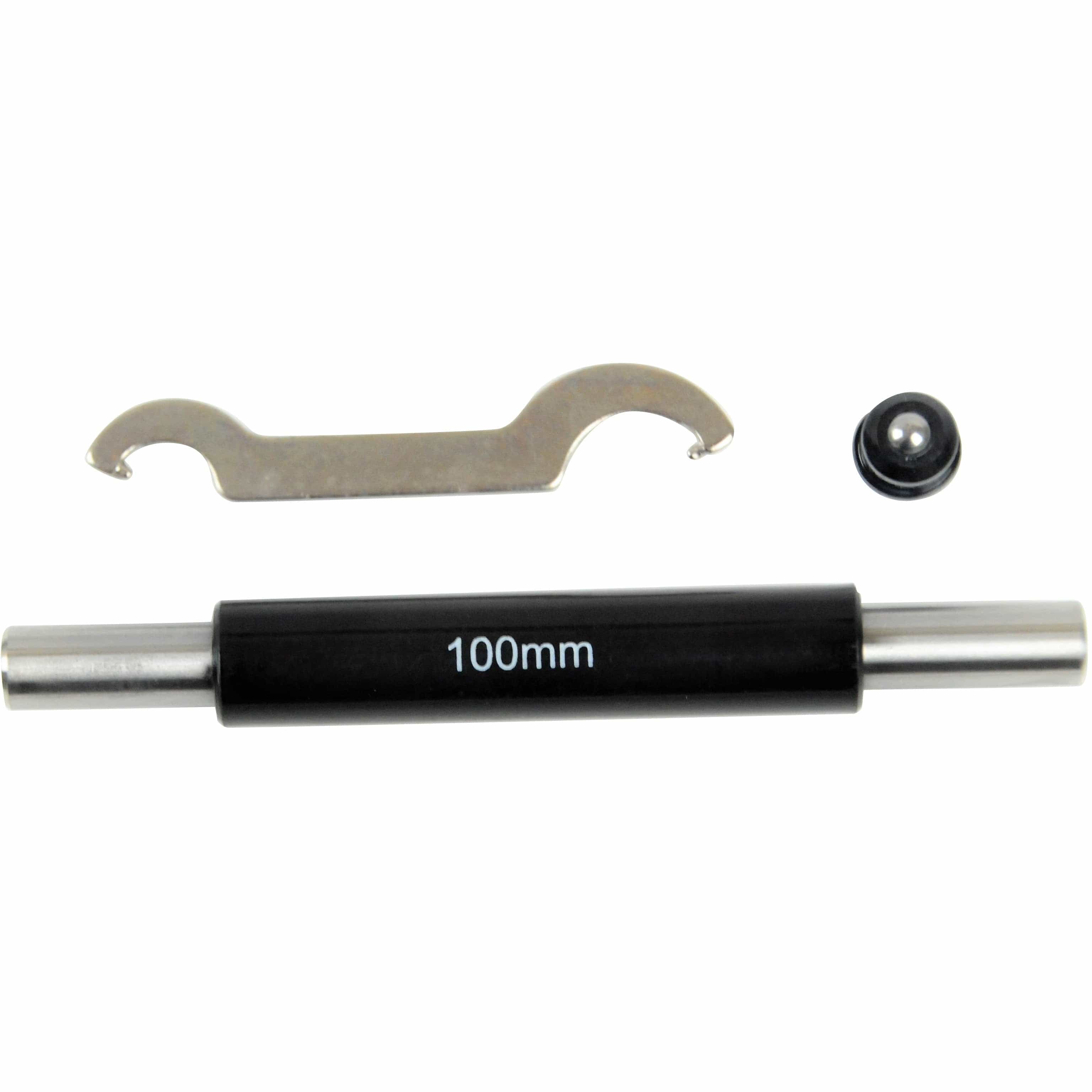

Includes :
- Zero adjusting wrench
- 100 mm calibration rod

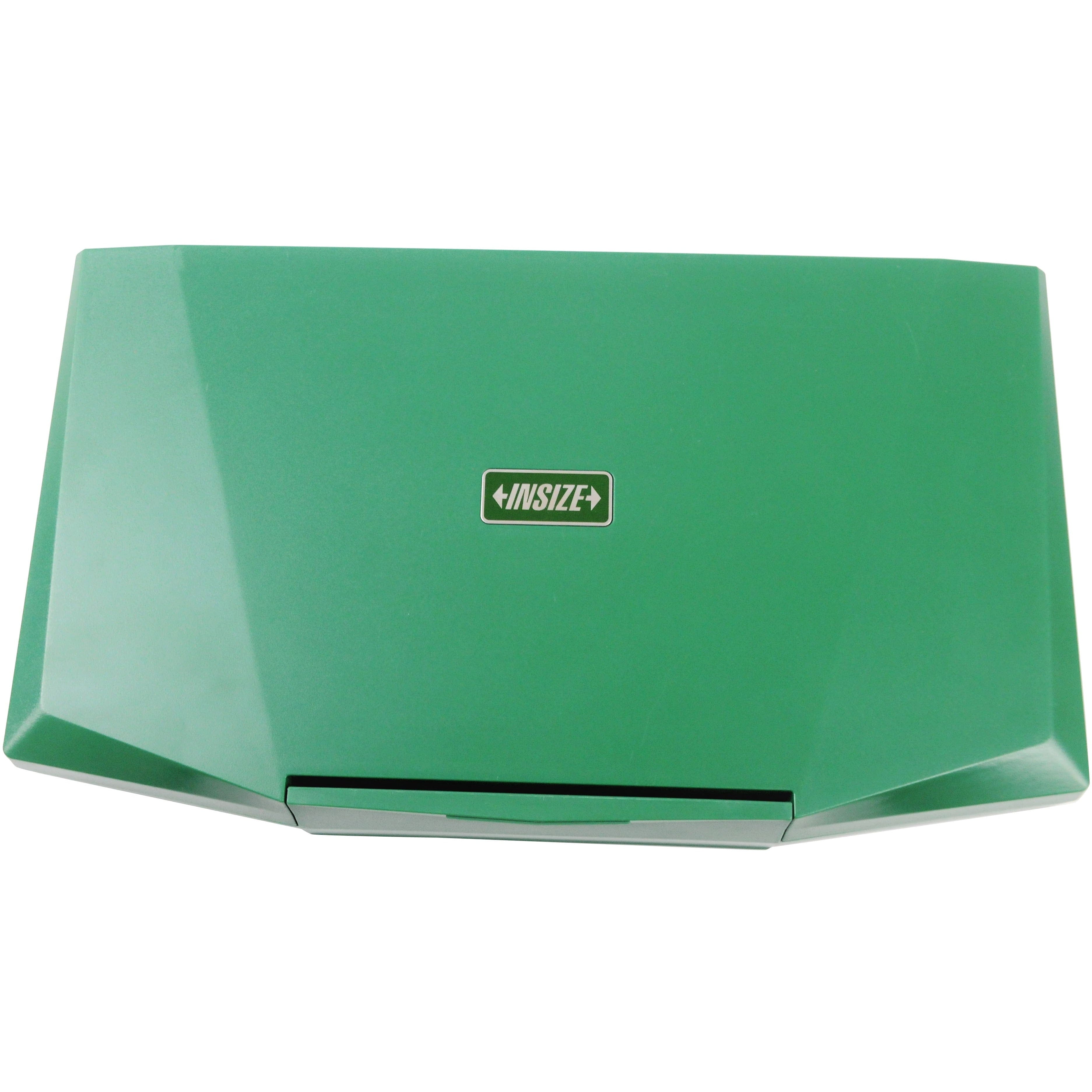

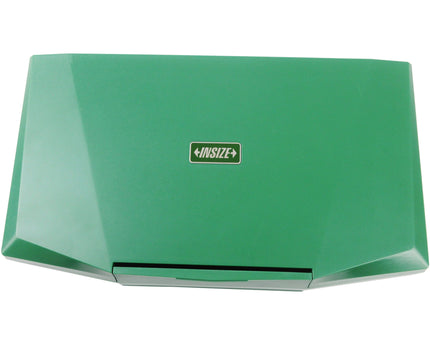

- Housed in a custom-styled protective case
Well designed and highly durable, this precision micrometer is ideal for workshop, toolroom, and quality control applications. INSIZE outside micrometers provide dependable accuracy and ease of use for measuring a wide range of external dimensions.
