Description

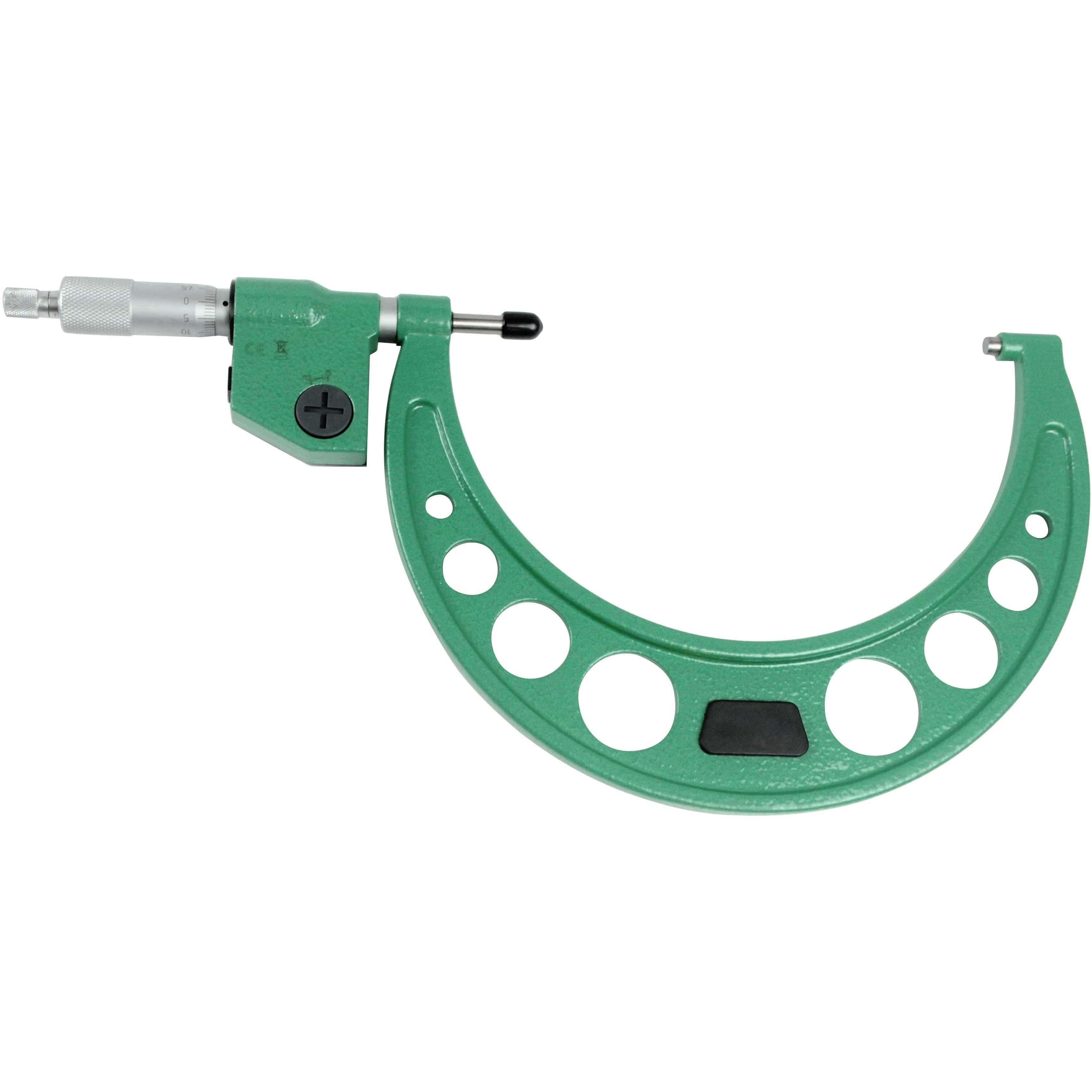

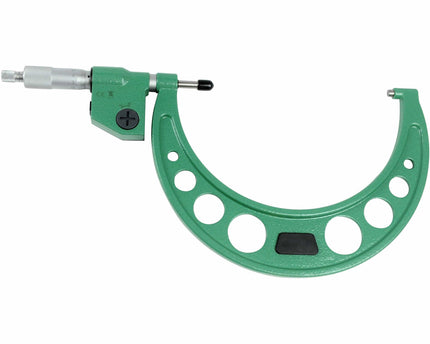

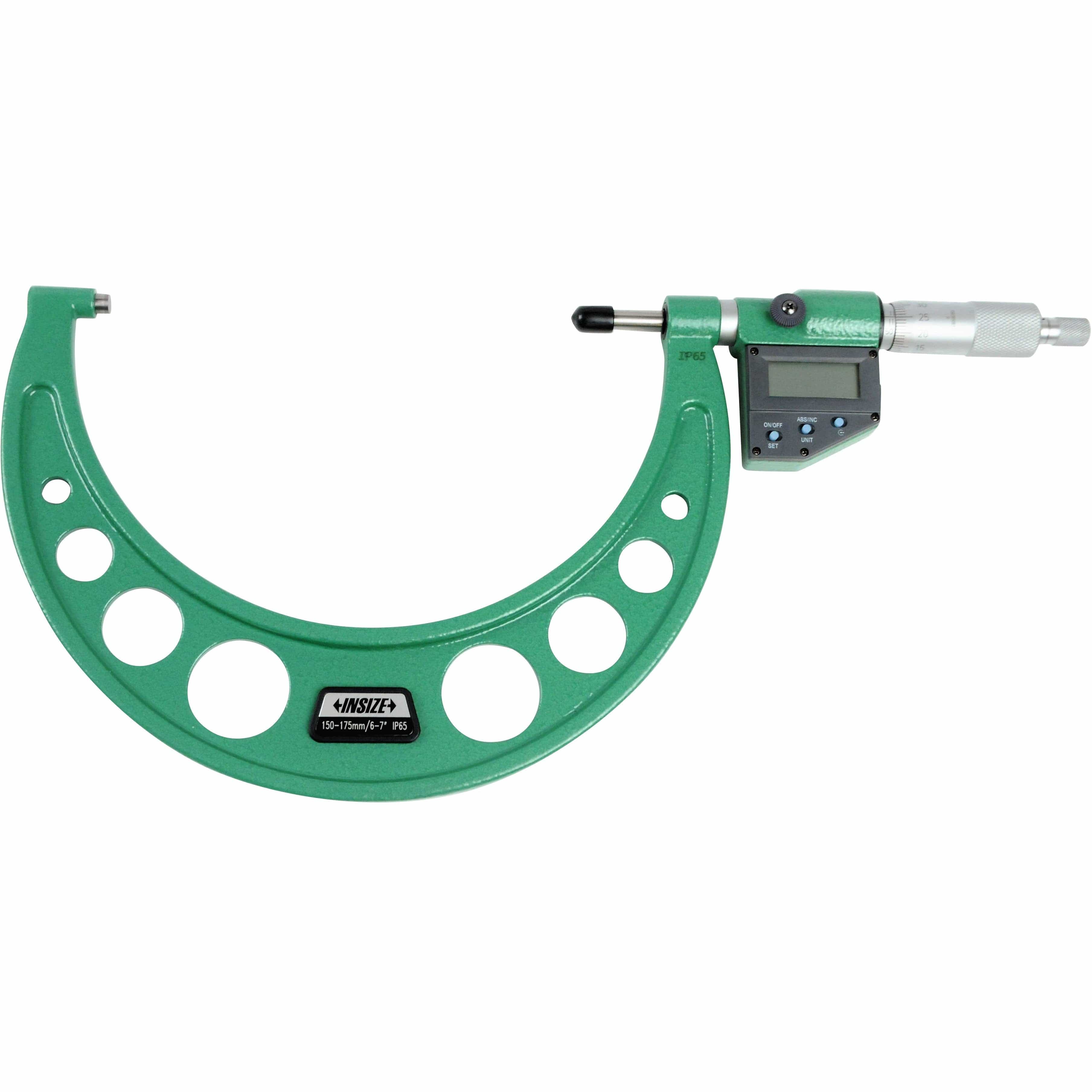

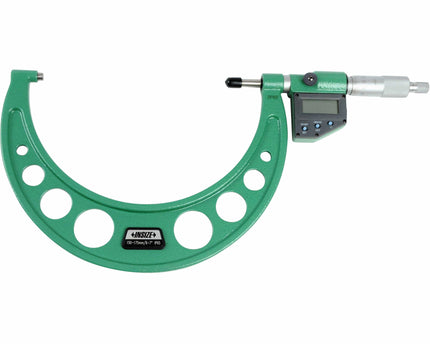

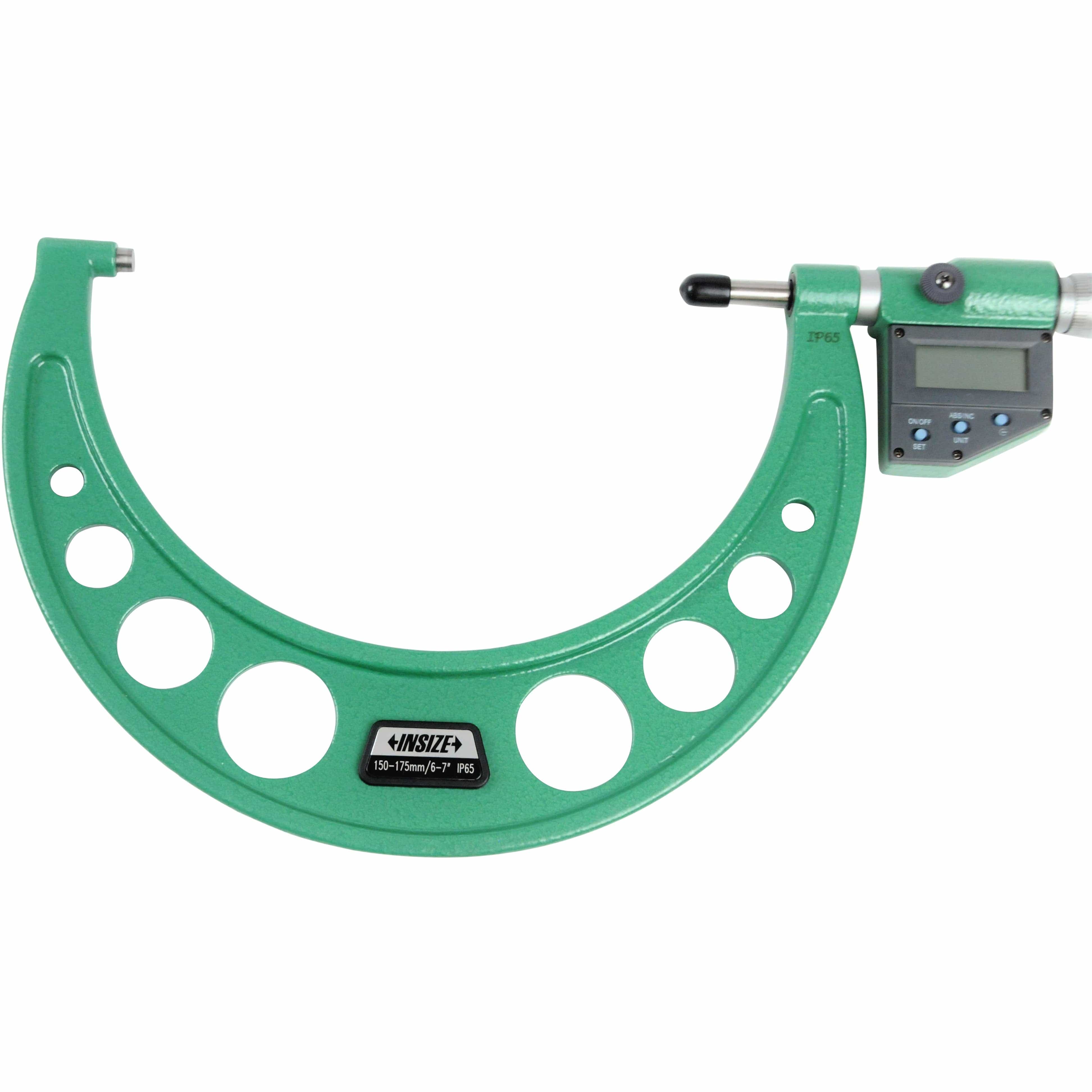

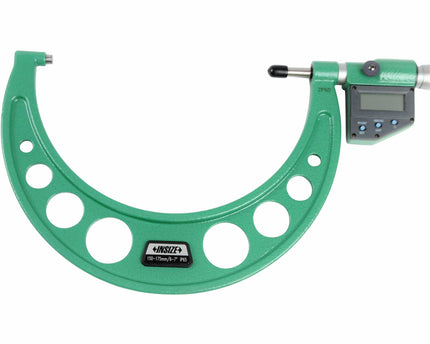

Insize 150–175 mm / 6–7" IP65 Outside Micrometer
The Insize IP65 Outside Micrometer is designed for accurate and repeatable external measurements in workshop, toolroom, and inspection environments. With an IP65-rated sealed construction, it offers excellent protection against dust and water, ensuring dependable performance even in harsh conditions.

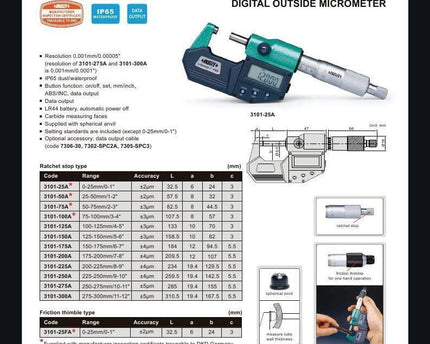

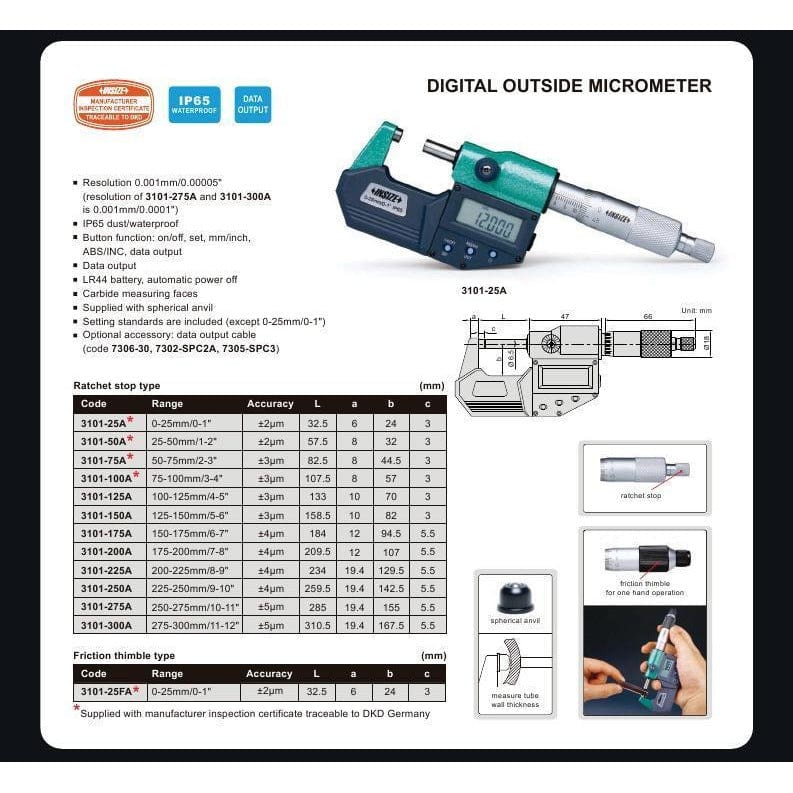

Specifications :
- Part No.: 3101-175A
- Manufactured in accordance with DIN 863
- IP65 dust and waterproof protection
- Resolution: 0.001 mm / 0.00005"
- Measuring range: 150–175 mm / 6–7"
- Button functions: on/off, set, mm/inch, ABS/INC
- Hardened, ground, and lapped spindle thread for high accuracy

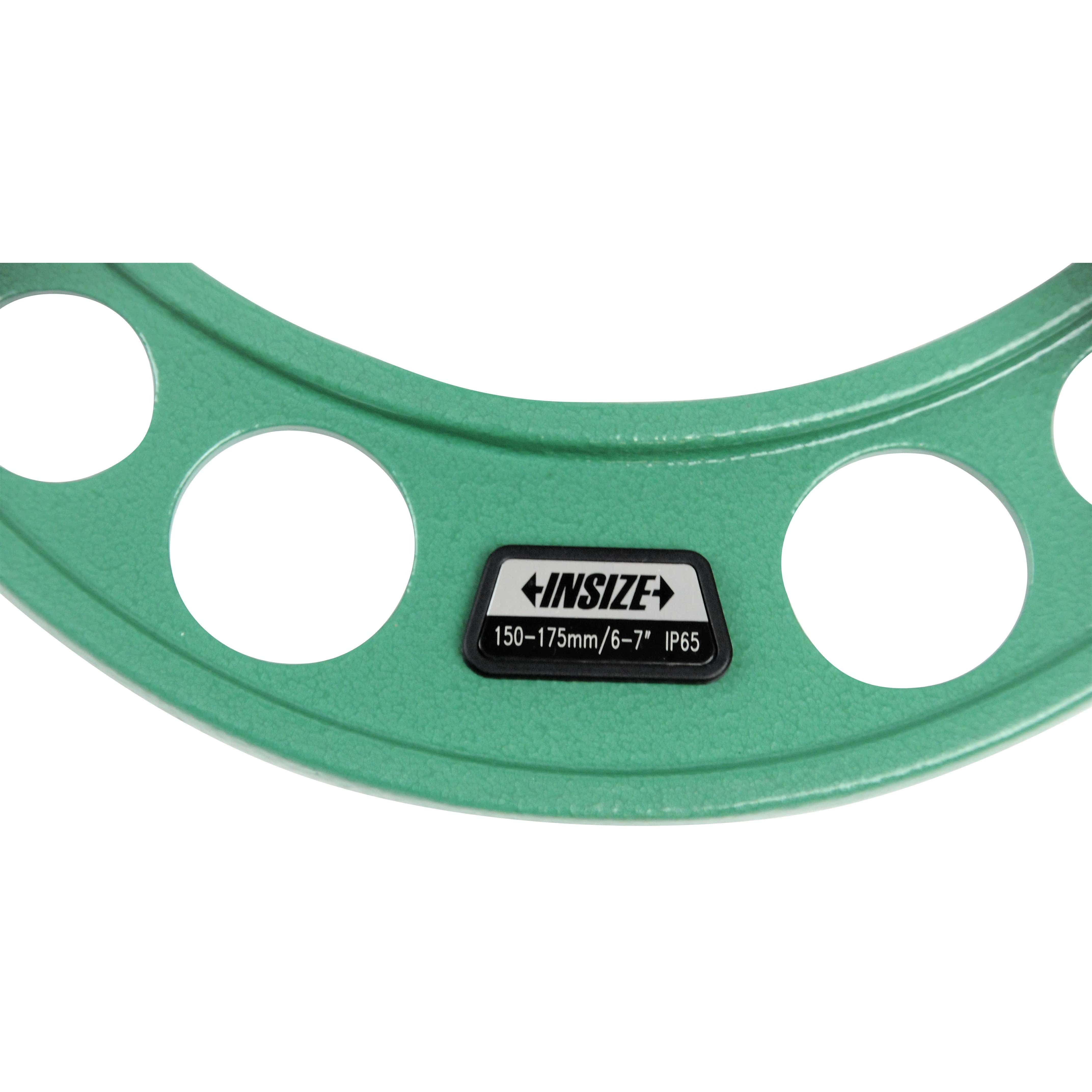

- Baked enamel finish frame
- Satin chrome finish on barrel and thimble
- ABSOLUTE measurement with inch/metric conversion
- Large, easy-to-read LCD display

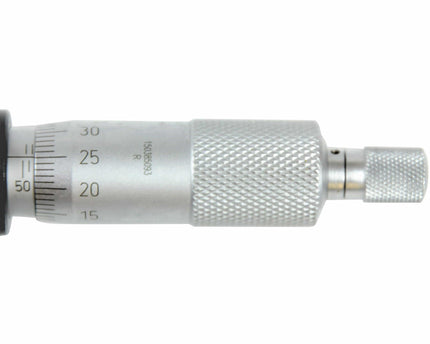

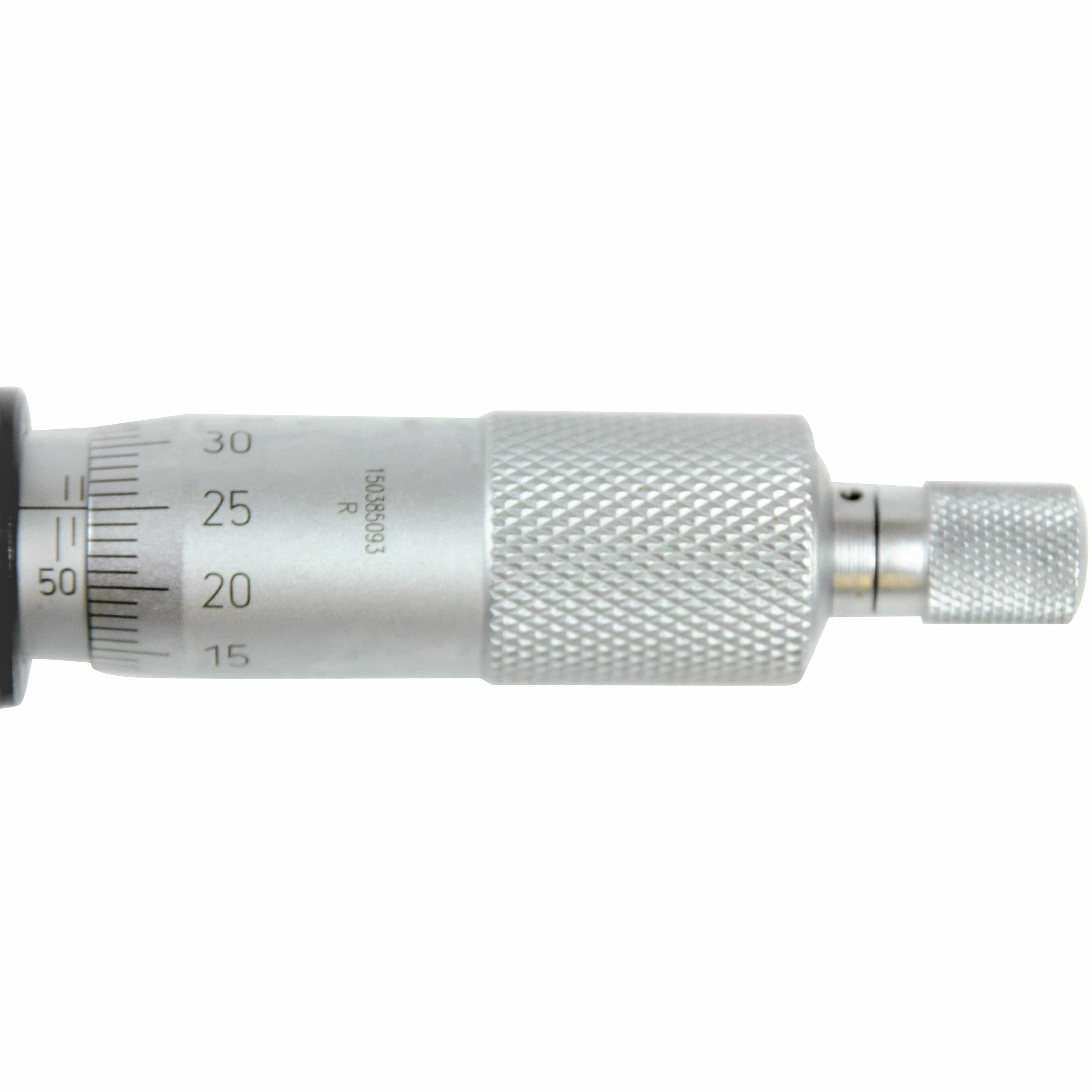

- Clear graduations on satin chrome finish for smooth operation
- Automatic power-off function
- Carbide measuring faces
- Spindle lock
- Ratchet stop for consistent measuring force

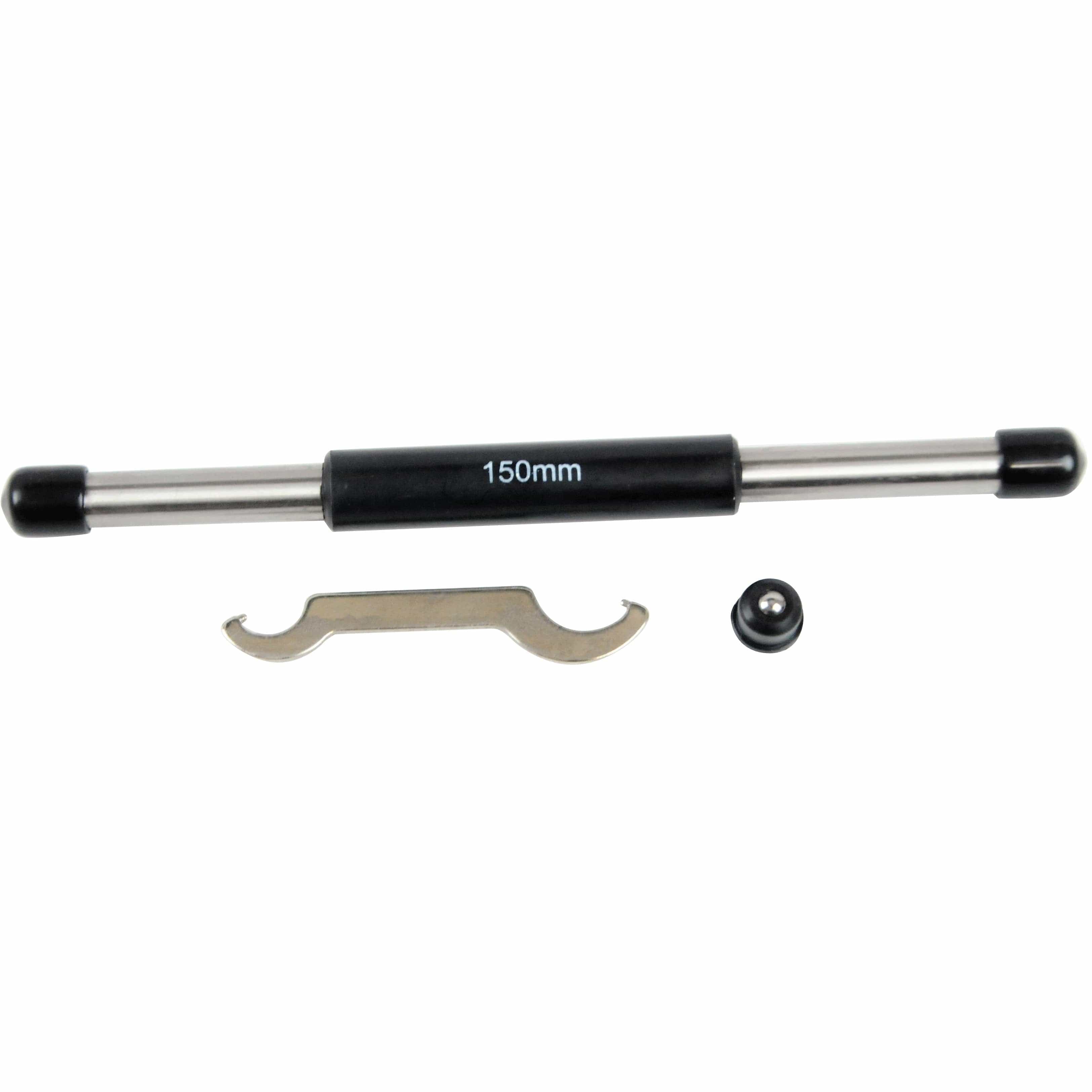

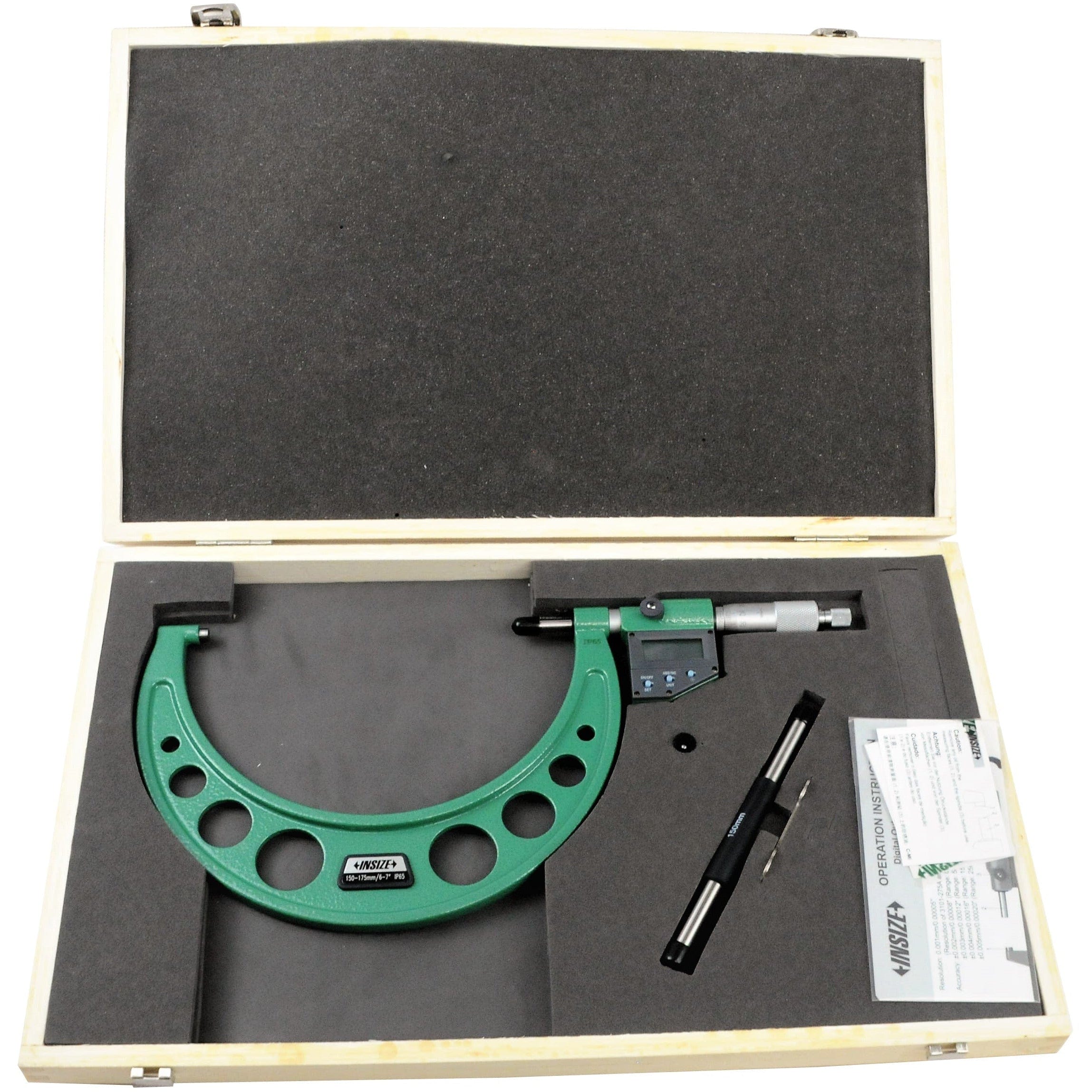

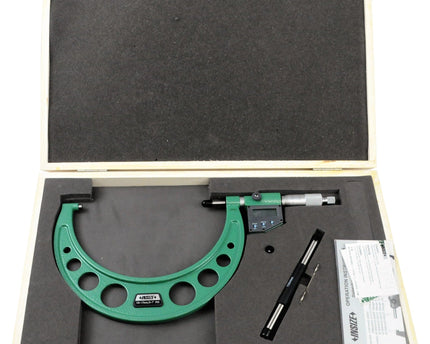

Includes :
- Zero adjusting wrench
- 150 mm calibration rod

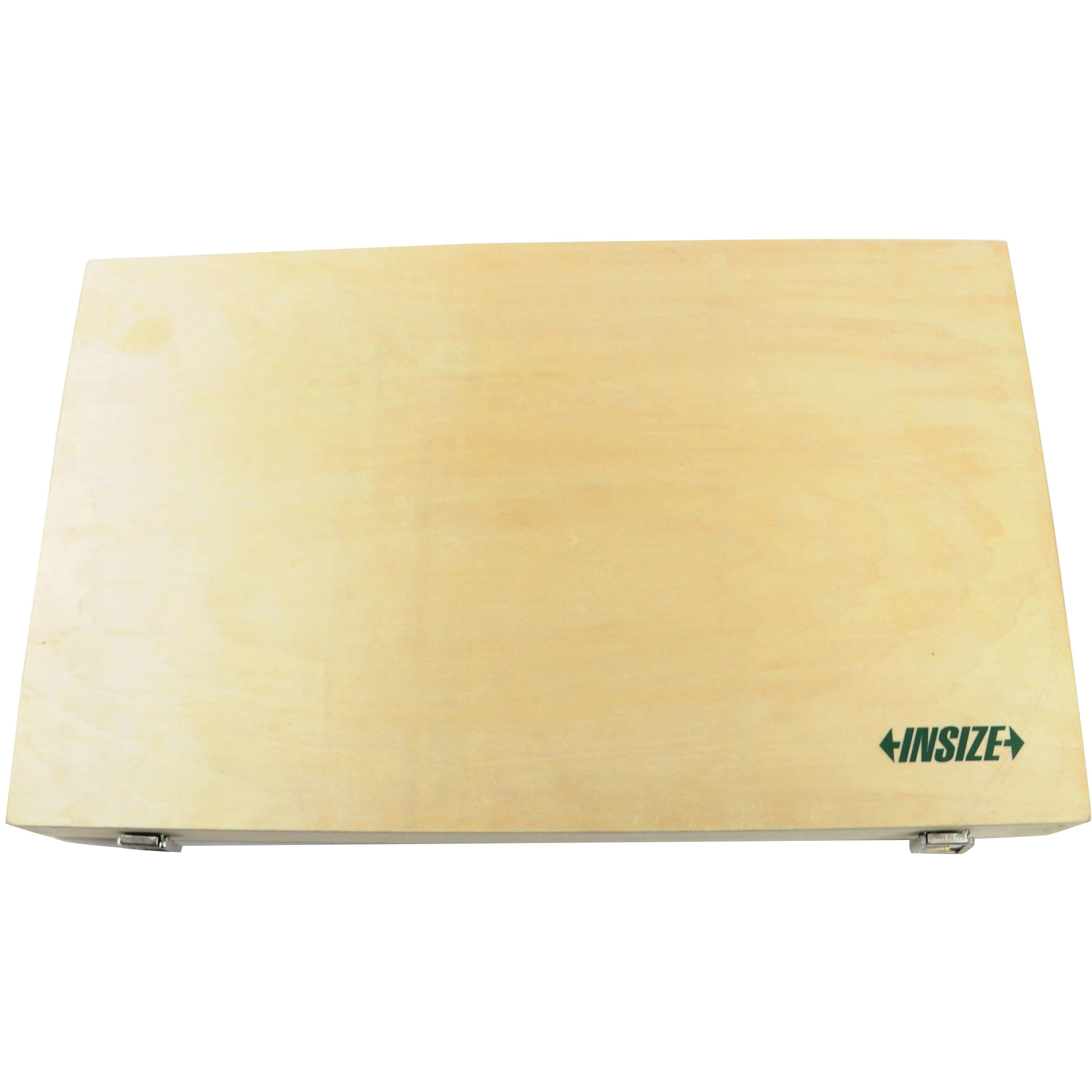

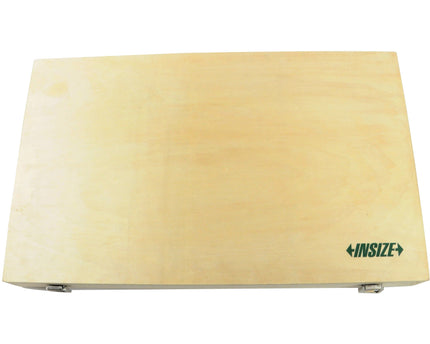

- Housed in a custom-styled protective case
Well designed and highly durable, this precision micrometer is ideal for measuring external dimensions with confidence. INSIZE outside micrometers provide reliable accuracy, long service life, and ease of use across a wide range of precision measuring applications.
