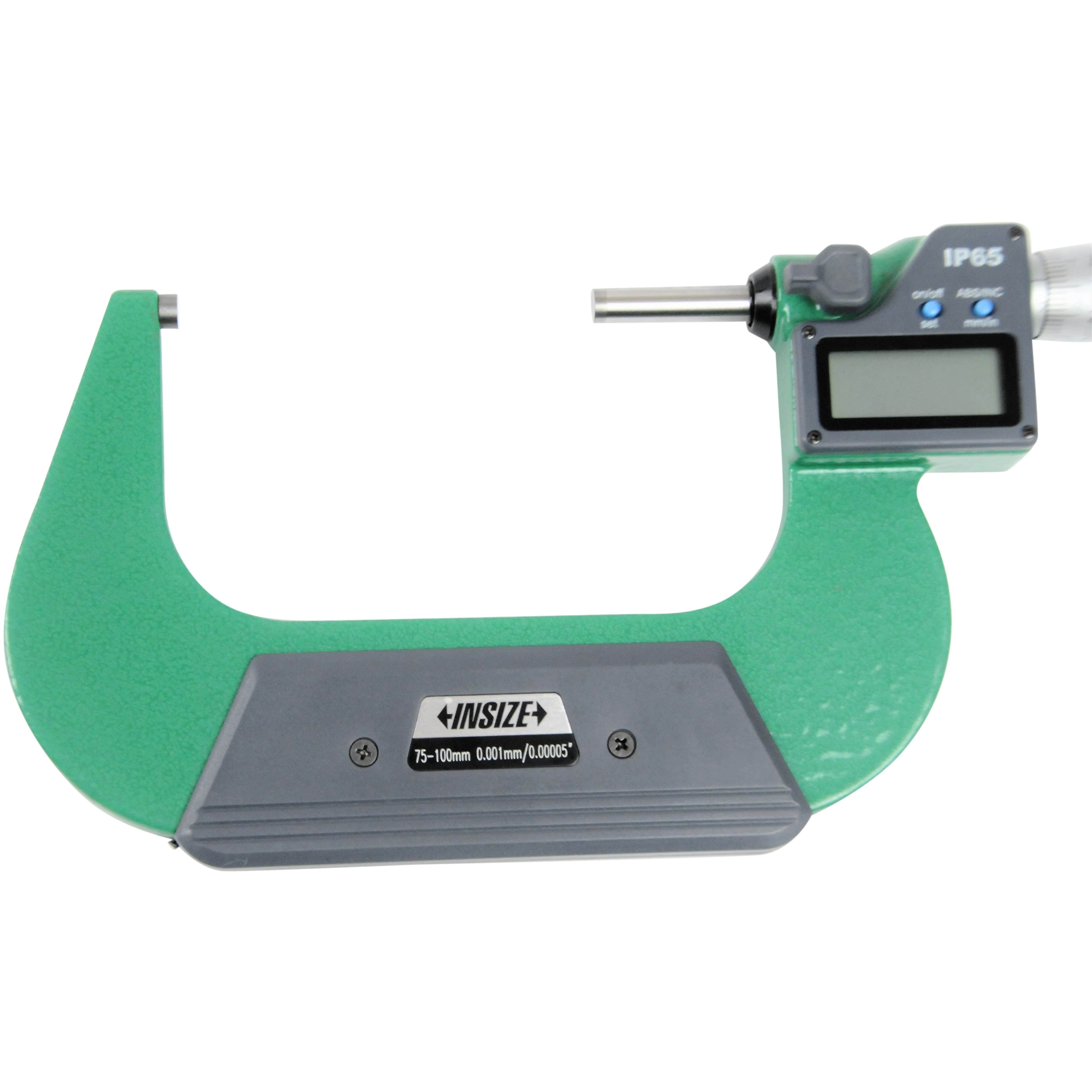

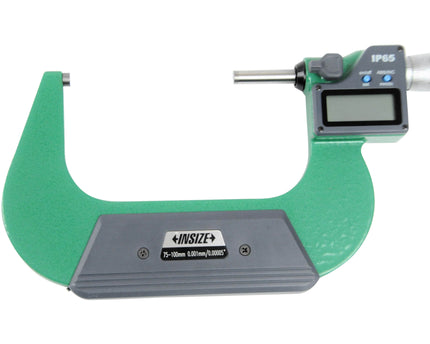

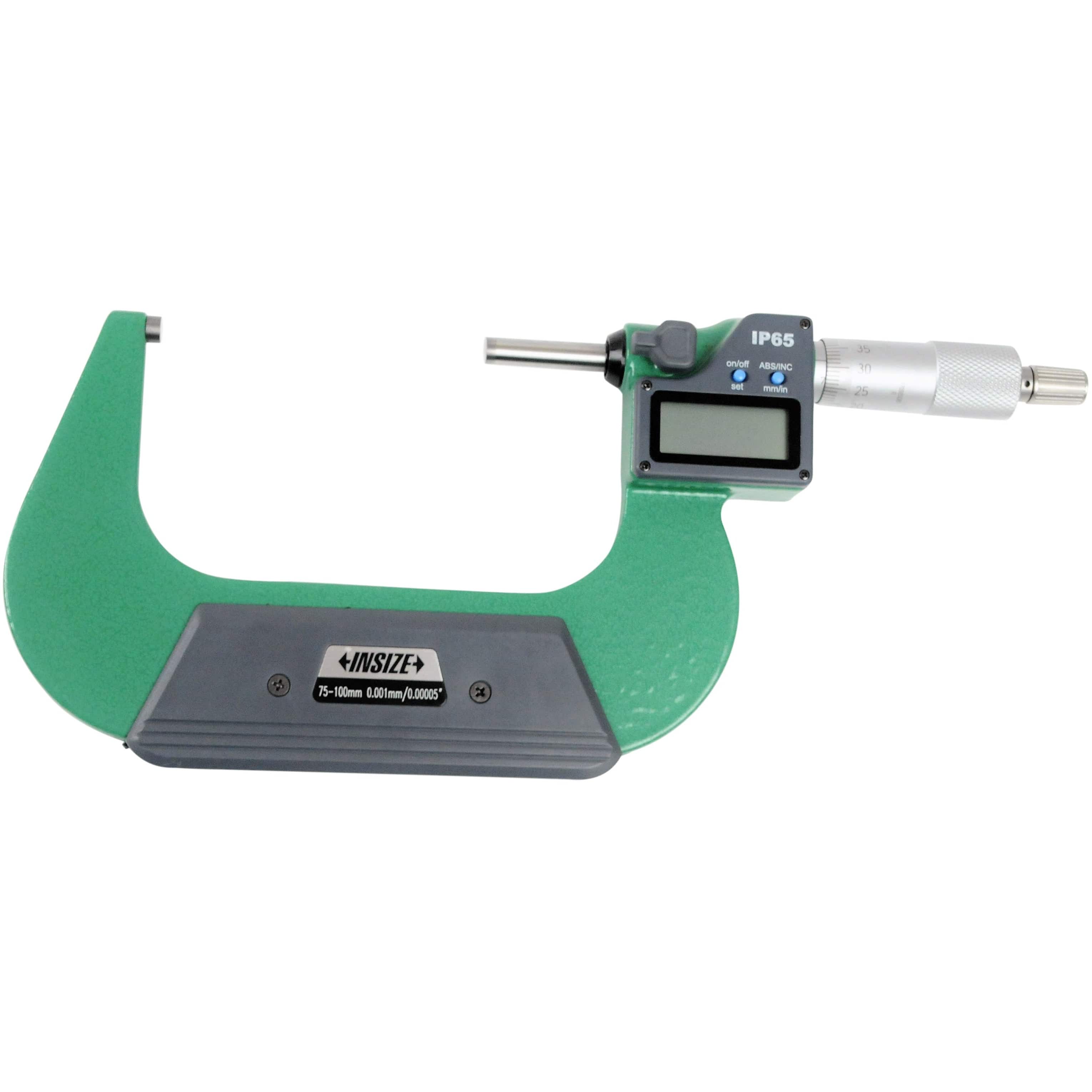

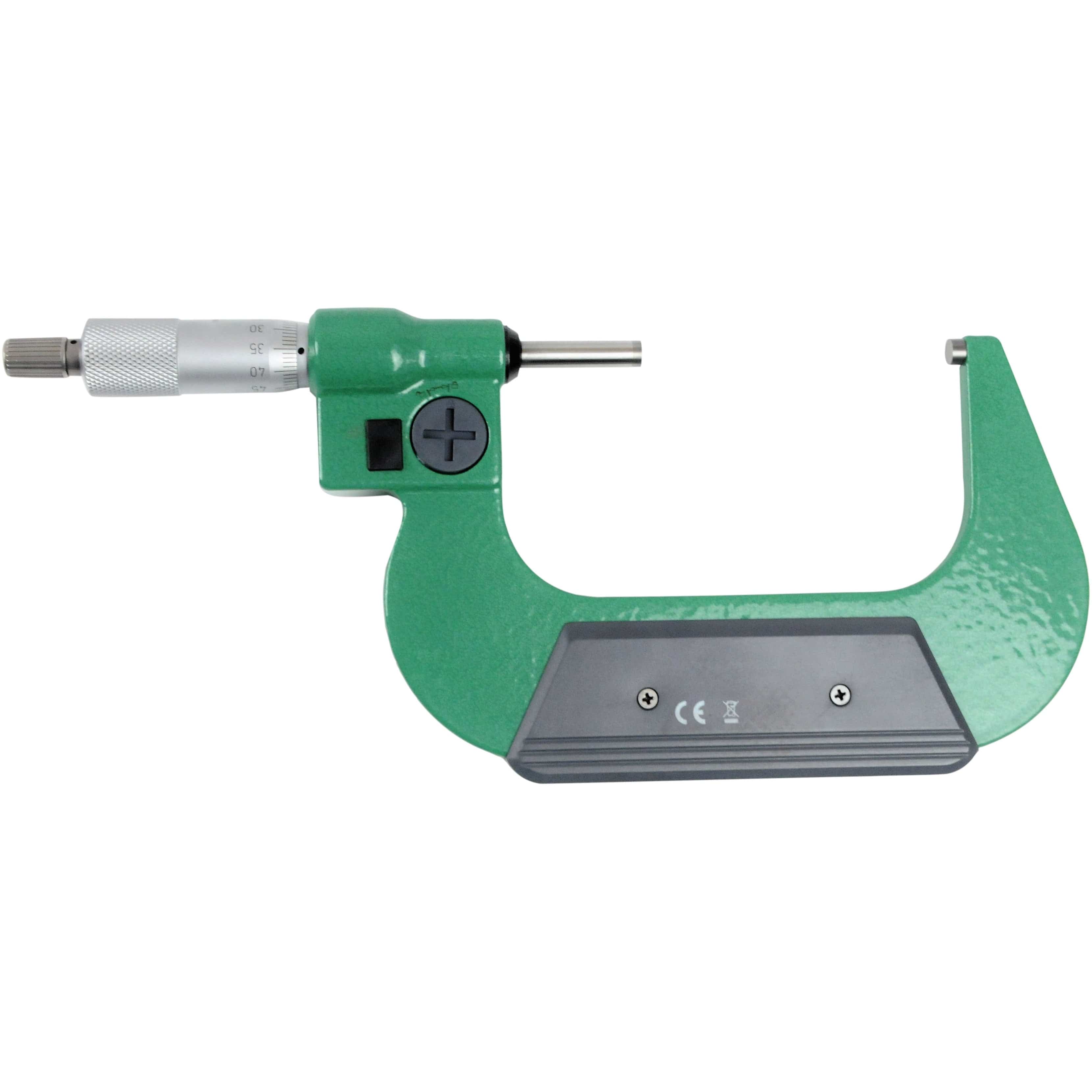

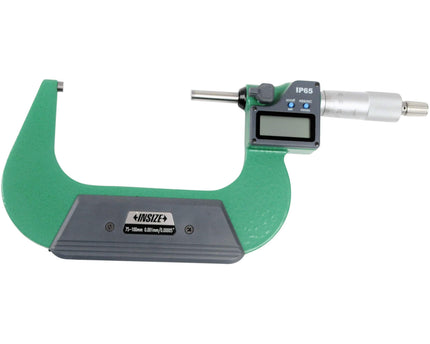

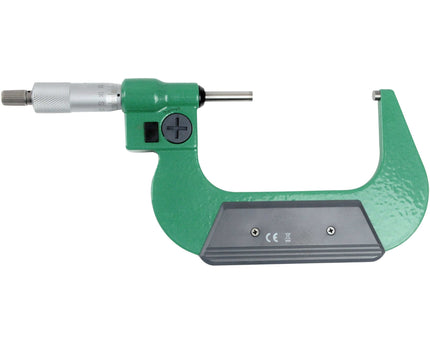

Insize 75–100 mm / 4–5" IP65 Outside Micrometer
The Insize IP65 Outside Micrometer is engineered for accurate external measurements in demanding workshop and inspection environments. Featuring a robust, dust- and waterproof IP65 design, this micrometer delivers reliable performance with high resolution and repeatability, even in the presence of coolant, oil, or fine particles.

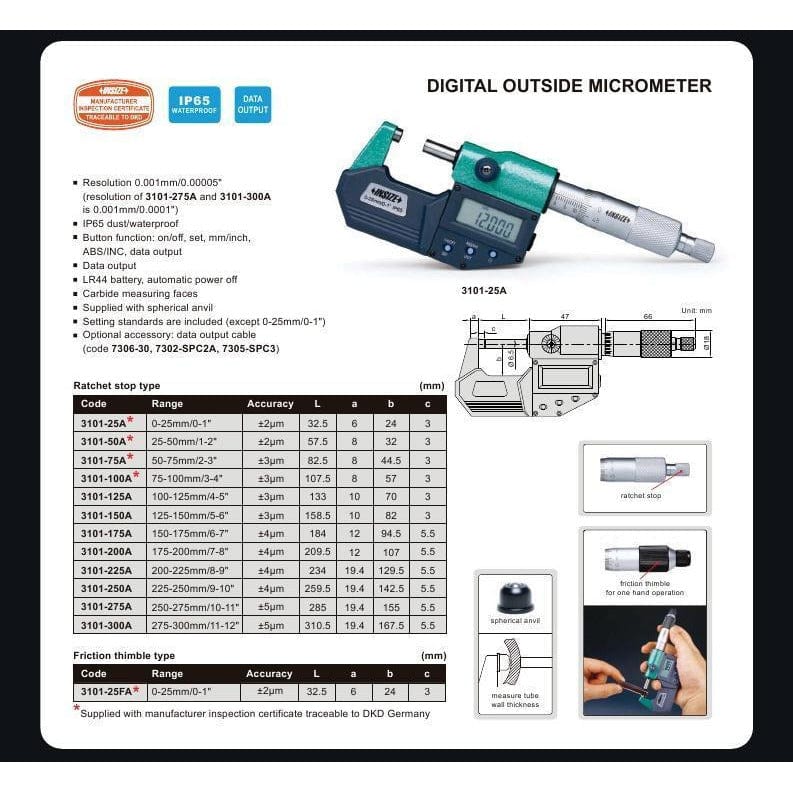

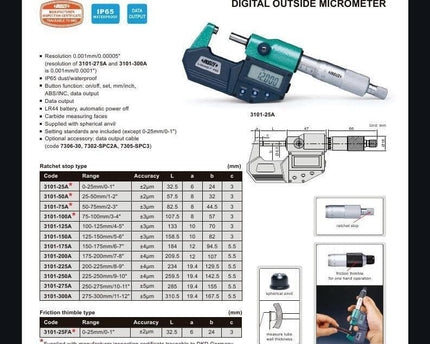

Specifications :
- Part No.: 3101-100A
- Strictly made in accordance with DIN 863
- IP65 dust and waterproof construction
- Resolution: 0.001 mm / 0.00005"
- Measuring range: 75–100 mm / 4–5"
- Button functions: on/off, set, mm/inch, ABS/INC
- Spindle thread hardened, ground, and lapped for maximum accuracy
- Baked enamel finish frame
- Barrel and thimble with satin chrome finish
- ABSOLUTE measurement with inch/metric conversion
- Large, easy-to-read LCD display

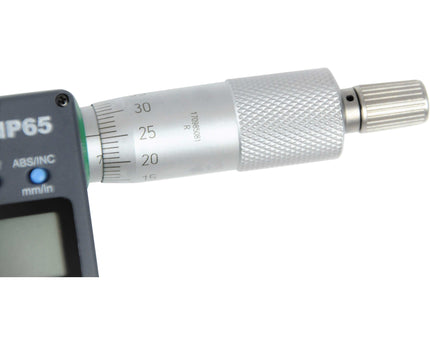

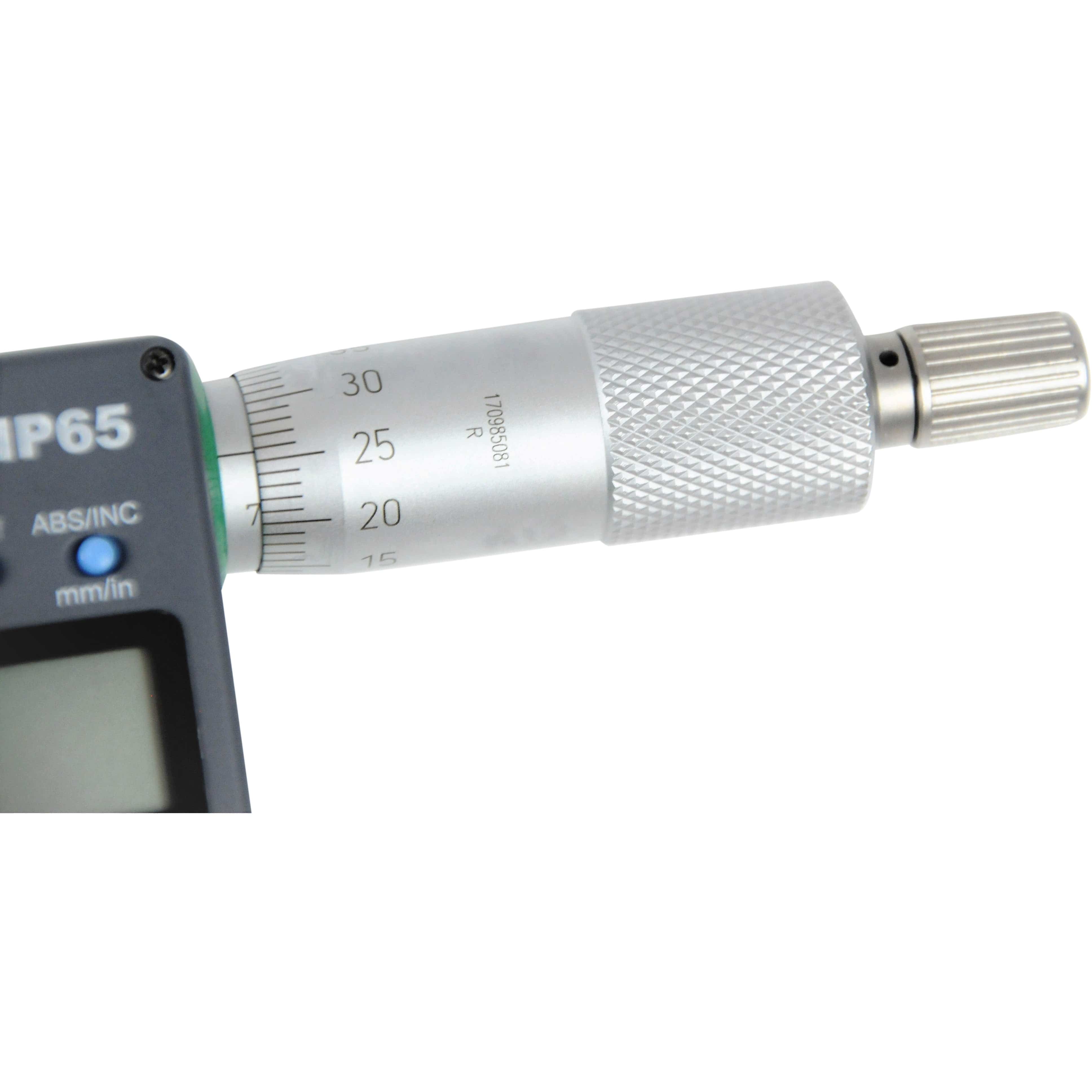

- Clear graduations on satin chrome finish for smooth operation
- Automatic power-off function
- Carbide measuring faces
- Spindle lock
- Ratchet stop for consistent measuring force

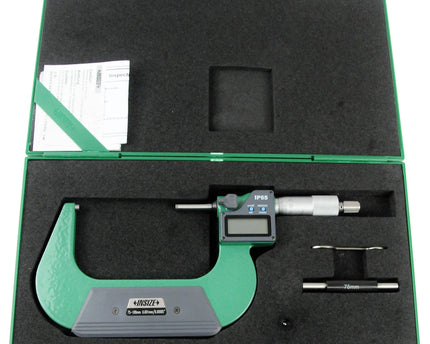

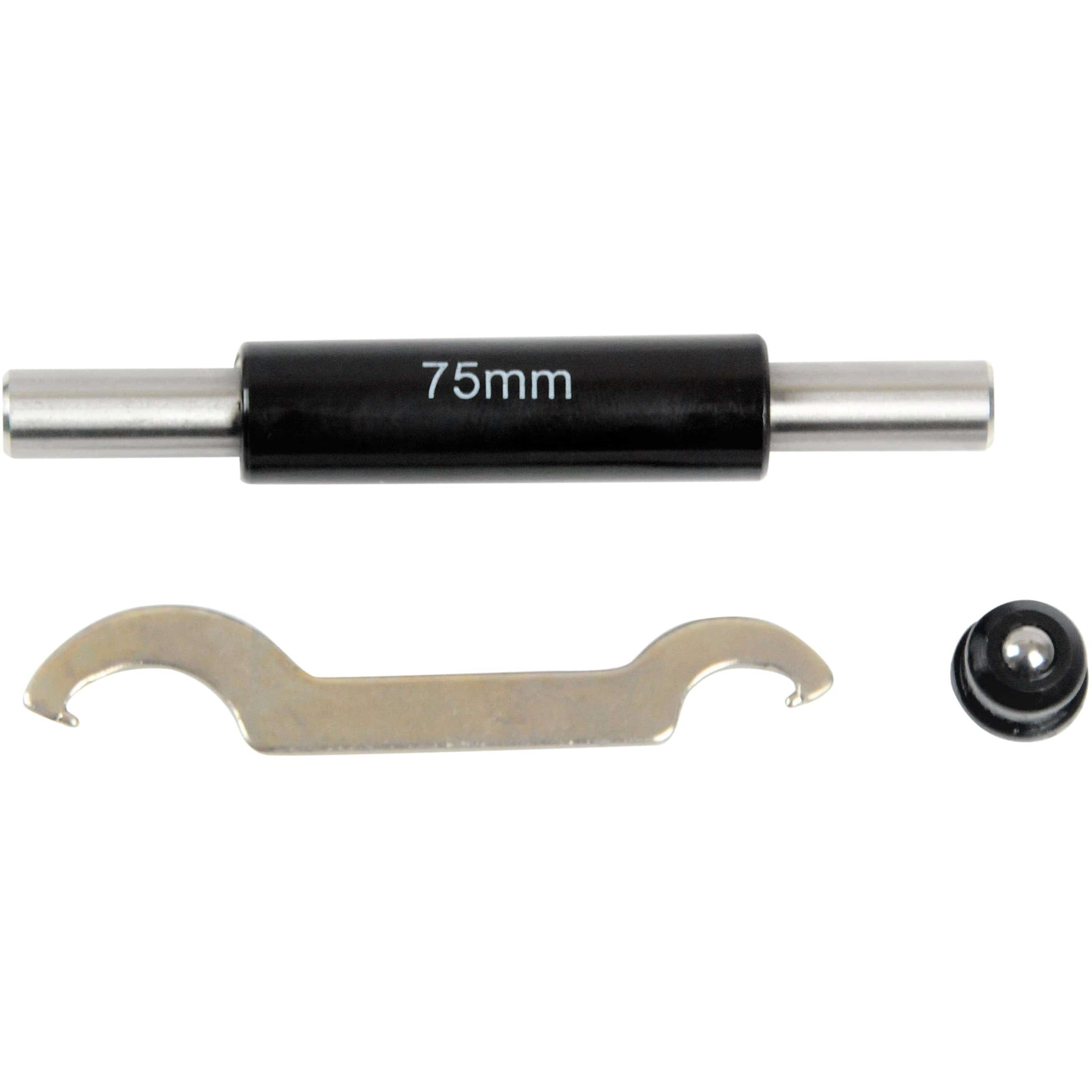

Includes :
- Zero adjusting wrench
- 75 mm calibration rod

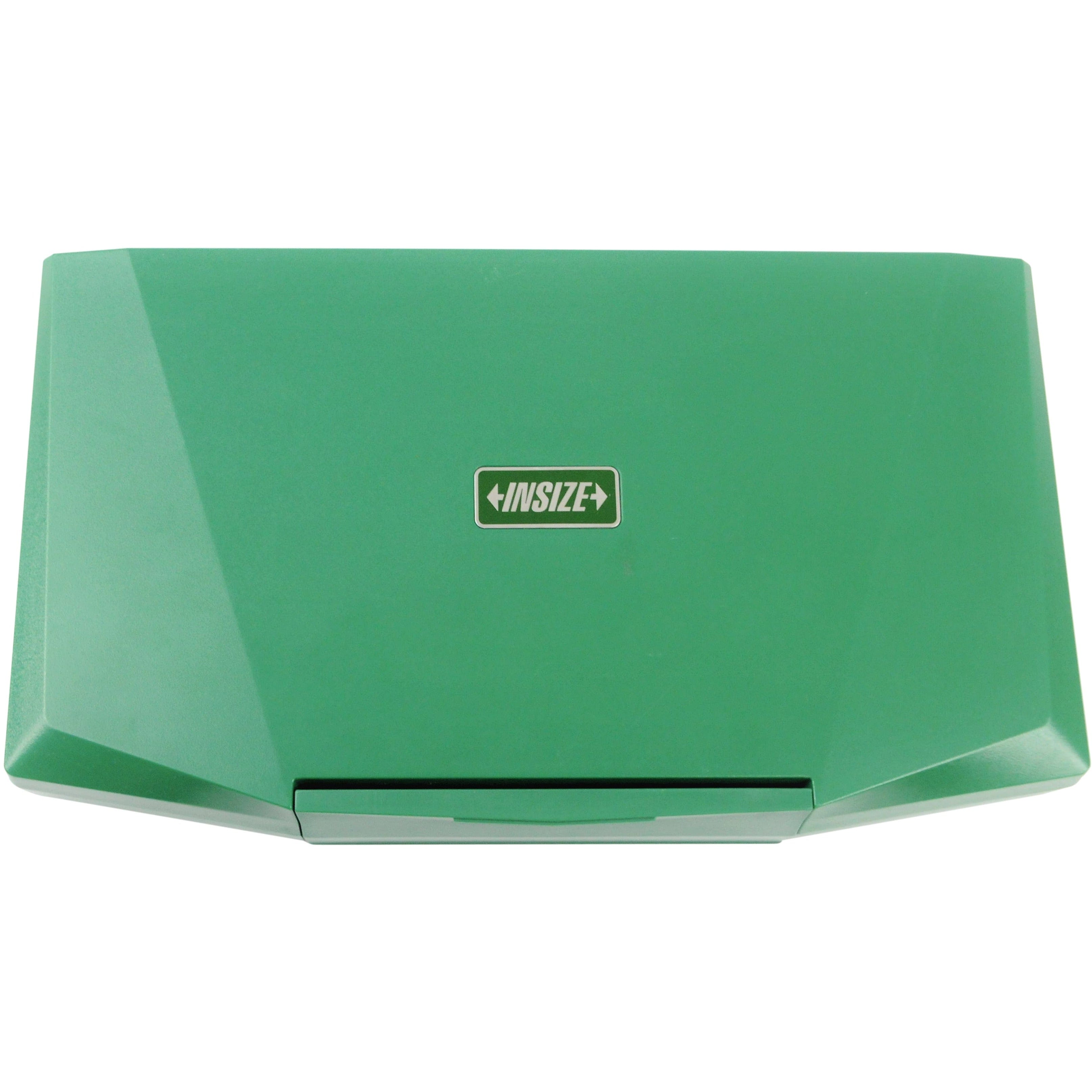

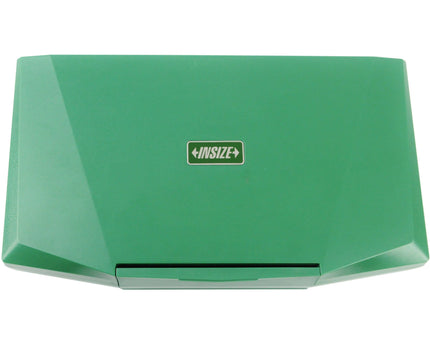

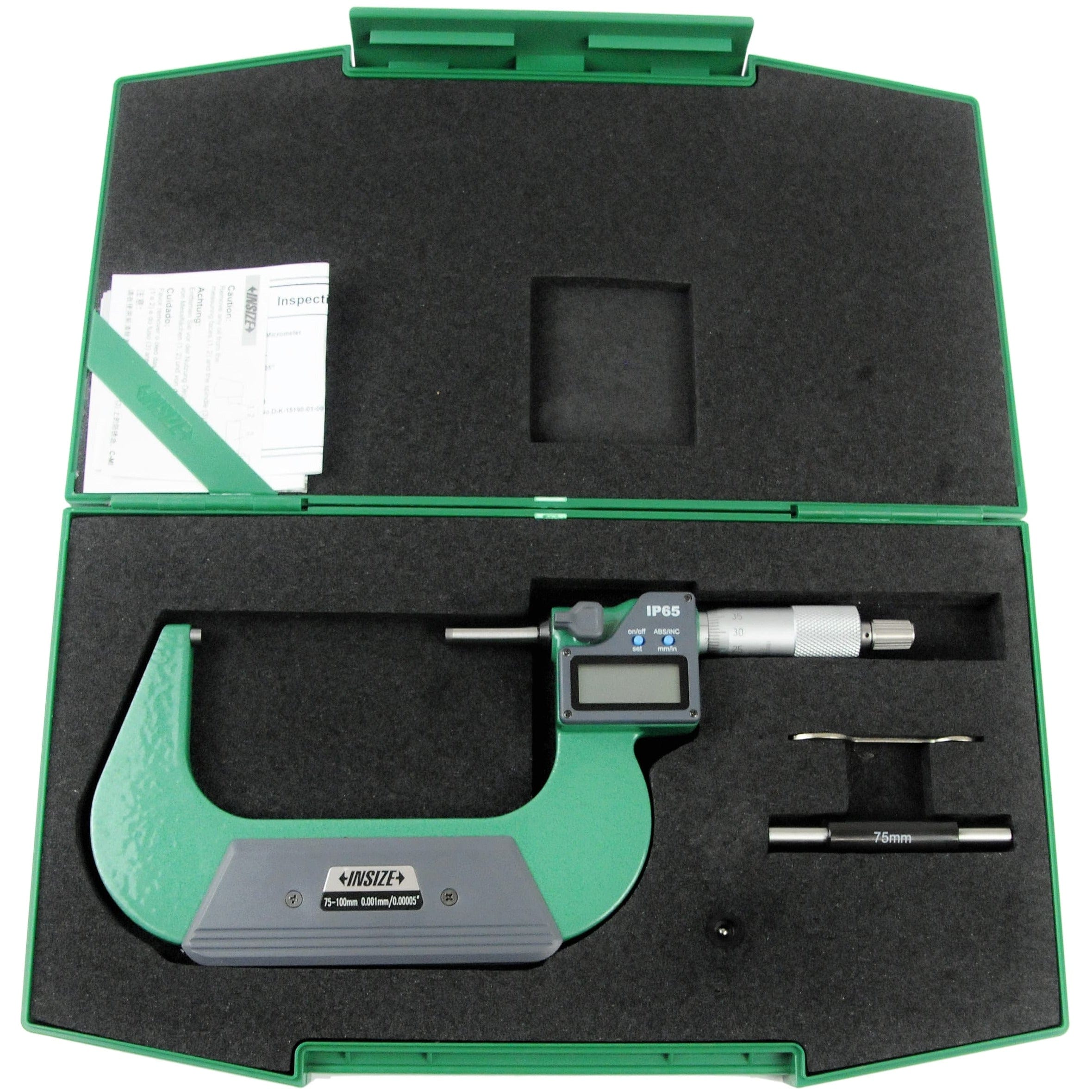

- Housed in a custom-styled protective case
Well designed and highly durable, this precision micrometer is ideal for workshop, toolroom, and quality control applications. INSIZE outside micrometers provide dependable accuracy and ease of use for measuring a wide range of external dimensions.
