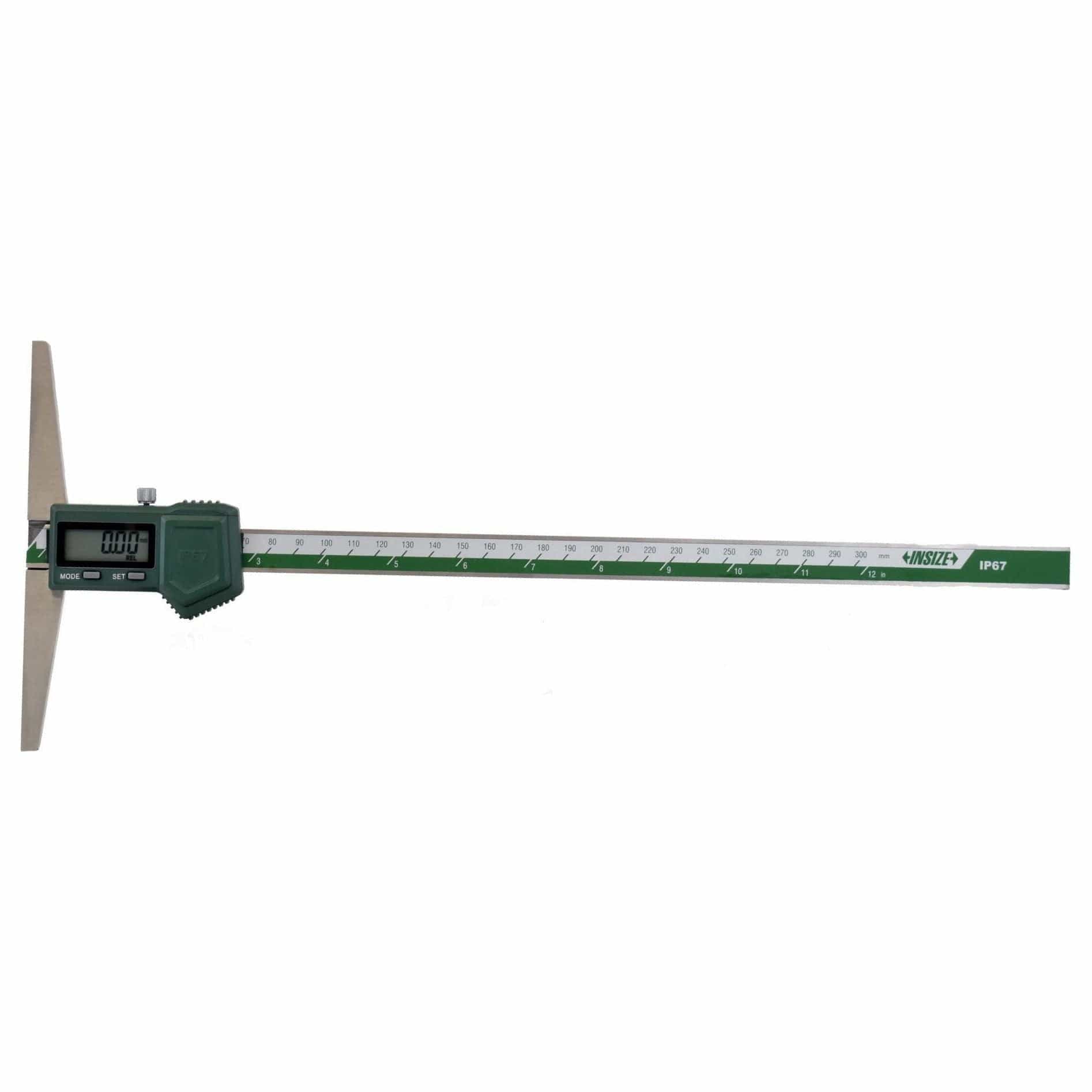

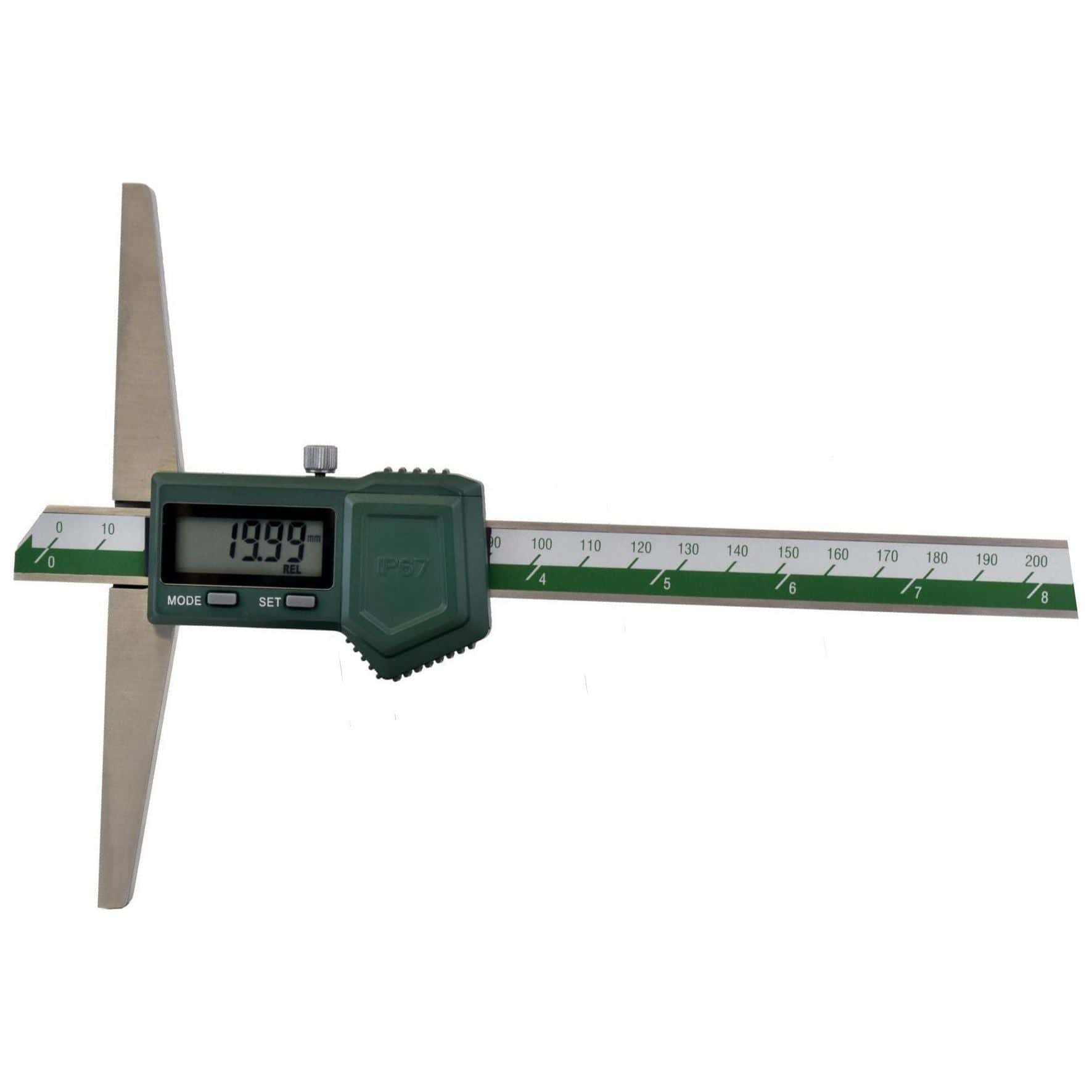

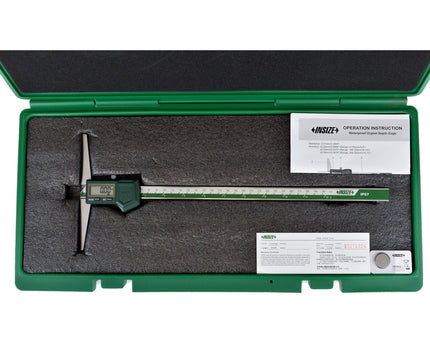

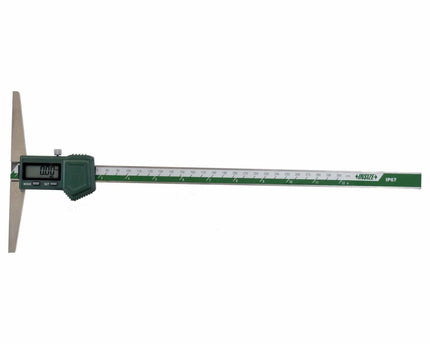

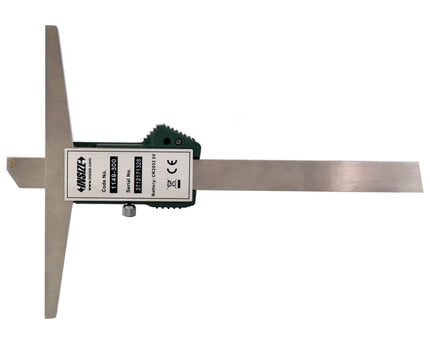

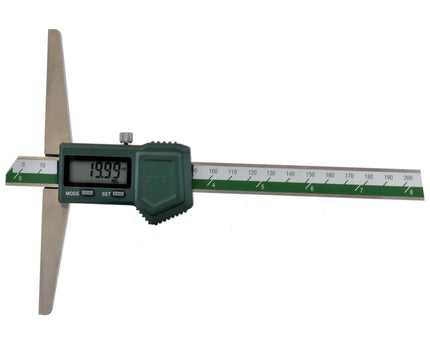

Insize IP67 Digital Depth Gauge 0–300 mm / 0–12"
A high-precision digital depth gauge designed for demanding workshop and inspection environments. Rated to IP67 for superior dust and waterproof protection, it delivers reliable performance even in challenging industrial conditions. The stainless-steel construction, smooth sliding action, and clear LCD display ensure accurate and repeatable depth measurements across the full 300 mm (12") range.

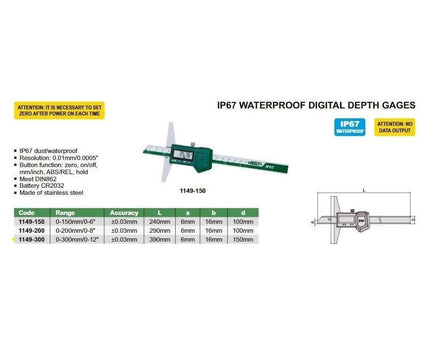

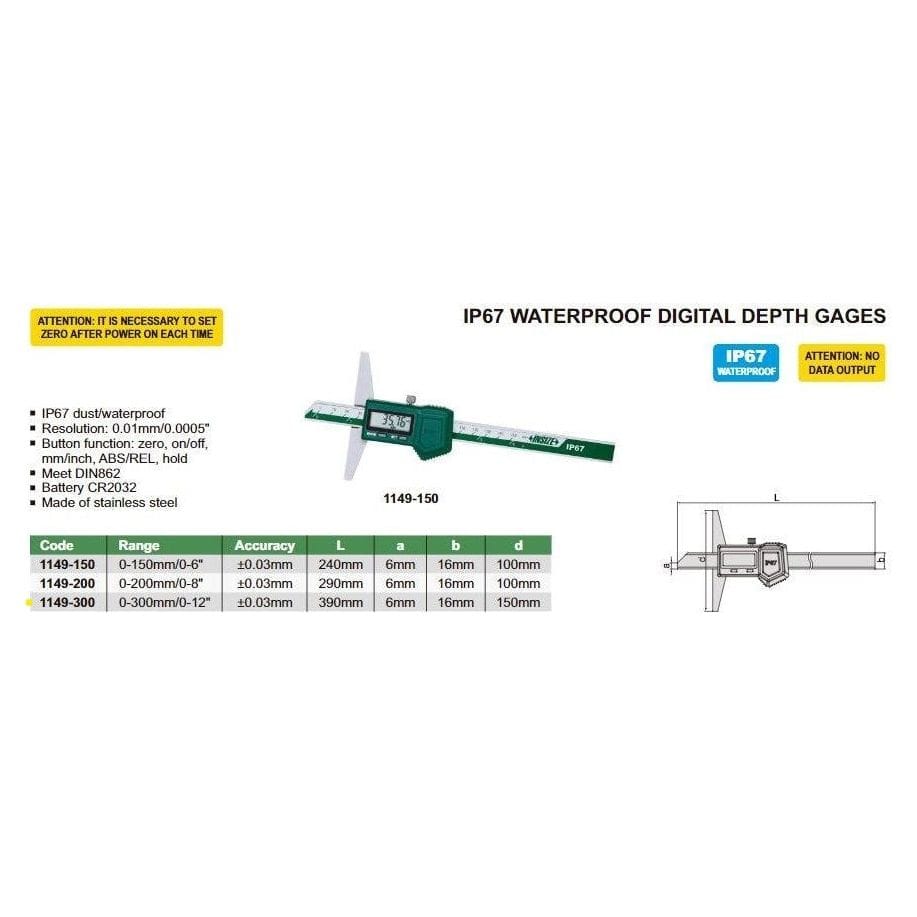

Specifications:

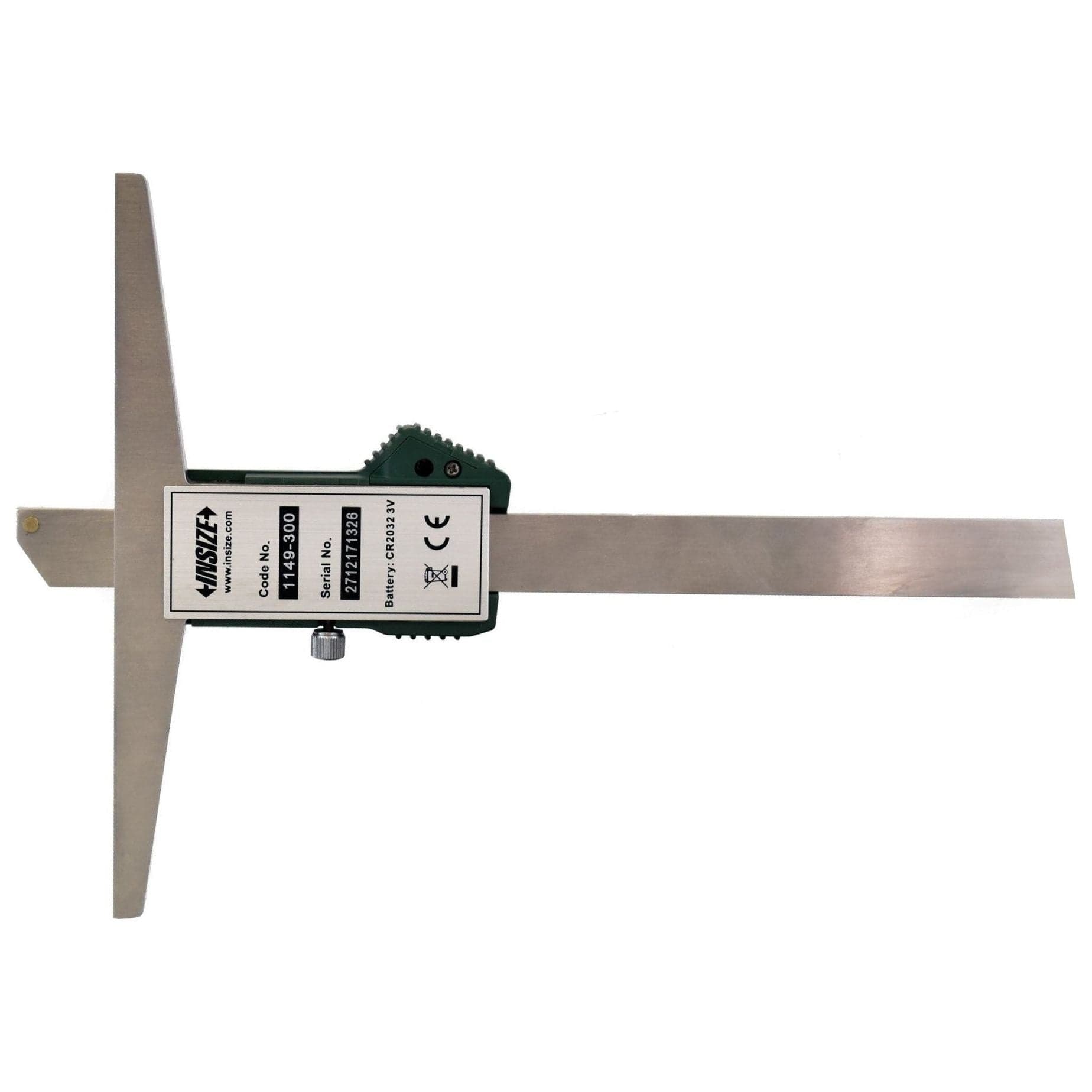

- Part No: 1149-300
- Range: 0–300 mm / 0–12"
- Imperial / Metric conversion button
- IP67 dust and waterproof rating
- Resolution: 0.01 mm / 0.0005"
- Button functions: Zero, On/Off, Inch/mm, ABS/REL, Hold
- Battery: CR2032
- Reading: 0.01 mm / 0.0005"
- Accuracy: 0.03 mm
- Manufactured in accordance with DIN862
- Silky-smooth slide movement
- Hardened, ground, and lapped measuring surfaces
- Step measuring faces
- LCD display
- Locking screw
- Zero button
- Thumb roller
- Depth measuring bar
- 5-minute auto power-off
- Solid stainless-steel design
Engineered for precision and durability, this IP67 digital depth gauge provides dependable accuracy for measuring bores, recesses, grooves, and other depth-related features. Ideal for both industrial and workshop use.
