Description

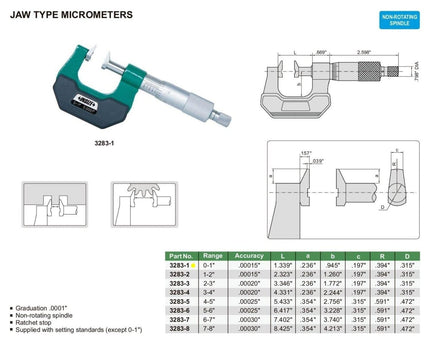

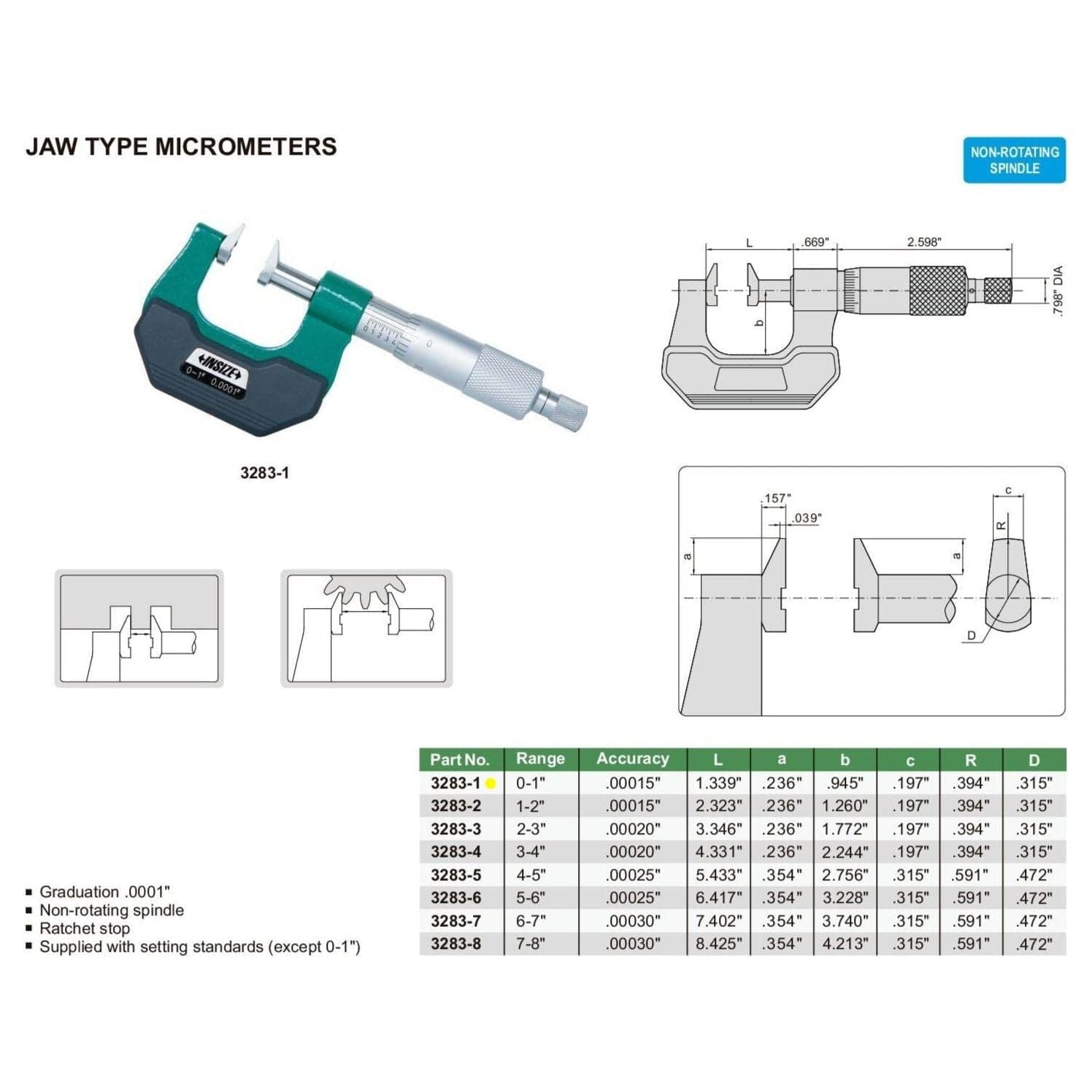

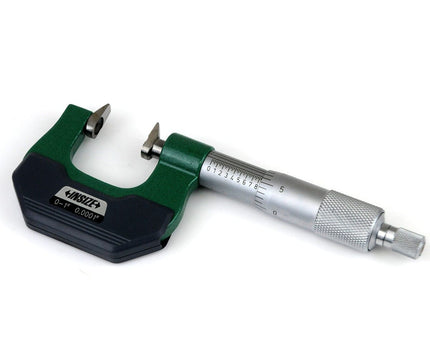

Insize 0–1" Jaw Type Micrometer
The Insize 0–1" Jaw Type Micrometer is designed for precise external measurement in applications where conventional micrometer anvils cannot easily reach. Its jaw-style measuring faces make it ideal for measuring grooves, steps, recesses, and other hard-to-access features in machining, inspection, and quality control environments.
Key Features:
-
Part Number: 3283-1
-
Graduation: 0.0001"
-
Accuracy: 0.00015"
-
Measurement Range: 0–1"
-

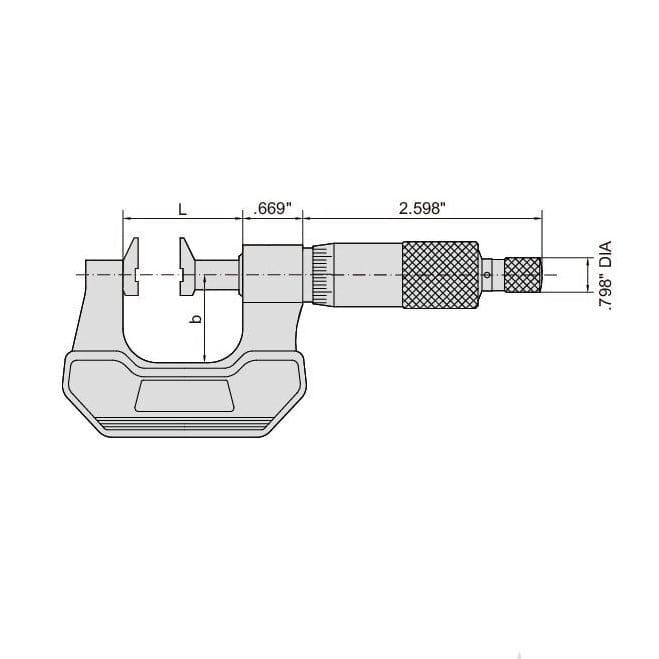

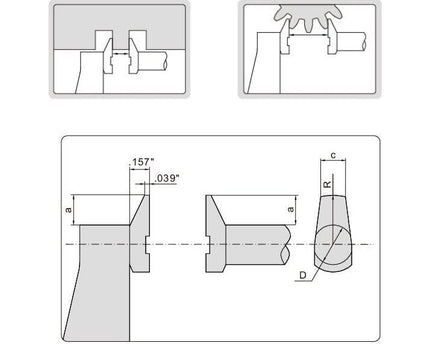

Overall Dimensions:
-
L: 1.339"
-
a: 0.236"
-
b: 0.945"
-
c: 0.197"
-
R: 0.394"
-
D: 0.315"
-
Non-Rotating Spindle: Provides stable, accurate measurements without rotational error
-
Ratchet Stop: Ensures consistent measuring pressure for repeatable results
-
Setting Standards: Supplied (except for the 0–1" range)
-

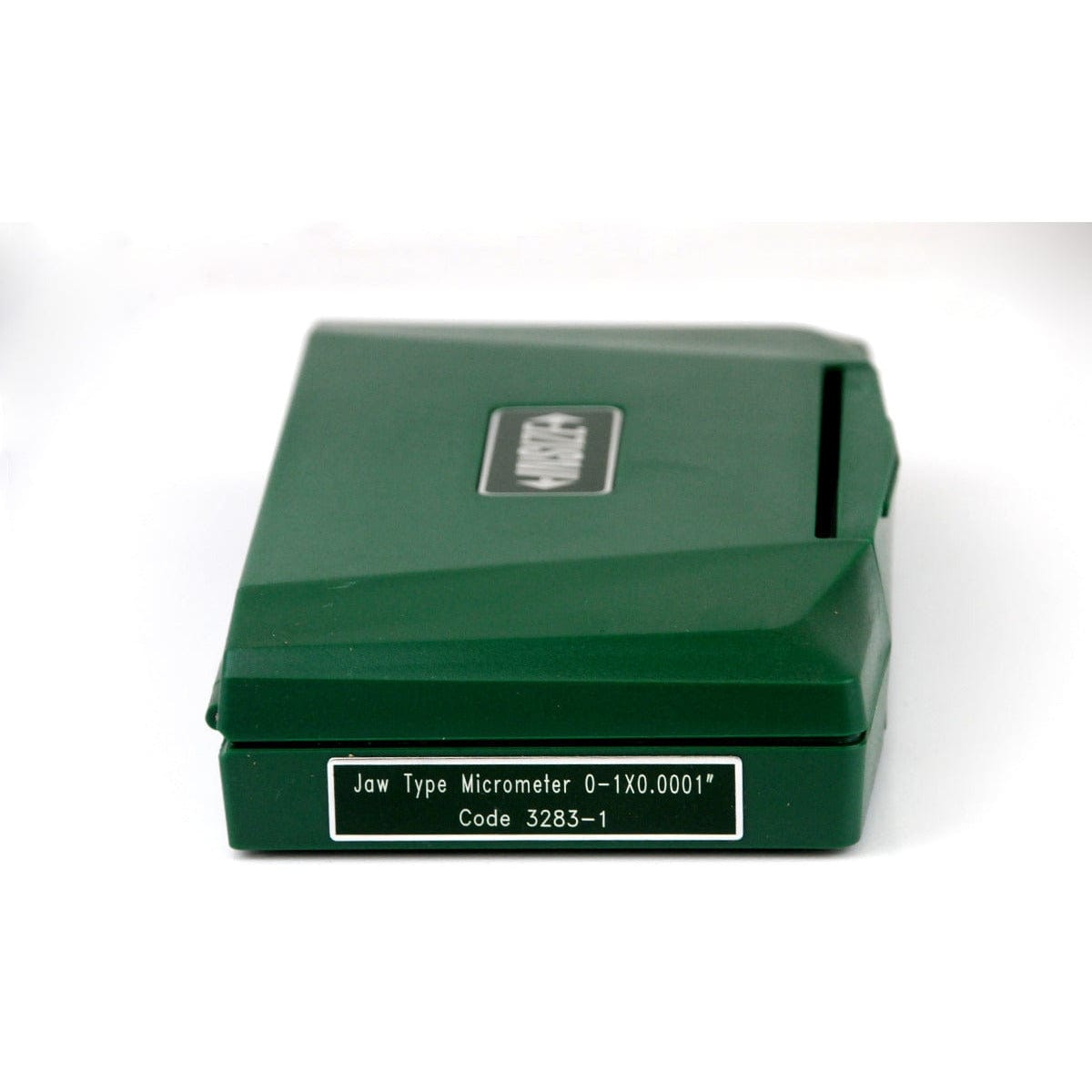

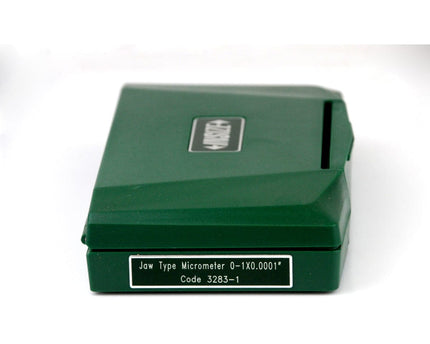

Storage: Supplied in a fitted protective case
Well designed and built for durability, the Insize 3283-1 Jaw Type Micrometer delivers reliable, high-precision performance in specialised measurement tasks. Insize micrometers are trusted by professionals for their accuracy, consistency, and ease of use.
