Description
Insize Long Handle

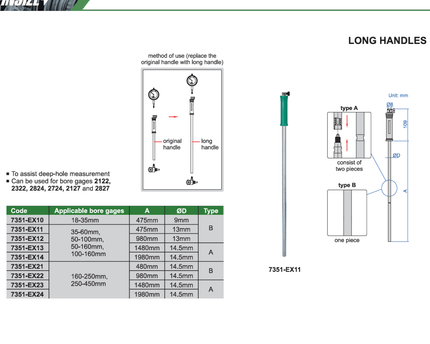

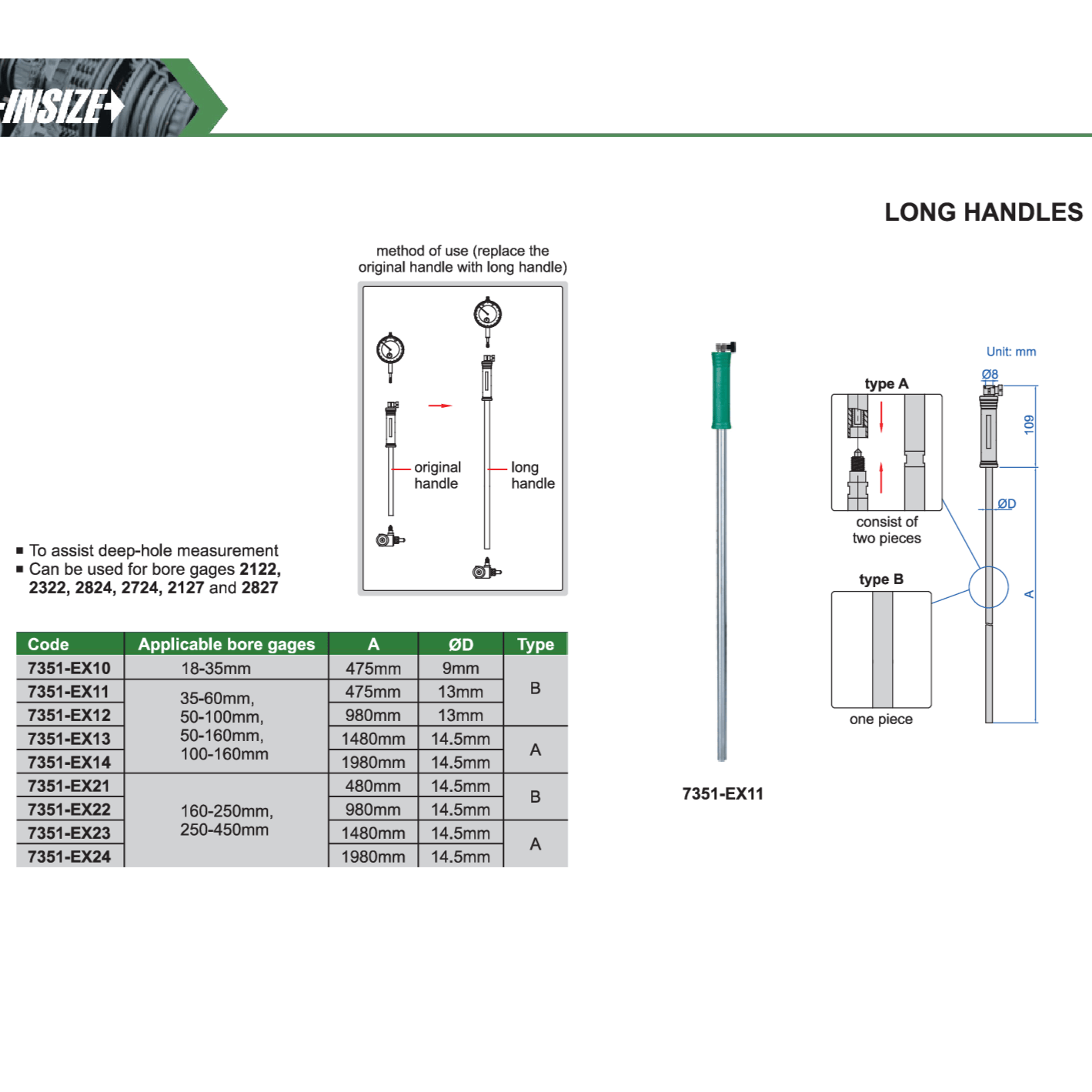

The Insize 7351-EX23 Long Handle is designed to extend bore gauge reach for deep-hole measurement in the 160–250 mm and 250–450 mm ranges. Featuring a two-piece Type A design, it delivers excellent rigidity and control at greater depths, ensuring consistent accuracy in inspection processes.
Specifications :
-
Part No: 7351-EX23
-
Length (A): 1480 mm
-
Diameter (ØD): 14.5 mm
-
Type: A (two-piece design)
-
Applicable Bore Gauges: 160–250 mm, 250–450 mm
-
Compatible Bore Gauge Series: 2122, 2322, 2824, 2724, 2127, 2827.
-
Application: Deep-hole measurement
The INSIZE 7351-EX23 Long Handle provides the extended reach and stability required for accurate measurements in large-diameter deep bores, ensuring dependable performance in demanding industrial environments.
