Description

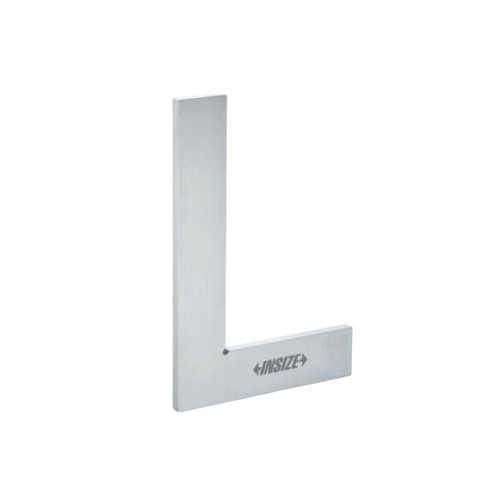

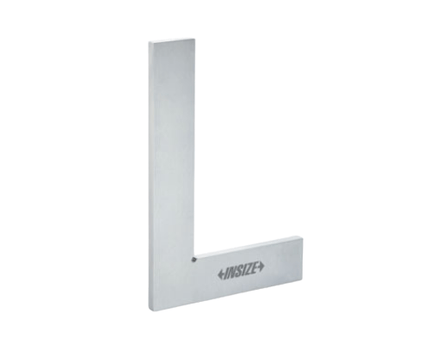

Insize Machinist Square (Economic Type)
The Insize 4796-200 Machinist Square is designed for checking squareness and 90° angle measurement in workshop applications. Made of carbon steel and complying with DIN875 Grade 2, this economic type square offers dependable accuracy for general use. Note: it is not hardened and has no anti-rust treatment.

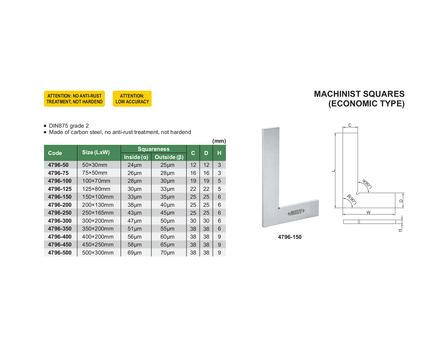

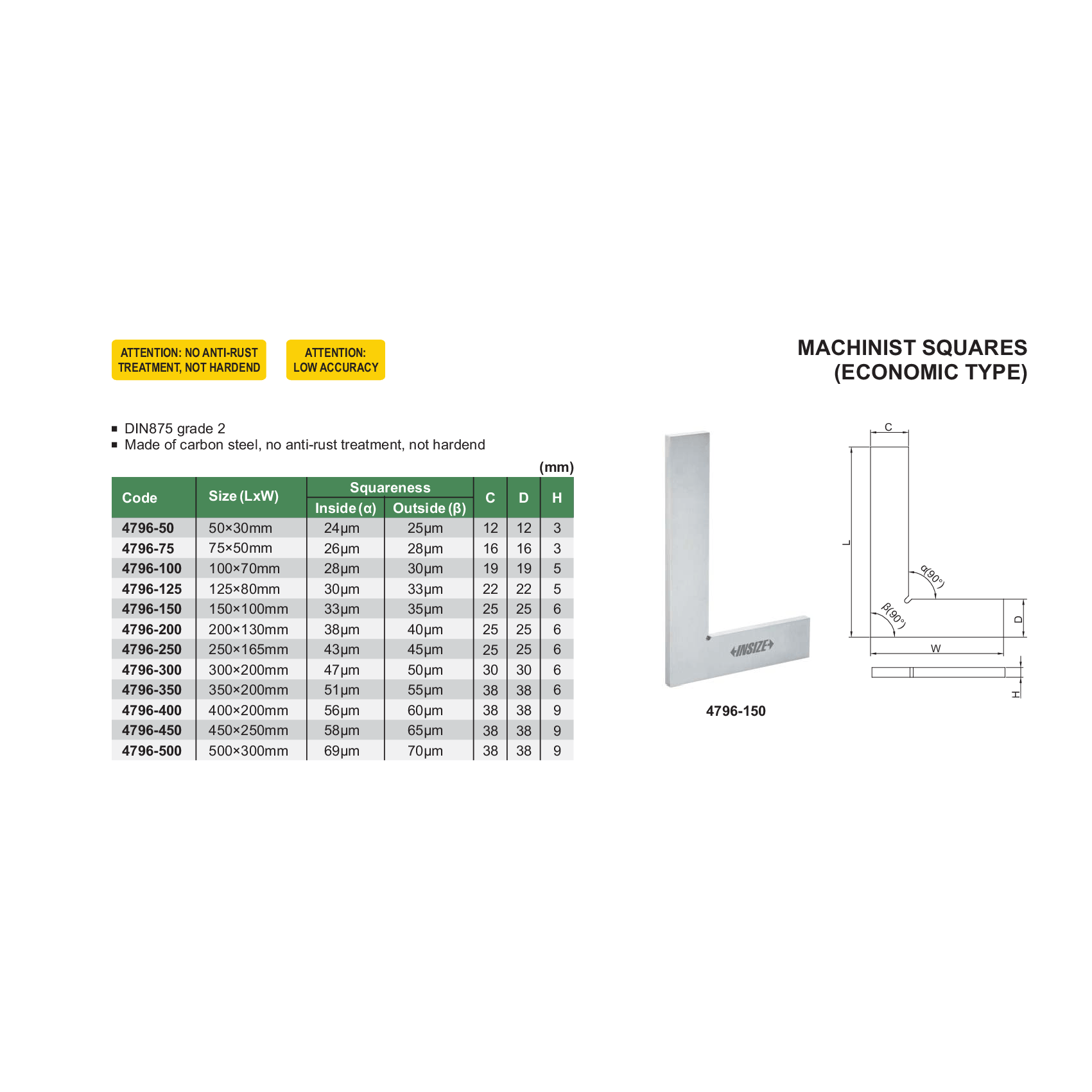

Specifications :
-
Part No: 4796-200
-
Size (L×W): 200×130 mm
-
Squareness (Inside α): 38 μm
-
Squareness (Outside β): 40 μm
-
C: 25 mm
-
D: 25 mm
-
H: 6 mm
-
Material: Carbon steel (not hardened, no anti-rust treatment)
-
Standard: DIN875 Grade 2
-
Application: Checking squareness and 90° angle measurement in general machining
The INSIZE 4796-200 Machinist Square provides economical squareness inspection with practical precision for workshop tasks.
