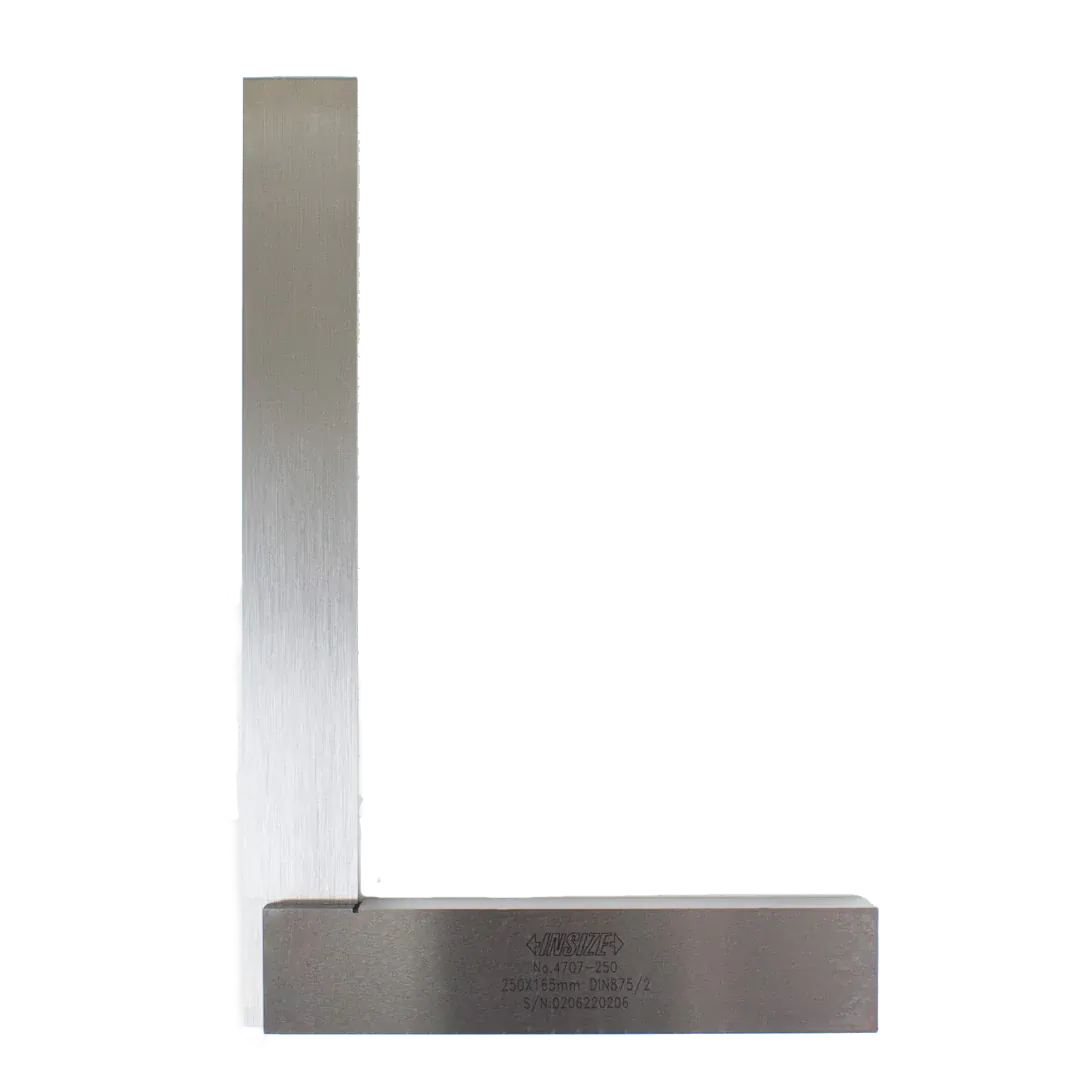

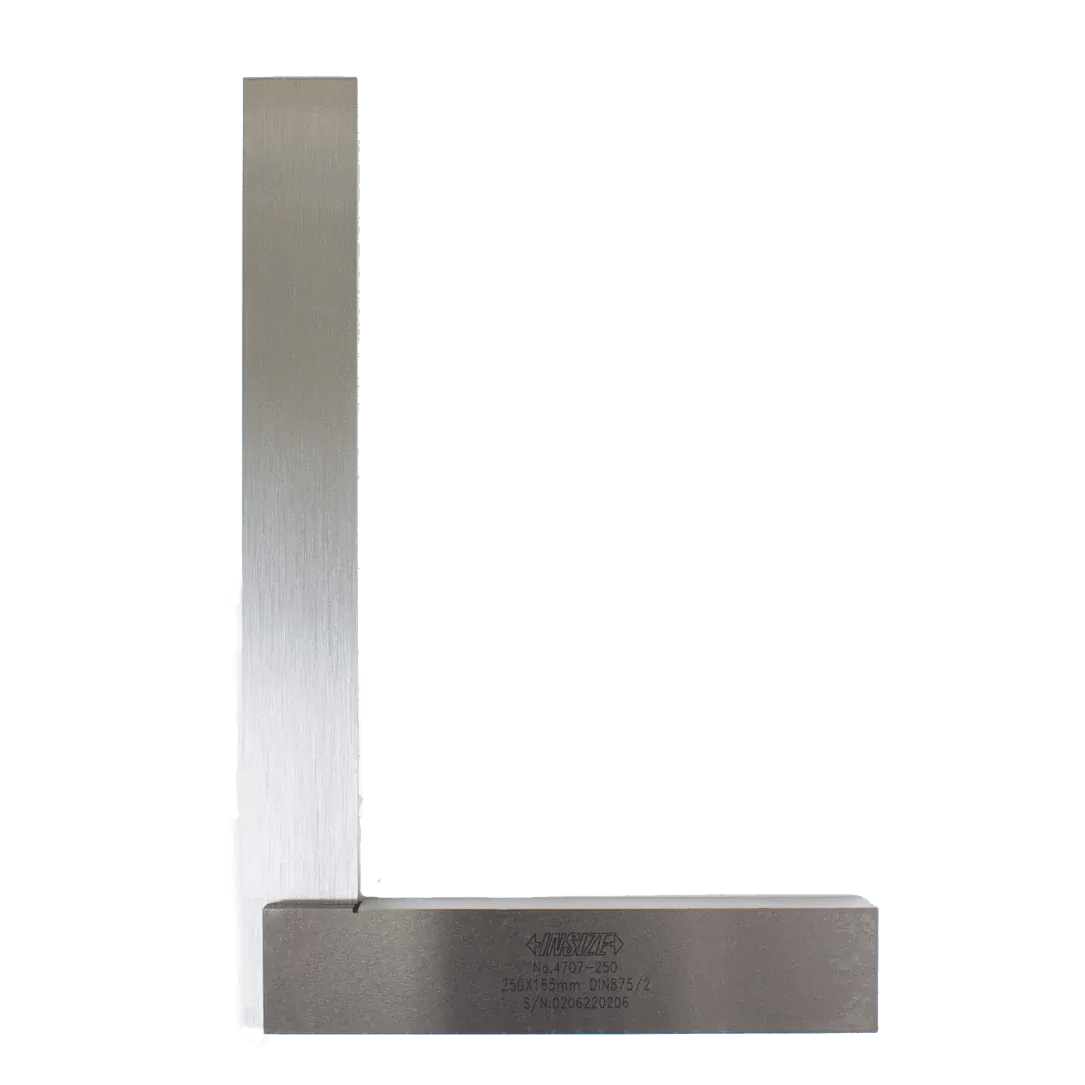

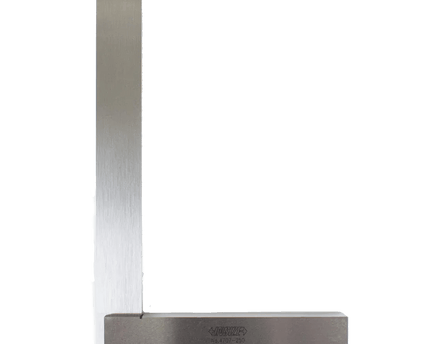

Insize Machinist Square with Wide Base 250 × 165mm – Series 4707-250
The Insize 4707-250 Machinist Square with Wide Base is a precision measuring tool designed for checking straightness, flatness, and squareness of workpieces during machining or inspection. Its wide base provides excellent stability and support when standing on a surface plate or machine table, making it ideal for accurate alignment and setup operations.
Manufactured in accordance with DIN 875 Grade 2 standards, this square is made of high-quality carbon steel. It is not hardened and has no anti-rust treatment, making it suitable for controlled environments where proper maintenance is observed. The precision-ground surfaces ensure consistent accuracy for both internal and external angle checks.
Key Features & Benefits
-
DIN 875 Grade 2: Provides reliable accuracy for workshop and inspection use.
-
Wide base design: Offers improved stability for hands-free operation.
-
Carbon steel construction: Rigid, durable, and precision-ground for accuracy.
-
Economic type: Ideal for general machining, layout, and inspection tasks.
-
Lightweight and easy to handle while maintaining dependable squareness.

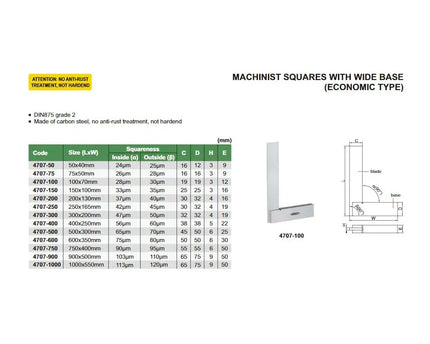

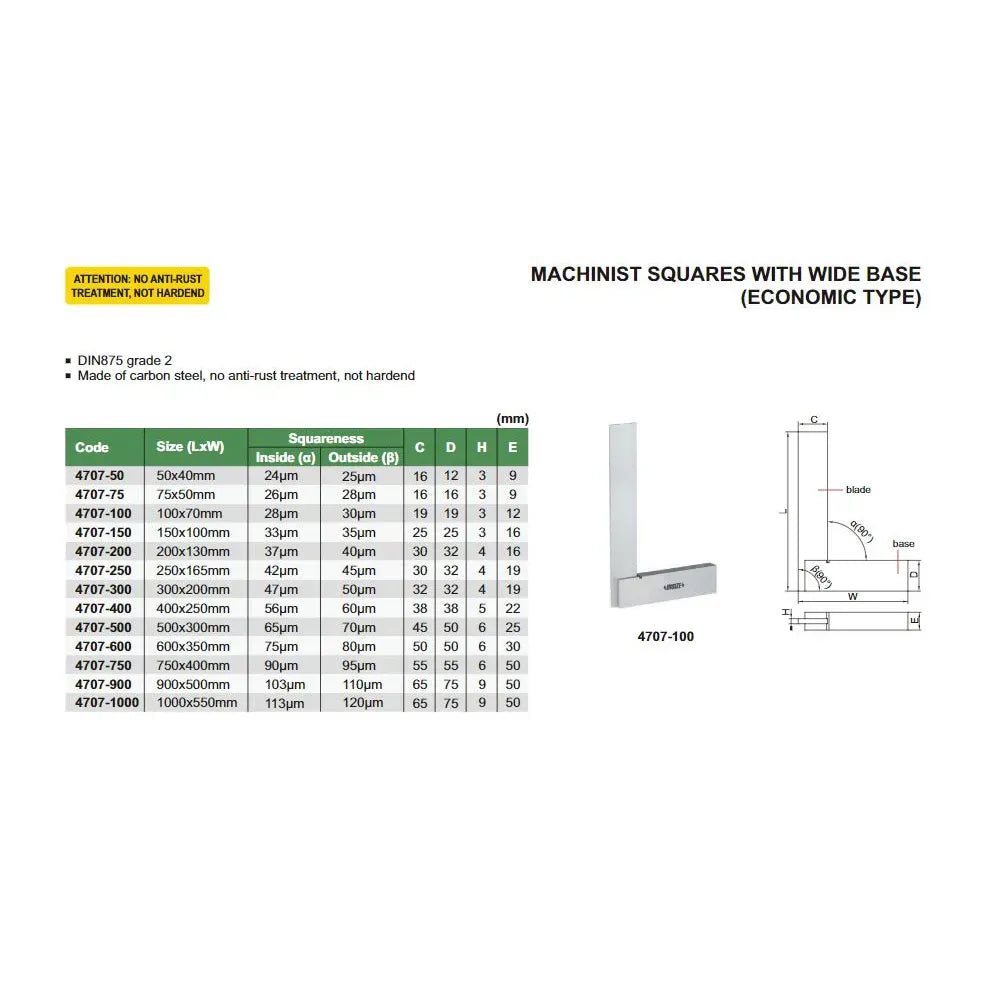

Technical Specifications
-
Series: 4707
-
Model: 4707-250
-
Size (L × W): 250 × 165 mm
-
Inside Squareness (α): 42 µm
-
Outside Squareness (β): 45 µm
-
C: 30 mm
-
D: 32 mm
-
H: 19 mm
-
E: 4 mm
-
Material: Carbon Steel (Not Hardened, No Anti-Rust Treatment)
-
Standard: DIN 875 Grade 2
About Insize: Insize is a global manufacturer of precision measuring instruments, known for producing reliable, high-quality, and affordable metrology tools. Their product range supports machinists, fabricators, and engineers across various industrial applications.
