Description

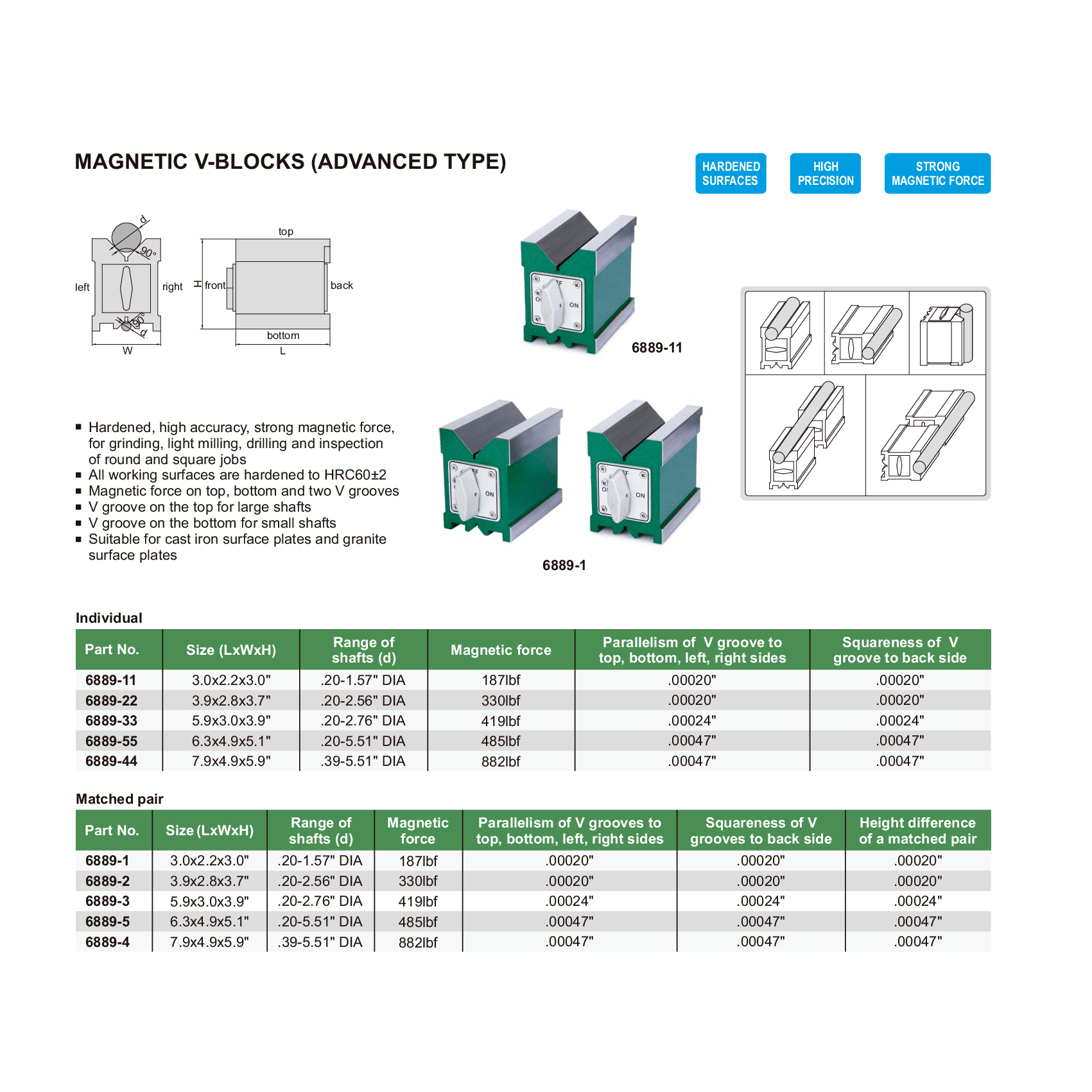

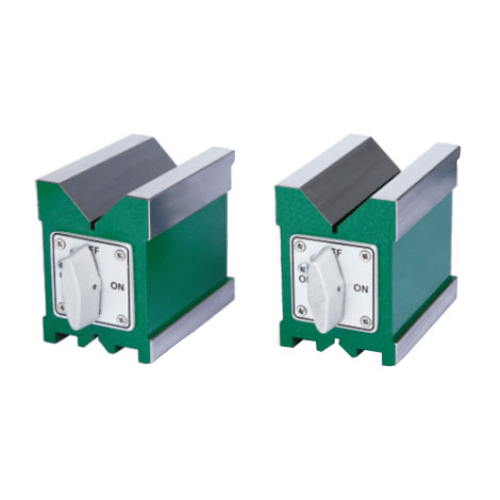

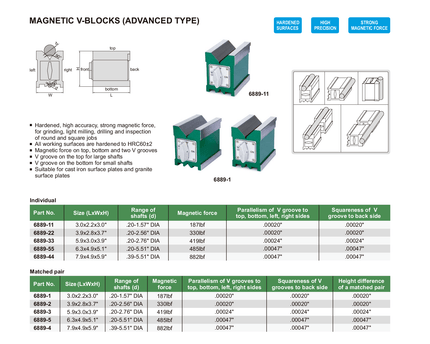

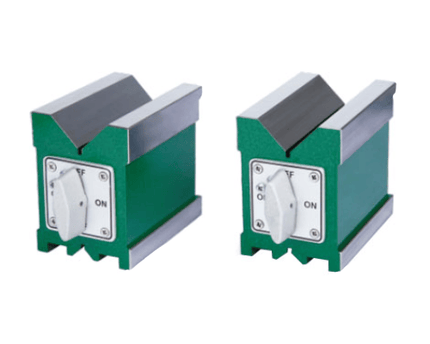

Insize Magnetic V-Block (Advanced Type)
The Insize 6889-11 Magnetic V-Block is engineered with hardened surfaces, strong magnetic force, and high precision, making it ideal for grinding, milling, drilling, and inspection of round and square workpieces. All working surfaces are hardened to HRC60±2, ensuring durability and accuracy. Magnetic force is applied on the top, bottom, and V-grooves, with one V-groove on the top for large shafts and one on the bottom for smaller shafts. The block is suitable for use on cast iron surface plates and granite surface plates.
Specifications:
-
Part No: 6889-11
-
Size (L×W×H): 3.0×2.2×3.0″
-
Range of Shafts (d): 0.20-1.57" DIA
-
Magnetic Force: 187 lbf
-
Parallelism of V-groove to top, bottom, left, right sides: 0.00020″
-
Squareness of V-groove to back side: 0.00020″
-
Surface Hardness: HRC60±2
-
Application: Grinding, light milling, drilling, and inspection of round/square jobs
The INSIZE 6889-11 delivers strong holding power and precision squareness for accurate machining and inspection tasks.
