Description

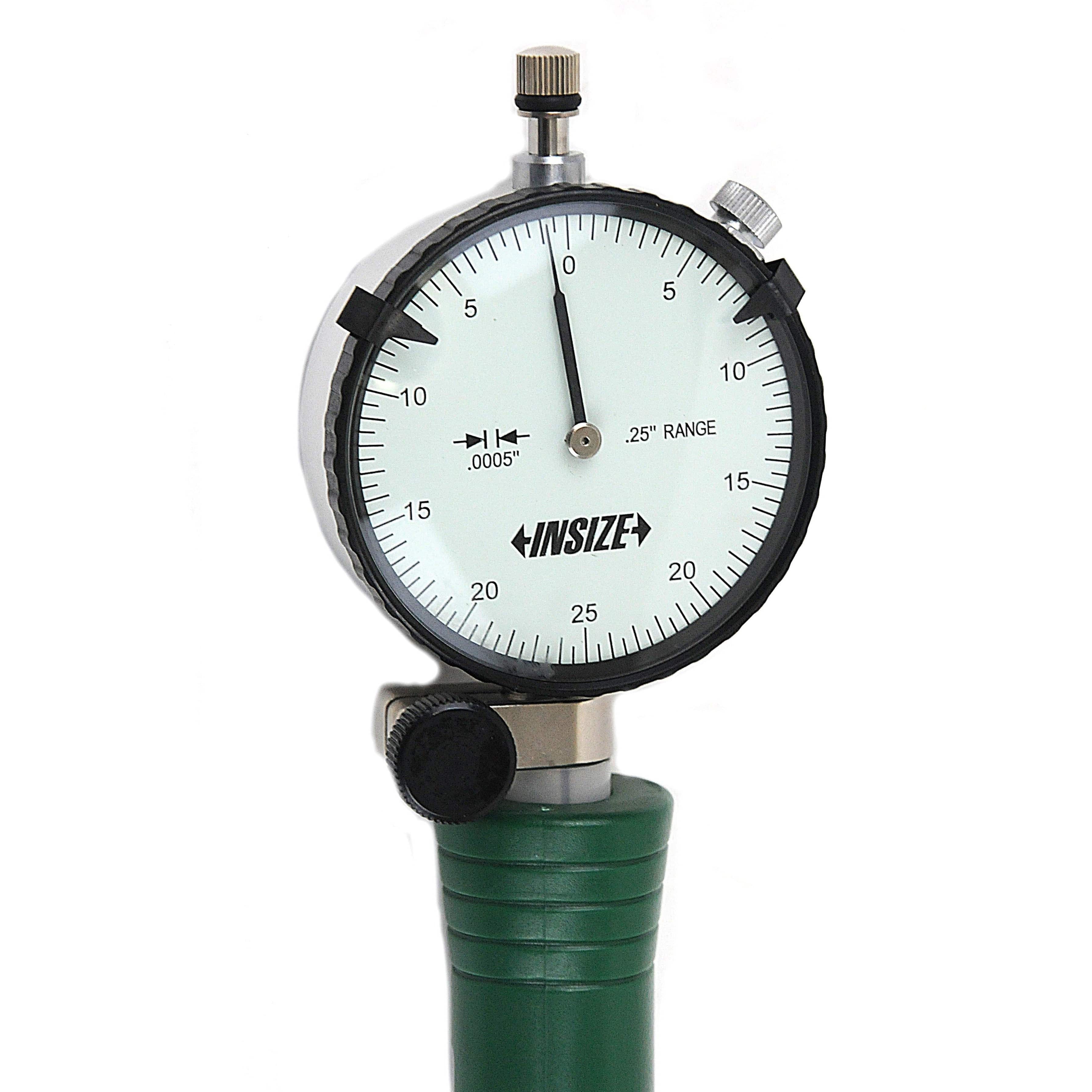

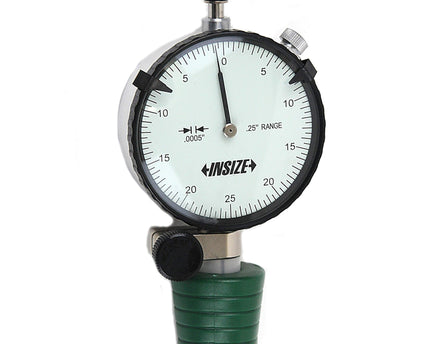

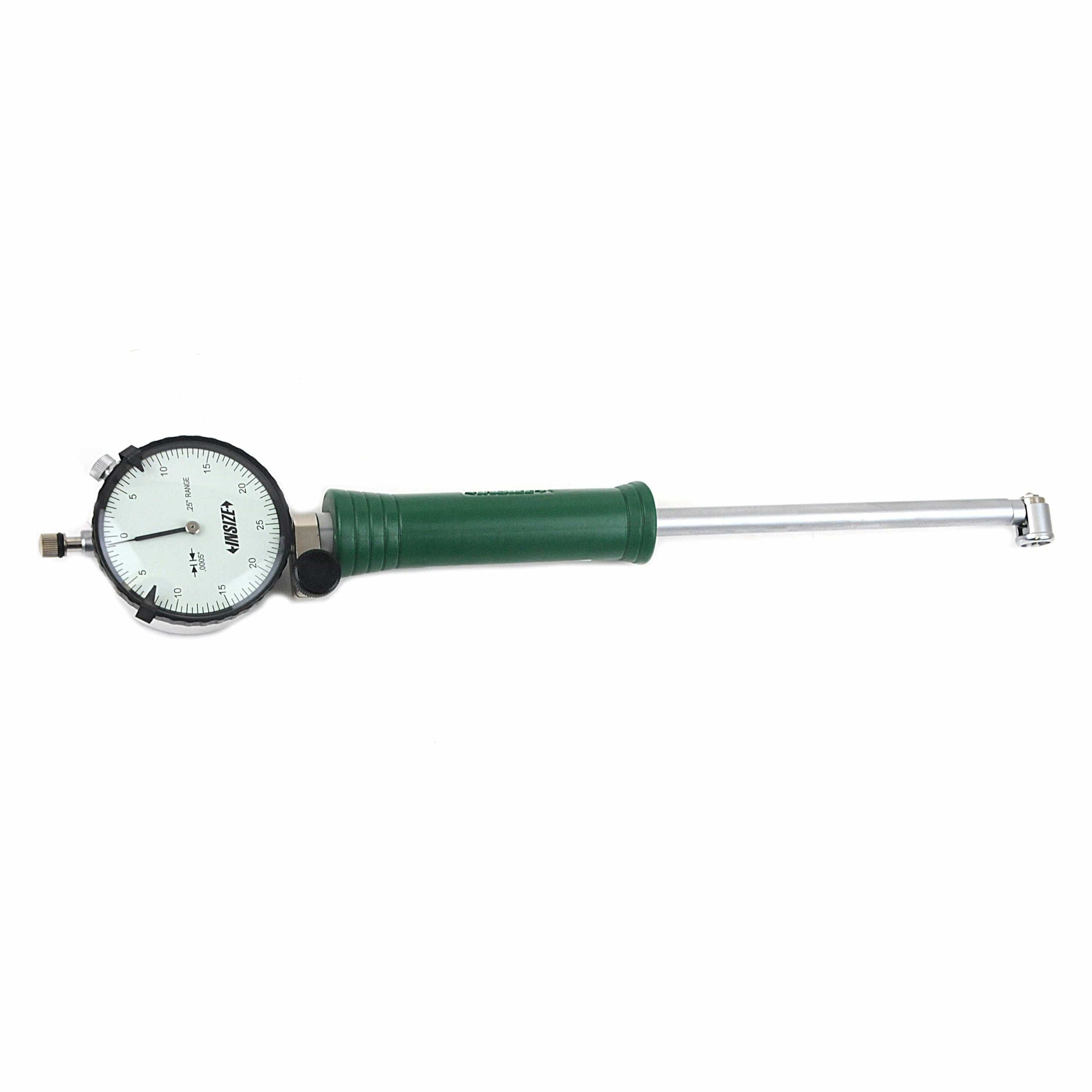

Insize 0.7"–1.5" Bore Gauge
The Insize 0.7"–1.5" Bore Gauge is engineered for precise and repeatable internal diameter measurement. Designed for smooth operation and long-term durability, this bore gauge is ideal for machining, inspection, and quality control environments.
Specifications :
- Part no: 2323-15
- Reading: Imperial
- Graduation: 0.0005"
- Accuracy: 0.0015"
- Dial reading: 0–0.25"
- Range: 0.7"–1.5"
- Strictly made in accordance with DIN878
- Silky smooth movement throughout
- Soft grip handle

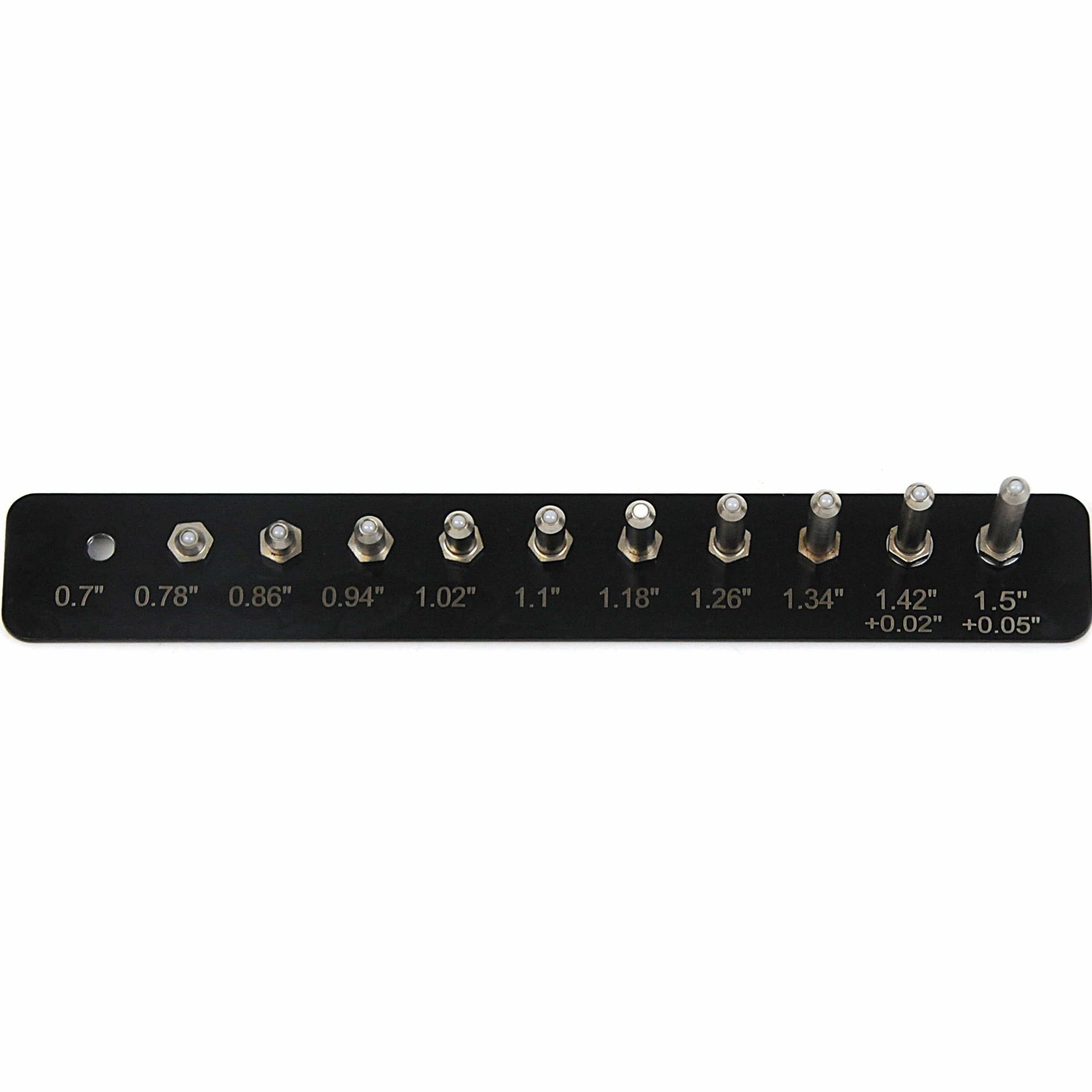

- Supplied with extension rods covering 0.7" to 1.5" in 0.08" increments
- Ceramic contact point
- Optional setting ring (not included)
- Optional long handle 7351 (not included)
- Supplied with limited hands and a bezel clamp

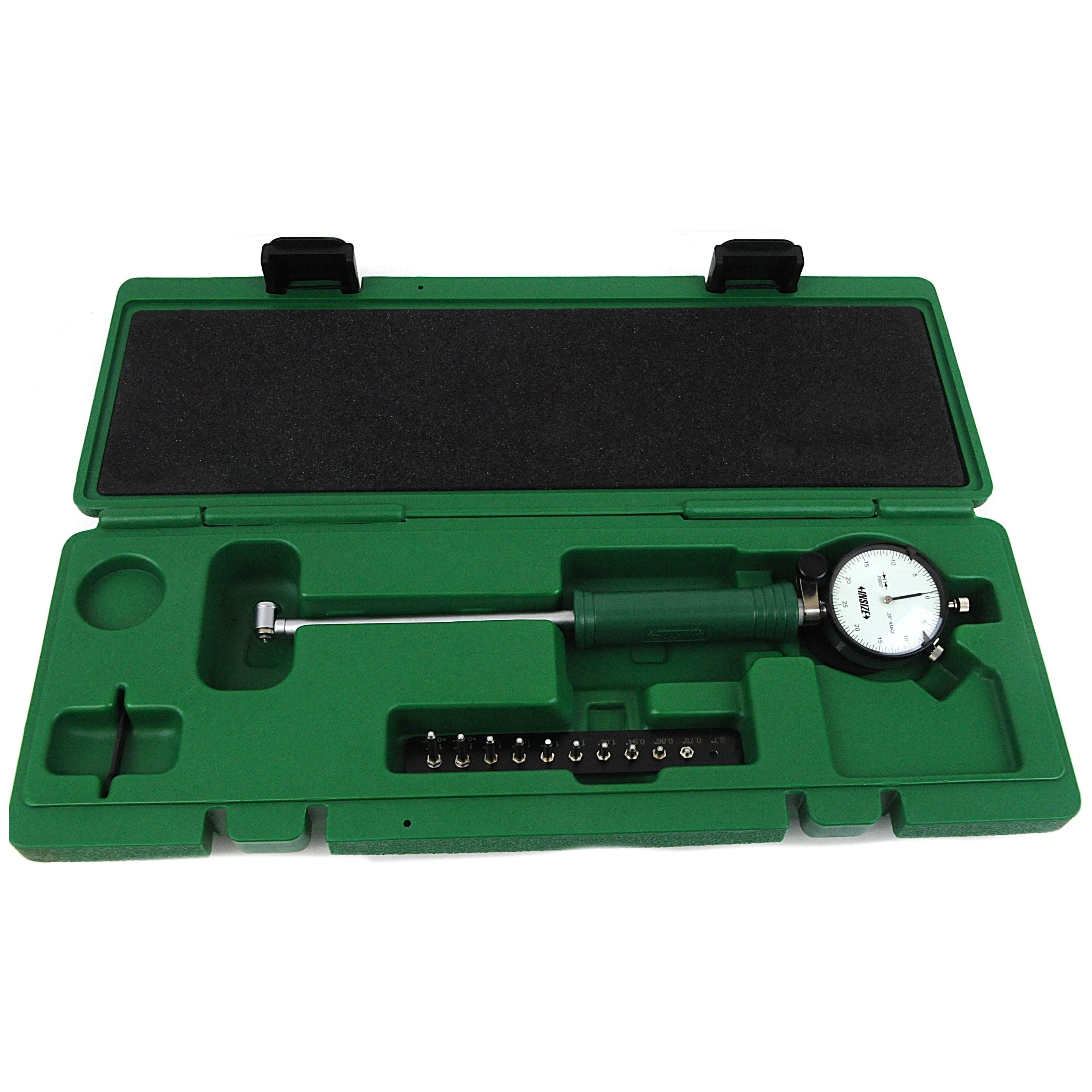

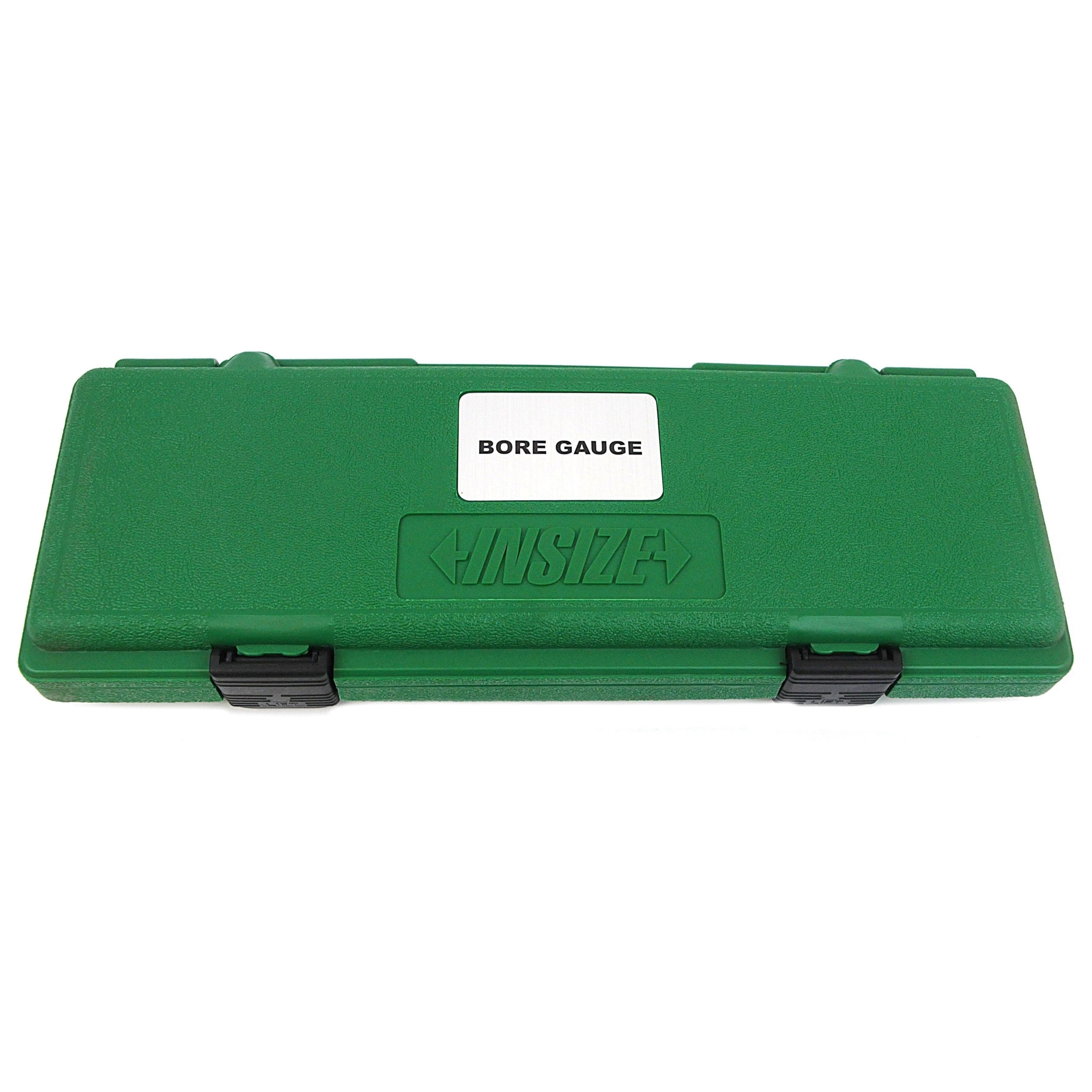

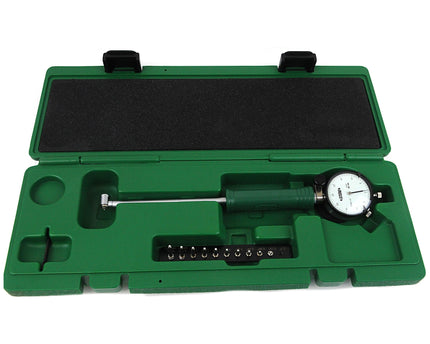

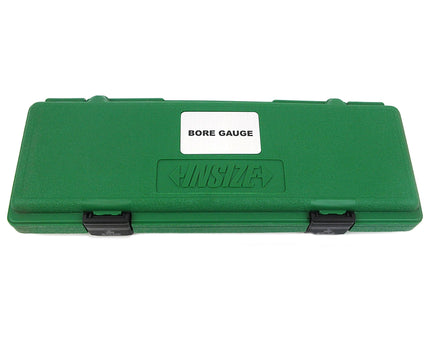

- Supplied in a blow-moulded storage box
Well-designed, durable, high-precision tools suitable for a wide range of measuring applications. INSIZE bore gauges are easy to adjust and provide excellent repeatability when measuring internal diameters with confidence and accuracy.
