Description

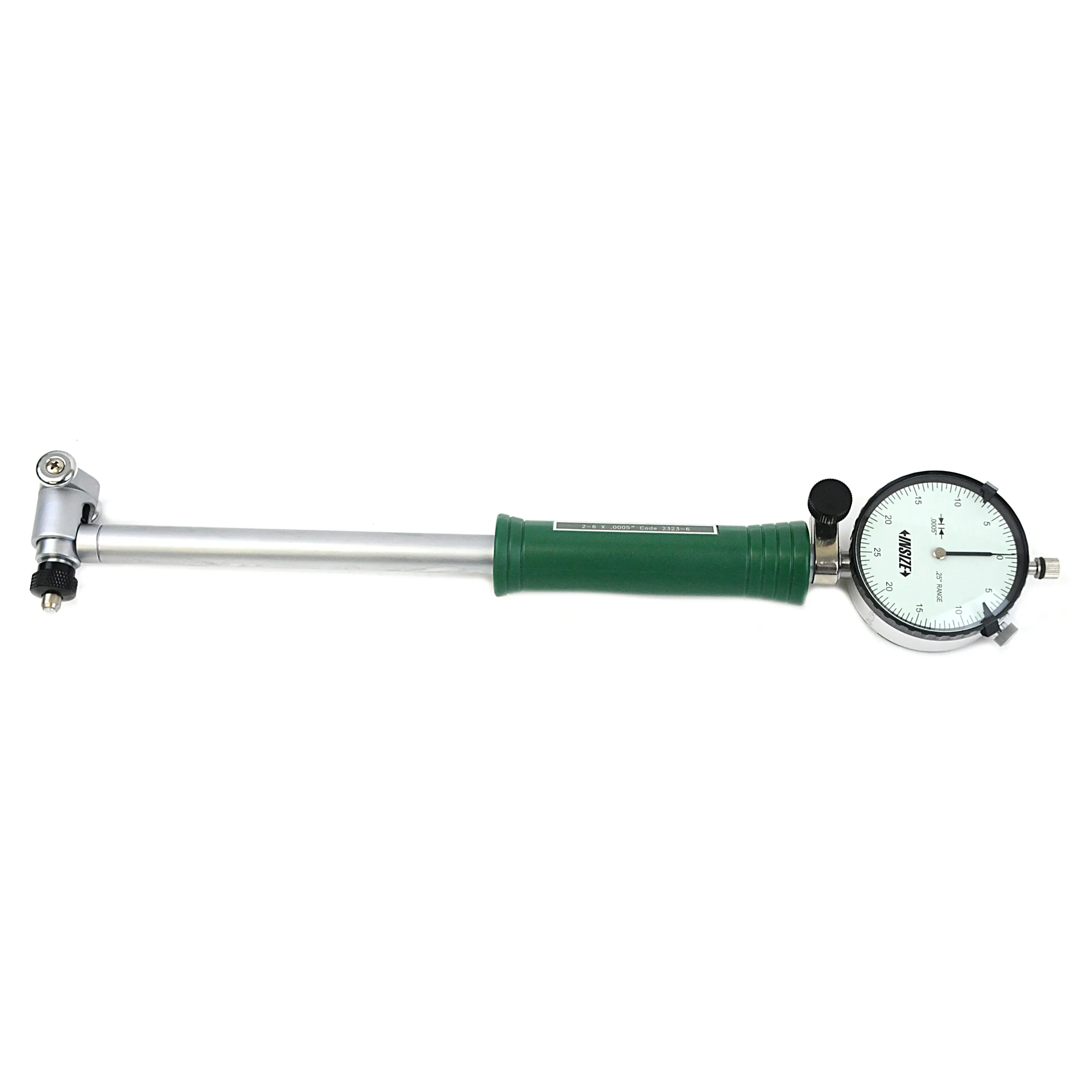

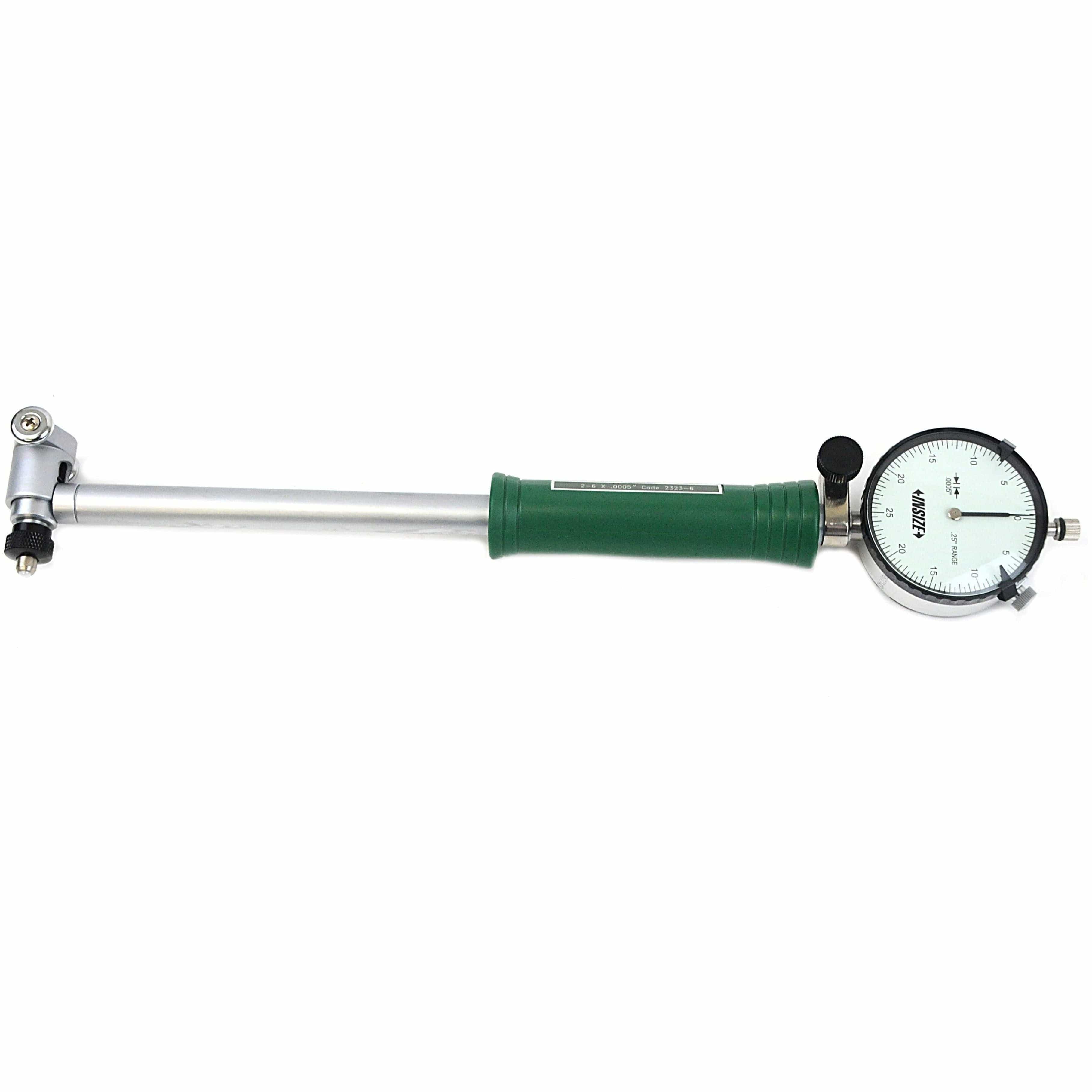

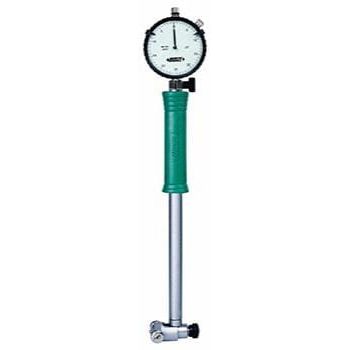

The Insize 2323-6 Bore Gauge is designed for accurate and repeatable internal diameter measurement across a wide 2"–6" measuring range. Engineered for precision workshop, machining, and quality inspection applications, this bore gauge delivers smooth operation, dependable repeatability, and reliable measurement performance.
Manufactured in accordance with DIN878 standards, the gauge features silky smooth movement, ceramic contact points, and a comfortable soft grip handle for enhanced control during use. Modular extensions supplied in fine increments allow versatile bore measurement capability across multiple internal diameters.
Key Features & Benefits
- Precision bore gauge for internal diameter measurement
- Measuring range: 2"–6"

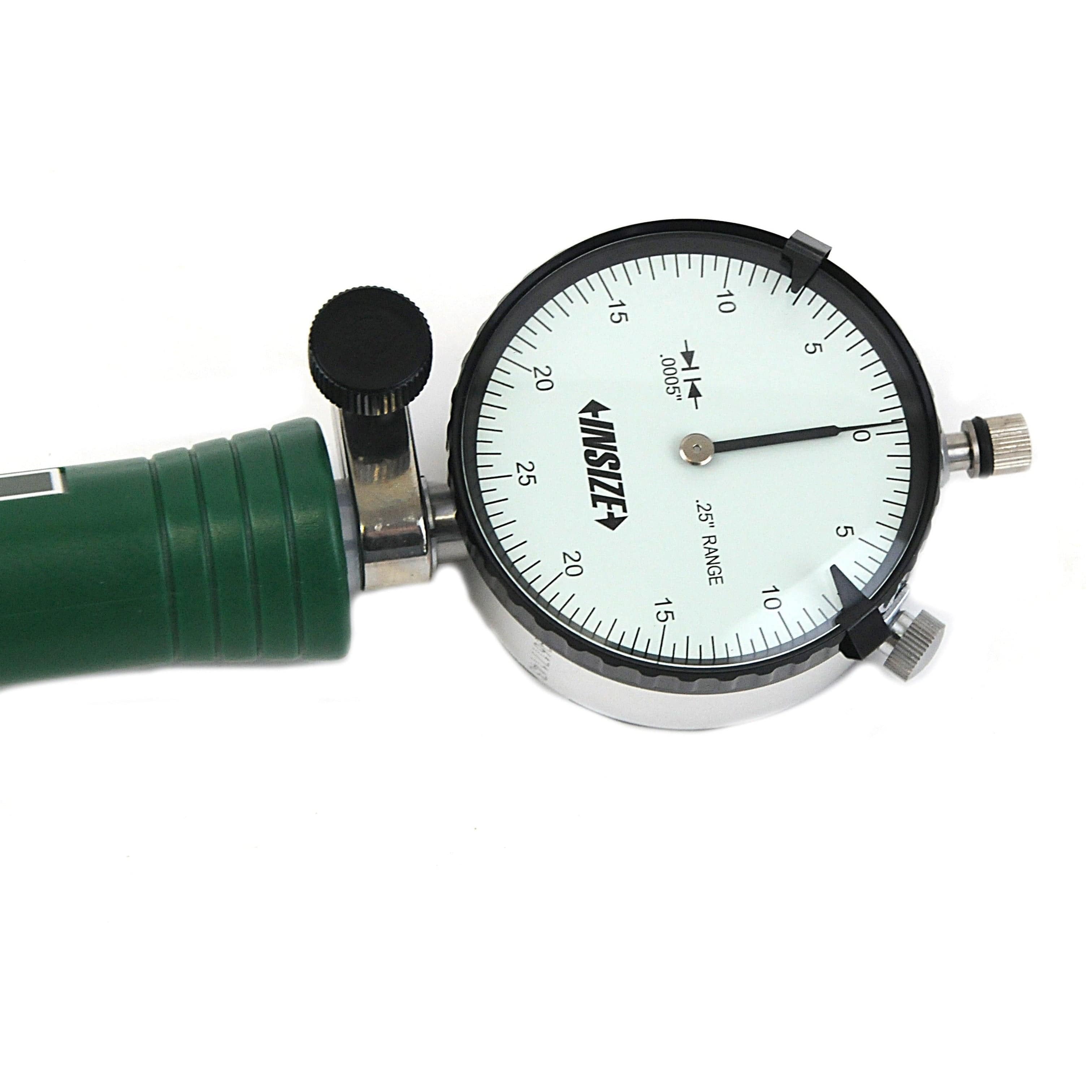

- Imperial reading with 0.0005" graduation
- Accuracy: 0.0015"

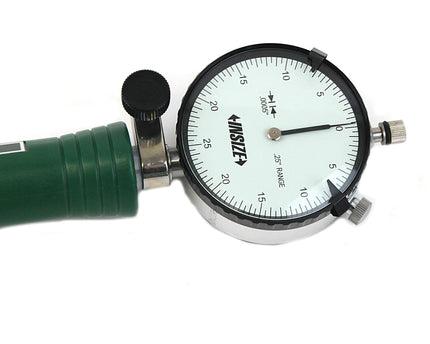

- Dial reading range: 0–0.25"
- Manufactured in accordance with DIN878 standards
- Silky smooth movement for precise readings
- Soft grip handle for comfortable operation
- Supplied extensions from 2" to 4" in 0.2" increments
- Includes 2" extension seat
- Ceramic contact point for durability and wear resistance
- Supplied with limit hands and bezel clamp
- Optional setting ring available (not included)
- Optional long handle 7351 available (not included)

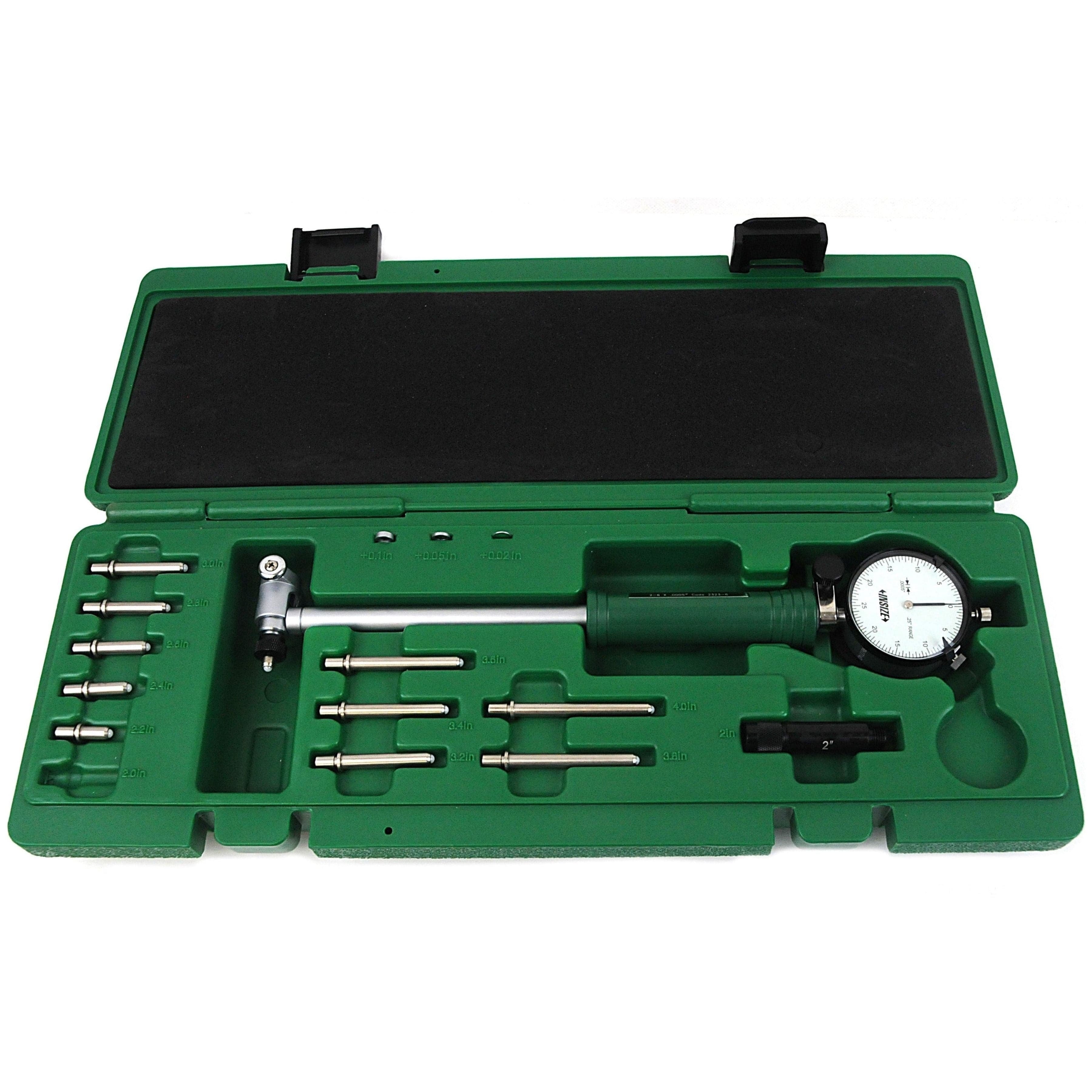

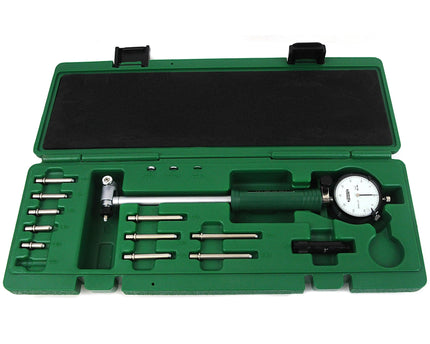

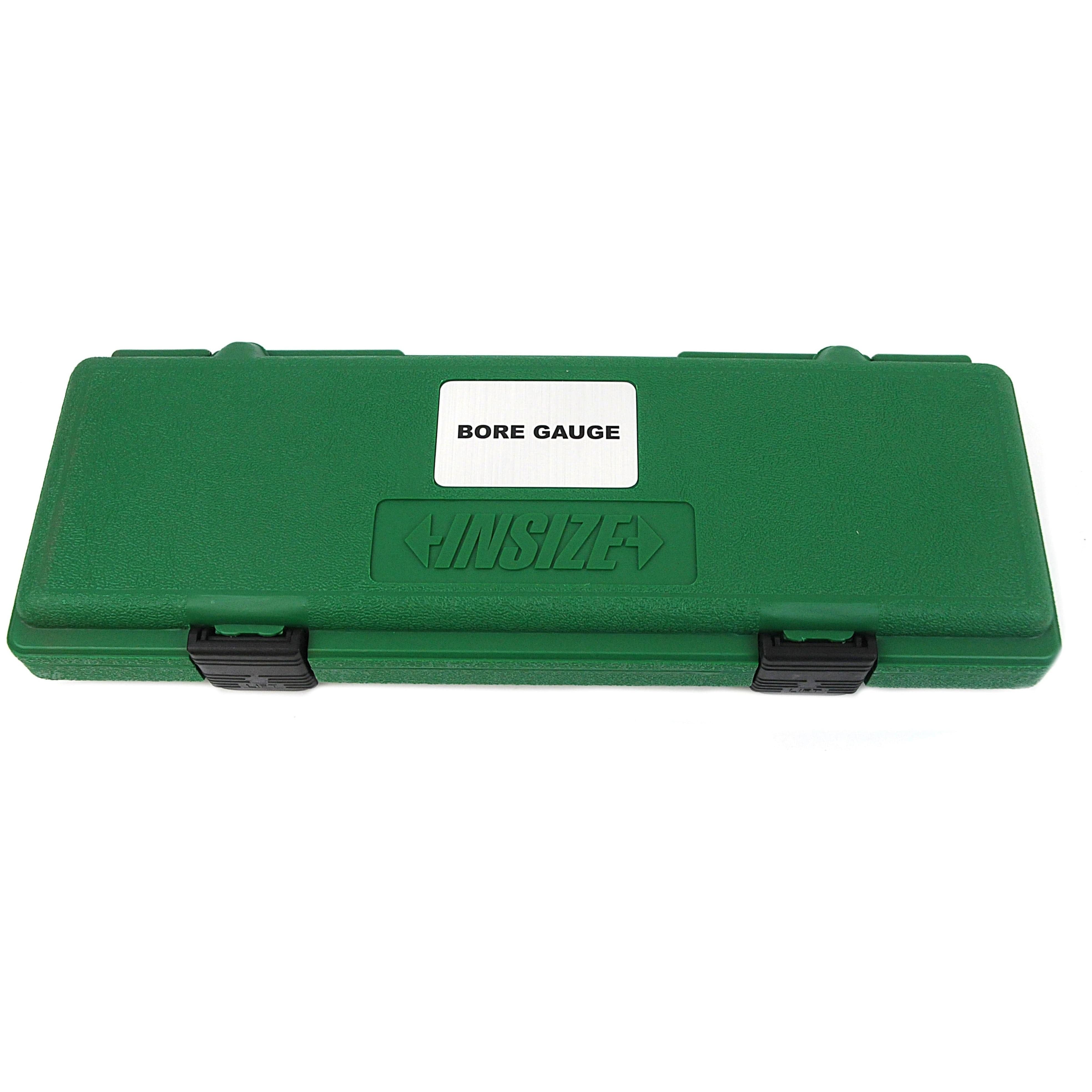

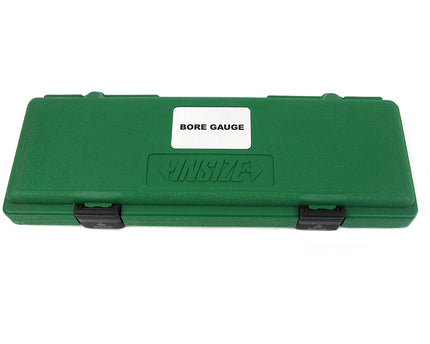

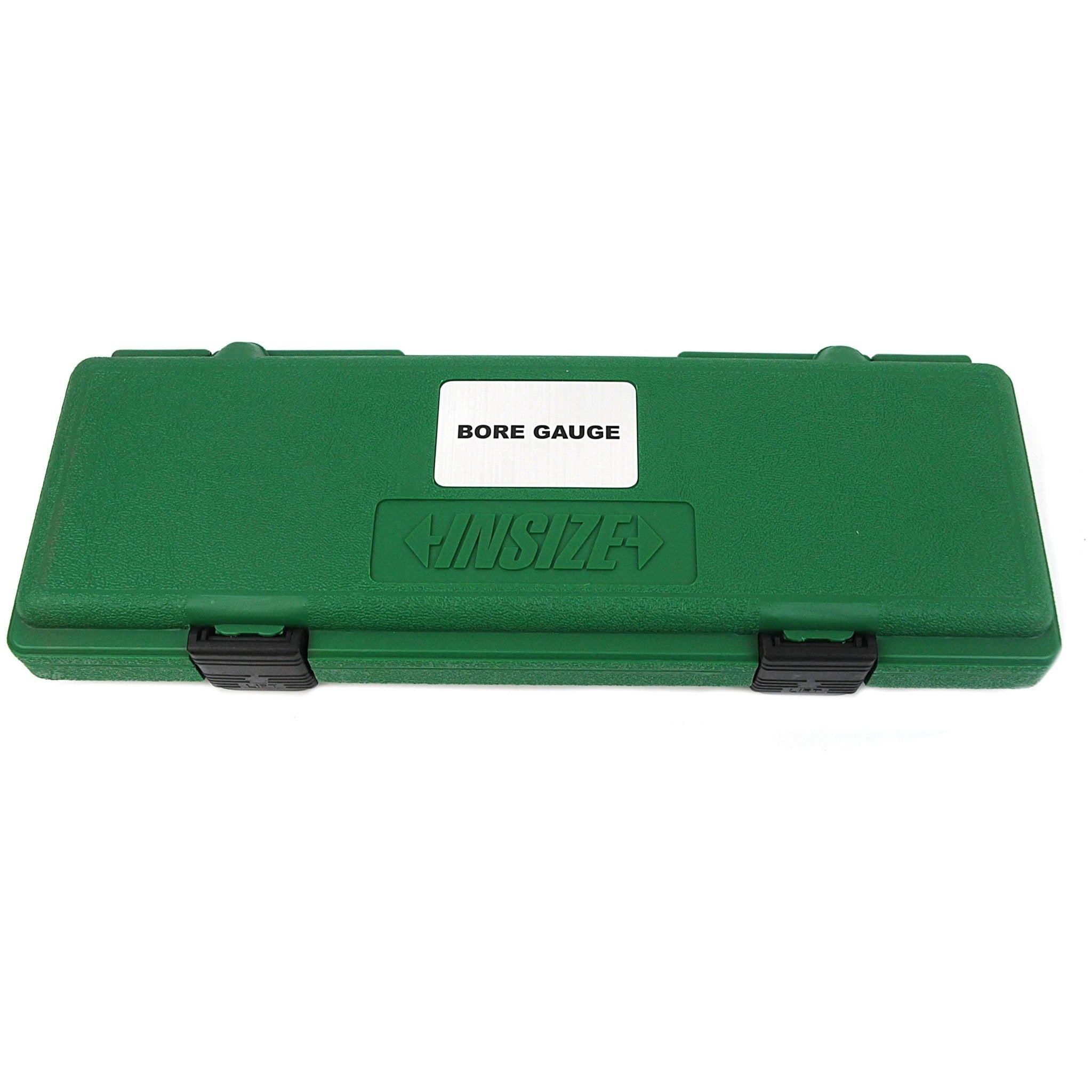

- Supplied in blow-moulded storage case

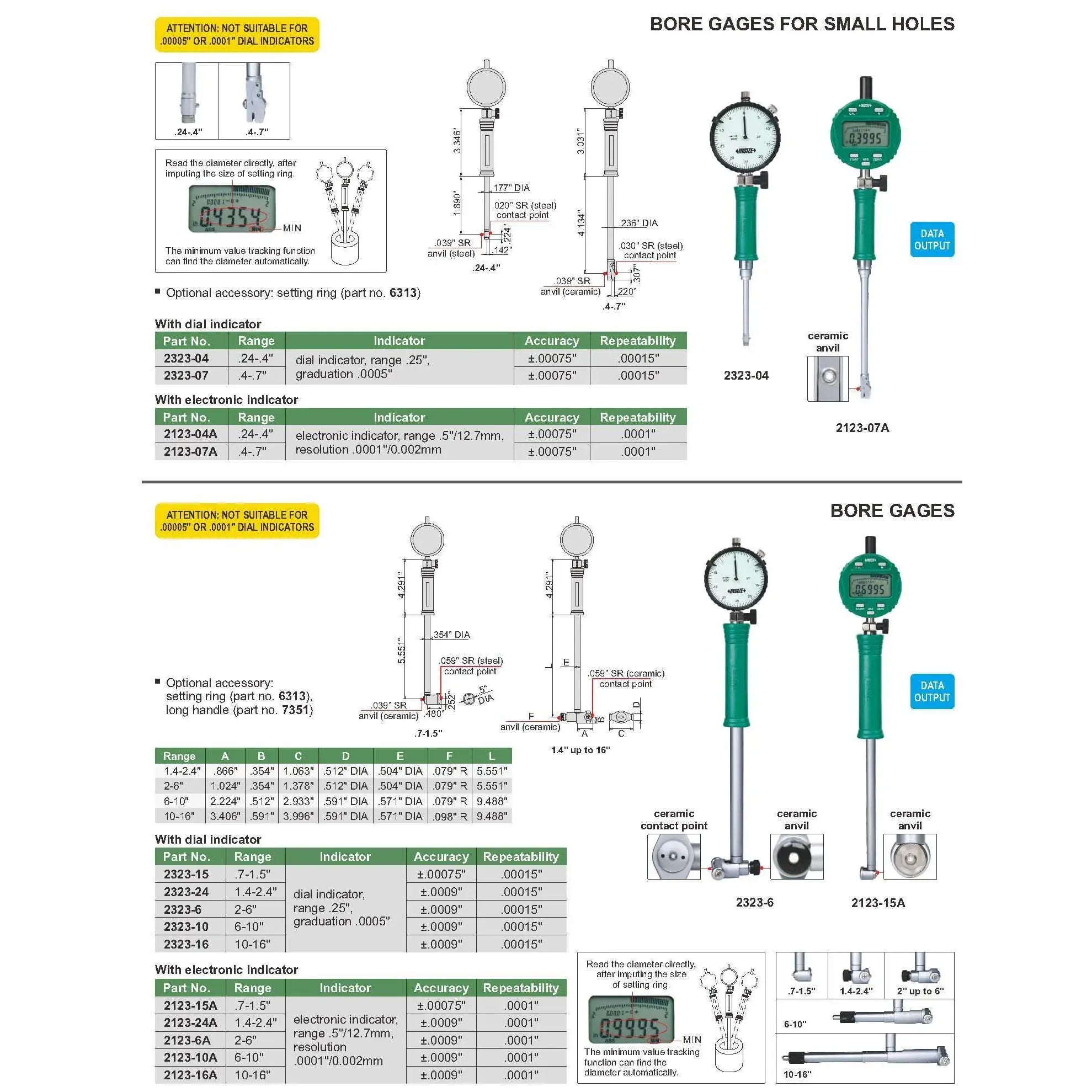

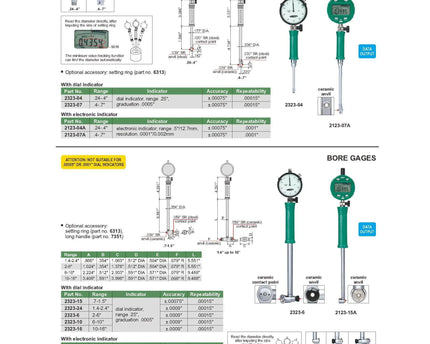

Technical Specifications
- Part Number: 2323-6
- Measurement Type: Internal Diameter
- Reading System: Imperial
- Range: 2"–6"
- Graduation: 0.0005"
- Accuracy: 0.0015"
- Dial Reading: 0–0.25"
- Standard: DIN878
- Contact Point Material: Ceramic
- Storage: Blow-moulded case
Well-designed and durable, the Insize 2323 series bore gauges are ideal for machinists, inspectors, engineers, and manufacturing professionals requiring accurate internal diameter measurement in workshop and quality control environments.
Insize is globally recognised for producing high-quality precision measuring instruments trusted by engineering, machining, and inspection professionals worldwide.
