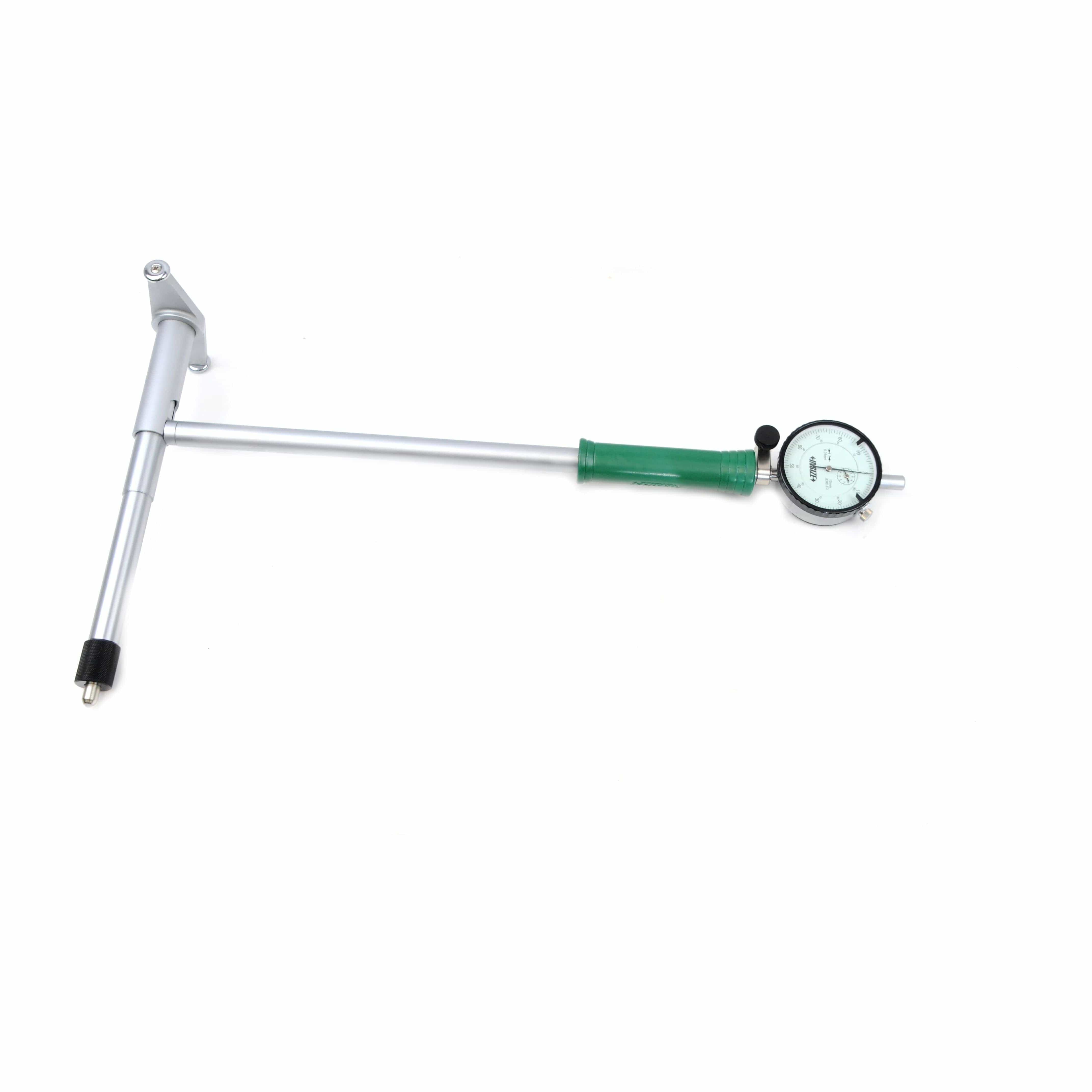

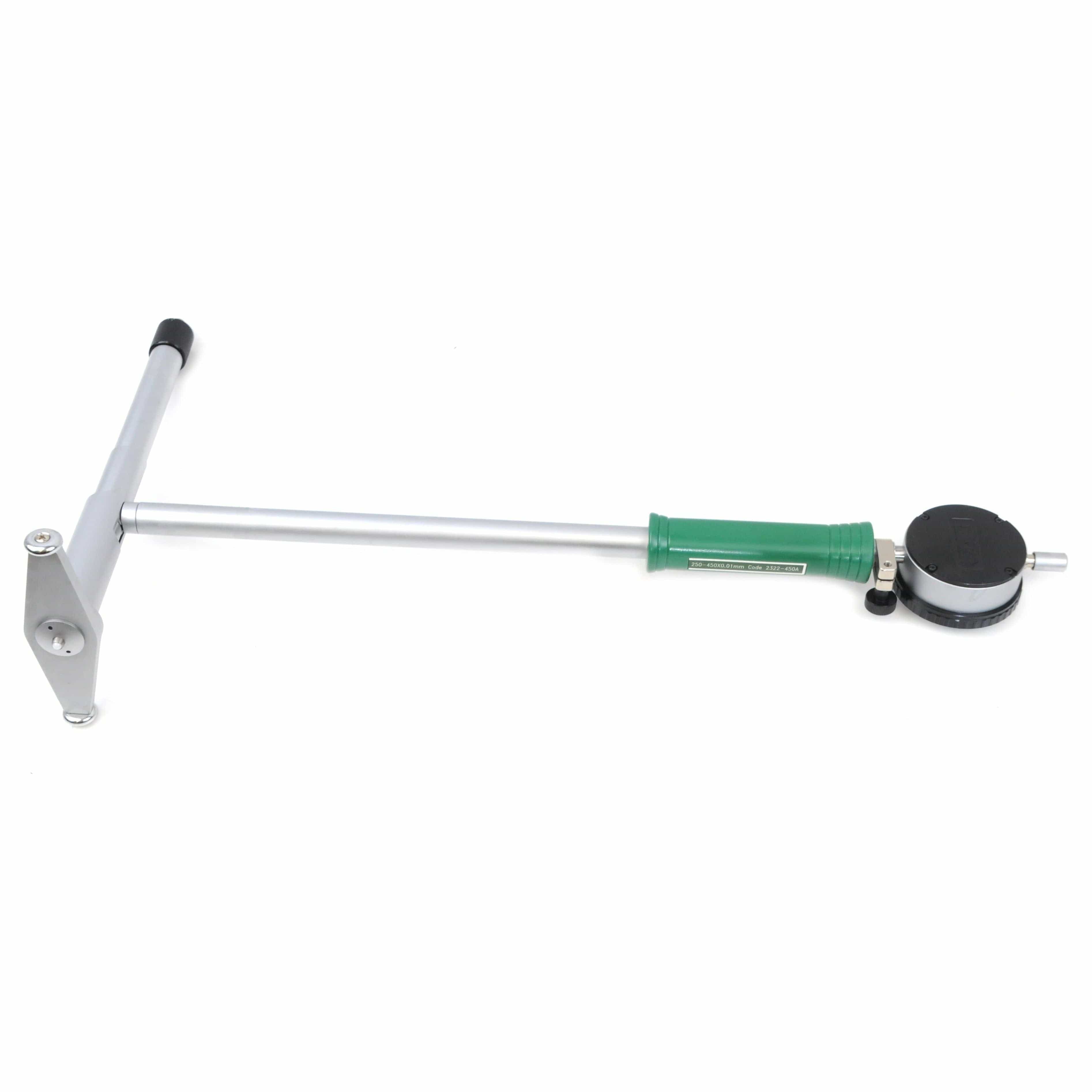

Insize 250–450mm Bore Gauge
The Insize 250–450mm Bore Gauge delivers reliable and precise internal measurement for larger diameter bores. Designed for smooth operation and high repeatability, this gauge is ideal for machining, inspection, and workshop applications where accuracy is critical.
Specifications :
- Part no: 2322-450A
- Reading: Metric
- Graduation: 0.01mm
- Accuracy: 0.015mm

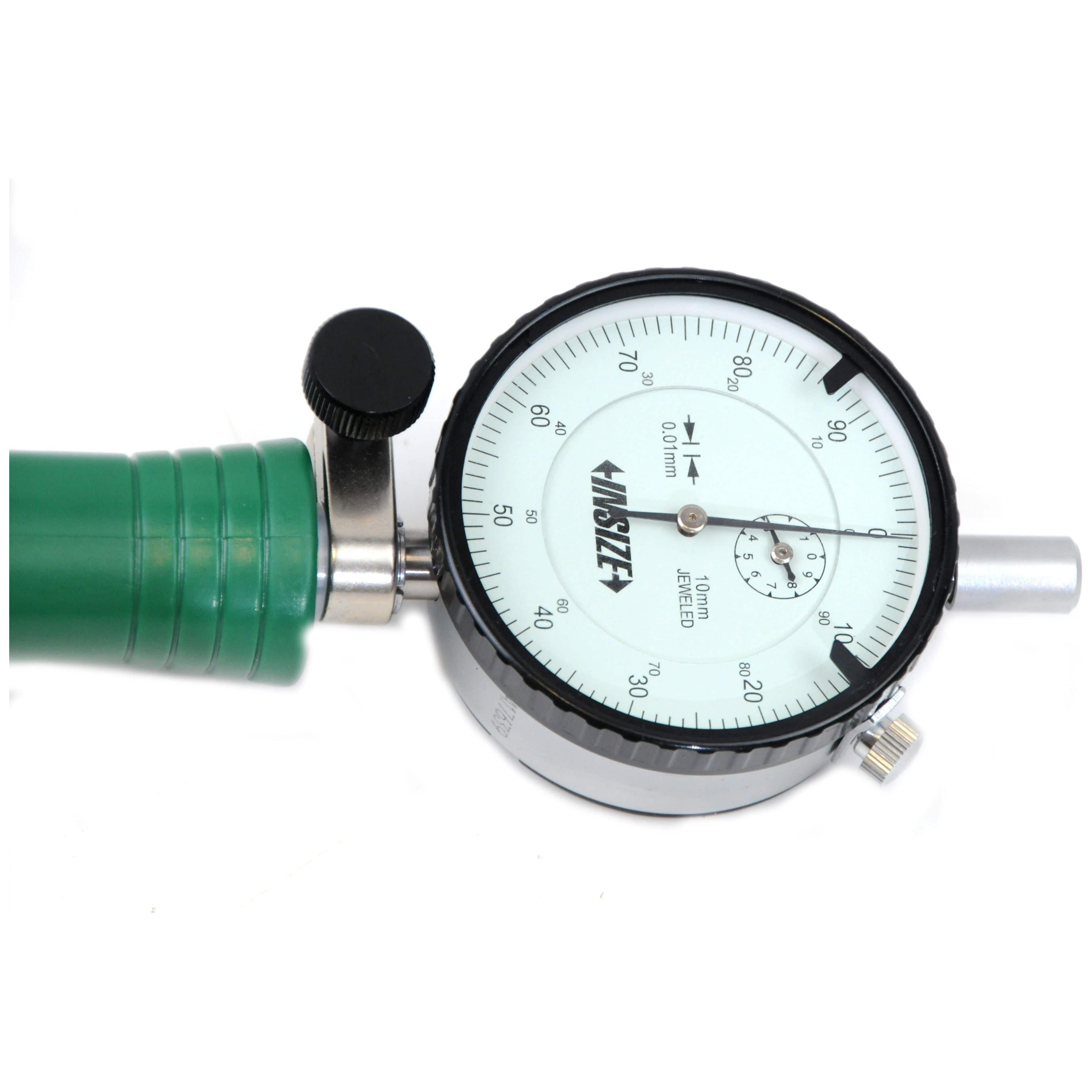

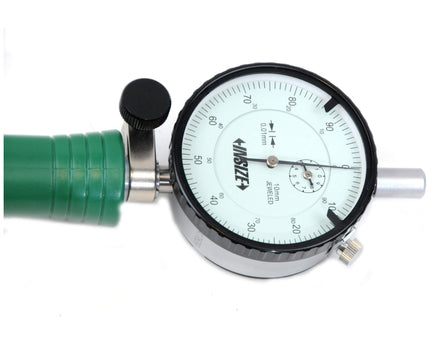

- Dial reading: 0–100
- Range: 10mm
- Strictly made in accordance with DIN878
- Silky smooth movement throughout
- Soft grip handle

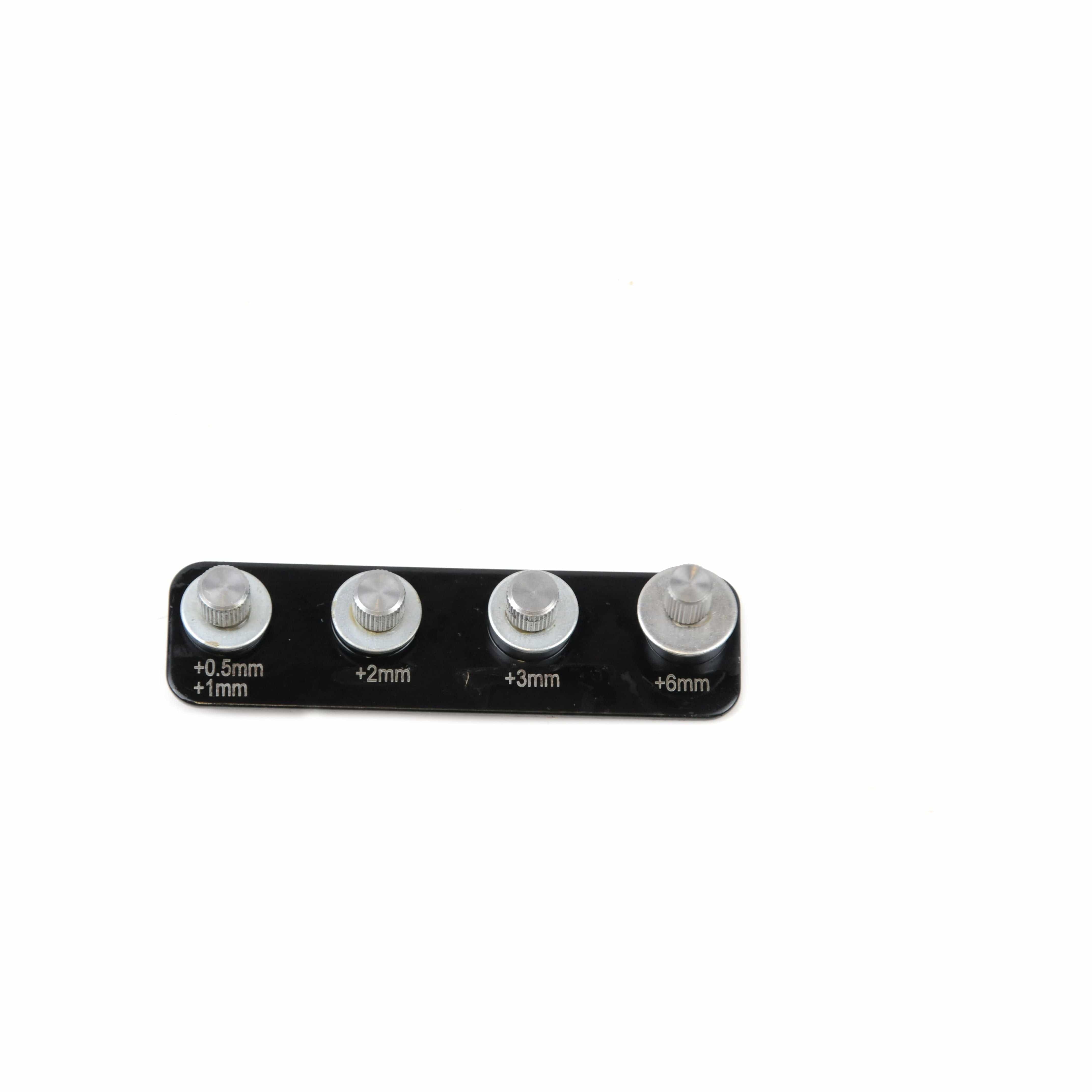

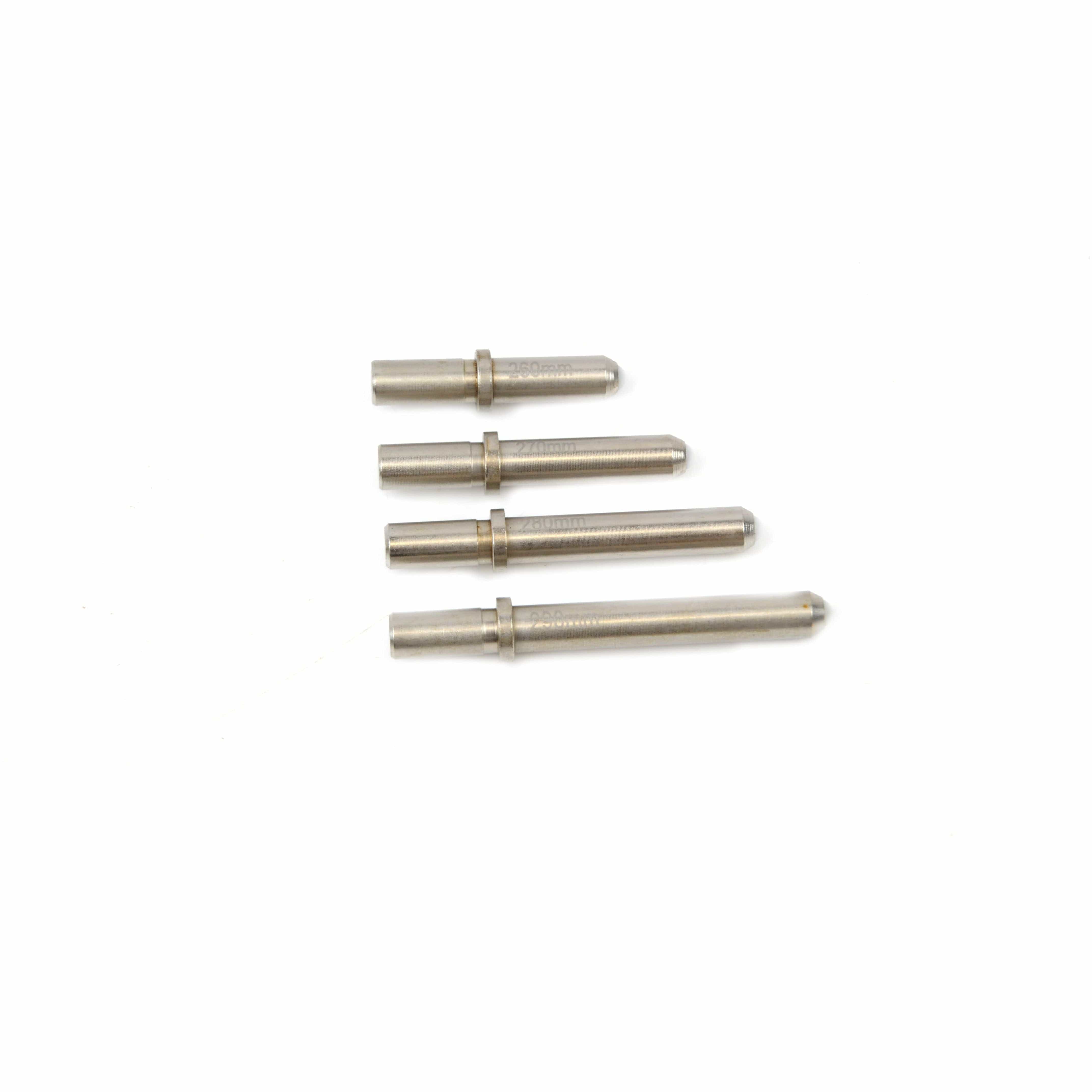

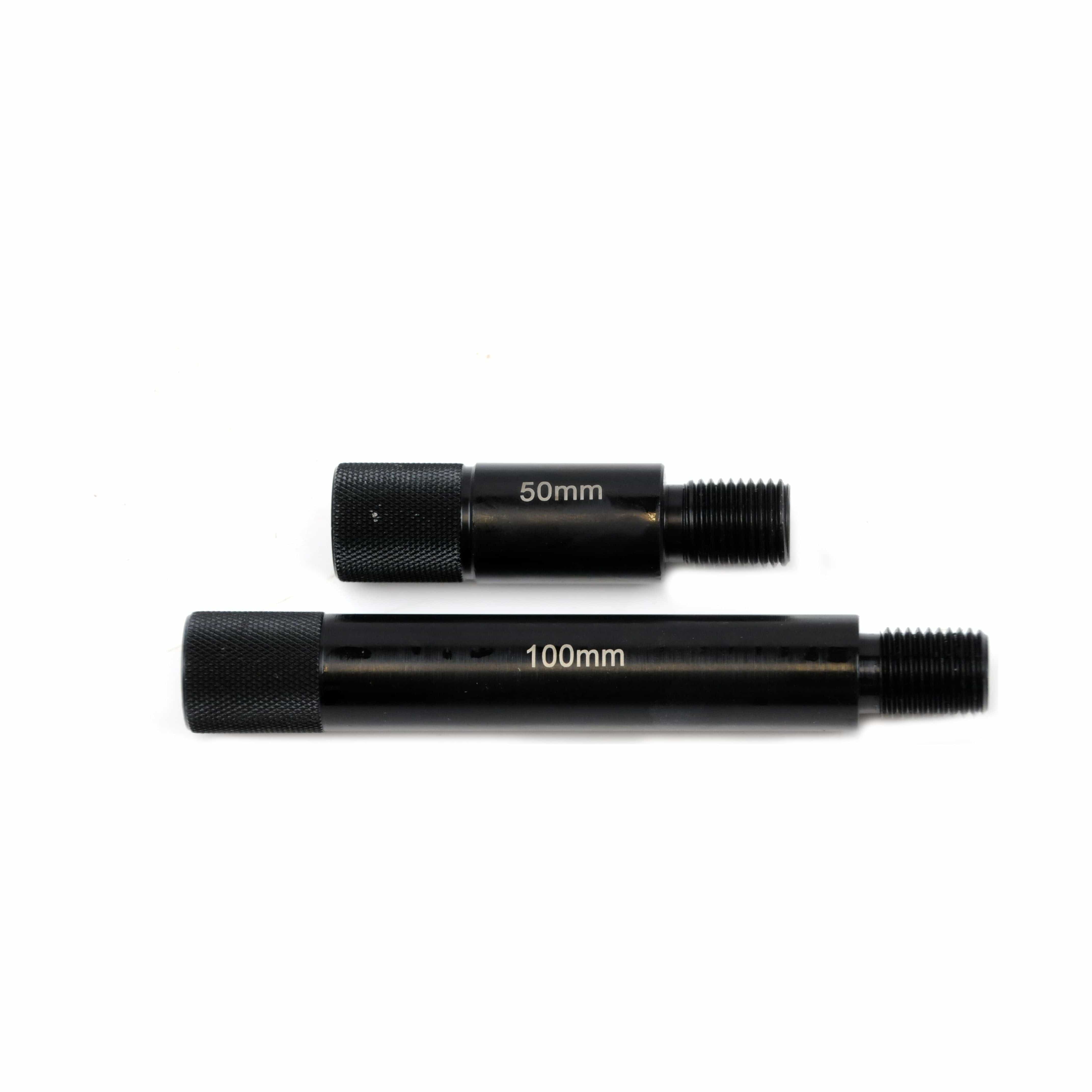

- Supplied extensions from 260mm to 290mm in 10mm increments

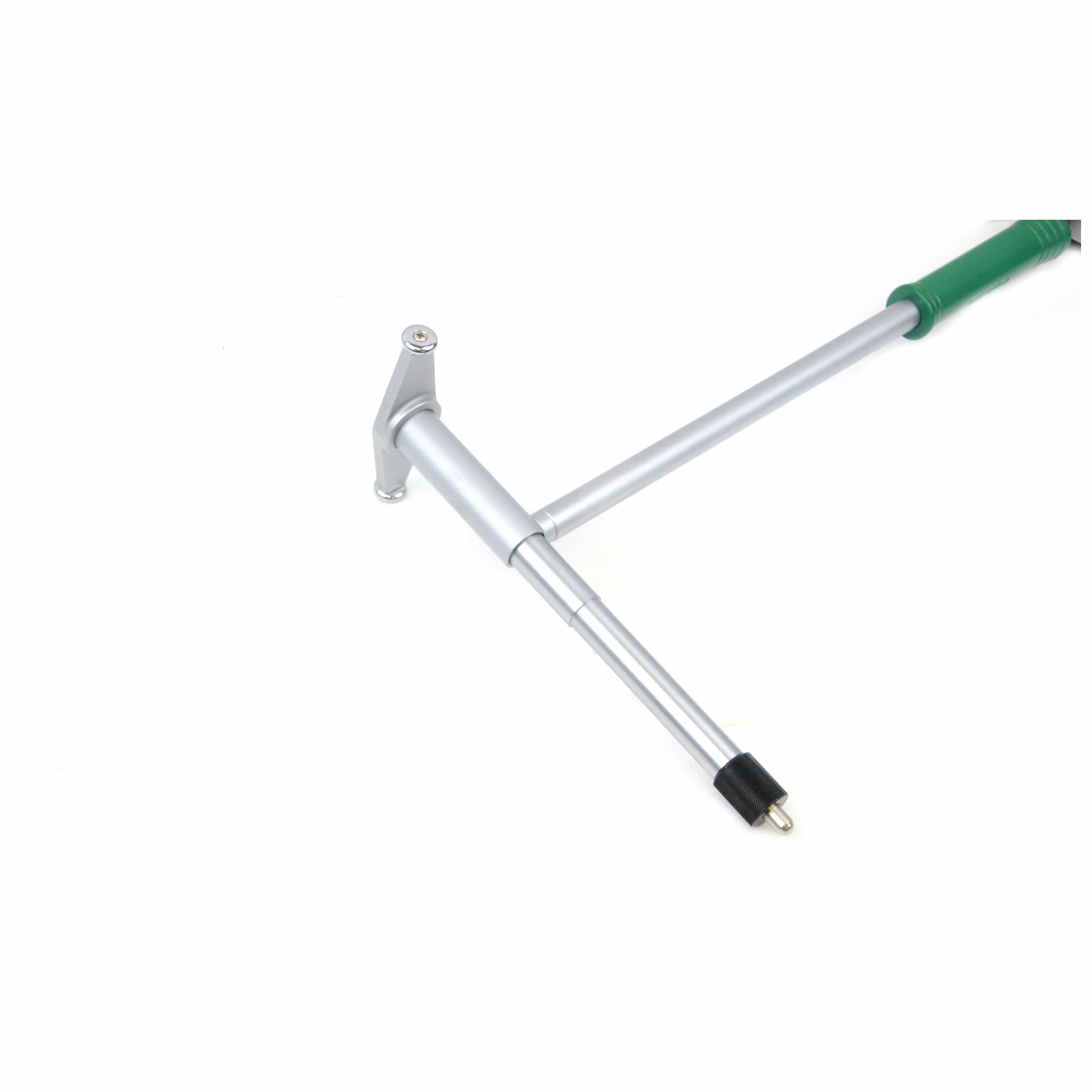

- Ceramic contact point
- Optional setting ring 6312 (not included)
- Optional long handle 7351 (not included)
- Supplied with limited hands and a bezel clamp

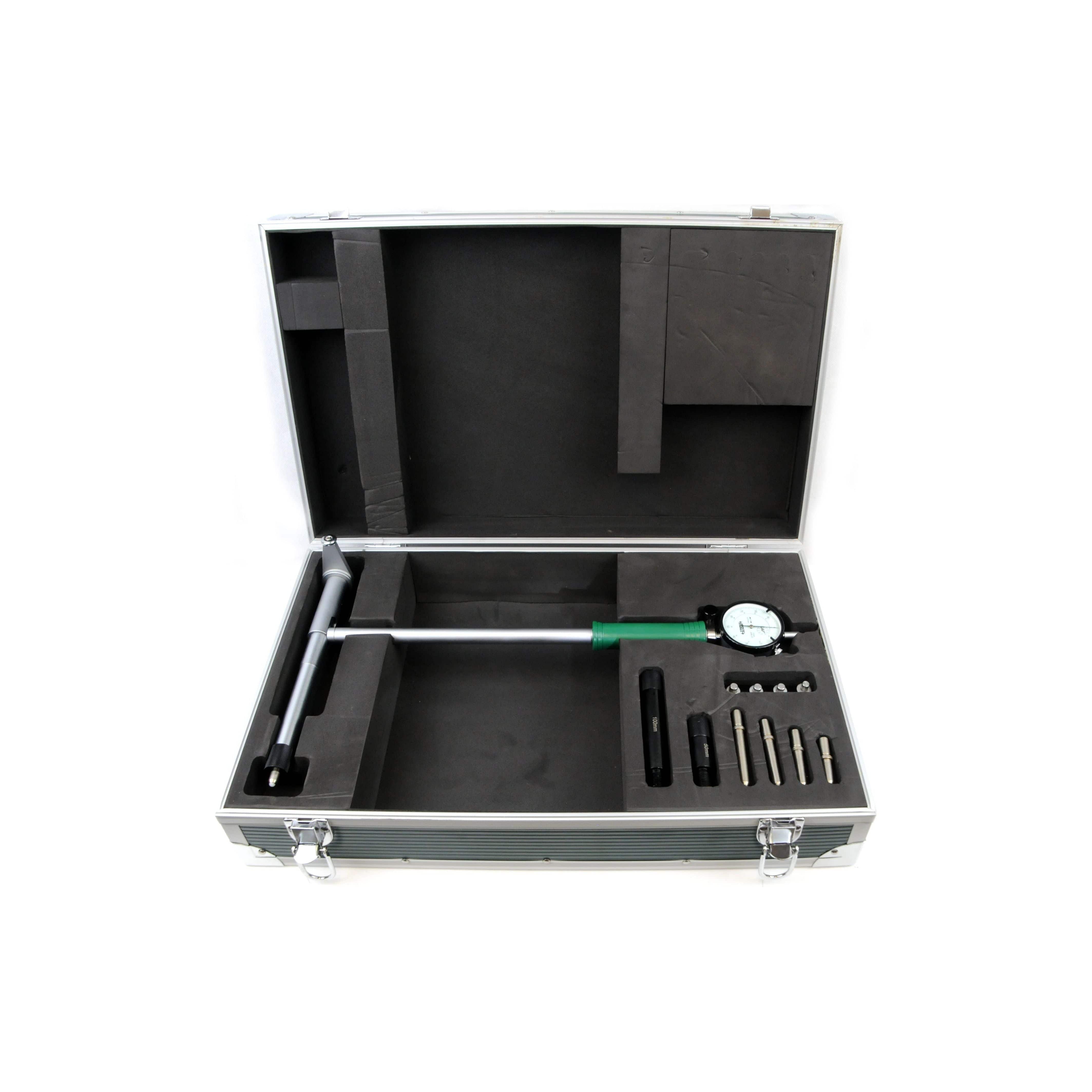

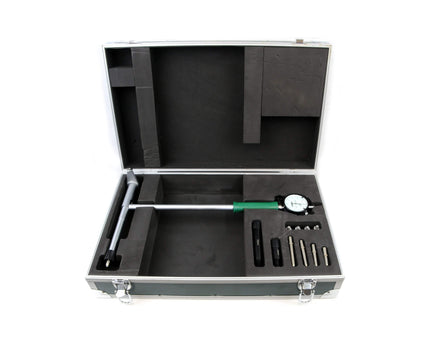

- Supplied in a blow-moulded storage box
Well-designed, durable, high-precision tools suitable for a wide range of measuring applications. INSIZE bore gauges provide smooth, reliable measurement of internal diameters and are easy to adjust for accurate bore inspection.
