Description

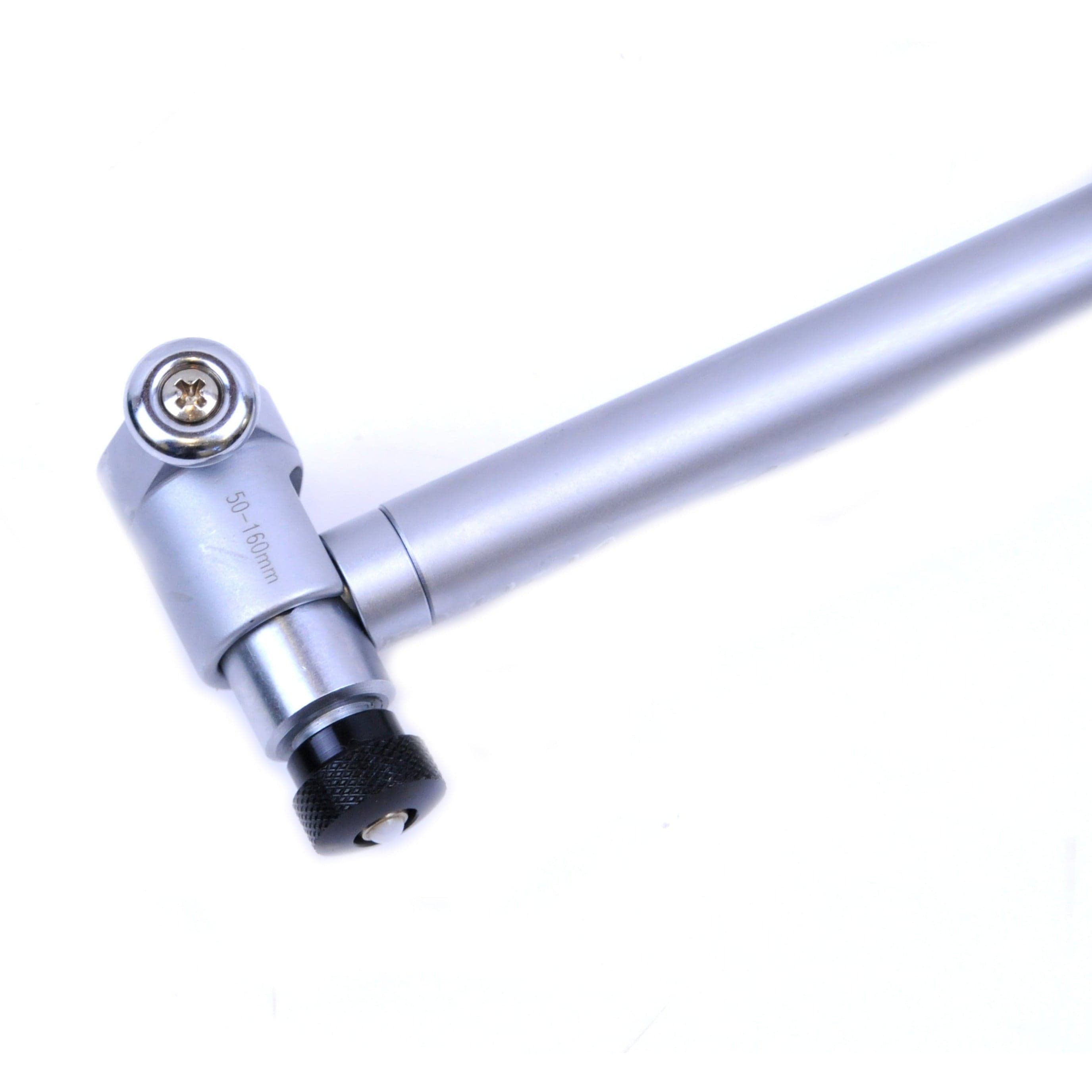

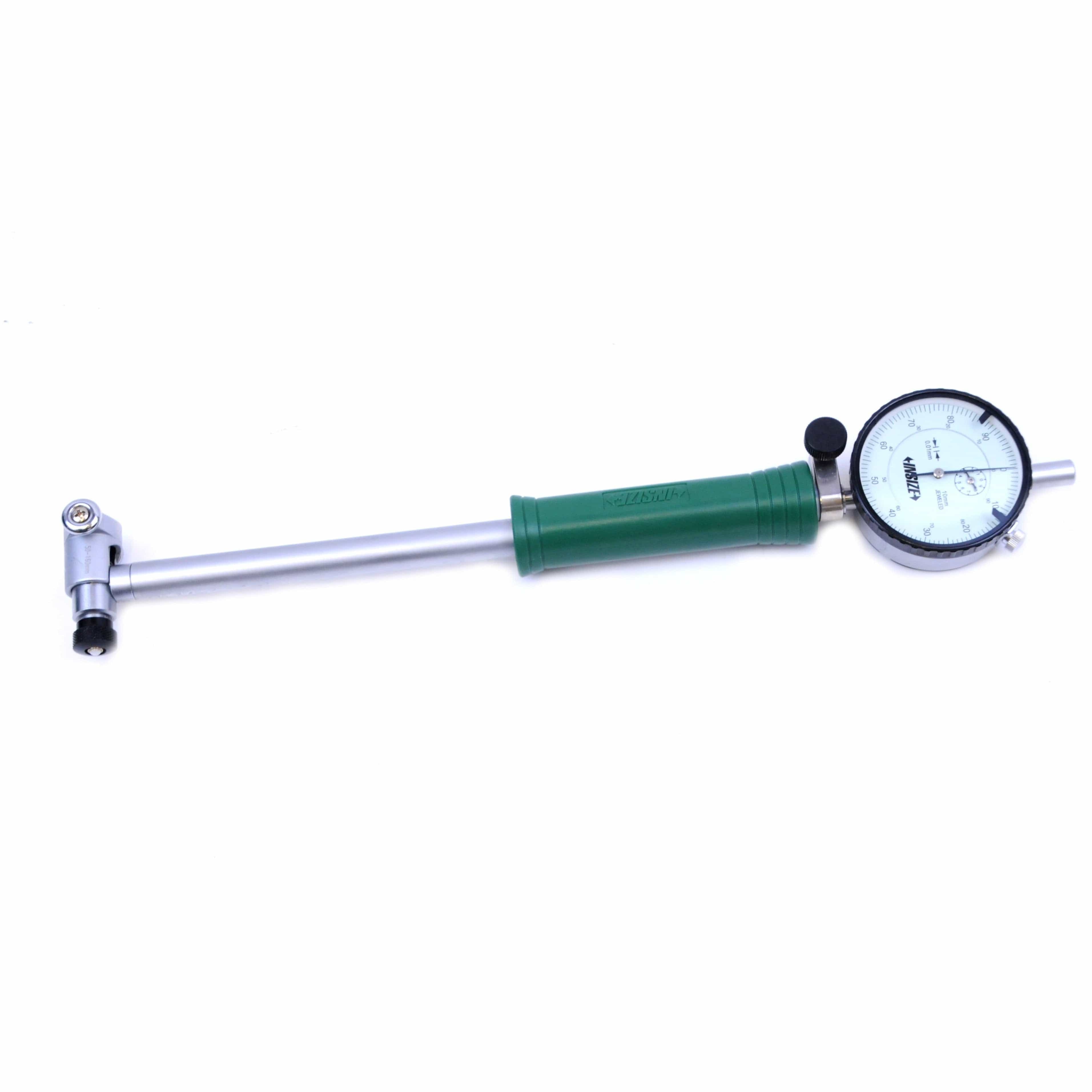

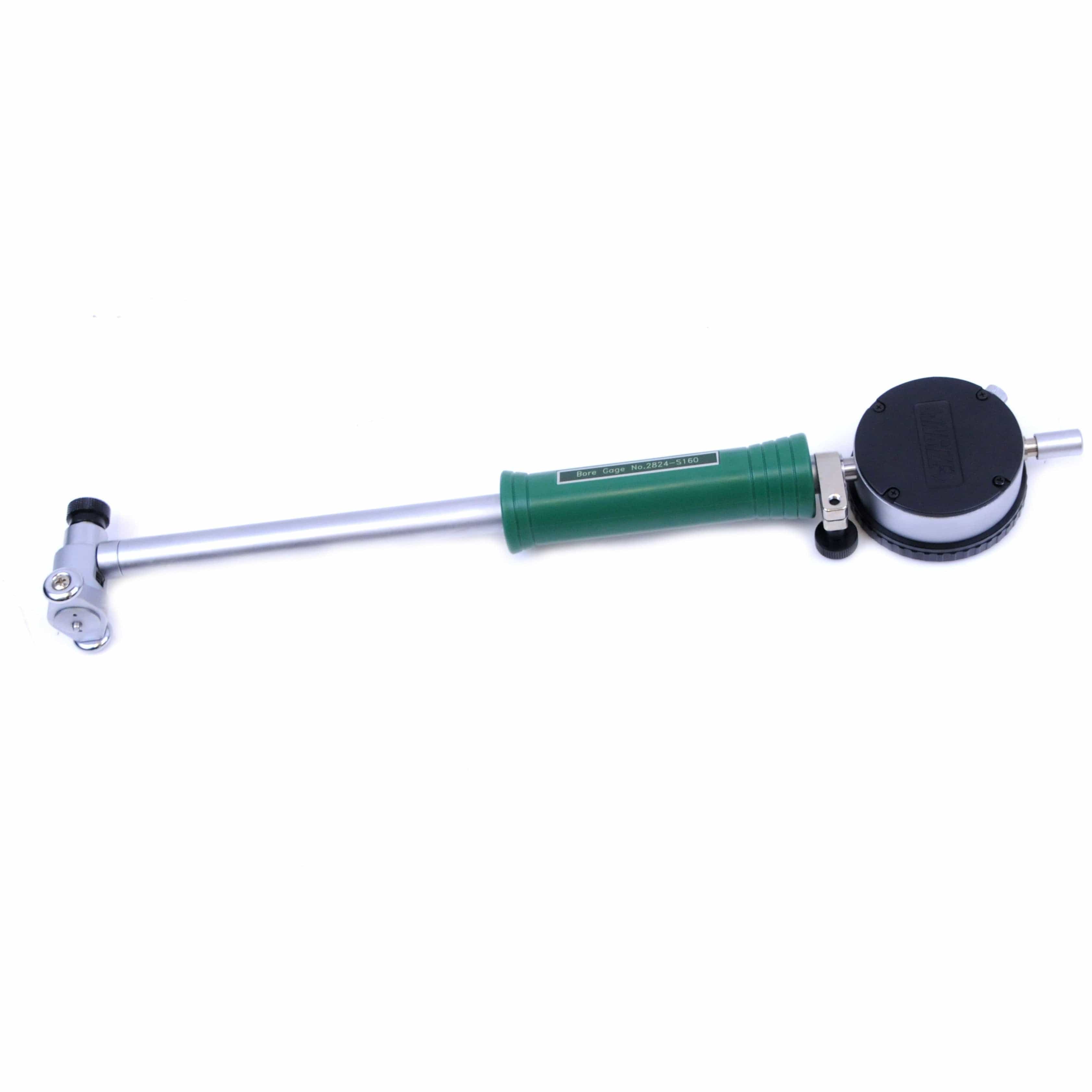

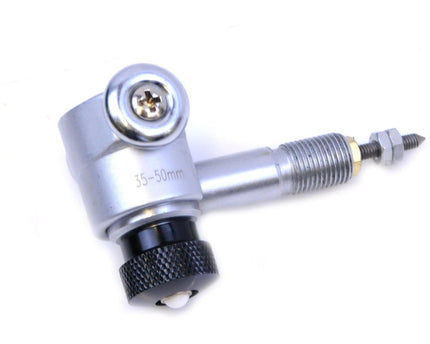

Insize 35–160mm Bore Gauge
A precision bore gauge designed for accurate internal diameter measurement across a wide range of applications. Featuring smooth operation and high repeatability, this bore gauge is ideal for inspection and quality control in machining and manufacturing environments.
Specifications :

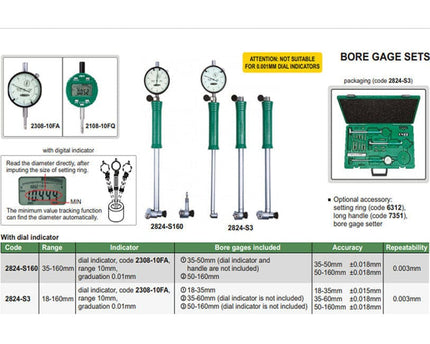

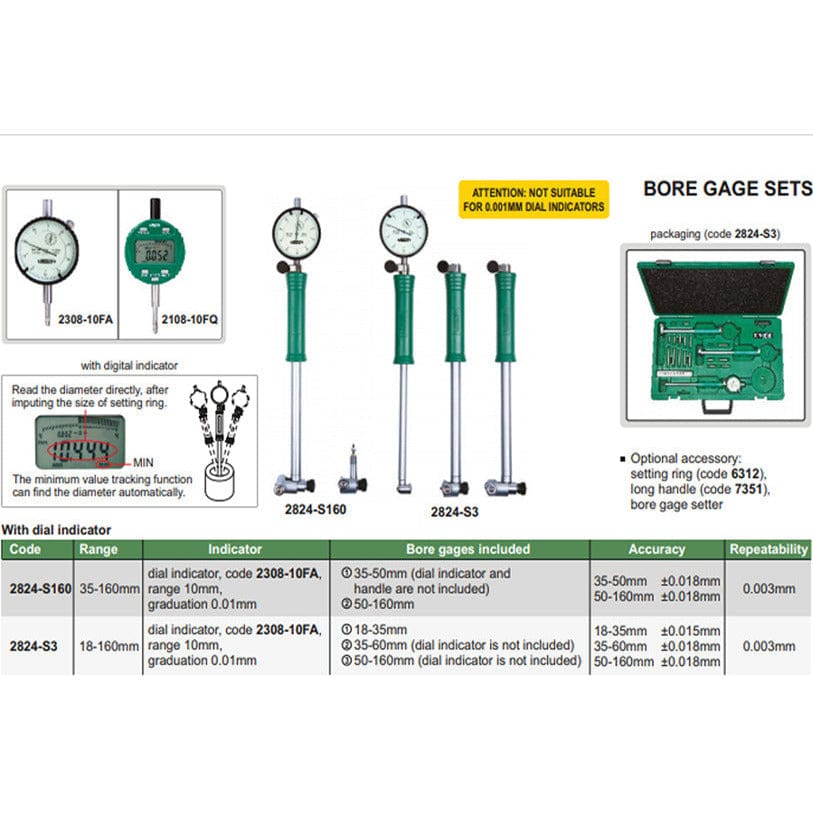

- Part no: 2824-S160
- Reading: Metric
- Graduation: 0.01mm
- Accuracy: ±0.018mm

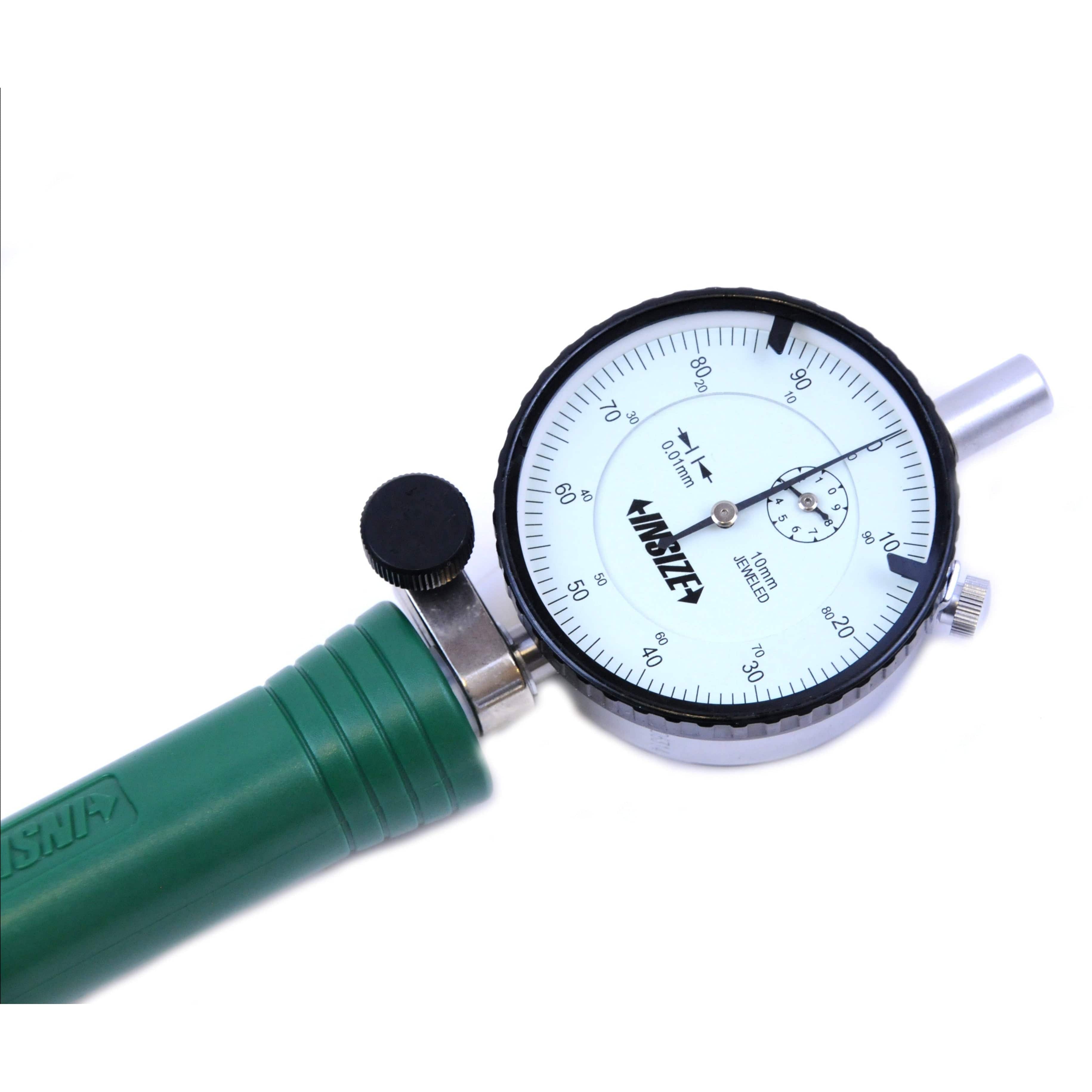

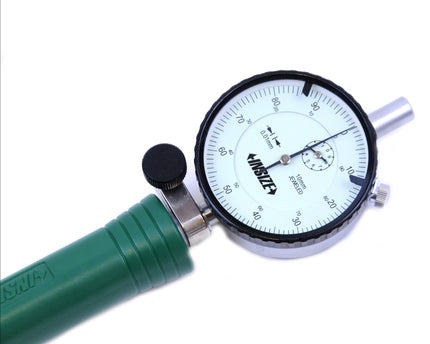

- Dial reading: 0–100
- Measuring range per setting: 10mm
- Manufactured in accordance with DIN 878

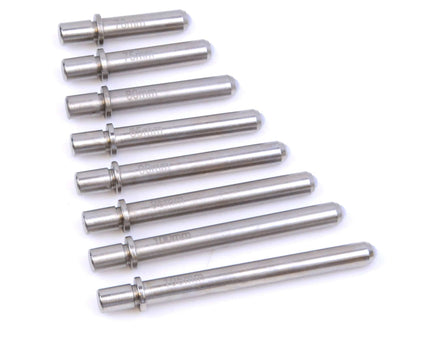

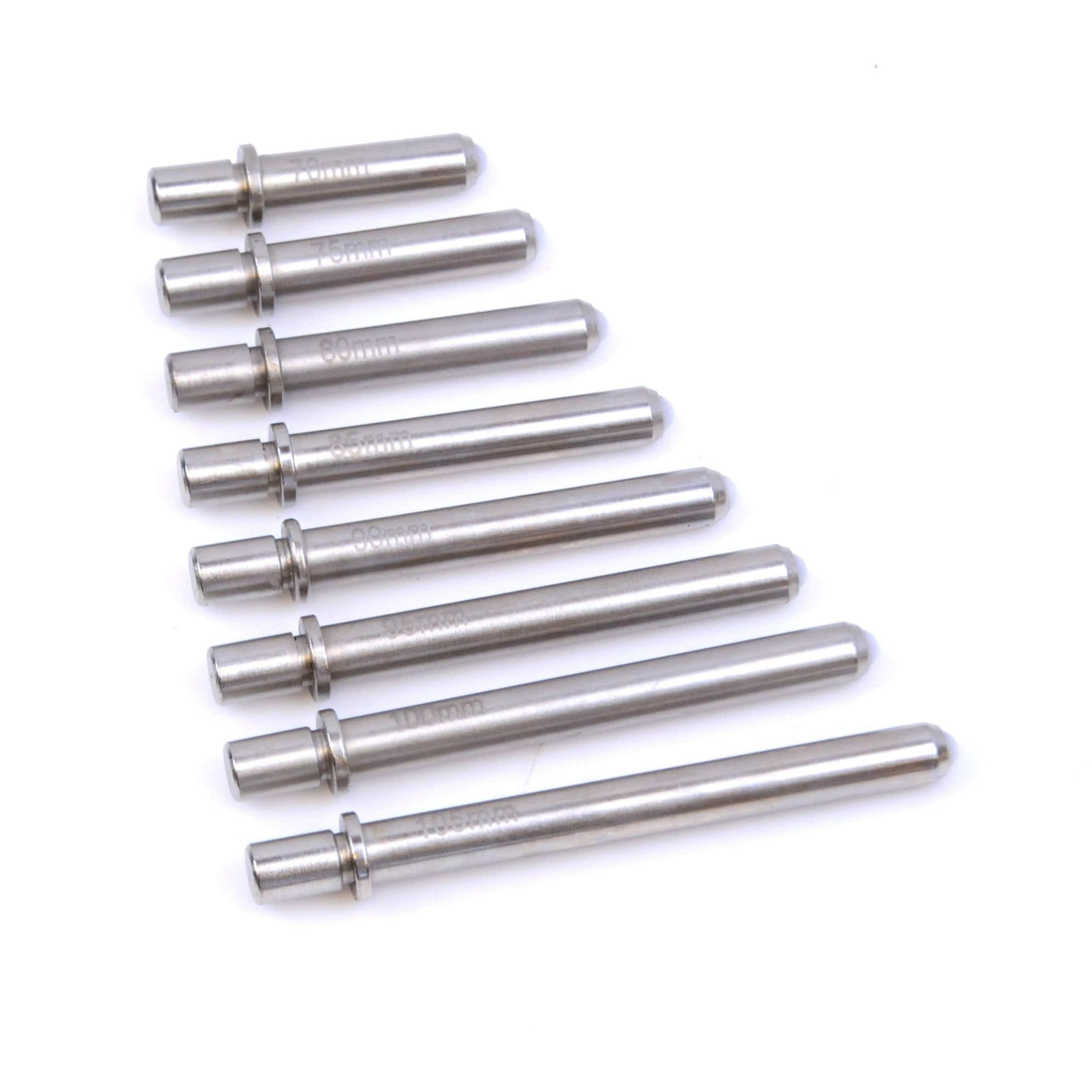

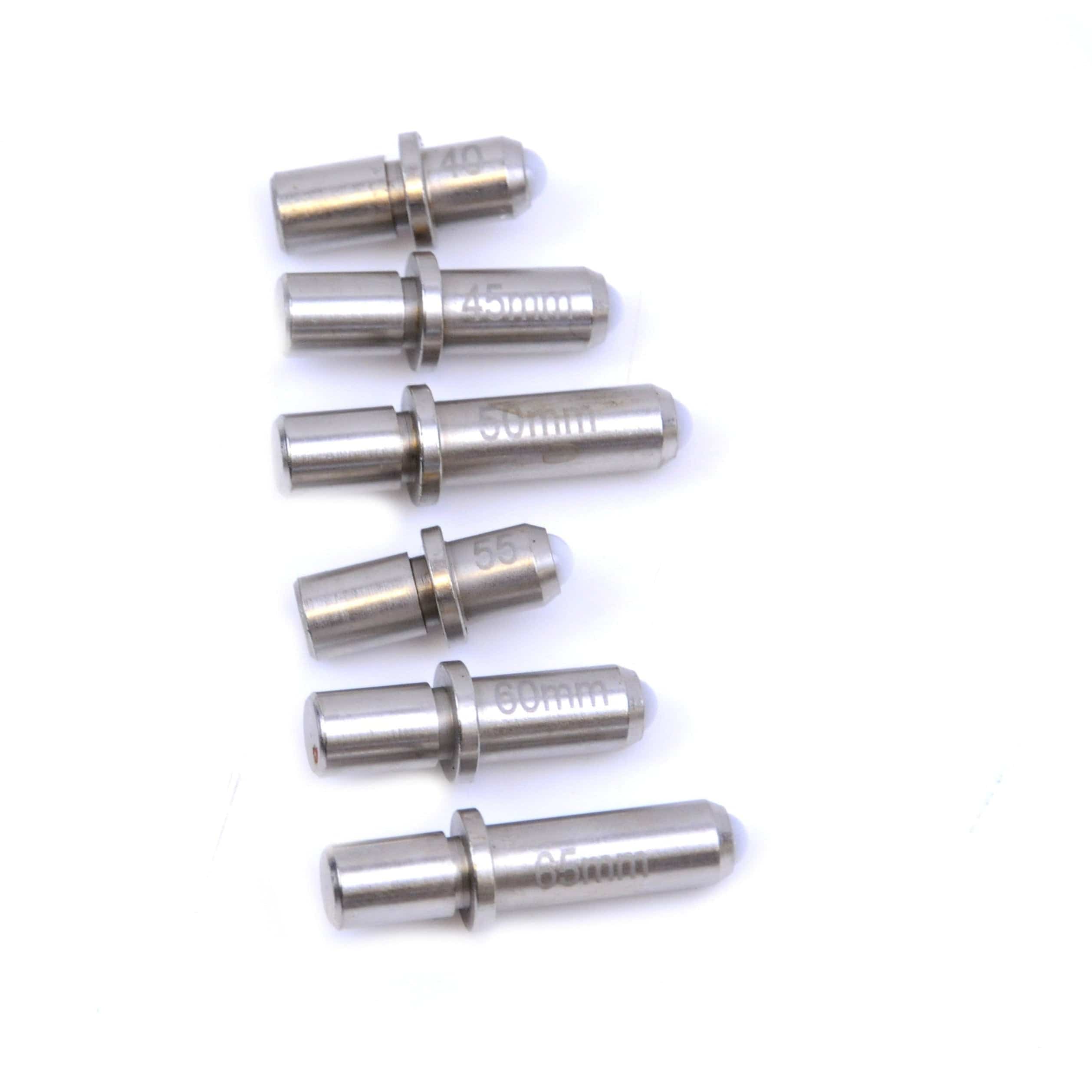

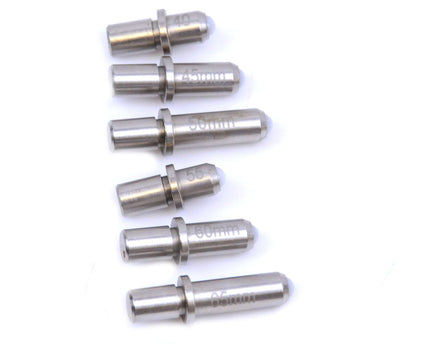

- Supplied extensions from 40mm to 105mm in 5mm increments

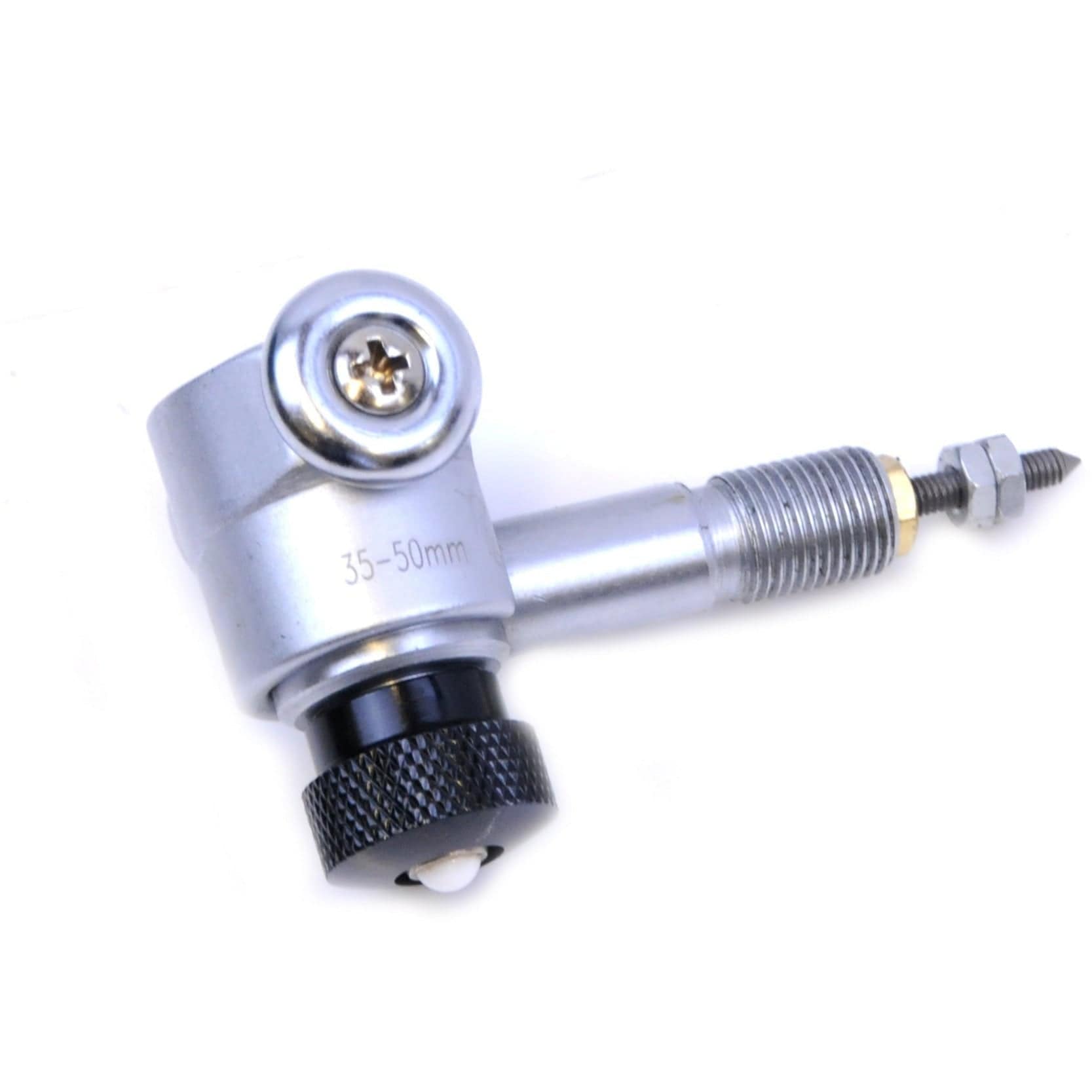

- Ceramic contact point
- Soft grip handle
- Silky smooth movement throughout
- Supplied with limited hands and a bezel clamp

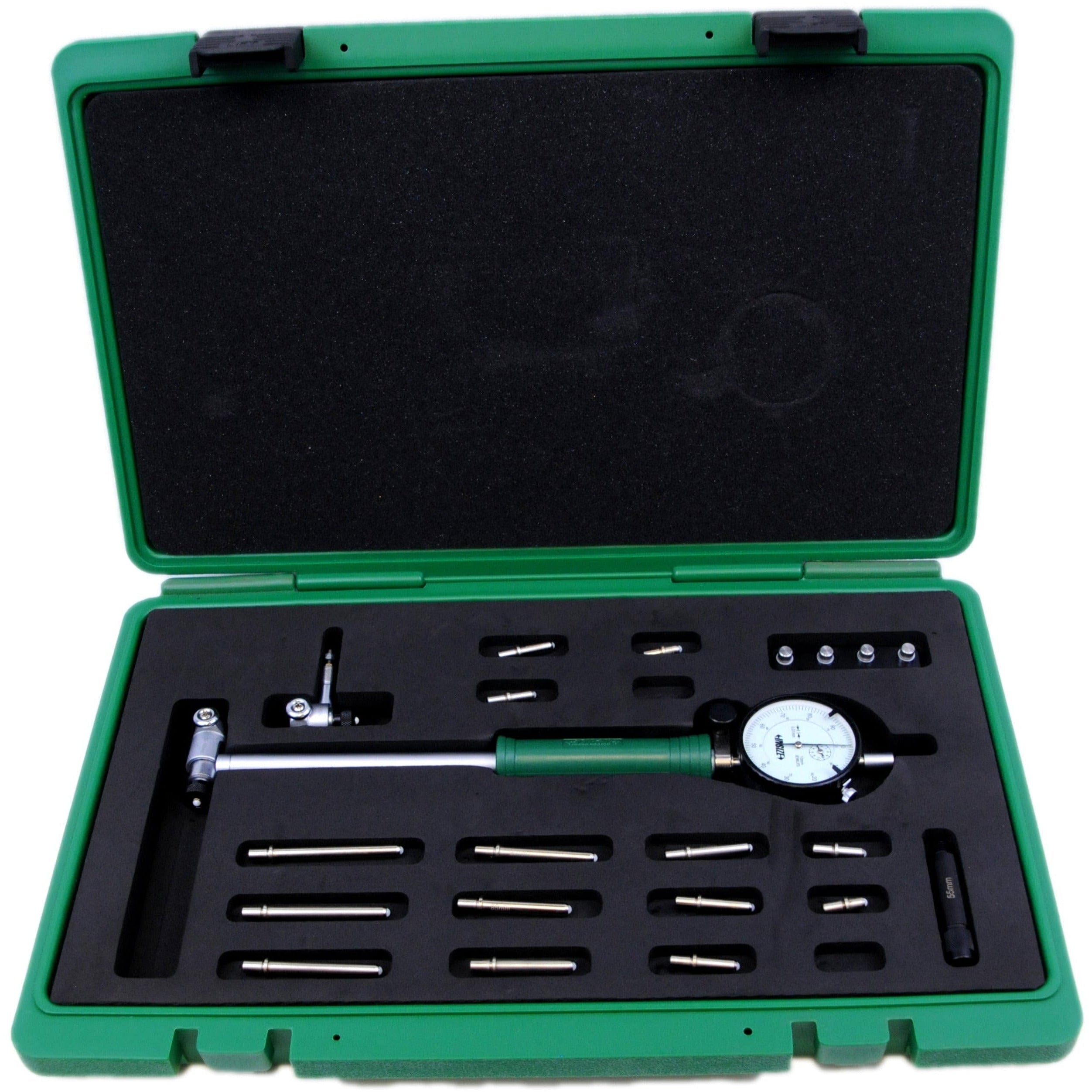

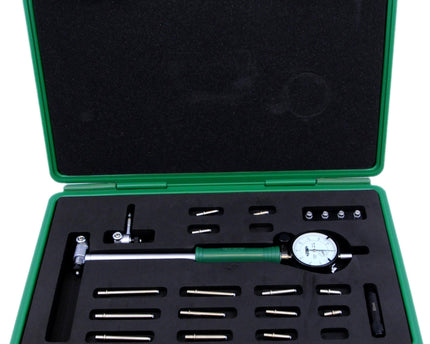

- Supplied in blow moulded storage case
- The optional setting ring 6312 is not included
- Optional long handle 7351 not included
Well-designed, durable, high-precision tools suitable for a wide range of measuring applications. INSIZE bore gauges provide reliable accuracy and smooth operation, making them an essential instrument for precise internal bore measurement.
