Description

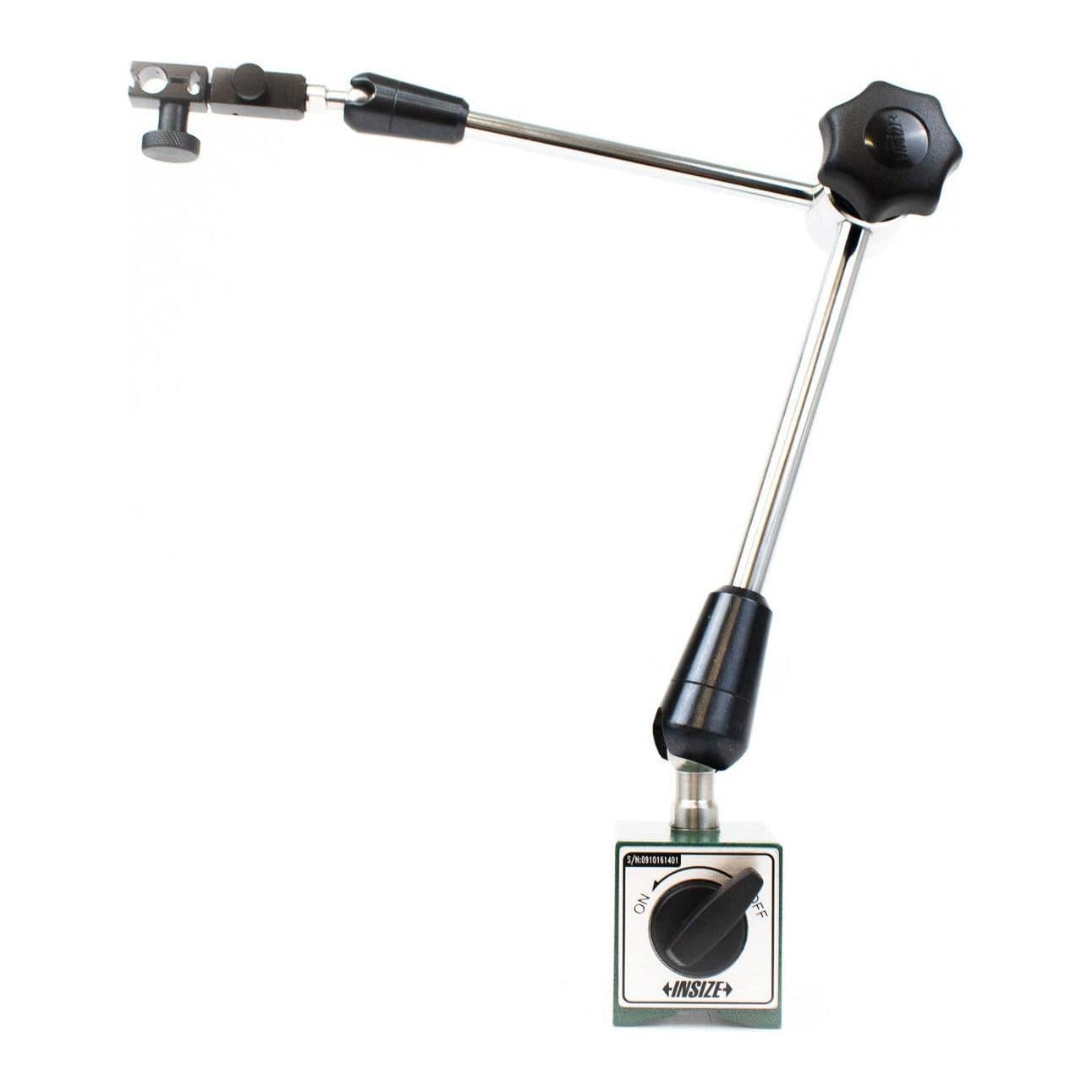

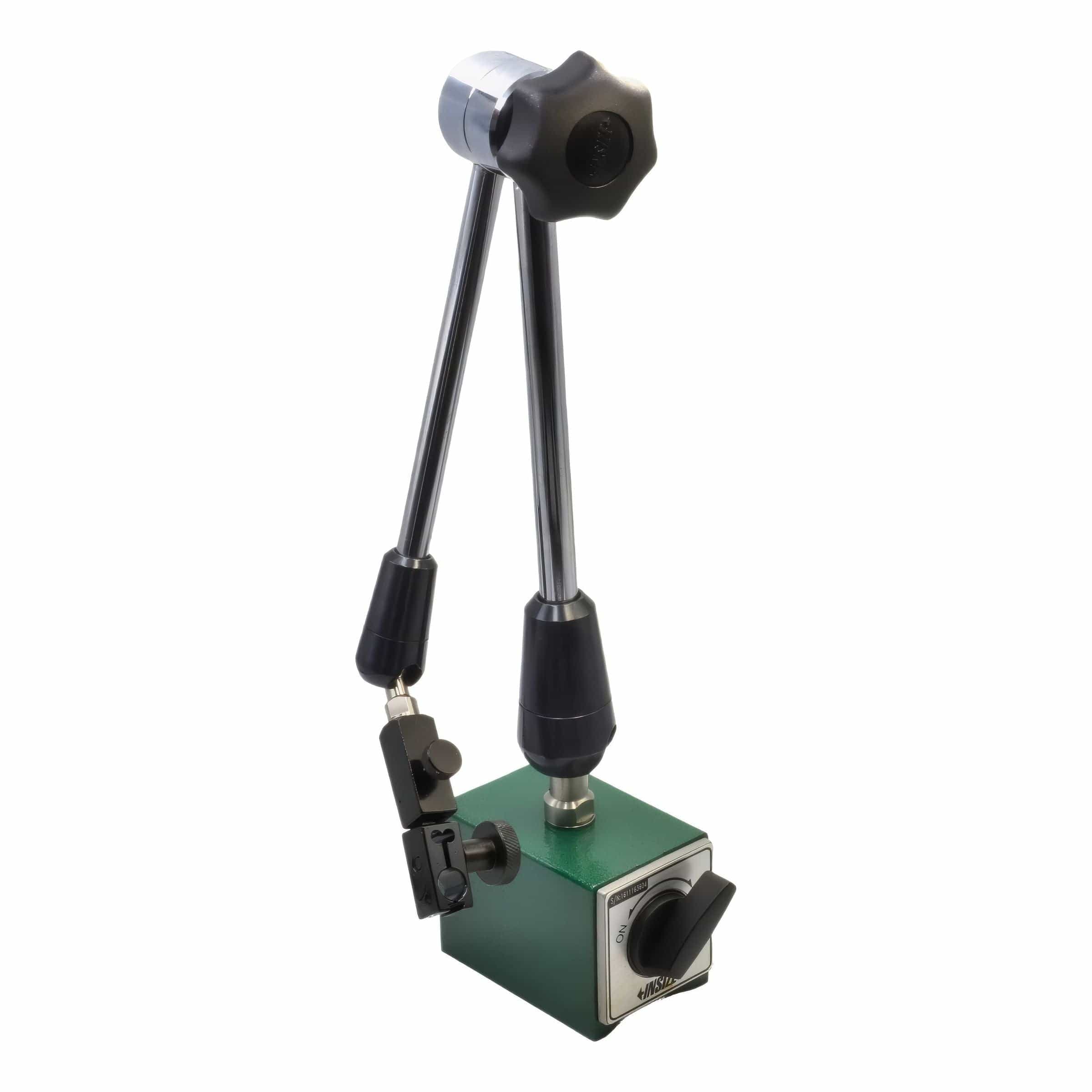

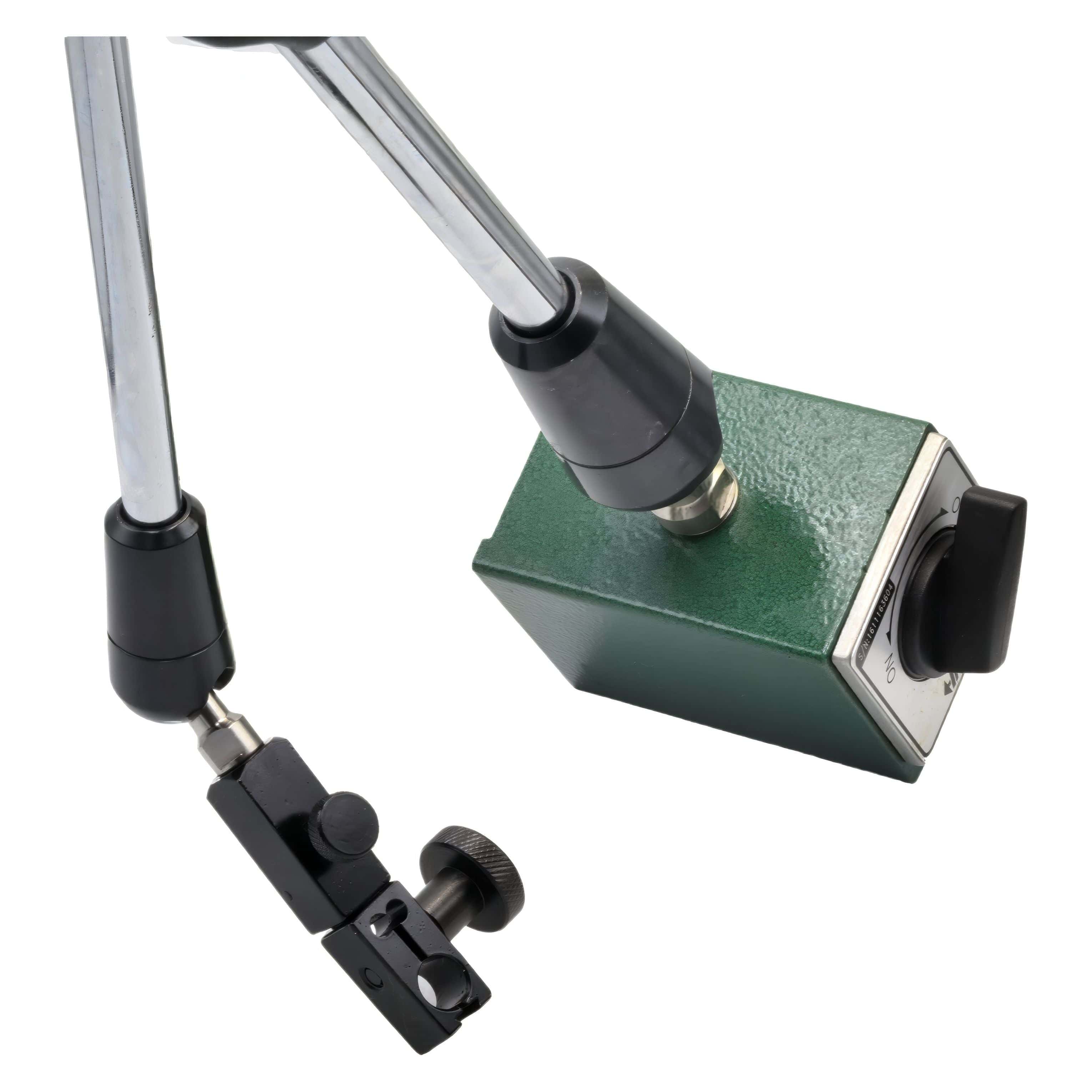

Insize Mechanical Lock Magnetic Stand
The Insize mechanical lock magnetic stand is designed for use with electronic dial indicators and dial test indicators. It features a central mechanical lock for all joints, a spring-loaded neck, and a V-shaped base for fixing to flat or cylindrical surfaces.

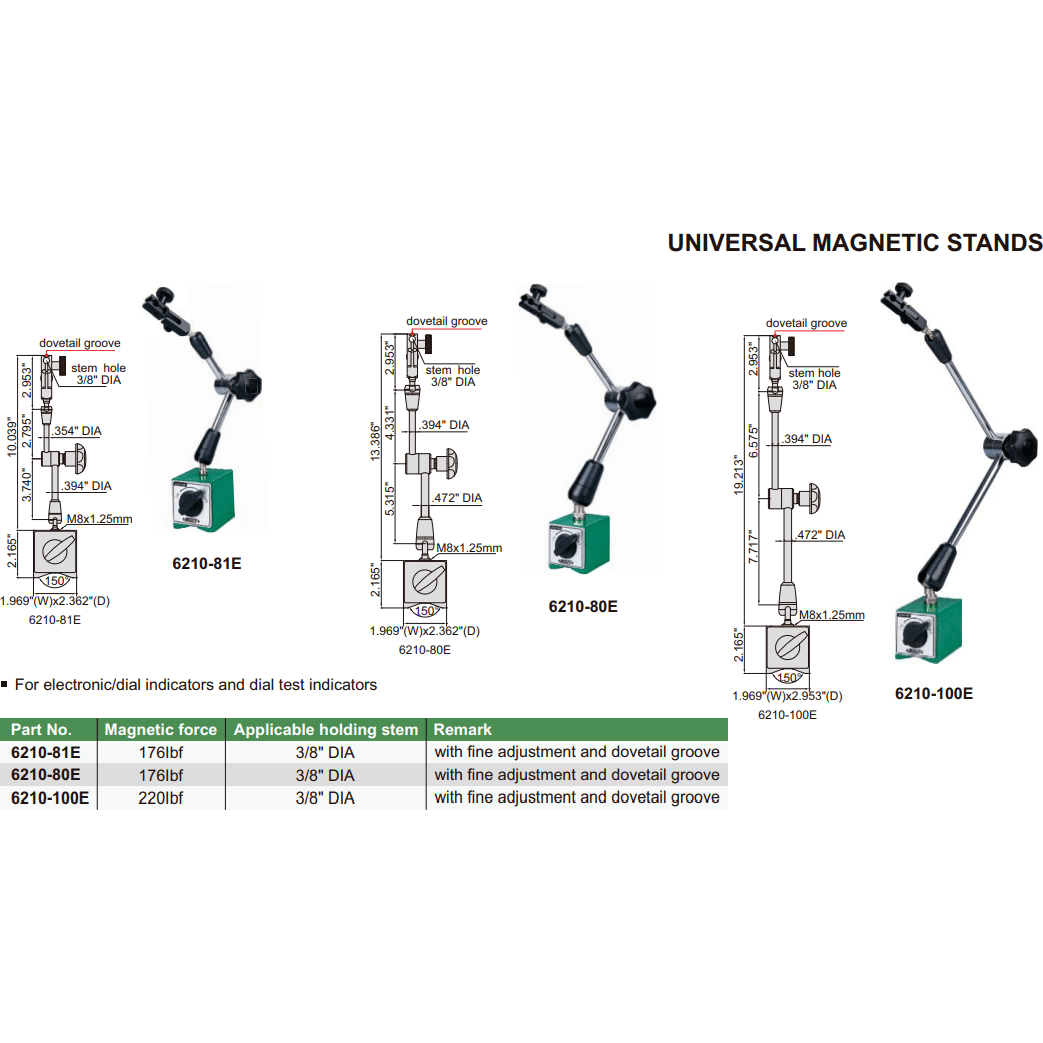

Specifications
-
Part No: 6210-100E
-
Application: For electronic dial indicators and dial test indicators
-

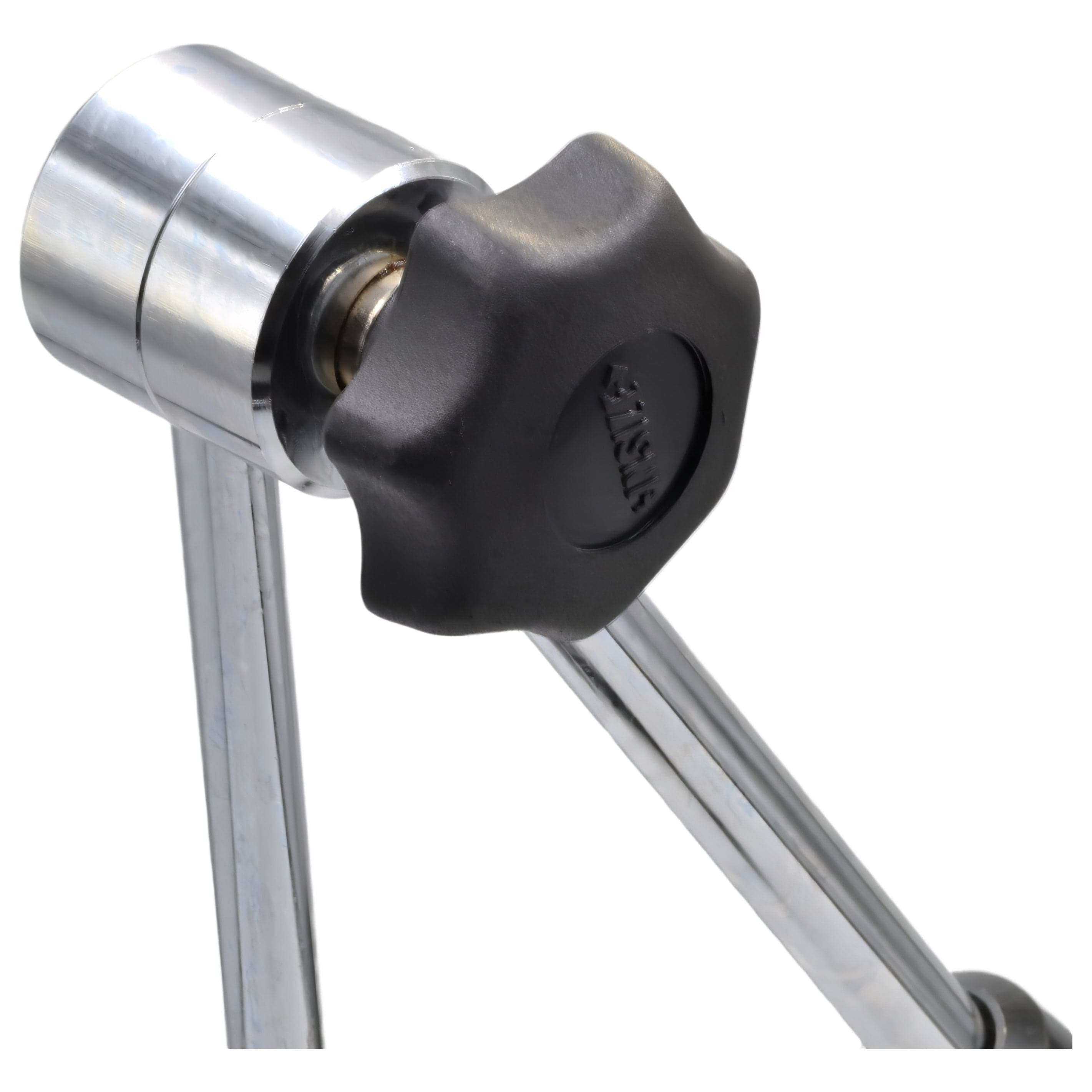

Locking System: Central mechanical lock for all joints
-

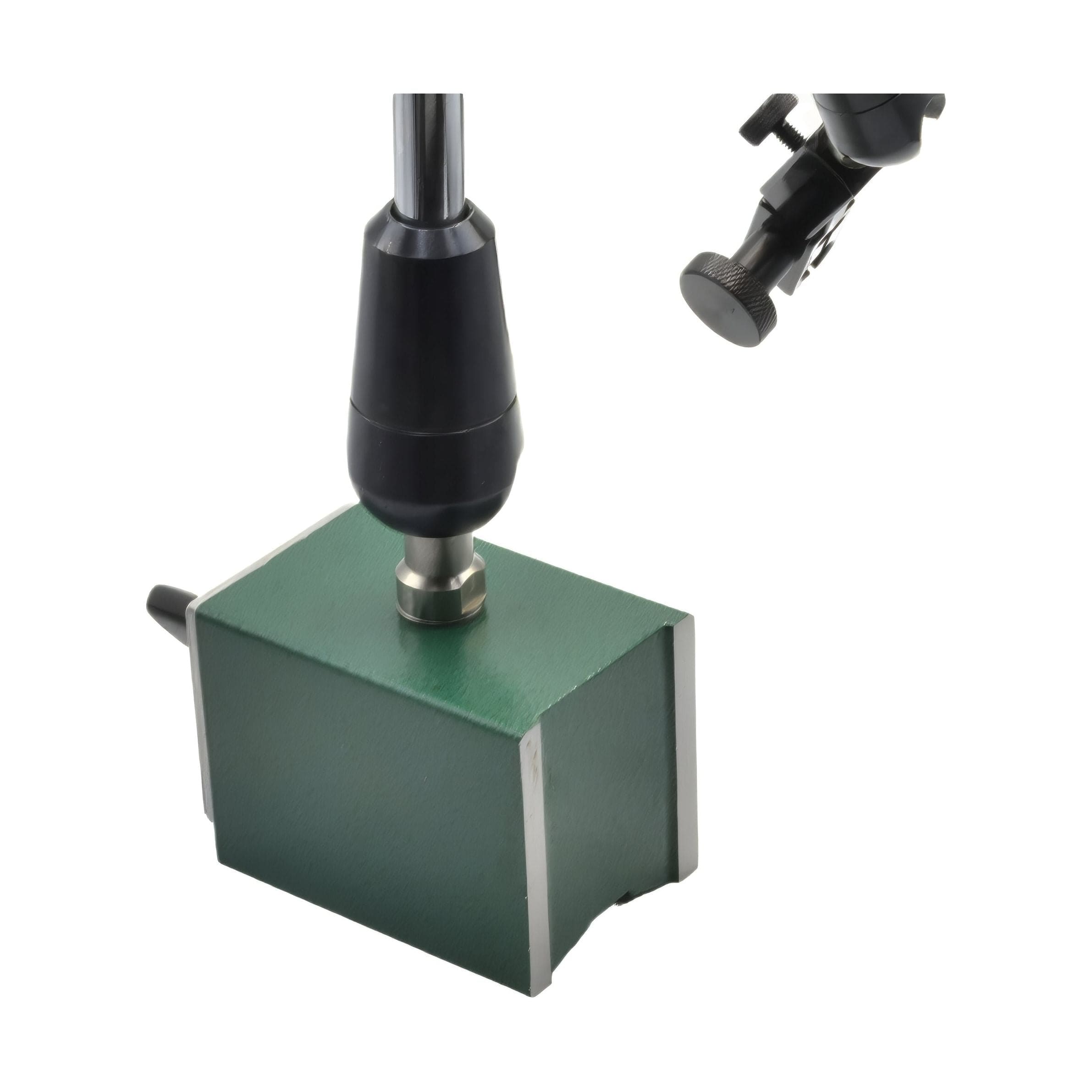

Base Type: V-shaped base
-

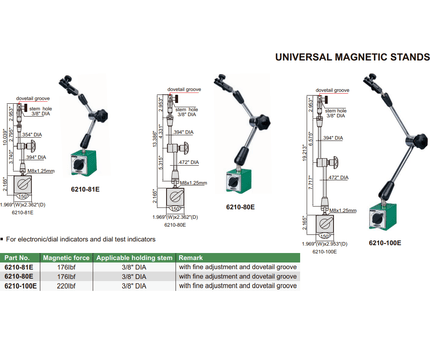

Base Dimensions: 80 × 55 × 50 mm
-
Height: Main stalk to centre of lock 224 mm
-
Mounting: 3/8" stem
-
Magnetic Force: 100 kg
-

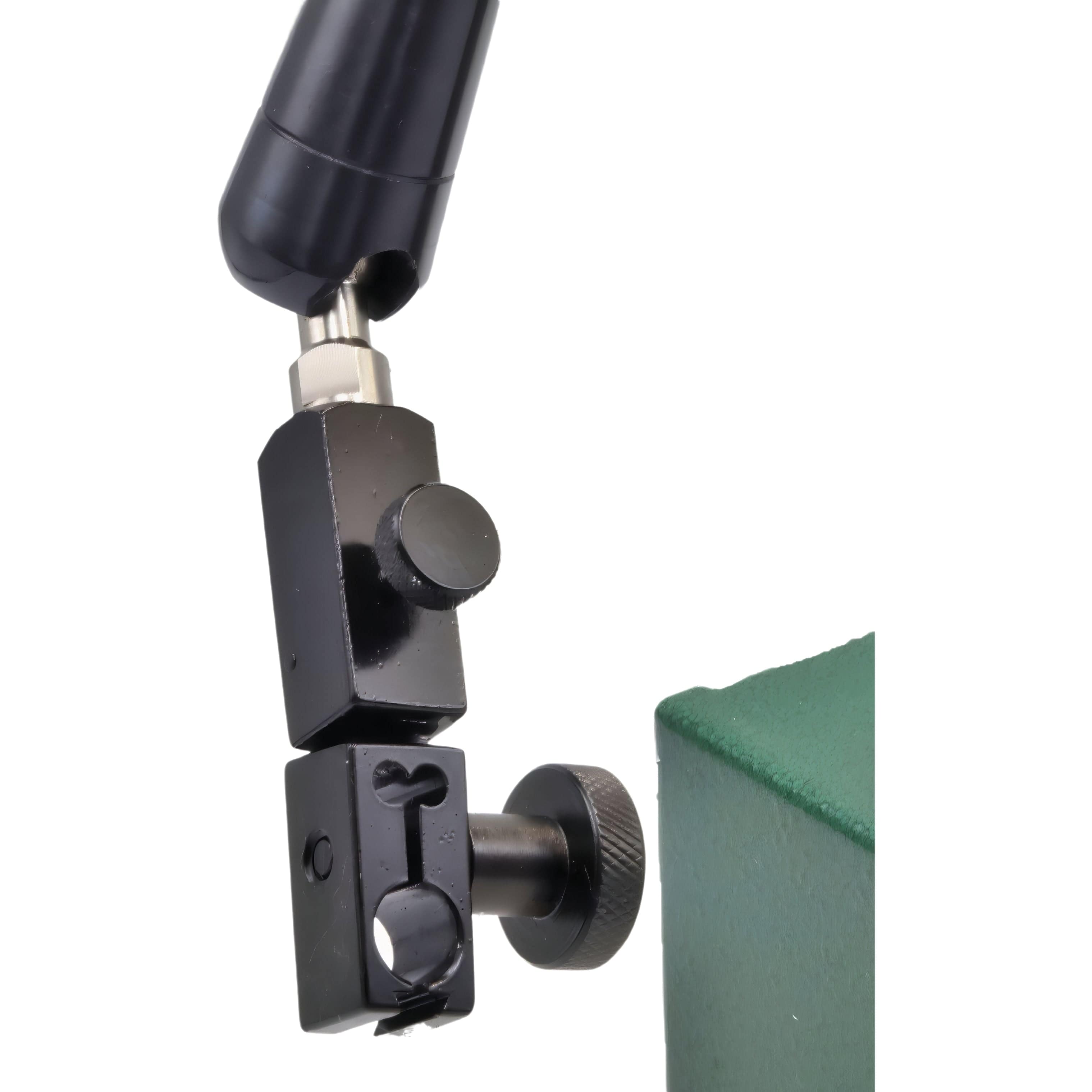

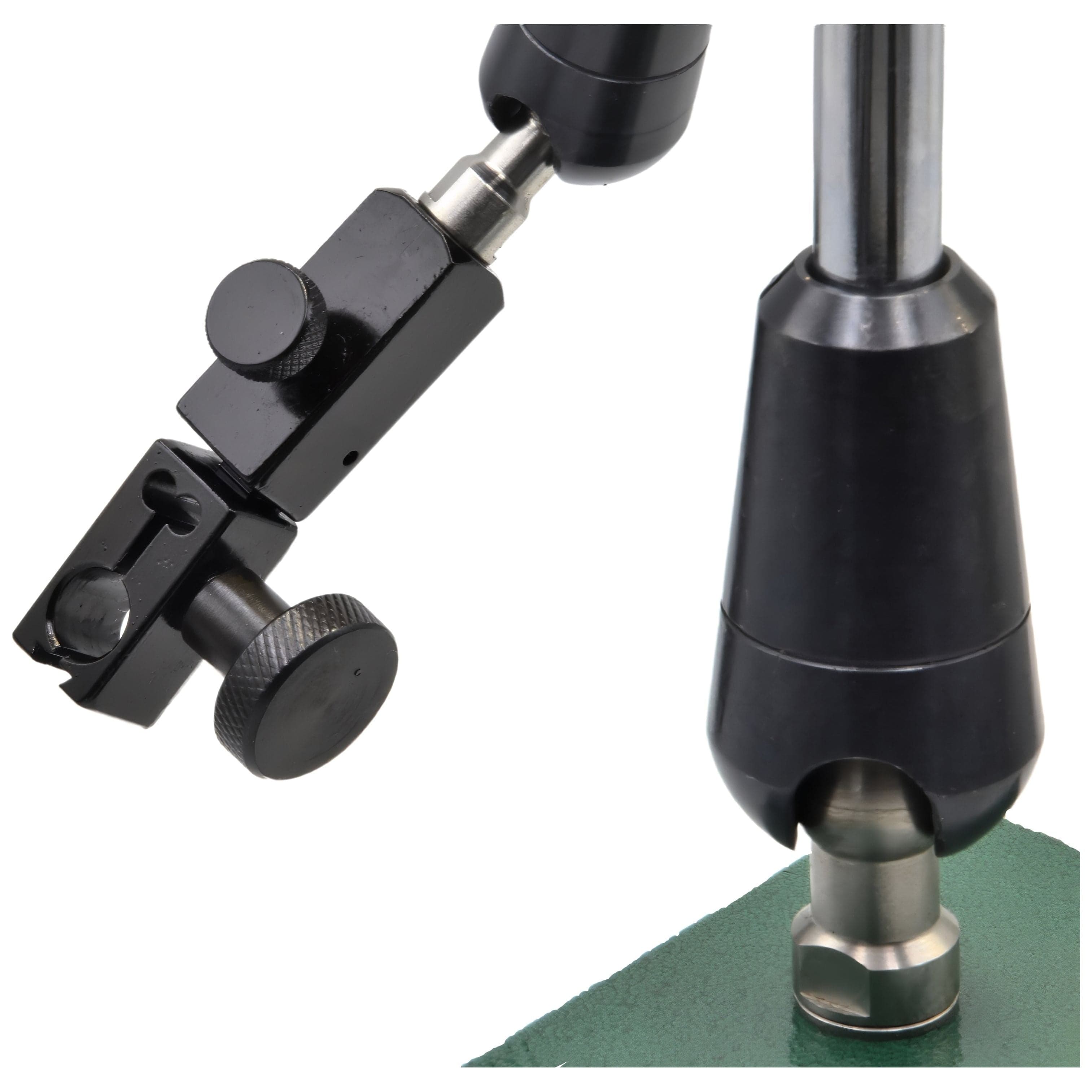

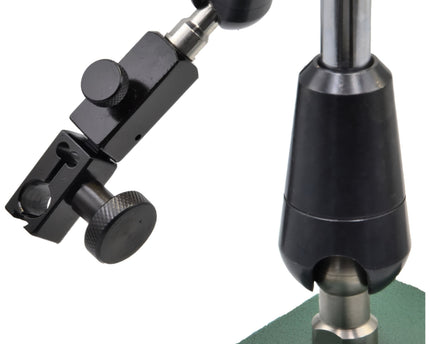

Adjustment: Fine adjustment with dovetail groove
-
Neck: Spring loaded
-
Item Weight: 2.00 kg
-

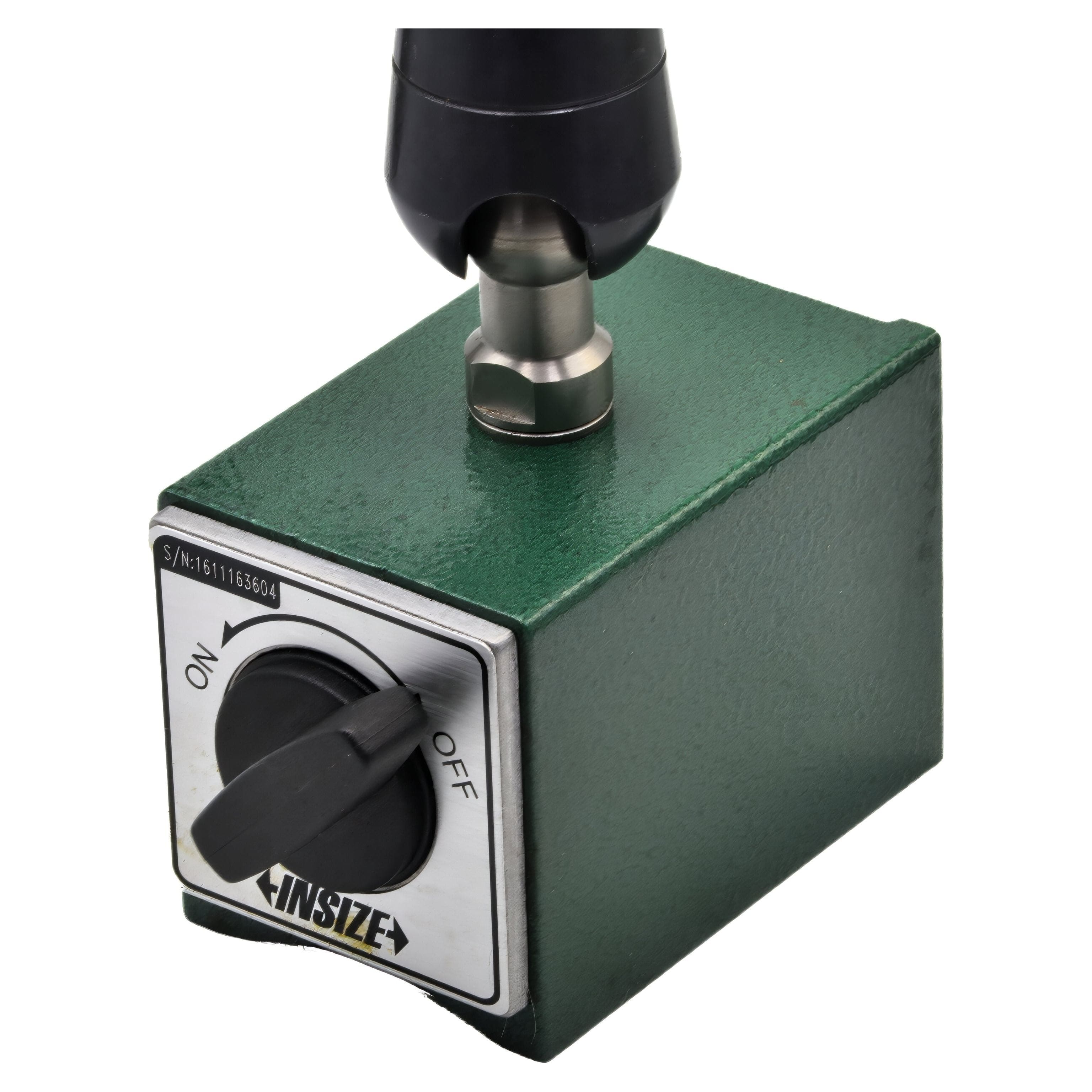

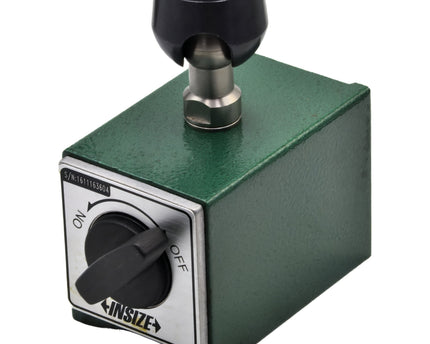

Switch: On/off switch to engage or disable magnetic force
Well designed and durable, the Insize mechanical lock magnetic stand is suitable for precision measuring applications.
