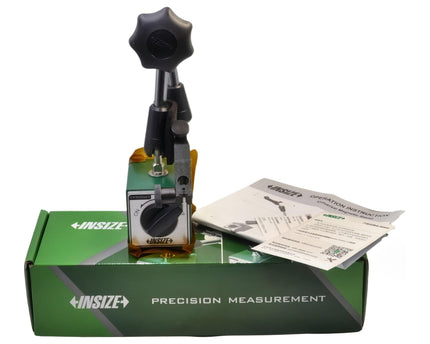

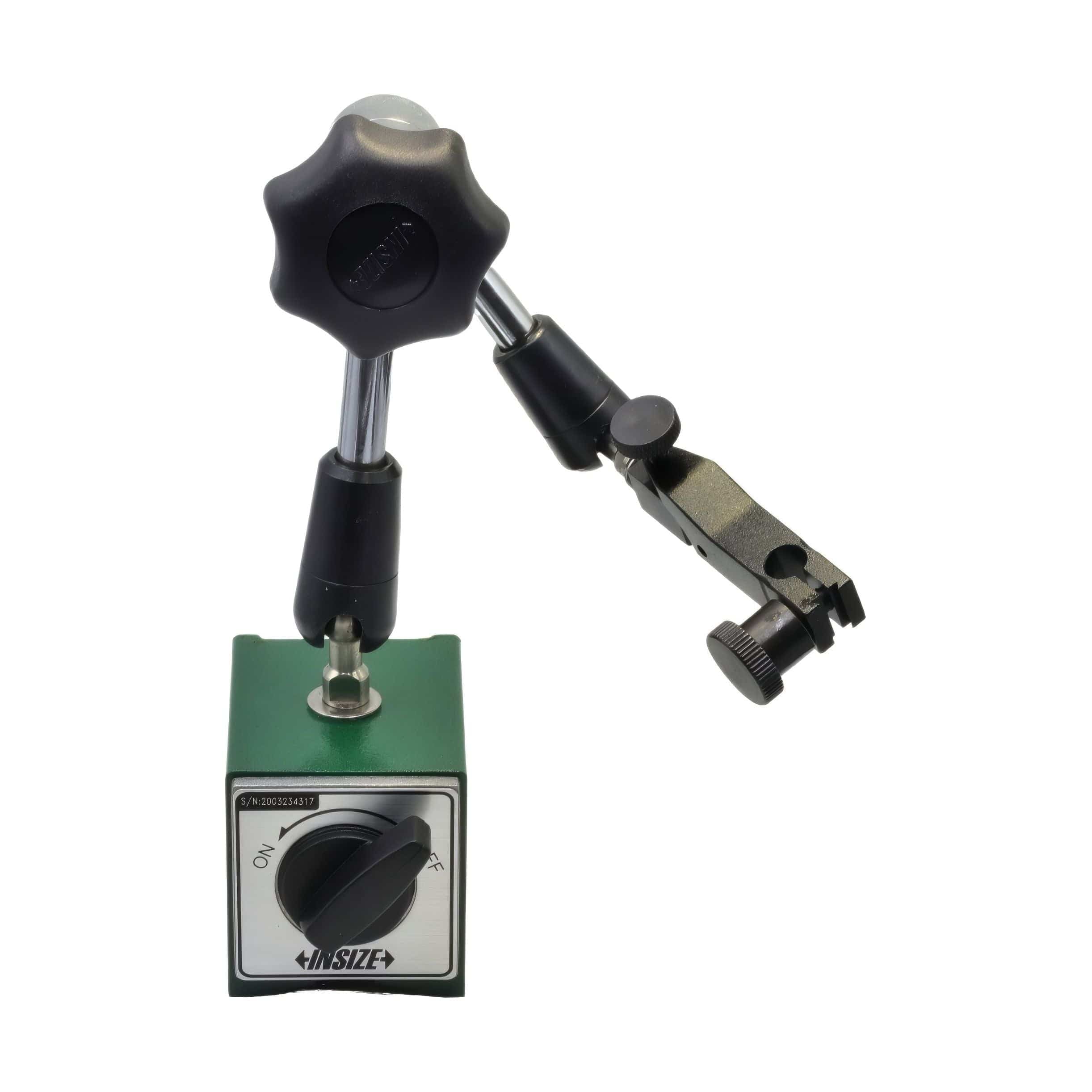

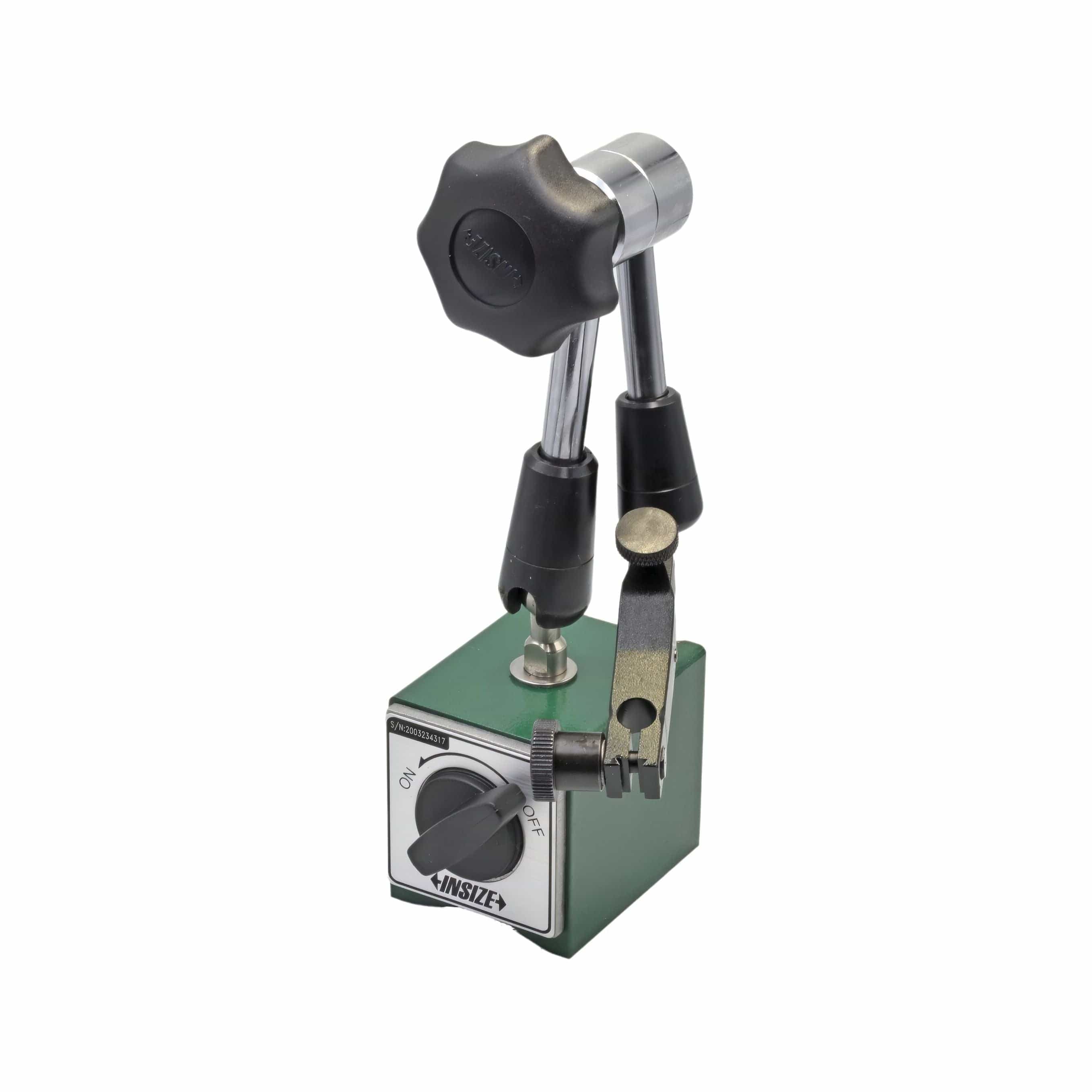

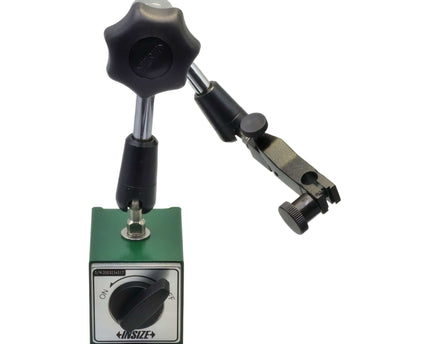

Insize Mechanical Lock Magnetic Stand

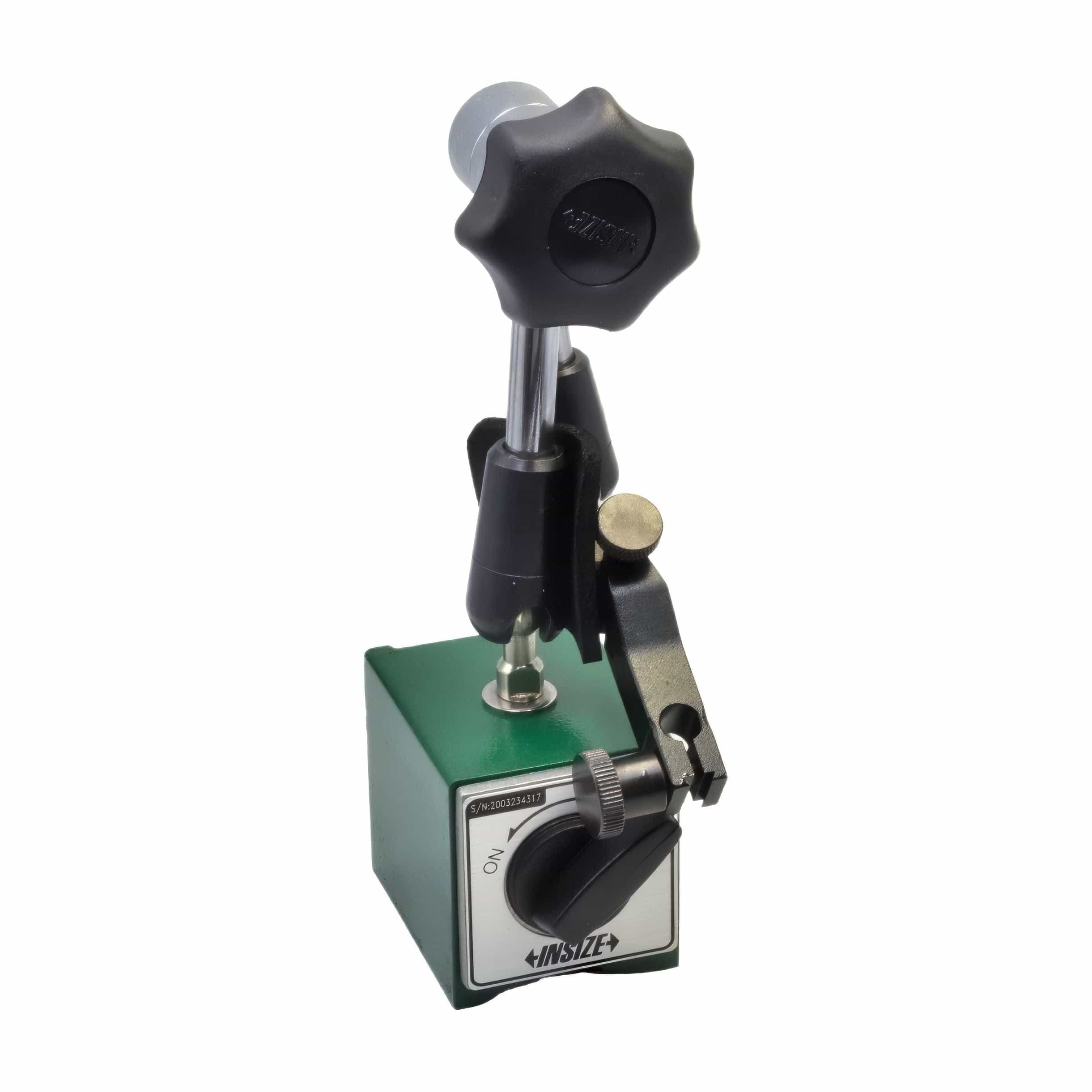

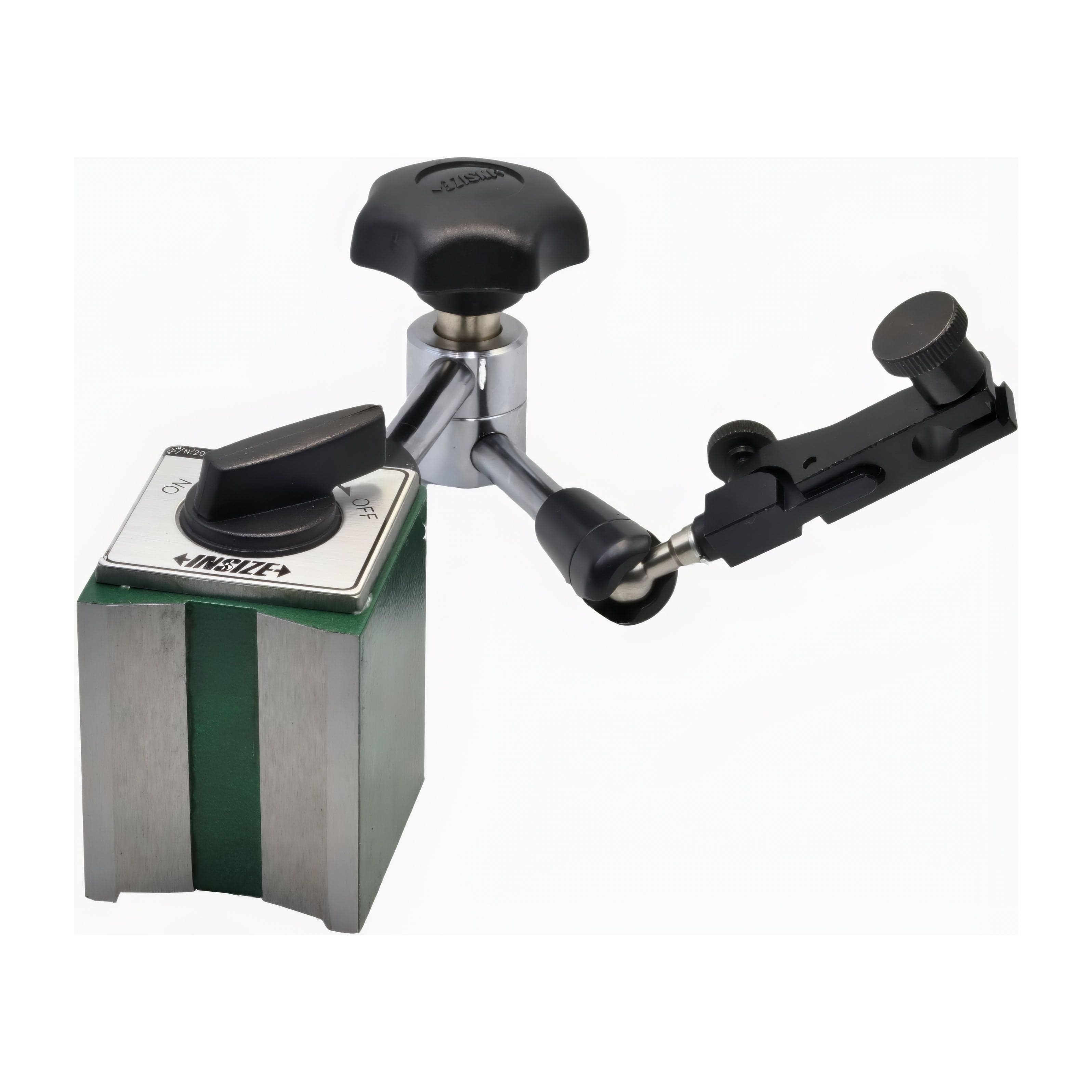

The Insize Mechanical Lock Magnetic Stand is a robust and versatile support tool designed for use with dial indicators and dial test indicators. Featuring a central mechanical lock for all joints and a strong magnetic base, it allows precise positioning on both flat and cylindrical surfaces, making it ideal for workshop and inspection use.

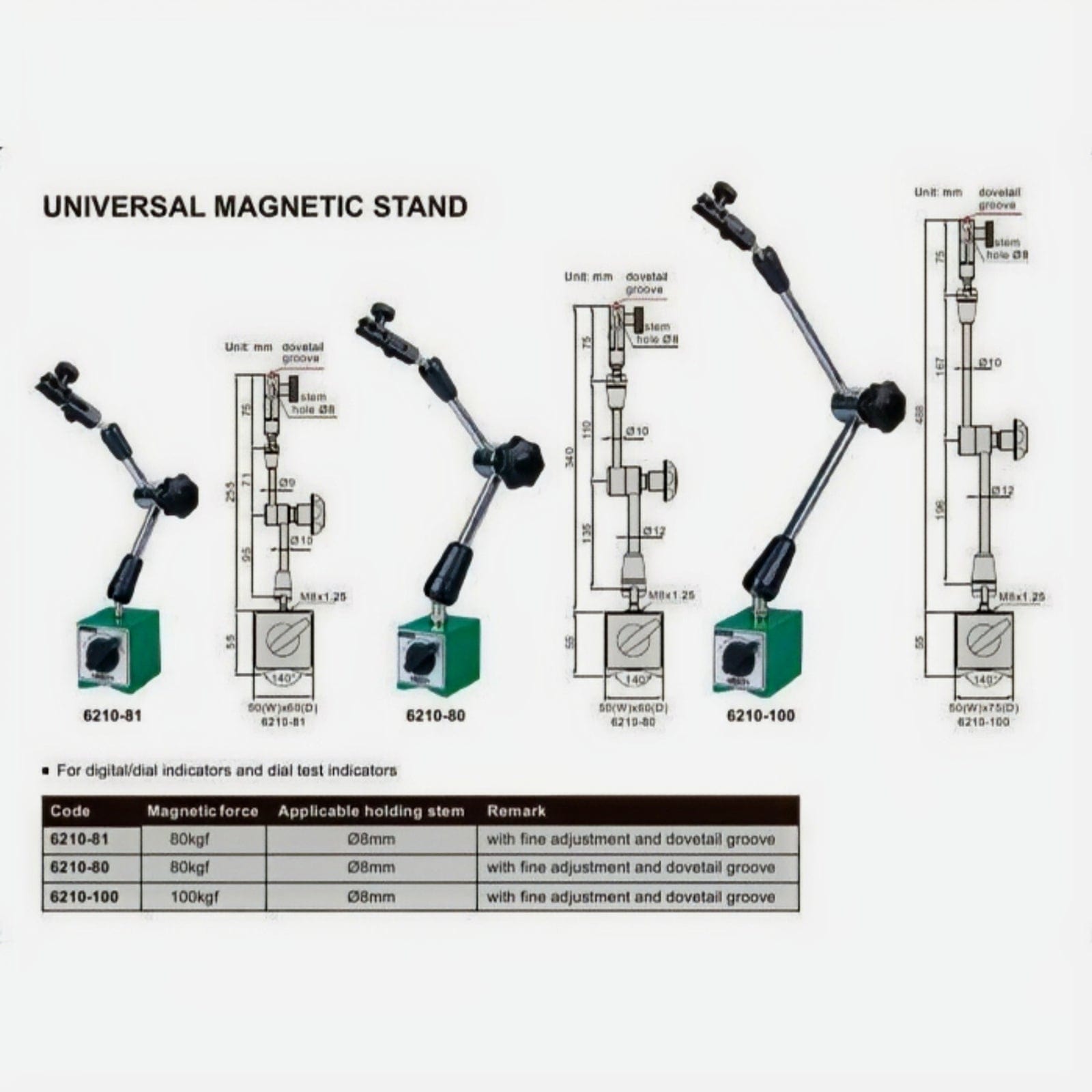

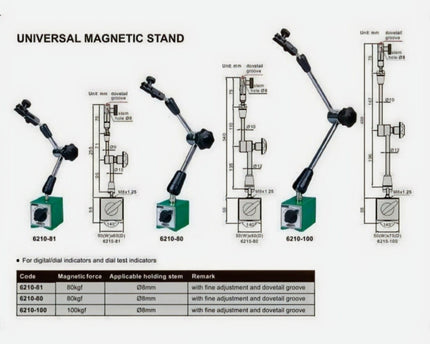

Specifications :
-
Part No: 6210-81
-
Compatibility: For electronic dial indicators and dial test indicators
-

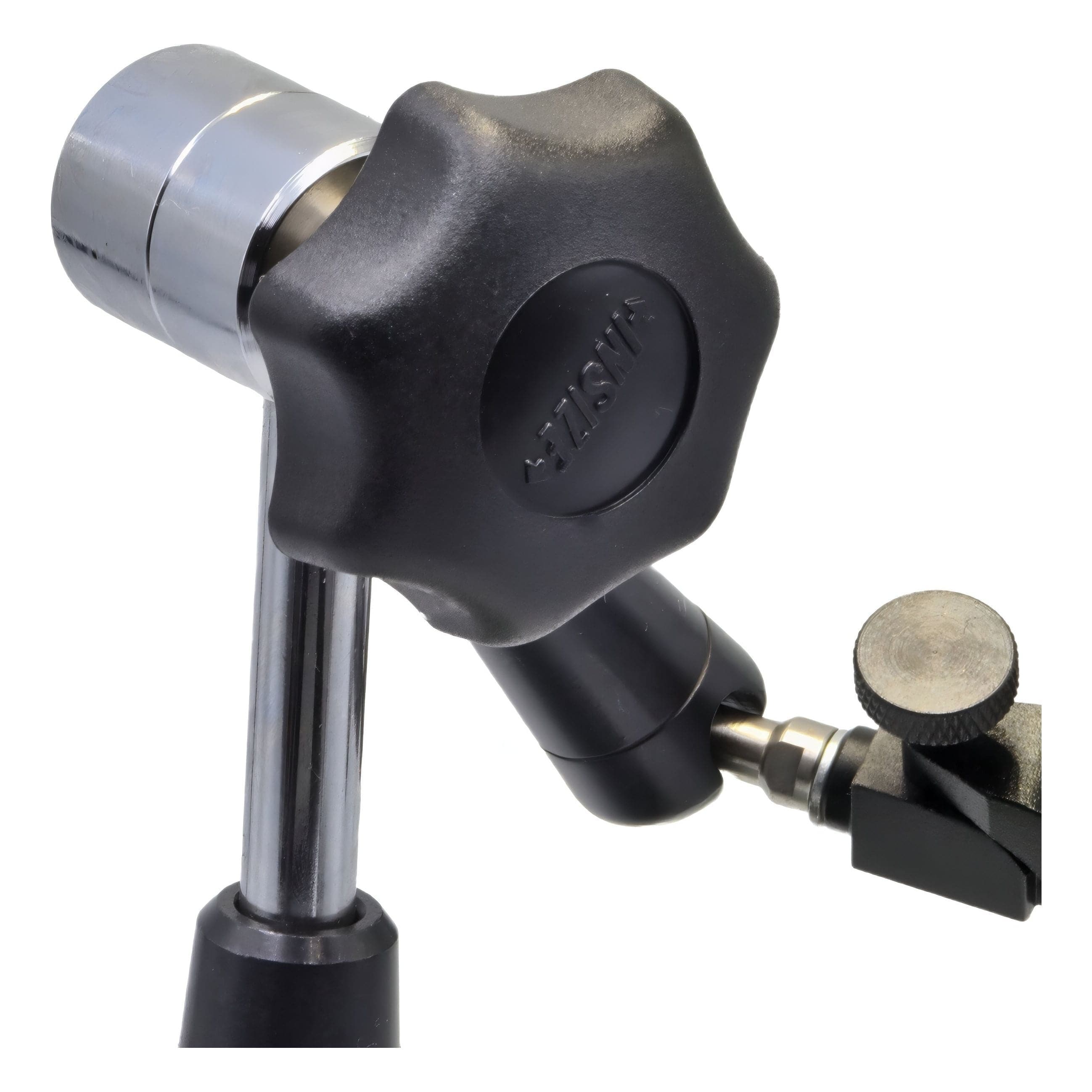

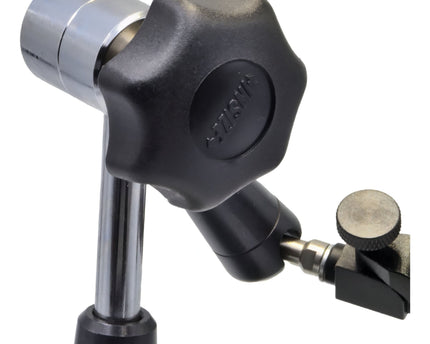

Locking Mechanism: Central mechanical lock for all joints
-

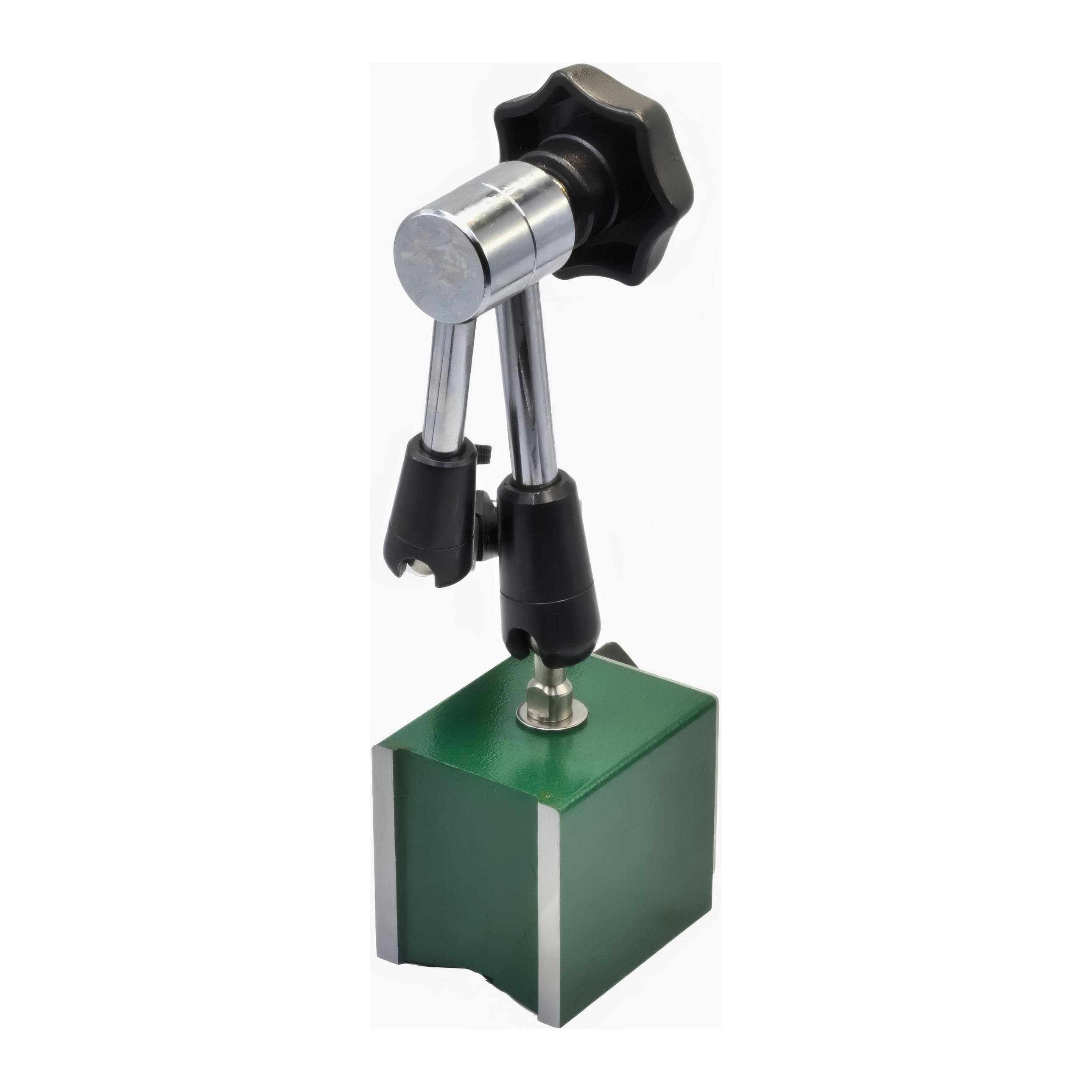

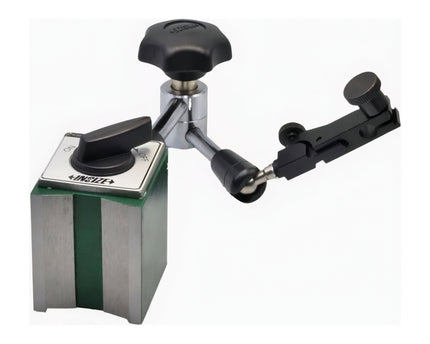

Base Type: V-shaped base for flat or cylindrical surfaces
-
Base Dimensions: 60 × 55 × 50 mm
-
Height (to center of lock): 116 mm
-

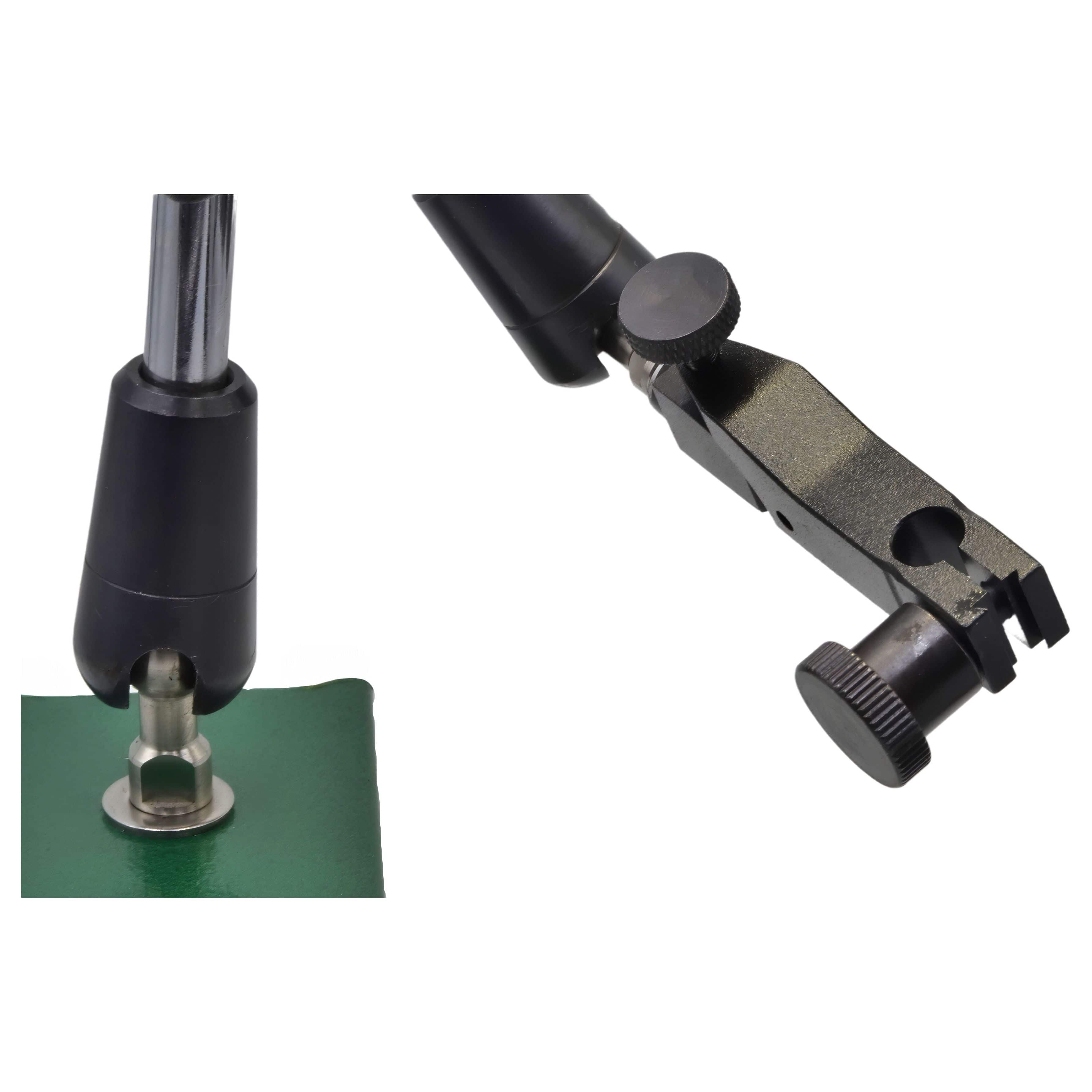

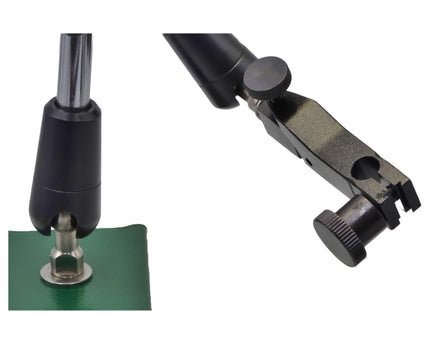

Mounting Options: 8mm stem and dovetail mount
-
Magnetic Force: 80 kg
-
Fine Adjustment: Included
-
Additional Features: Spring-loaded neck
-
Weight: 1.39 kg
-

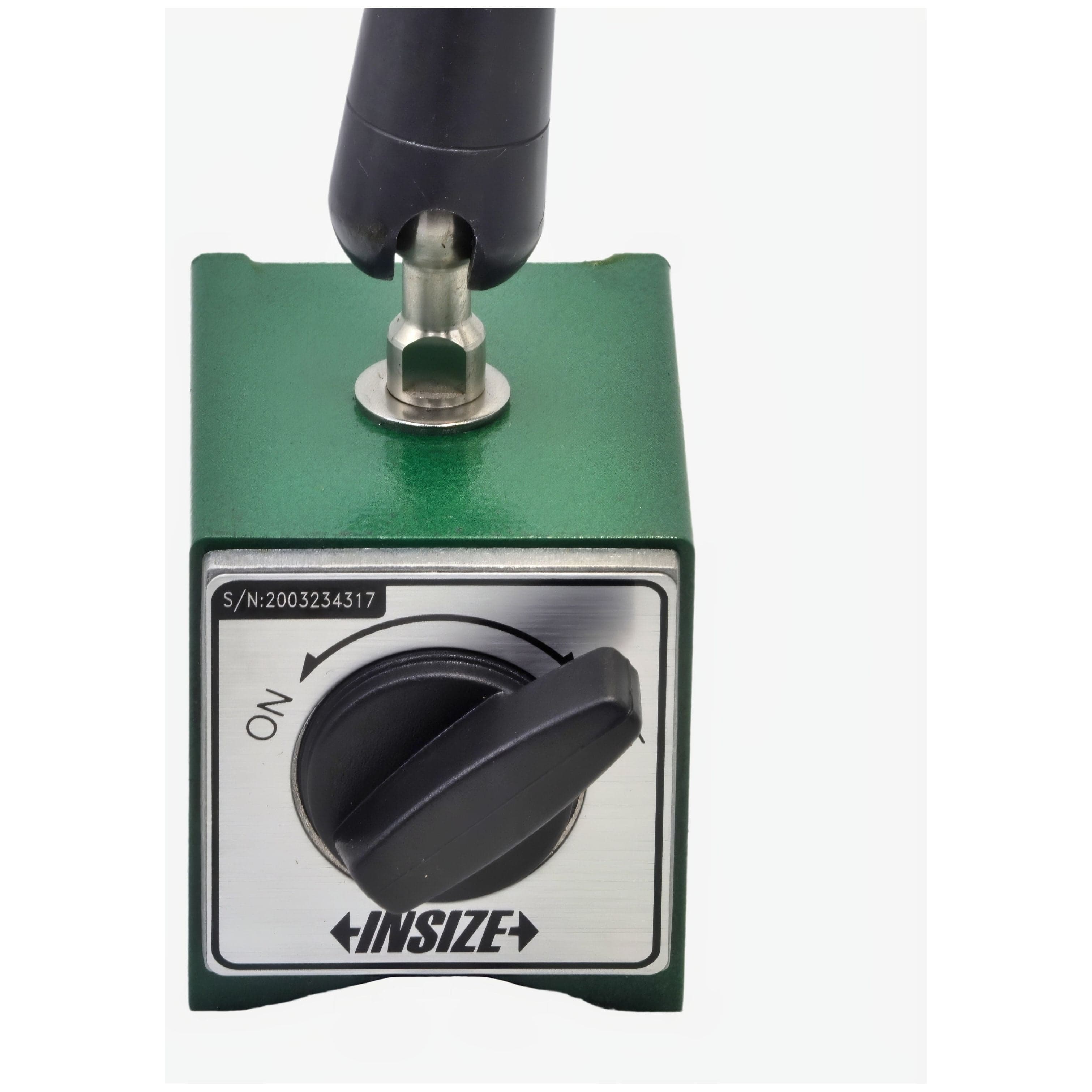

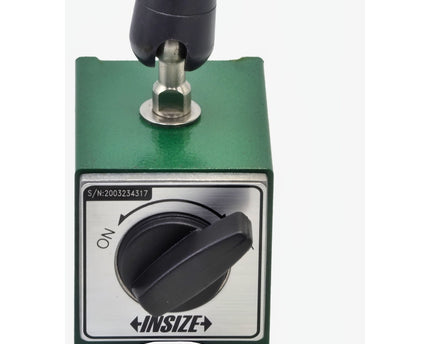

On/Off Switch: Enables and disables magnetic force
