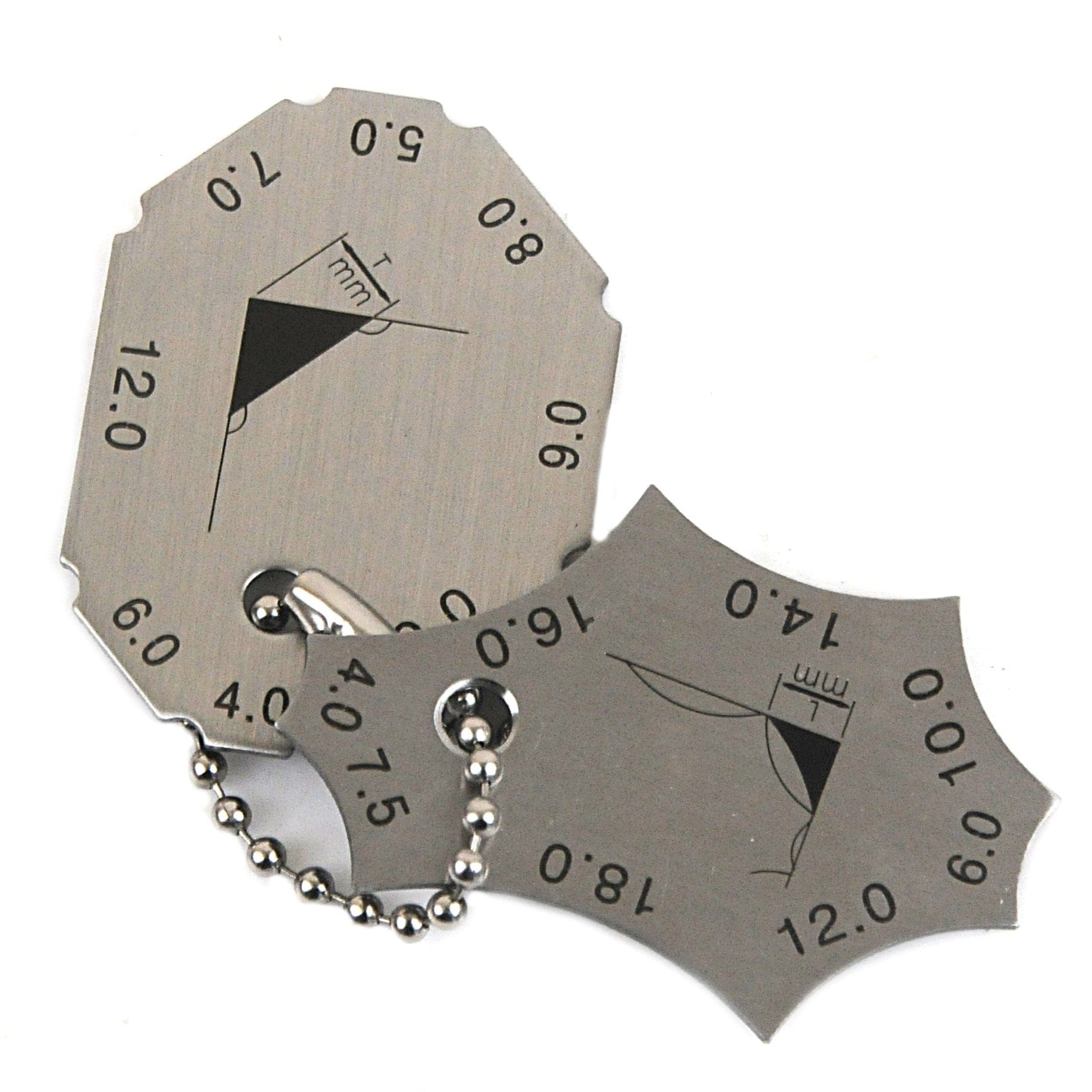

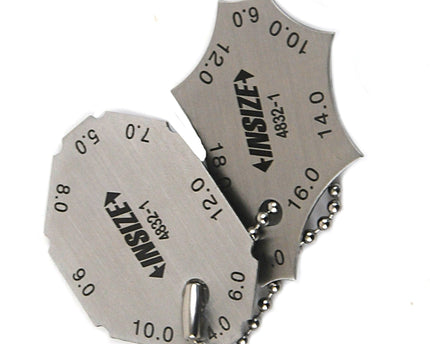

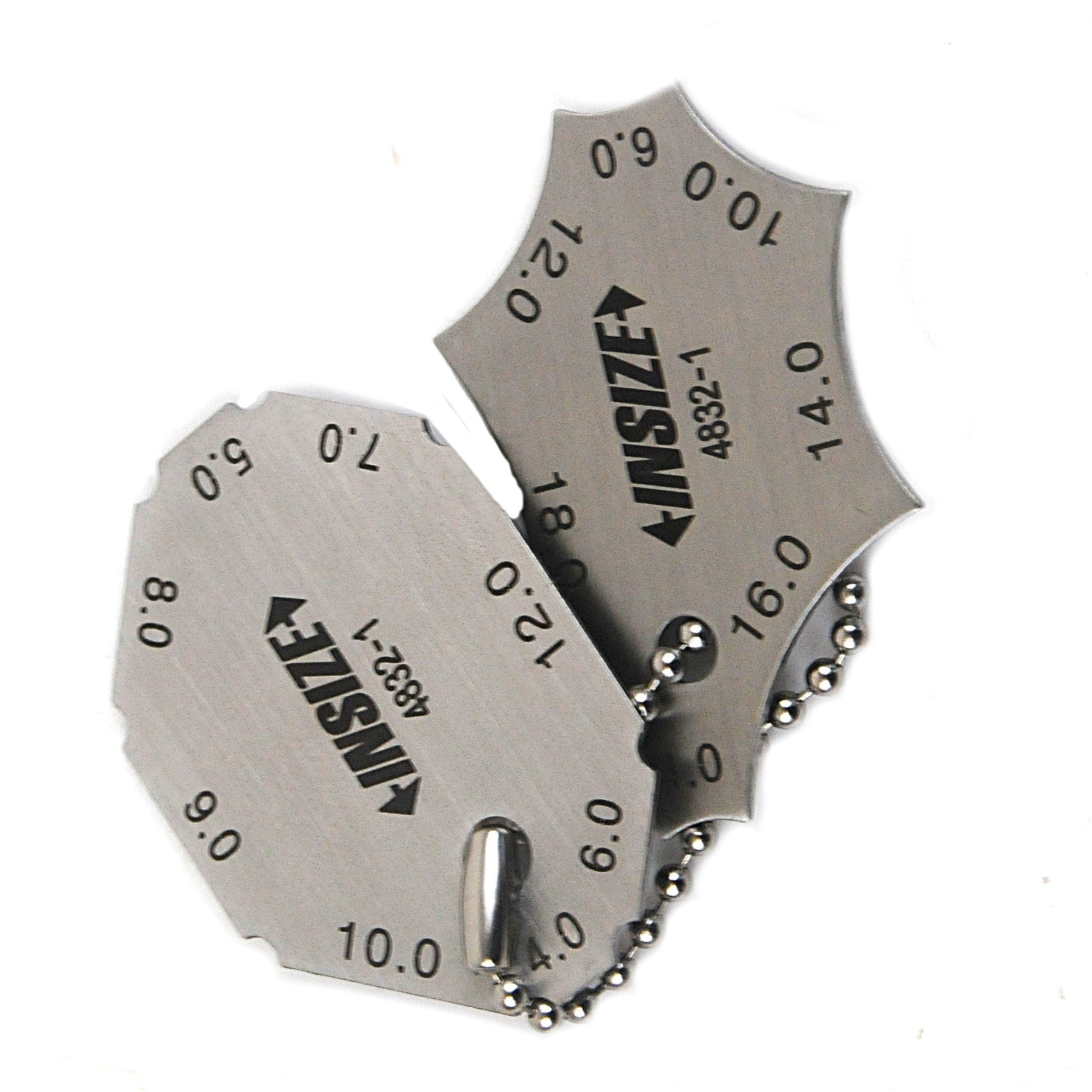

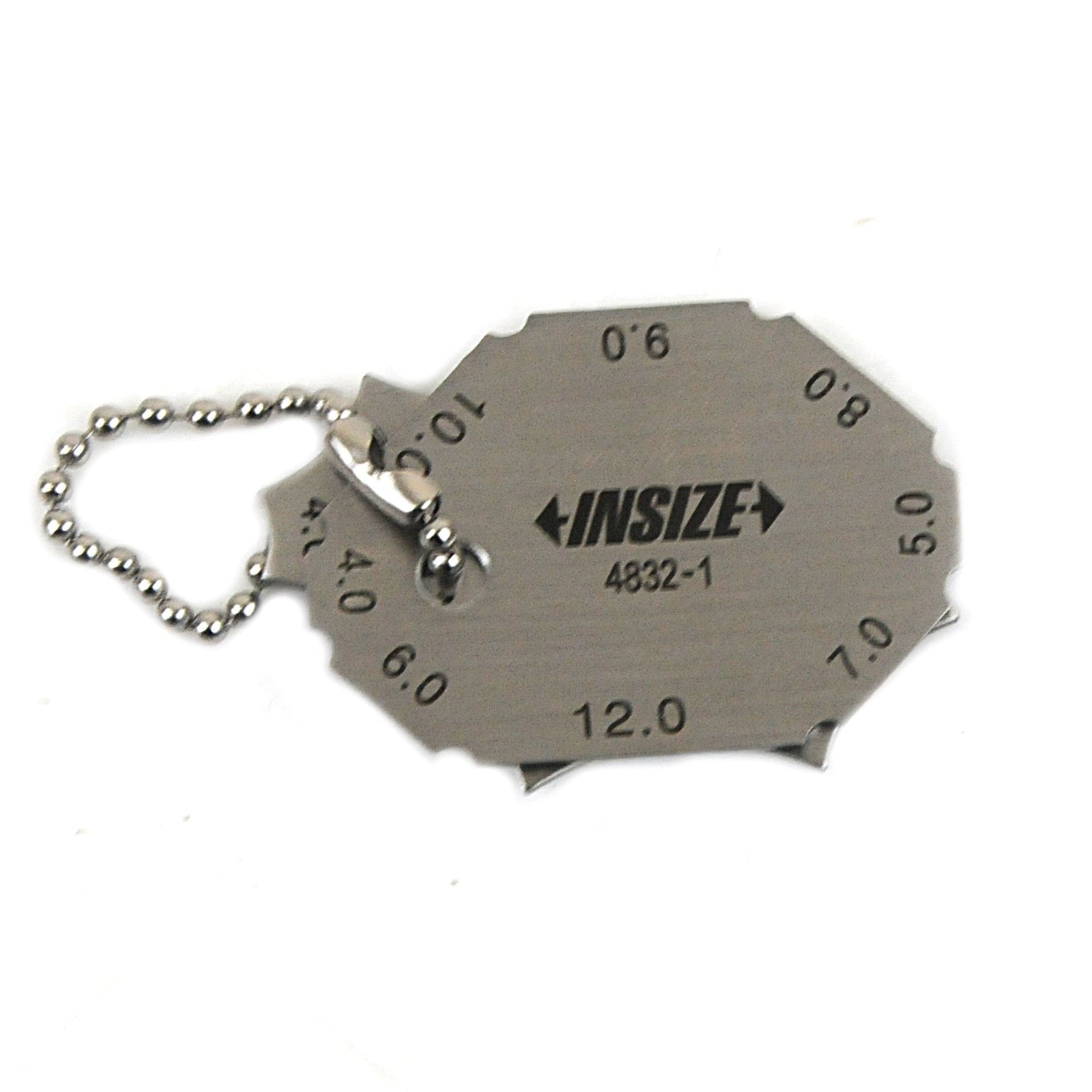

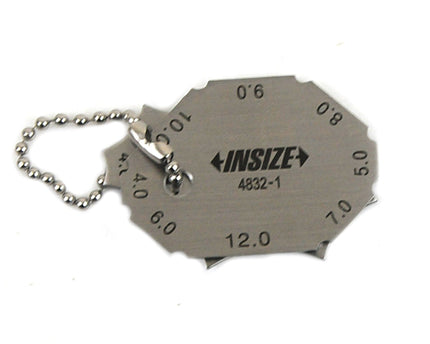

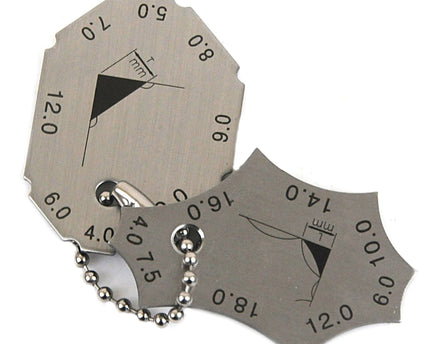

Insize Fillet Weld Gauge
The Insize Fillet Weld Gauge is a precision inspection tool designed for accurate measurement of fillet weld size and throat thickness. Its clear markings and robust stainless steel construction make it ideal for welding inspection, fabrication, and quality control applications.

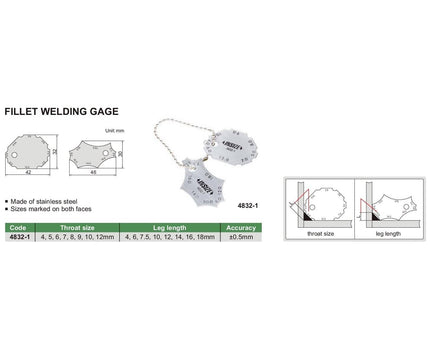

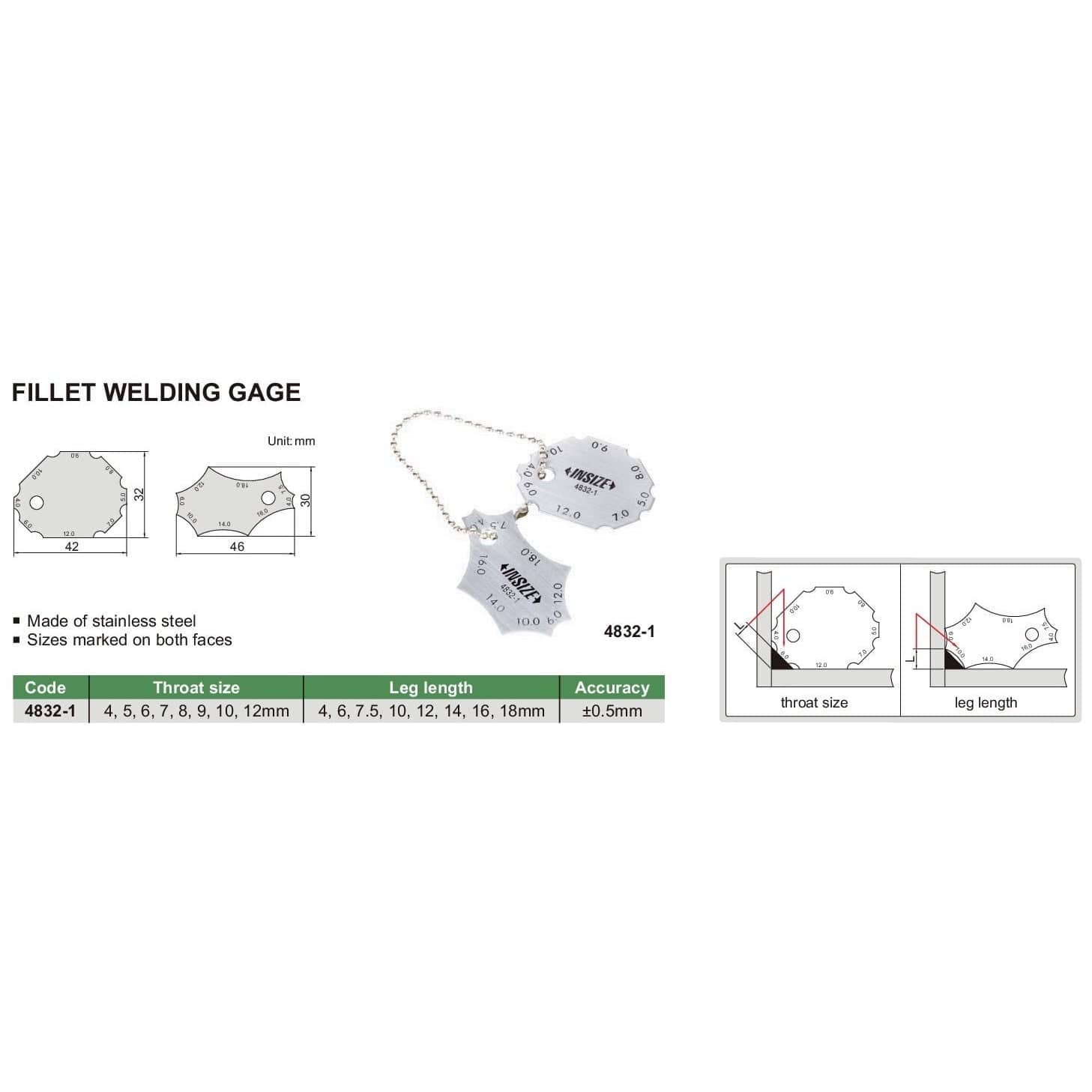

Specifications:
-
Part No.: 4832-1
-
Accuracy: ±0.5 mm
-
Throat Sizes (mm): 4, 5, 6, 7, 8, 9, 10, 12
-
Leg Lengths (mm): 4, 6, 7.5, 10, 12, 14, 16, 18
-
Markings: Sizes clearly marked on both faces
-
Finish: Satin chrome-plated reading surface
-
Material: Stainless steel
Manufactured for durability and ease of use, this fillet weld gauge enables fast and reliable verification of weld dimensions, helping ensure compliance with welding specifications and quality standards.
