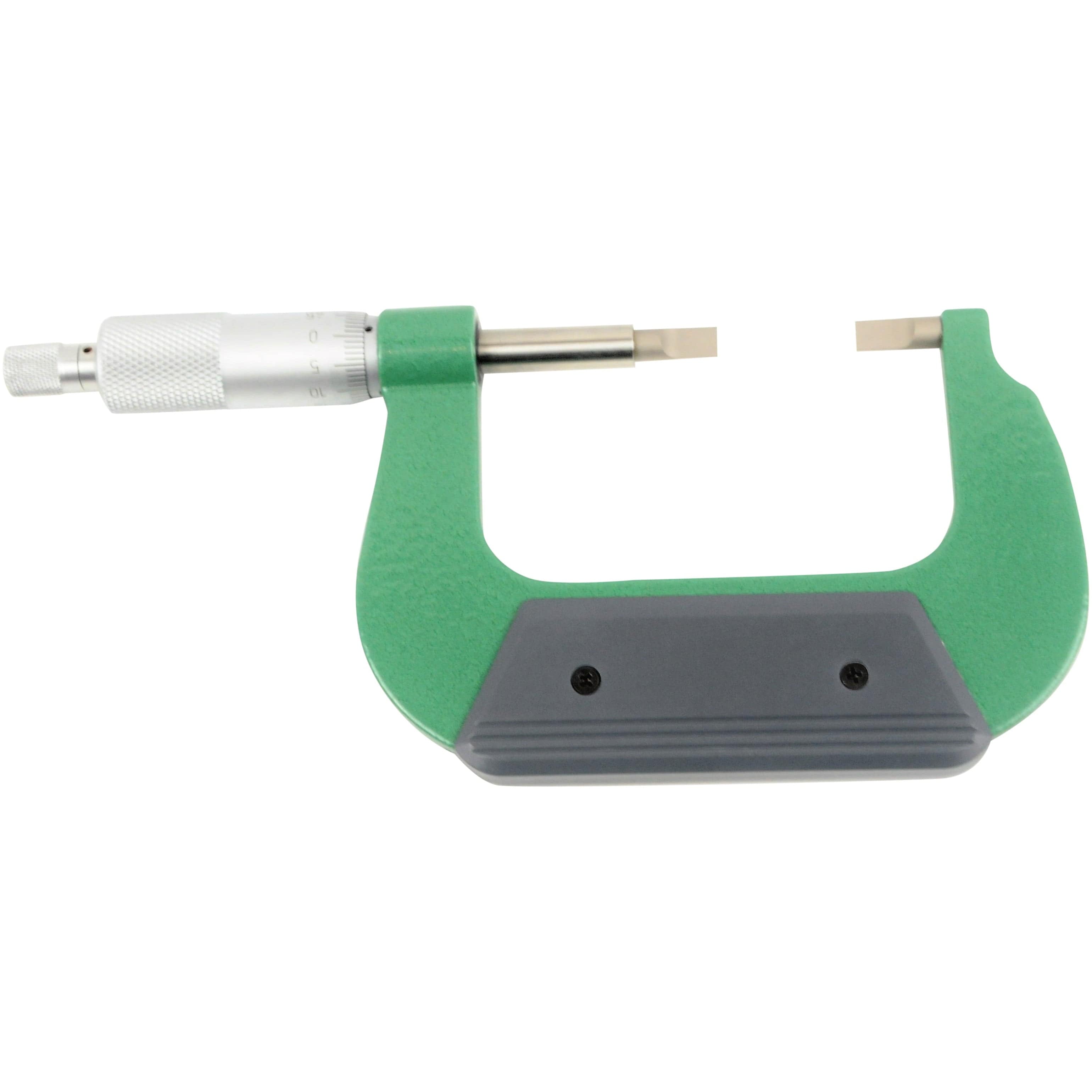

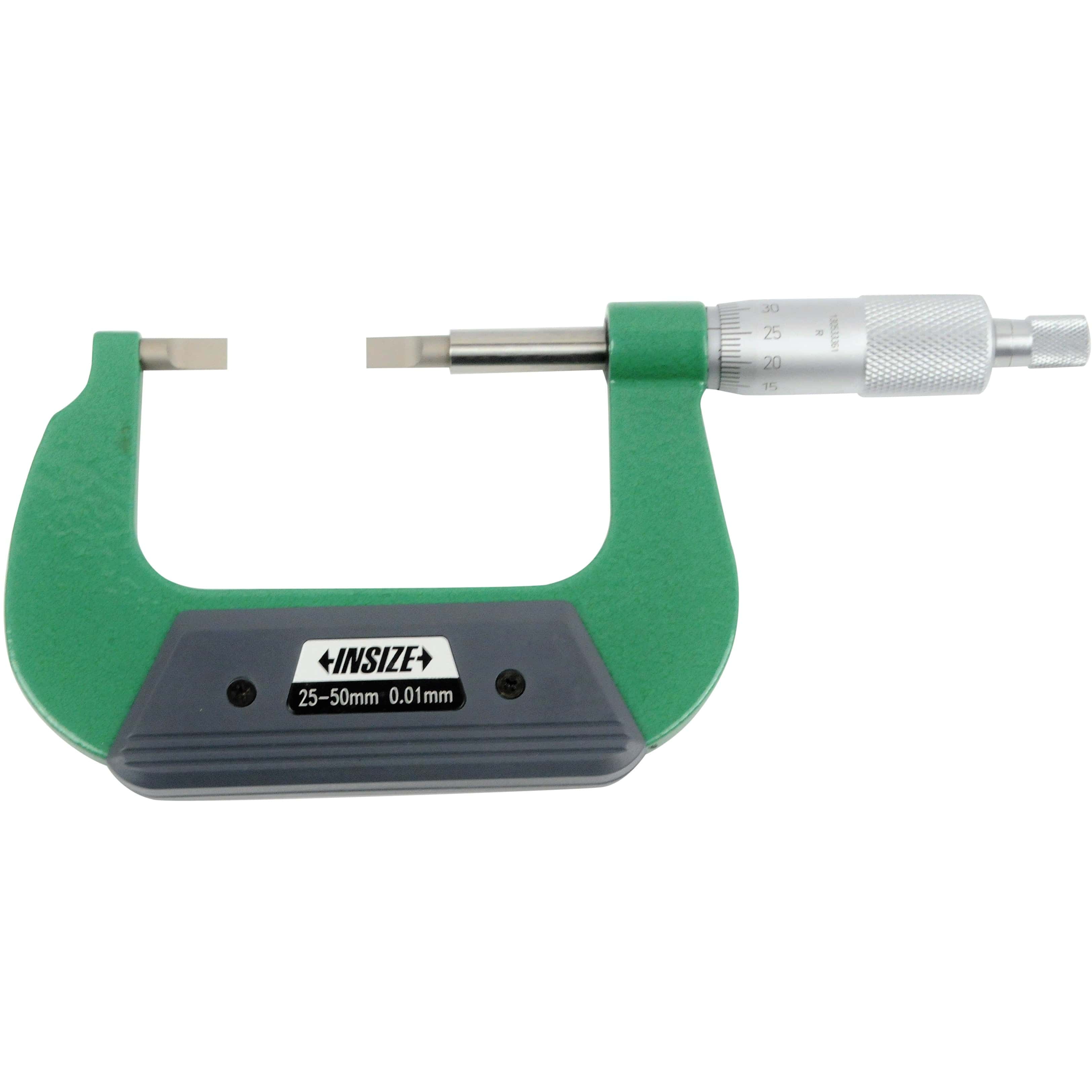

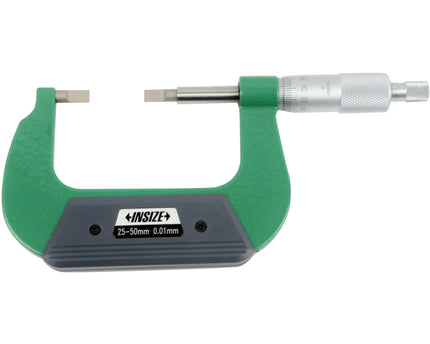

Insize 25–50mm Outside Blade Micrometer
The Insize 25–50mm Outside Blade Micrometer is engineered for accurate measurement of narrow grooves, slots, and recessed shaft diameters where standard flat anvils are unsuitable. Featuring slim blade-style carbide measuring faces and a non-rotating spindle, this micrometer delivers consistent, repeatable results in machining, inspection, and toolroom applications.

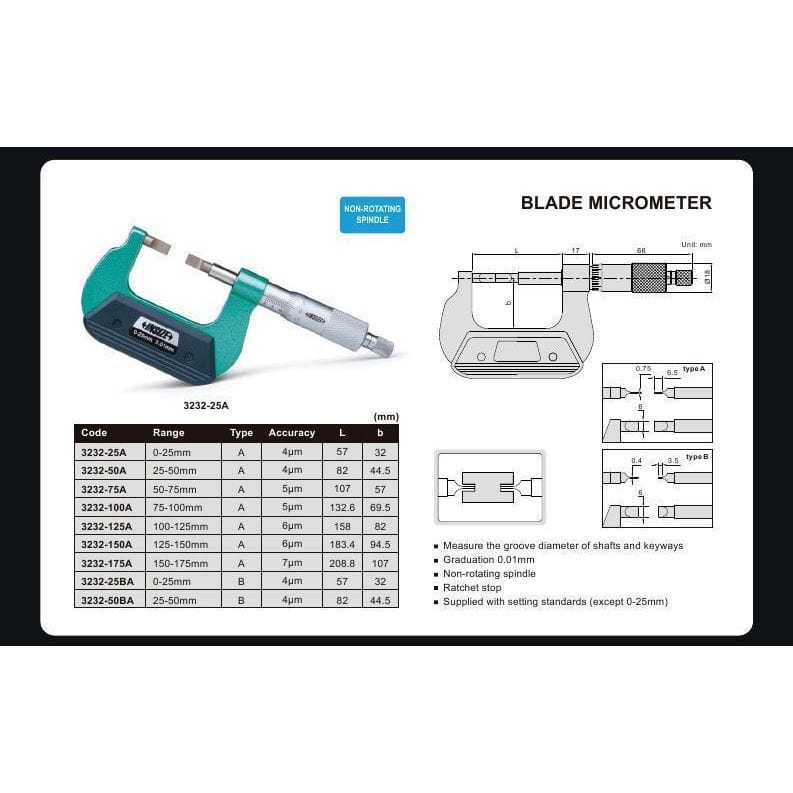

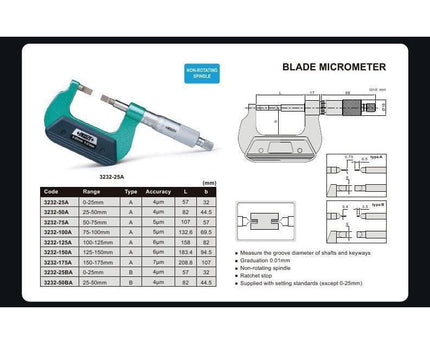

Specifications :
-
Part No: 3232-50A
-
Measuring Range: 25–50 mm
-
Graduation: 0.01 mm
- Manufactured in accordance with DIN 863
- Ideal for measuring grooves and shaft diameters of keyways
- Non-rotating spindle
- Spindle thread hardened, ground, and lapped for high accuracy
- Baked enamel finish frame

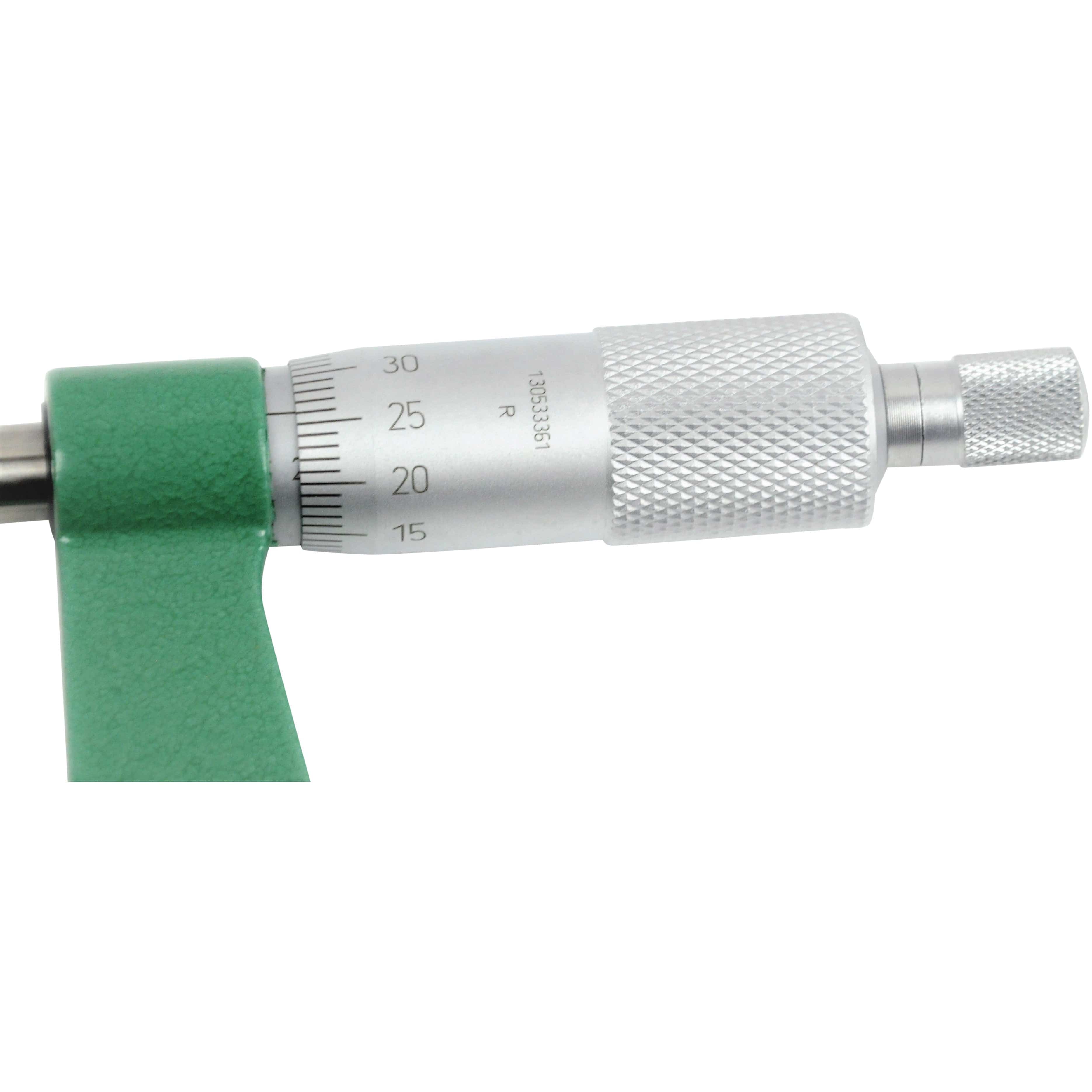

- Satin chrome barrel and thimble
- Clear graduations for easy operation
- Quick and easy adjustment

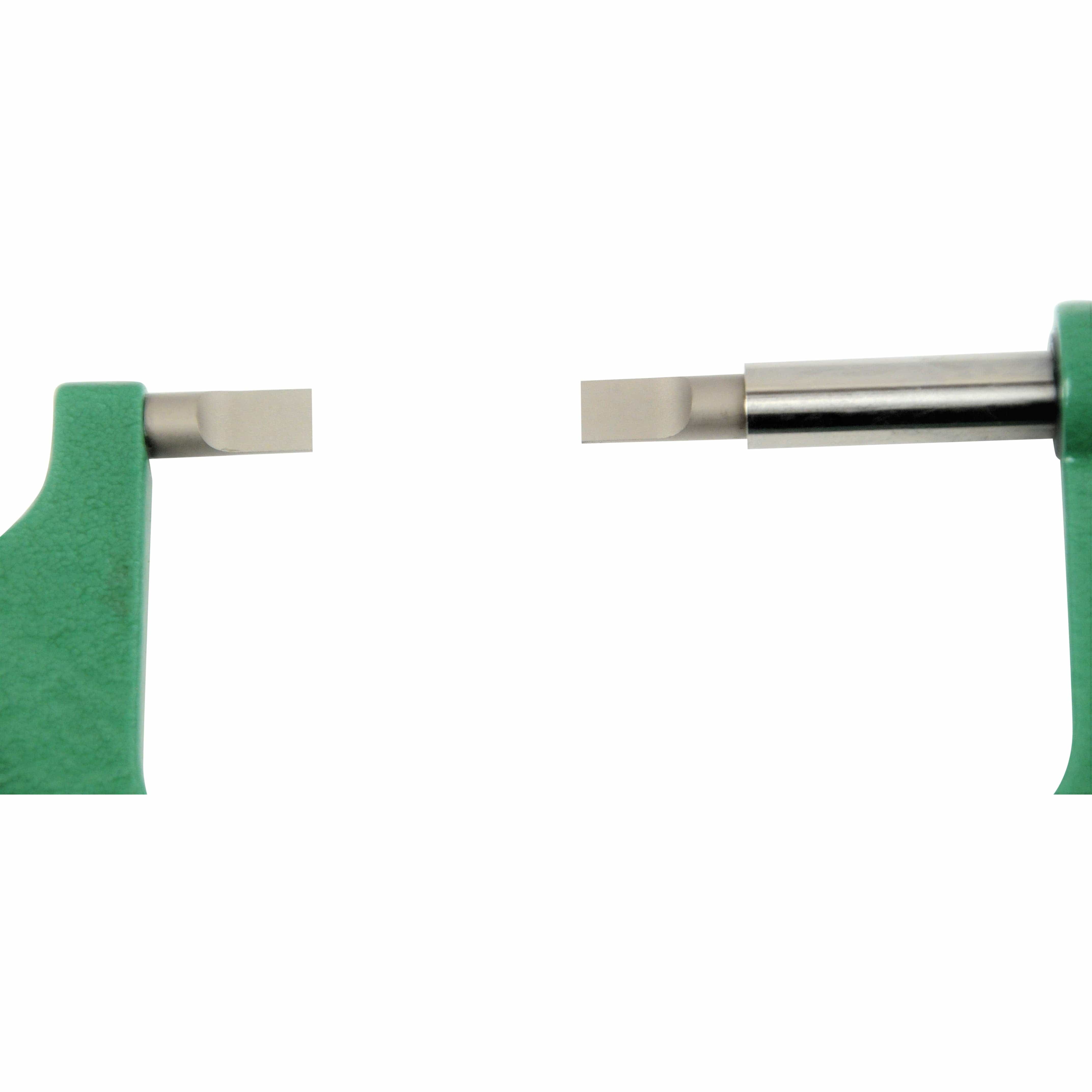

- Carbide measuring faces
- Spindle lock
- Ratchet stop for consistent measuring force

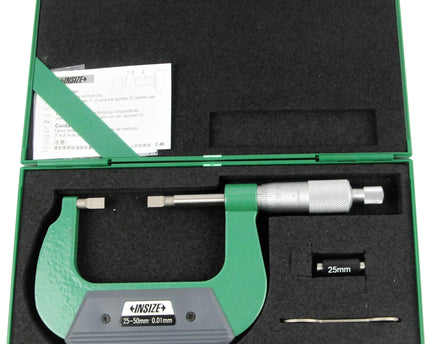

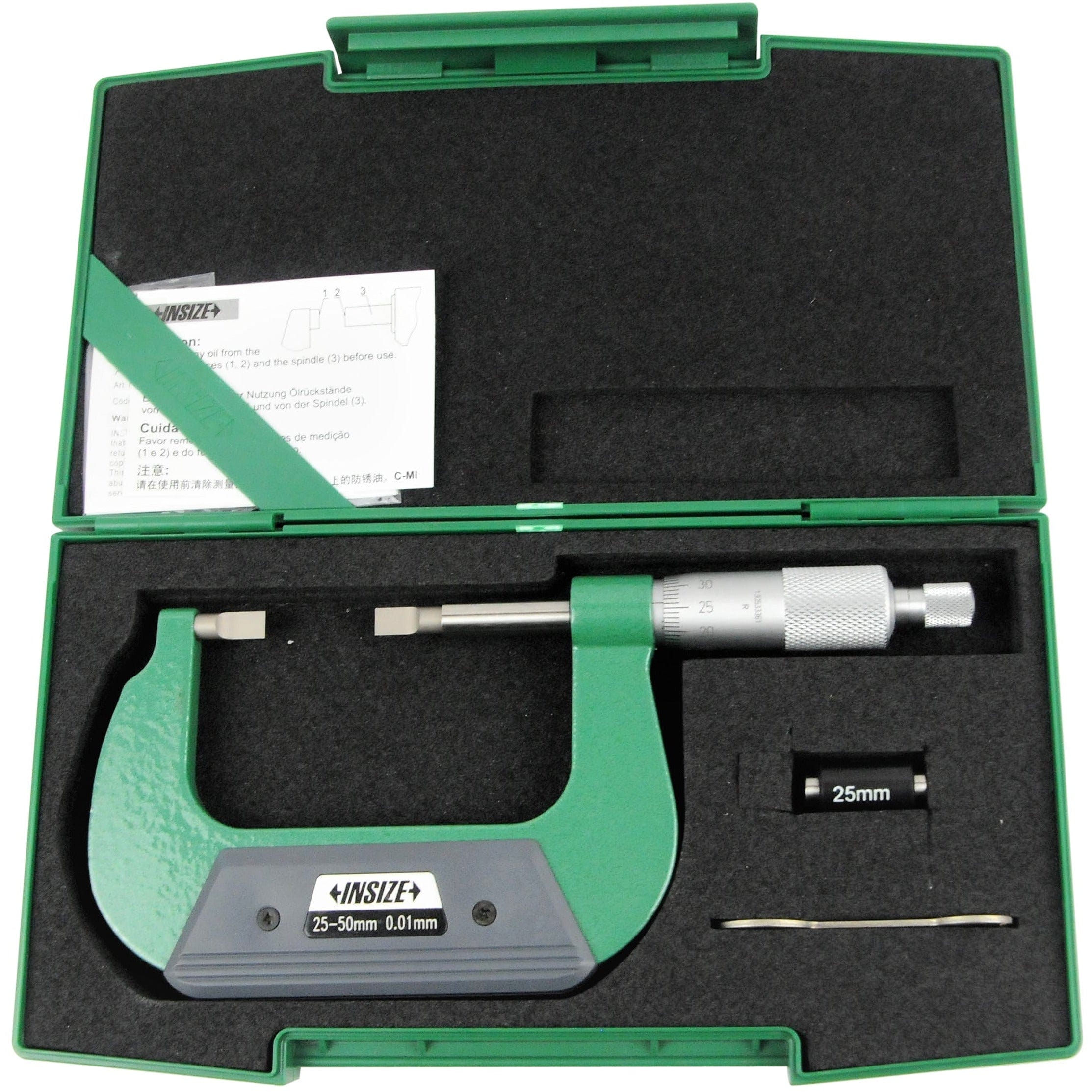

Includes :
- Zero adjusting wrench

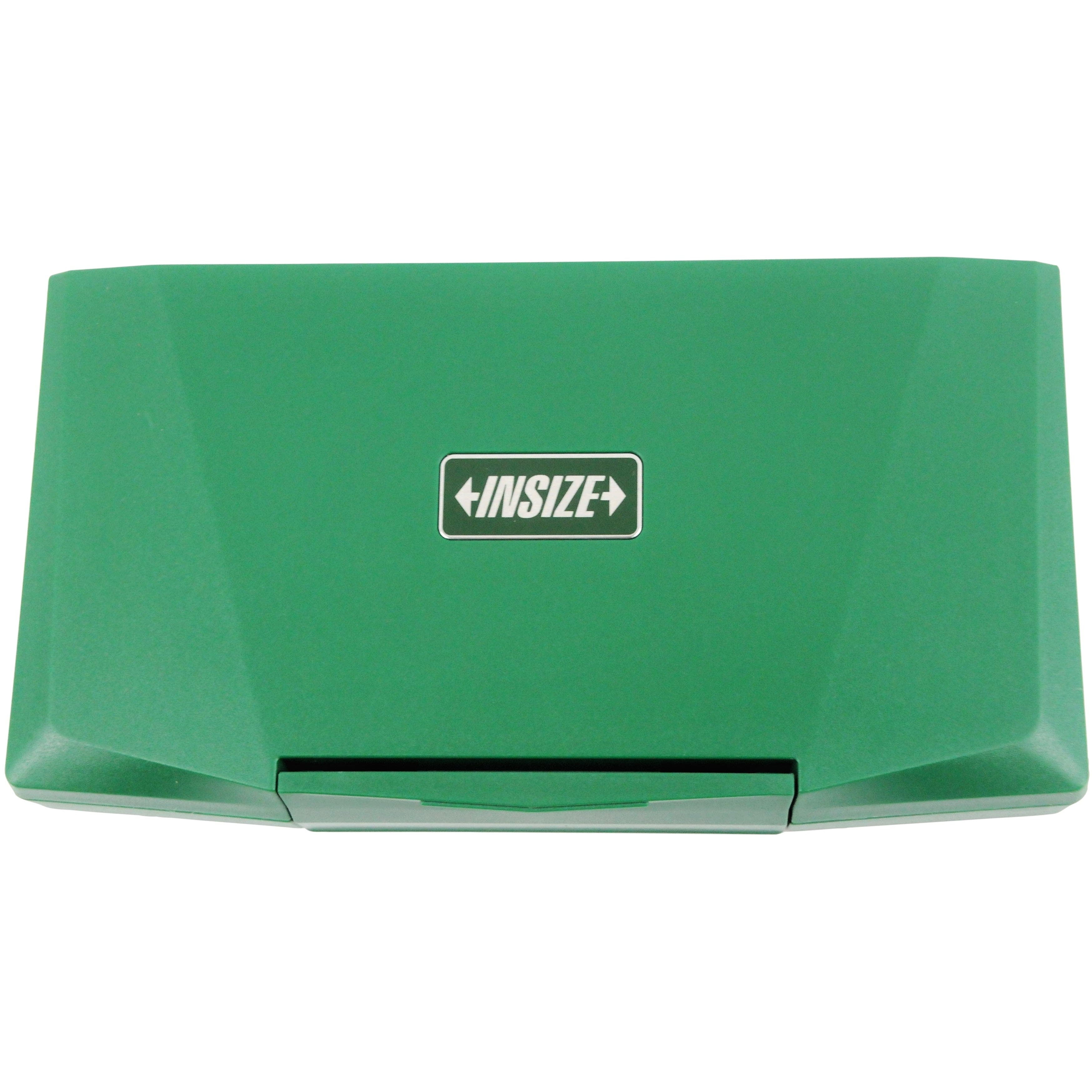

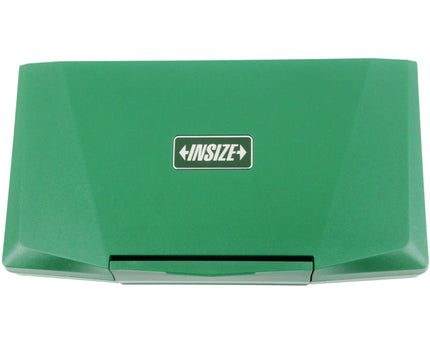

- Protective custom storage case
Well-designed, durable, and high-precision measuring tools suitable for specialised measurement tasks. Insize outside blade micrometers provide dependable accuracy and ease of use when measuring narrow grooves, slots, and keyways.
