Description

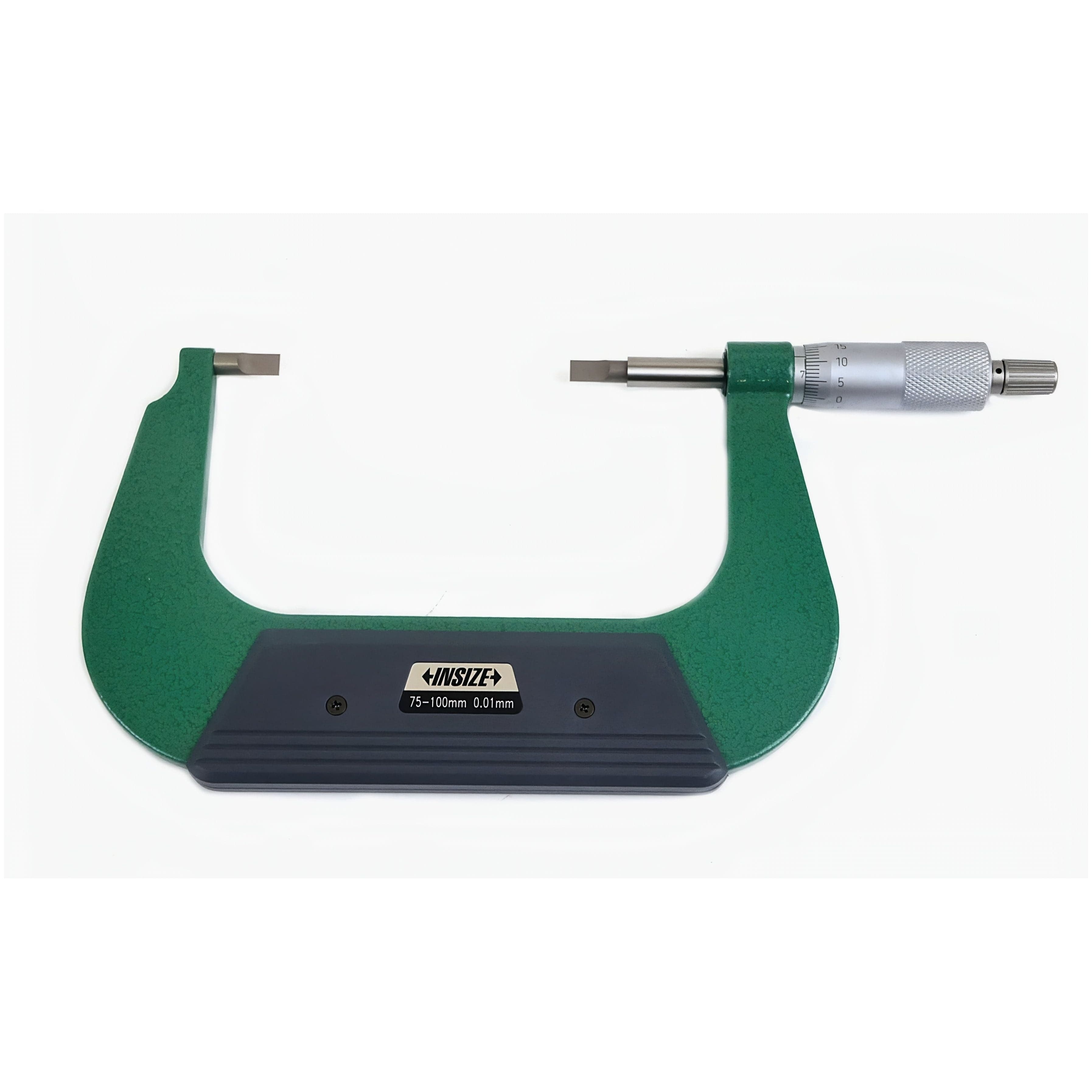

Insize 75–100mm Outside Blade Micrometer
The Insize 75–100mm Outside Blade Micrometer is designed for accurate measurement of narrow features such as keyway grooves, slots, and recessed shaft diameters where standard flat anvils cannot be used. The slim blade-style measuring faces combined with a non-rotating spindle ensure reliable, repeatable results in machining, inspection, and toolroom applications.
Specifications :
-
Part No: 3232-100A
-
Measuring Range: 75–100 mm
-
Graduation: 0.01 mm
- Manufactured in accordance with DIN 863
- Ideal for measuring keyway grooves and shaft diameters
- Non-rotating spindle for improved accuracy
- Hardened, ground, and lapped spindle thread
- Baked enamel finish frame

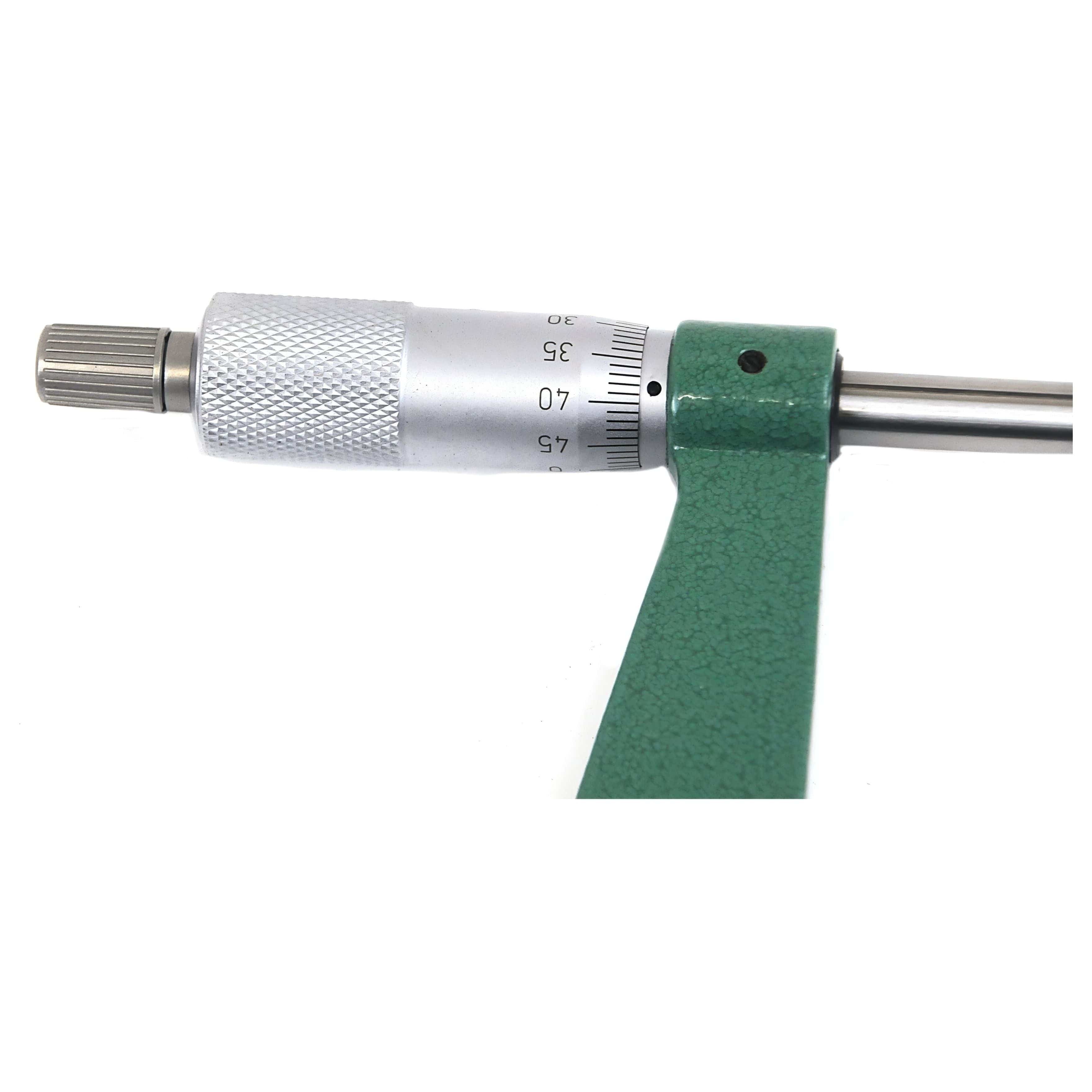

- Satin chrome barrel and thimble
- Clear, easy-to-read graduations
- Quick and easy adjustment
- Carbide measuring faces
- Spindle lock
- Ratchet stop for consistent measuring force
Includes :
- Zero adjusting wrench

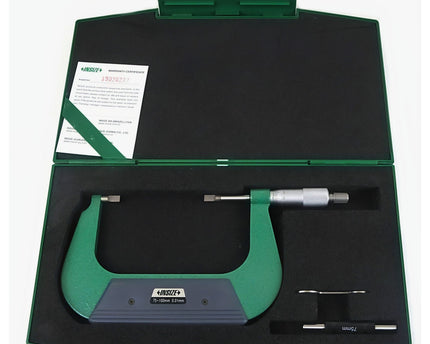

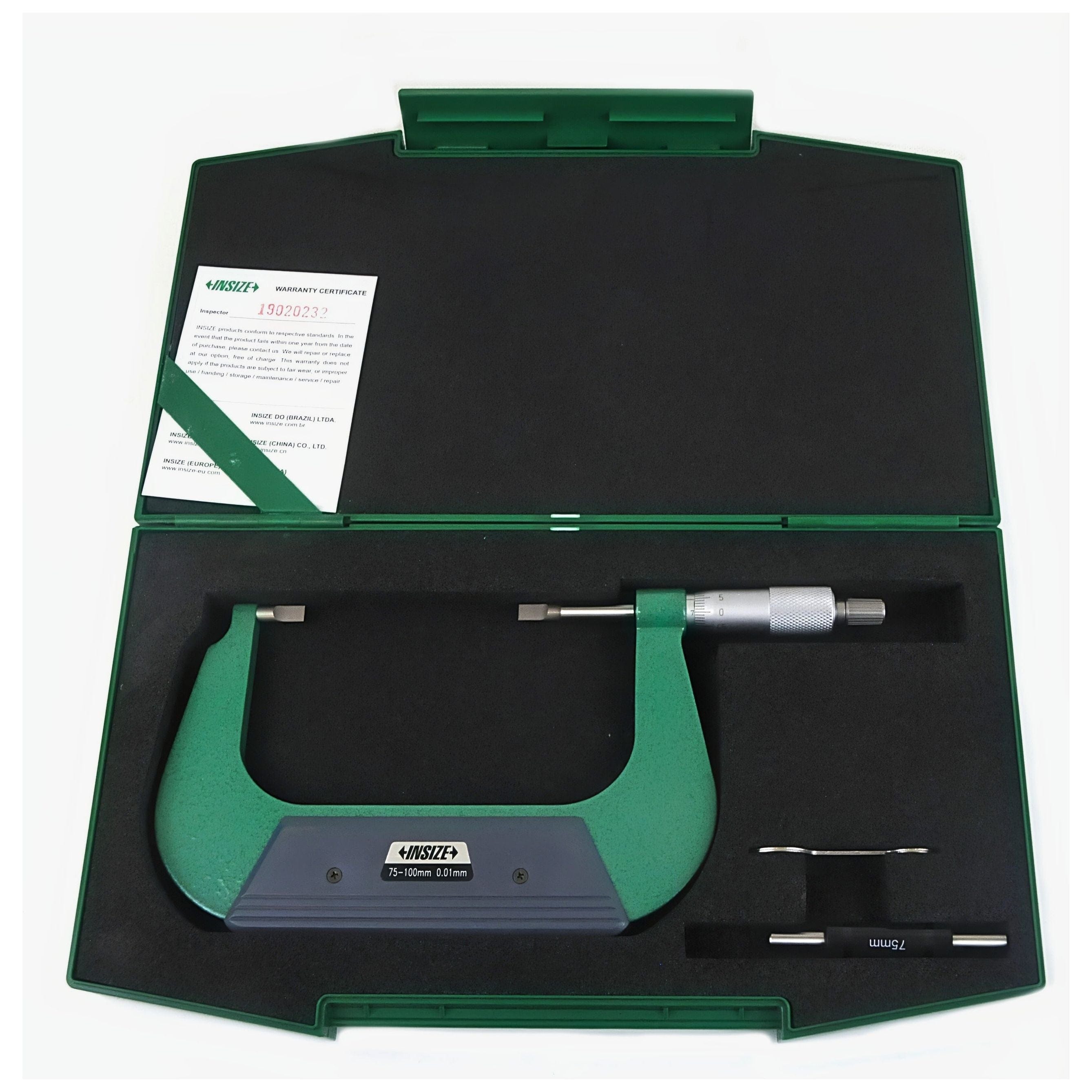

- Protective custom storage case
Well-designed, durable, and high-precision measuring instruments suitable for specialised measurement tasks. Insize blade micrometers provide dependable accuracy and ease of use when measuring narrow grooves, slots, and keyways.
