Description

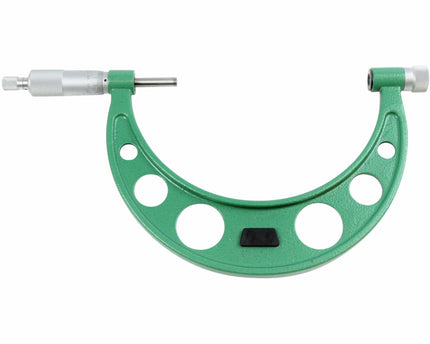

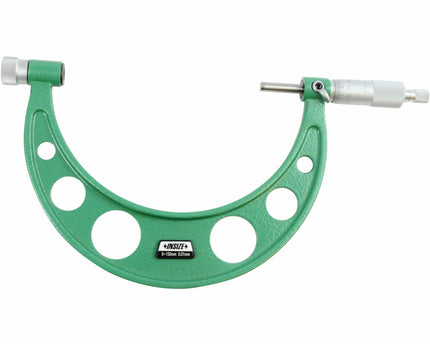

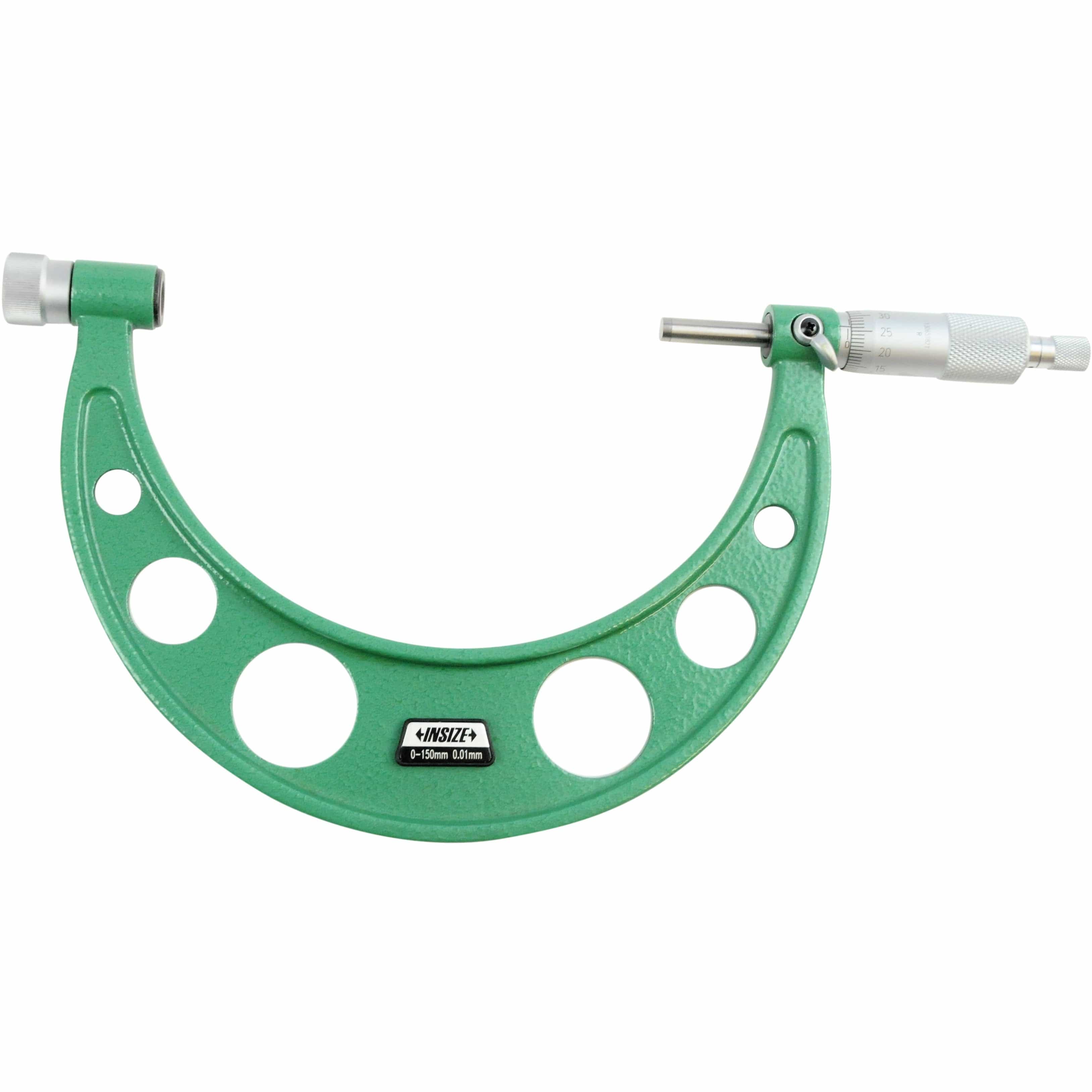

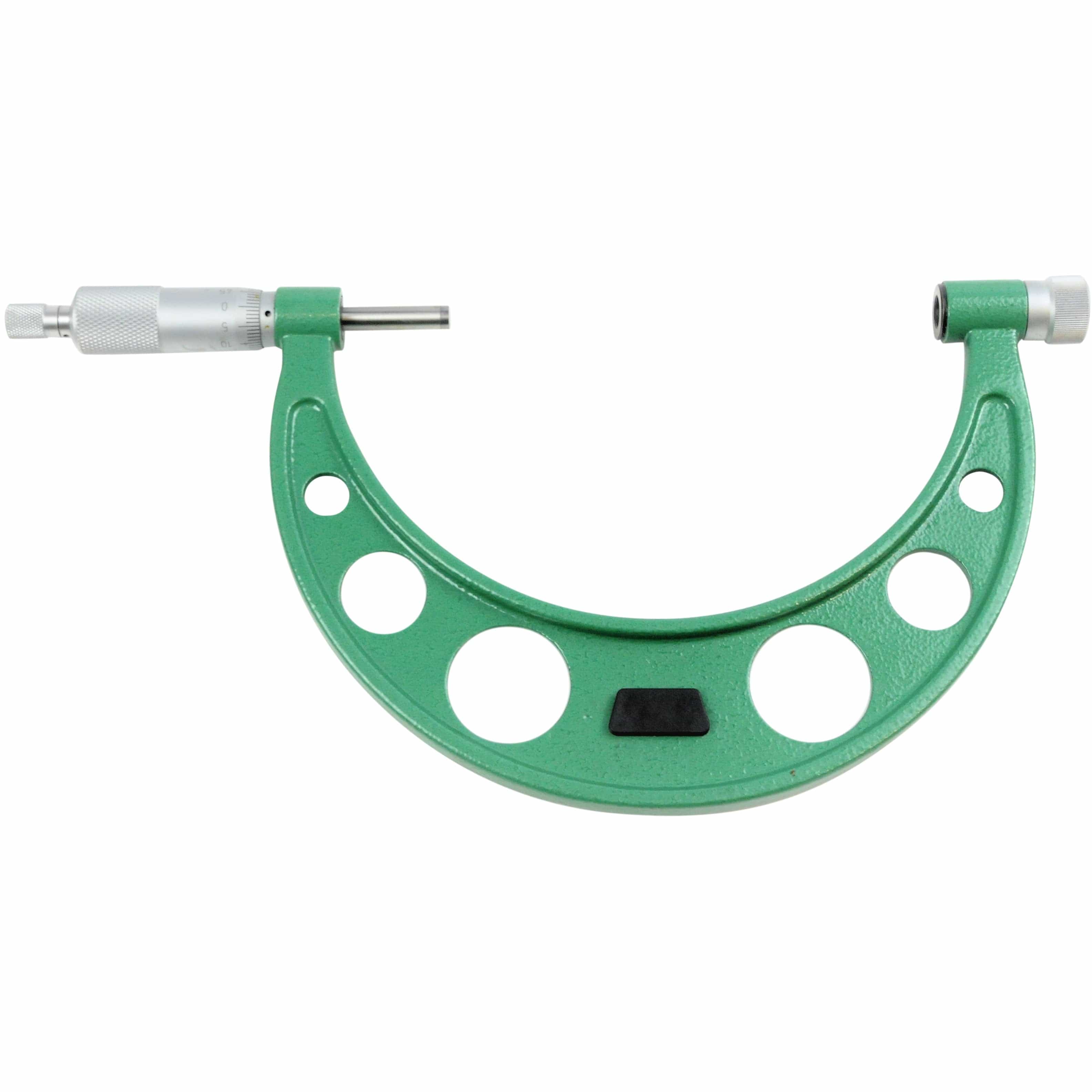

Insize 1000–1200mm Outside Micrometer
The Insize 1000–1200mm Outside Micrometer is a heavy-duty precision measuring instrument engineered for accurate external measurement of very large components. Designed for industrial machining, fabrication, and inspection environments, it provides reliable accuracy, rigid construction, and consistent performance across extended measuring ranges.

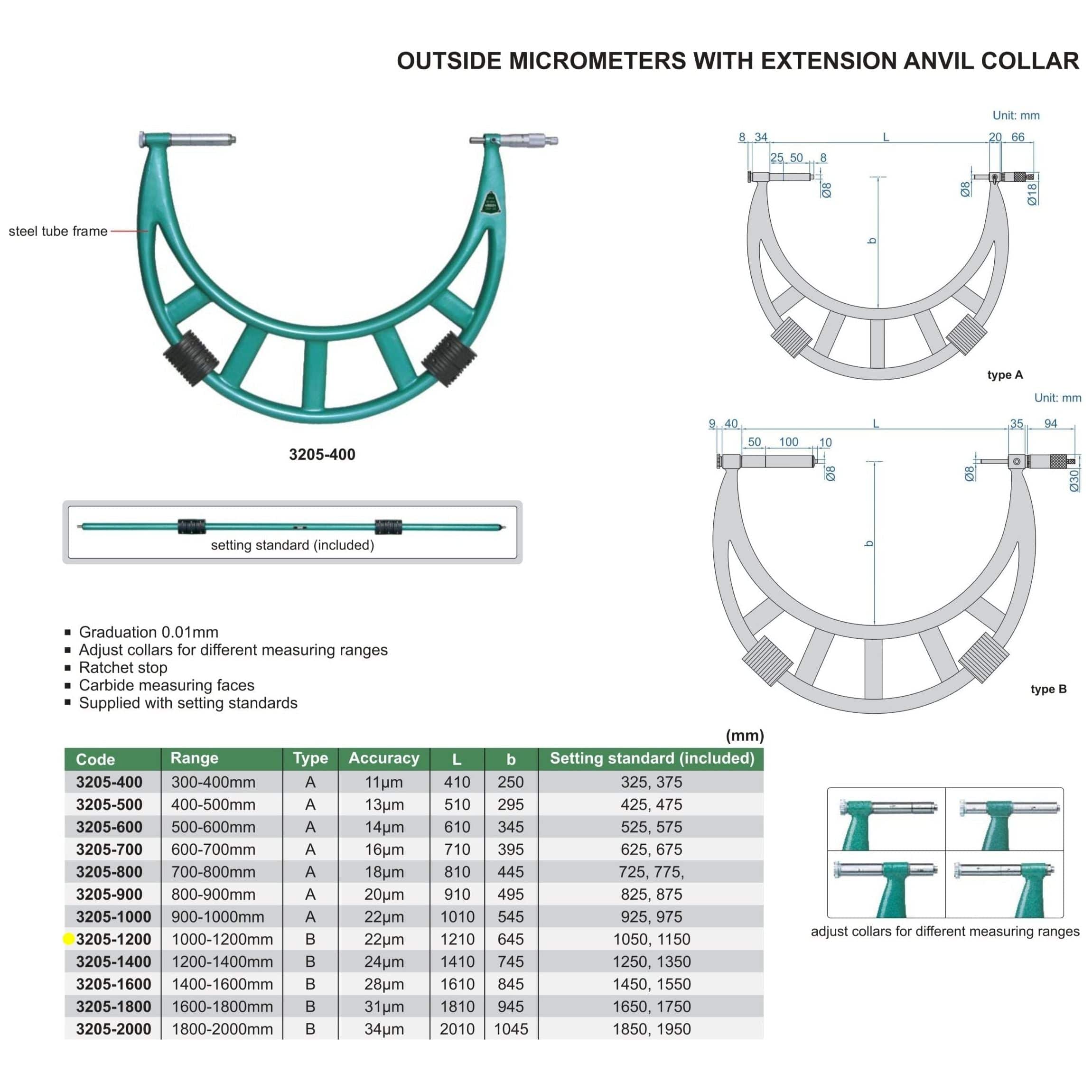

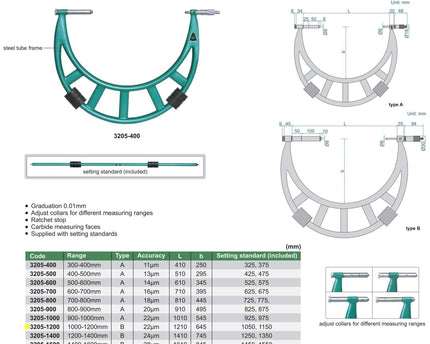

Specifications :
- Part No.: 3205-1200
- Measuring range: 1000–1200mm
- Graduation: 0.01mm
- Reading: Metric

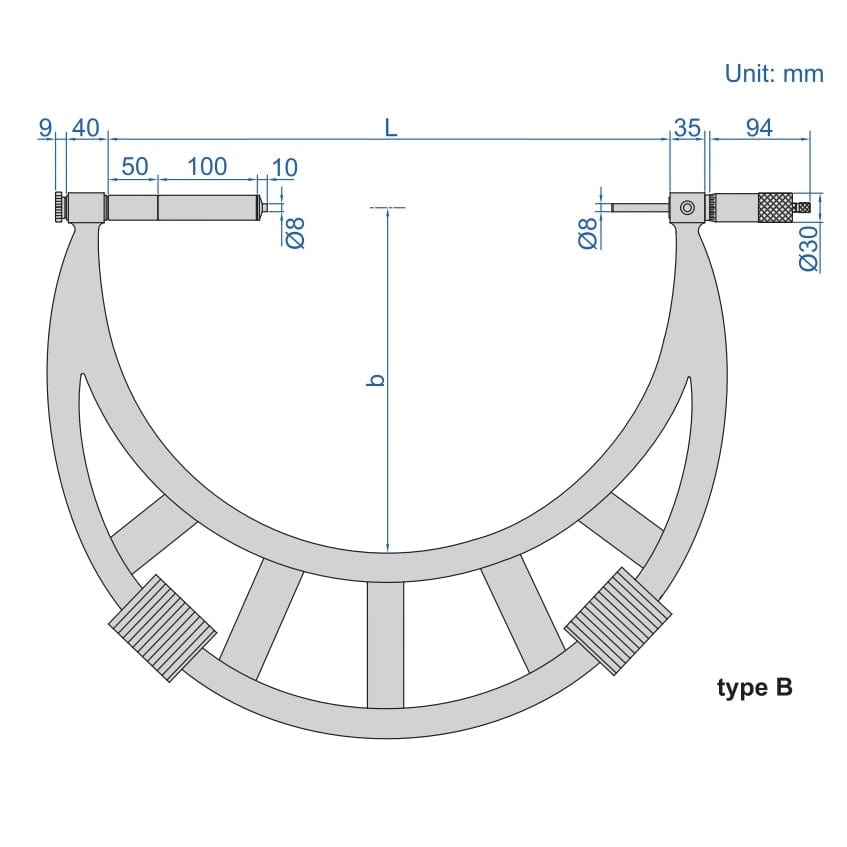

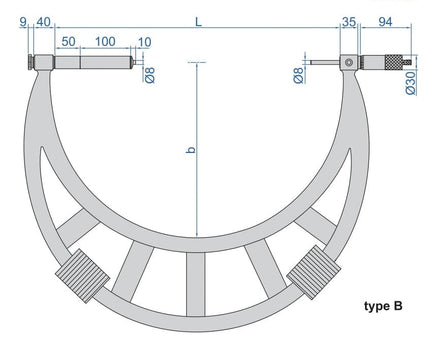

- Type: B
- Overall length (L): 1210mm
- Frame dimension (b): 645mm
- Extension anvil collar system for large-range measurement
- Adjustable collars to suit different measuring ranges
- Carbide measuring faces for excellent wear resistance and long service life

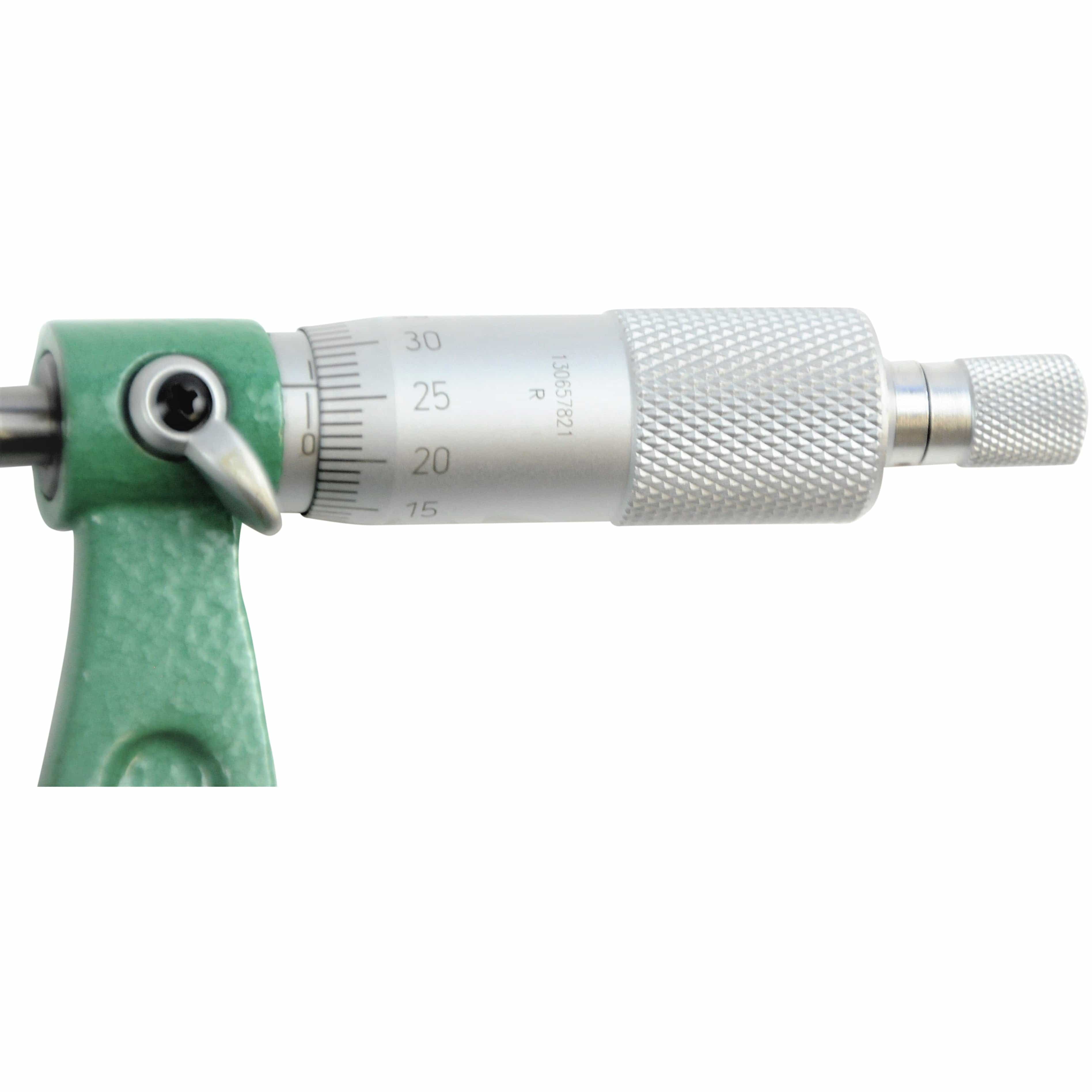

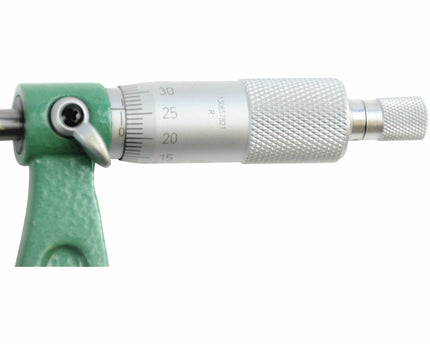

- Ratchet stop to ensure consistent and repeatable measuring pressure
- Designed for stable, accurate measurement of oversized workpieces
Includes

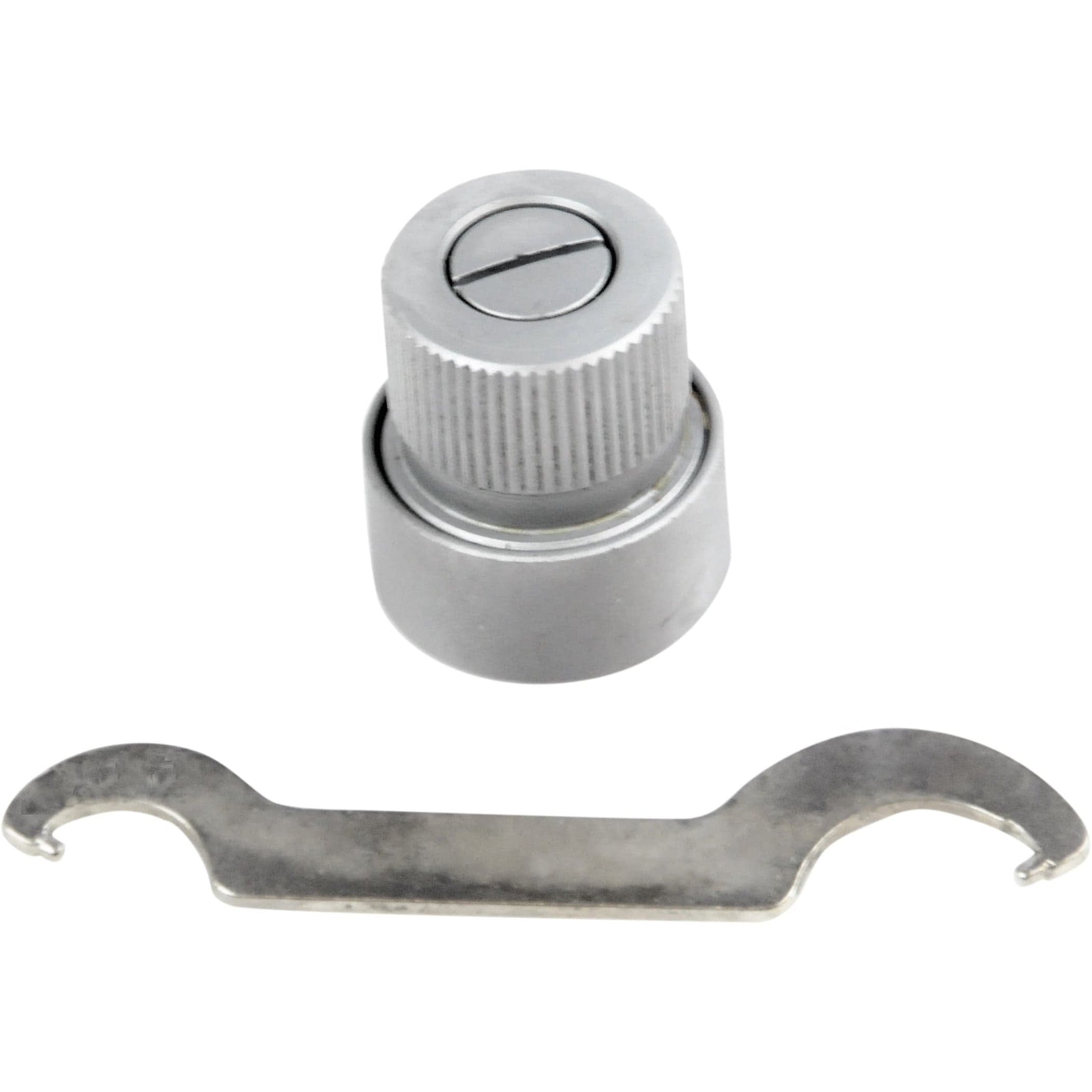

- Zero adjusting wrench
- Setting standards: 1050mm and 1150mm

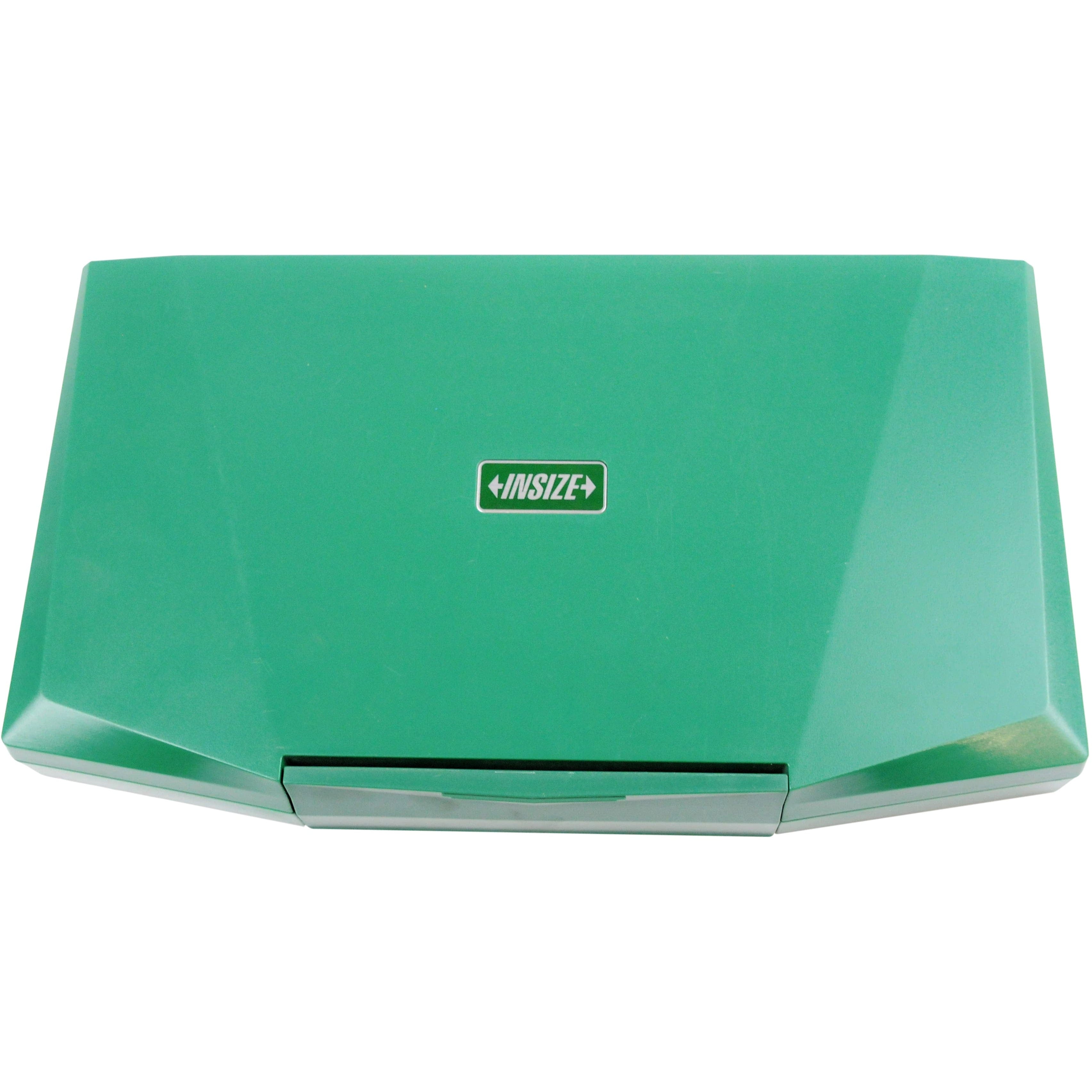

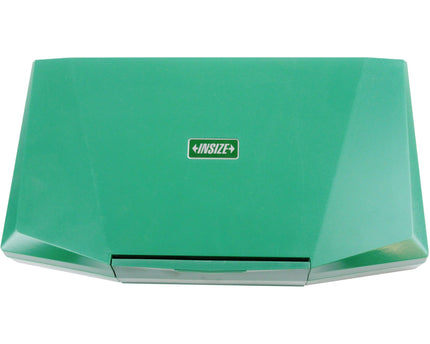

- Custom-styled protective case
Built for durability and precision, this Insize outside micrometer is ideal for measuring large external dimensions where accuracy and reliability are critical. It is a professional-grade measuring solution suited to heavy engineering, large-scale manufacturing, and quality control applications.
