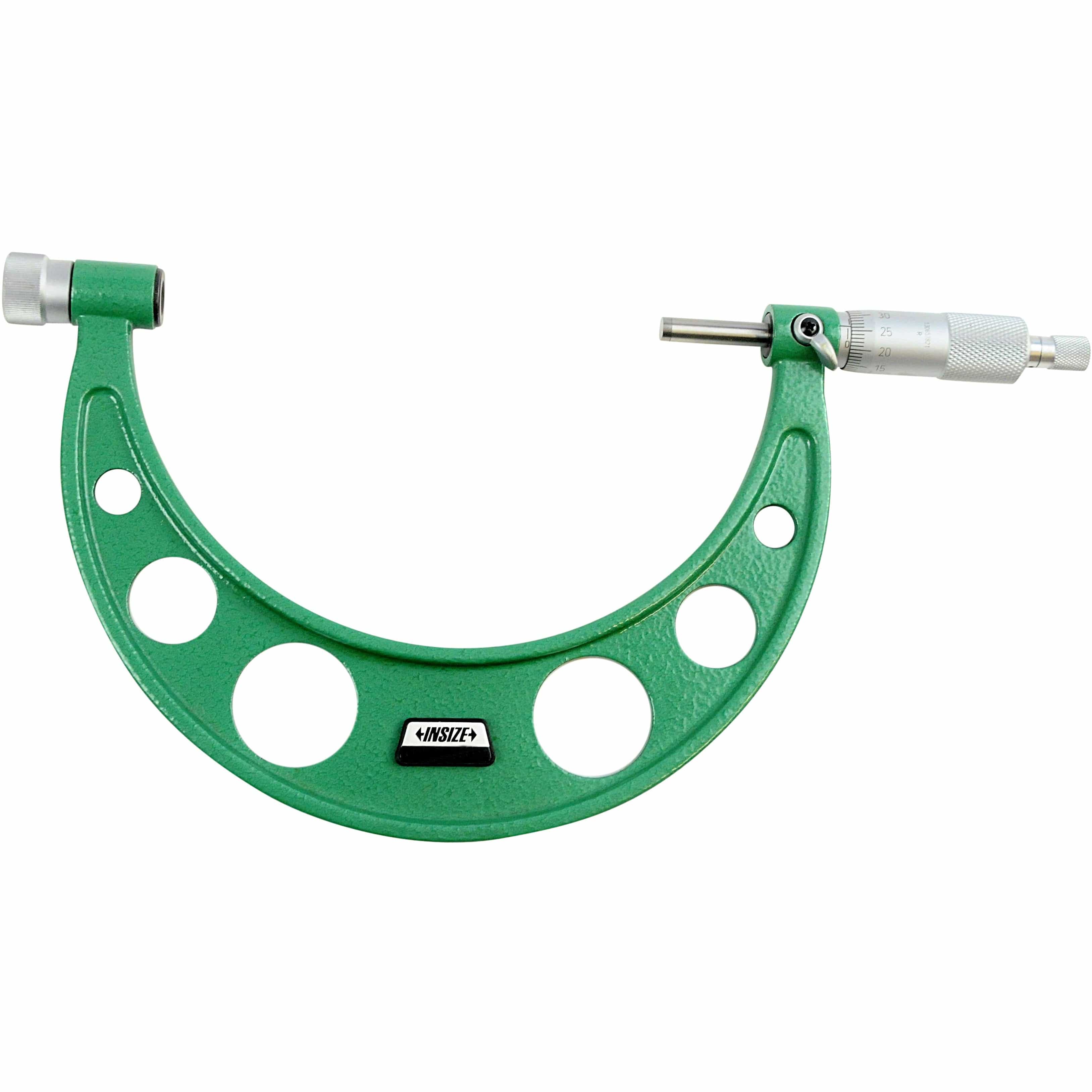

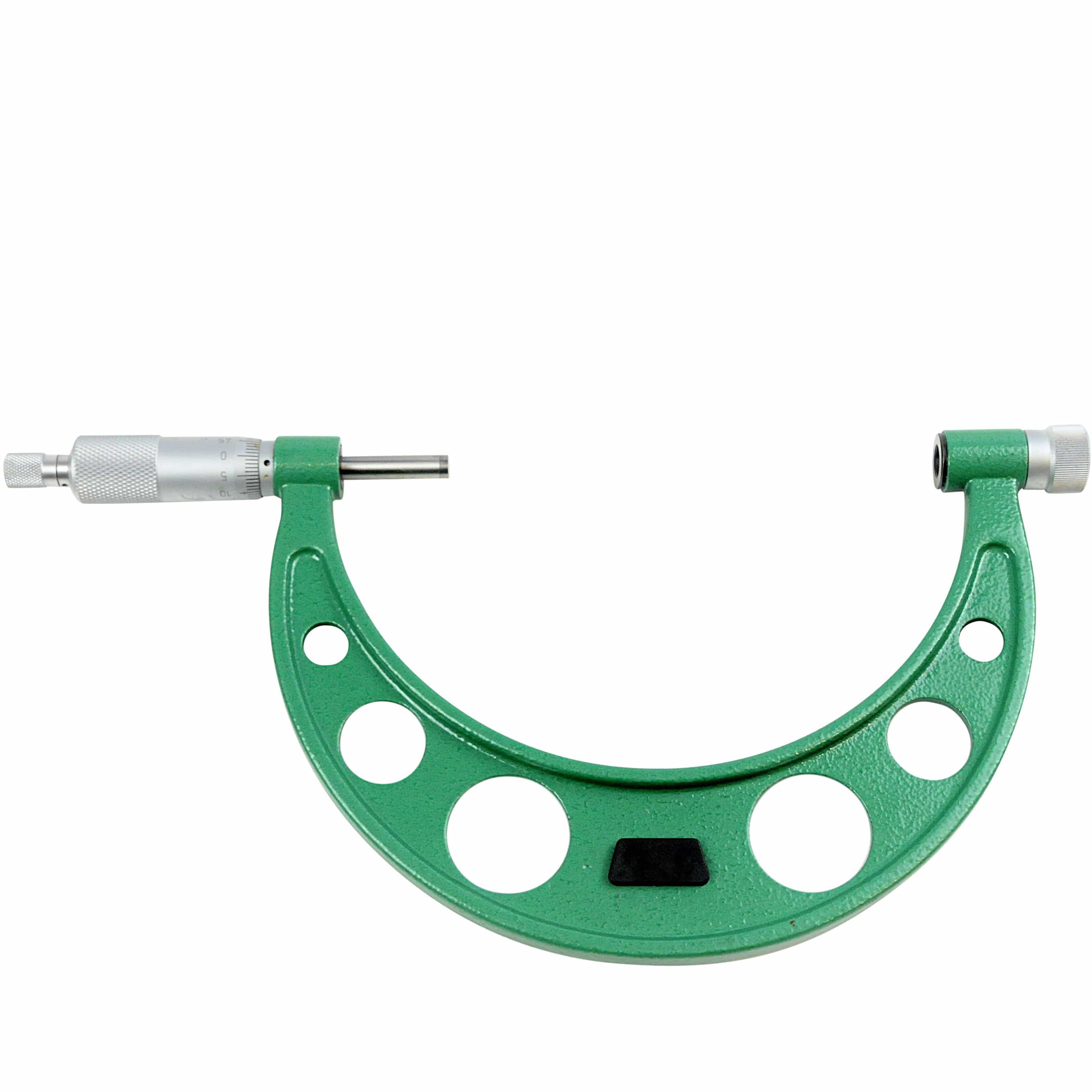

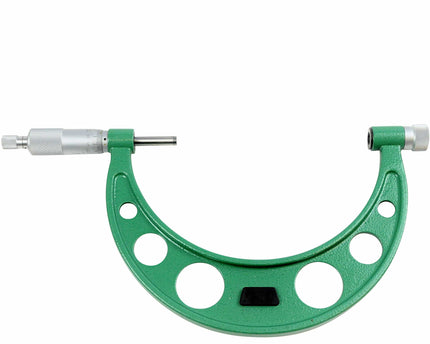

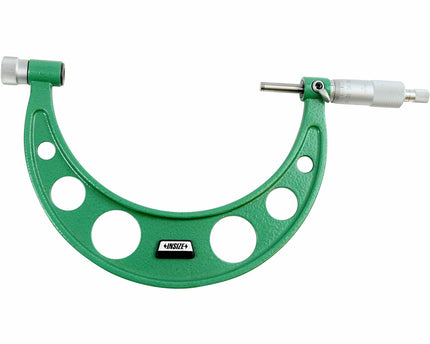

Insize 700–800mm Outside Micrometer
The Insize 700–800mm Outside Micrometer is a robust, high-precision measuring instrument engineered for accurate external measurement of large components. Designed for industrial machining, fabrication, and inspection environments, it delivers dependable accuracy, smooth operation, and long-term durability across its full measuring range.

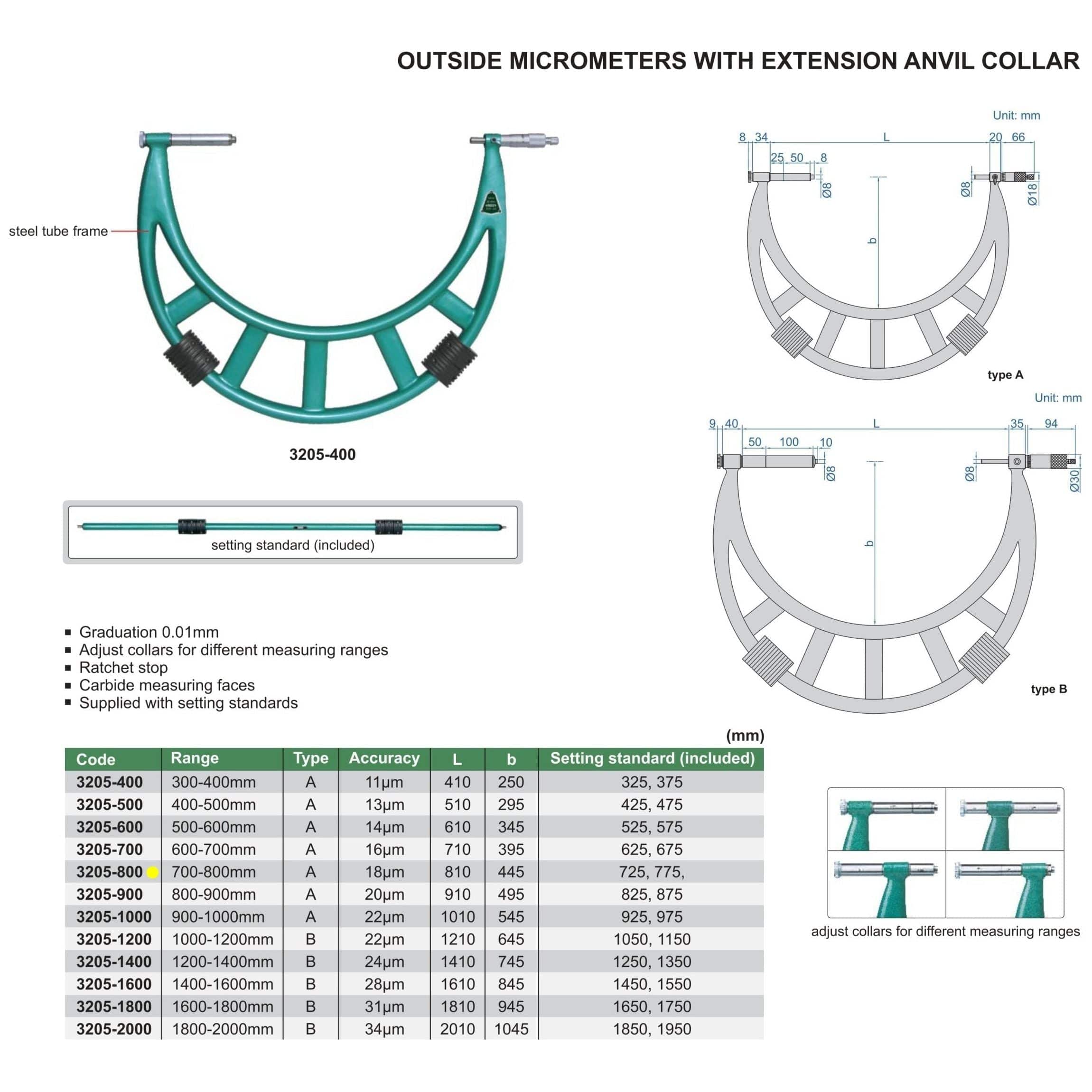

Specifications :
- Part No.: 3205-800
- Measuring range: 700–800mm
- Graduation: 0.01mm

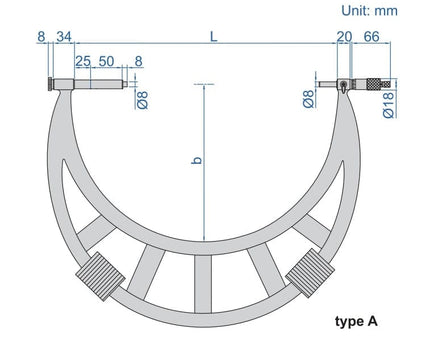

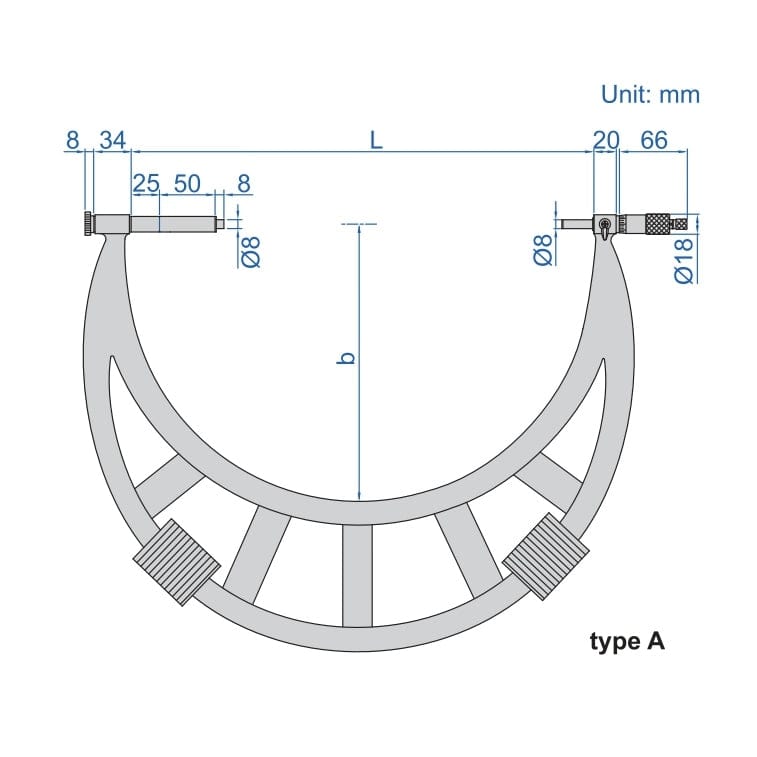

- Type: A
- Overall length (L): 810mm
- Frame depth (b): 445mm
- Reading: Metric
- Designed for precise measurement of large external dimensions

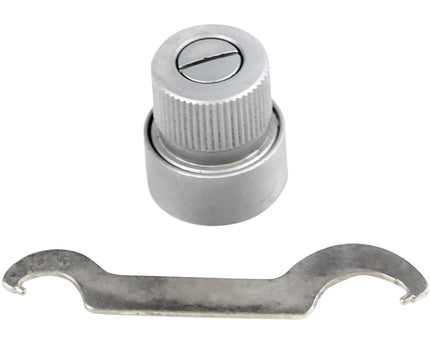

- Extension anvil collar for extended measuring capability
- Adjustable collars to suit different measuring ranges
- Carbide measuring faces for excellent wear resistance and long service life

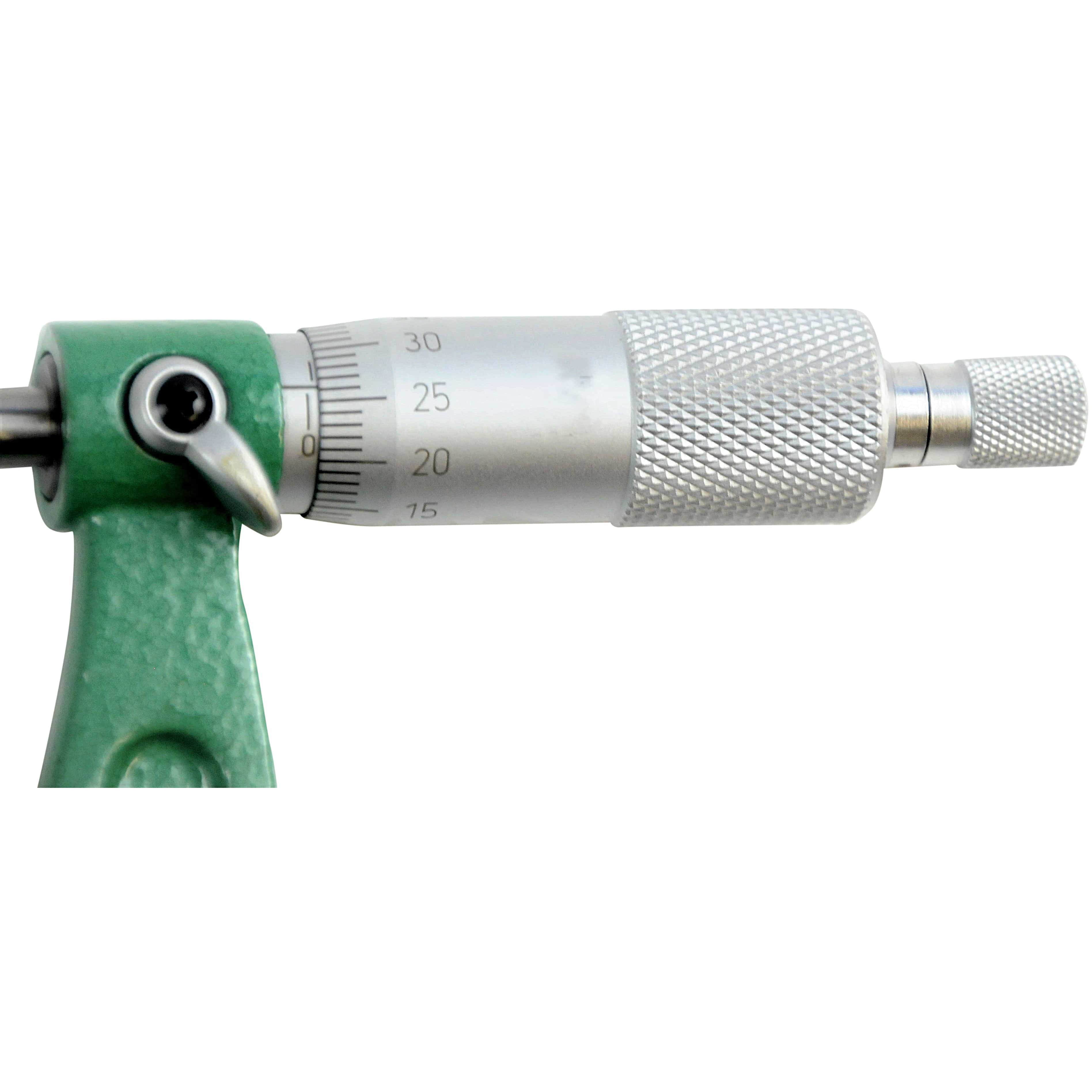

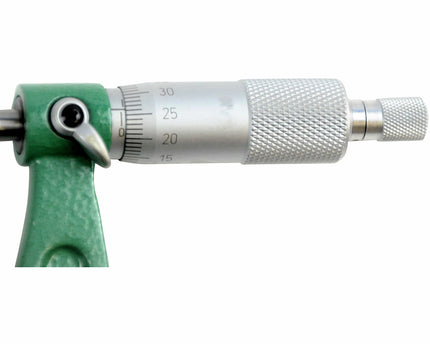

- Ratchet stop to ensure consistent and repeatable measuring pressure
Includes

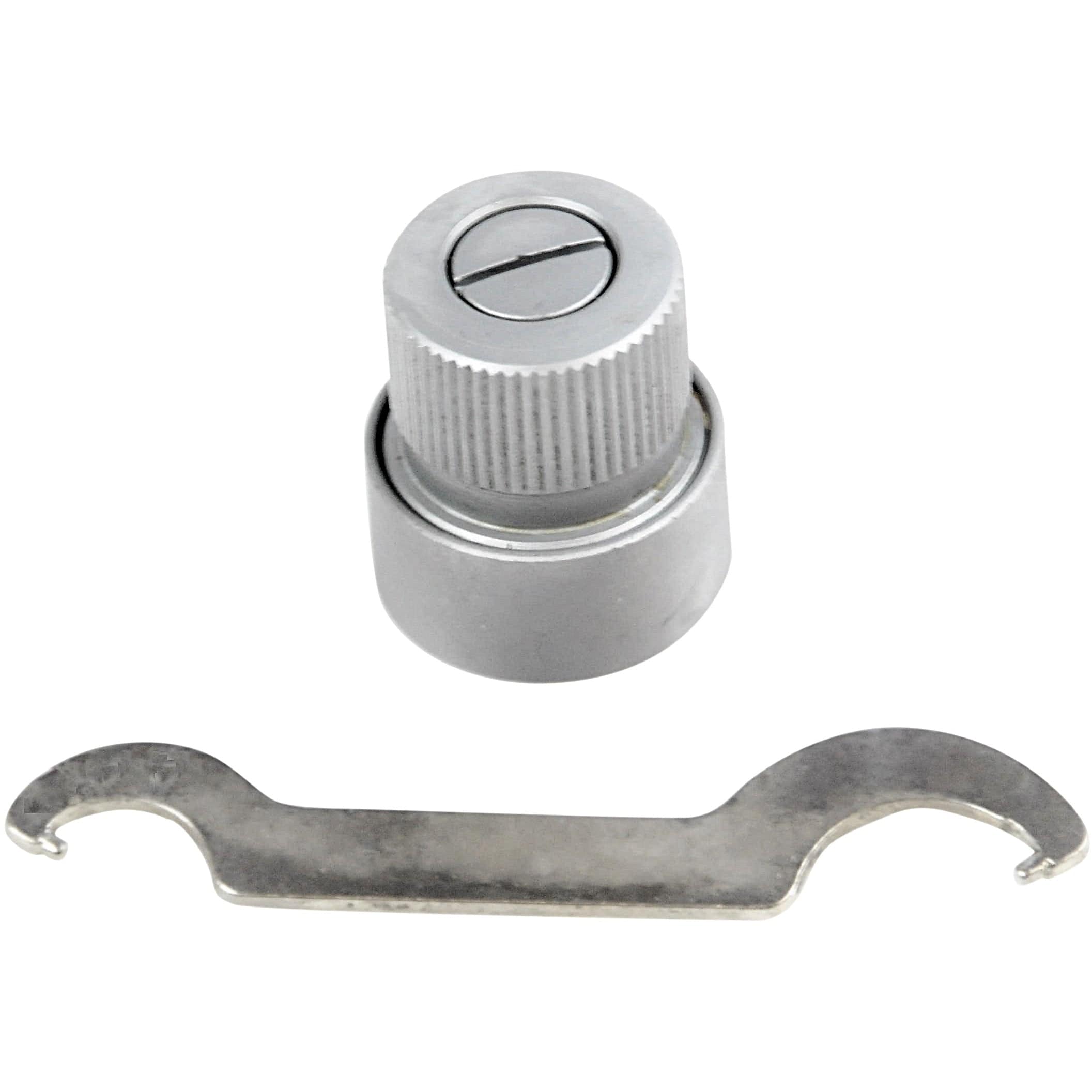

- Zero adjusting wrench
- Setting standards: 725mm and 775mm

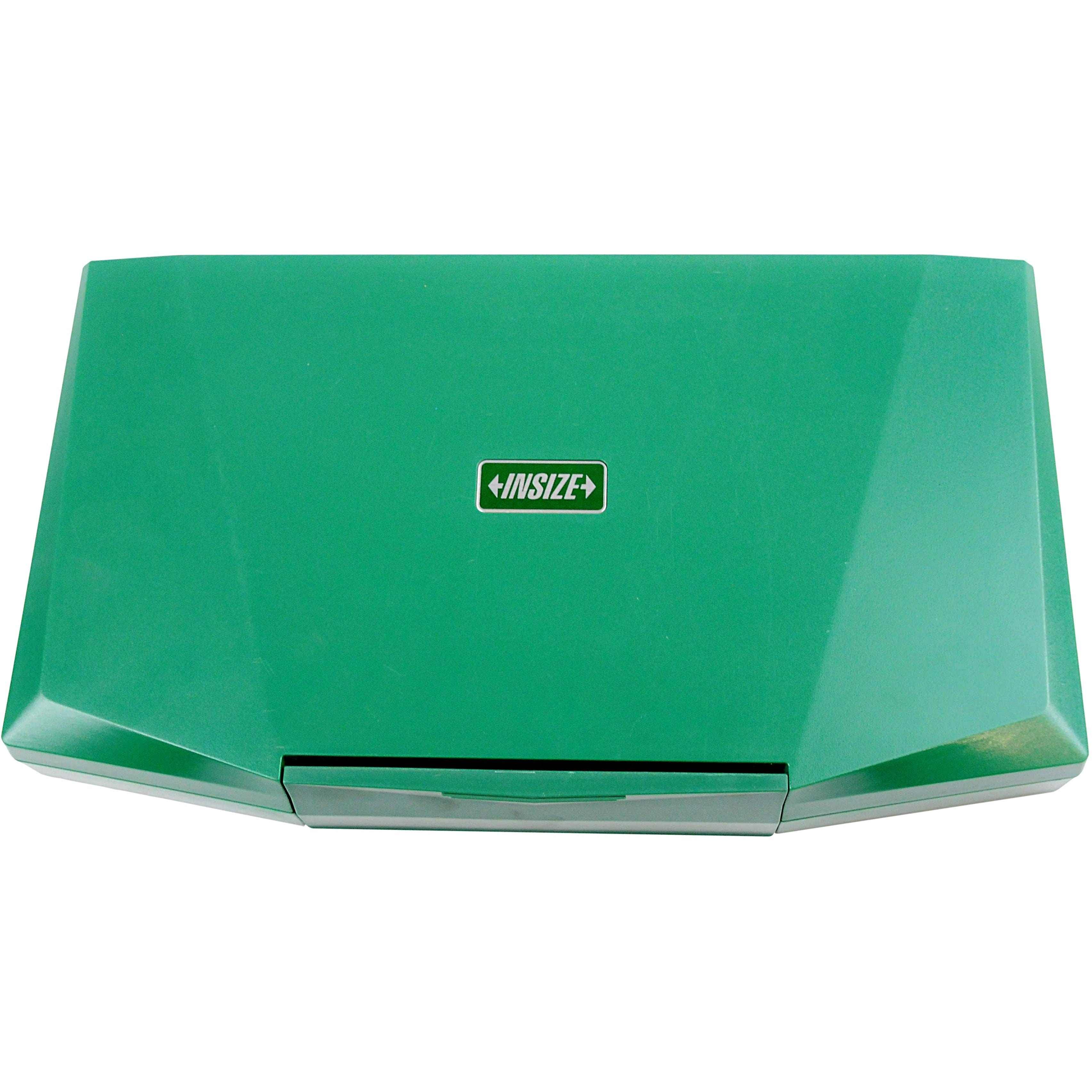

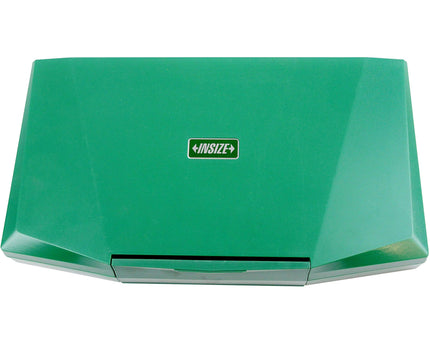

- Custom styled protective case
Built for accuracy and strength, this Insize outside micrometer provides reliable performance when measuring large components where precision is critical. It is an essential measuring solution for professional workshops and inspection applications requiring consistent, high-precision results.
