Description

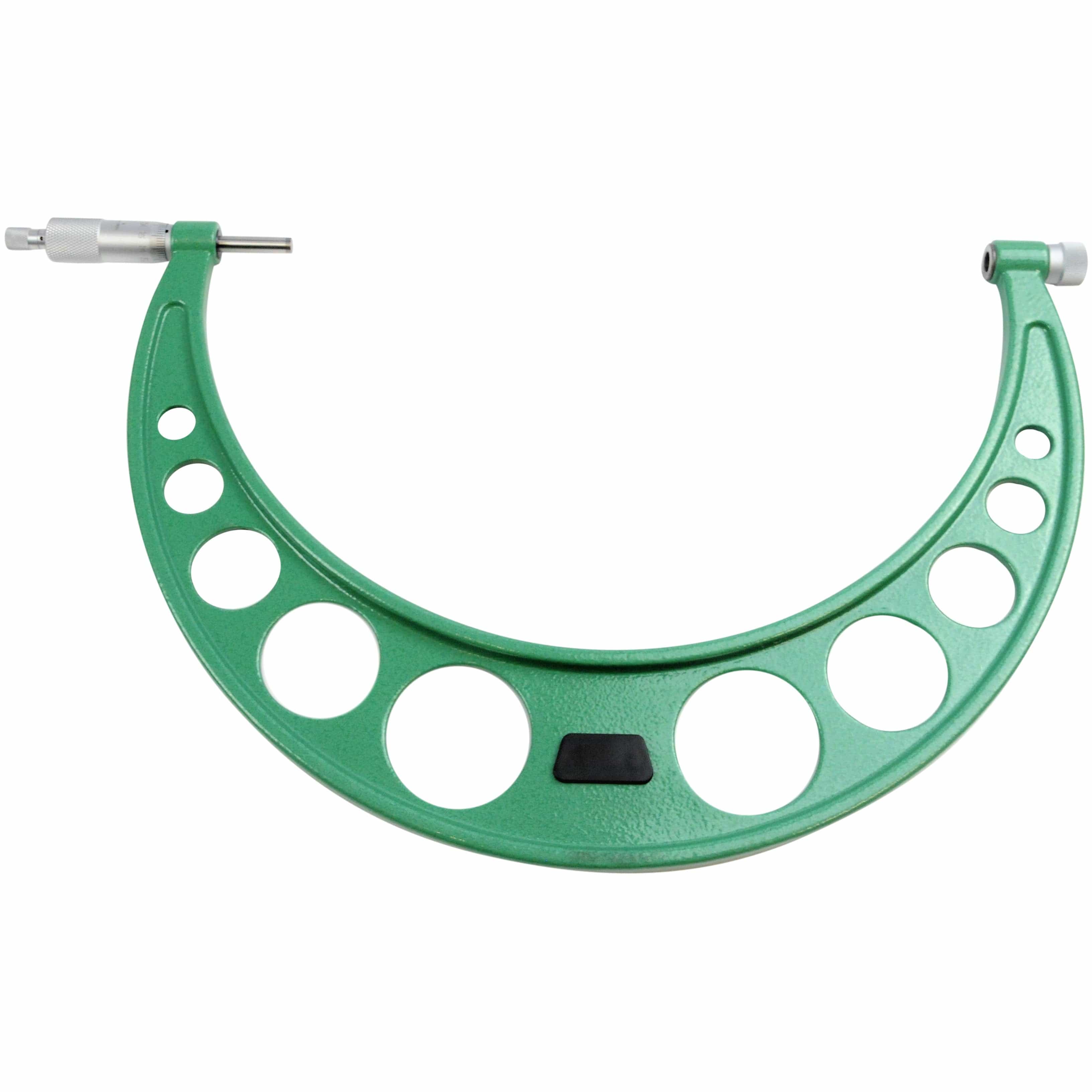

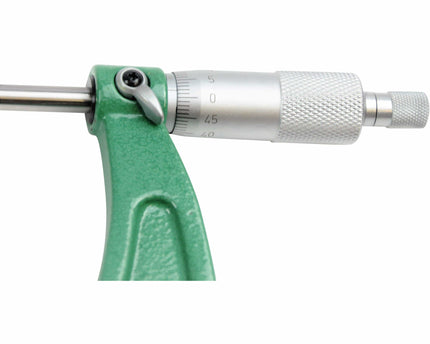

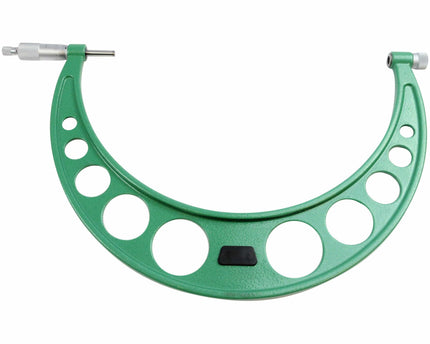

Insize 700–800mm Outside Micrometer
The Insize 700–800mm Outside Micrometer is a high-precision measuring instrument engineered for accurate external measurement of large components. Designed with an interchangeable anvil system and robust construction, it delivers reliable accuracy and repeatability for machining, fabrication, and inspection applications.

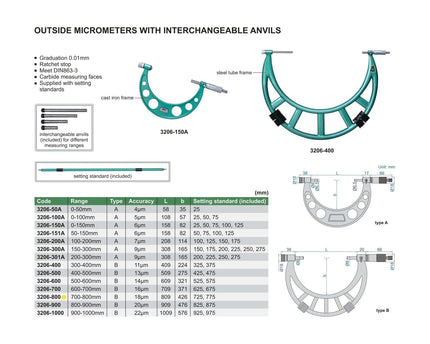

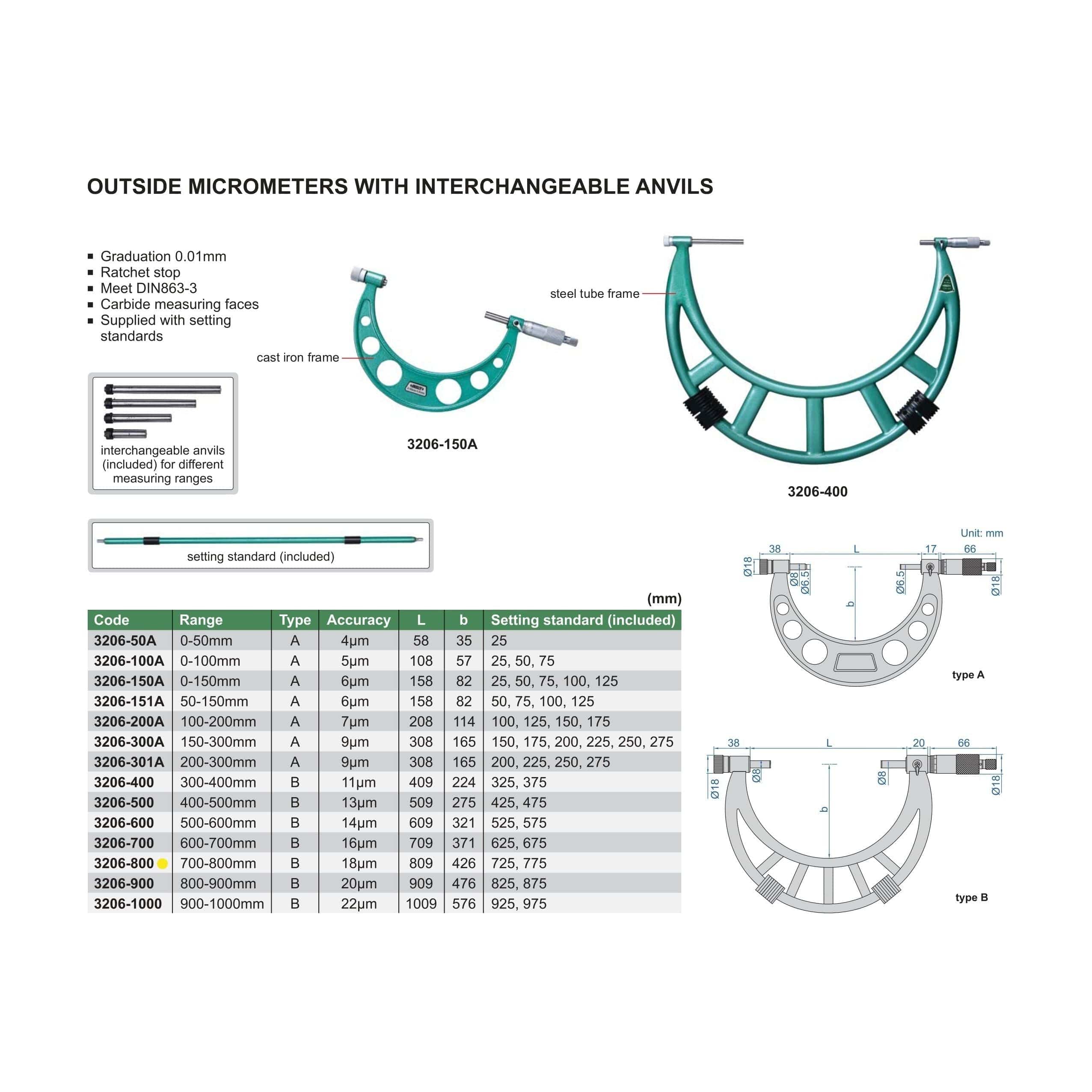

Specifications :
- Part No.: 3206-800
- Measuring range: 700–800mm
- Graduation: 0.01mm

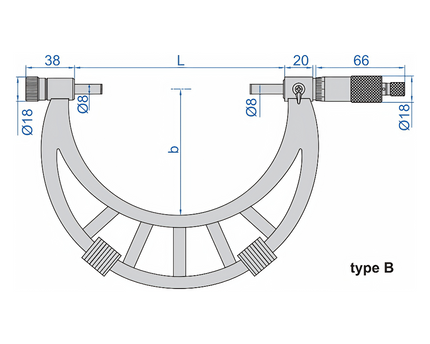

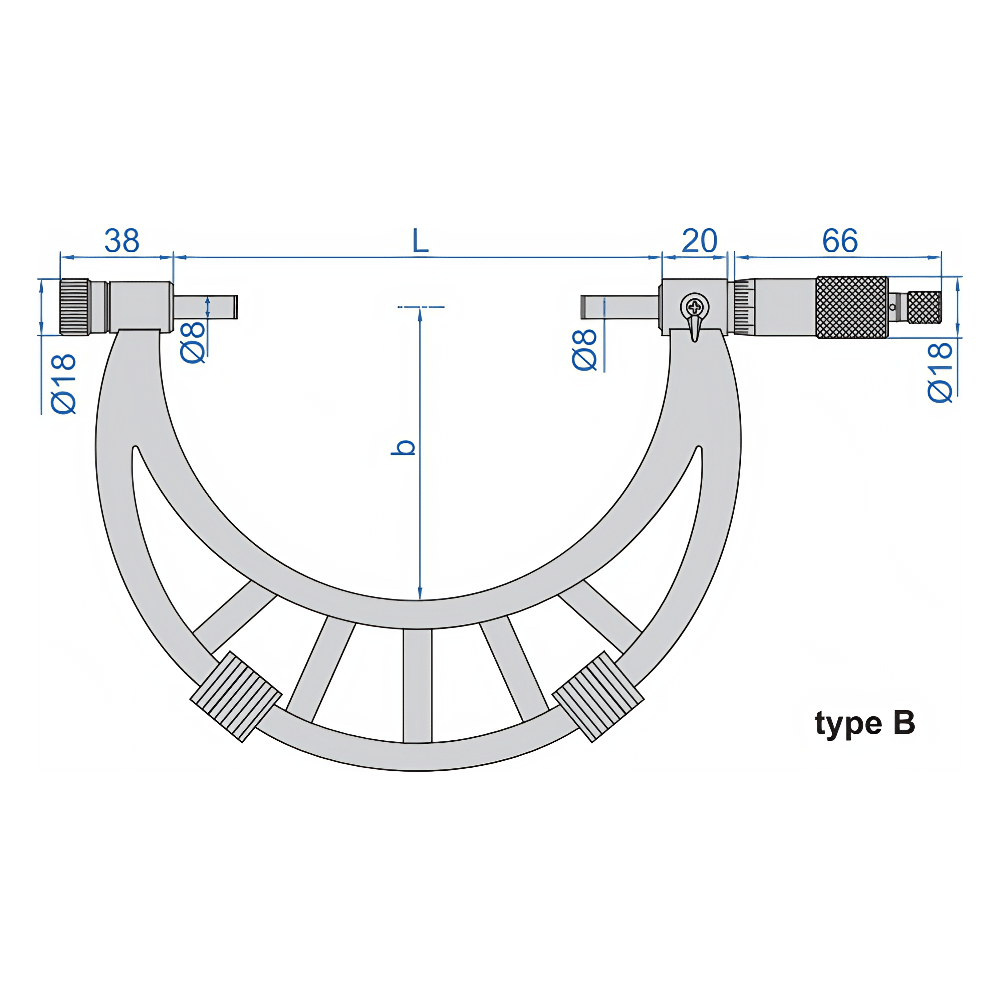

- Type: B
- Overall length (L): 809mm
- Frame depth (B): 426mm
- Interchangeable anvil system for extended measuring capability
- Setting standards included: 725mm, 775mm
- Carbide measuring faces for excellent wear resistance

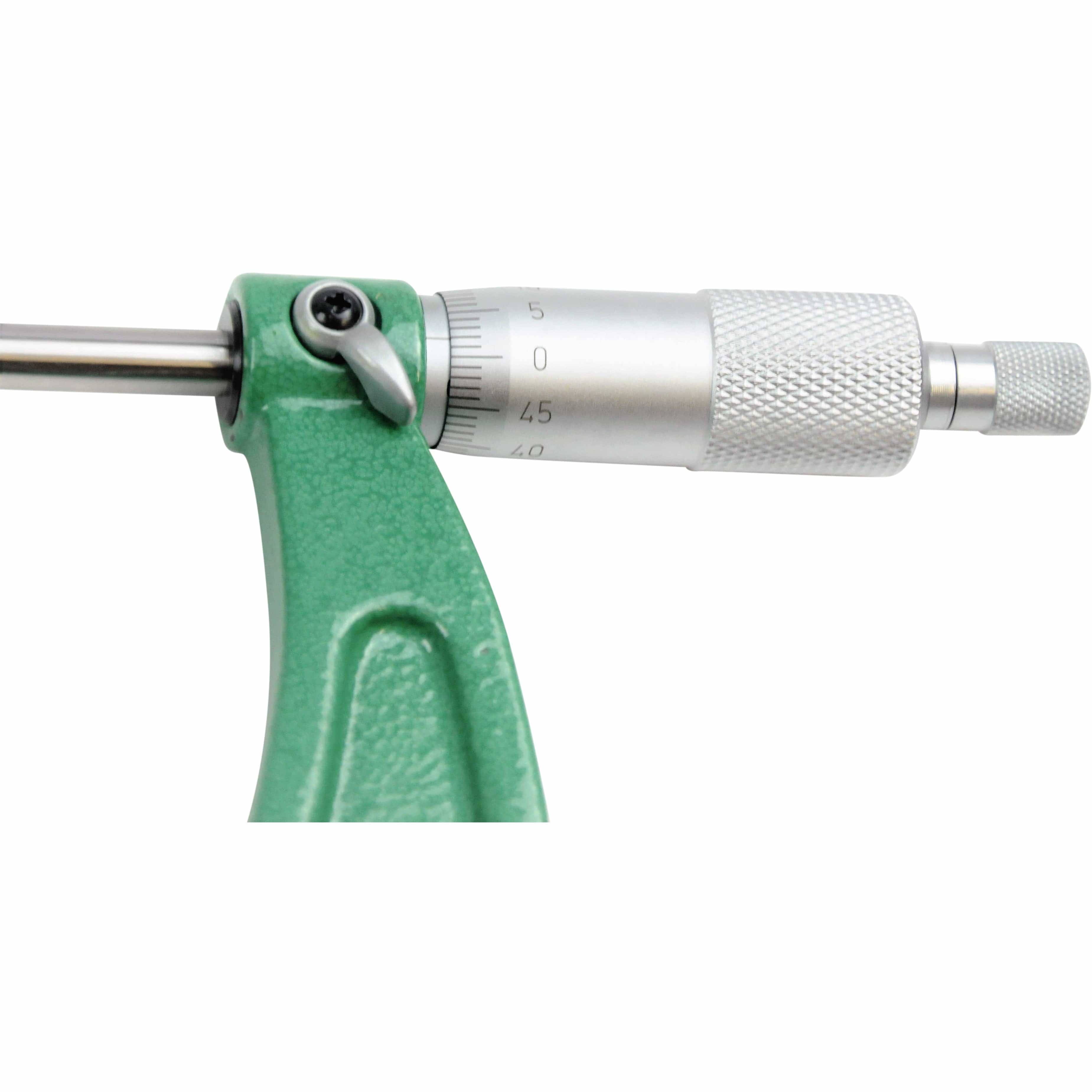

- Ratchet stop to ensure consistent measuring pressure
- Metric reading

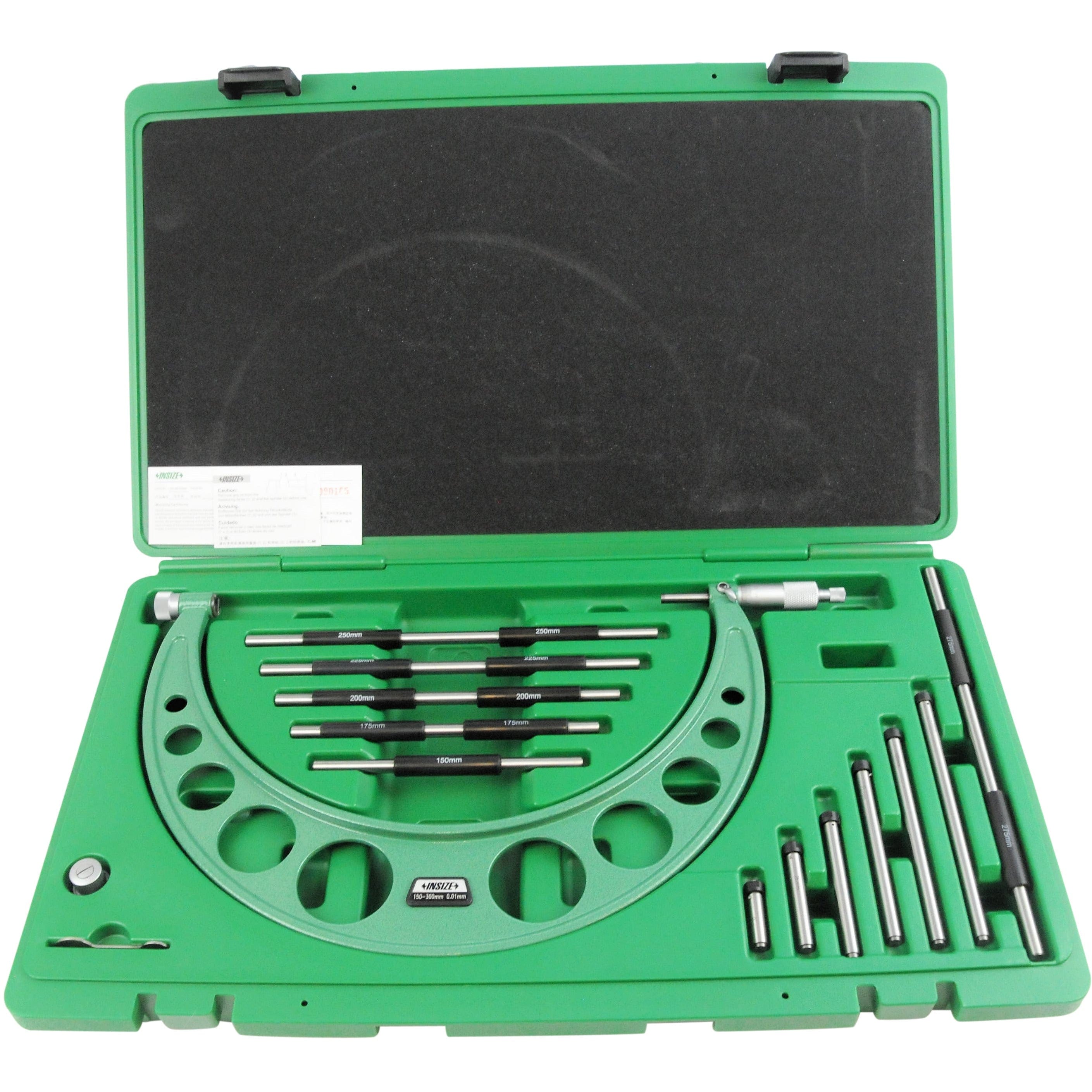

Includes

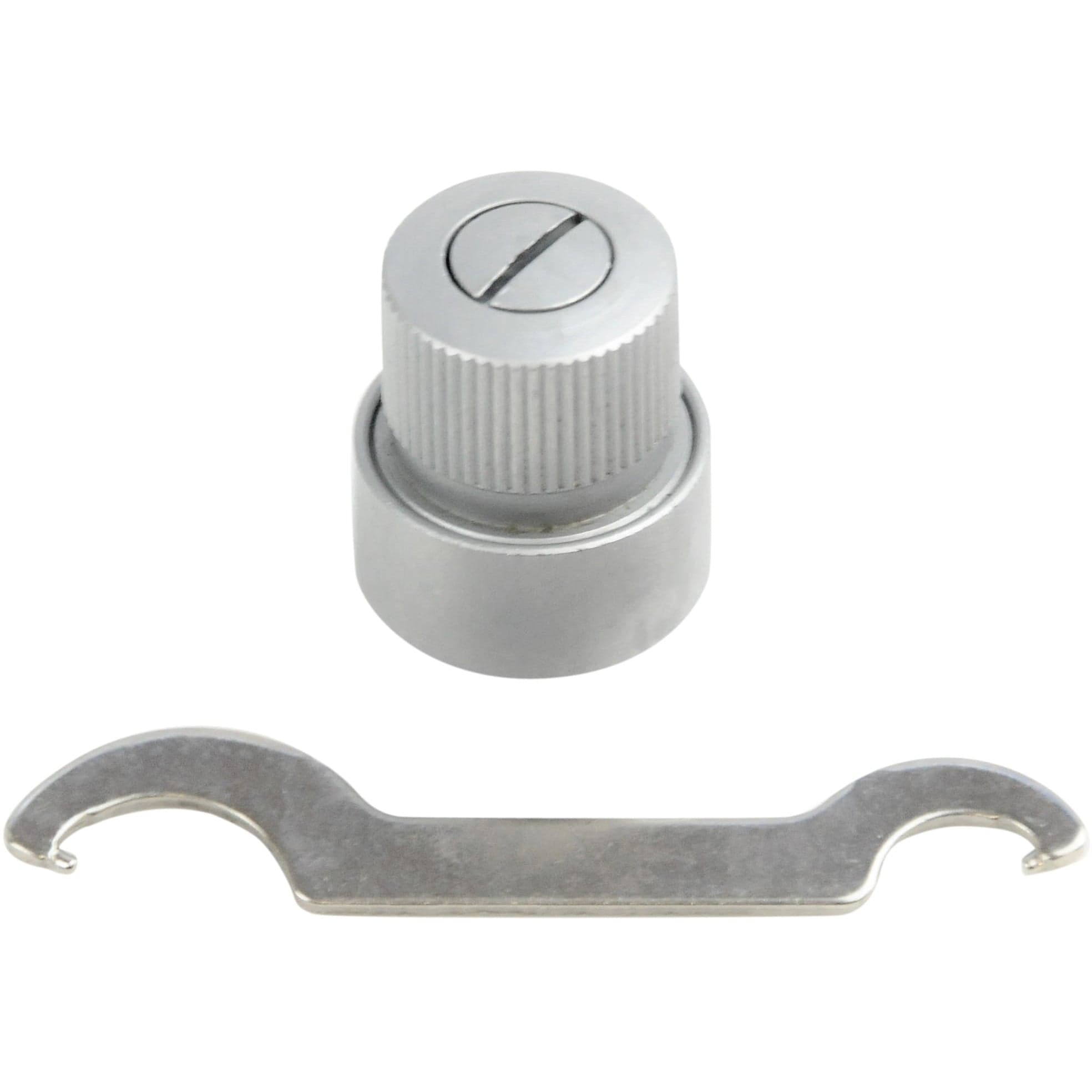

- Zero adjusting wrench
- Insize 3206-800 outside micrometer body (700–800mm range)
- Full set of calibration rods
- Full set of interchangeable anvils
- Custom-styled protective case
Built for durability and dependable accuracy, this Insize outside micrometer is ideal for precision measurement of large external dimensions. It is a professional-grade measuring solution for workshops and quality control environments where accuracy is essential.
