Description

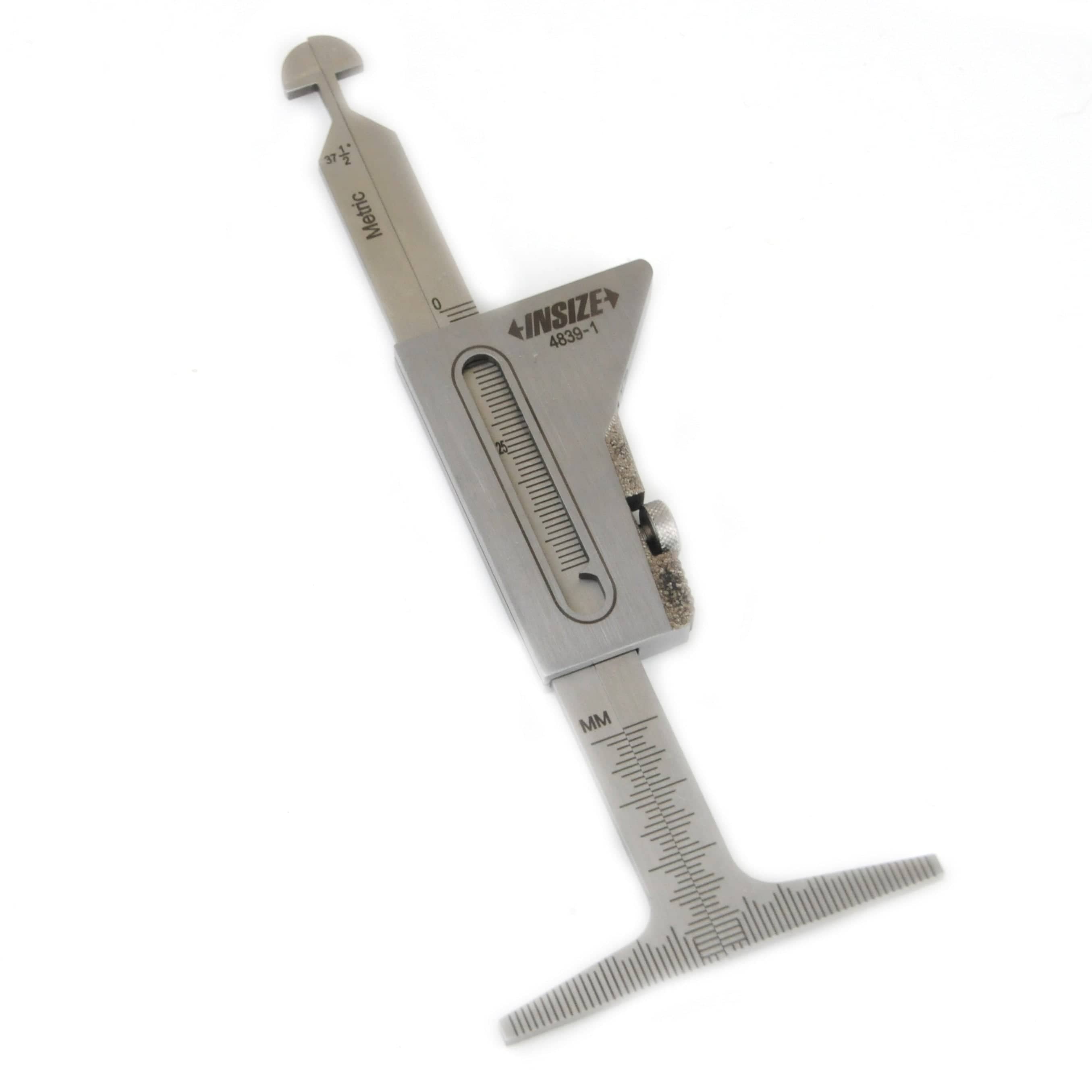

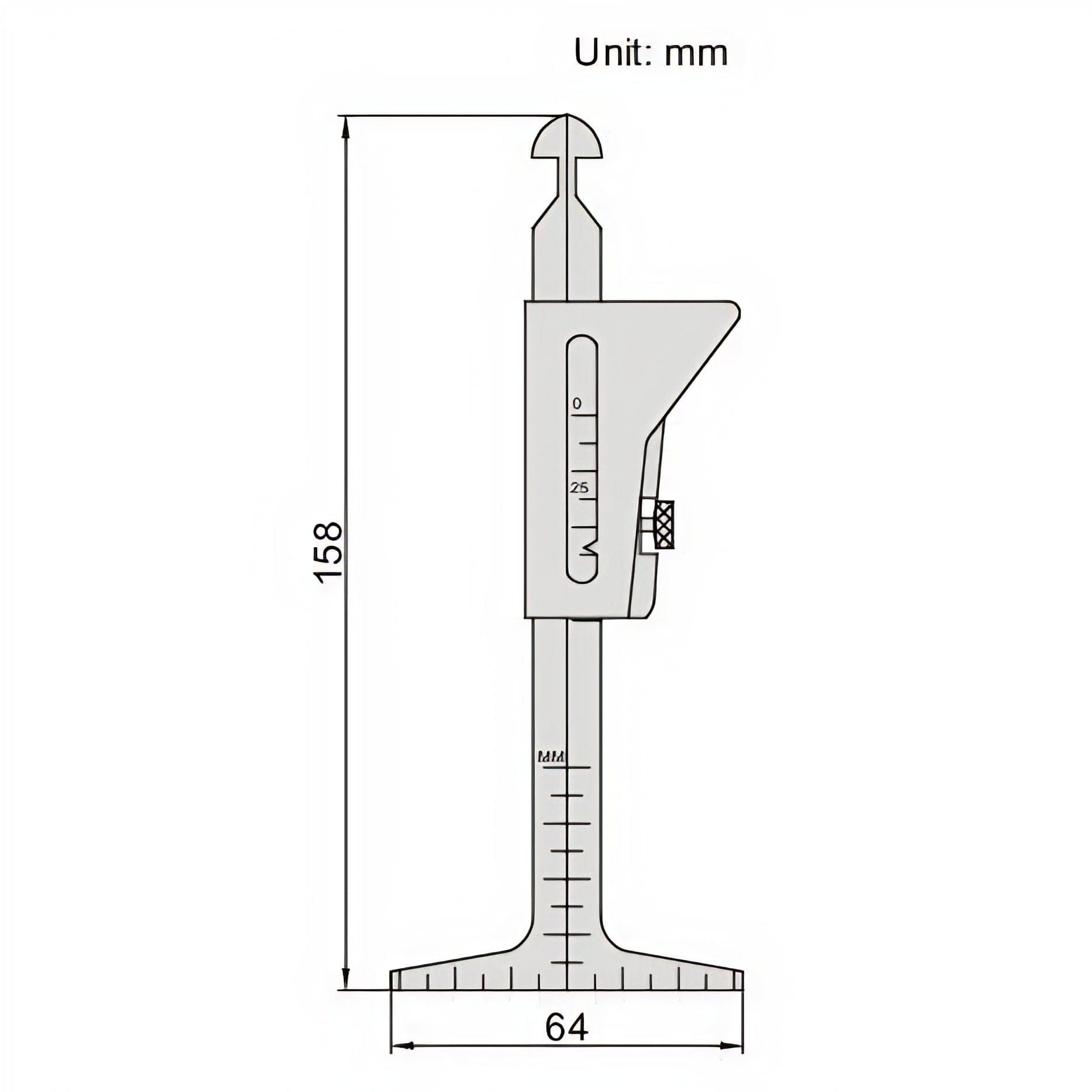

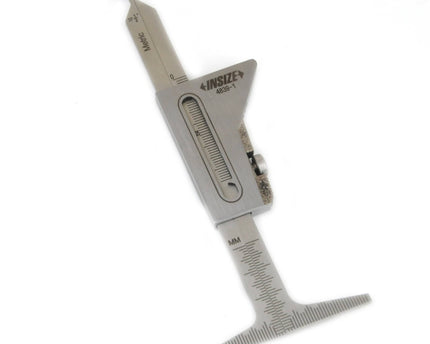

Insize Welding Gauge

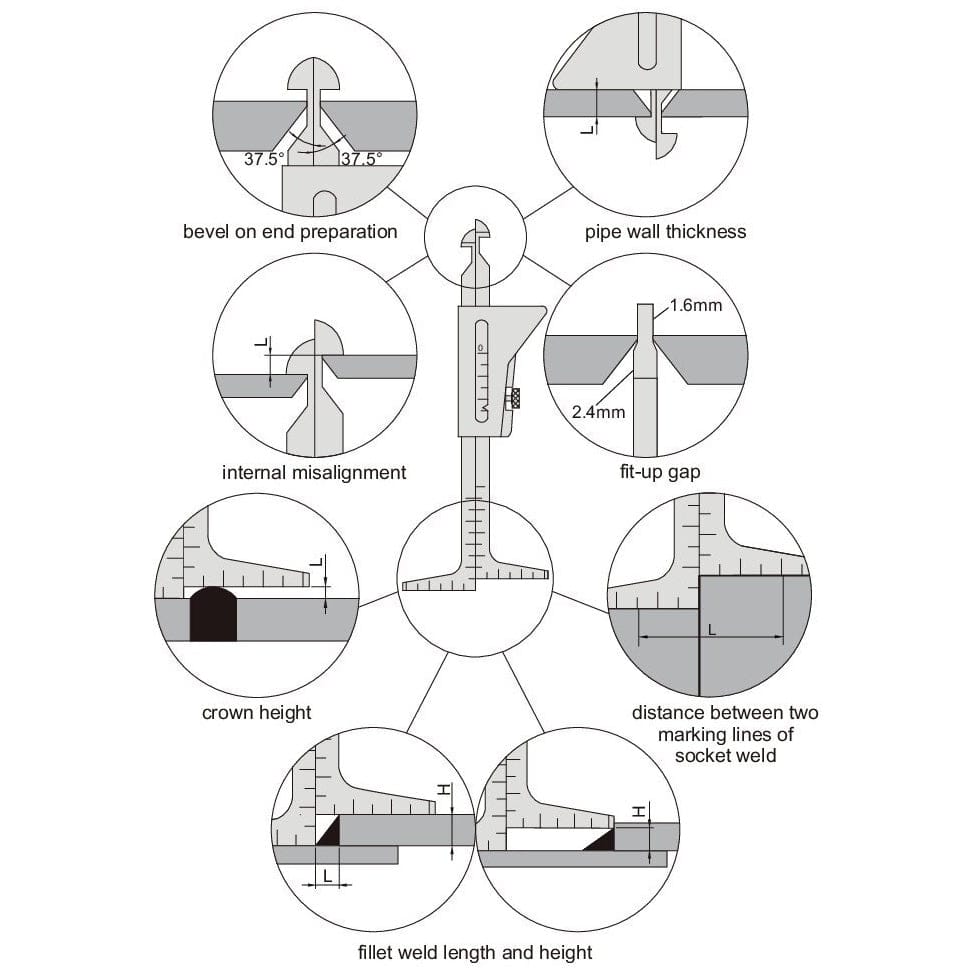

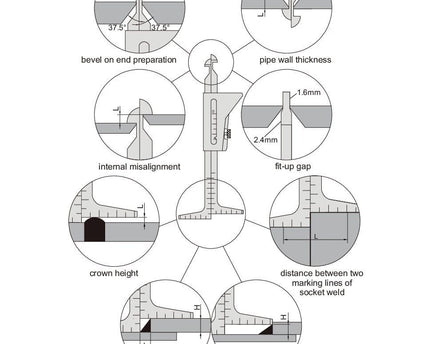

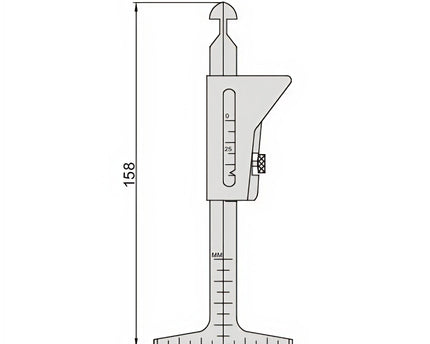

Insize Welding Gauge is a precision inspection tool designed for accurate measurement of weld alignment and critical weld dimensions. Manufactured from high-quality stainless steel, it provides durability, repeatable accuracy, and dependable performance for welding inspection and fabrication applications.
Key Features:
-
Part Number: 4839-1
-
Material: Stainless steel

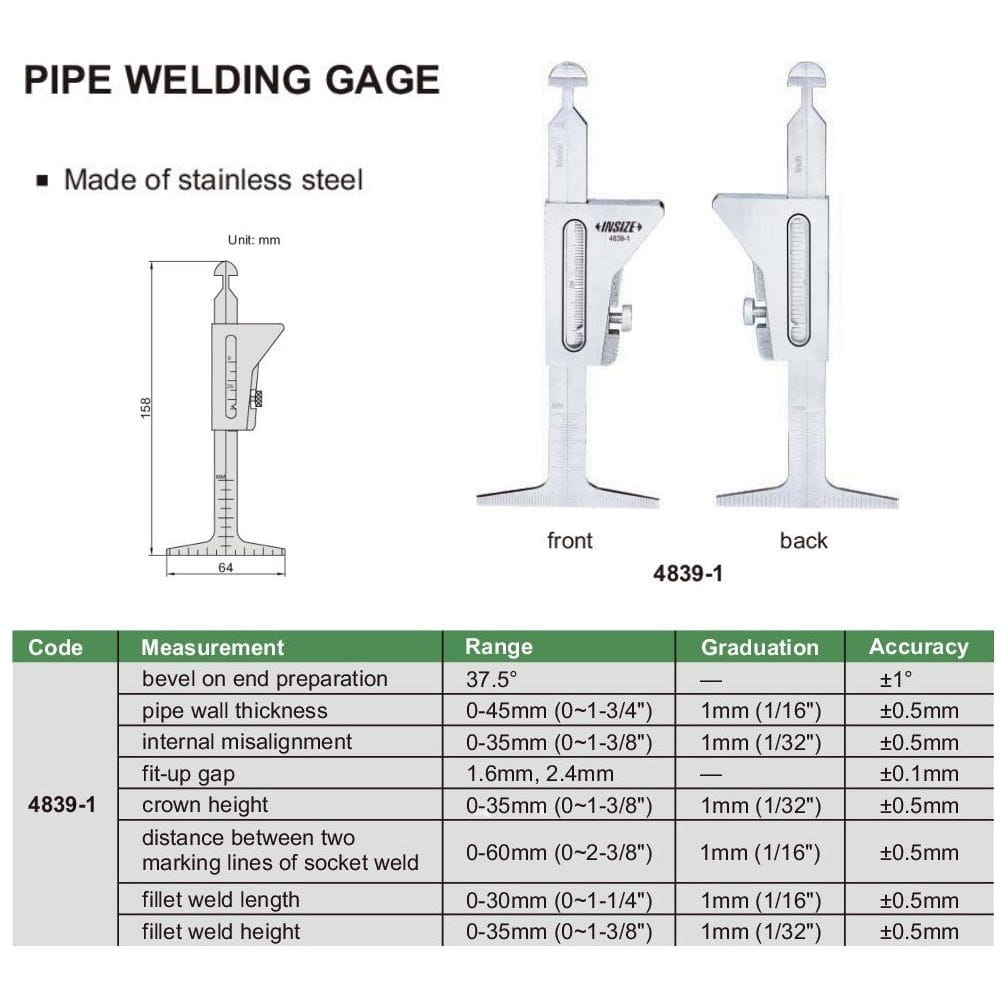

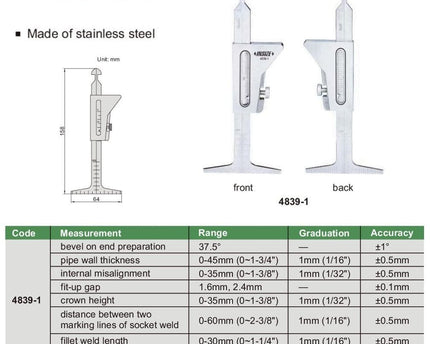

| Code |
Measurement |
Range |
Graduation |
Accuracy |
| 4839-1 |
Bevel on end preparation |
37.5° |
- |
±1° |
| Pipe wall thickness |
0–45 mm (0–1 3/4") |
1 mm (1/16") |
±0.5 mm |
| Internal misalignment |
0–35 mm (0–1 3/8") |
1 mm (1/32") |
±0.5 mm |
| Fit-up gap |
1.6 mm, 2.4 mm |
- |
±0.1 mm |
| Crown height |
0–35 mm (0–1 3/8") |
1 mm (1/32") |
±0.5 mm |
| Distance between two marking lines of socket weld |
0–60 mm (0–2 3/8") |
1 mm (1/16") |
±0.5 mm |
| Fillet weld length |
0–30 mm (0–1 1/4") |
1 mm (1/16") |
±0.5 mm |
| Fillet weld height |
0–35 mm (0–1 3/8") |
1 mm (1/32") |
±0.5 mm |
Designed for accuracy and durability, this welding gauge enables precise inspection of weld preparation, alignment, and finished weld geometry, making it suitable for professional welding, fabrication, and quality control environments.
