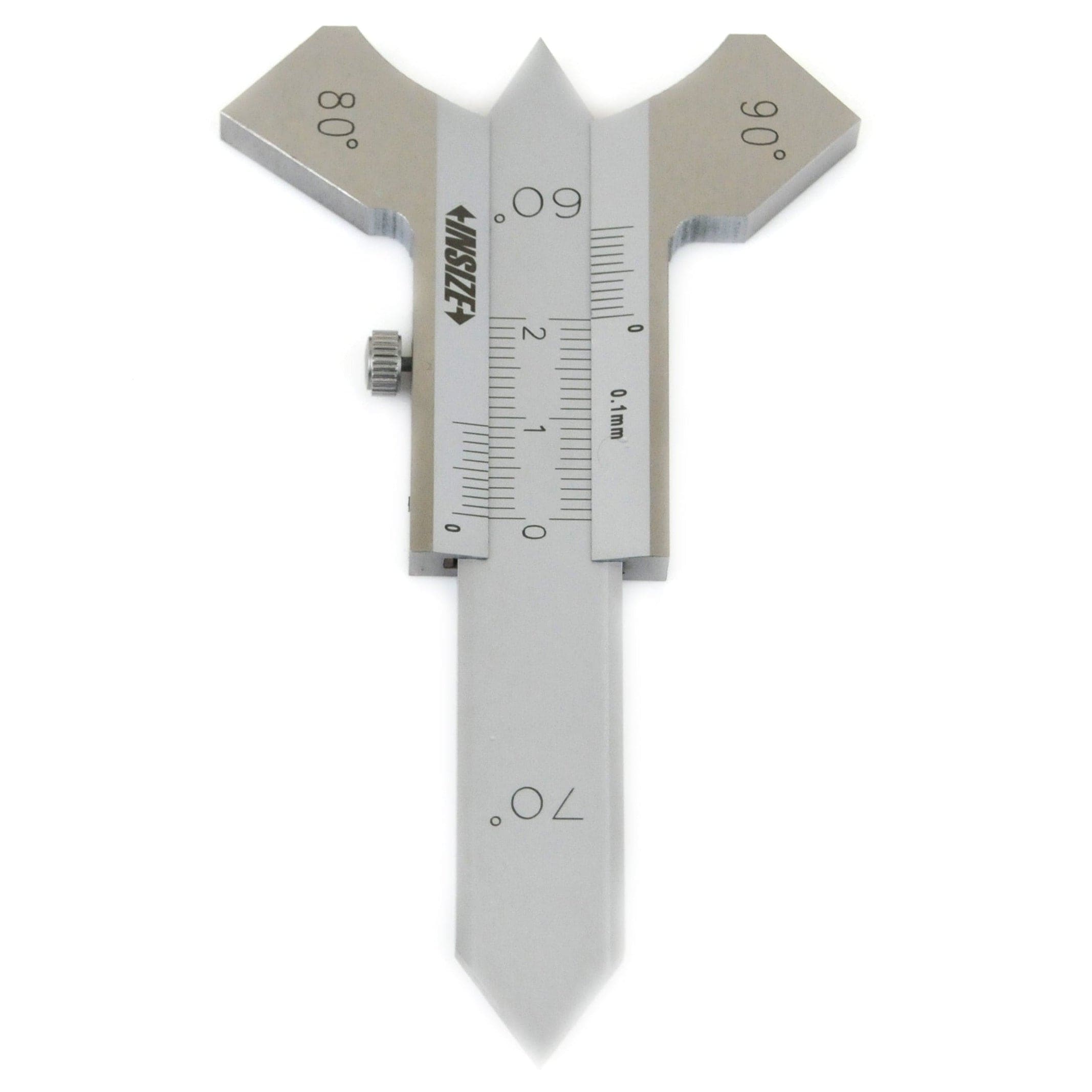

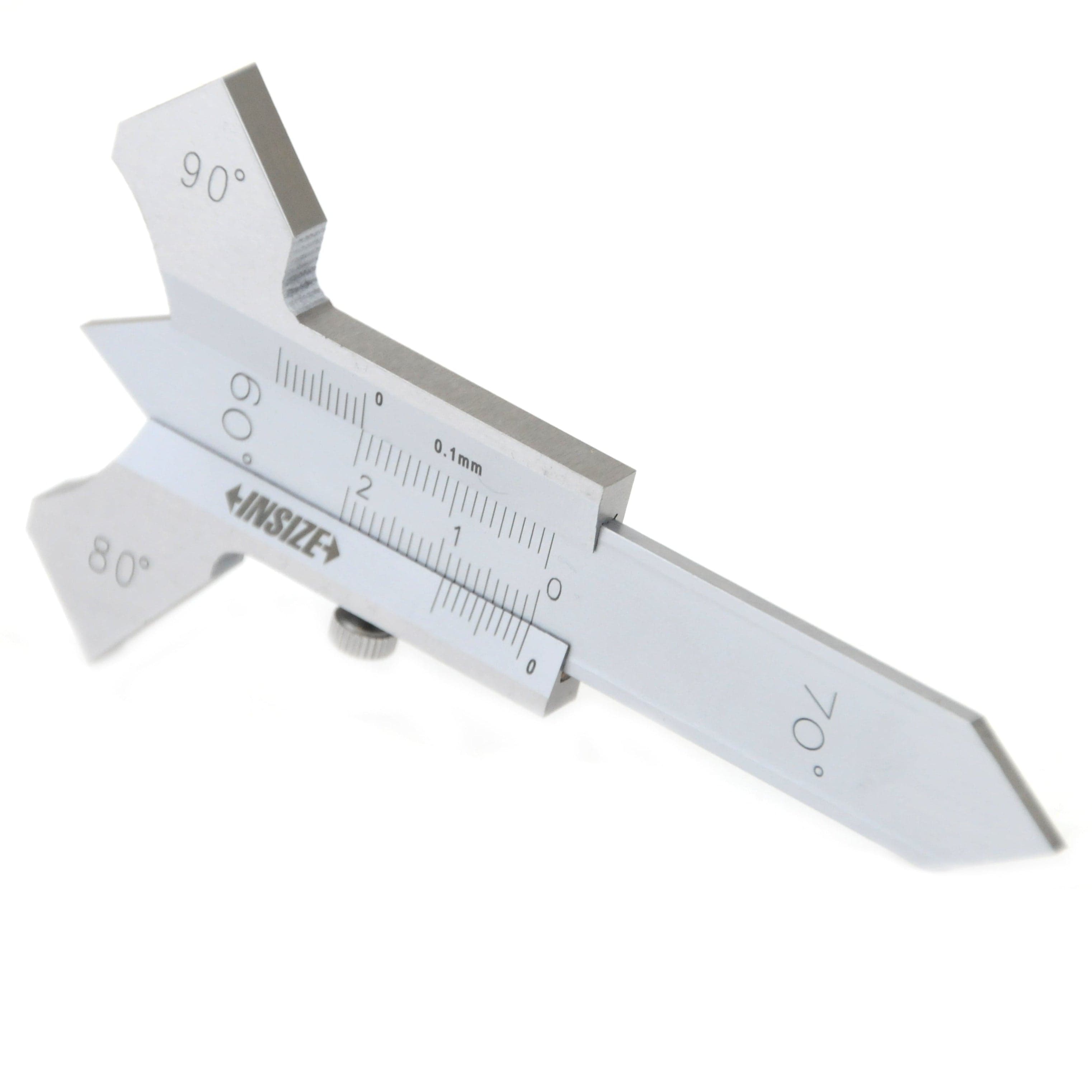

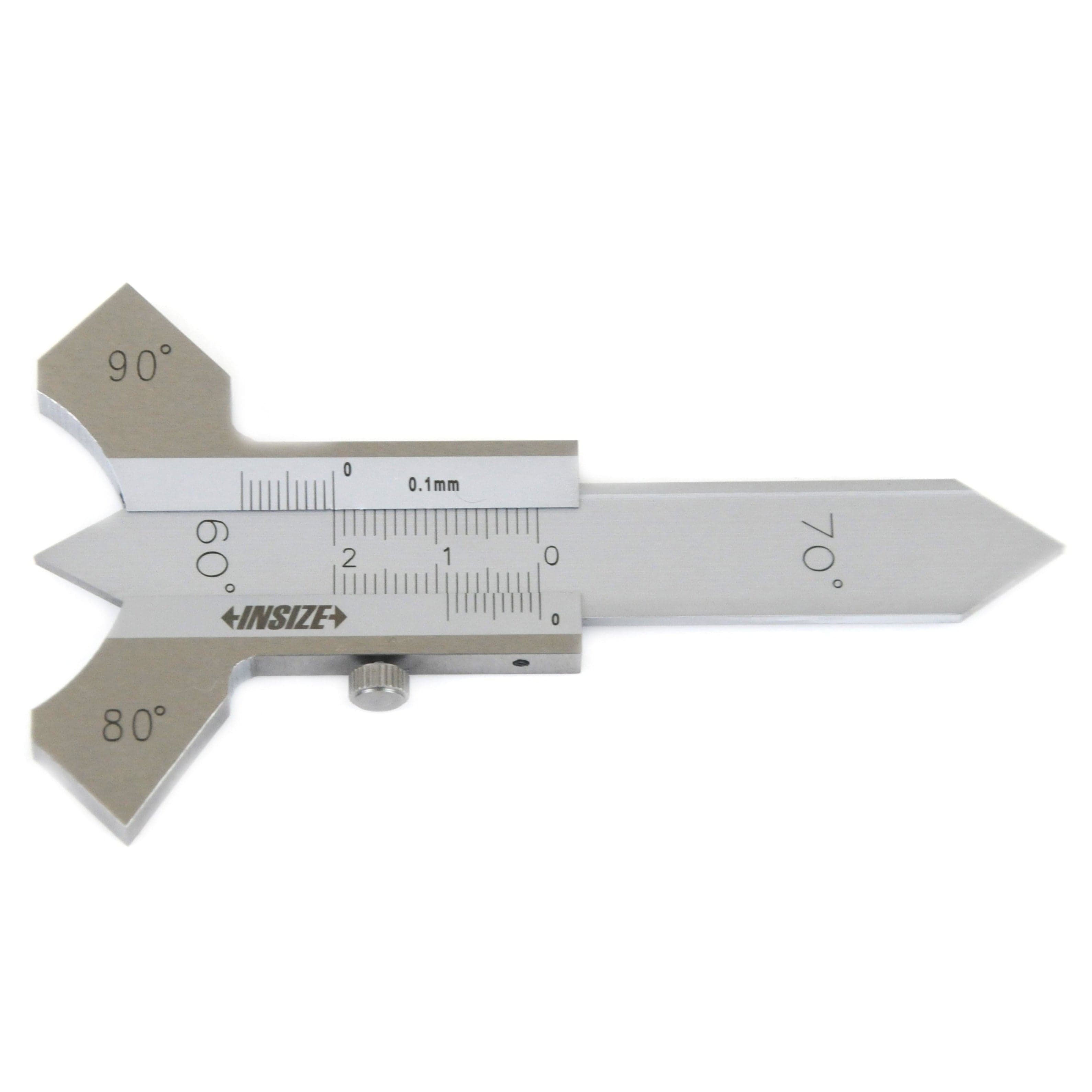

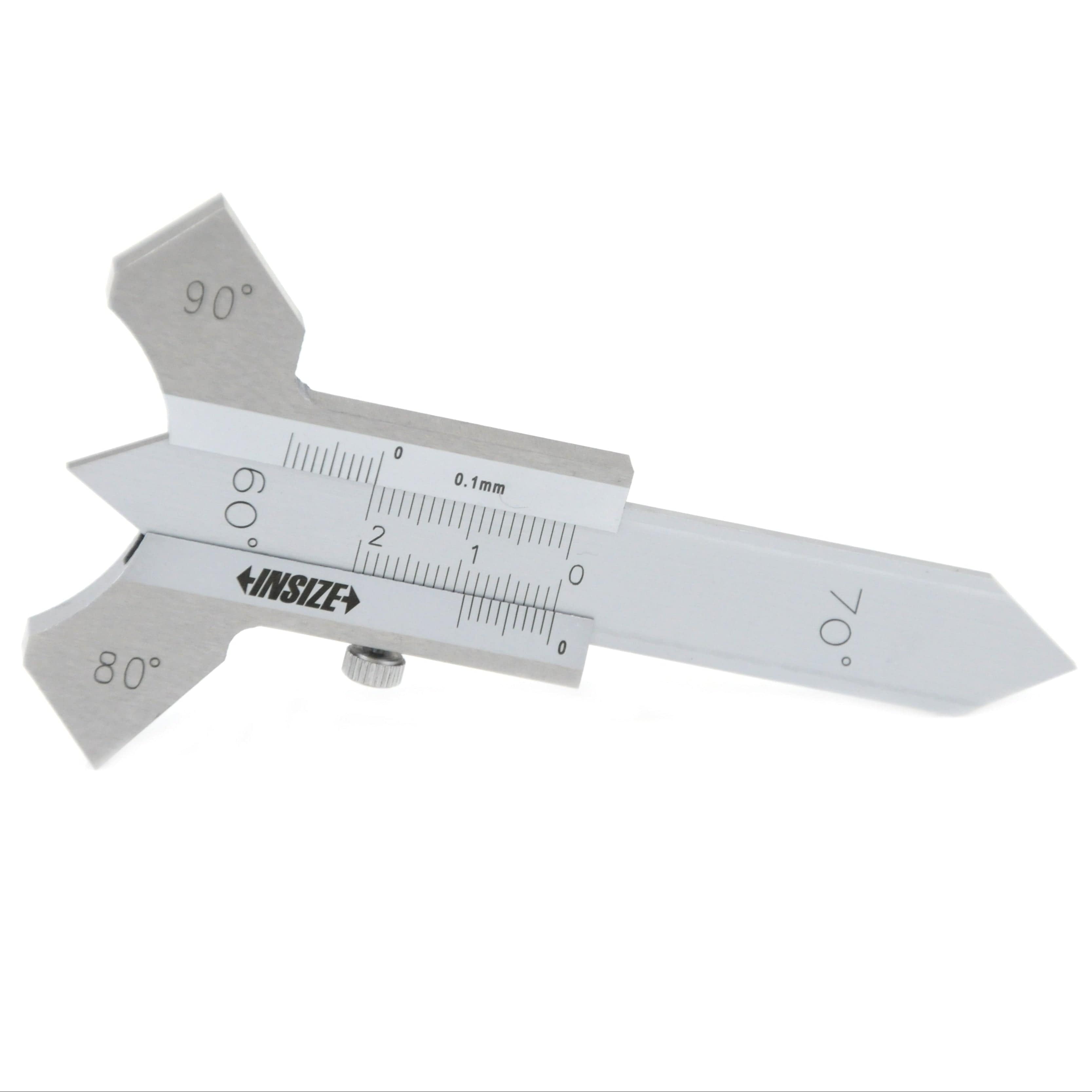

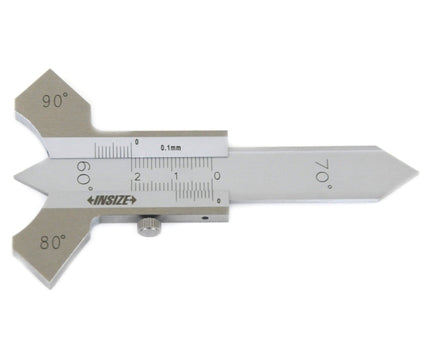

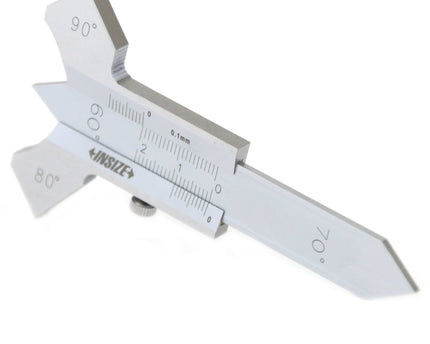

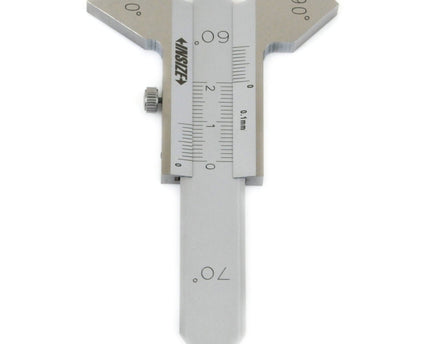

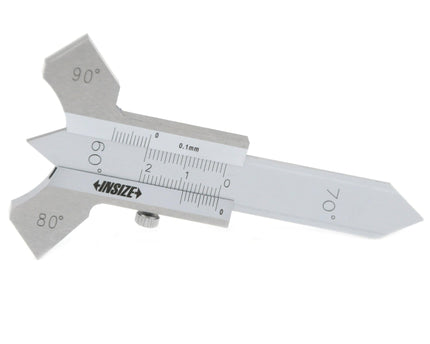

Insize Metric Welding Gauge
The Insize Metric Welding Gauge is a precision inspection tool designed for accurate measurement of weld dimensions and angles during fabrication and inspection. Its robust stainless steel construction and clear satin chrome-plated reading surfaces ensure durability, corrosion resistance, and easy readability in workshop and site environments.

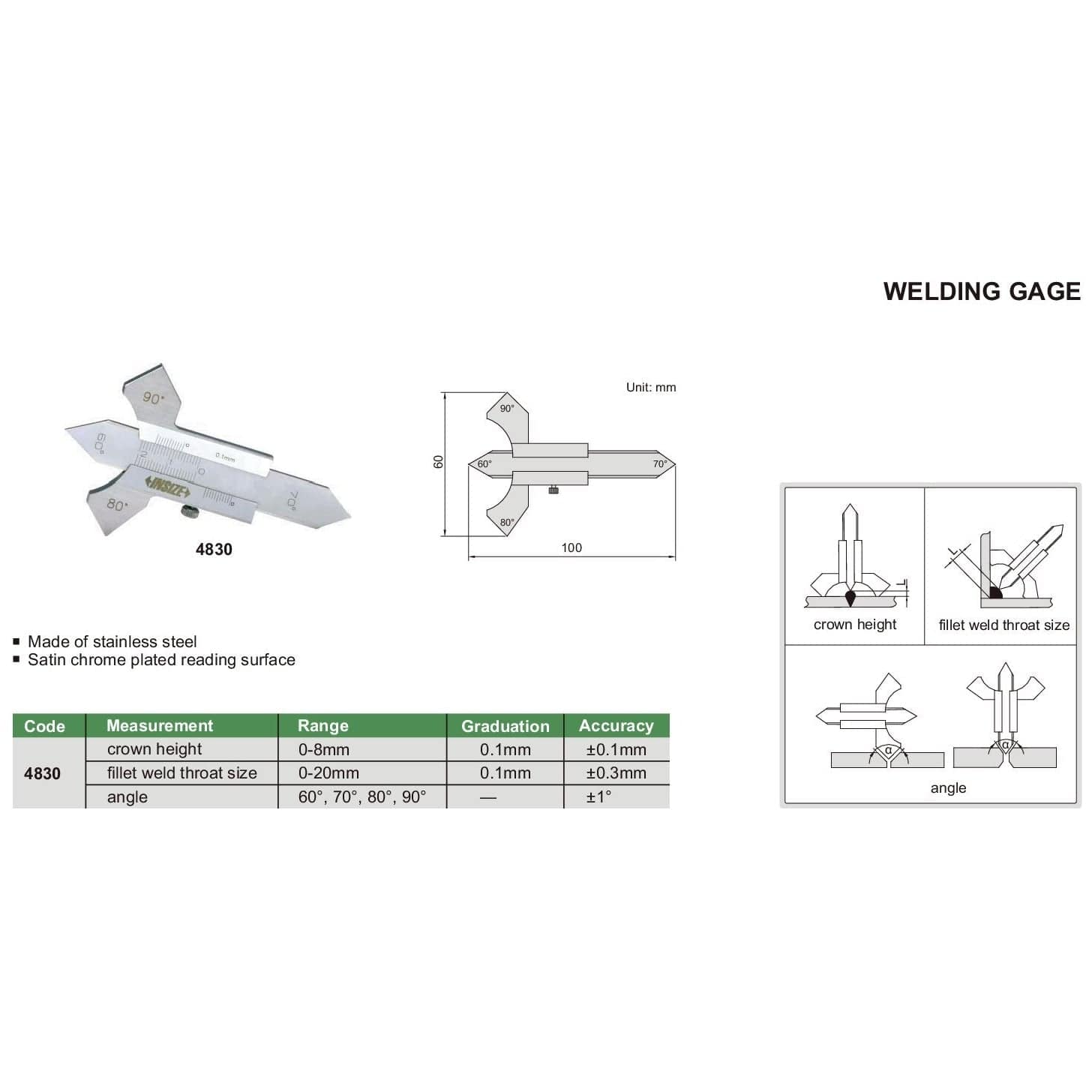

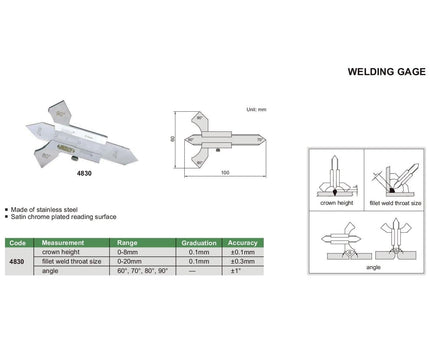

Specifications:
-
Part Number: 4830
-
Material: Stainless steel
-
Finish: Satin chrome-plated reading surface
| Measurement |
Range |
Graduation |
Accuracy |
| Crown height |
0–8 mm |
0.1 mm |
±0.1 mm |
| Fillet weld throat size |
0–20 mm |
0.1 mm |
±0.3 mm |
| Angle |
60°, 70°, 80°, 90° |
– |
±1° |
Designed for reliable and repeatable results, this welding gauge enables accurate verification of weld size, throat depth, crown height, and joint angles, making it suitable for fabrication, quality control, and inspection applications.
