Description

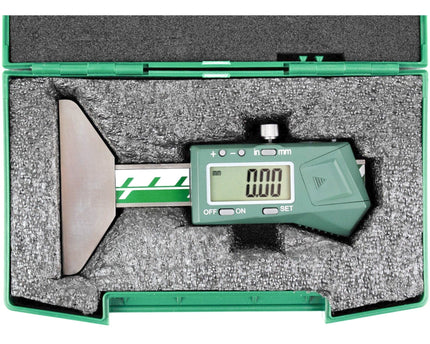

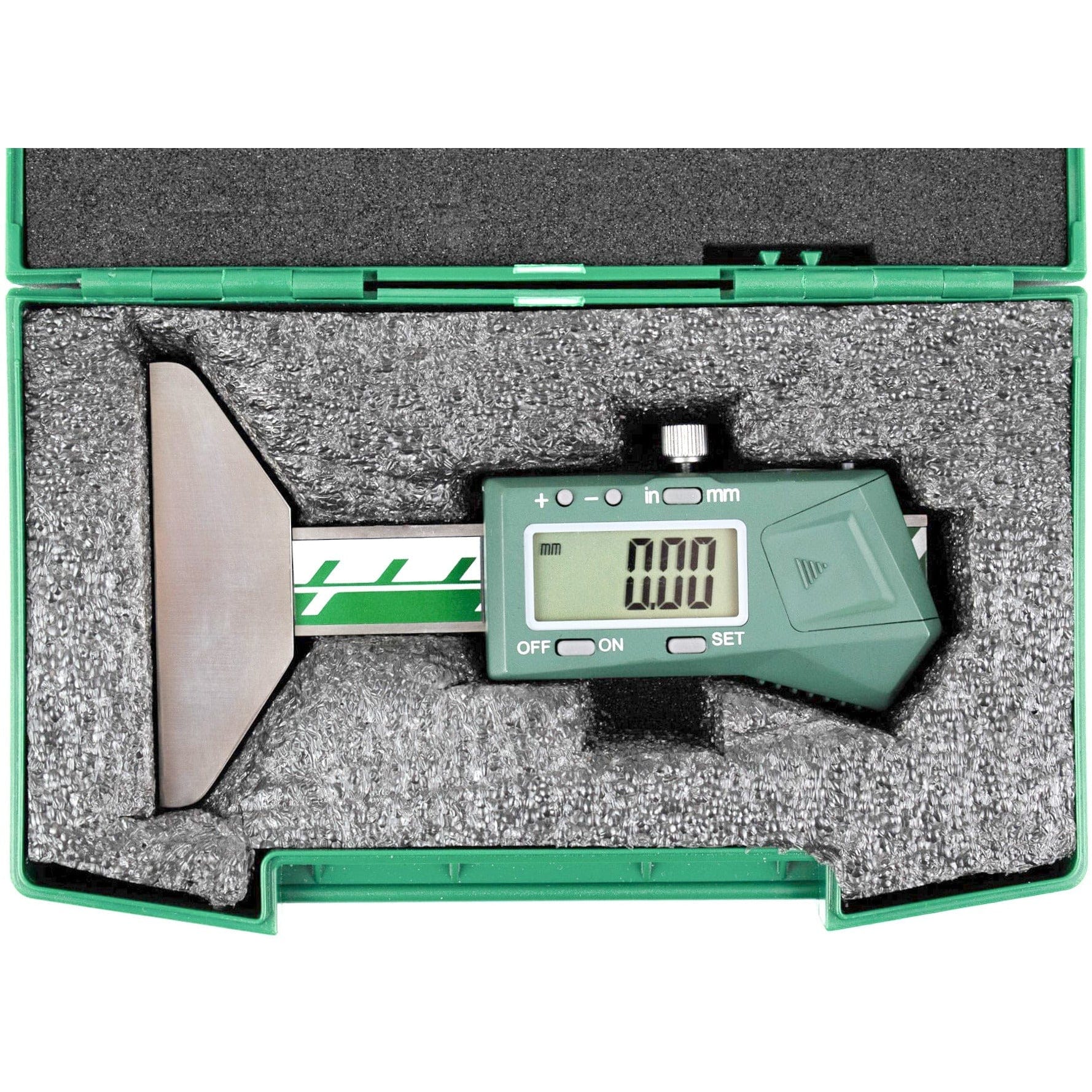

Insize Digital Depth Gauge
A compact and precise digital depth gauge designed for accurate measurement of small grooves, recesses, and blind holes. Constructed from stainless steel and equipped with a clear digital display, it delivers reliable performance for machining, inspection, and general workshop applications.
Key Features:
-
Part Number: 1140-25
-
Accuracy: ±0.02 mm
-
Resolution: 0.0005" / 0.01 mm
-
Range: 0–25 mm / 0–1"
-
Length: 114 mm
-
Measurement Function: Suitable for measuring the depth of small grooves and holes
-
Buttons: On/Off, Set, Inch/mm, Preset (+/-)
-
Automatic Power Control: Power turns on when the digital unit is moved
-
Battery: CR2032
-
Data Output: Yes
-
Material: Stainless steel
-
Optional Accessories: Data output cables (7306-20, 7302-SPC5A/SPC5B, 7305-SPC2A, 7305-A01/A02)
Engineered for precision and ease of use, the Insize Digital Depth Gauge is ideal for ensuring accurate depth measurements in machining, inspection, metalworking, and industrial quality-control applications.
