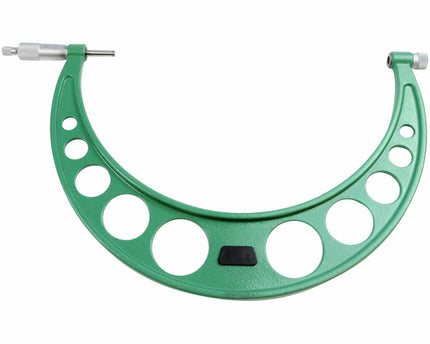

Insize 16–20" Outside Micrometer
The Insize 16–20" Outside Micrometer is a heavy-duty precision measuring instrument engineered for accurate external measurement of large components. Designed with an interchangeable anvil system and a rigid frame construction, it delivers reliable accuracy and repeatability in machining, inspection, and quality control environments.

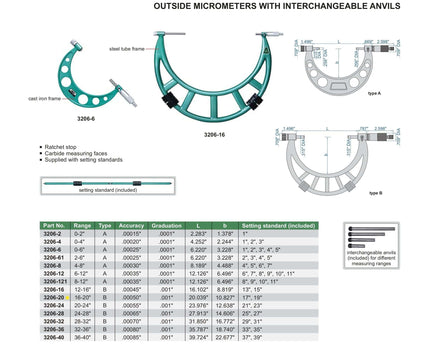

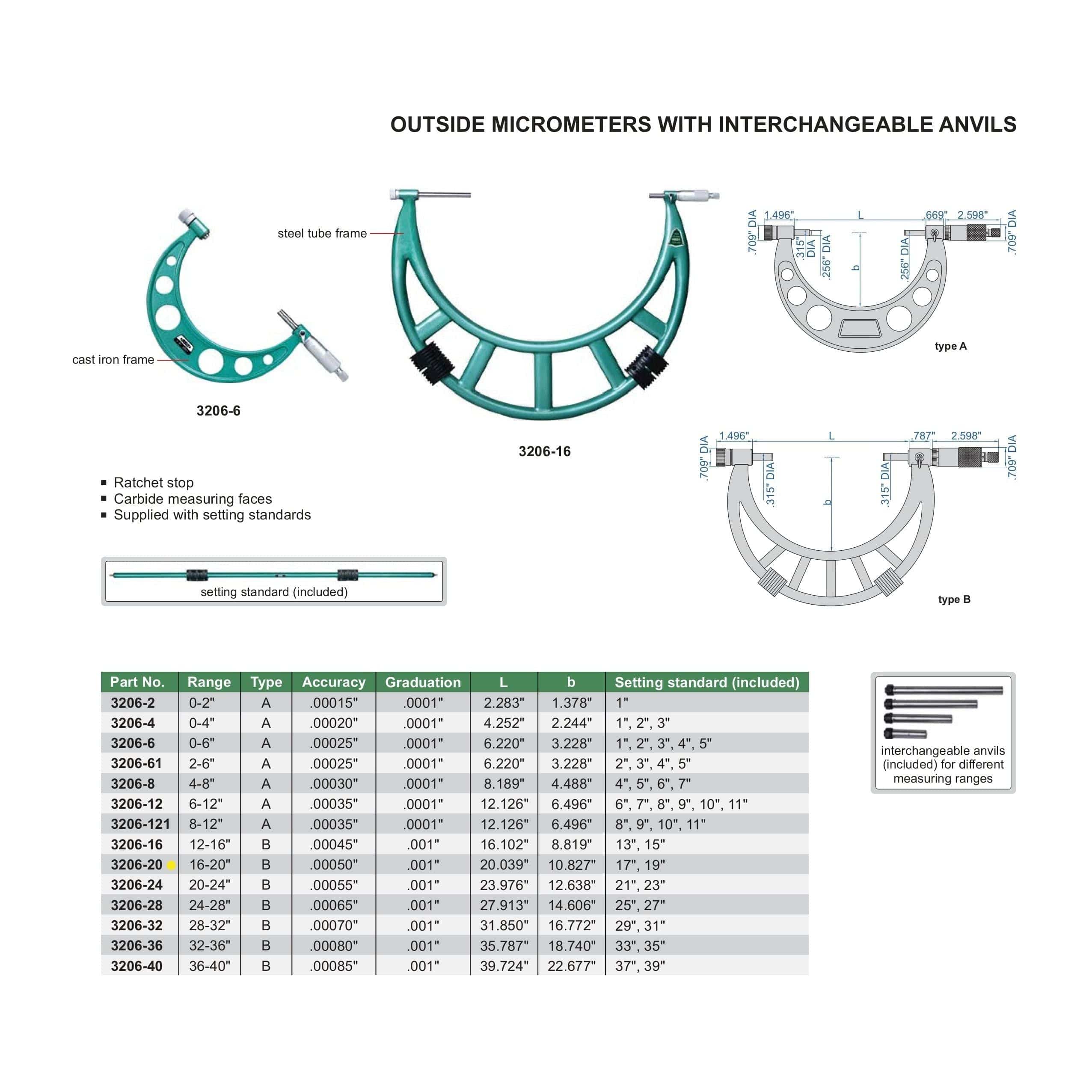

Specifications :
- Part No.: 3206-20
- Measuring range: 16–20"
- Graduation: 0.001"
- Accuracy: ±0.00050"

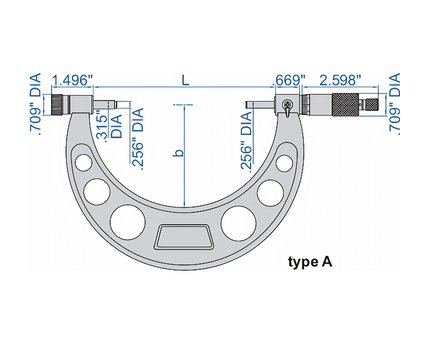

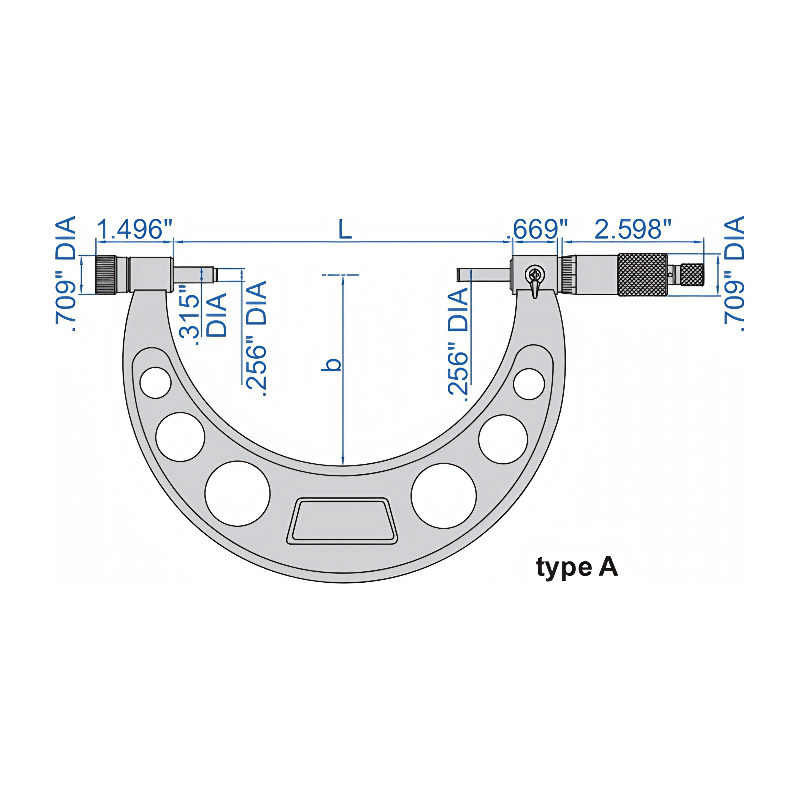

- Overall length (L): 20.039"
- Frame depth (B): 10.827"
- Type: B
- Interchangeable anvil system for extended measuring capability

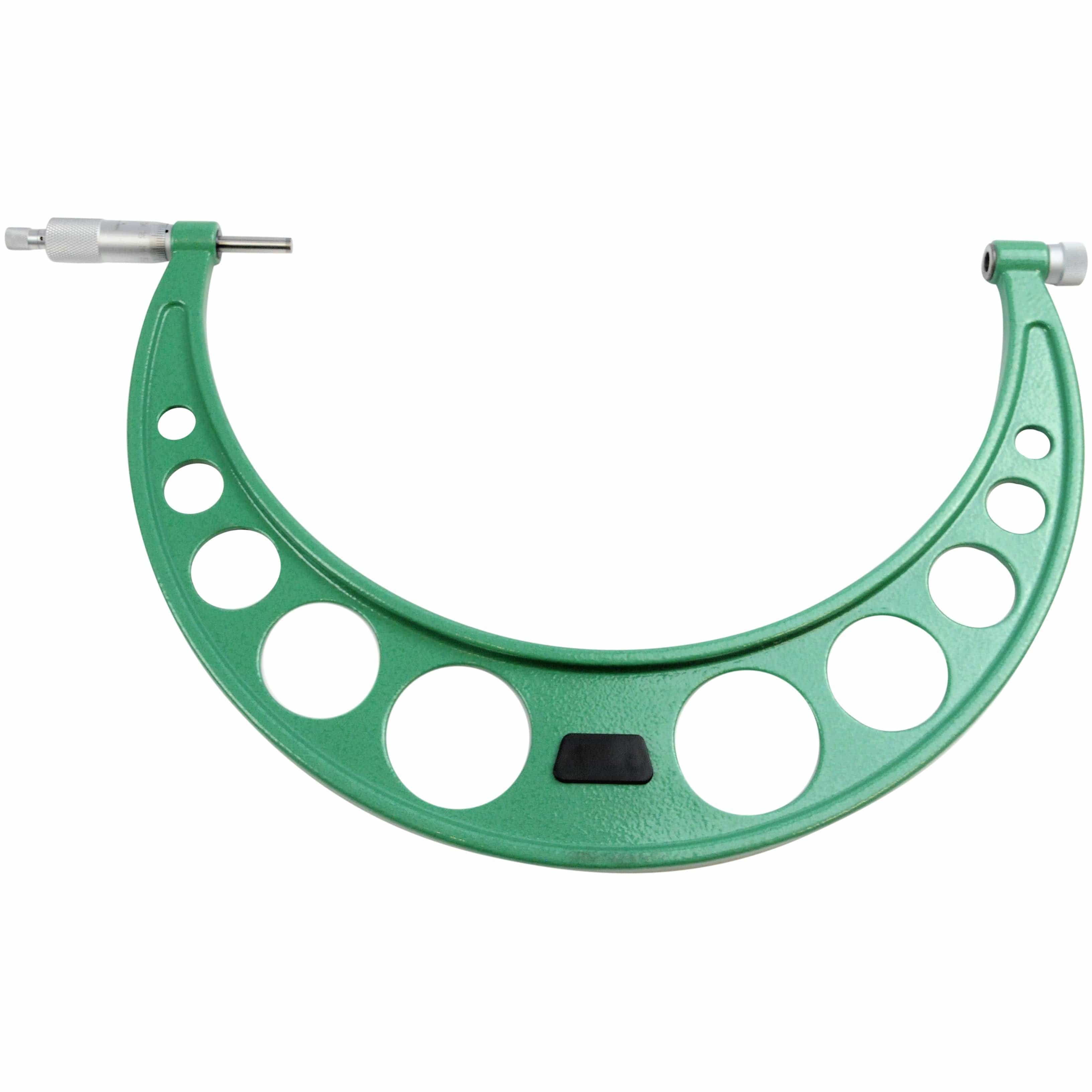

- Cast iron and steel tube frame construction for maximum rigidity
- Carbide measuring faces for excellent wear resistance and long service life

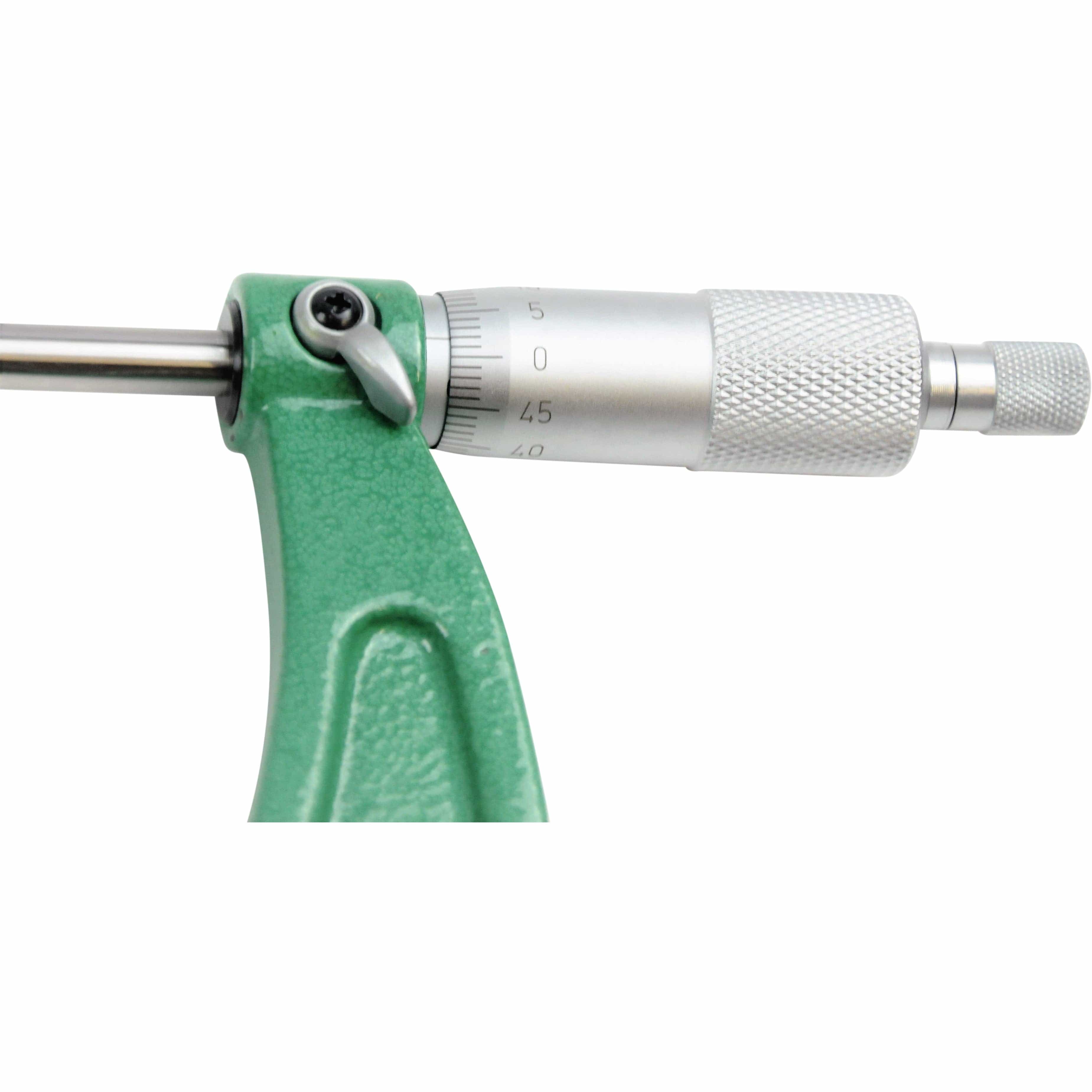

- Ratchet stop to ensure consistent measuring pressure
- Supplied with setting standards for accurate calibration
- Interchangeable anvils are included for different measuring ranges

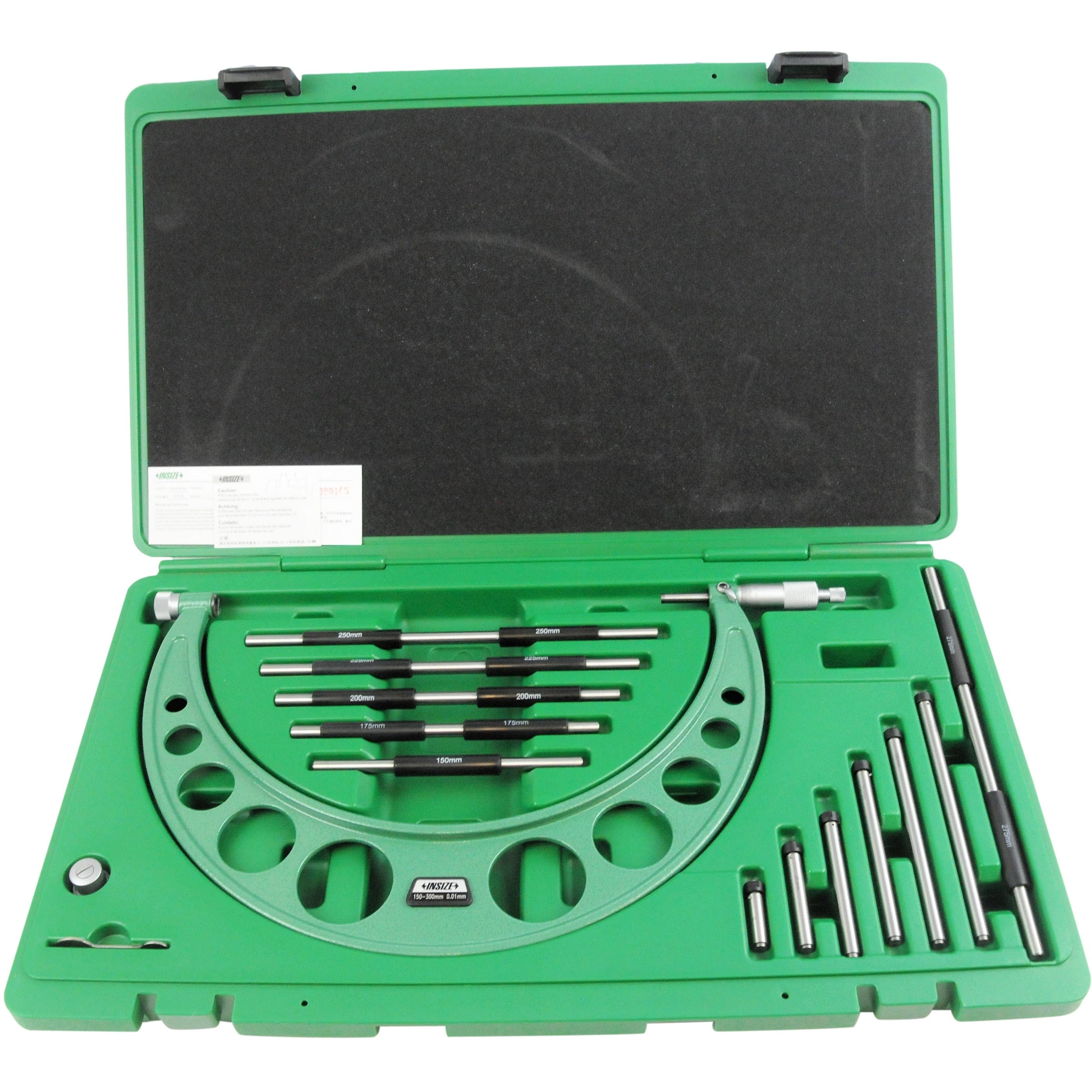

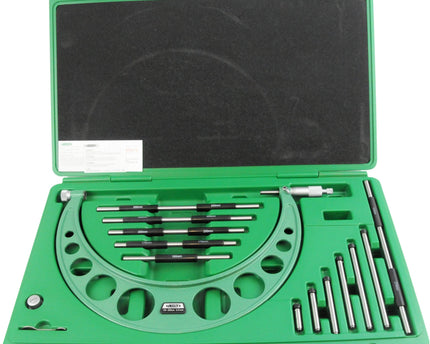

Includes

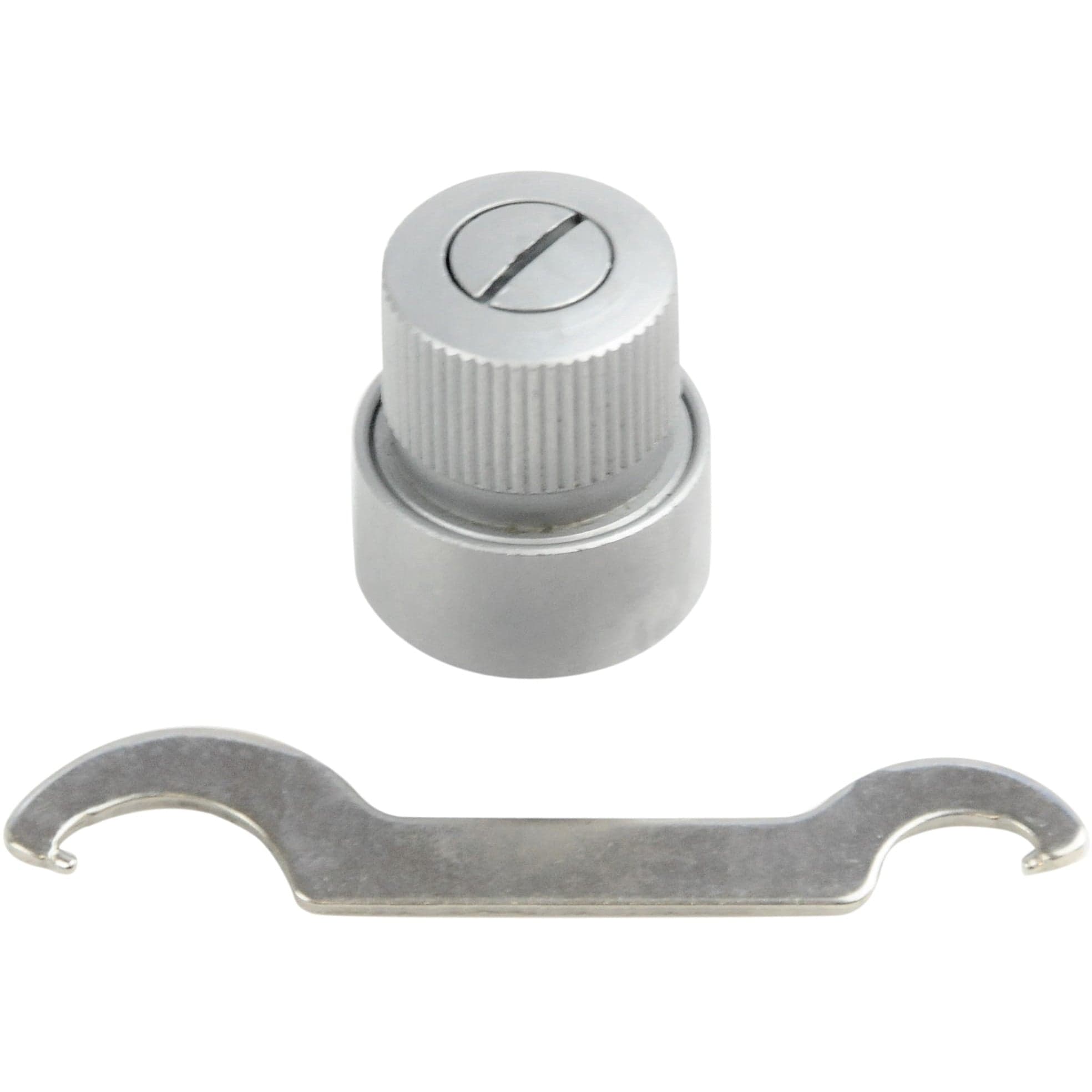

- Zero adjusting wrench
- Insize 3206-20 outside micrometer (16–20" range)
- Setting standards: 17" and 19"
- Full set of calibration rods
- Full set of interchangeable anvils
- Custom-styled protective case
Built for durability and precision, this Insize outside micrometer provides dependable performance when measuring large external dimensions. It is an essential tool for professionals who require accurate, repeatable results in demanding workshop and inspection applications.
