Description

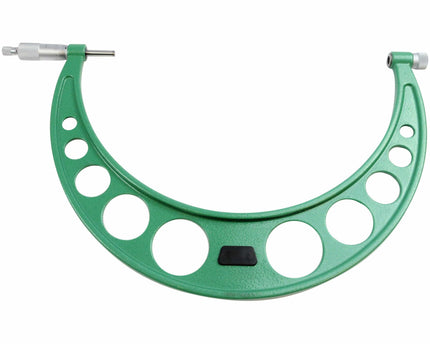

Insize 20–24" Outside Micrometer
The Insize 20–24" Outside Micrometer is engineered for precise external measurement of large components in machining, fabrication, and inspection environments. Designed with an interchangeable anvil system and a rigid, heavy-duty frame, it delivers reliable accuracy, stability, and repeatability for demanding industrial applications.

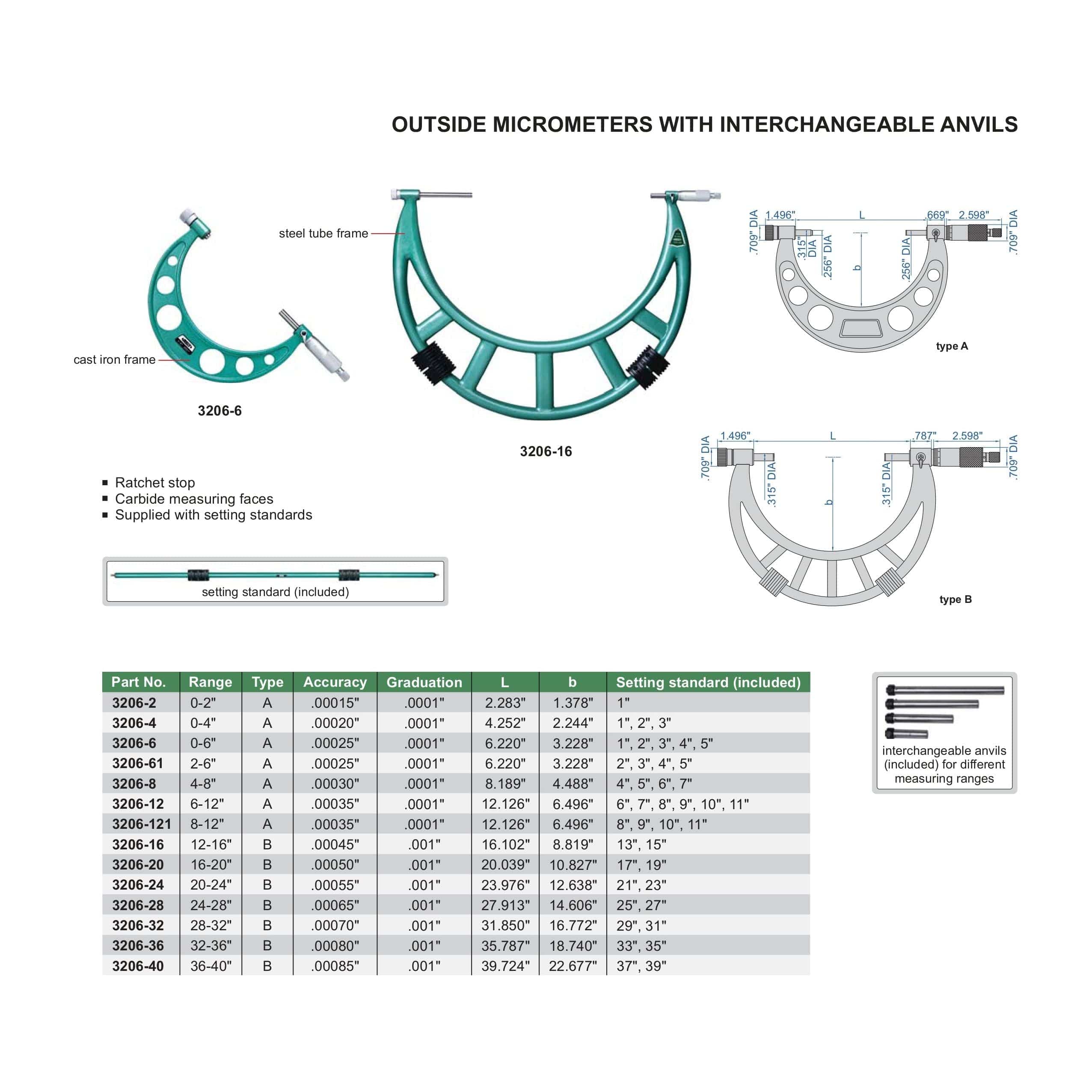

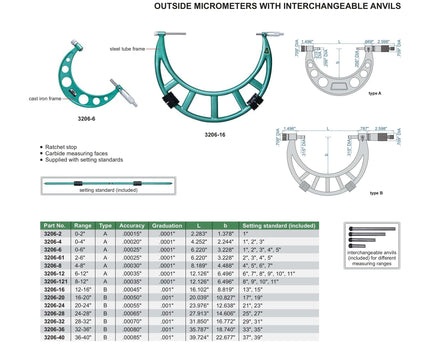

Specifications :
- Part No.: 3206-24
- Measuring range: 20–24"
- Graduation: 0.001"
- Accuracy: ±0.00055"
- Type: B
- Overall length (L): 23.976"
- Frame depth (B): 12.638"
- Interchangeable anvil system for multiple measuring ranges
- Setting standards included: 21", 23"

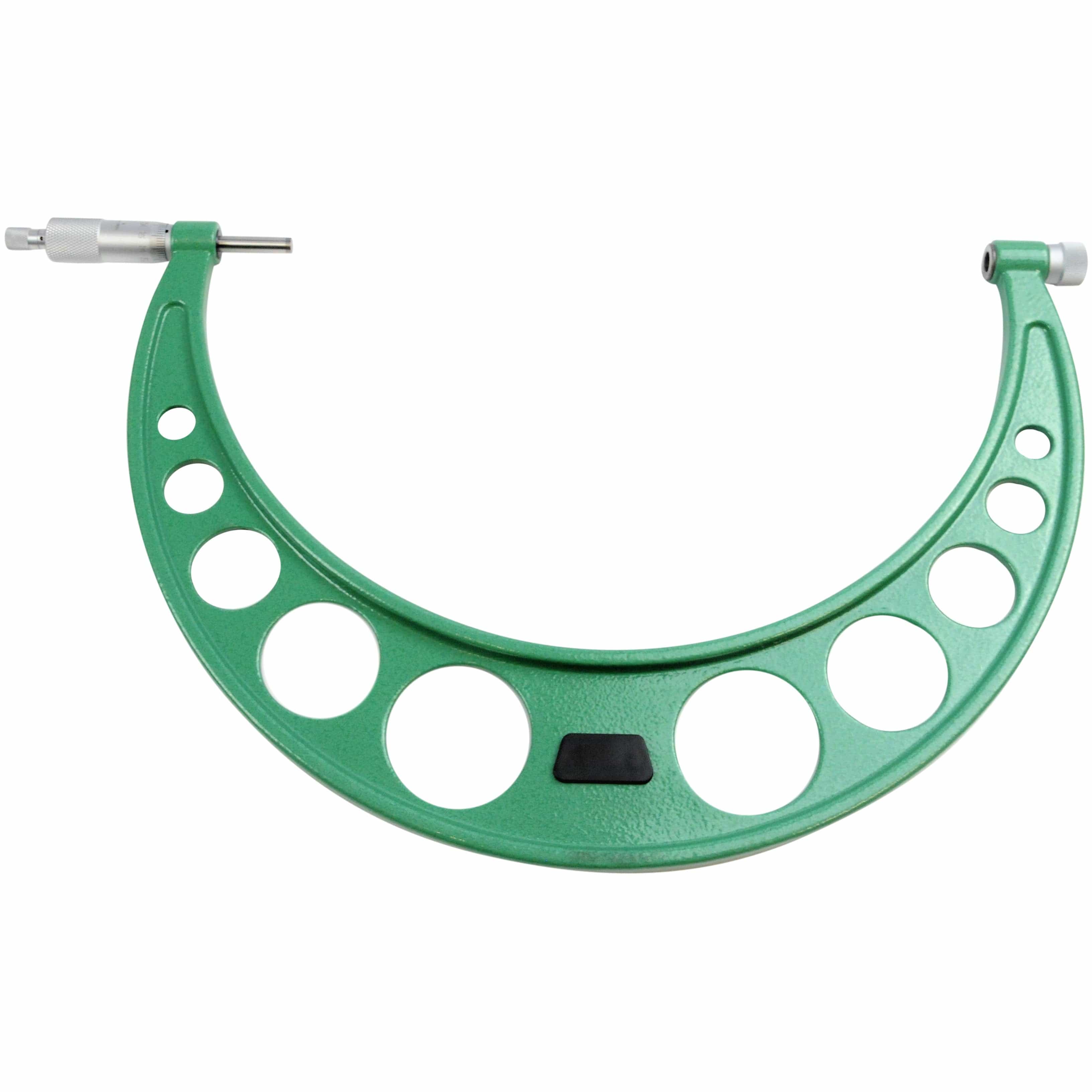

- Cast iron frame combined with a steel tube frame for rigidity and reduced deflection
- Carbide measuring faces for superior wear resistance and long service life

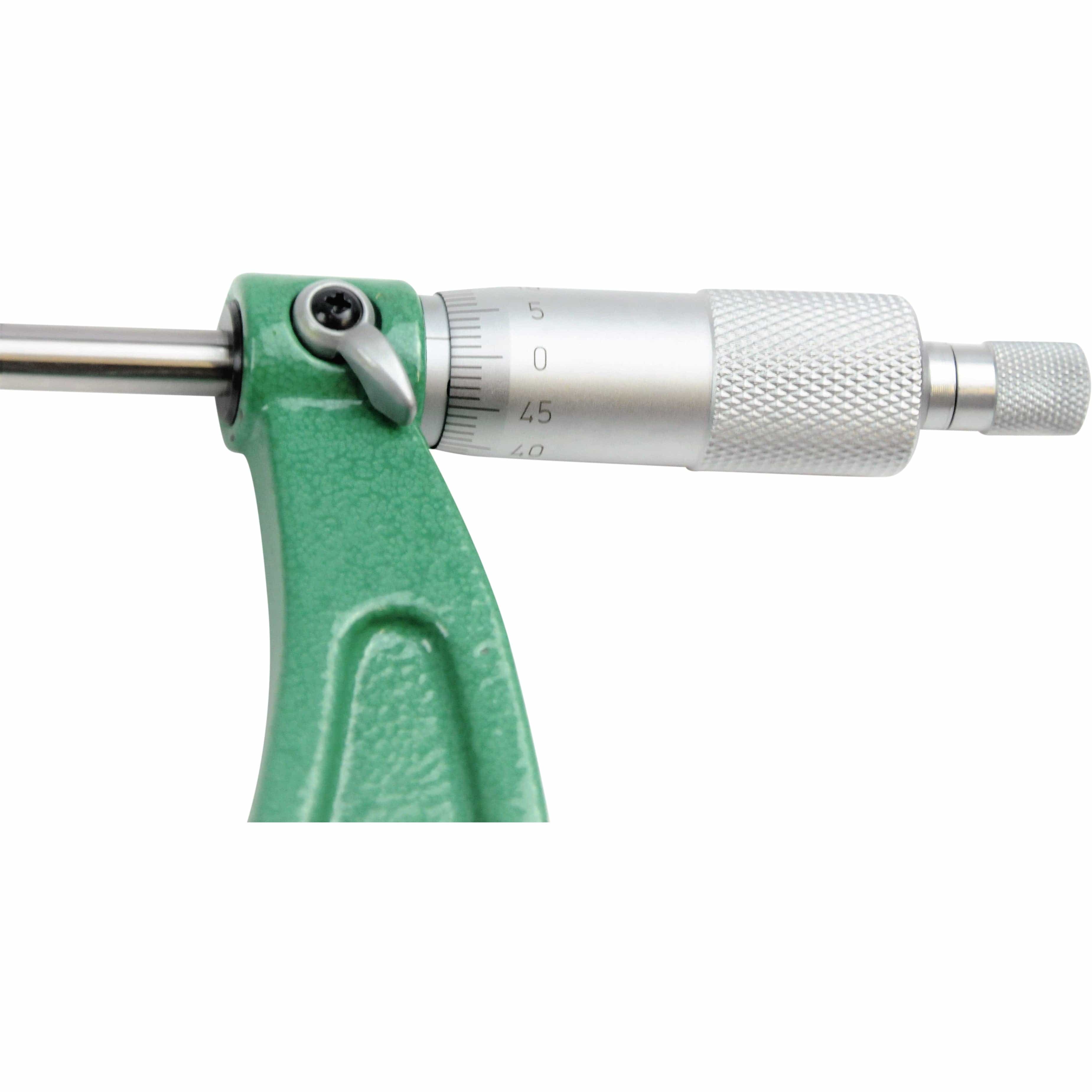

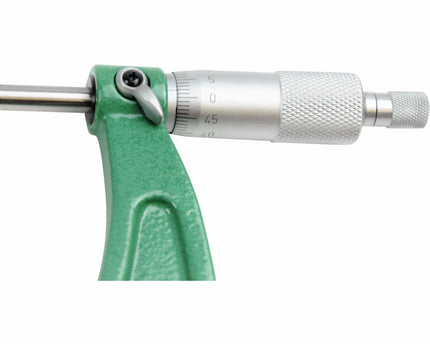

- Ratchet stop for consistent measuring pressure and repeatable results
- Supplied with setting standards for accurate calibration

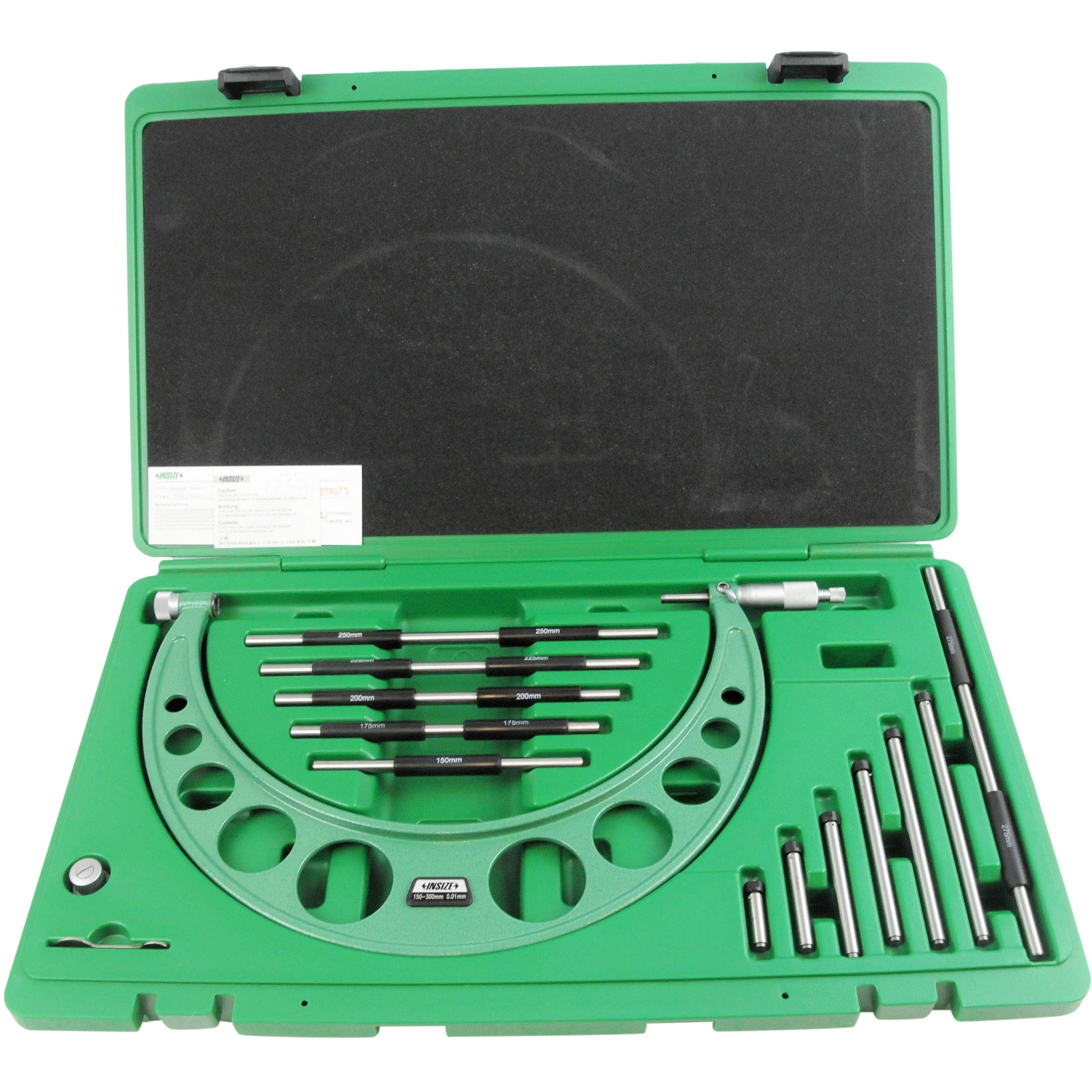

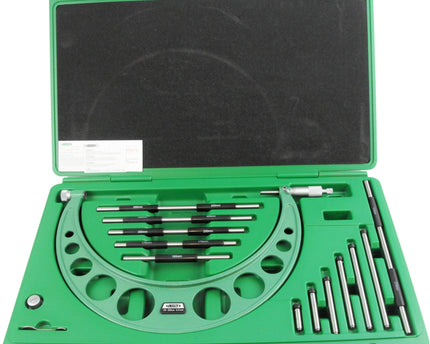

Includes

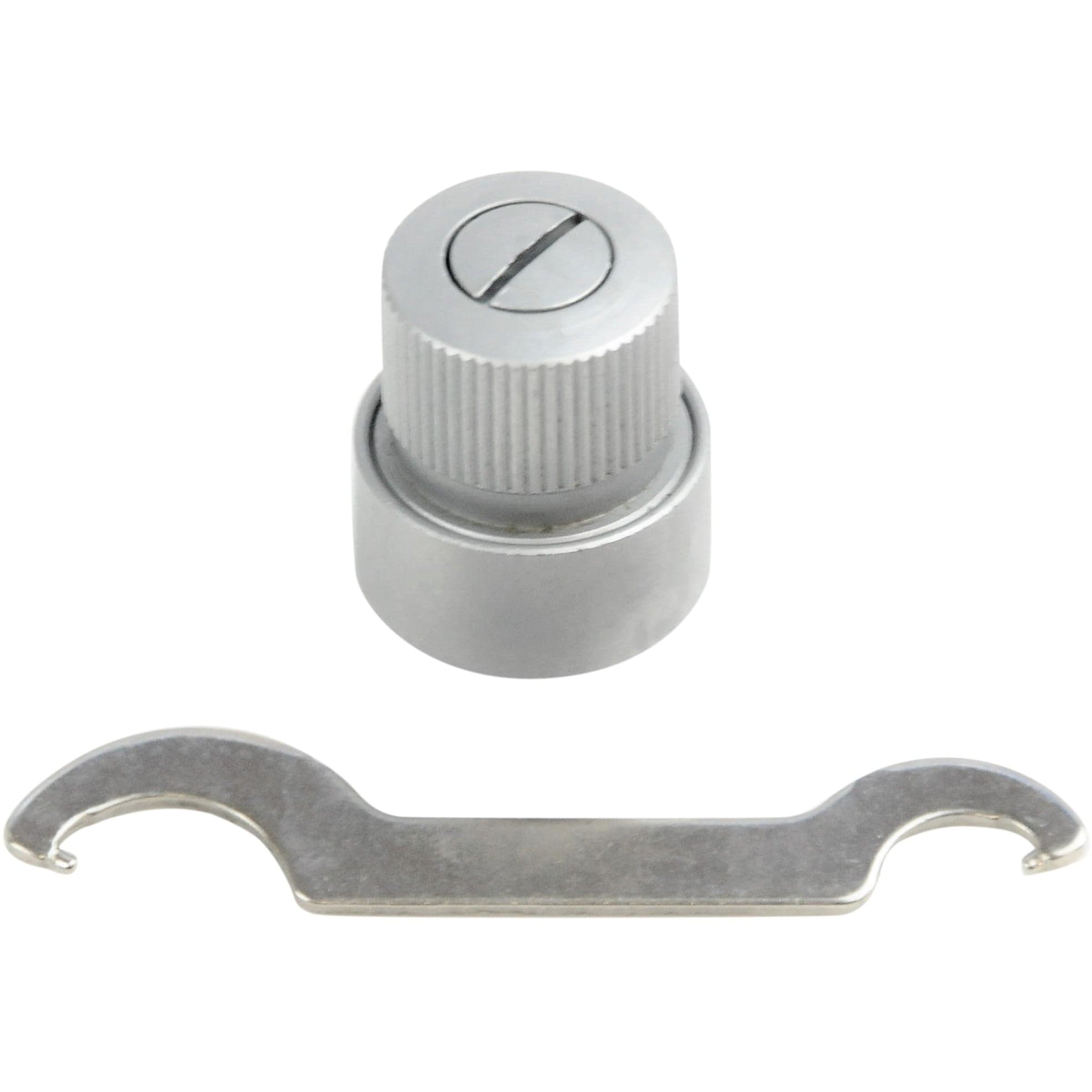

- Zero adjusting wrench
- Insize 3206-24 outside micrometer (20–24" range)
- Full set of calibration rods
- Full set of interchangeable anvils
- Custom-styled protective case
Built for durability and precision, this Insize outside micrometer is ideal for professionals who require dependable measurement of large external dimensions. Its robust construction and interchangeable anvil design make it a versatile and reliable tool for high-accuracy inspection and workshop use.
