Description

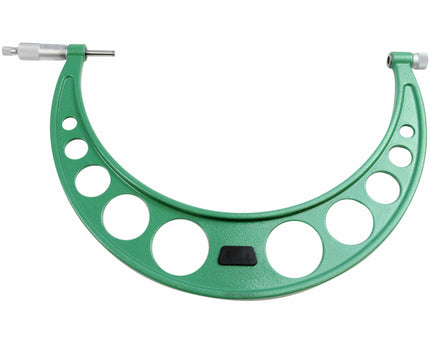

Insize 28–32" Outside Micrometer
The Insize 28–32" Outside Micrometer is a heavy-duty precision measuring instrument designed for accurate external measurement of large components. Built for industrial inspection and machining environments, this micrometer features an interchangeable anvil system, robust frame construction, and precision-ground measuring components to ensure reliable accuracy and repeatability over extended measuring ranges.

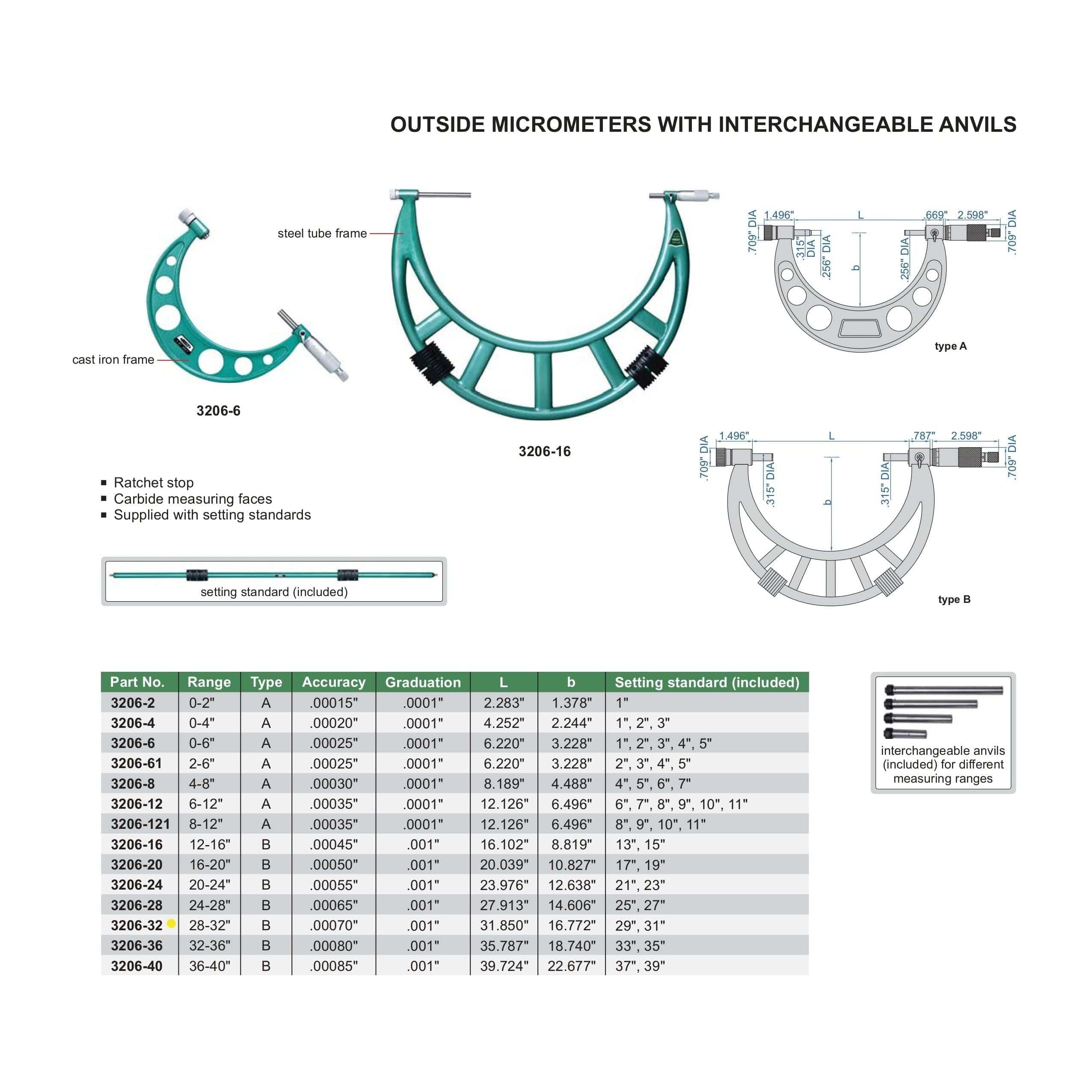

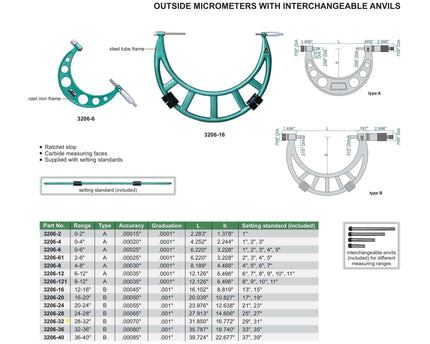

Specifications :
- Part No.: 3206-32
- Measuring range: 28–32"
- Graduation: 0.001"
- Accuracy: 0.00070"
- Overall length (L): 31.850"
- Frame depth (B): 16.772"
- Type: B
- Interchangeable anvil system for multiple measuring ranges

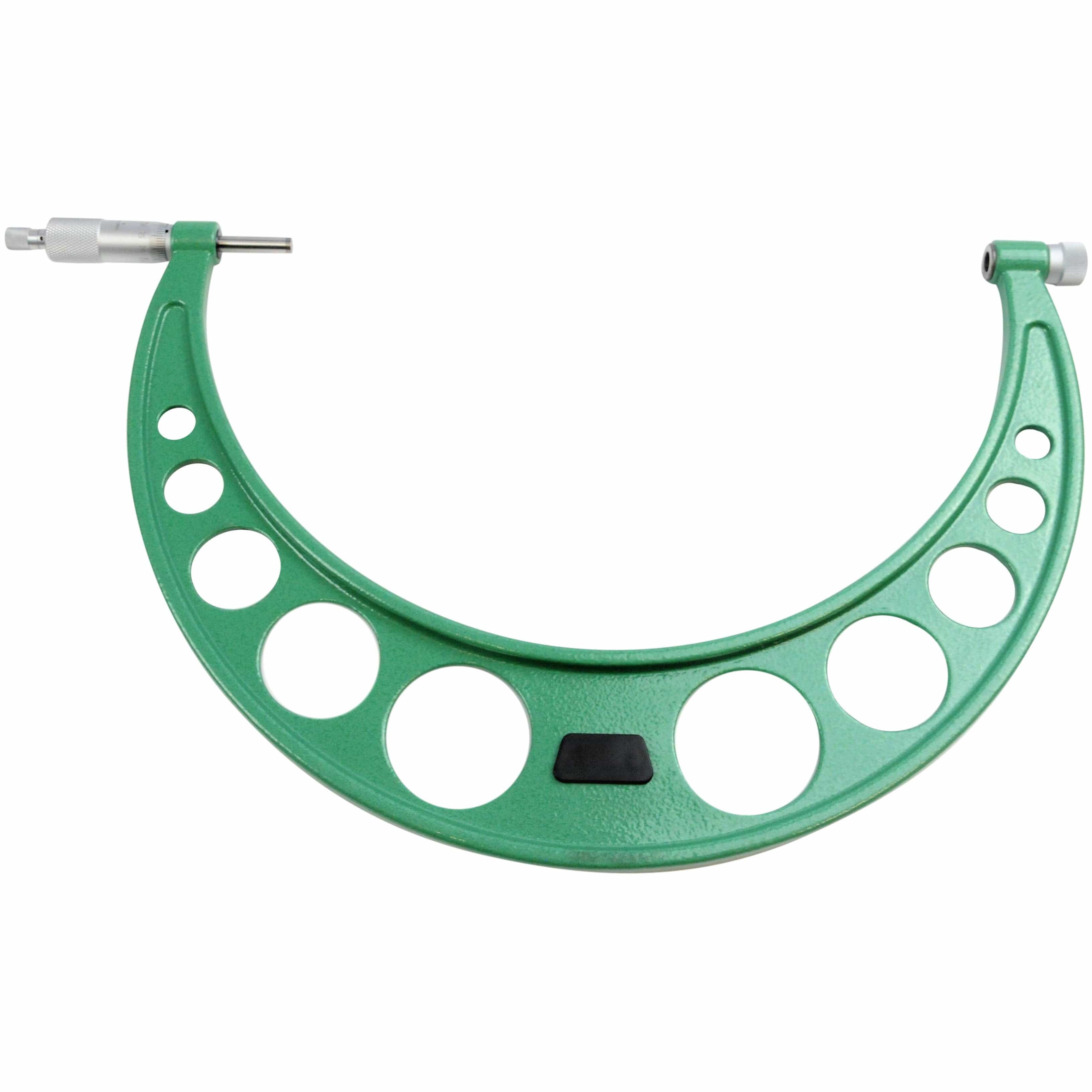

- Cast iron frame combined with steel tube construction for rigidity and stability
- Spindle thread hardened, ground, and lapped for high accuracy and smooth movement
- Carbide measuring faces for superior wear resistance and long service life

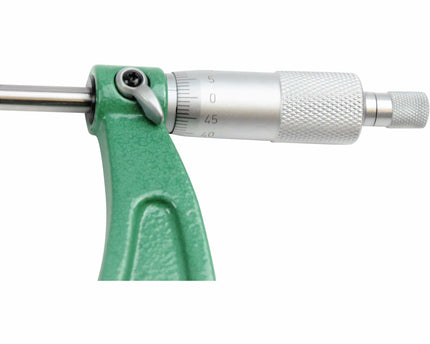

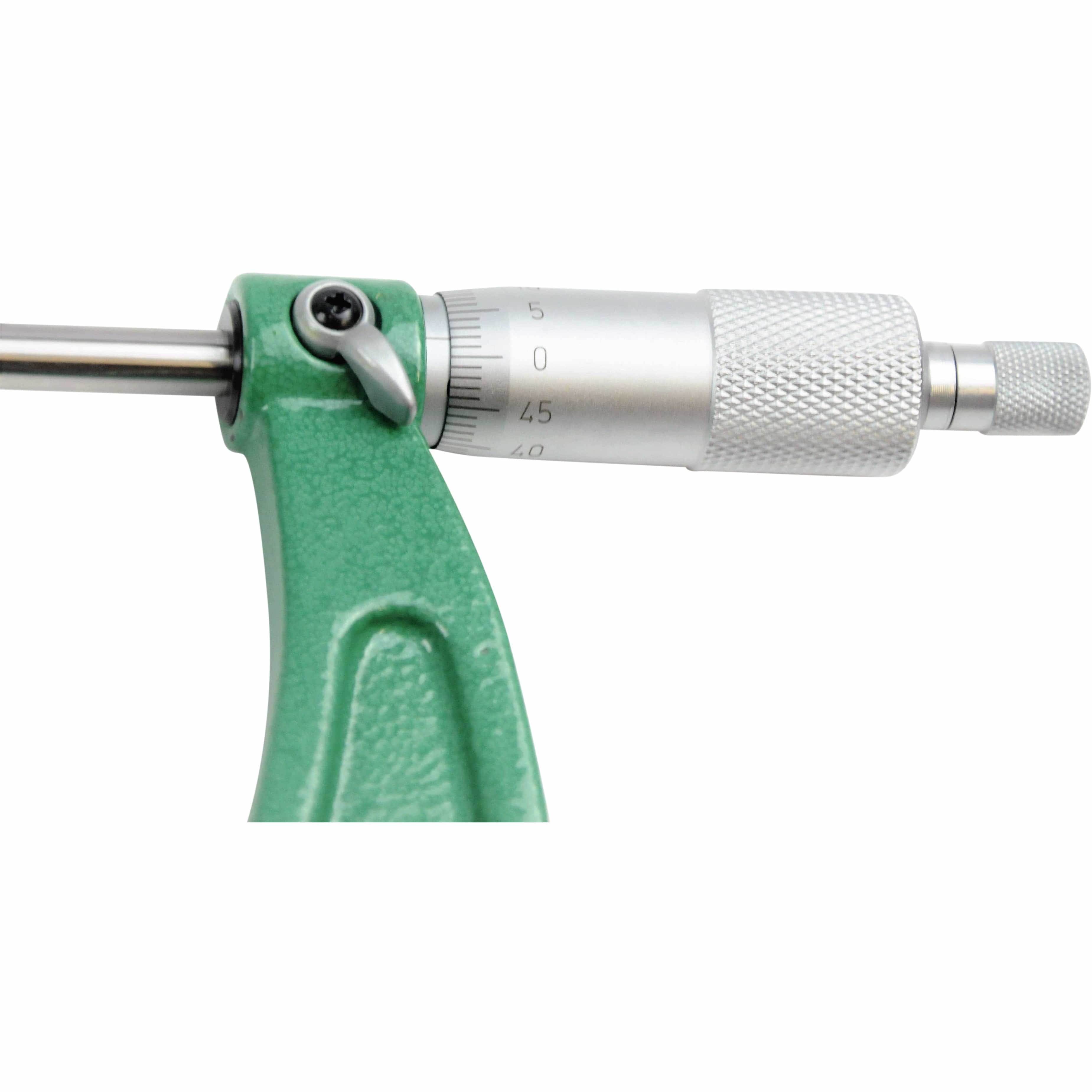

- Ratchet stop to provide consistent measuring pressure
- Designed for imperial measurement applications

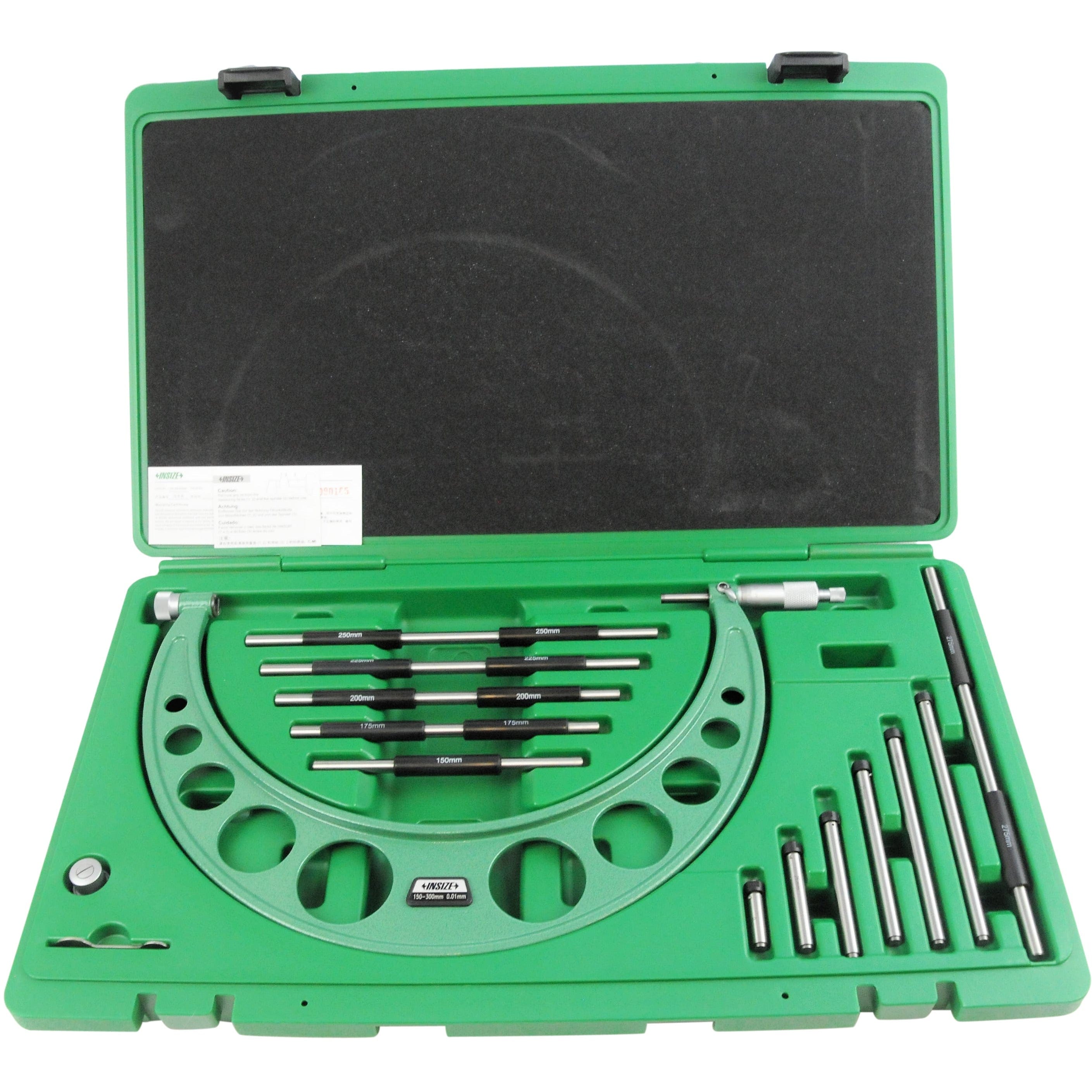

Includes

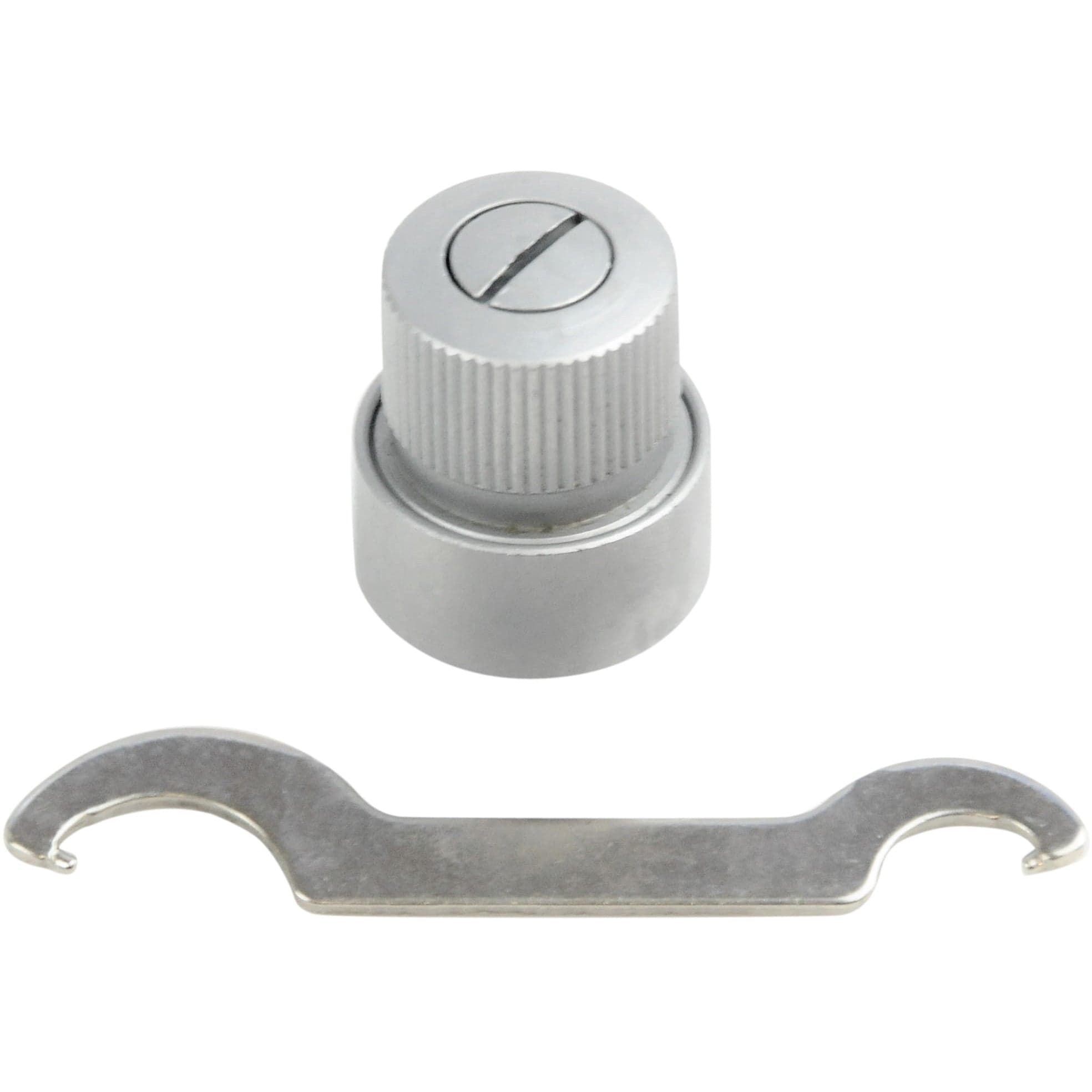

- Zero adjusting wrench
- Insize 3206-32 outside micrometer body (28–32" range)
- Setting standards: 29" and 31"
- Full set of calibration rods
- Full set of interchangeable anvils
- Custom-styled protective case
Designed for durability and precision, the Insize 28–32" Outside Micrometer is well-suited to workshops, inspection departments, and manufacturing environments that require dependable measurement of large external dimensions. Its interchangeable anvil system and comprehensive accessories make it a versatile solution for demanding measurement tasks.
