Description

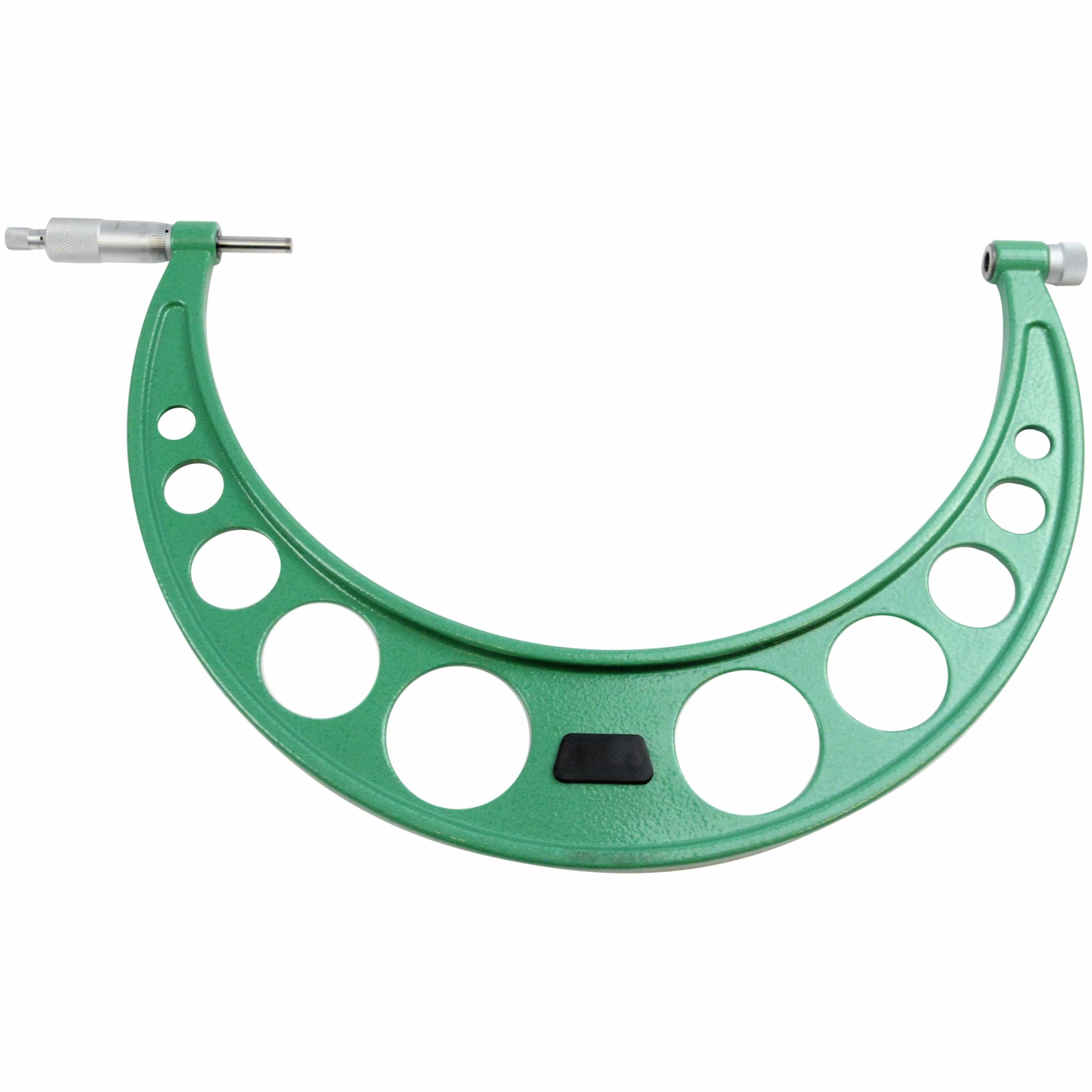

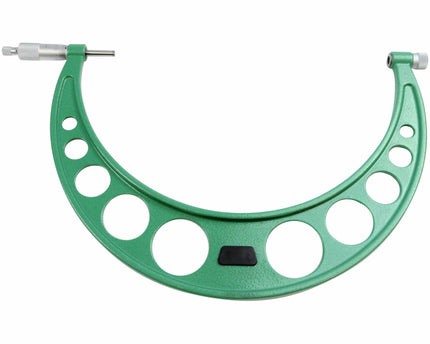

Insize 36–40" Outside Micrometer
The Insize 36–40" Outside Micrometer is a heavy-duty precision measuring instrument designed for accurate external measurement of large components in machining, fabrication, and inspection environments. Featuring an interchangeable anvil system and a rigid frame construction, it delivers consistent accuracy, repeatability, and long service life in demanding industrial applications.

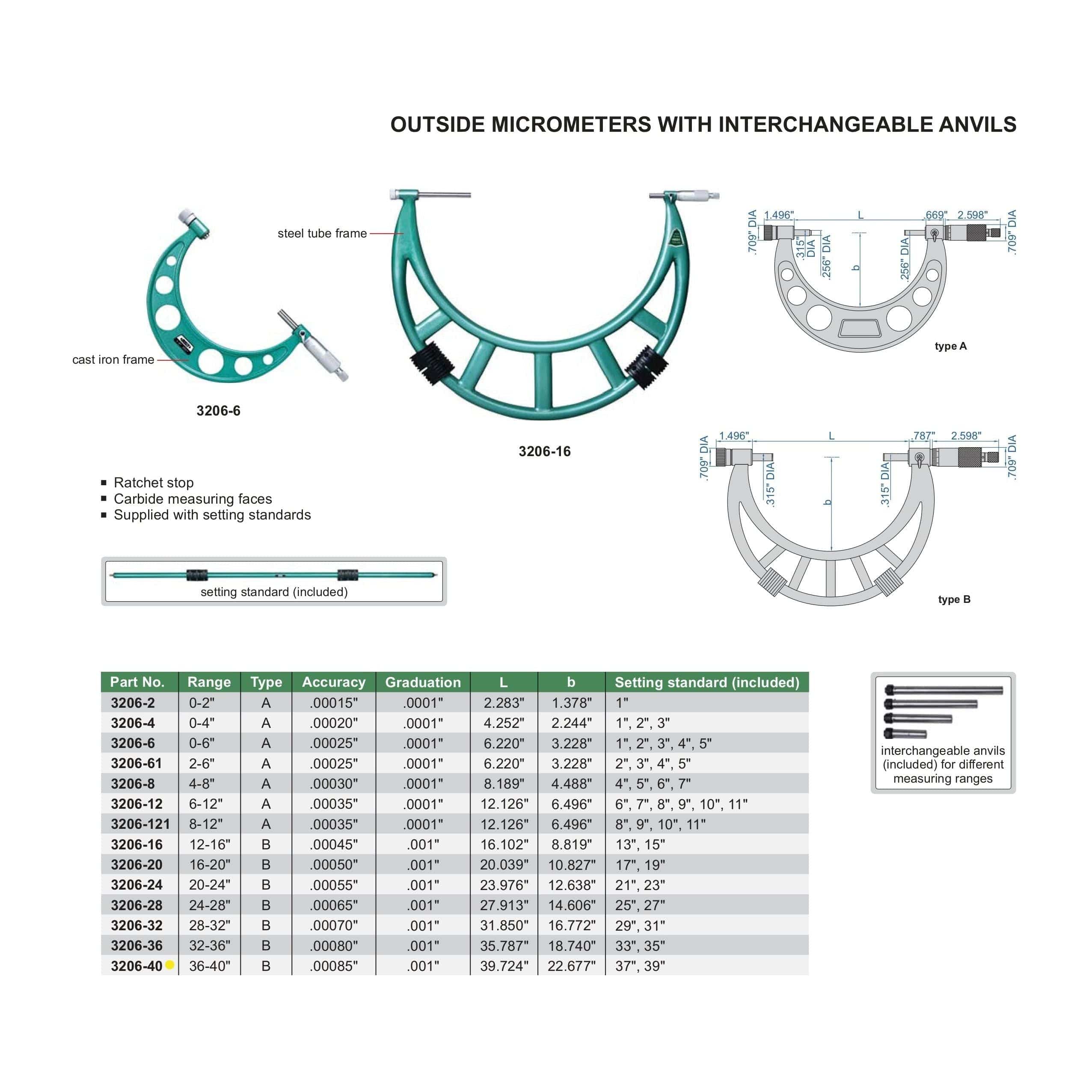

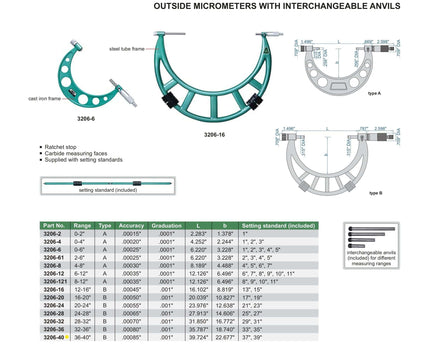

Specifications :
- Part No.: 3206-40
- Measuring range: 36–40"
- Graduation: 0.001"
- Accuracy: 0.00085"

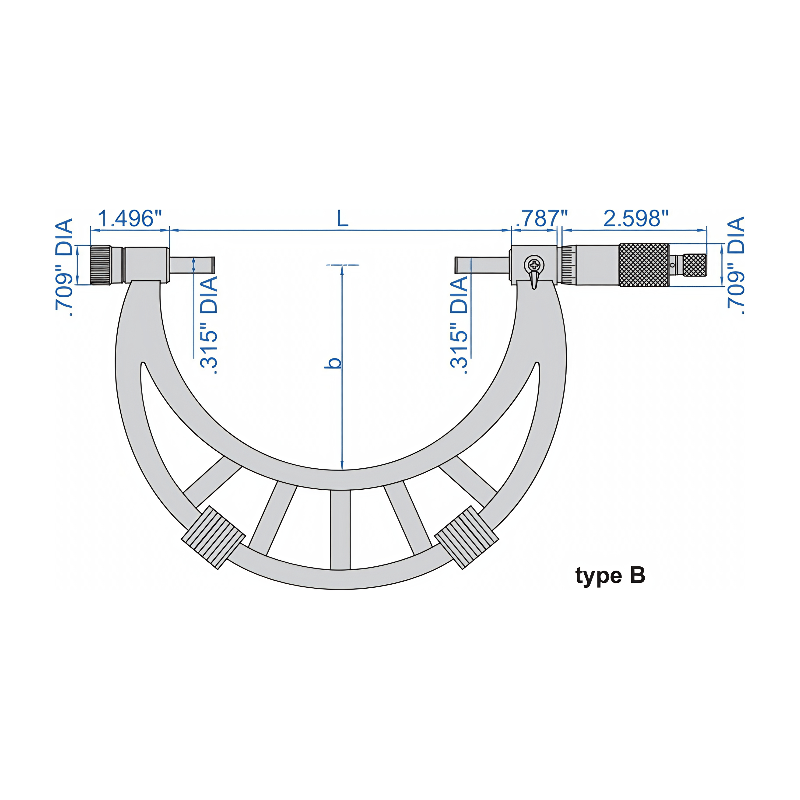

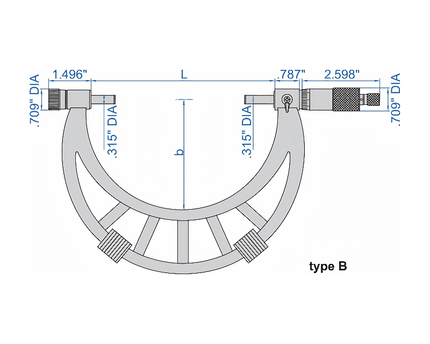

- Overall length (L): 39.724"
- Frame depth (B): 22.677"
- Type: B
- Interchangeable anvil system for extended measuring capability
- Cast iron frame with steel tube construction for high rigidity and stability

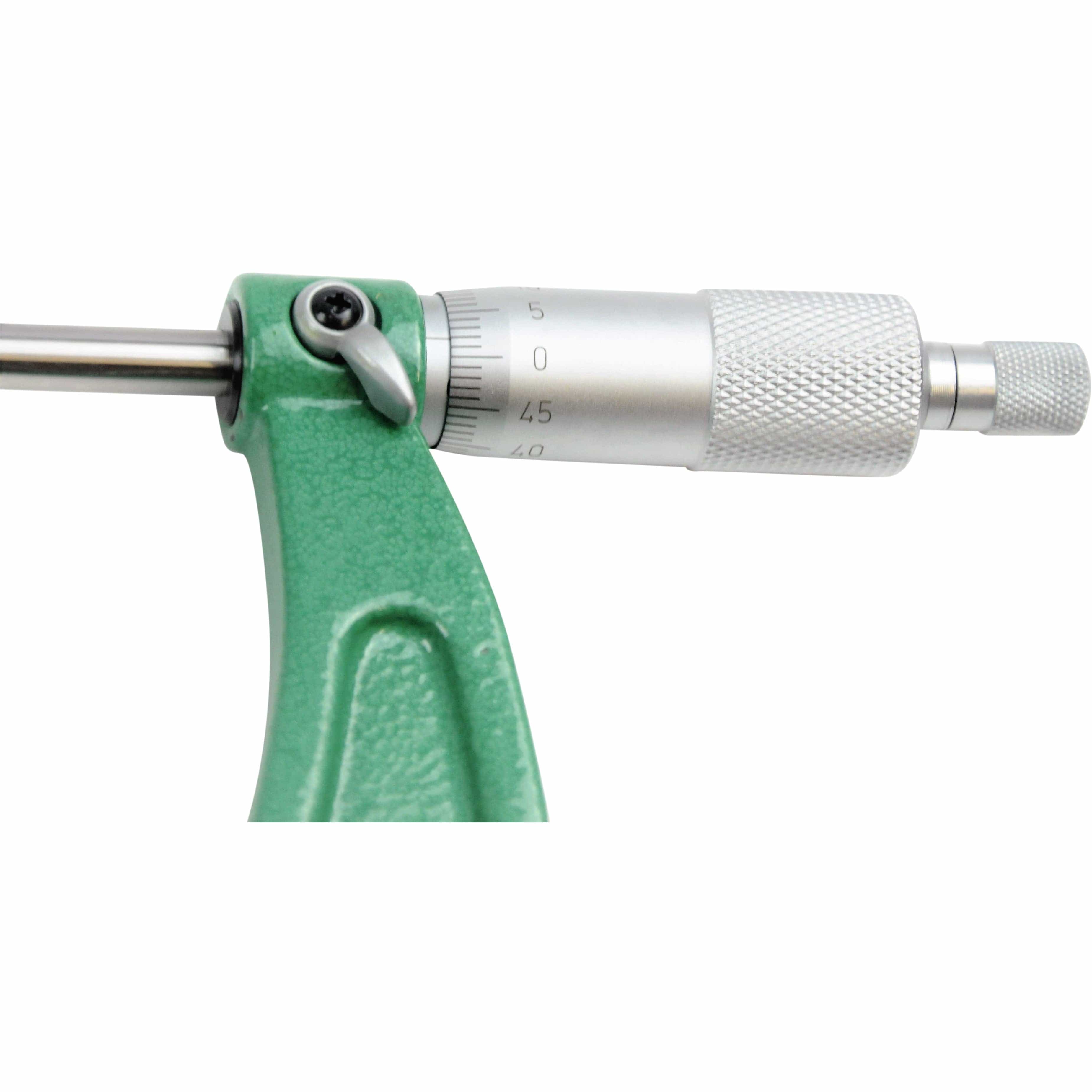

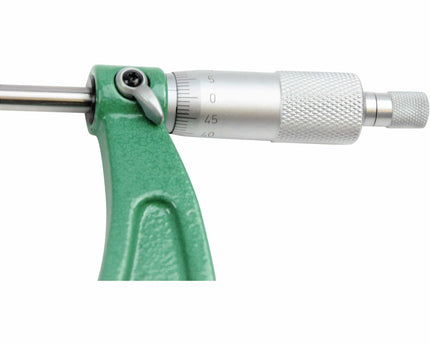

- Spindle thread hardened, ground, and lapped for smooth, precise operation
- Carbide measuring faces for excellent wear resistance and long service life
- Ratchet stop to ensure consistent and repeatable measuring pressure
- Designed for imperial measurement applications

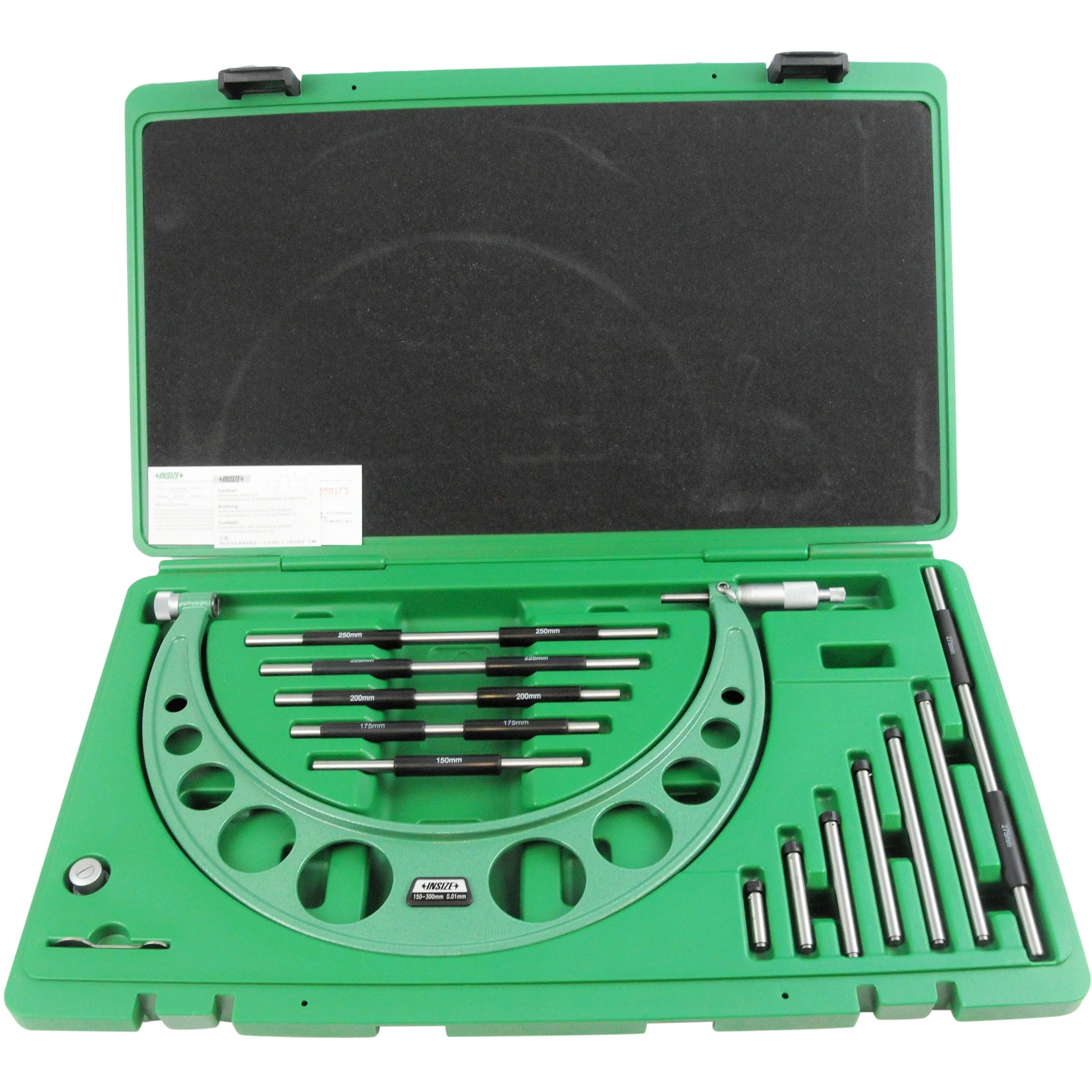

Includes

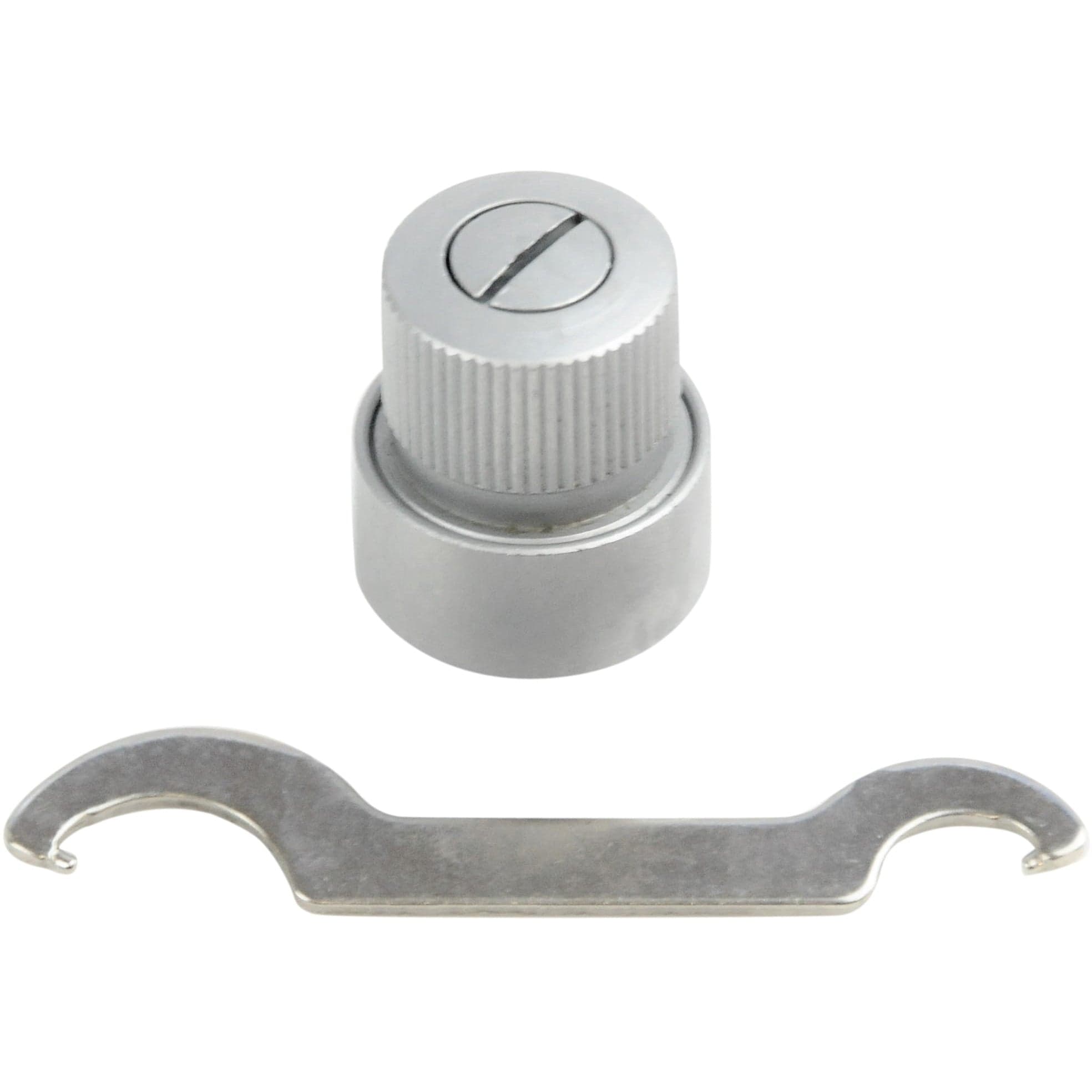

- Zero adjusting wrench
- Insize 3206-40 outside micrometer body (36–40" range)
- Setting standards: 37" and 39"
- Full set of calibration rods
- Full set of interchangeable anvils
- Custom-styled protective case
Engineered for precision measurement of large external dimensions, the Insize 36–40" Outside Micrometer provides reliable performance for workshops and inspection departments that demand accuracy, durability, and versatility across extended measuring ranges.
