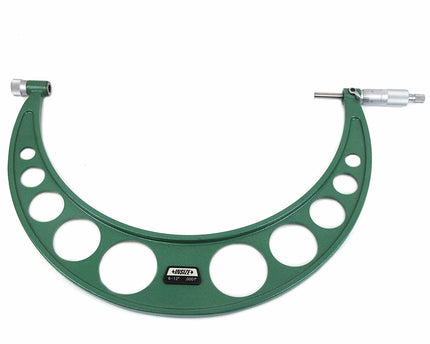

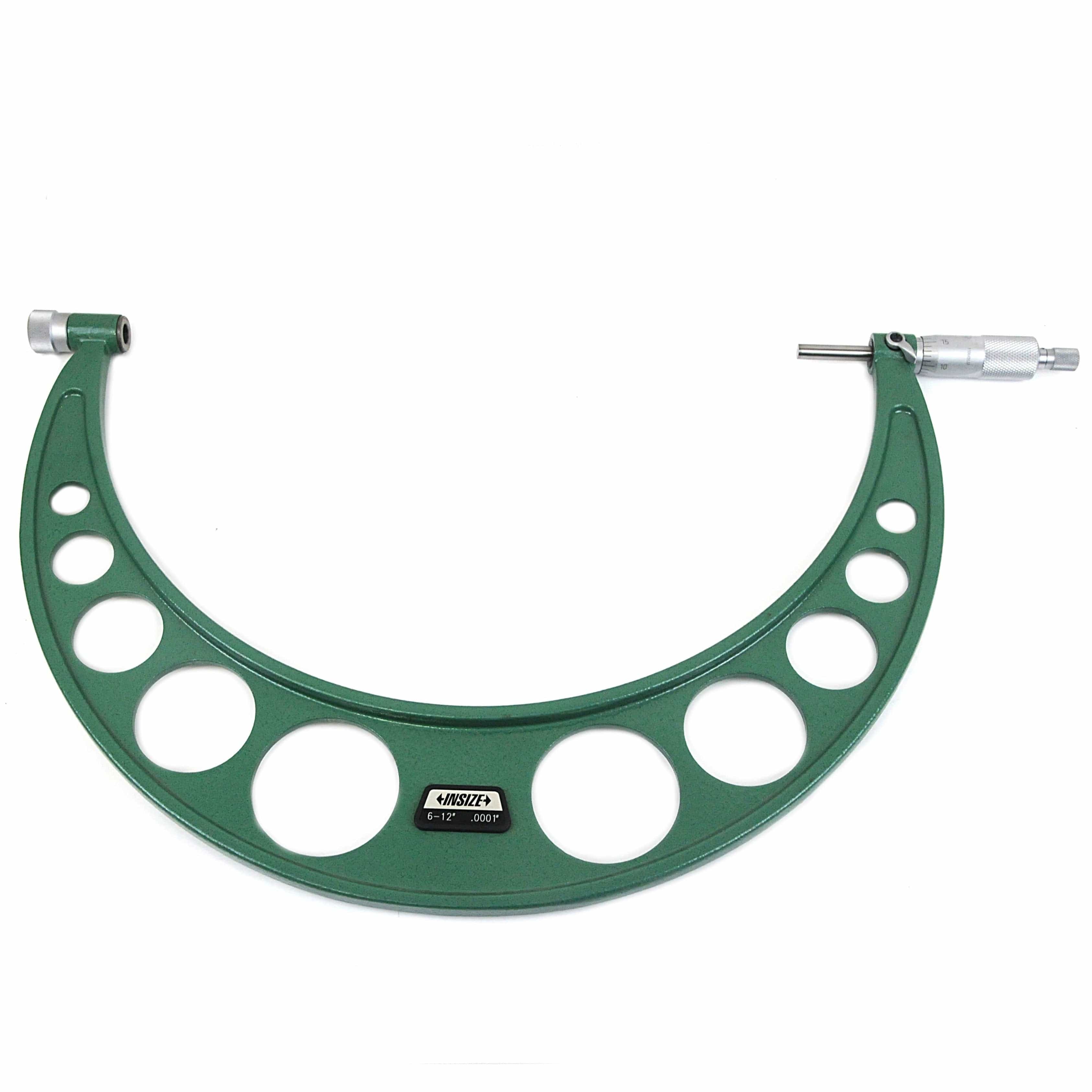

Insize 6–12" Outside Micrometer
The Insize 6–12" Outside Micrometer is a robust precision measuring instrument engineered for accurate external measurement of large components. Designed for professional machining, fabrication, and inspection environments, it combines high accuracy with a rigid construction to ensure reliable and repeatable results across its full measuring range.

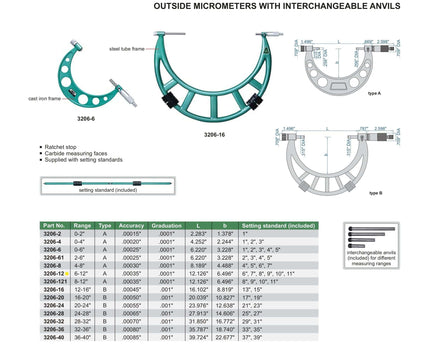

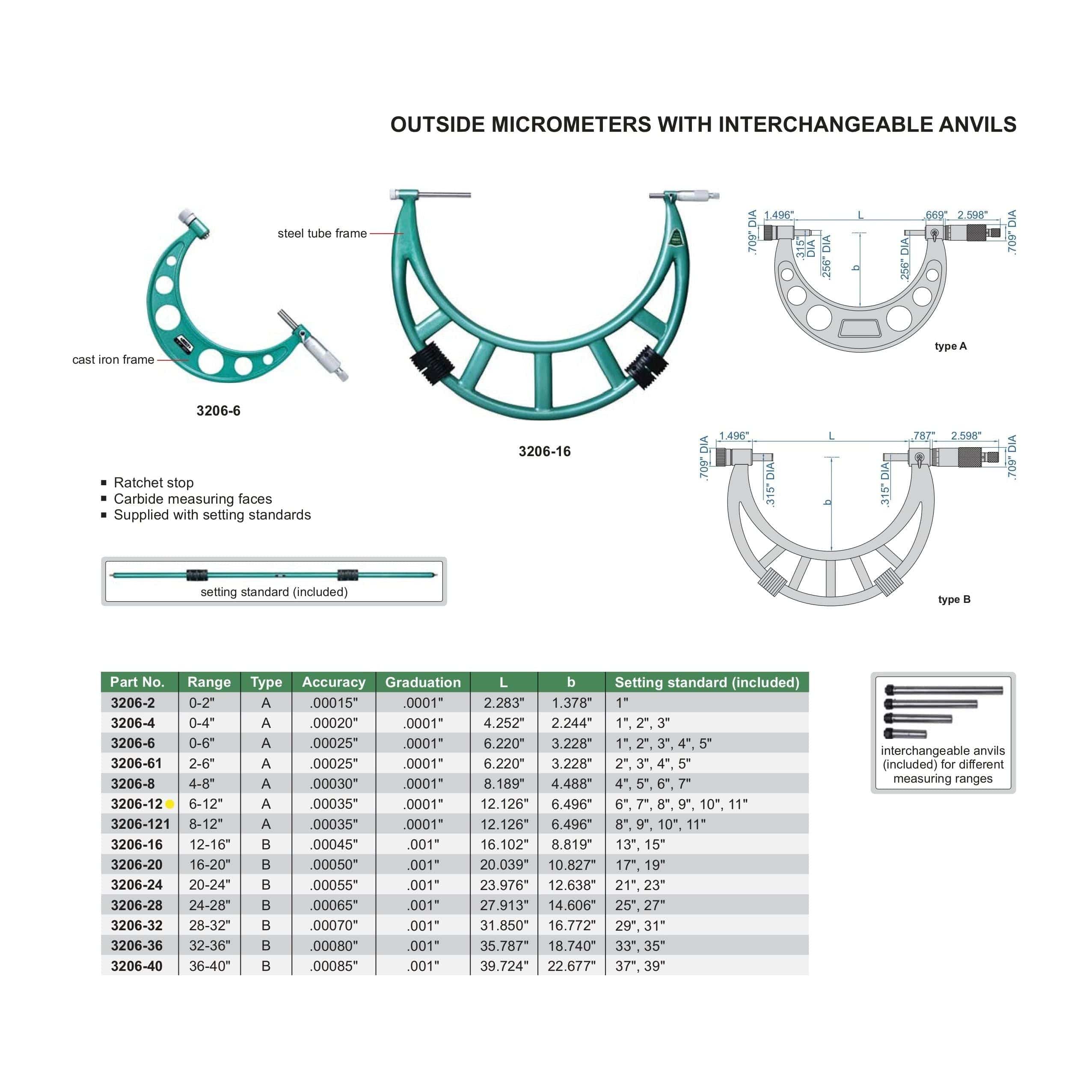

Specifications :
- Part No.: 3206-12
- Measuring range: 6–12"
- Graduation: 0.0001"
- Accuracy: ±0.00035"

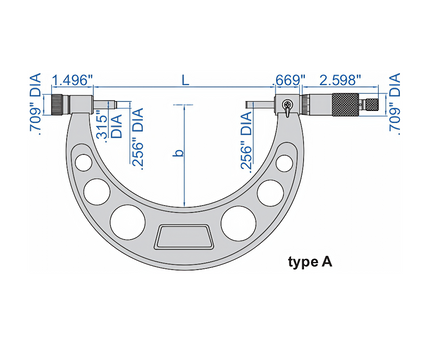

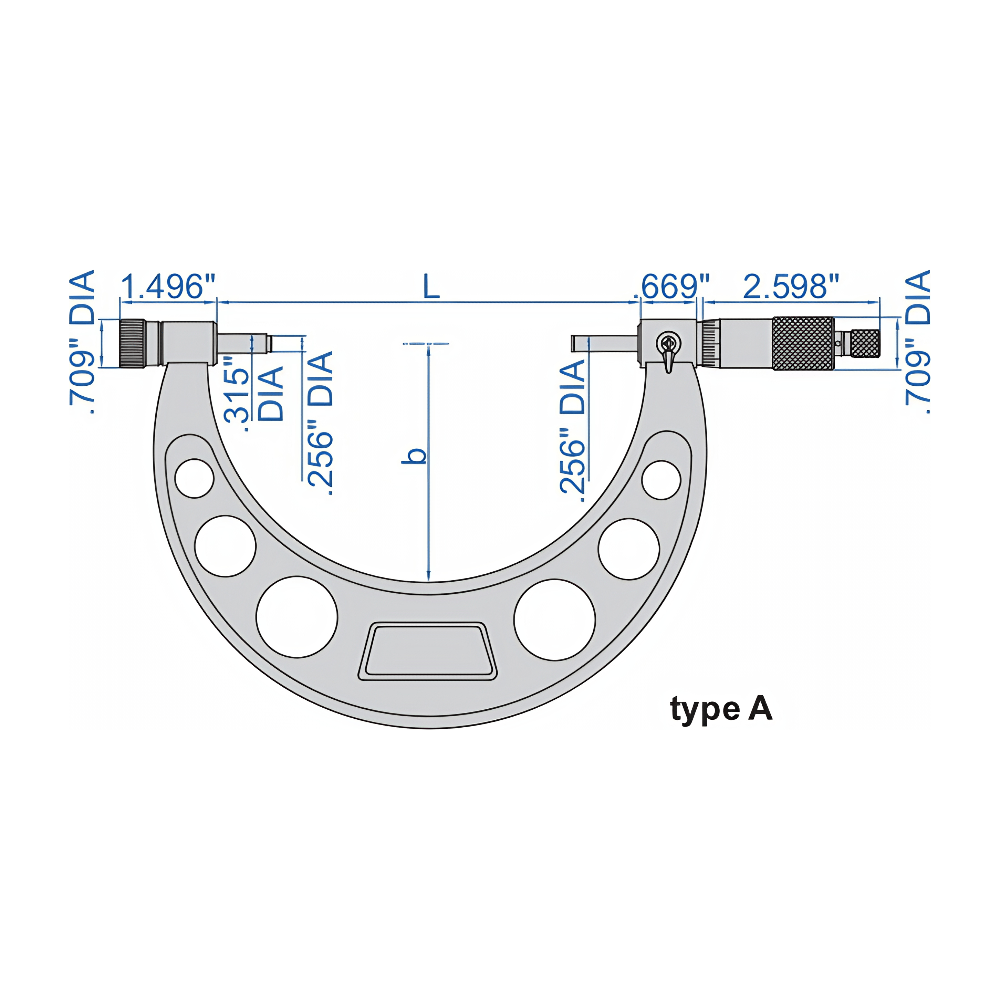

- Type: A
- Overall length (L): 12.126"
- Frame depth (B): 6.496"

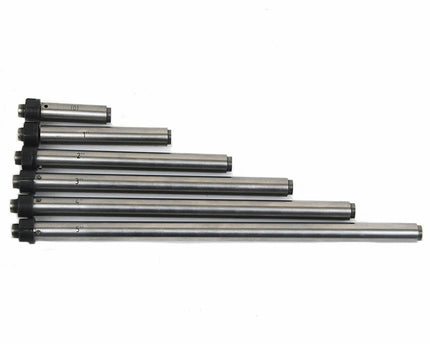

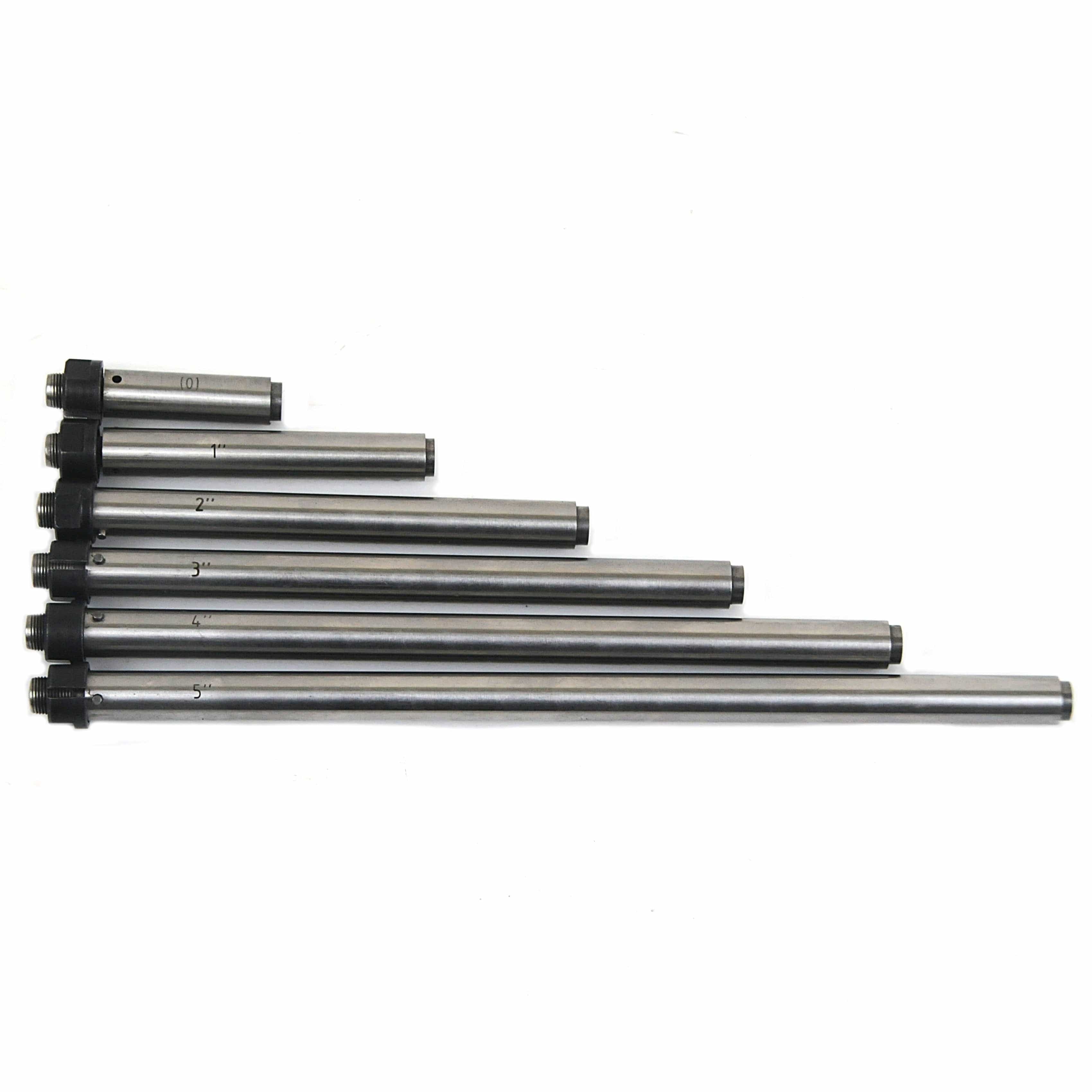

- Interchangeable anvil system for multiple measuring ranges

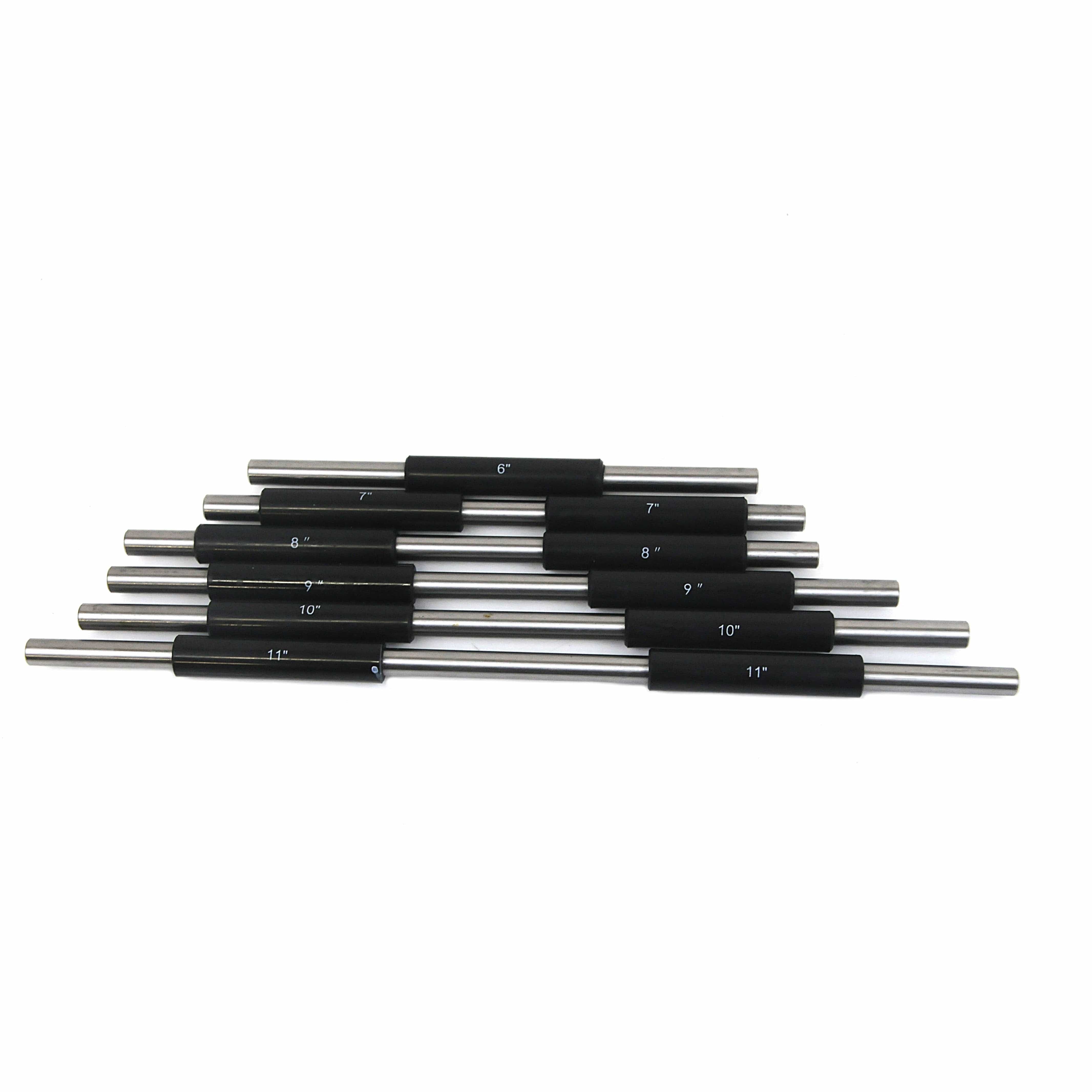

- Setting standards included: 6", 7", 8", 9", 10", 11"
- Rigid cast iron frame combined with steel tube construction for stability
- Carbide measuring faces for excellent wear resistance and long service life
- Ratchet stop to ensure consistent measuring pressure
- Designed for precise measurement of large external dimensions

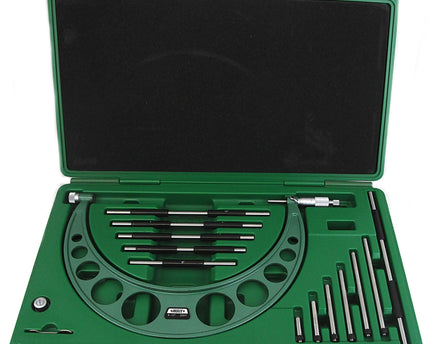

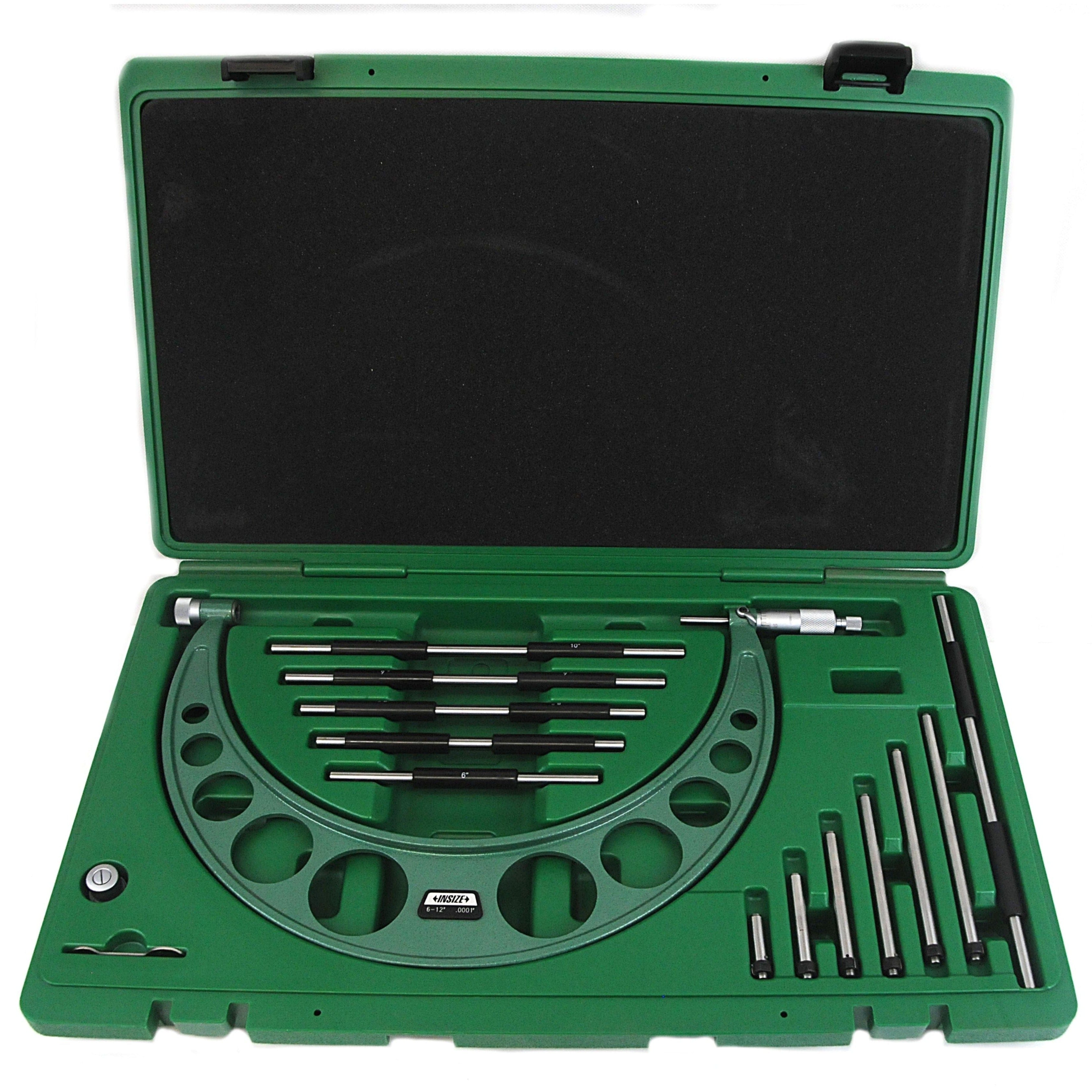

Includes
- Zero adjusting wrench
- Insize 3206-12 outside micrometer (6–12" range, 0.0001" graduation)
- Full set of calibration rods
- Full set of interchangeable anvils
- Custom-styled protective case
Built for durability and precision, this Insize outside micrometer is an essential measuring tool for applications requiring accurate control of large external dimensions. It delivers dependable performance and consistent accuracy in demanding workshop and inspection conditions.
