Insize 4 Piece Outside Micrometer Set
The Insize 4 Piece Outside Micrometer Set is a high-quality precision measuring solution designed for accurate external measurement across a wide range of sizes. Manufactured in accordance with DIN 863 standards, this set delivers reliable accuracy, smooth operation, and long-term durability, making it ideal for machining, inspection, and quality control applications.

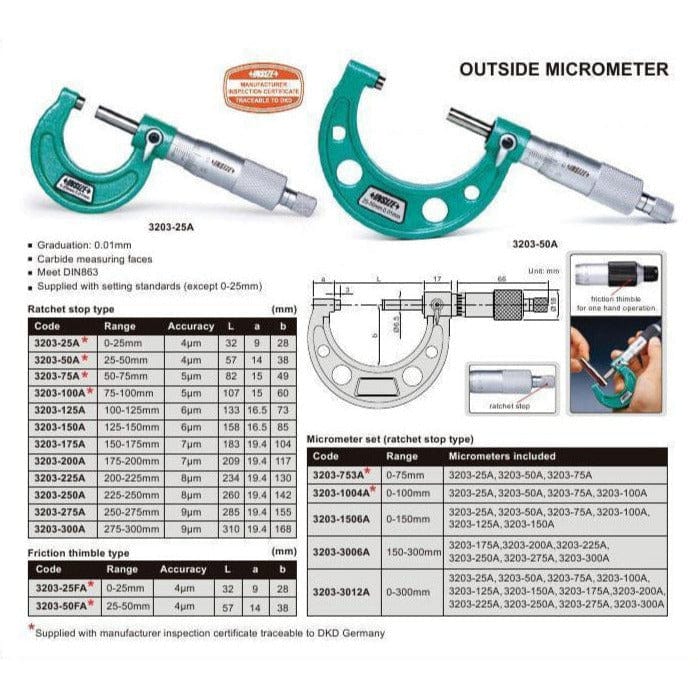

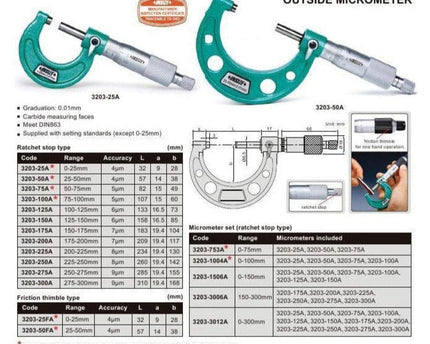

Specifications :
- Part No.: 3203-1004A
- Standard: Strictly made in accordance with DIN 863
- Spindle thread hardened, ground, and lapped for absolute accuracy
- Frame: Baked enamel finish for strength and corrosion resistance
- Barrel and thimble: Satin chrome finish for clear, easy-to-read graduations
- Graduation: 0.01 mm
- Quick feeding mechanism
- Friction thimble for consistent measuring pressure
- Carbide measuring faces for long wear life
- Spindle lock
- Ratchet stop

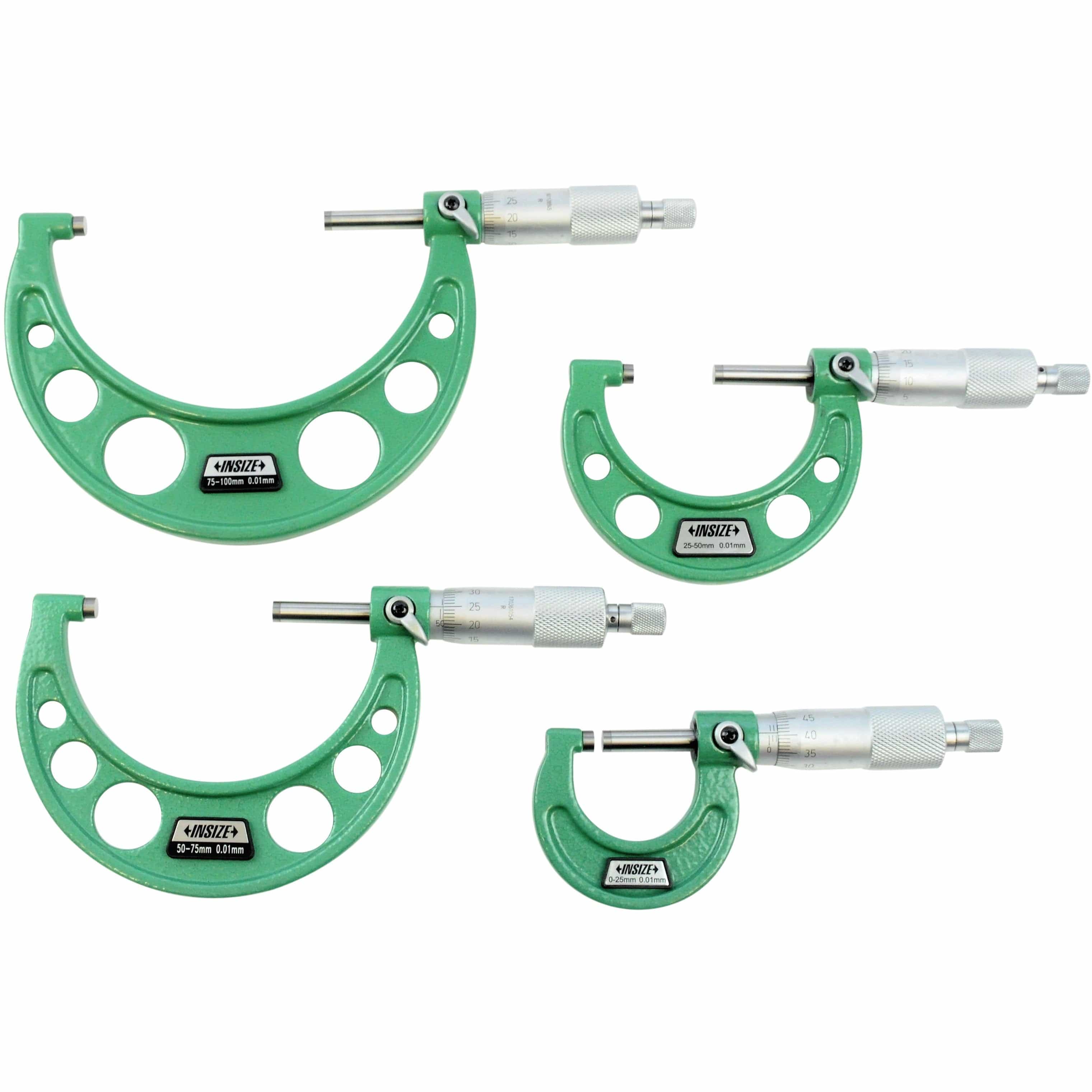

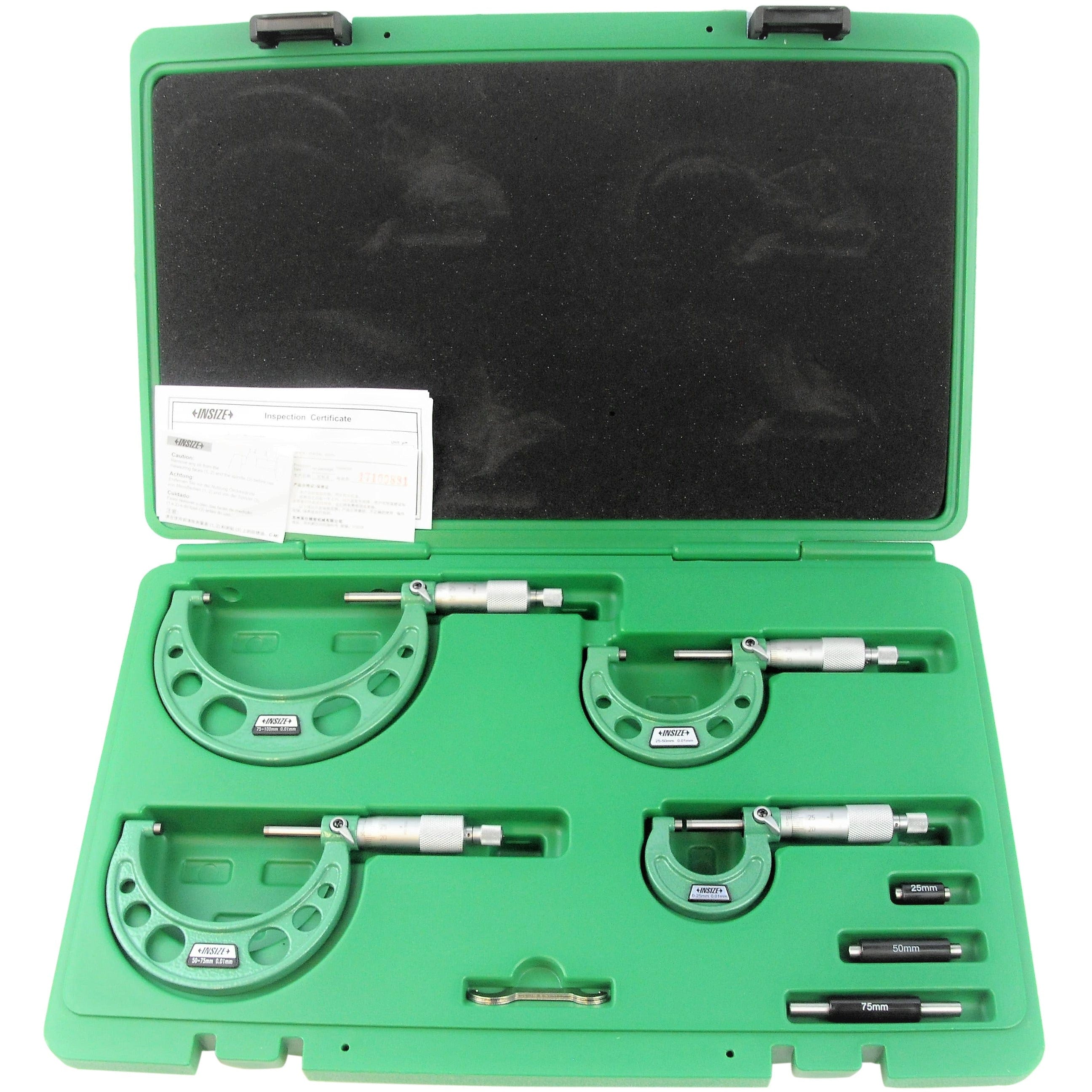

Includes
- Zero adjusting wrench

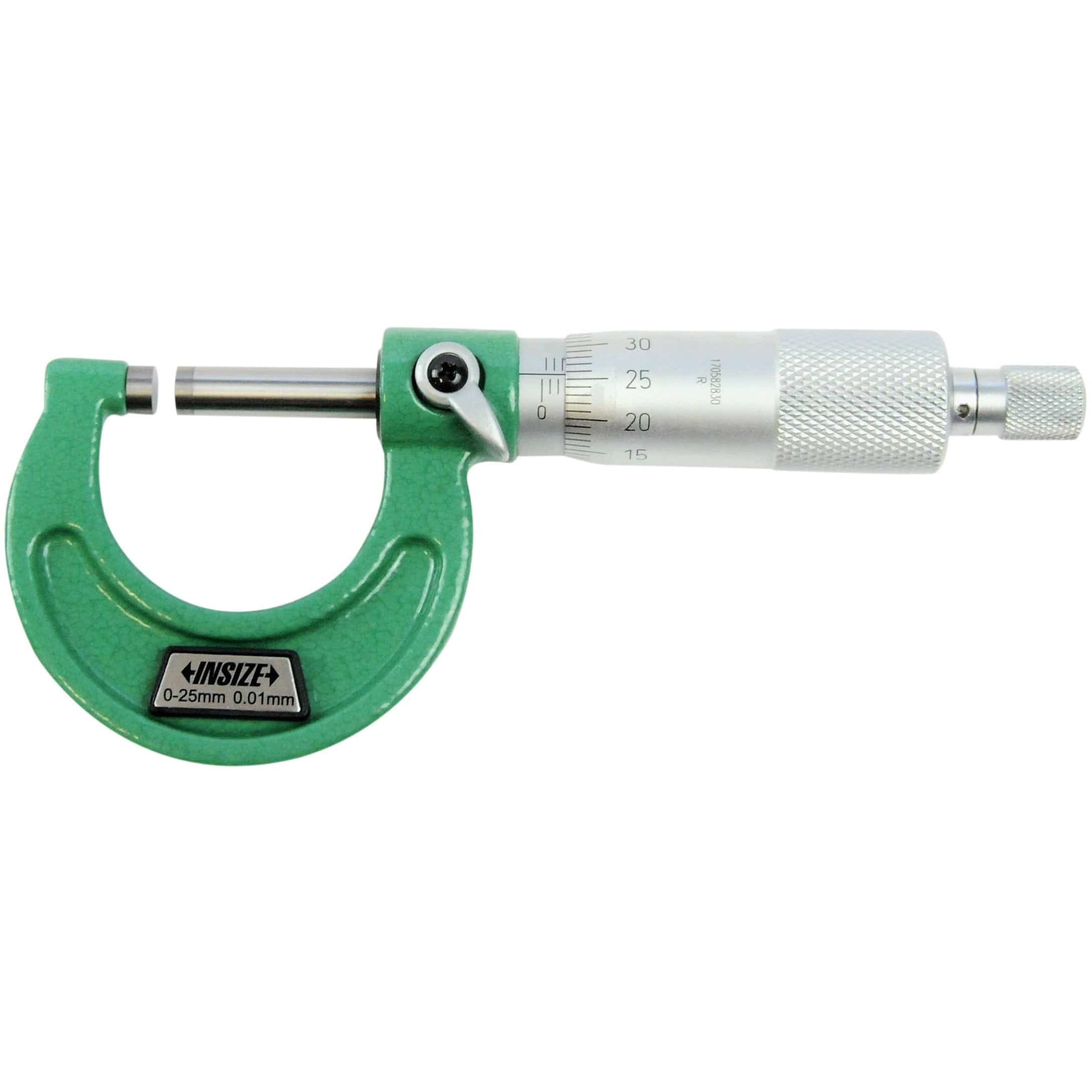

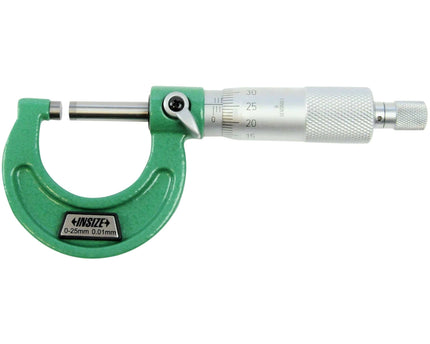

- 3203-25A – 0–25 mm Outside Micrometer

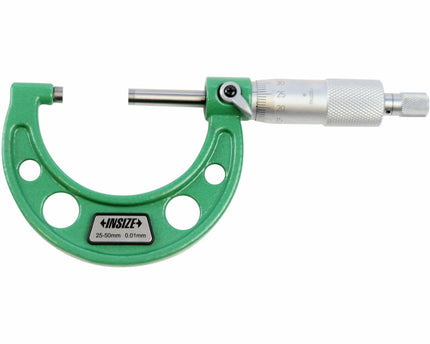

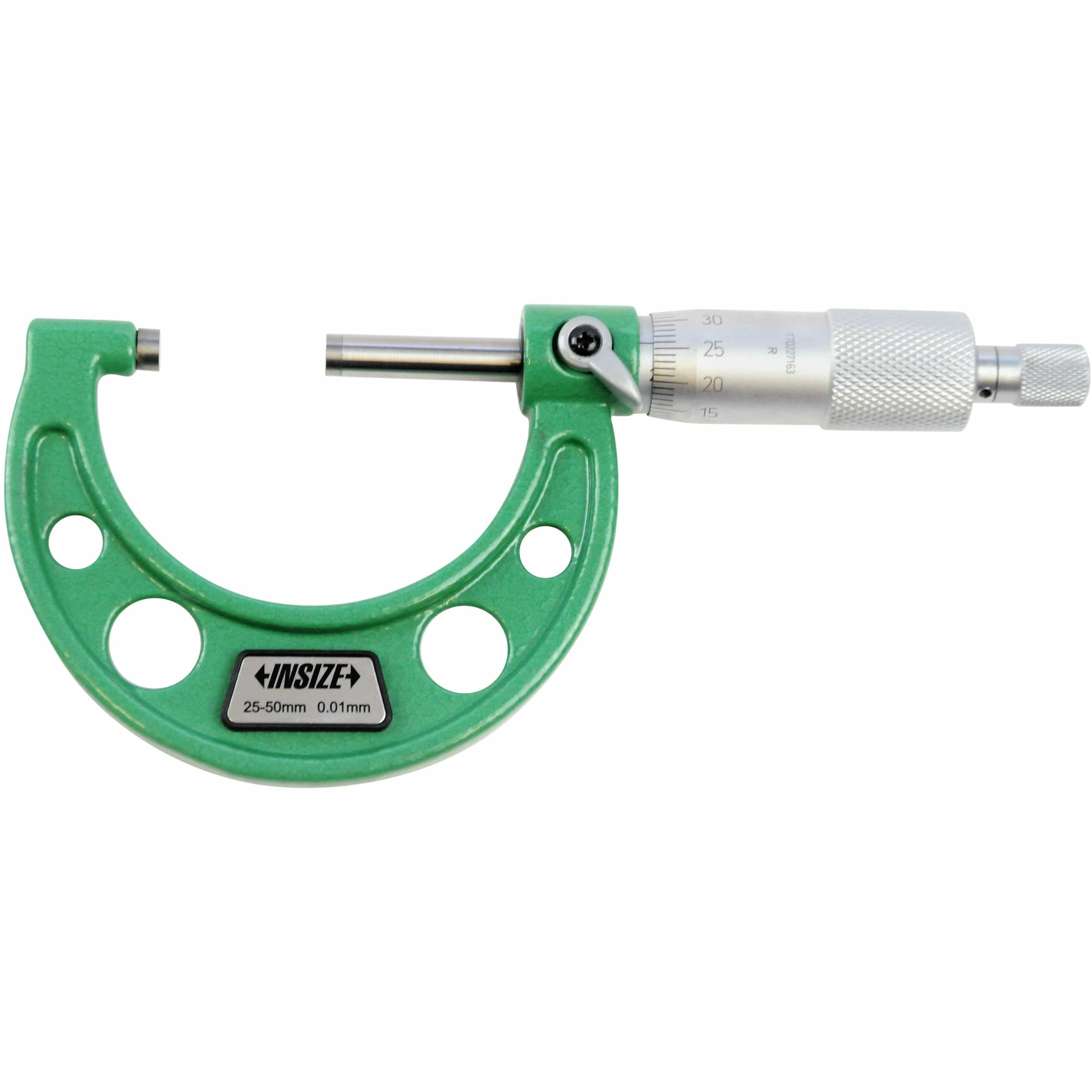

- 3203-50A – 25–50 mm Outside Micrometer

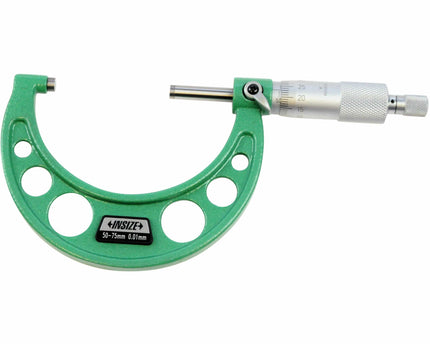

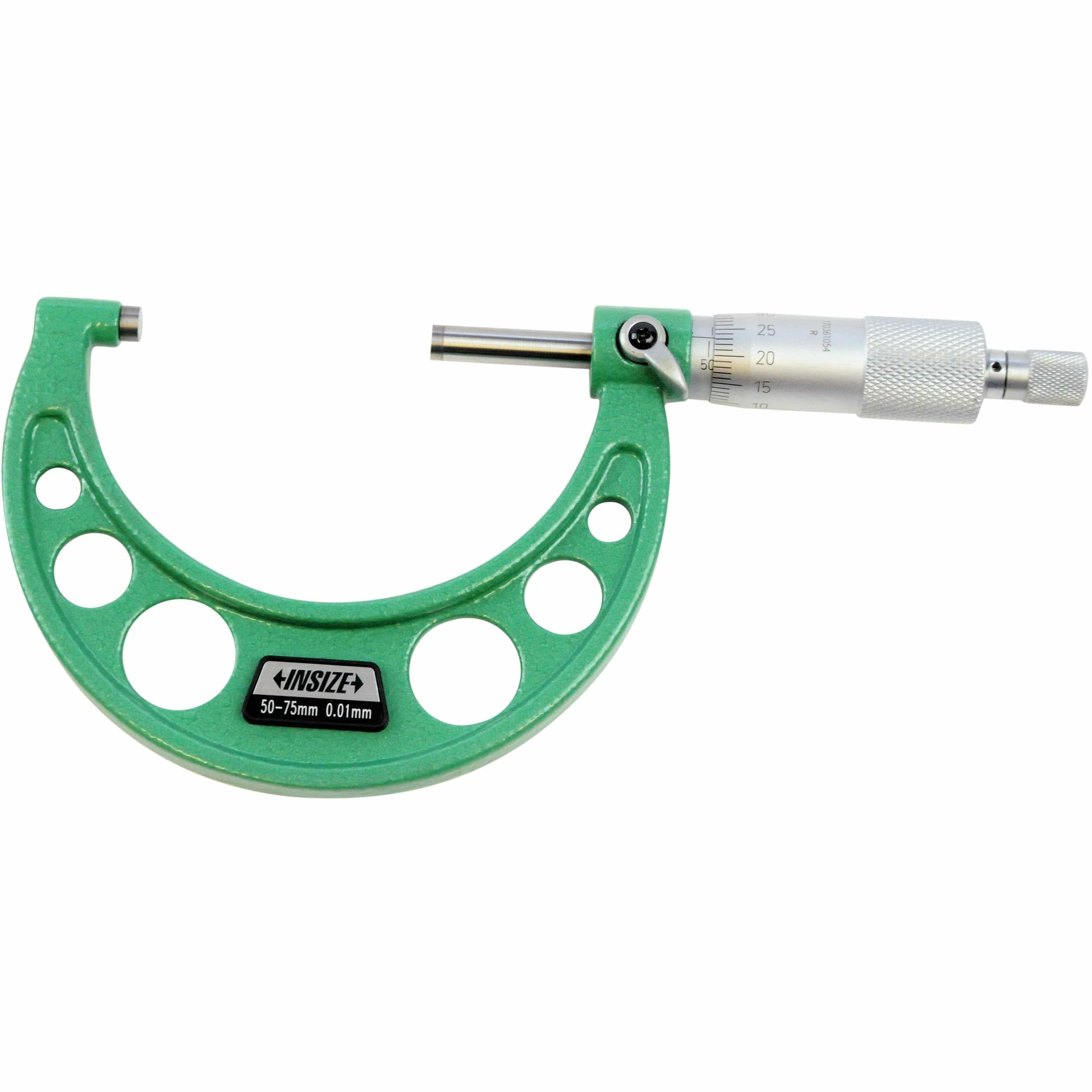

- 3203-75A – 50–75 mm Outside Micrometer

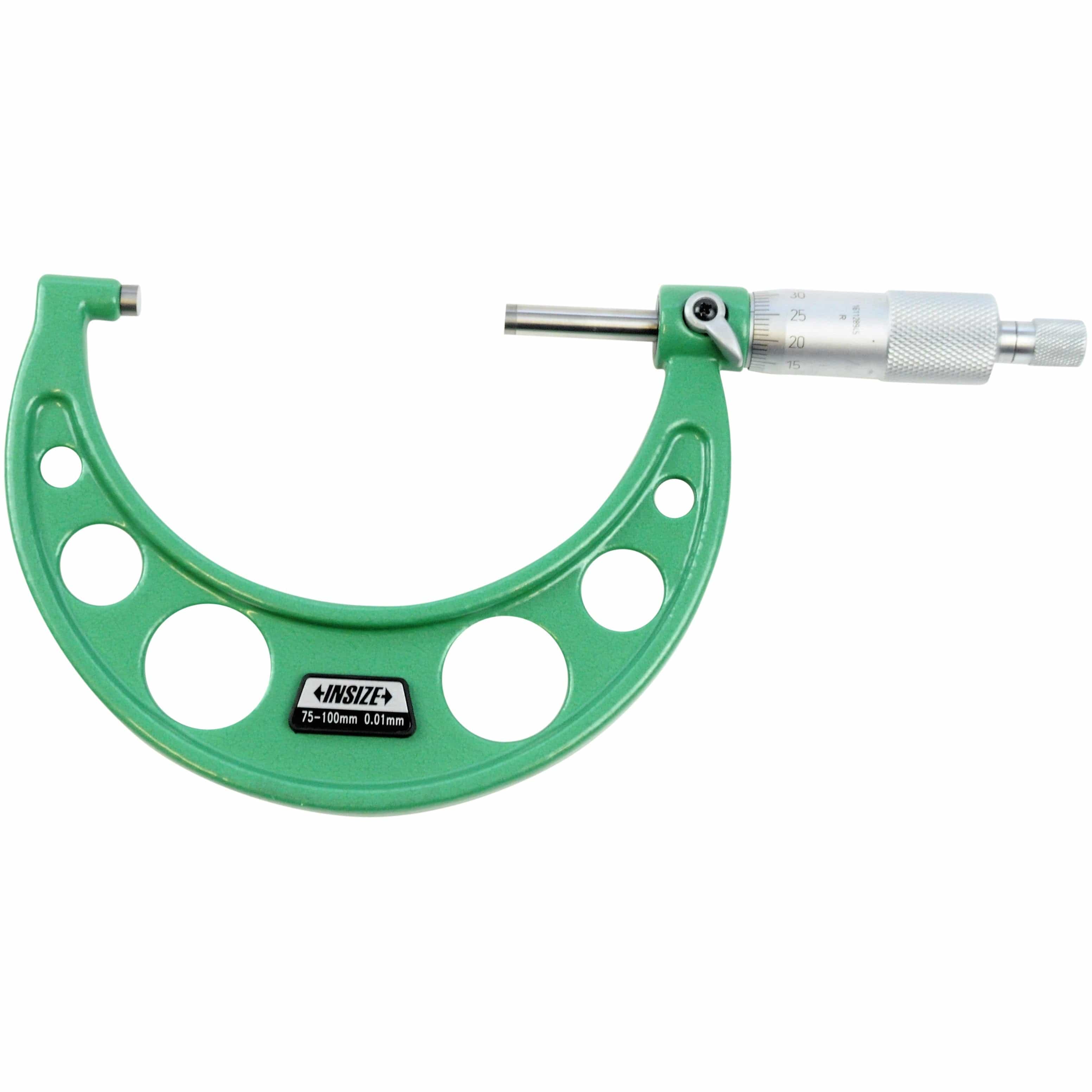

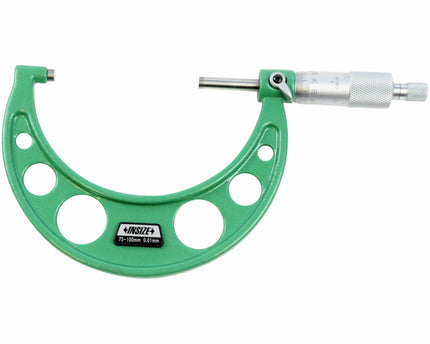

- 3203-100A – 75–100 mm Outside Micrometer

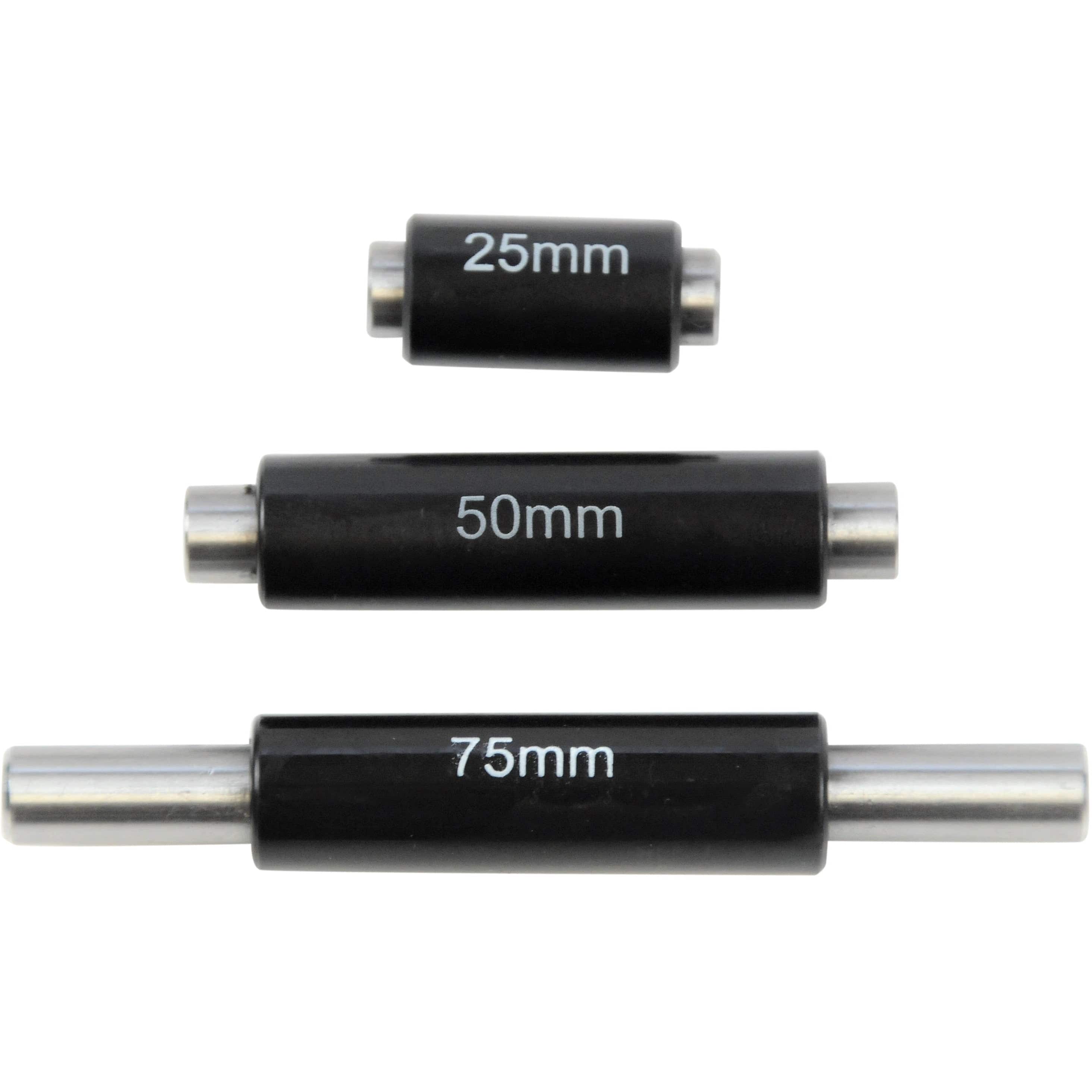

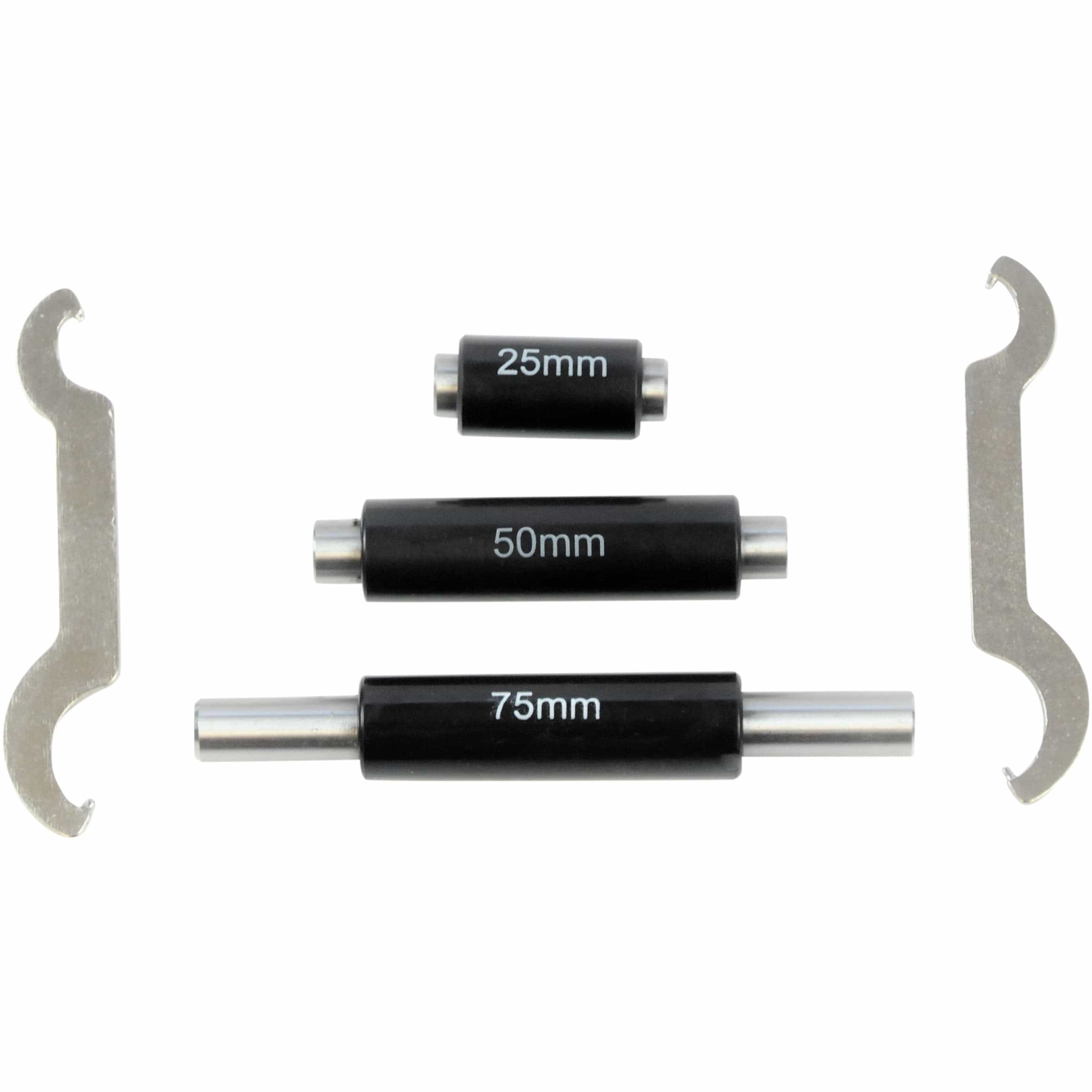

- 25 mm calibration rod
- 50 mm calibration rod
- 75 mm calibration rod

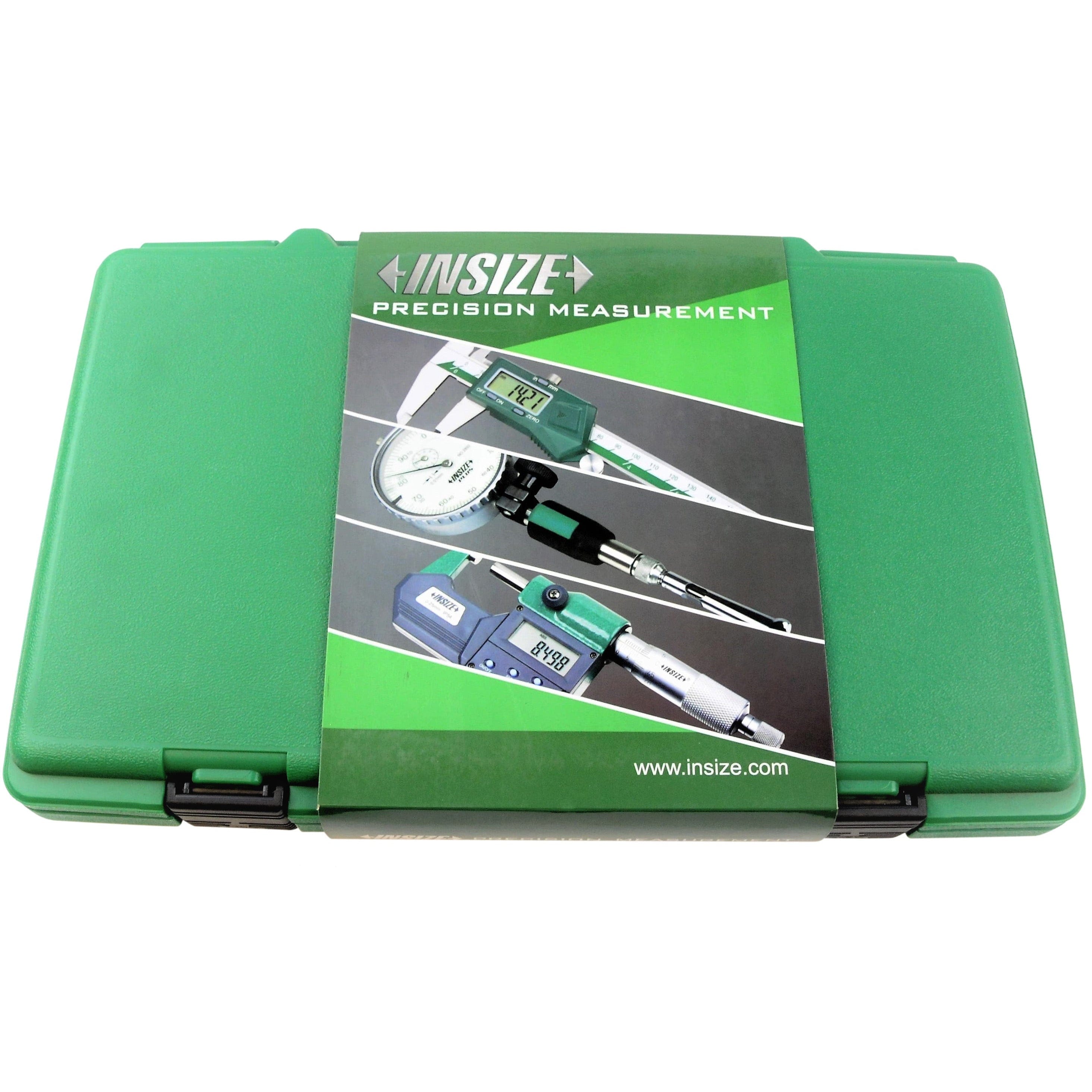

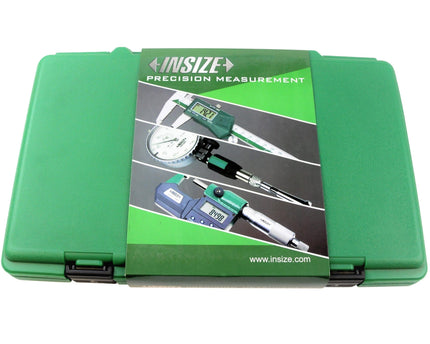

- Housed in a blow-moulded custom-styled case
Well-designed and robust, this Insize micrometer set provides precise and repeatable measurements across multiple size ranges. The combination of quality materials, smooth adjustment, and comprehensive coverage makes it an excellent choice for professional workshops and inspection environments.
