Insize 150–300mm Outside Micrometer Set
The Insize 150–300mm Outside Micrometer Set is a professional-grade measuring solution designed for accurate external measurement of medium to large components. Manufactured in accordance with DIN 863 standards, this set combines precision-ground components, a robust frame design, and an interchangeable anvil system to deliver reliable accuracy, repeatability, and long service life in workshop and inspection environments.

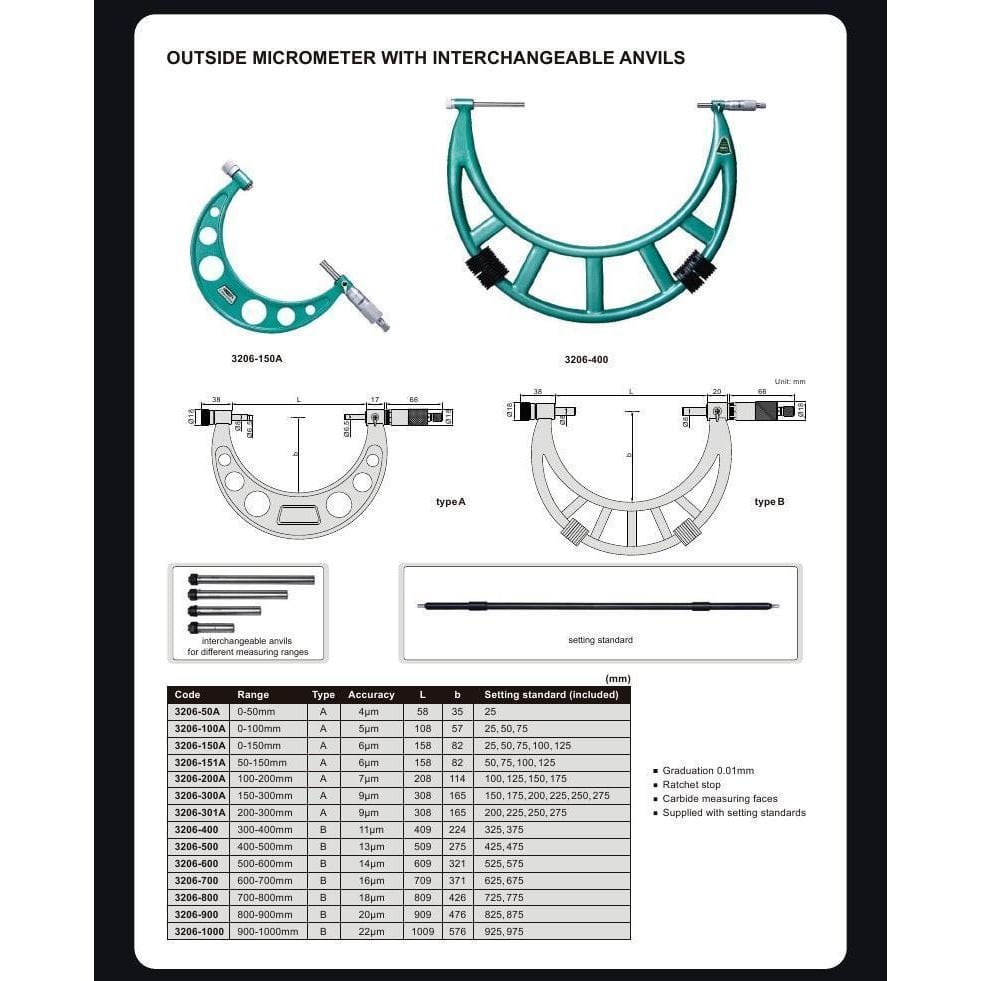

Specifications :
- Part No.: 3206-300A
- Measuring range: 150–300mm
- Manufactured strictly in accordance with DIN 863
- Thimble graduation: 0.01mm
- Spindle thread hardened, ground, and lapped for high accuracy and smooth operation

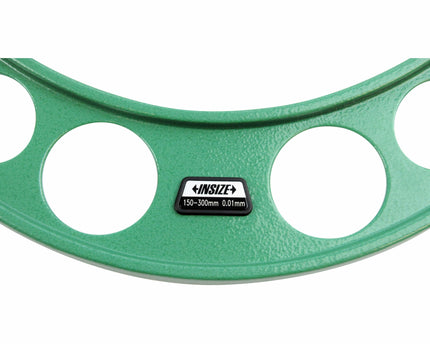

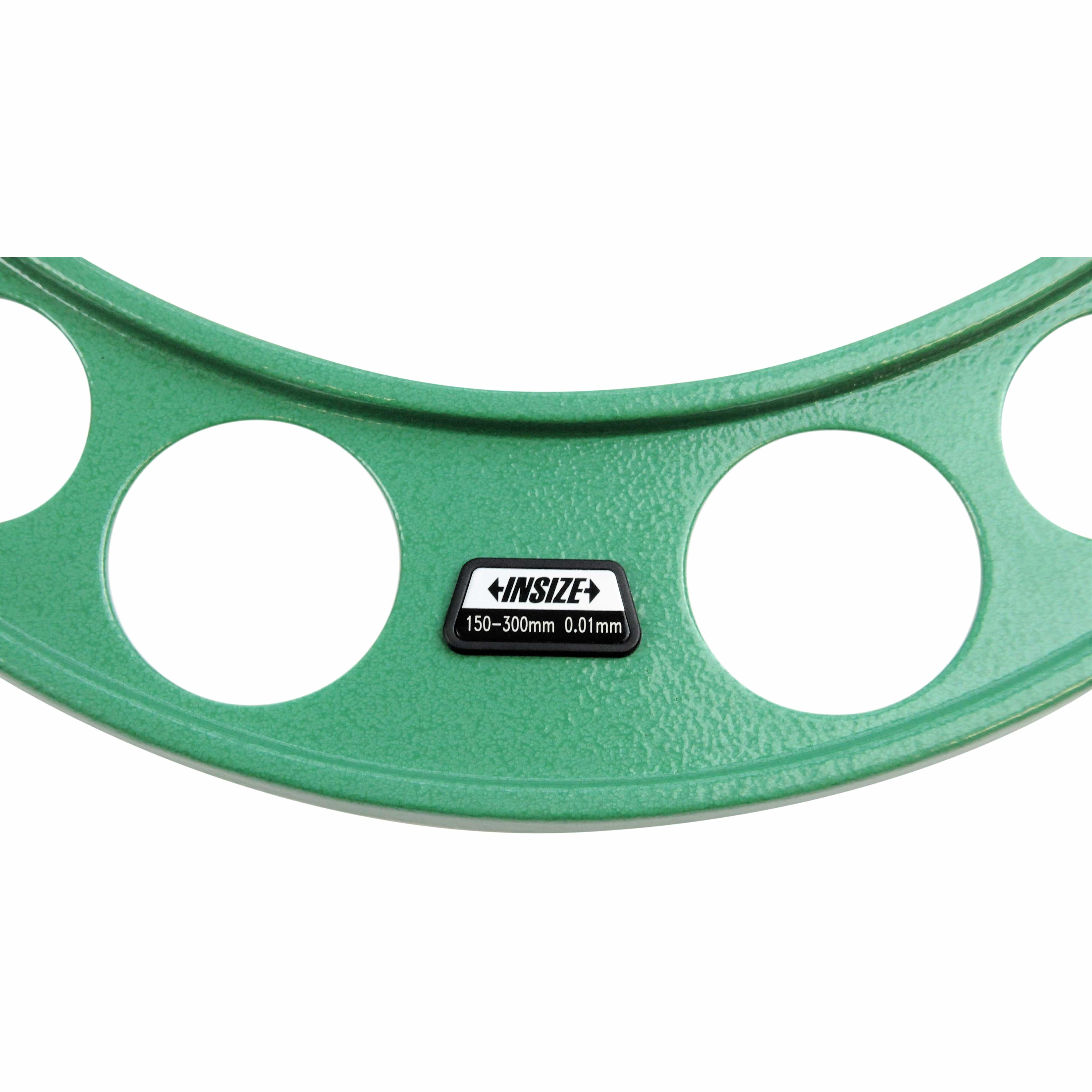

- Baked enamel finish frame for strength and corrosion resistance

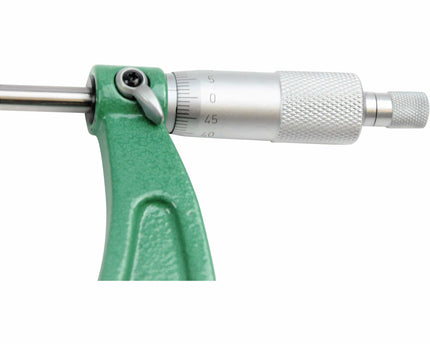

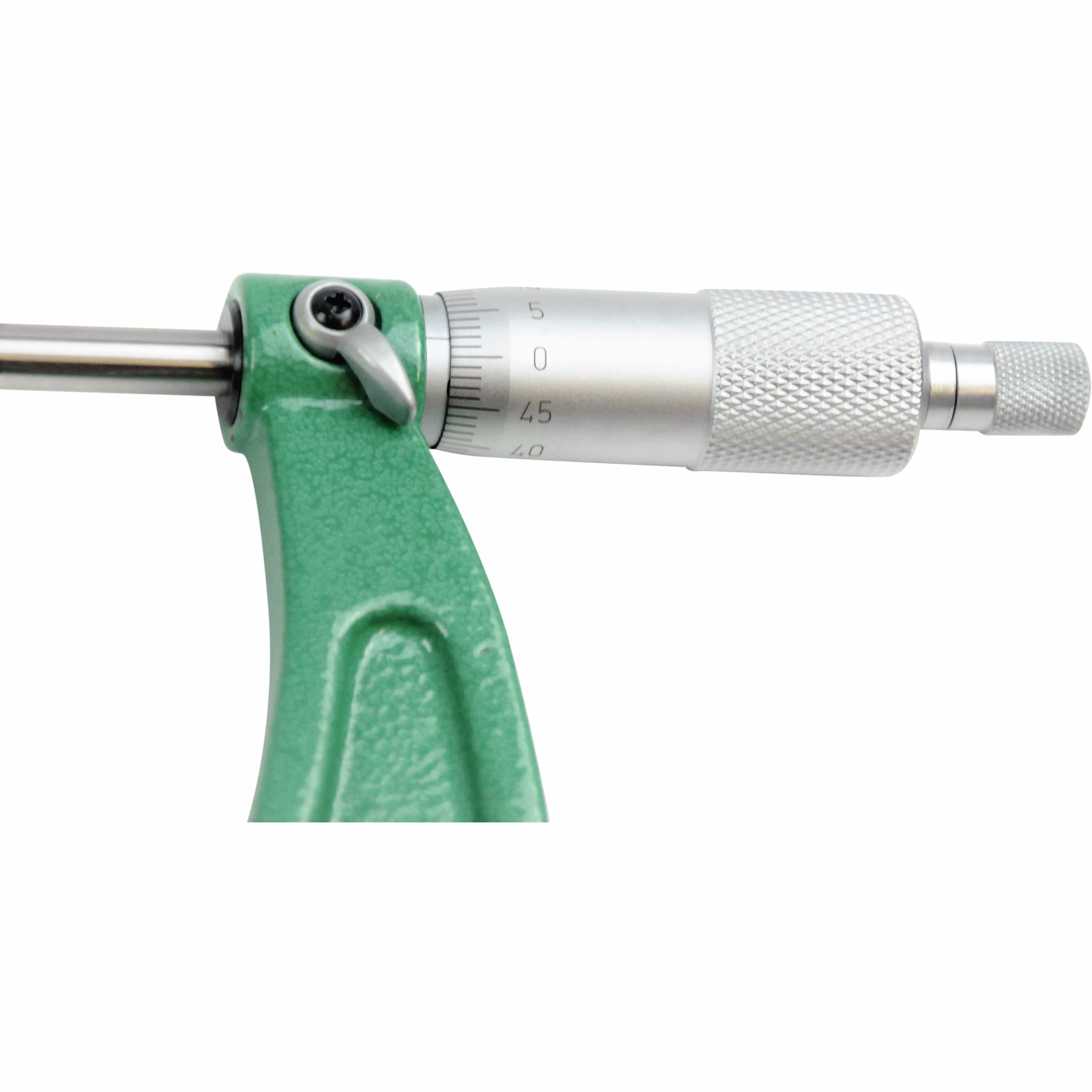

- Barrel and thimble with satin chrome finish for clear, glare-free readings
- Clearly defined graduations for easy and precise measurement
- Quick feeding mechanism for efficient adjustment

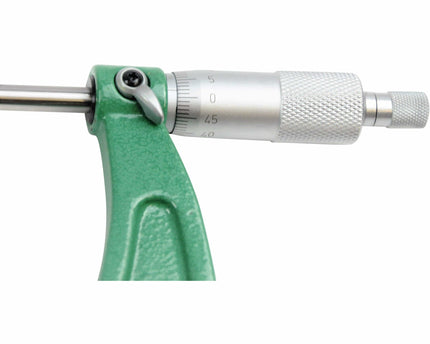

- Friction thimble and ratchet stop for consistent measuring pressure
- Carbide measuring faces for excellent wear resistance and durability
- Spindle lock to securely hold measurements

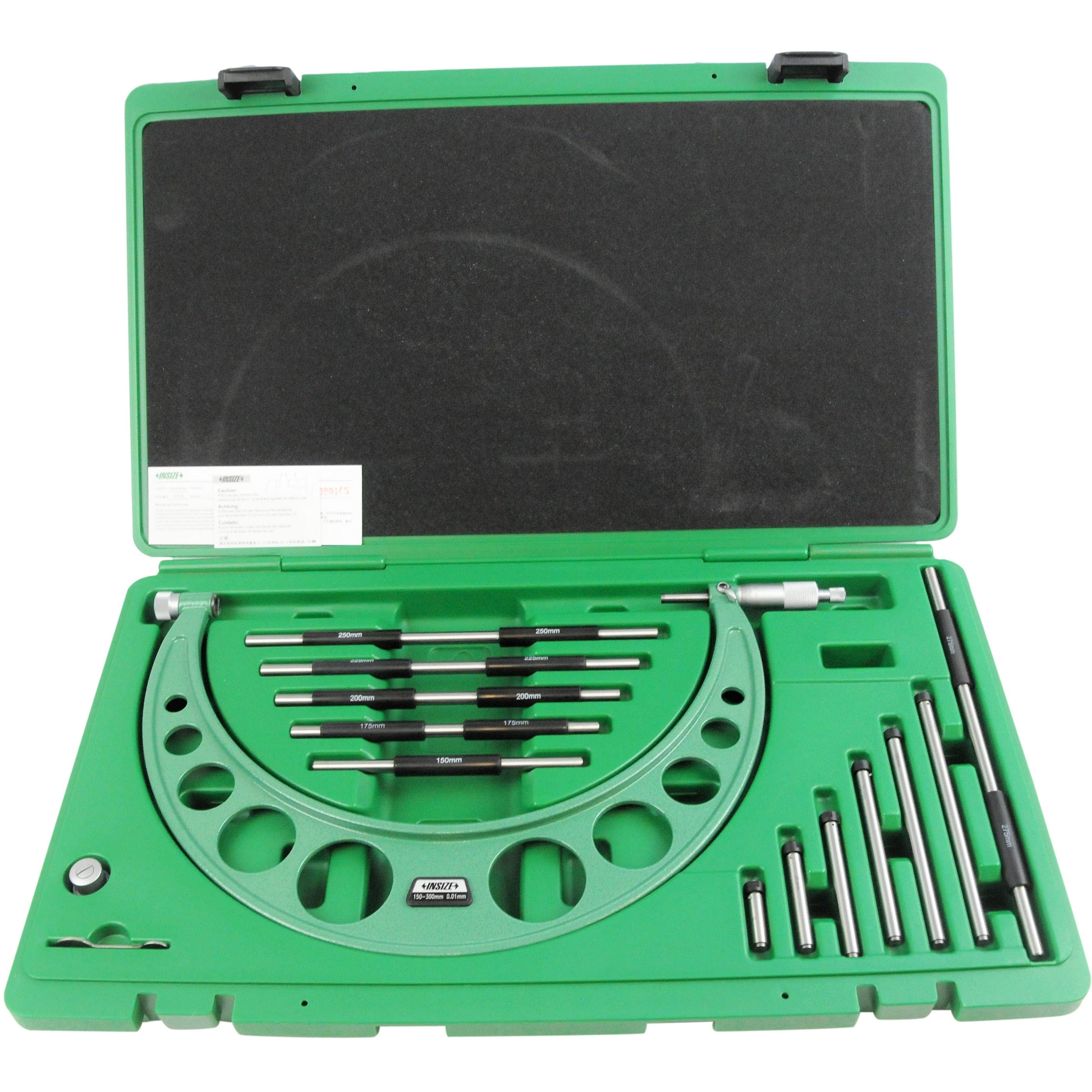

Includes

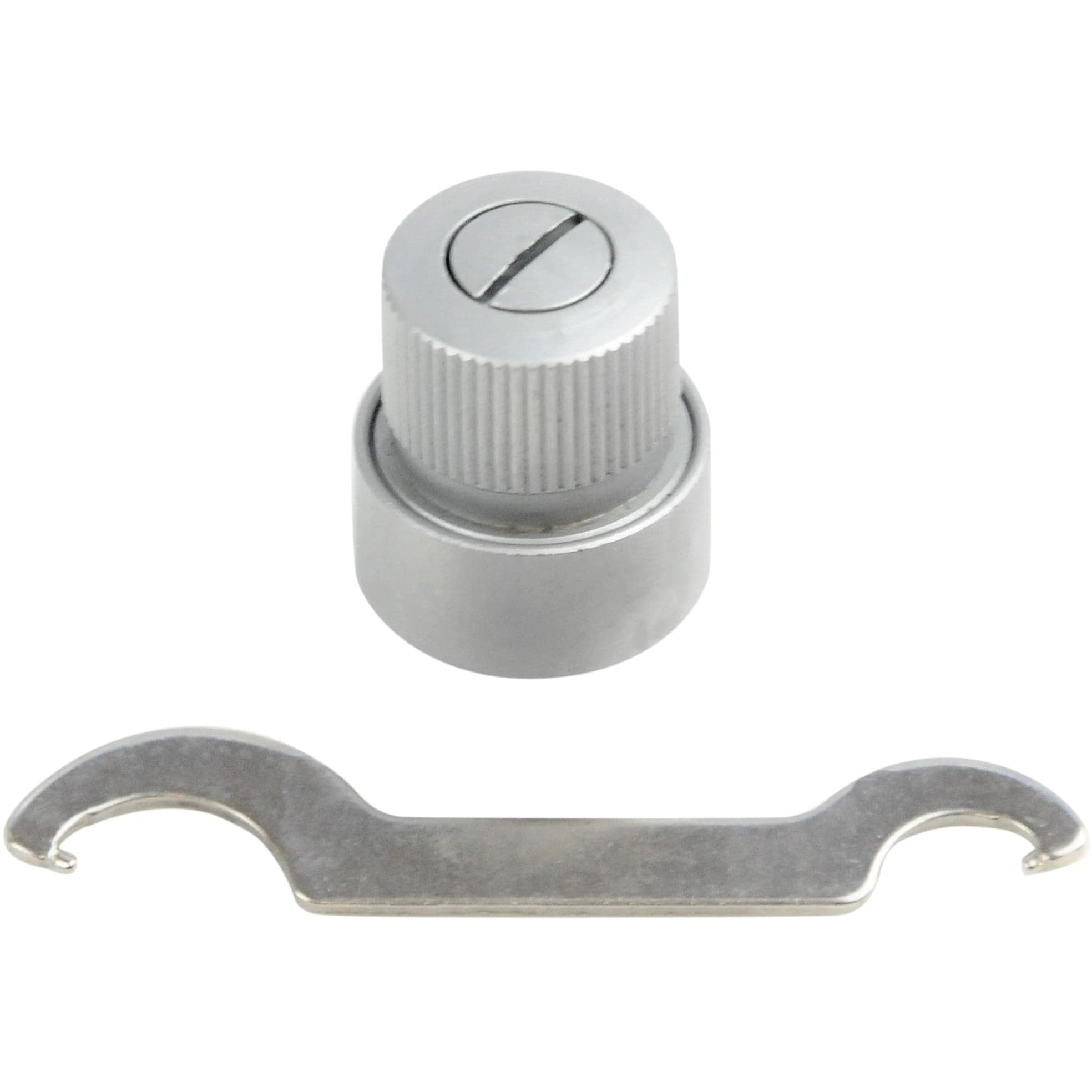

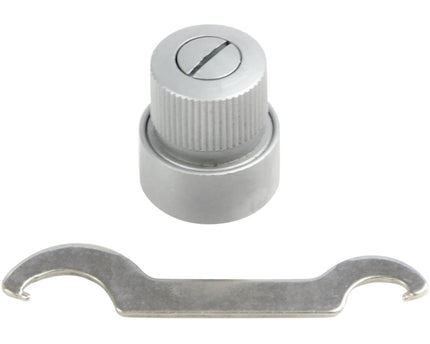

- Zero adjusting wrench

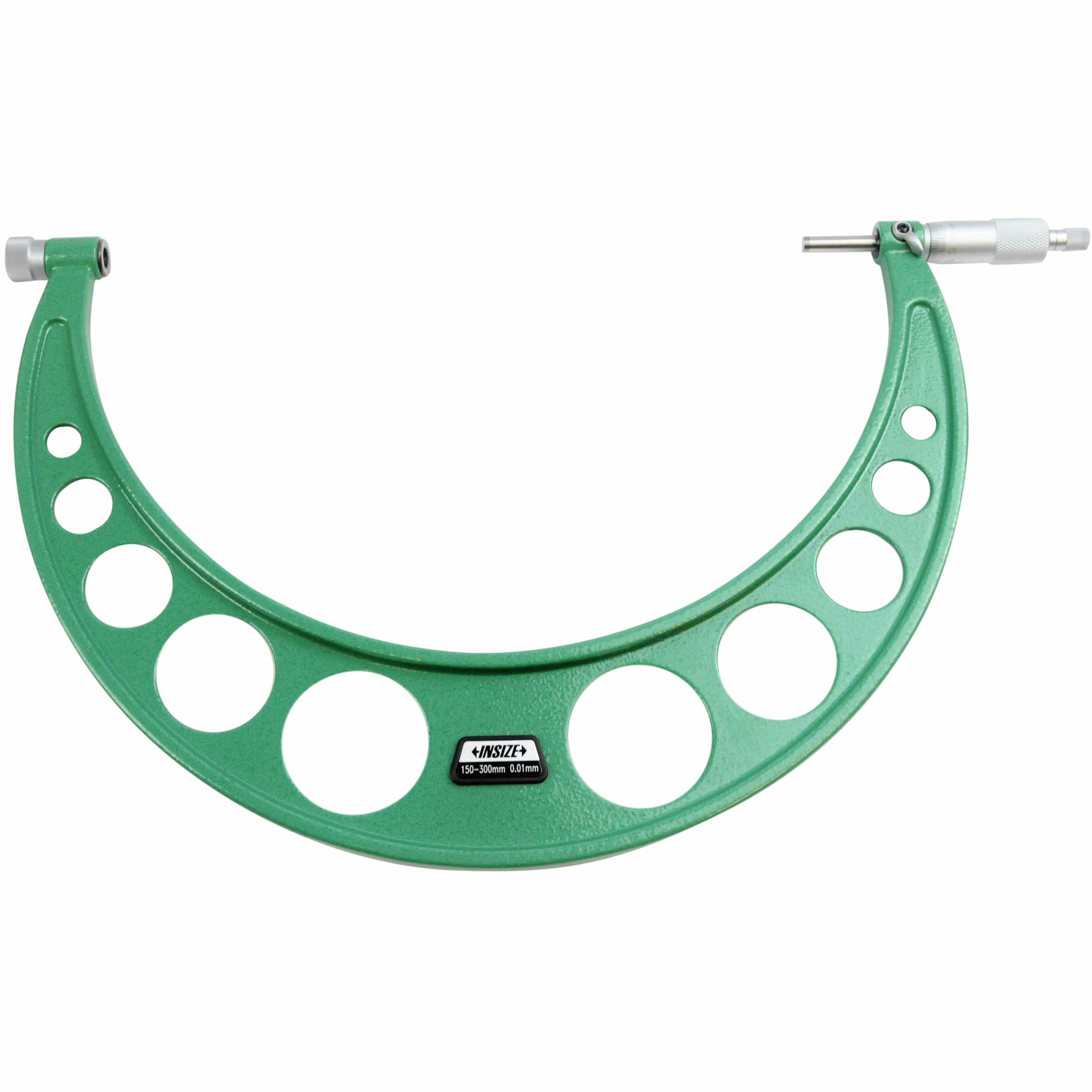

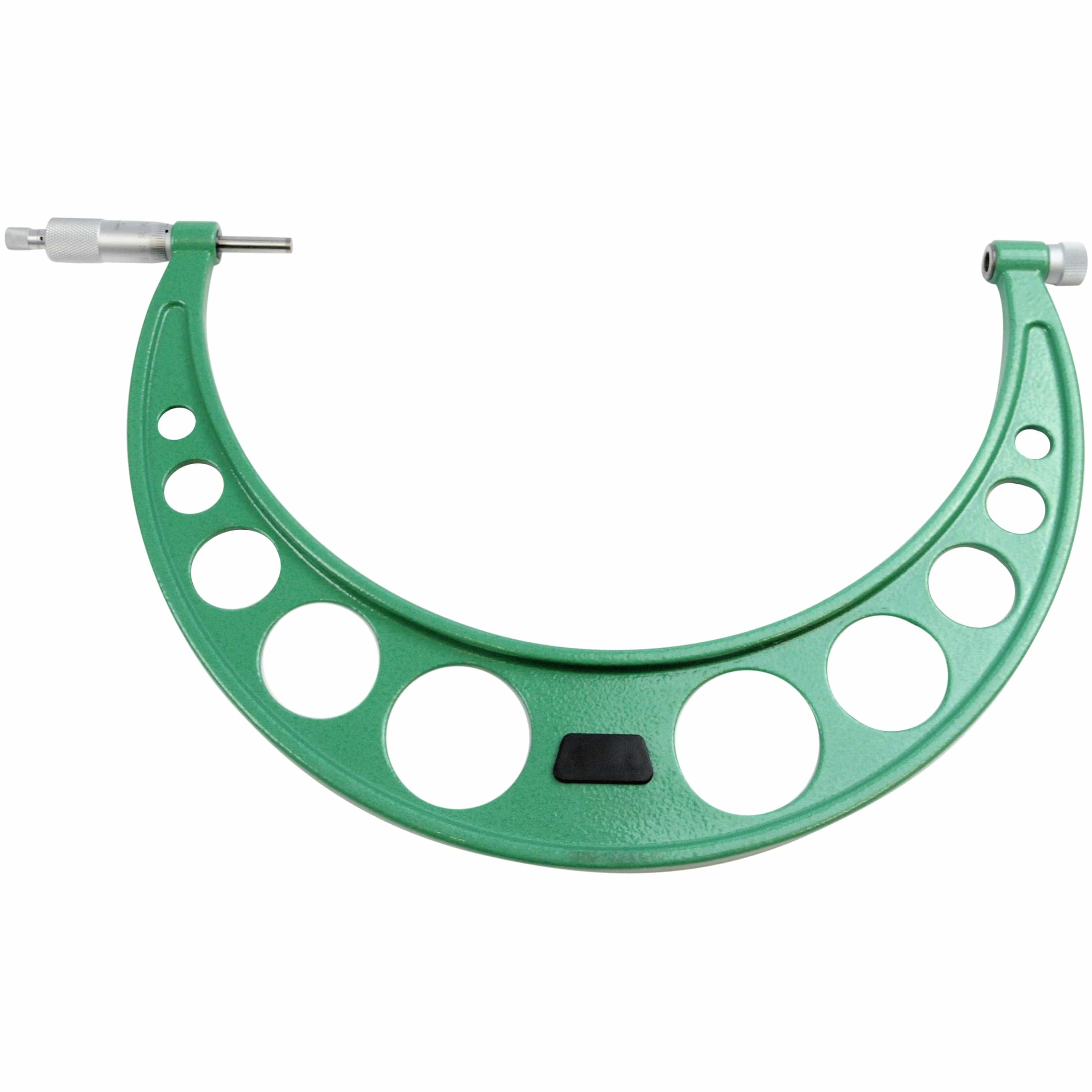

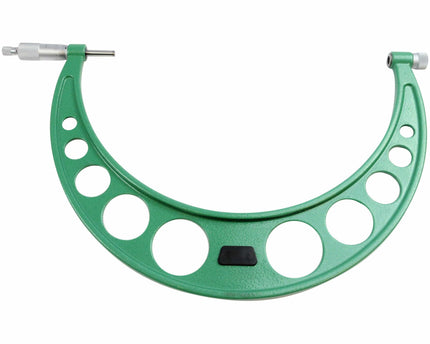

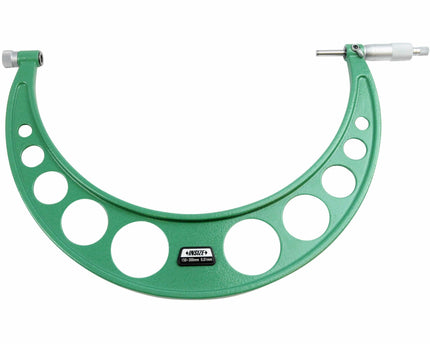

- Insize 3206-300A outside micrometer body (150–300mm range)

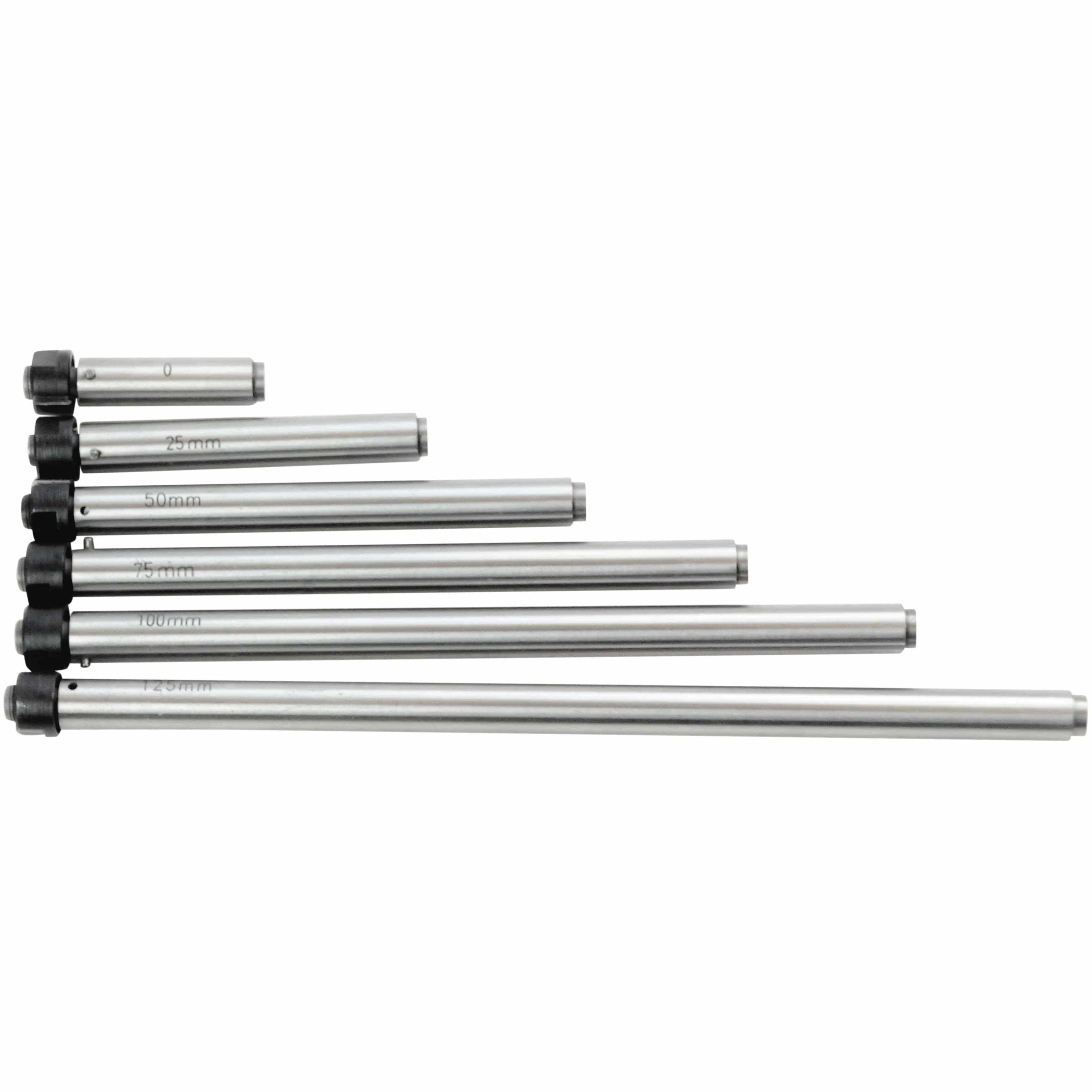

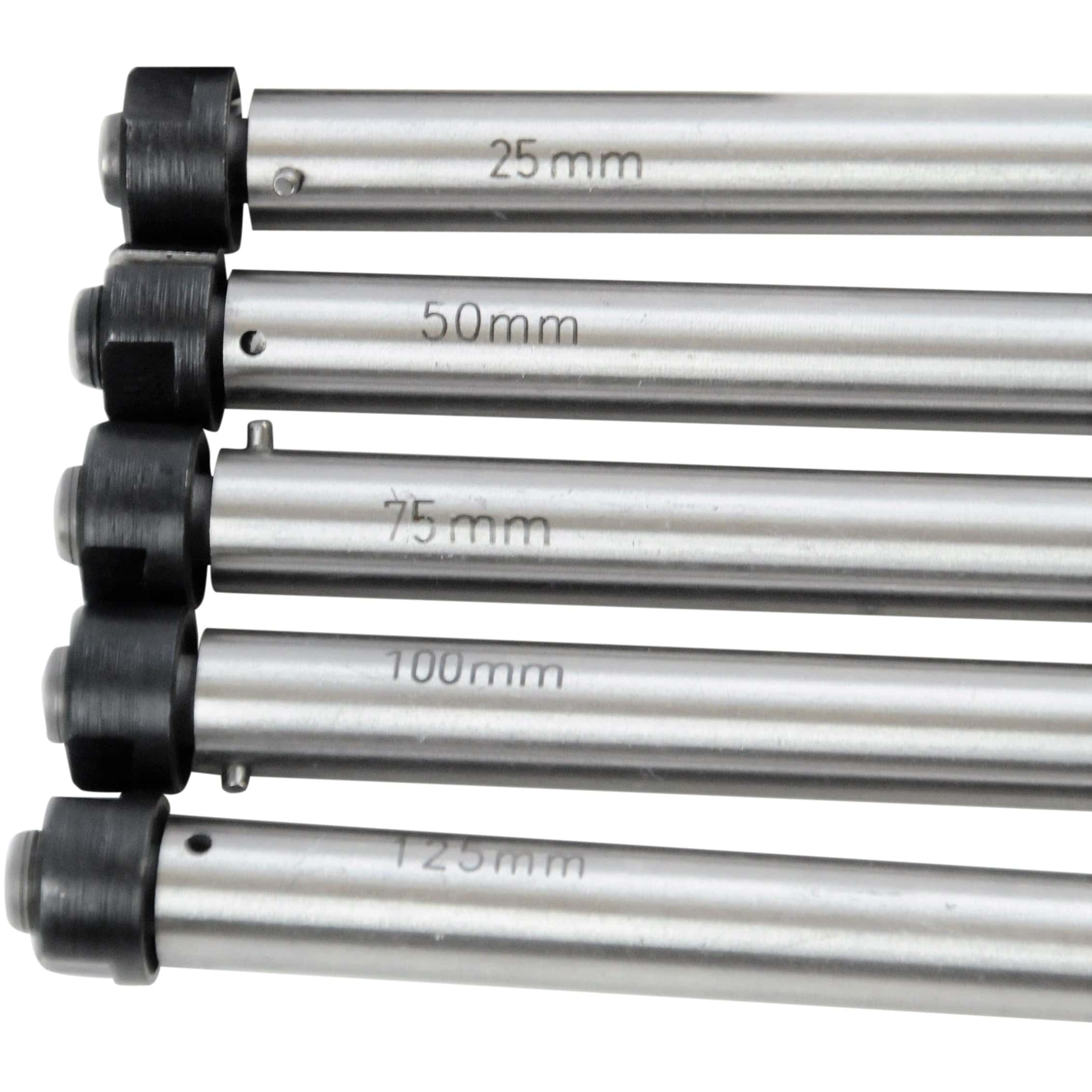

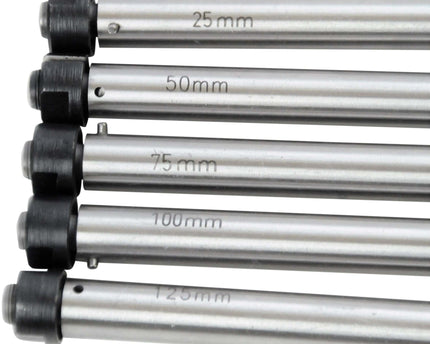

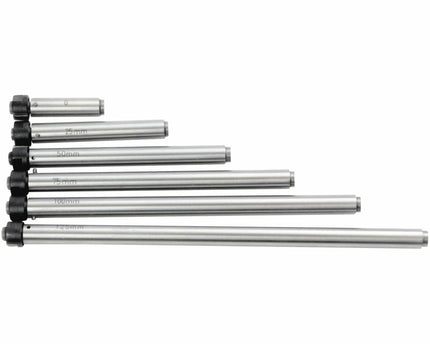

- Interchangeable anvils: 0mm, 25mm, 50mm, 75mm, 100mm, 125mm

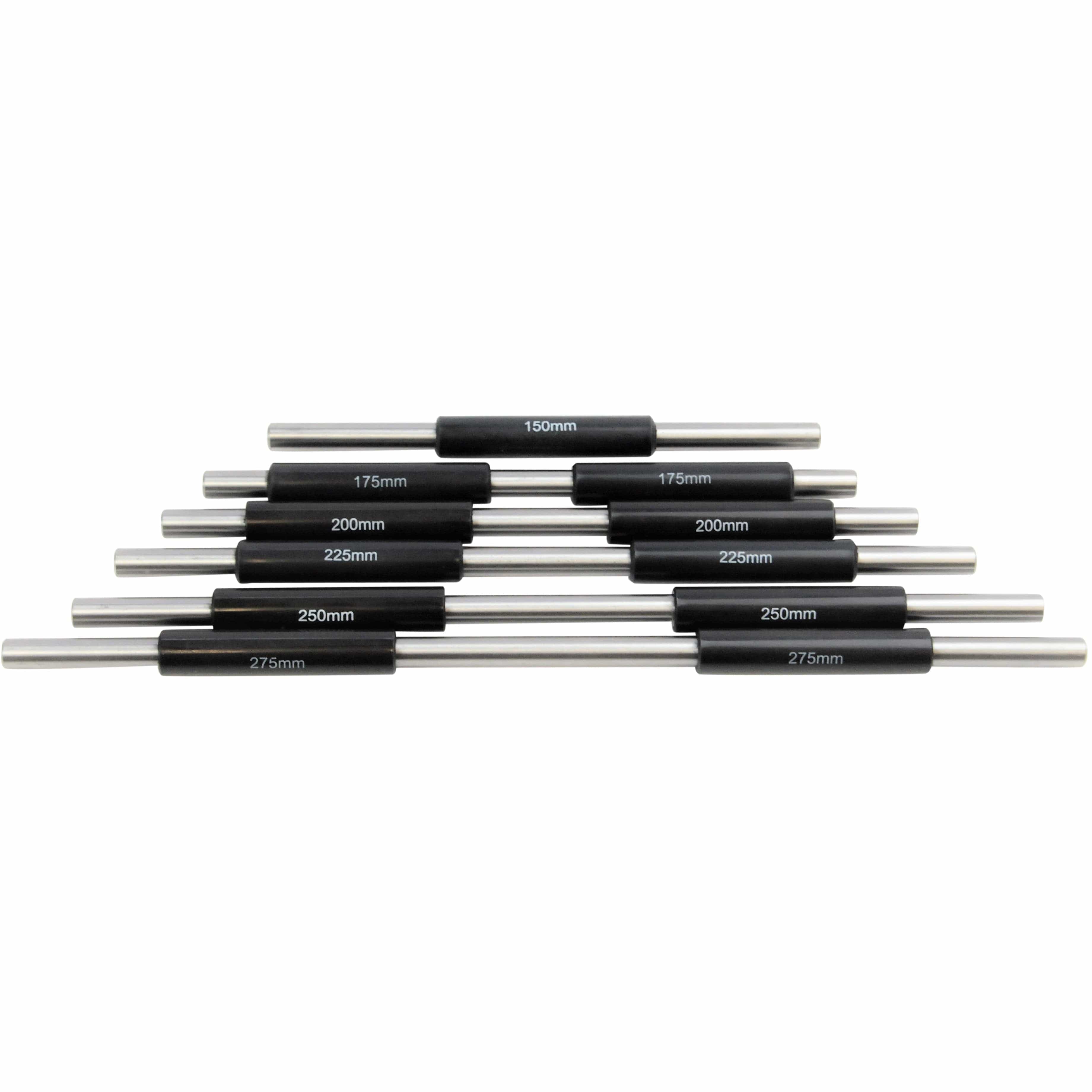

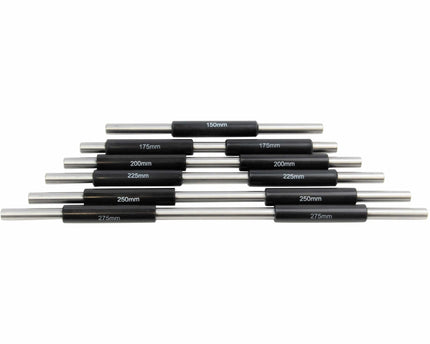

- Calibration rods: 150mm, 175mm, 200mm, 225mm, 250mm, 275mm

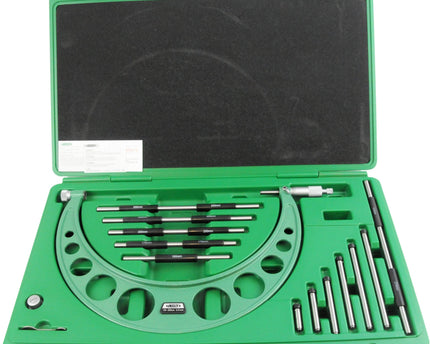

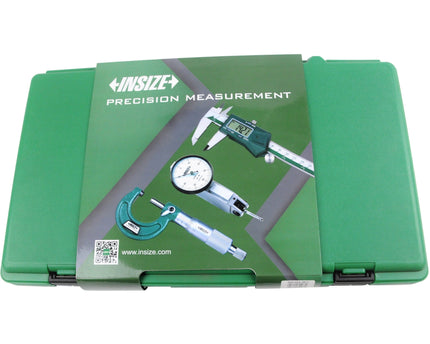

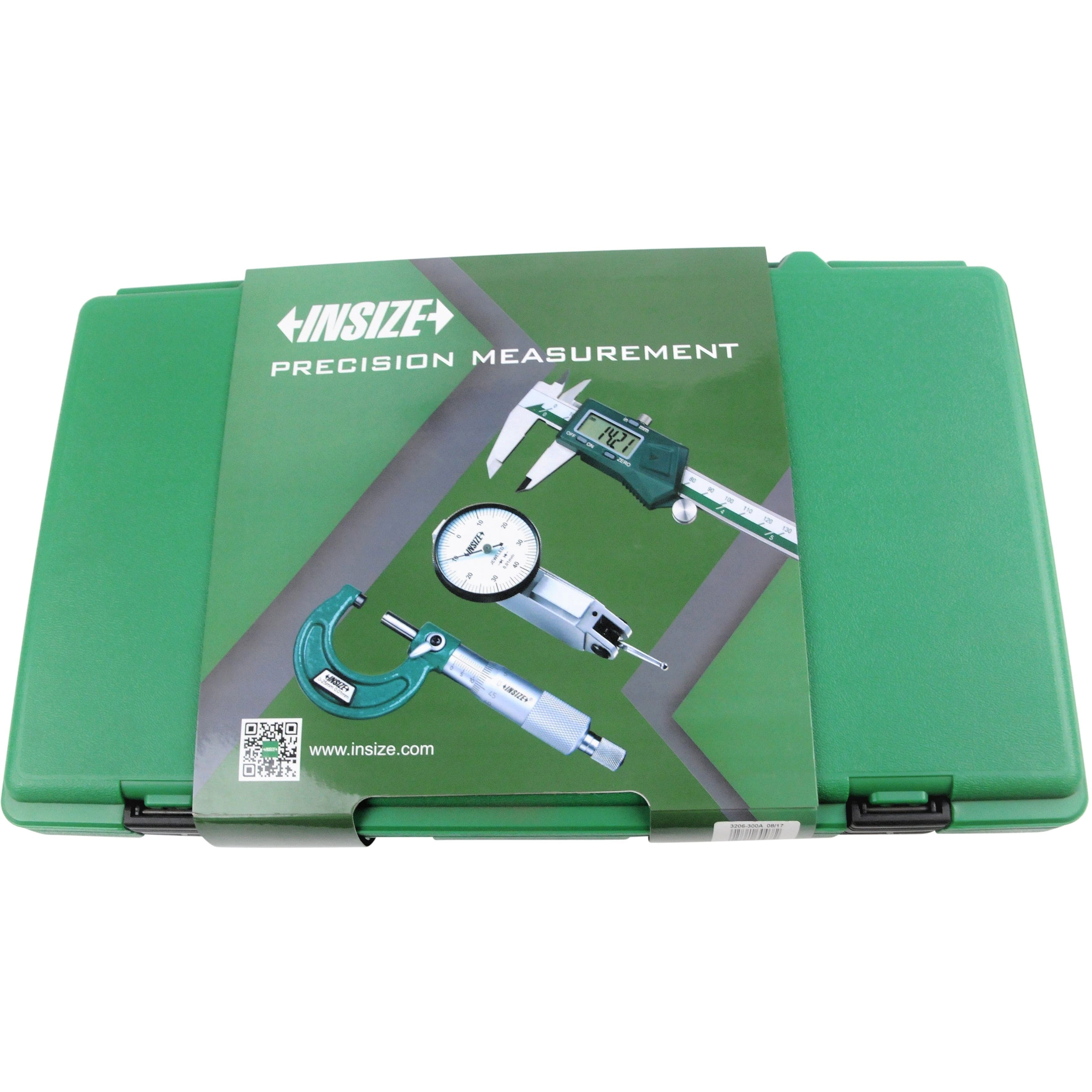

- Blow-moulded custom protective case
Engineered for durability and dependable precision, the Insize 150–300mm Outside Micrometer Set is ideal for machinists, toolmakers, and inspectors who require accurate measurement across a wide external range. Its interchangeable anvil system and comprehensive calibration accessories make it a versatile and reliable solution for demanding measurement applications.
