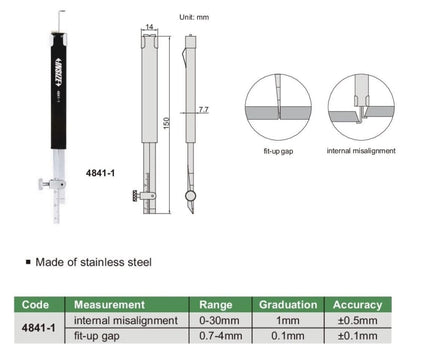

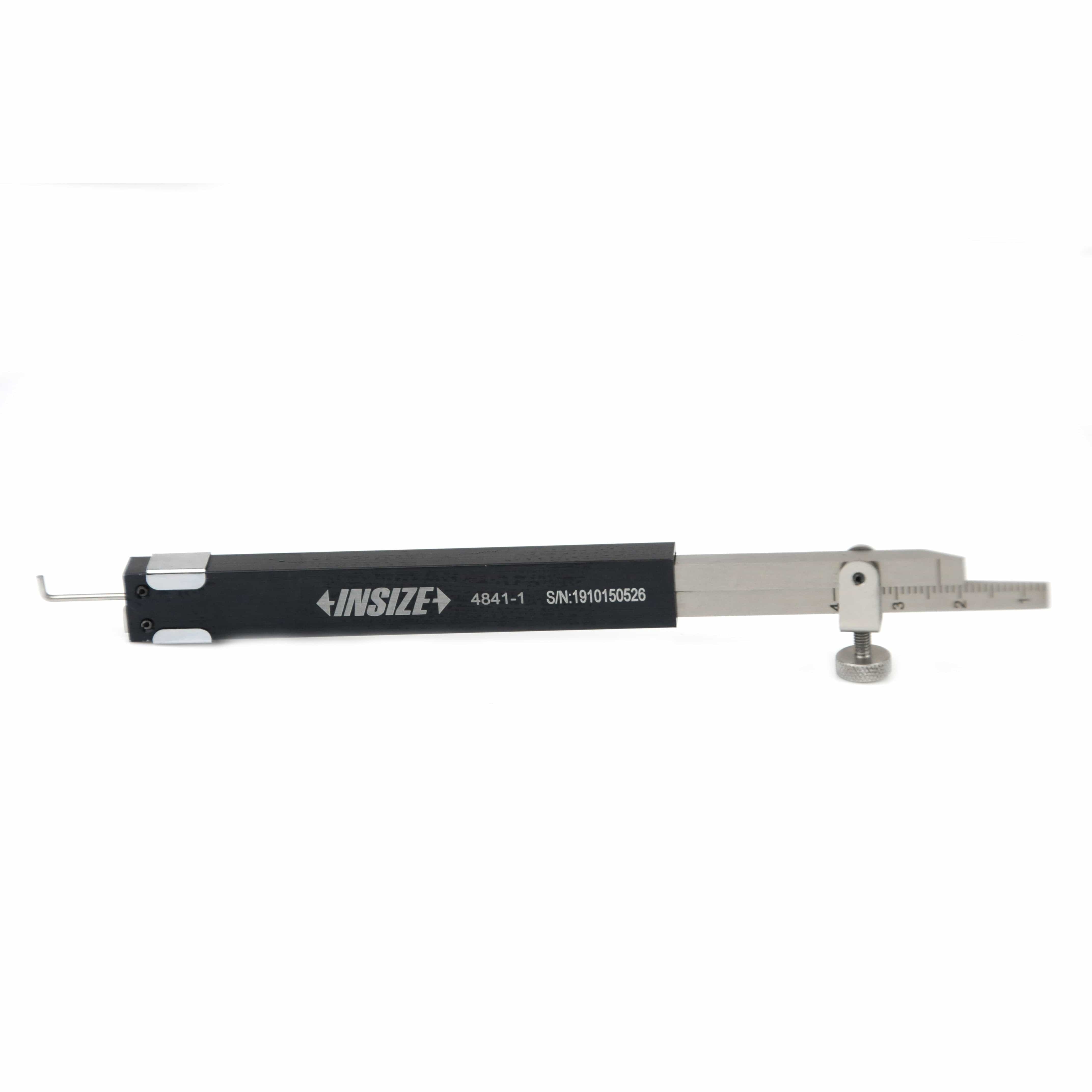

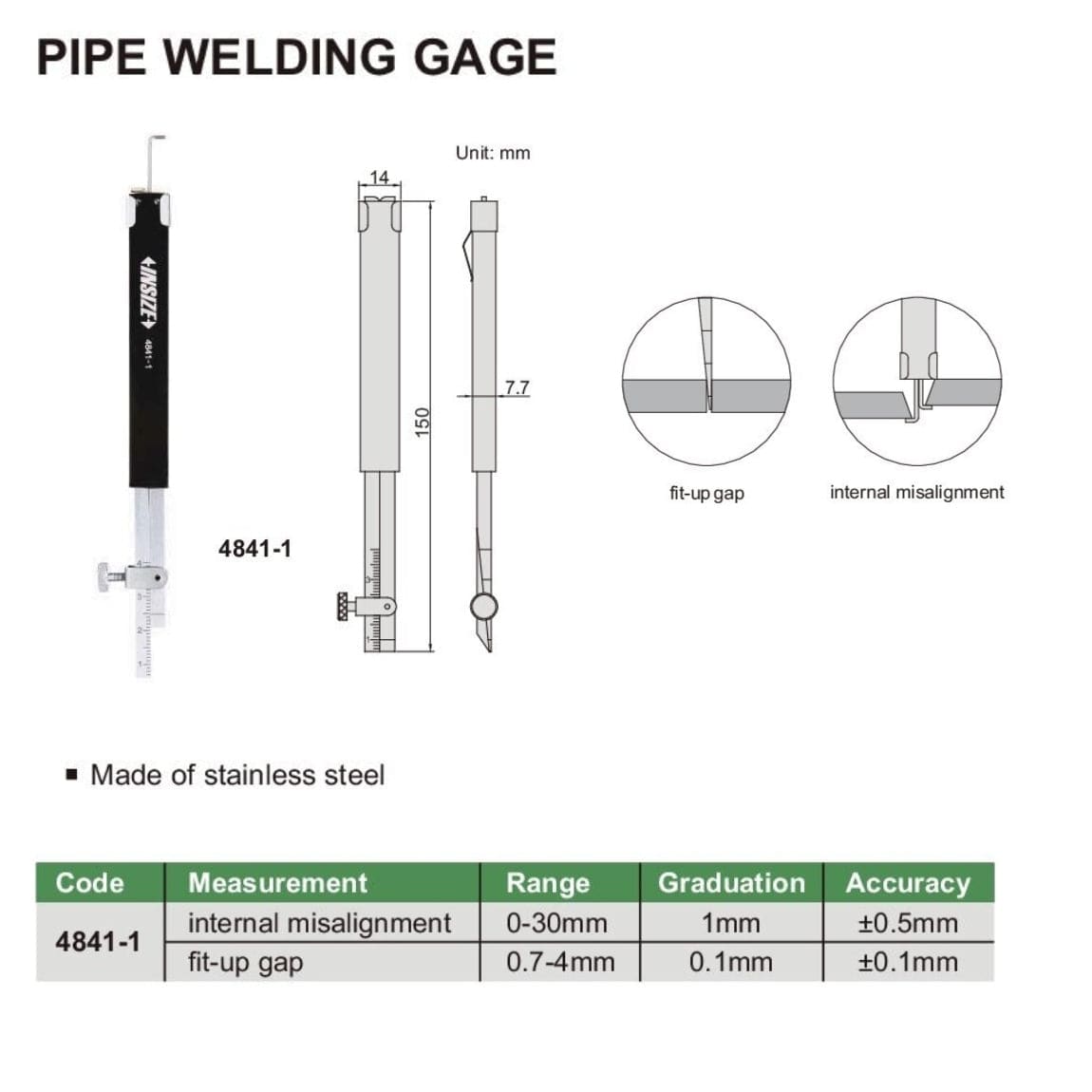

Insize Welding Gauge
Insize Welding Gauge is a precision measuring tool designed for accurate assessment of weld alignment and fit-up conditions. Manufactured from durable stainless steel, it provides reliable performance and consistent accuracy for welding inspection and fabrication tasks.
Specifications:
-
Part Number: 4841-1
-
Material: Stainless steel
| Code |
Measurement |
Range |
Graduation |
Accuracy |
| 4841-1 |
Internal Misalignment |
0–30 mm |
1 mm |
±0.5 mm |
| Fit-up Gap |
0.7–4 mm |
0.1 mm |
±0.1 mm |
Designed for precision and ease of use, this welding gauge enables accurate measurement of internal misalignment and fit-up gaps, making it suitable for welding inspection, fabrication, and quality control applications.
