Description

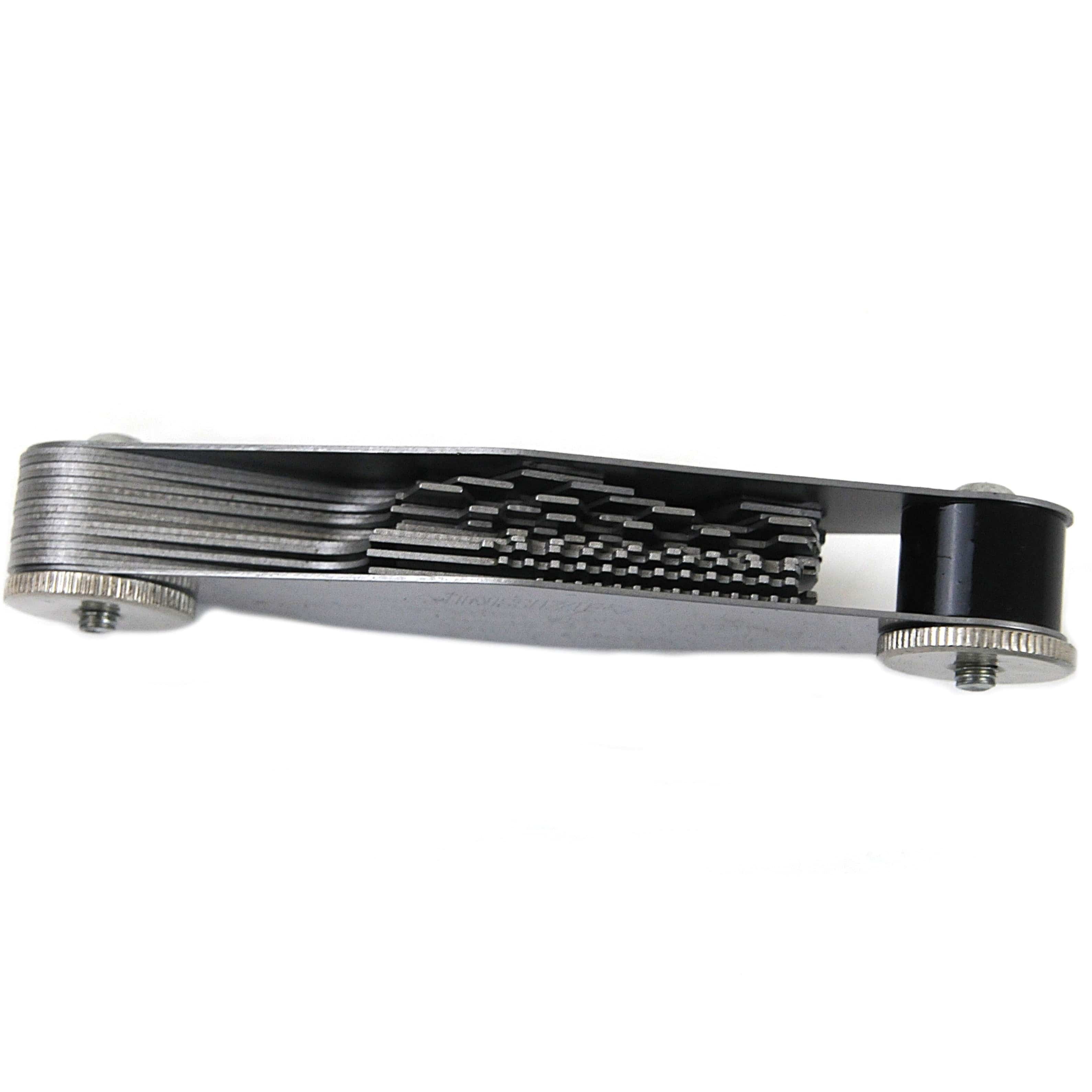

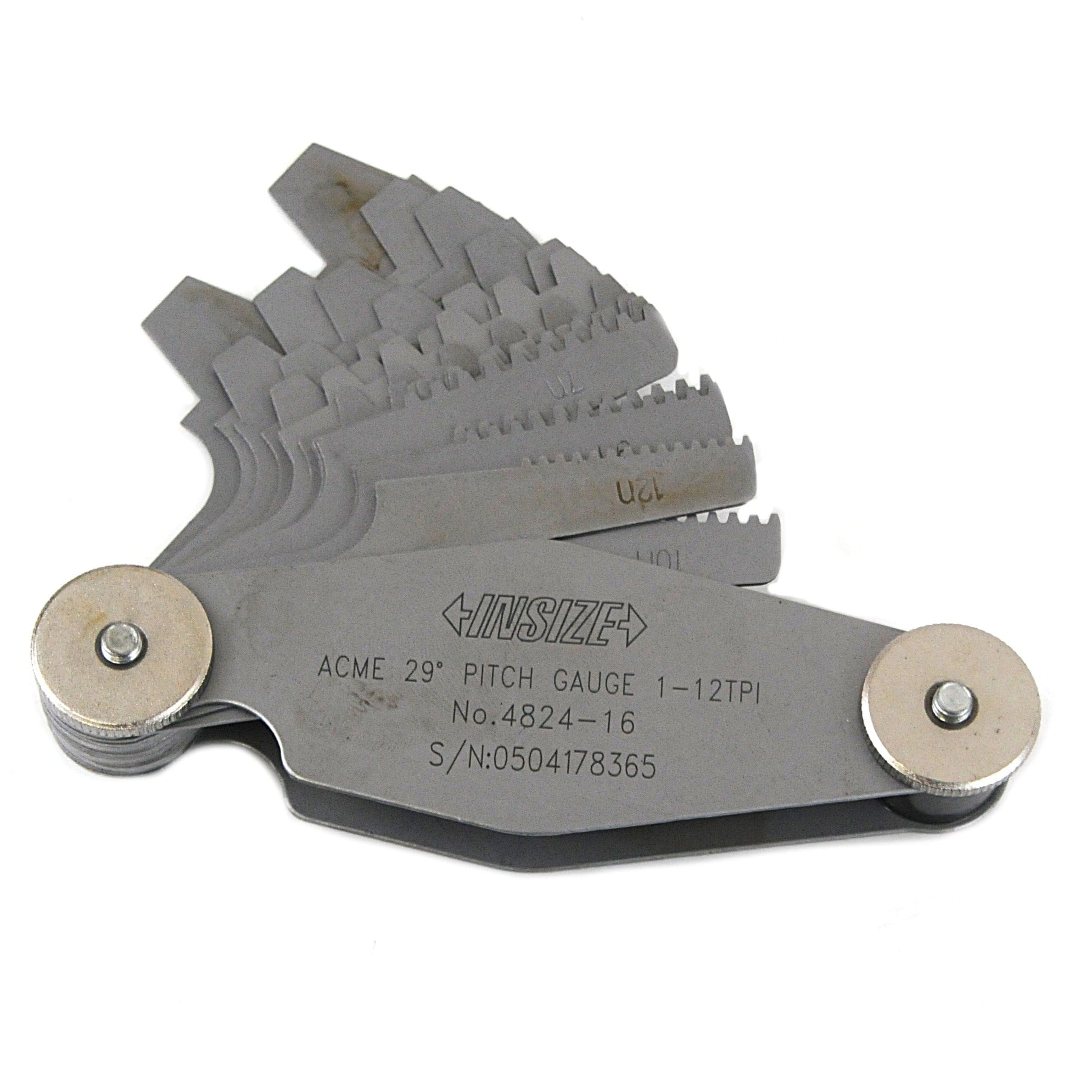

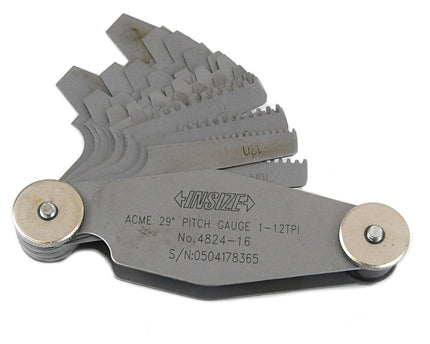

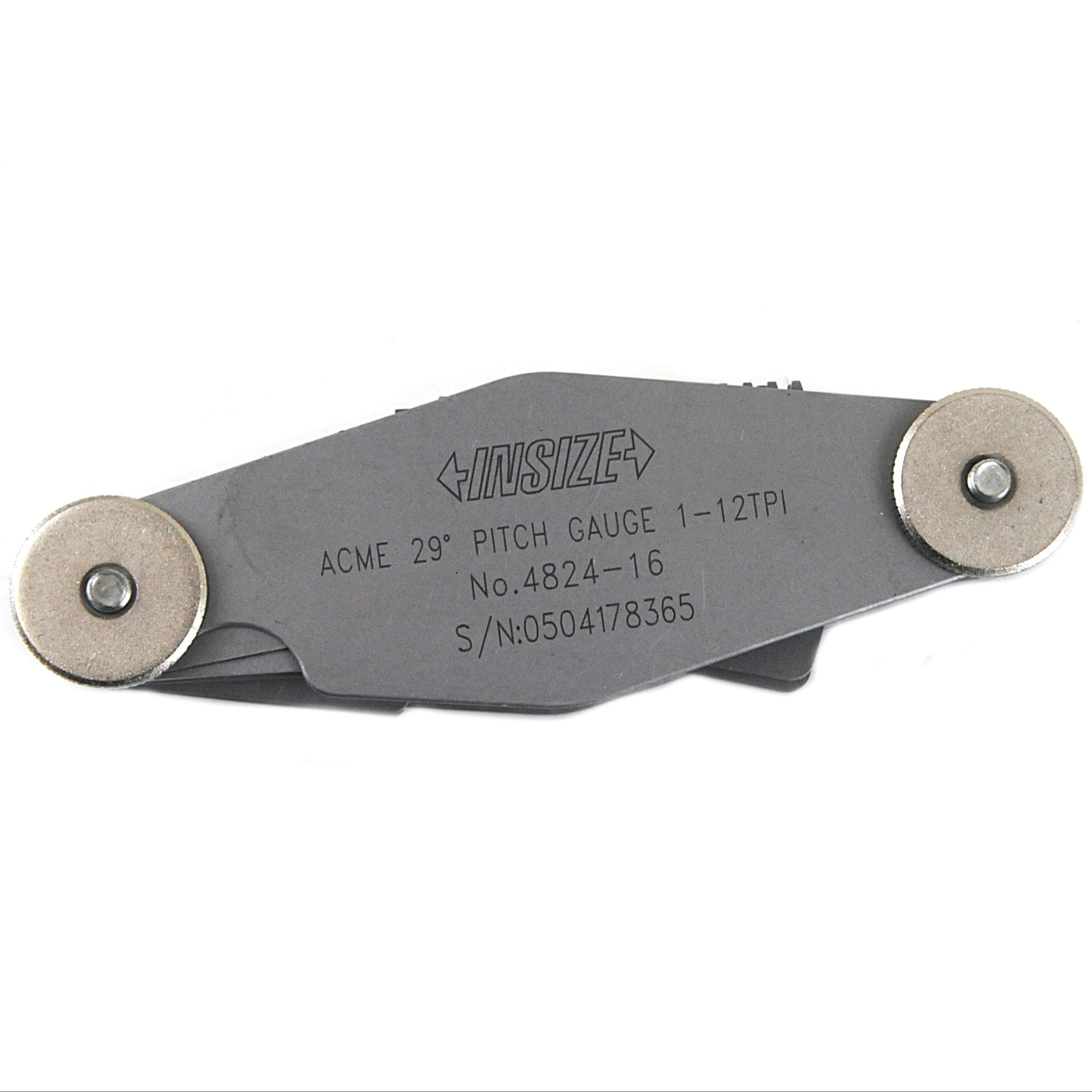

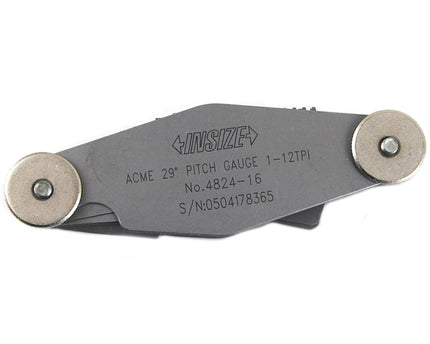

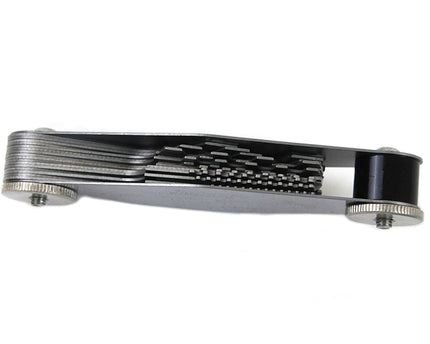

Insize Pitch Gauge ACME 29°
The Insize ACME Pitch Gauge is designed for accurate identification of ACME (29°) thread pitches. Built for workshop and inspection use, it provides reliable verification of coarse ACME screw threads commonly used in power transmission and leadscrew applications.

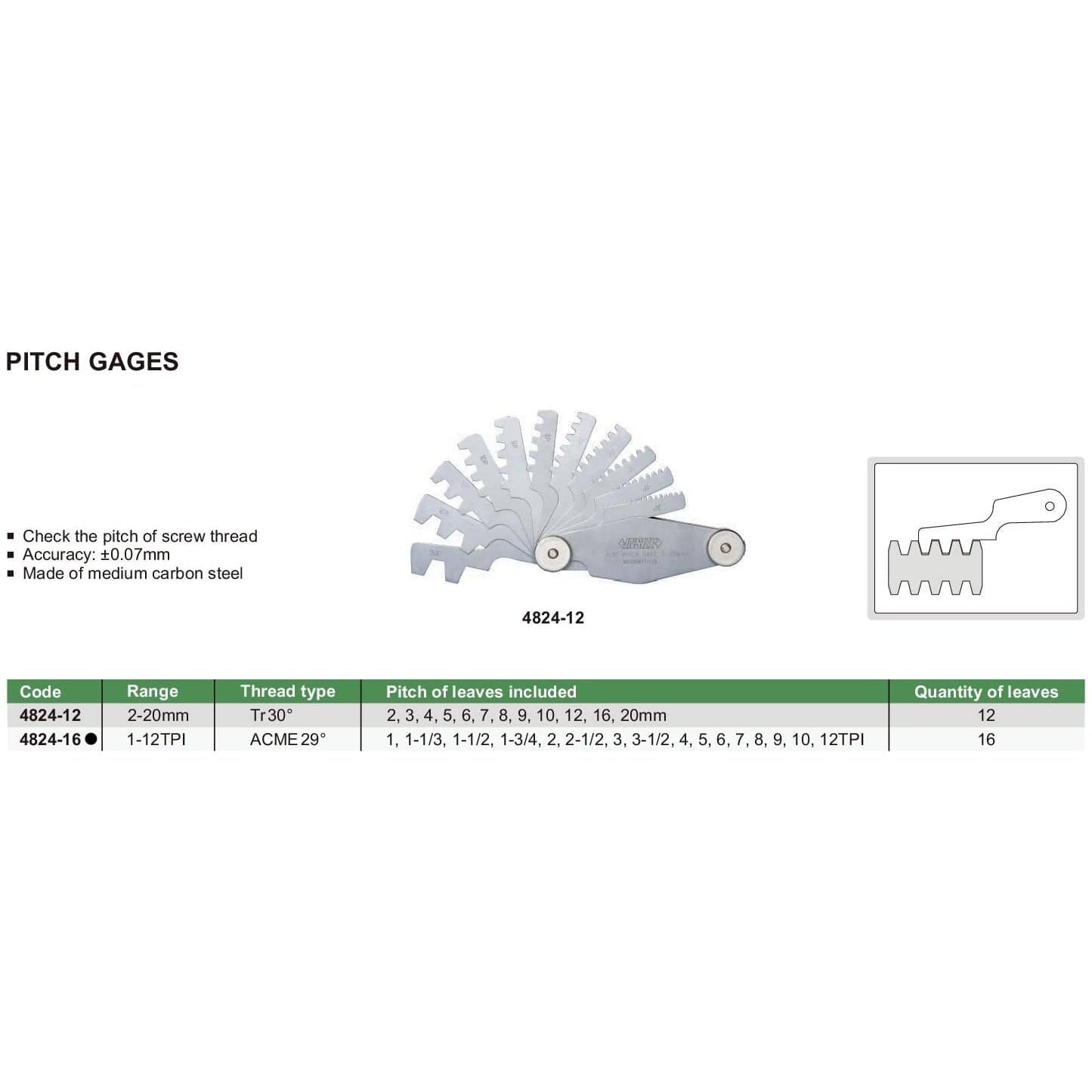

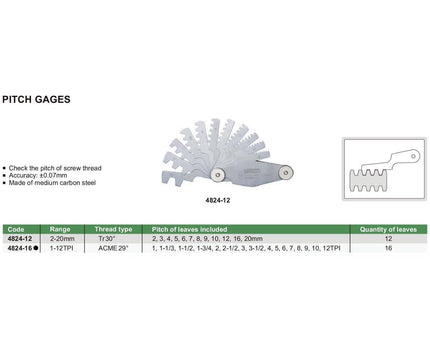

Specifications:
-
Part Number: 4824-16
-
Thread Type: ACME 29°
-
Range: 1–12 TPI
-
Accuracy: ±0.07 mm / ±0.0028"
-
Pitch of Leaves Included (TPI): 1, 1-1/3, 1-1/2, 1-3/4, 2, 2-1/2, 3, 3-1/2, 4, 5, 6, 7, 8, 9, 10, 12
-
Quantity of Leaves: 16
-
Material: Medium carbon steel
Manufactured for durability and consistent accuracy, this ACME pitch gauge allows quick and precise checking of thread pitches, making it ideal for machining, maintenance, and inspection environments.
