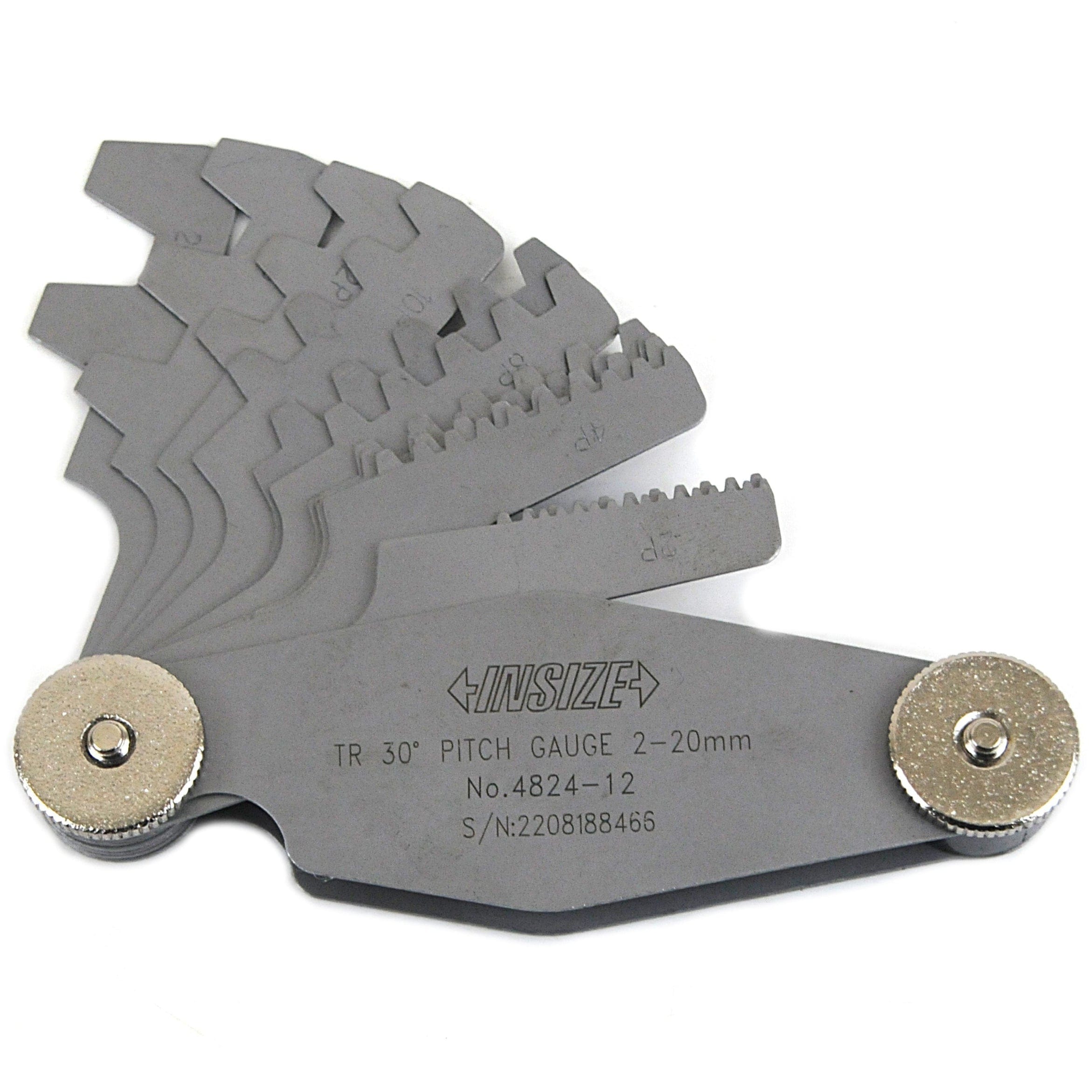

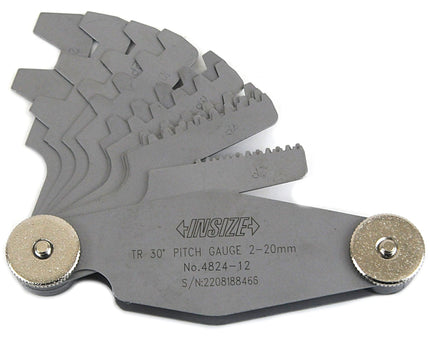

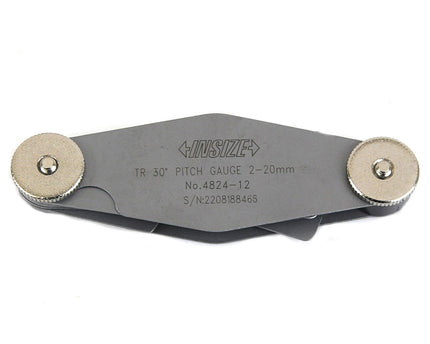

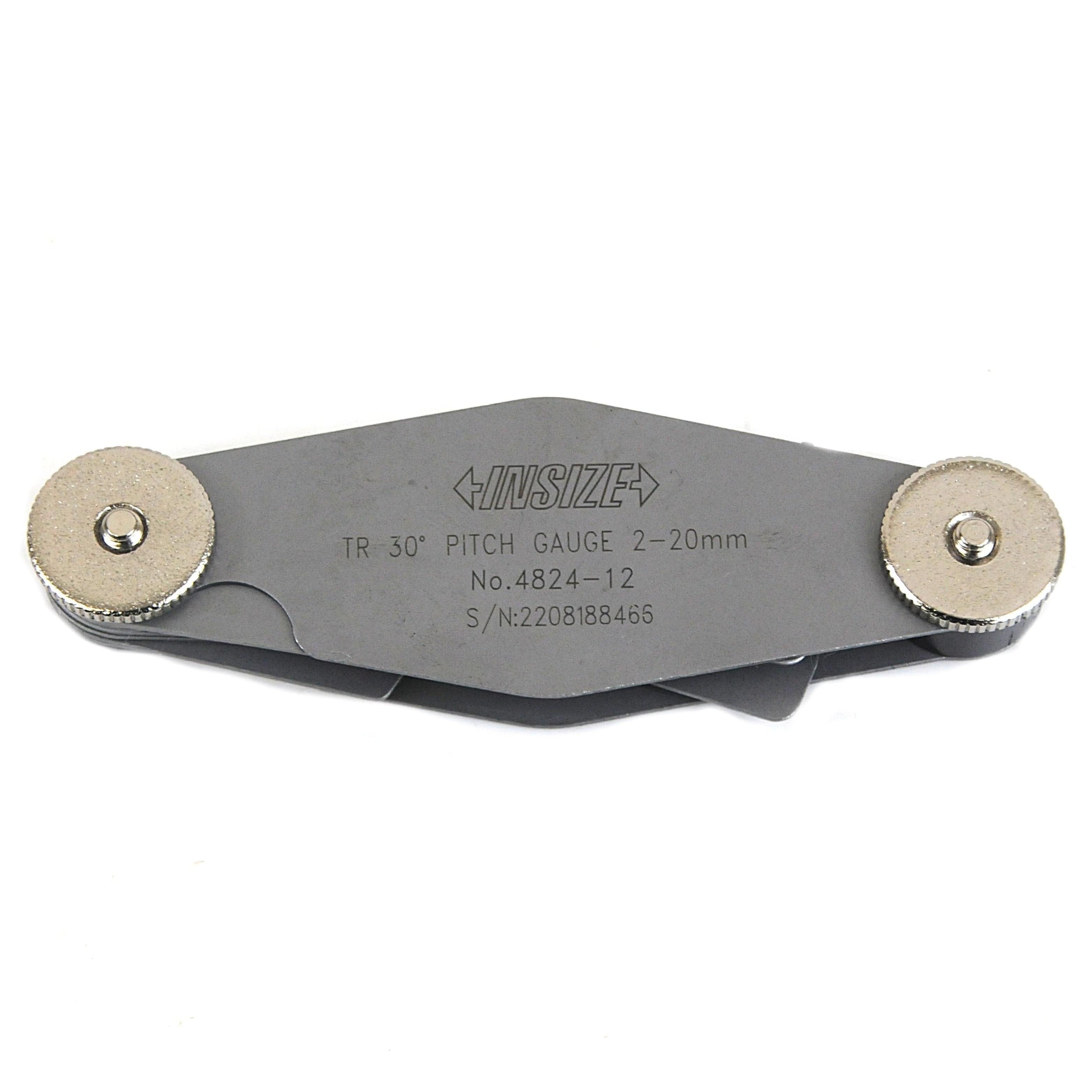

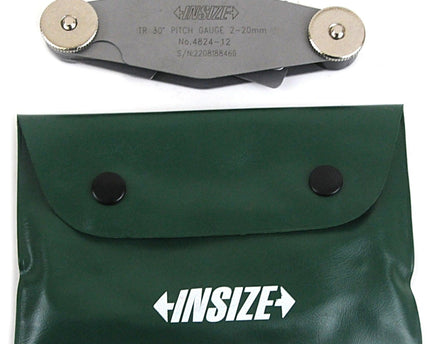

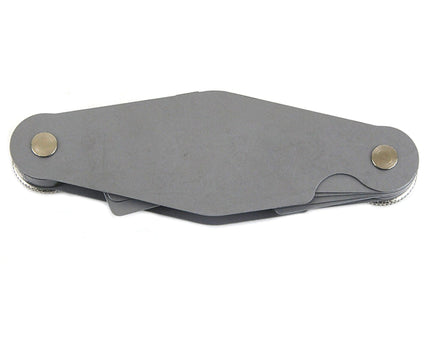

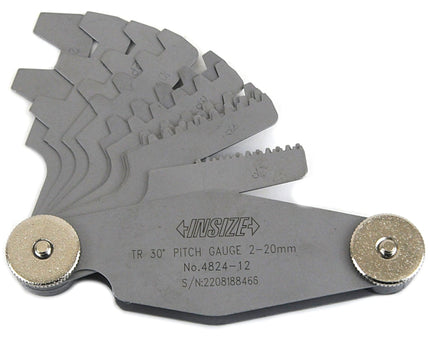

Insize Pitch Gauge Tr 30°
The Insize Trapezoidal Pitch Gauge is designed for accurate identification of trapezoidal (Tr 30°) thread pitches. It is suitable for machining, inspection, and maintenance applications where precise verification of trapezoidal screw threads is required.

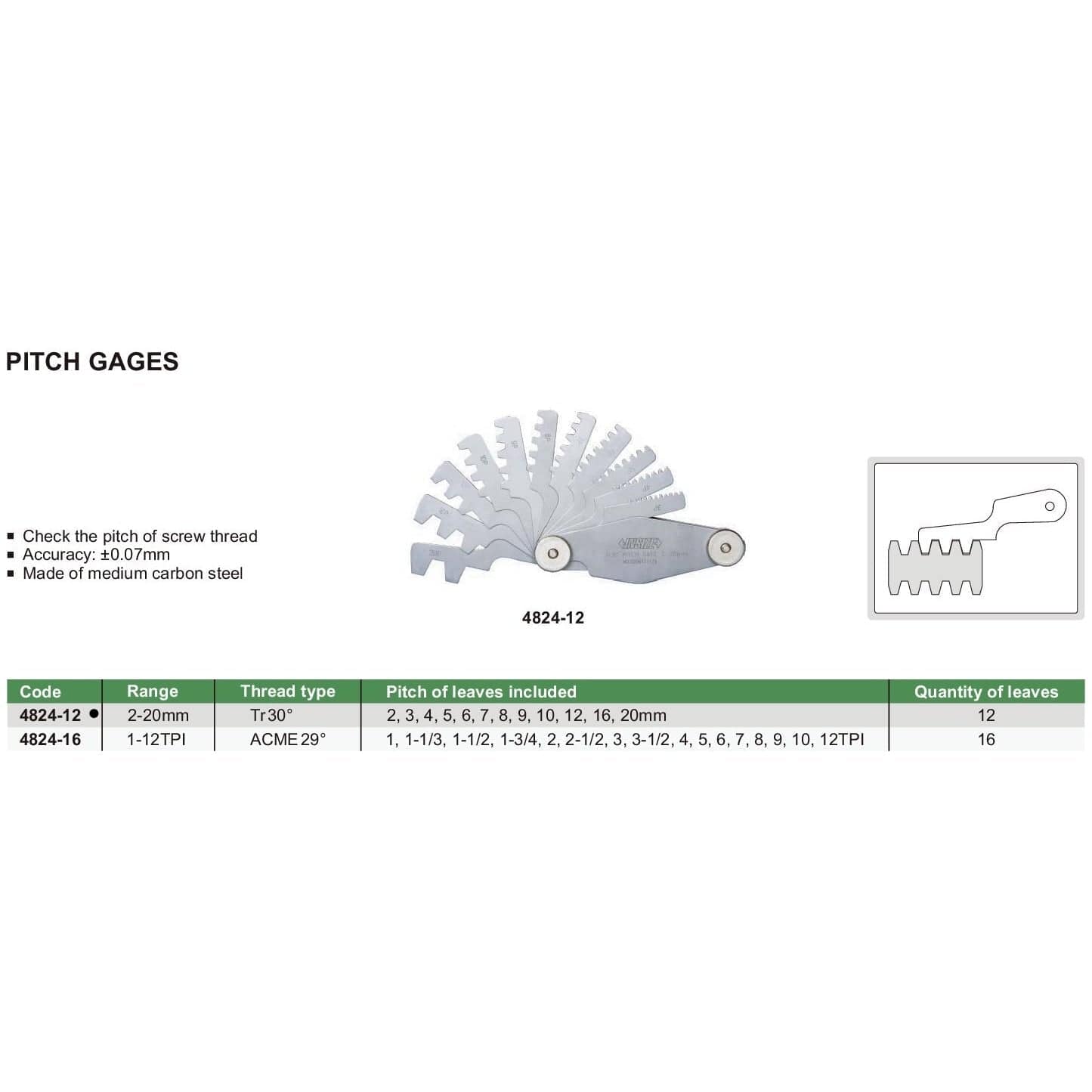

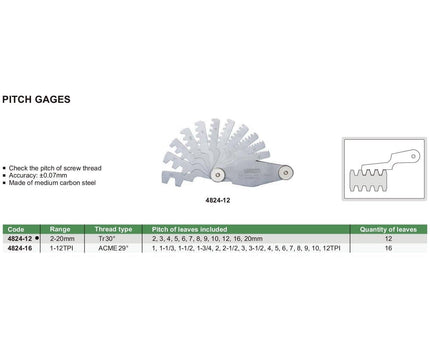

Specifications:
-
Part Number: 4824-12
-
Thread Type: Trapezoidal Tr 30°
-
Range: 2–20 mm
-
Accuracy: ±0.07 mm / ±0.0028"
-
Pitch of Leaves Included (mm): 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 16, 20
-
Quantity of Leaves: 12
-
Angle: 30° trapezoidal
-
Material: Medium carbon steel
Manufactured for durability and reliable accuracy, this pitch gauge allows quick and precise checking of trapezoidal screw thread pitches in workshop and inspection environments.
