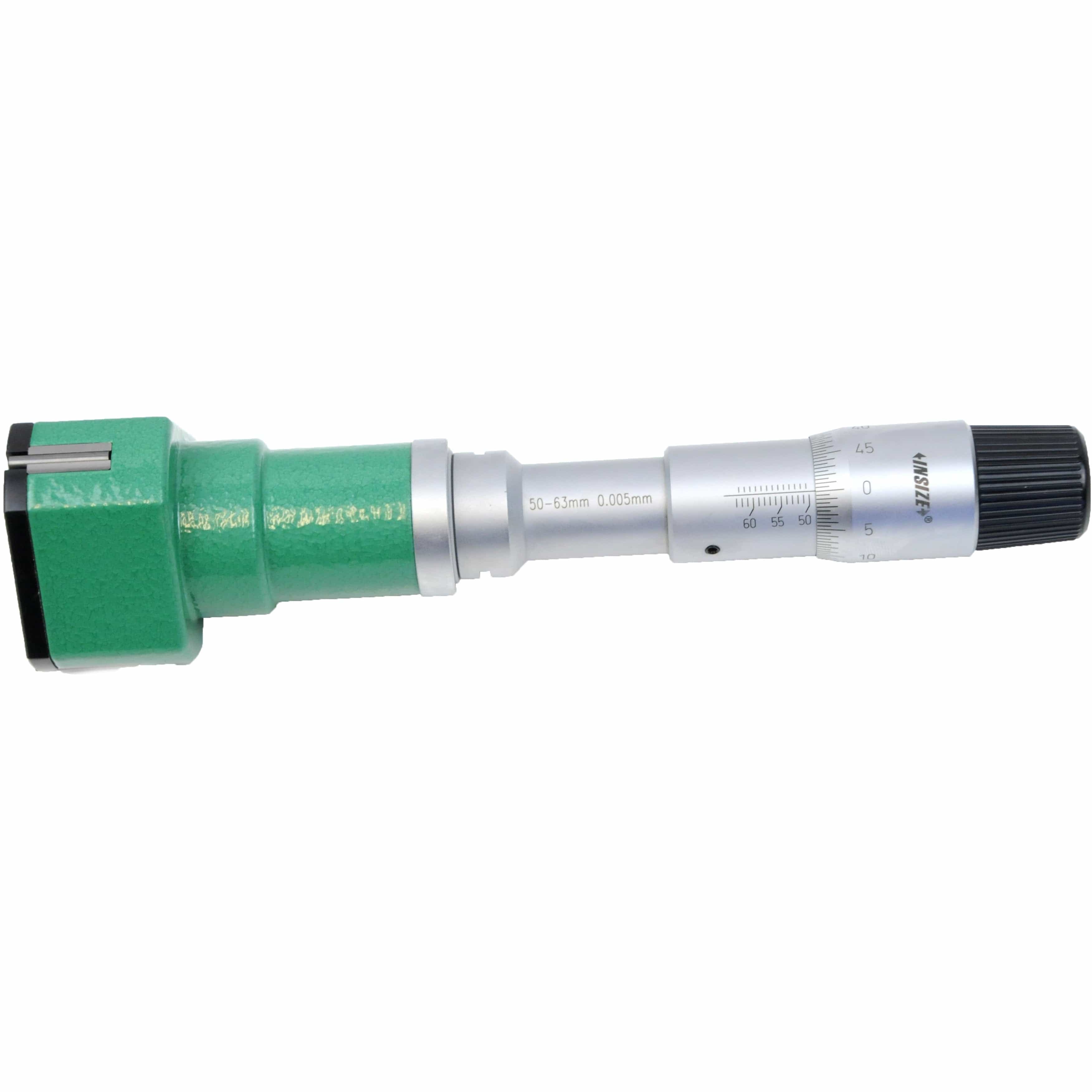

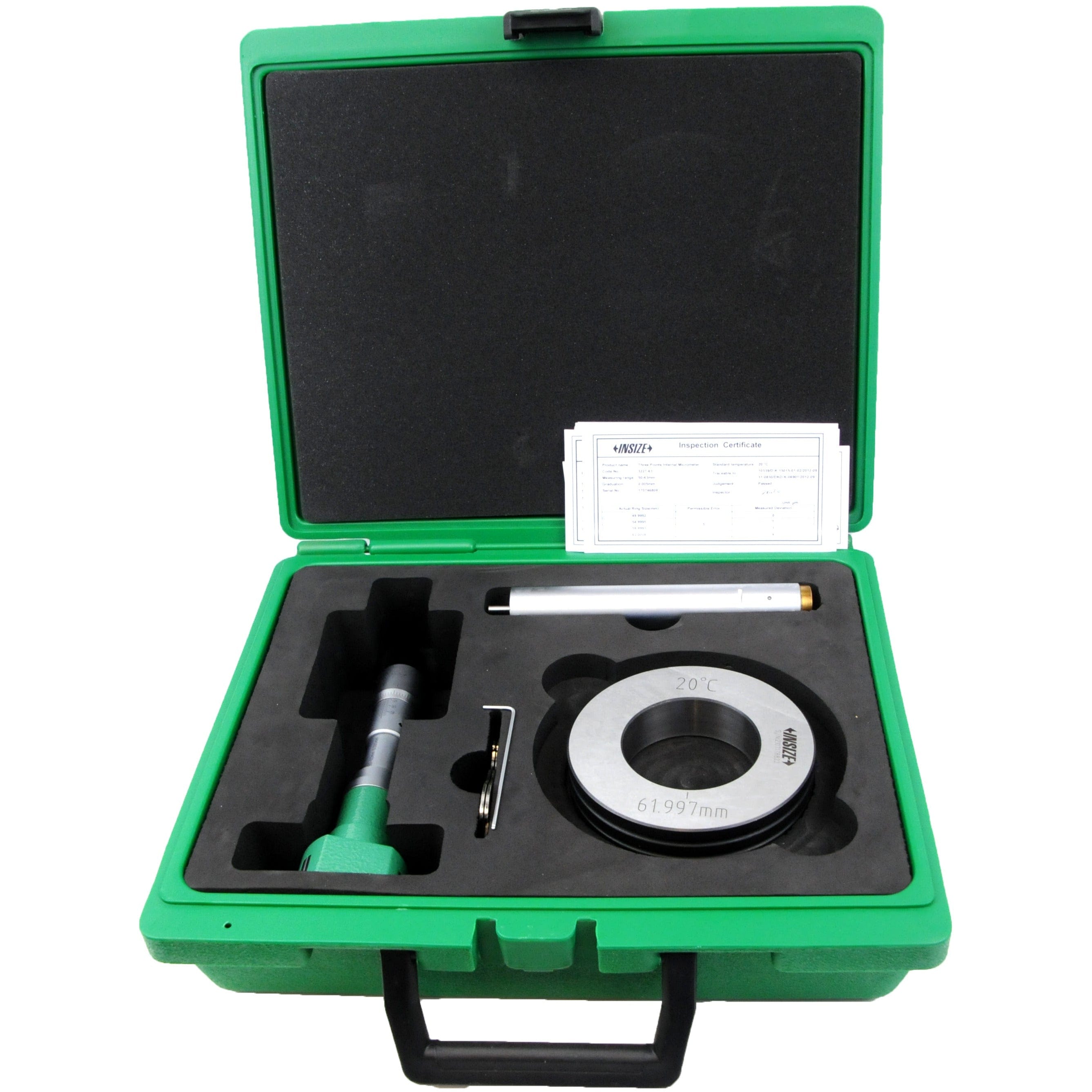

Insize 50–63mm Inside Micrometer
The Insize 50–63mm Inside Micrometer is designed for accurate internal diameter measurement of medium-size bores in machining, inspection, and quality control applications. Its three-point measuring system ensures excellent centring, stability, and repeatable measurement accuracy.

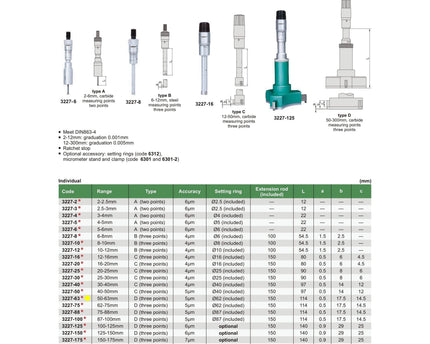

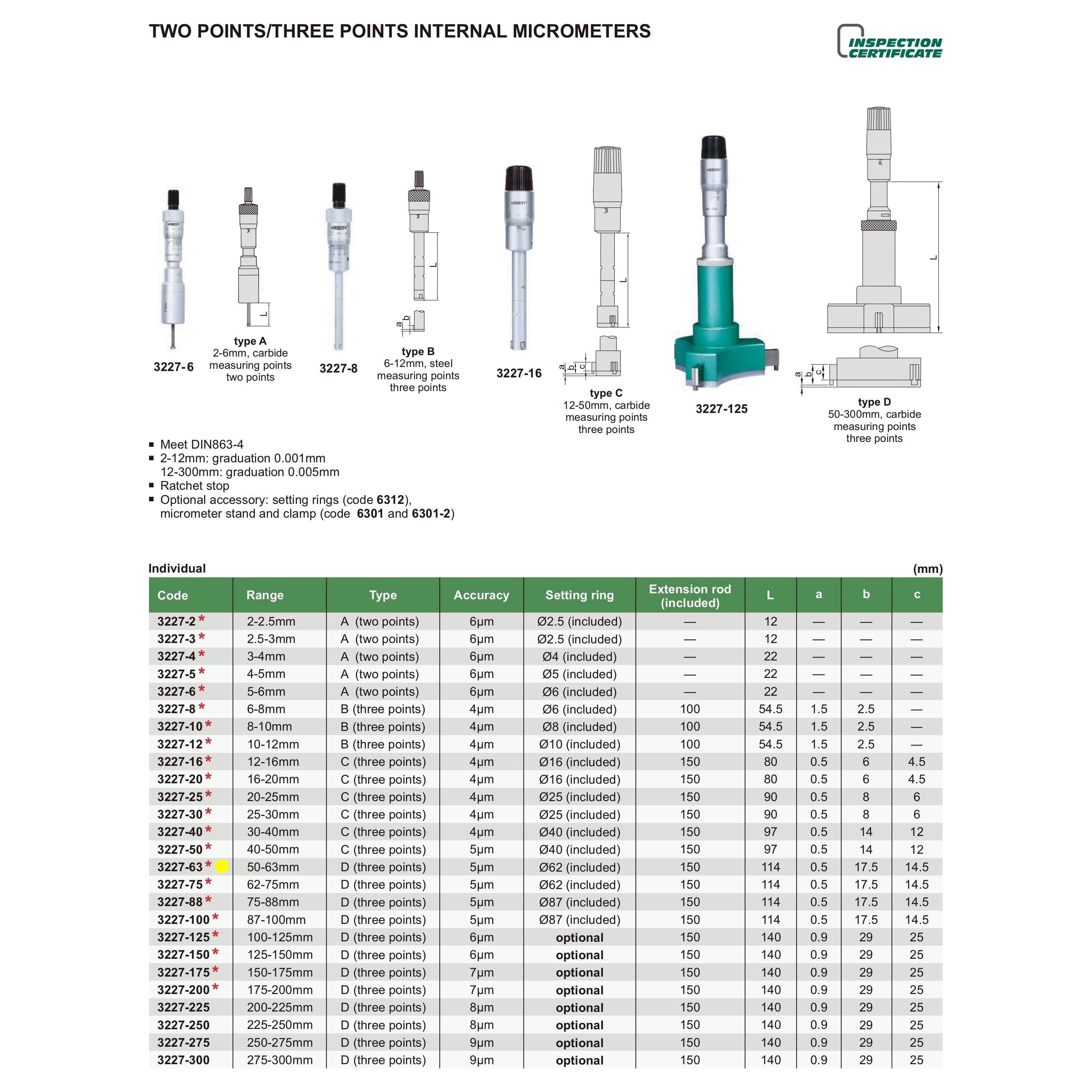

Specifications :
-
Part No: 3227-63
-
Measuring Range: 50–63 mm
-

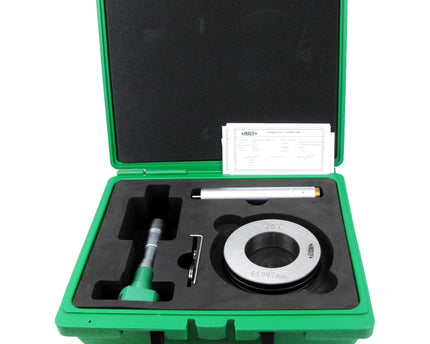

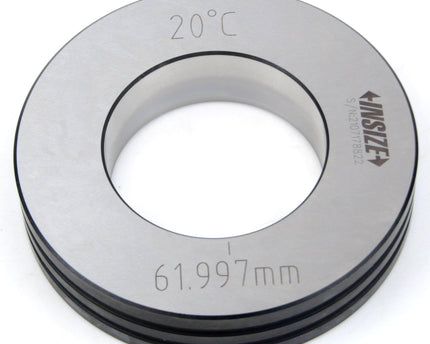

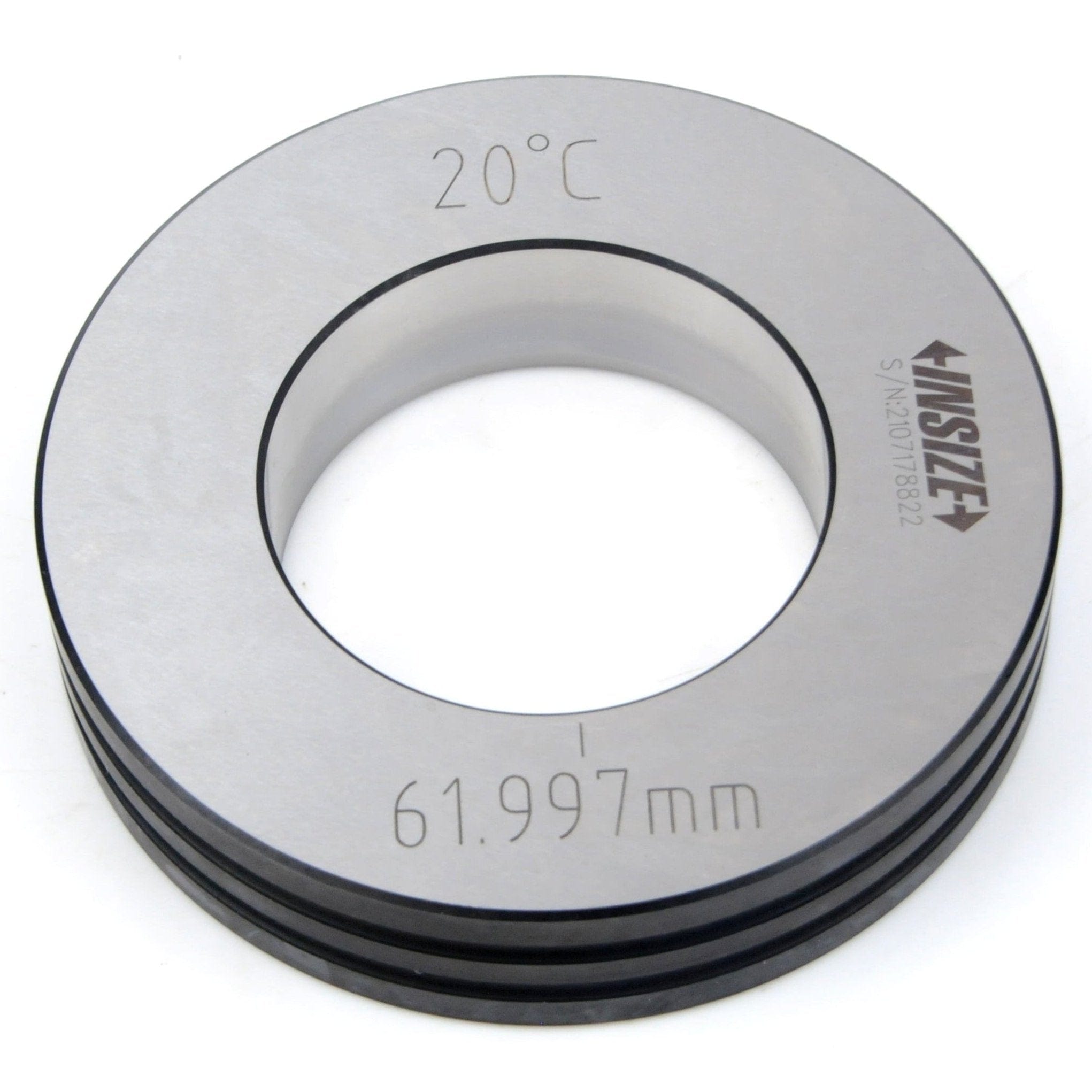

Setting Ring: Ø62 mm (included)
-
Graduation (6–12 mm range reference): 0.001 mm
-
Graduation (12–300 mm range): 0.005 mm
-
Type: D – Three-point inside micrometer
-

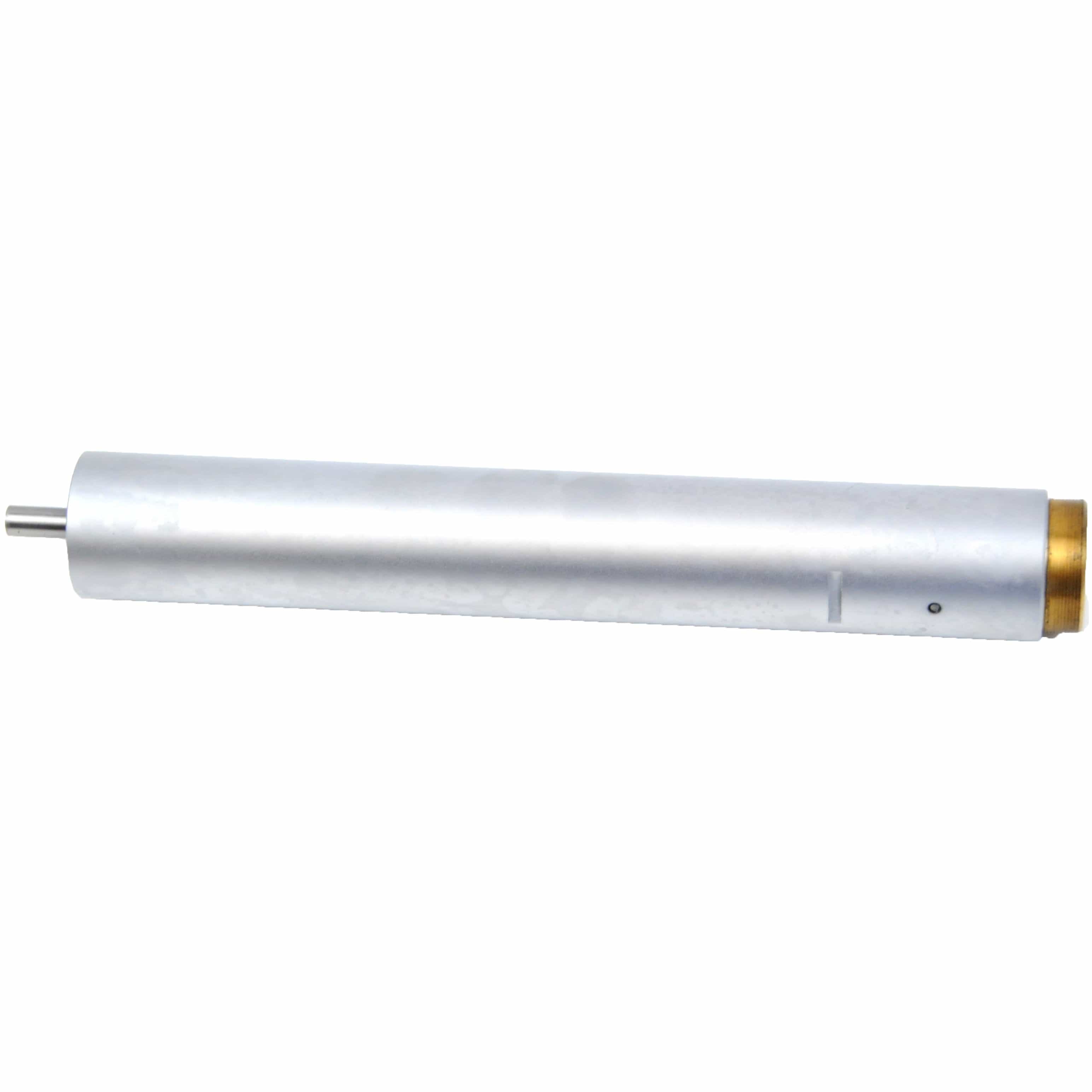

Extension Rod: 150 mm
-

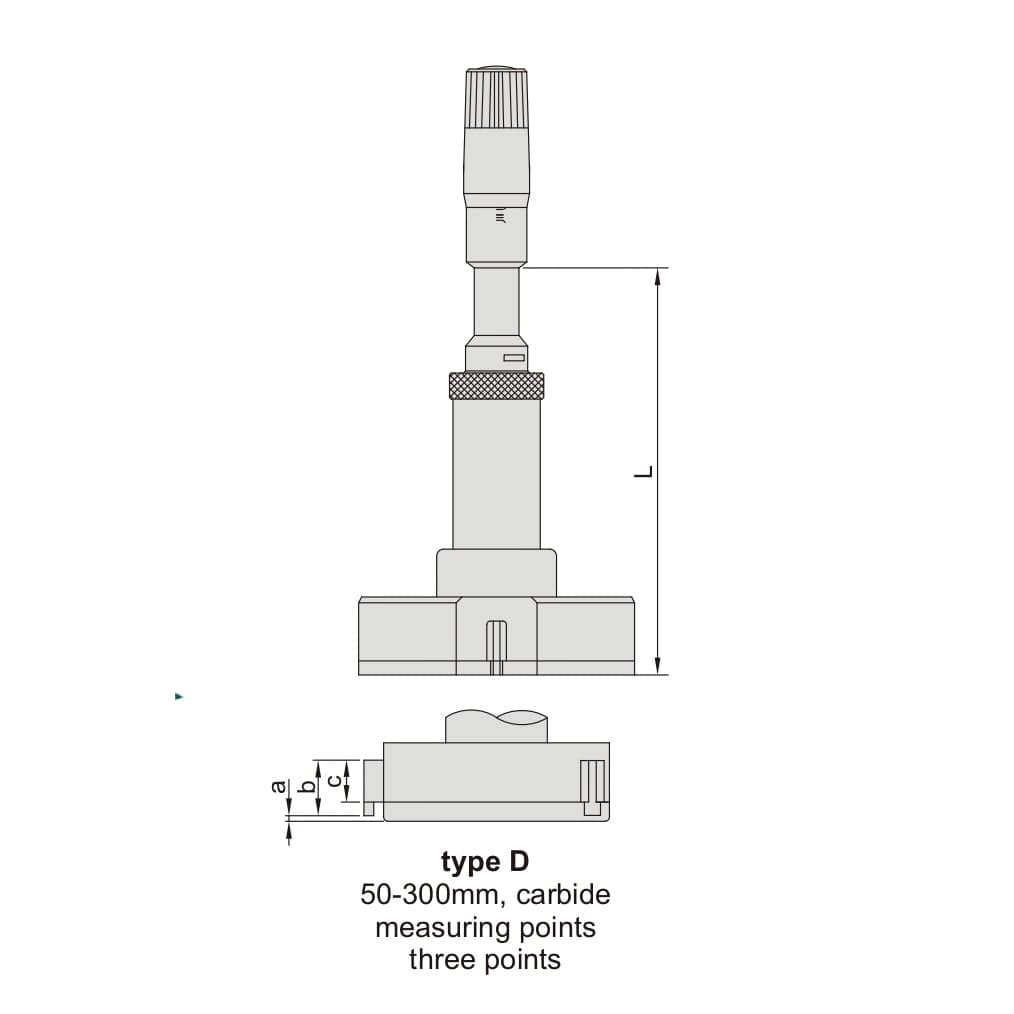

L: 114 mm
-
A: 0.5 mm
-
B: 17.5 mm
-
C: 14.5 mm
- Carbide measuring points

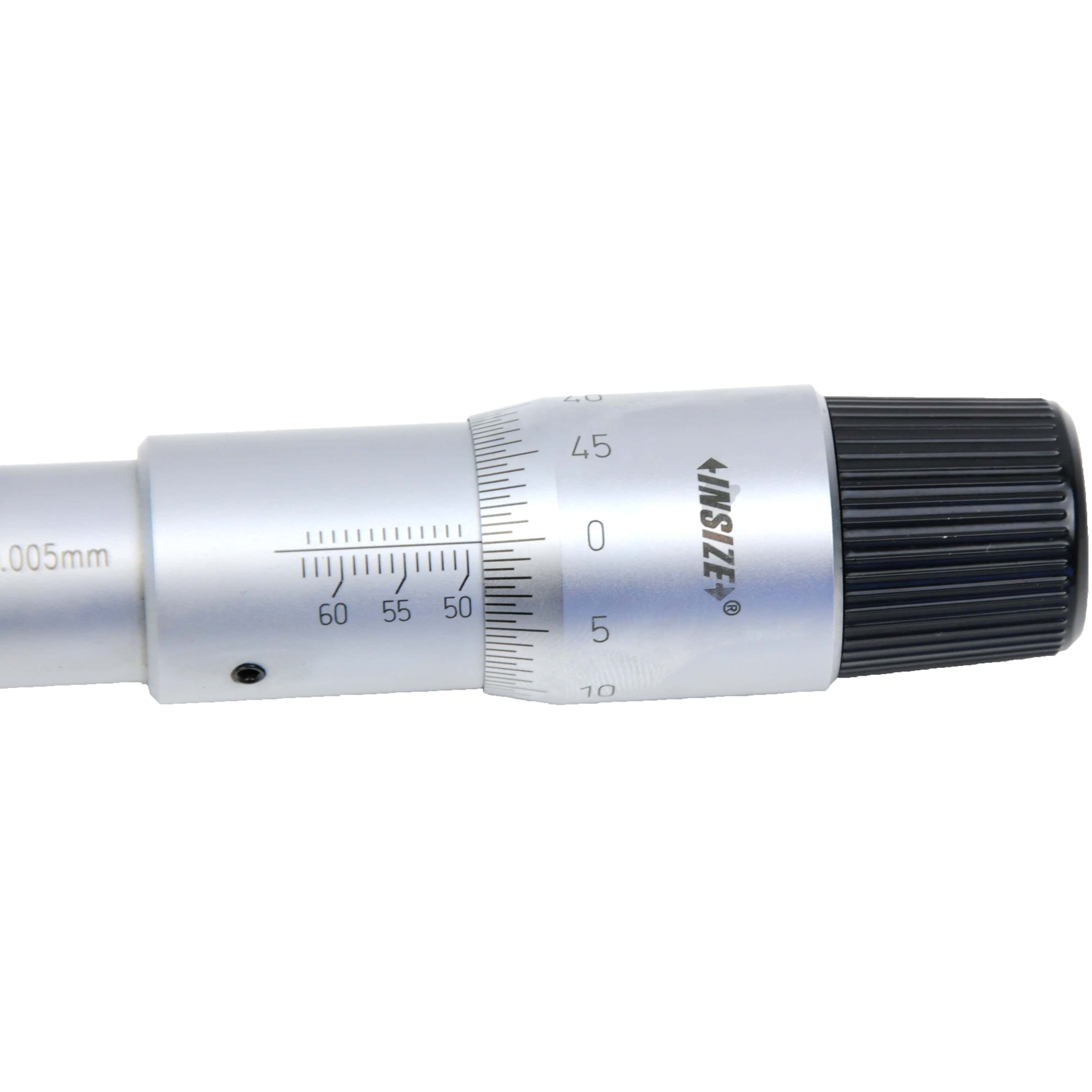

- Ratchet stop for consistent measuring force
- Manufactured in accordance with DIN 863-4
-
Optional Accessories: Setting rings (Code 6312), micrometer stand and clamp (Code 6301, 6301-2)
Well-designed, durable, and high-precision measuring tools suitable for demanding internal measurement tasks. Insize three-point inside micrometers provide dependable accuracy and ease of use for precise internal diameter measurement.
