Description

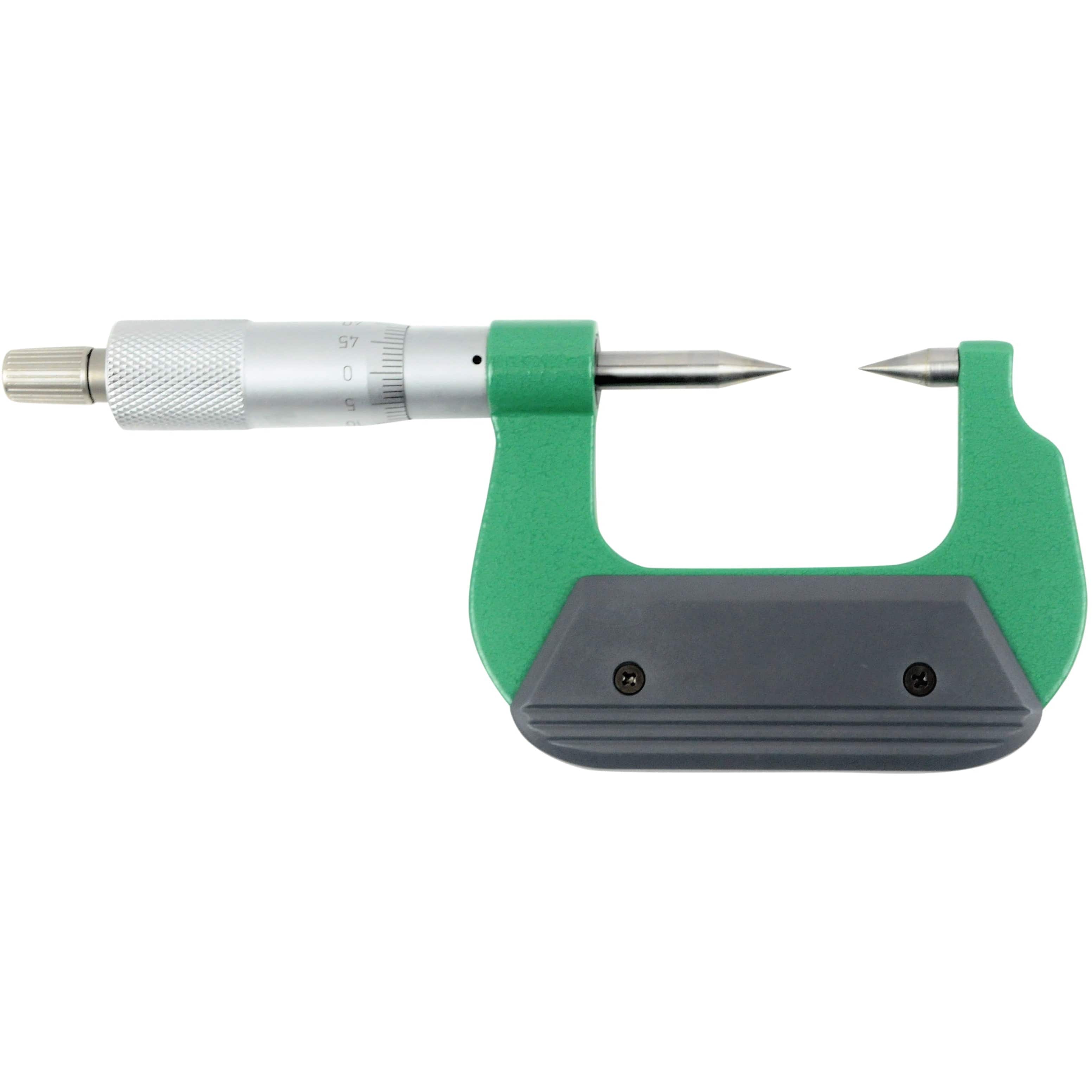

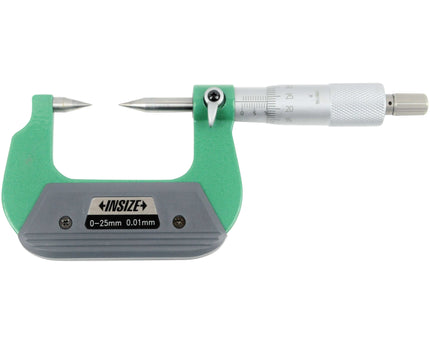

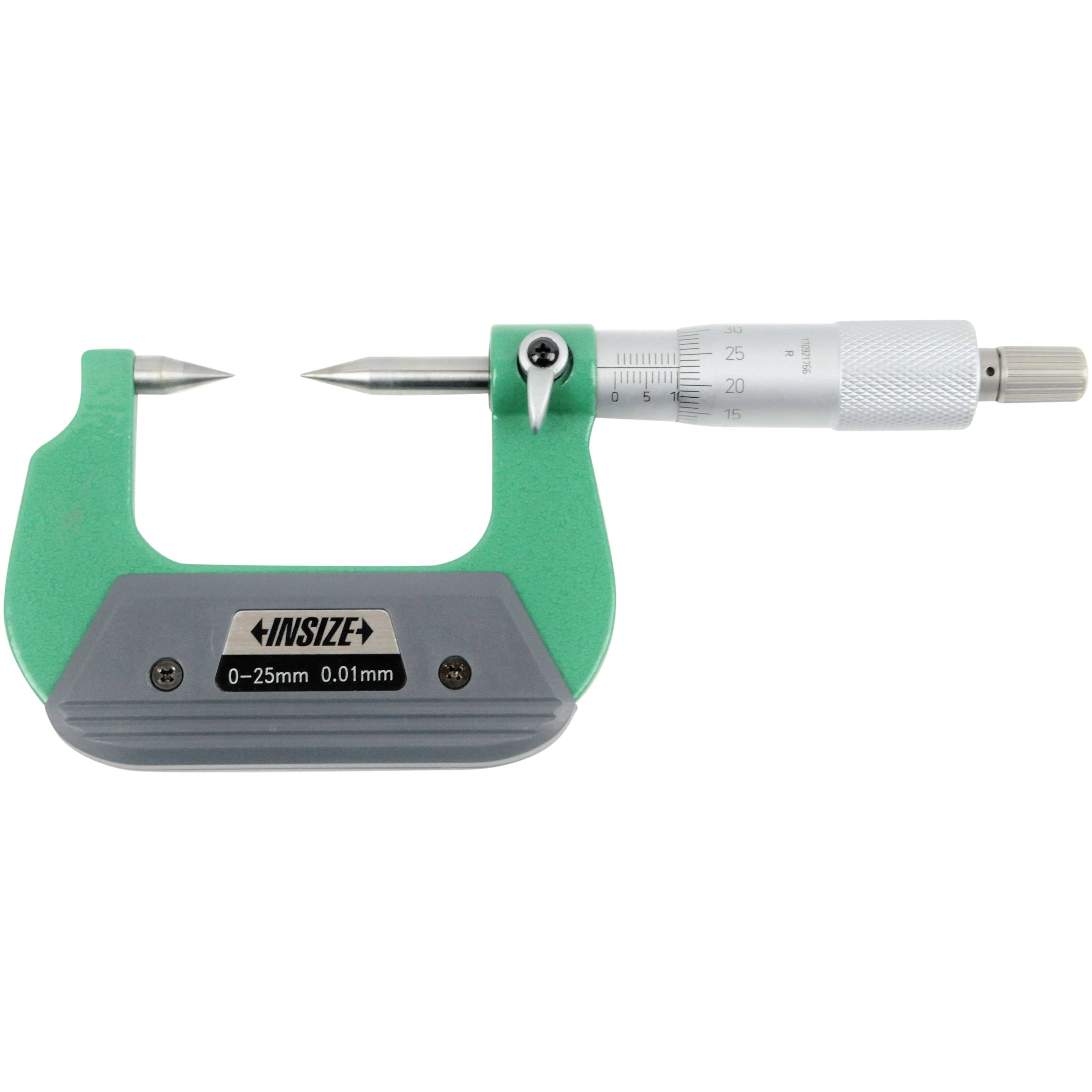

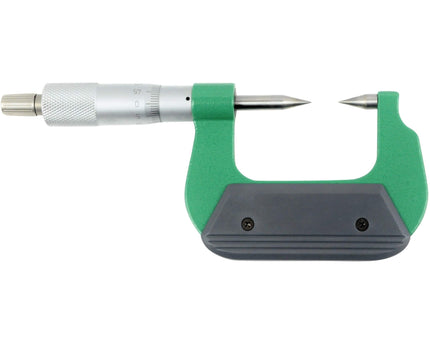

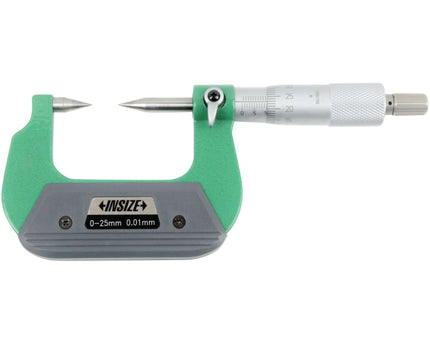

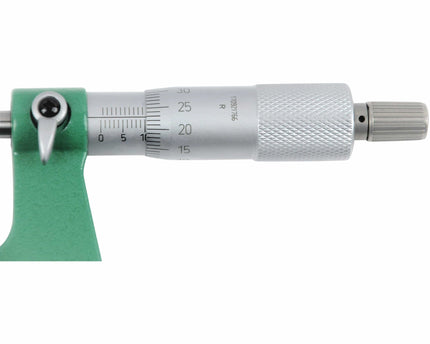

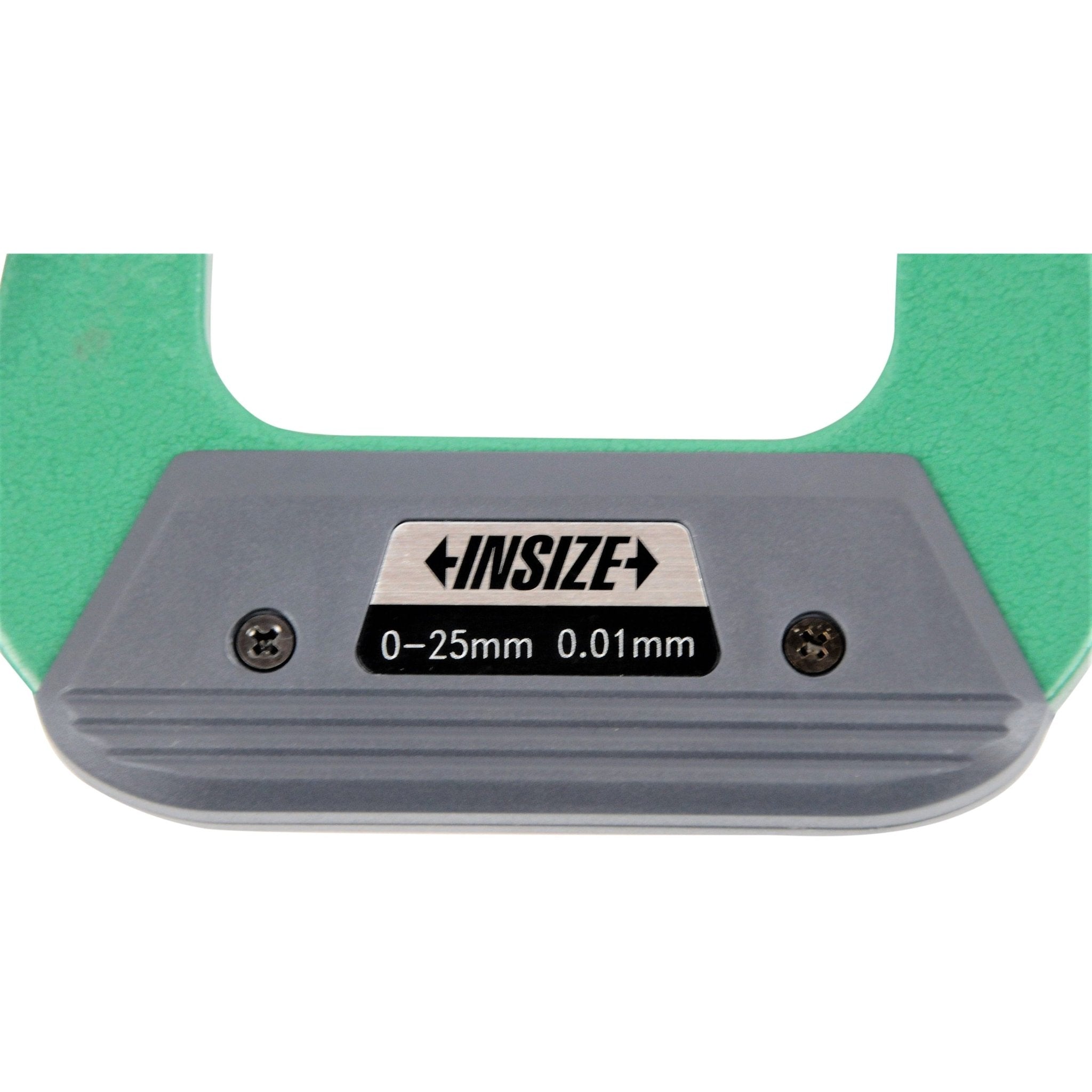

Insize Point Micrometer
The Insize Point Micrometer is designed for precise measurement of small features such as drill web thickness, narrow grooves, and keyways. The pointed carbide measuring tips allow accurate contact in confined areas where standard flat anvils cannot be used, making it ideal for machining, inspection, and toolroom applications.

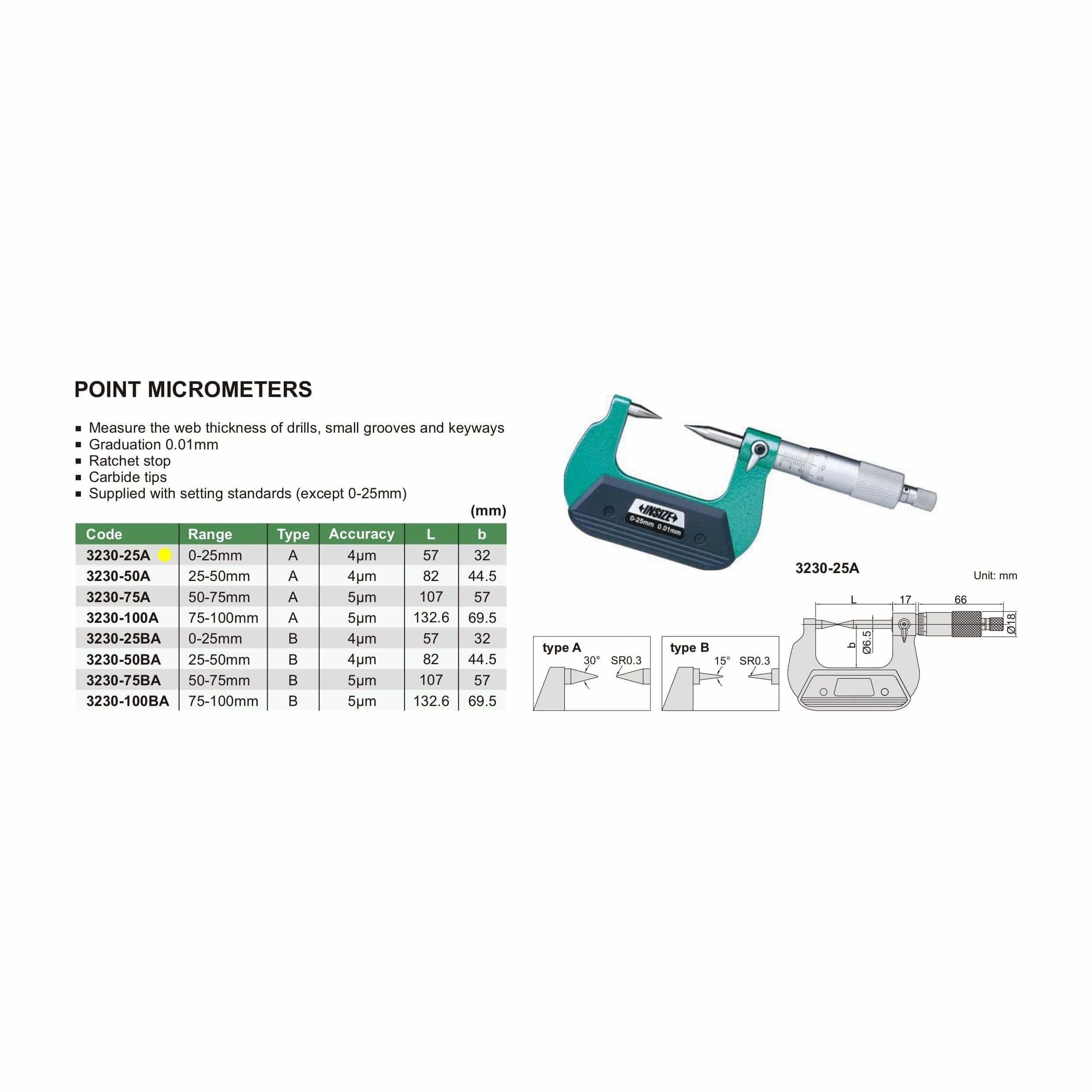

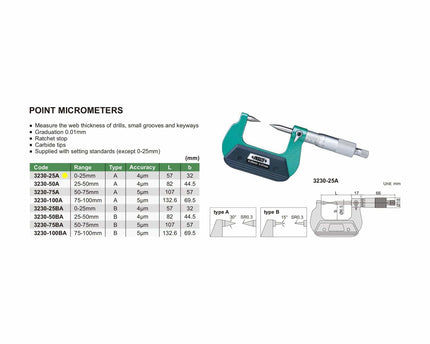

Specifications :
-
Part No: 3230-25A
-
Measuring Range: 0–25 mm
-
Graduation: 0.01 mm
-

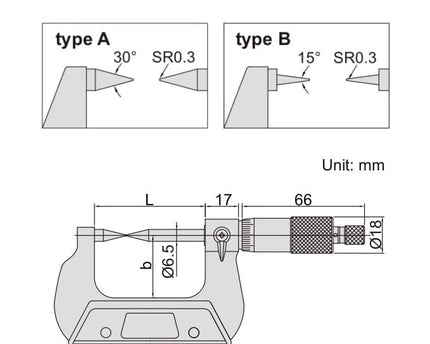

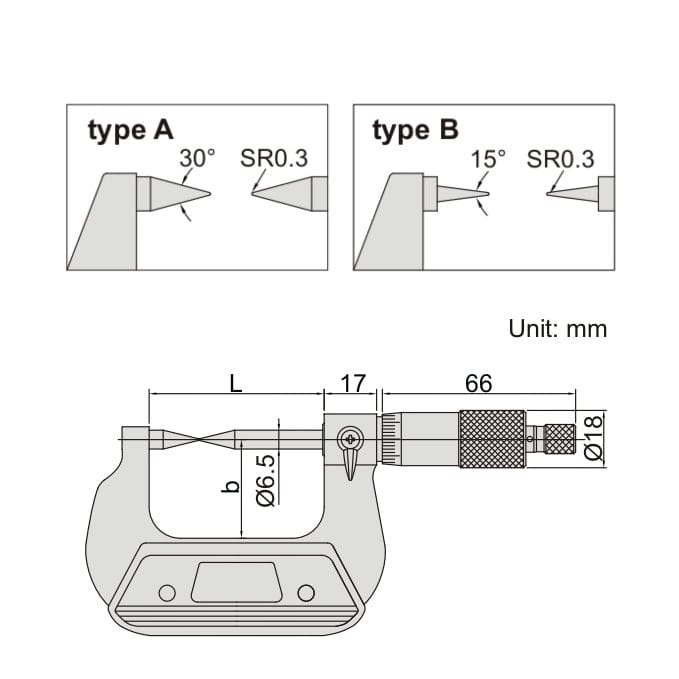

Type: Type A point micrometer
-
Length (L): 57 mm
-
Dimension (b): 32 mm

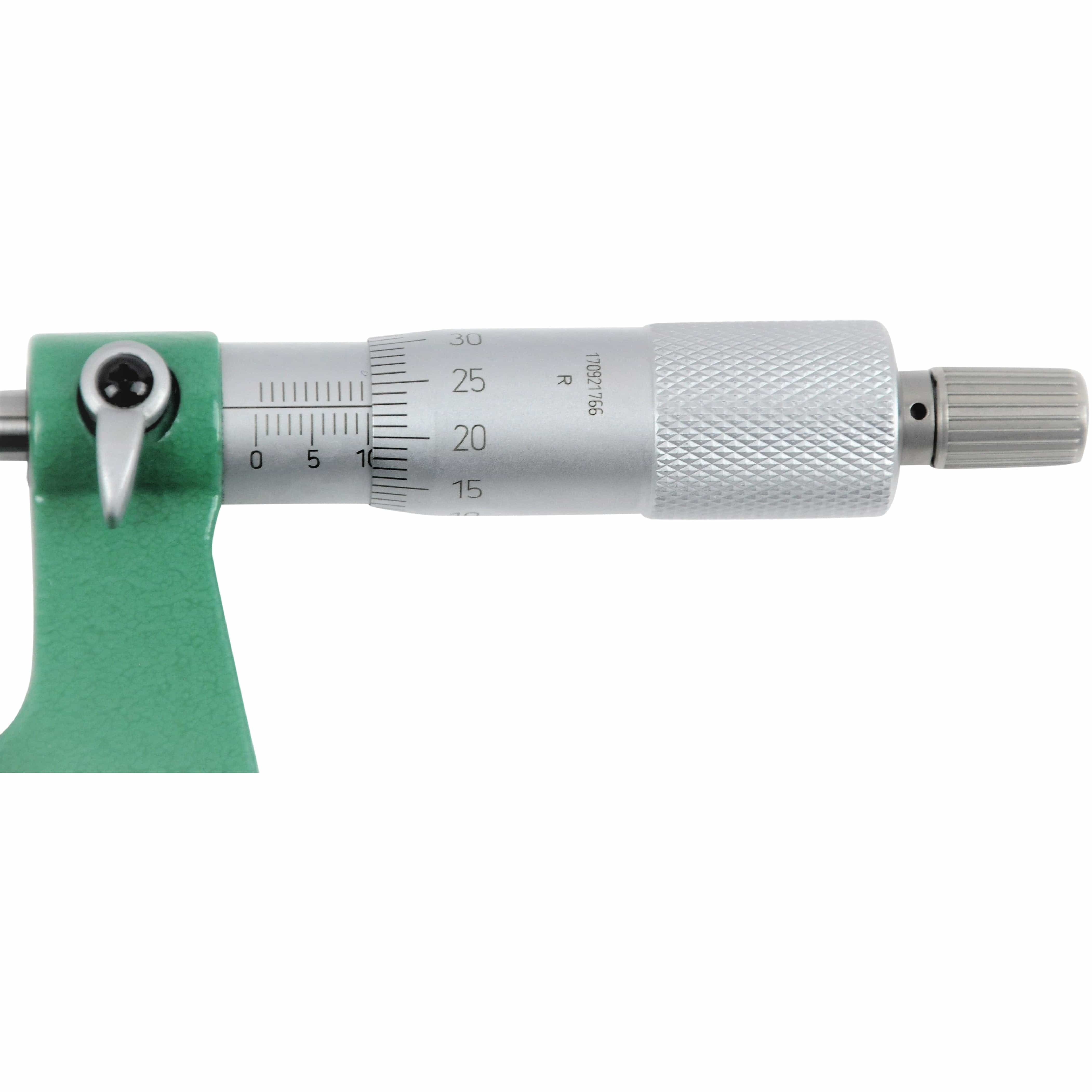

- Ratchet stop for consistent measuring force
-

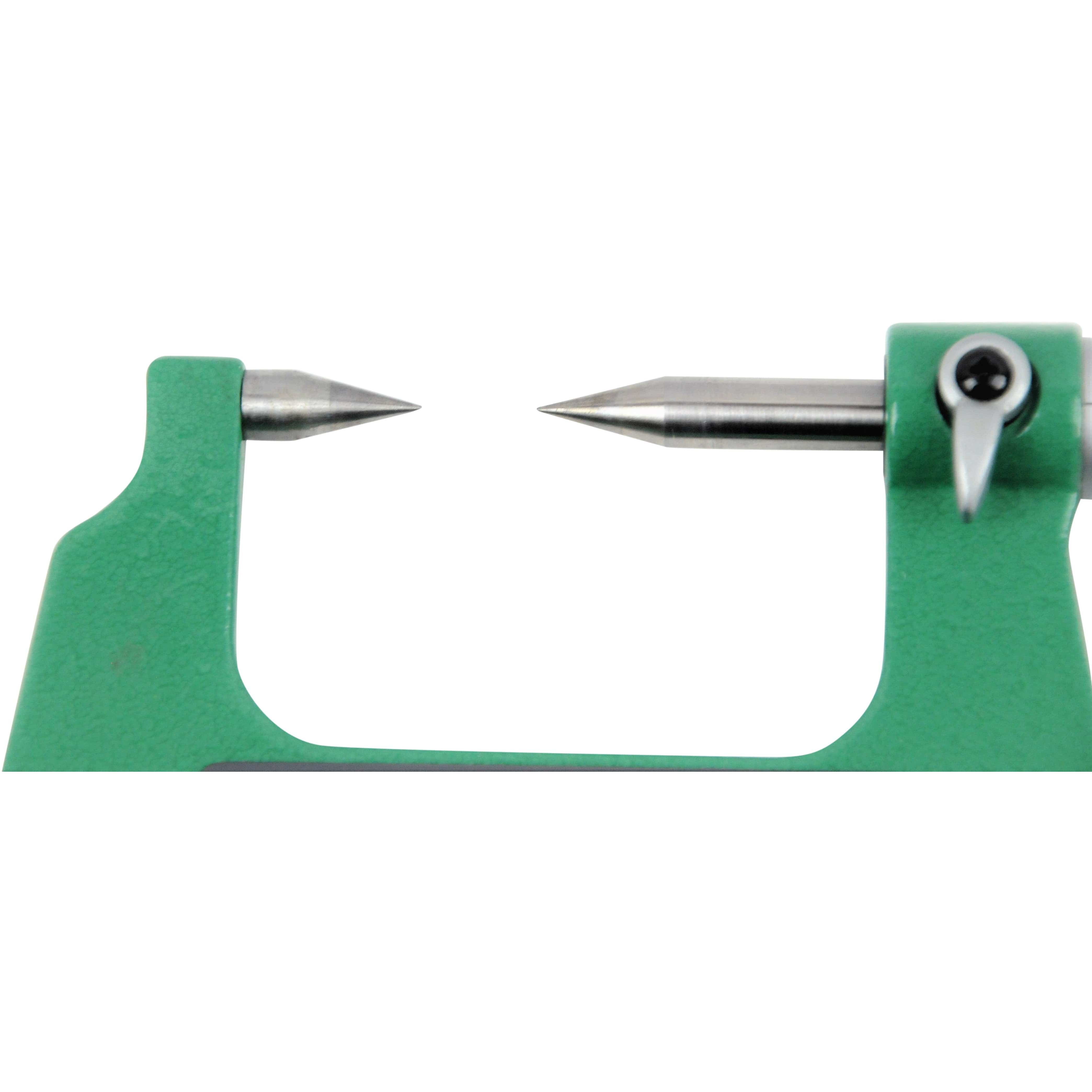

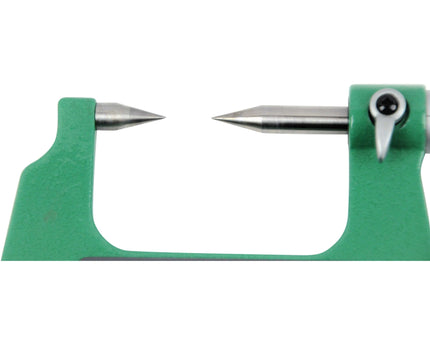

Measuring Tips: Carbide

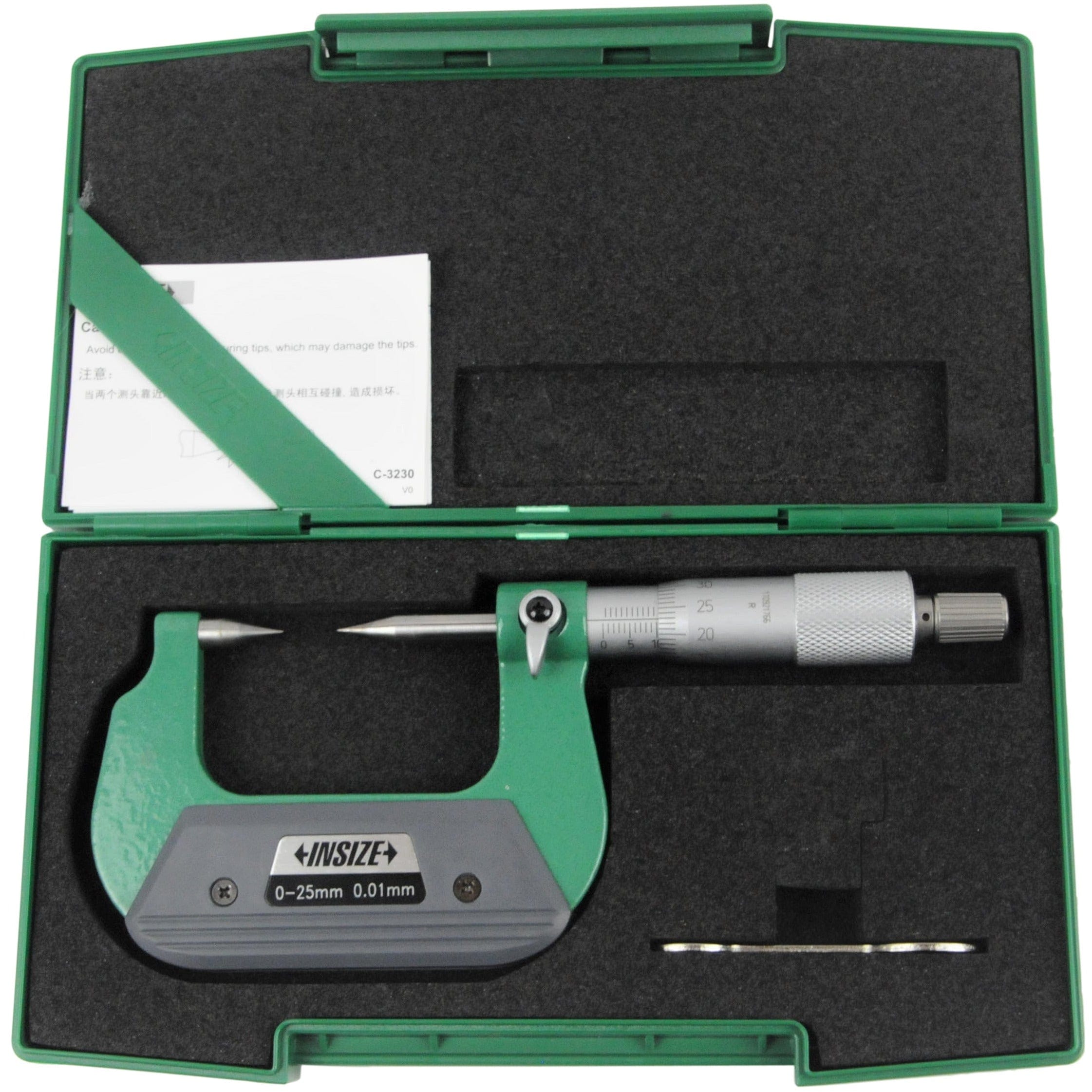

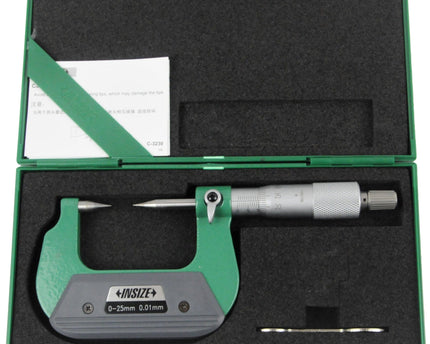

- Supplied with setting standards (except 0–25 mm)
Well-designed, durable, and high-precision measuring tools suitable for specialised measurement tasks. Insize point micrometers provide reliable accuracy and ease of use when measuring fine details such as drill webs, grooves, and keyways.
