Description

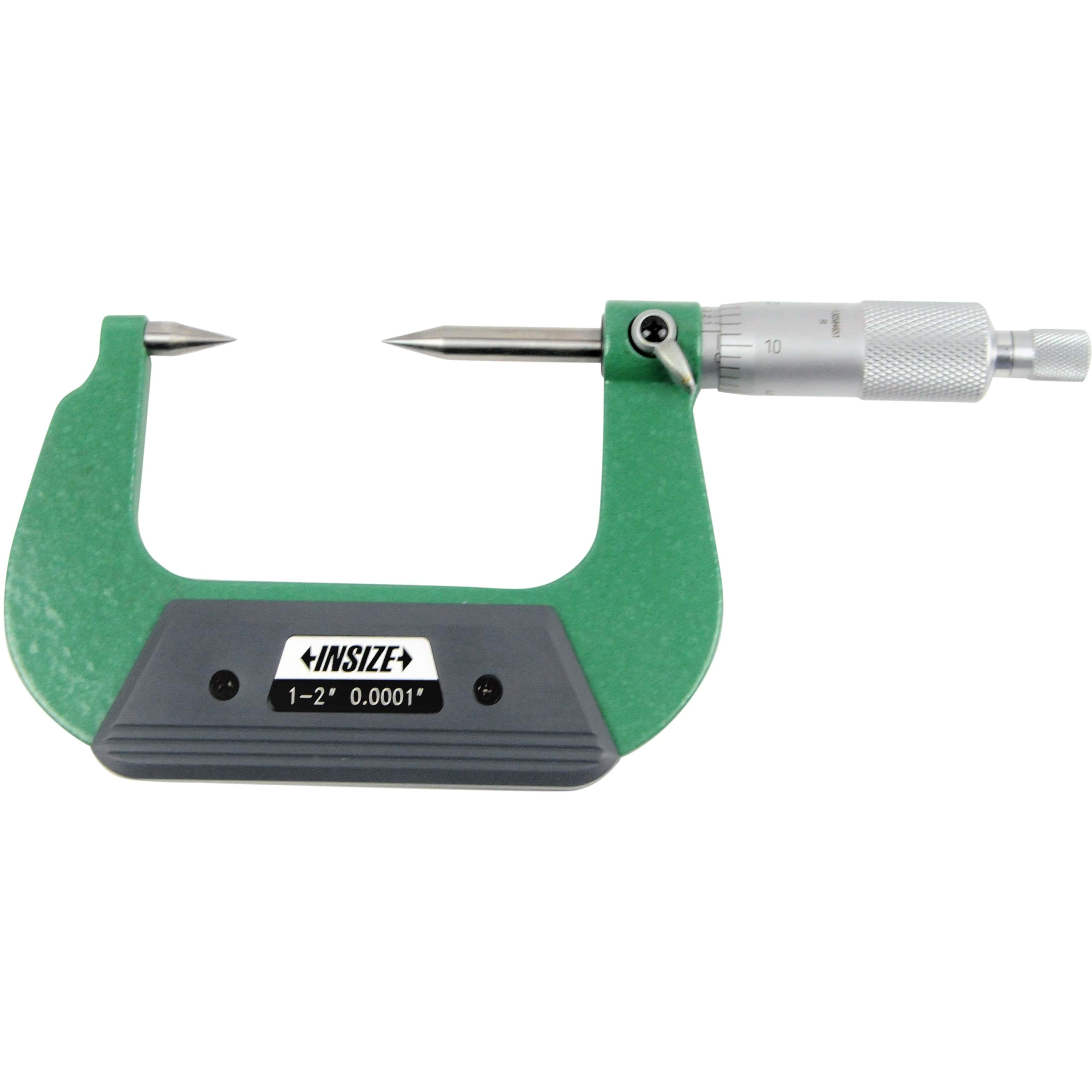

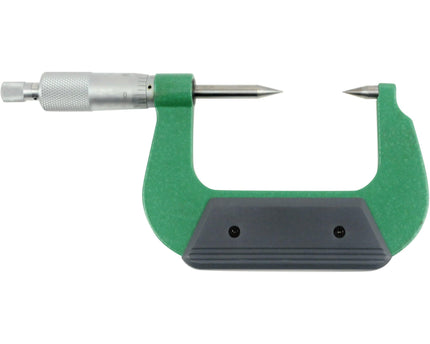

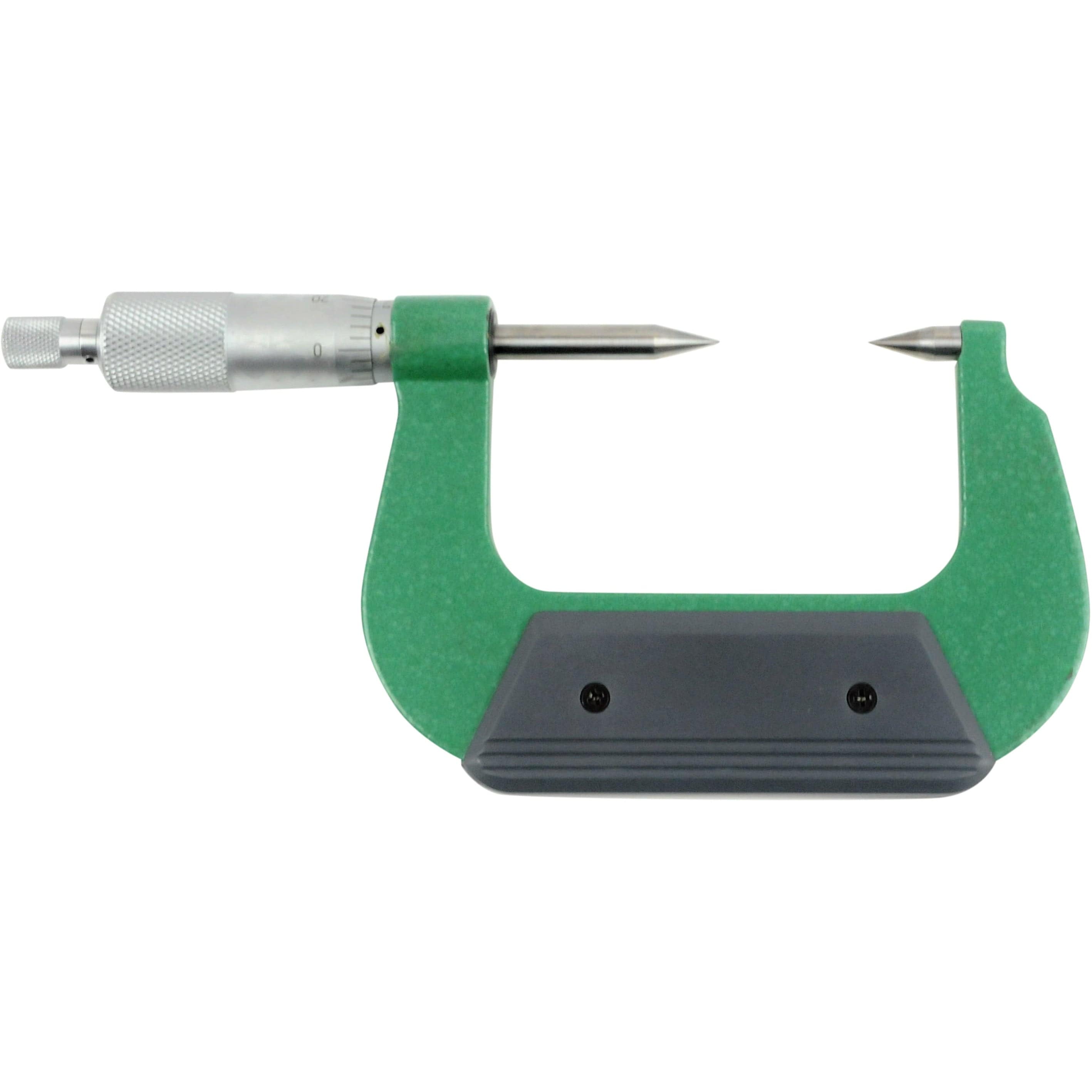

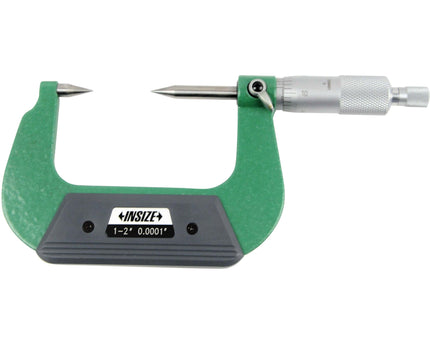

Insize Point Micrometer
The Insize Point Micrometer is designed for precise measurement of small features such as drill web thickness, narrow grooves, and keyways. Equipped with hardened carbide point tips and fine imperial graduations, it delivers reliable accuracy for specialised measurement tasks in machining, inspection, and toolroom environments.

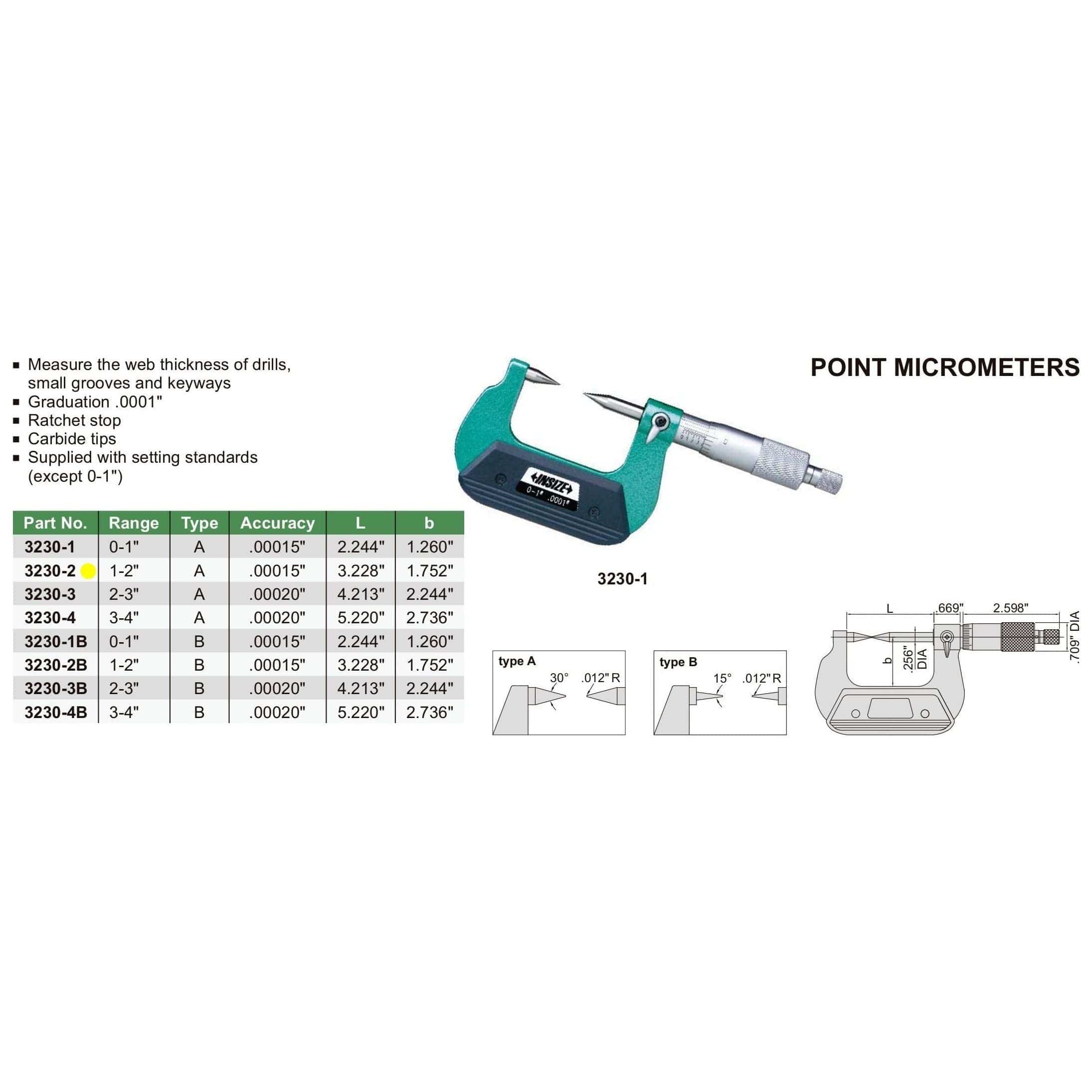

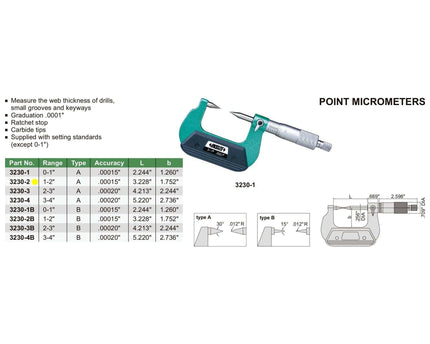

Specifications :
-
Part No: 3230-2
-
Measuring Range: 1–2"
-
Graduation: 0.0001"
-
Accuracy: 0.00015"
-

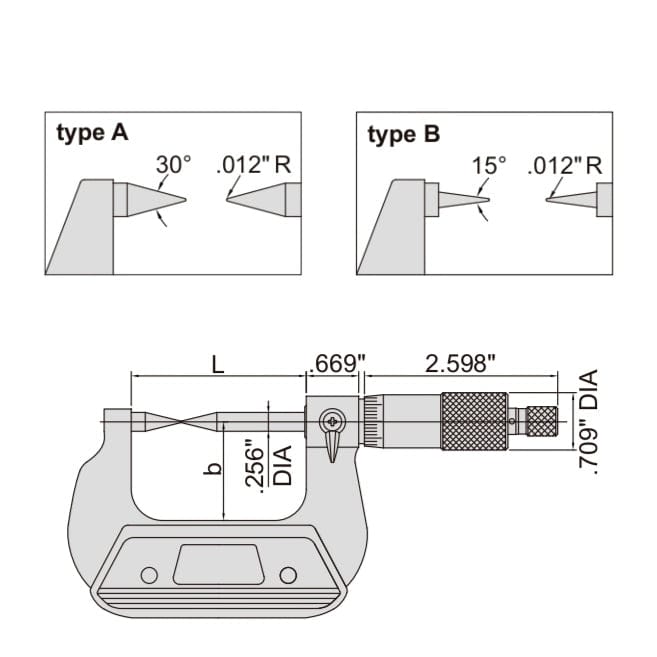

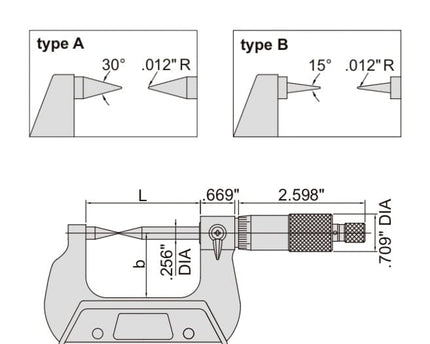

Type: Type A point micrometer
-
Length (L): 3.228"
-
Dimension (b): 1.752"

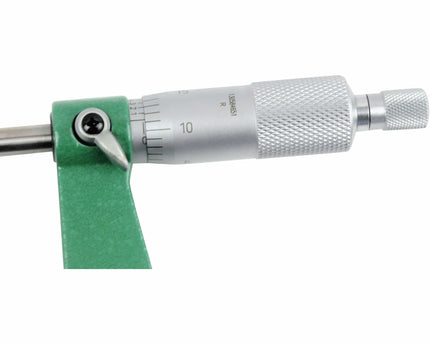

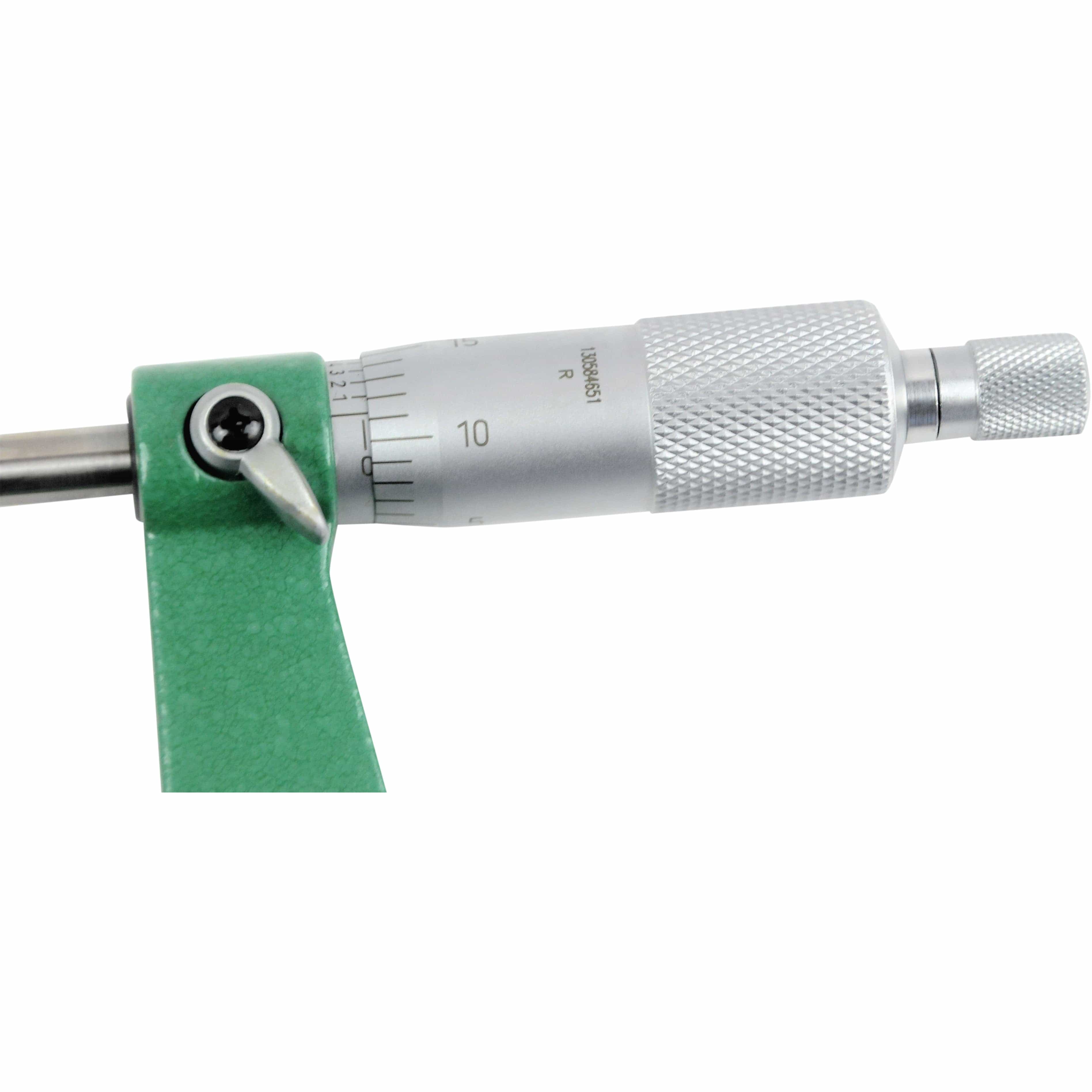

- Ratchet stop for consistent measuring force
-

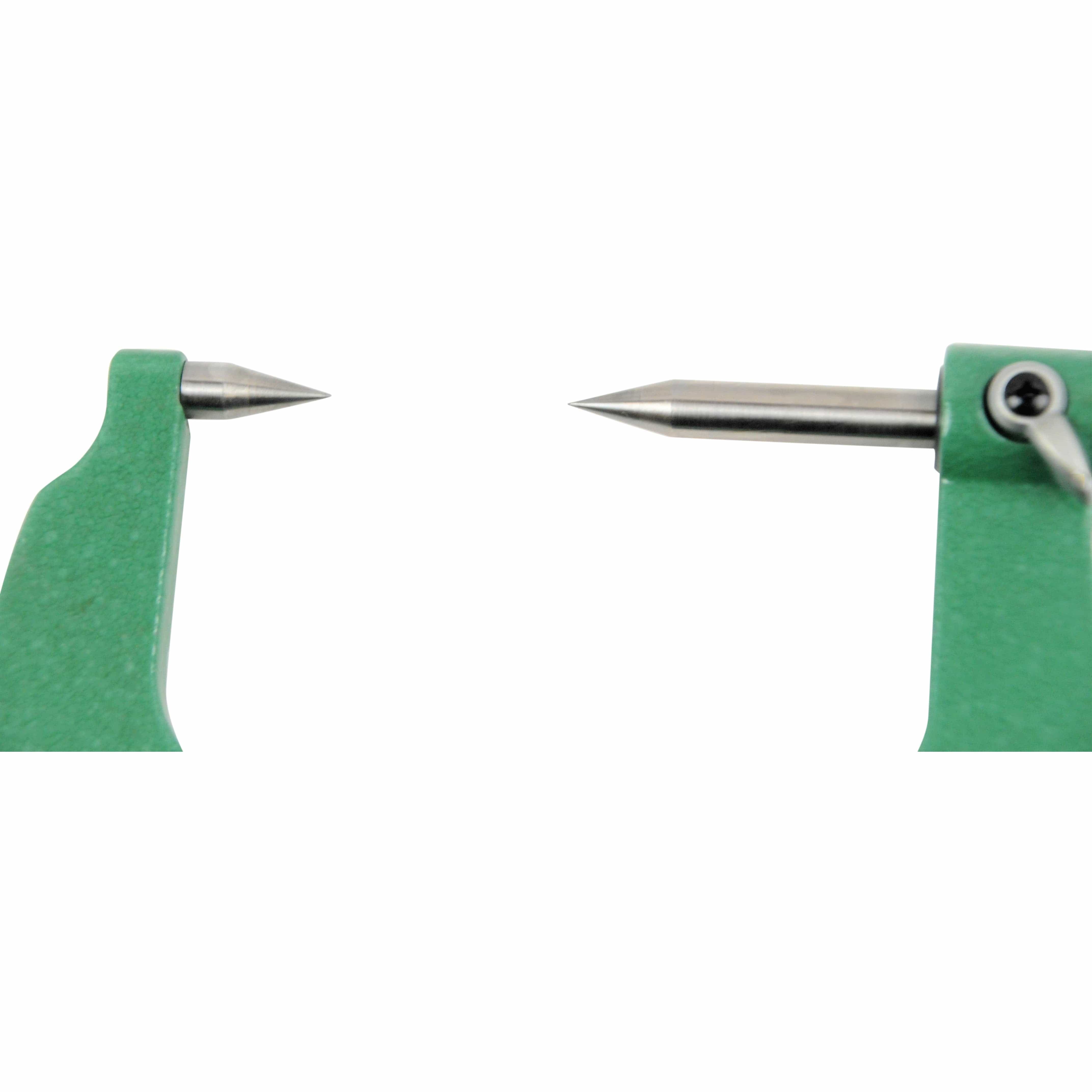

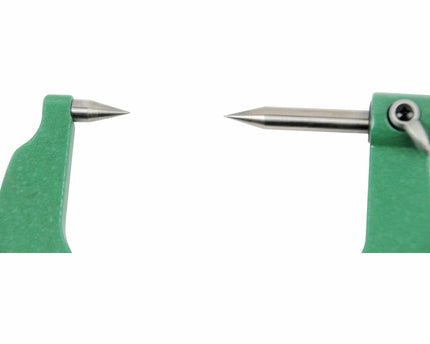

Measuring Tips: Carbide

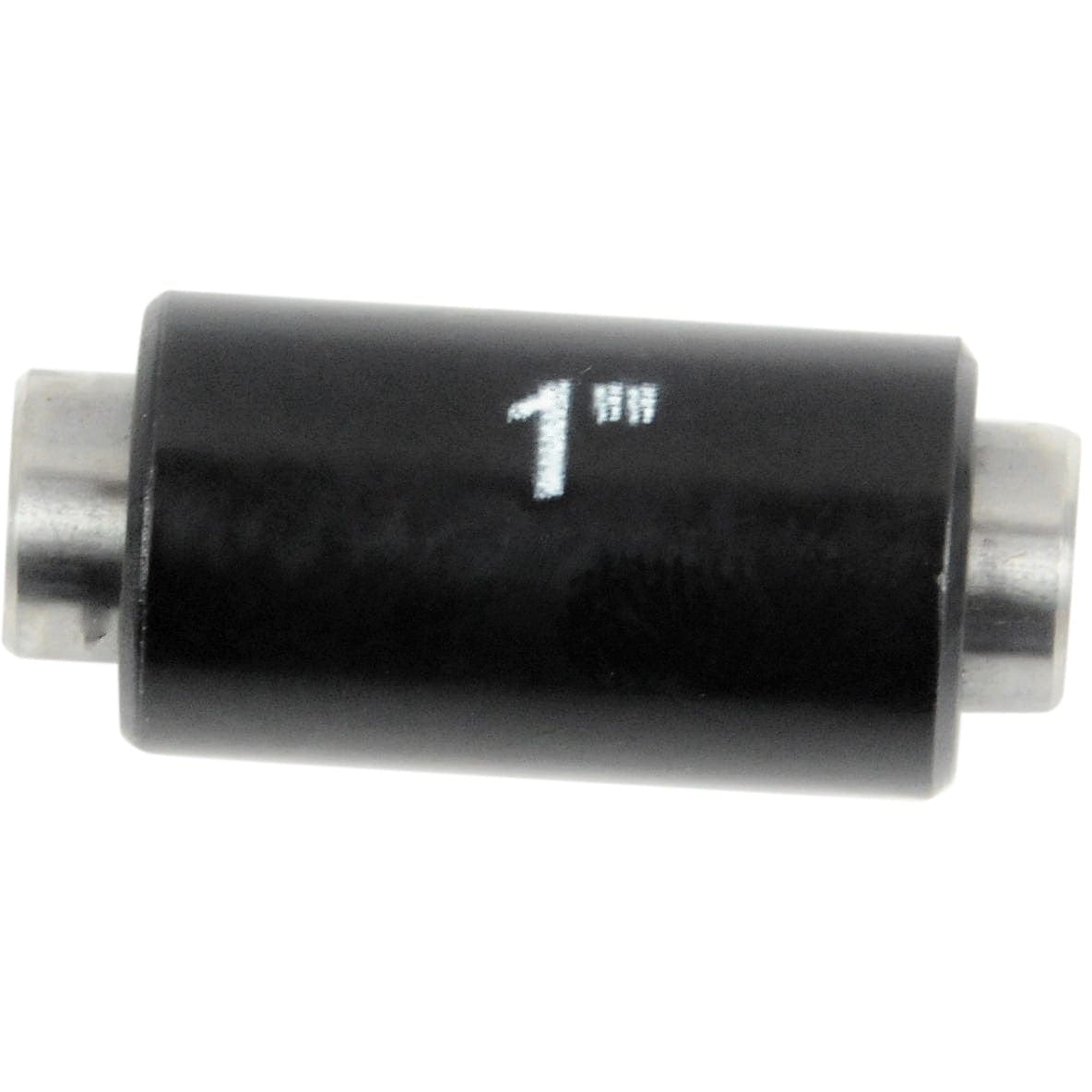

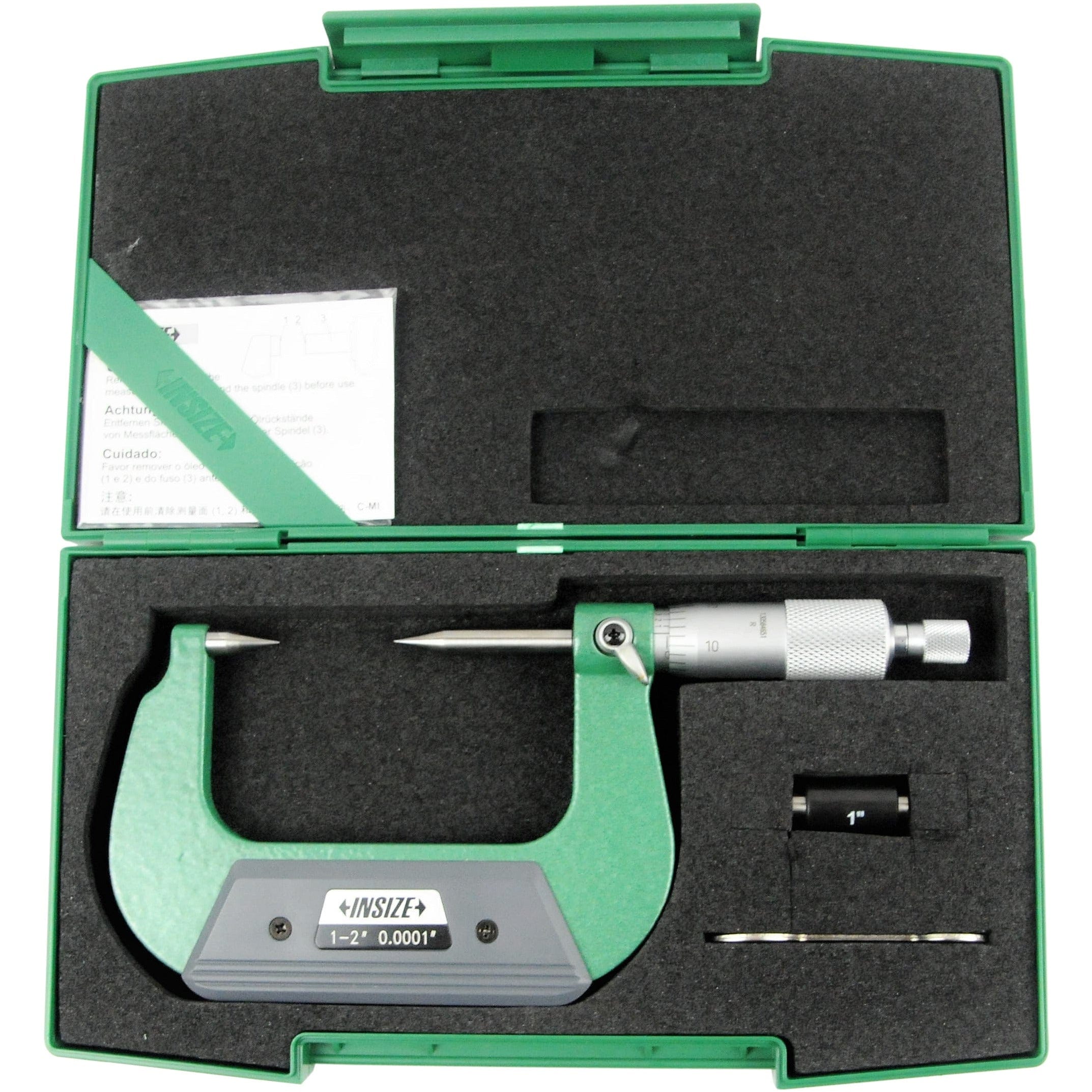

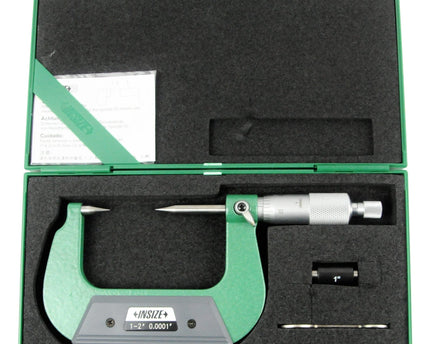

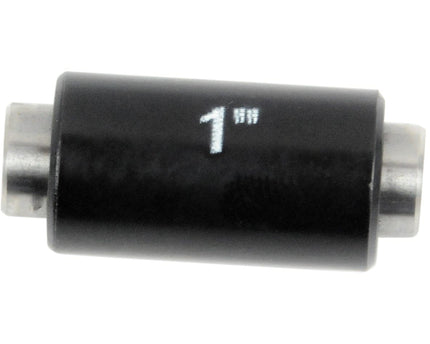

- Supplied with setting standards (except 0–1")
Well-designed, durable, and high-precision measuring tools suitable for specialised measurement applications. Insize point micrometers provide dependable accuracy and ease of use when measuring fine details such as drill webs, grooves, and keyways.
