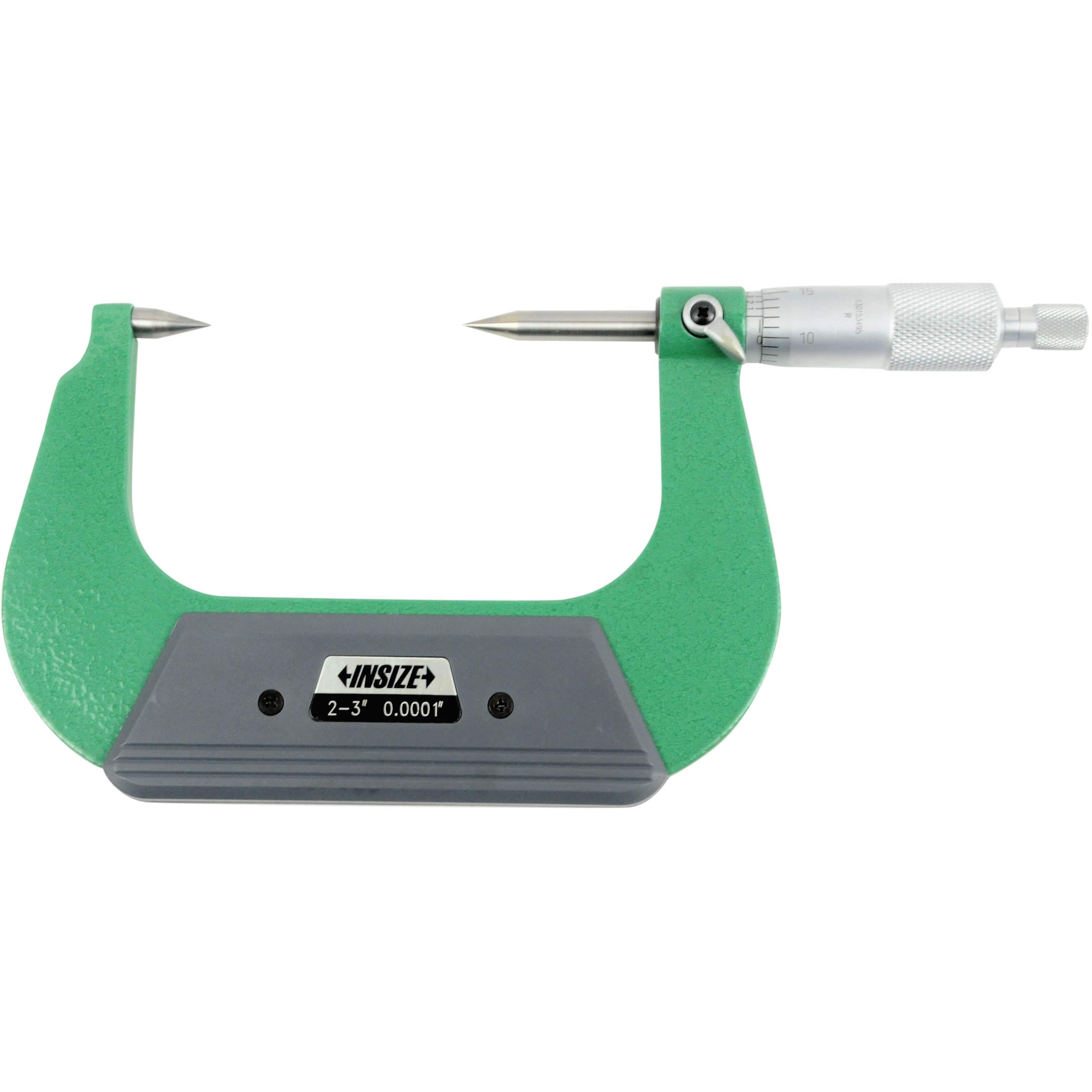

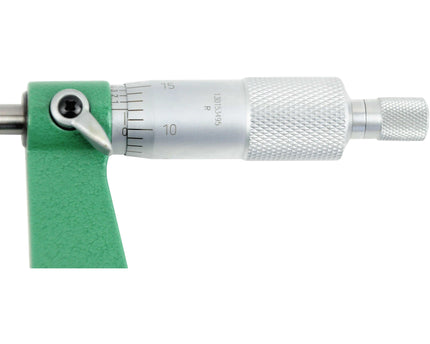

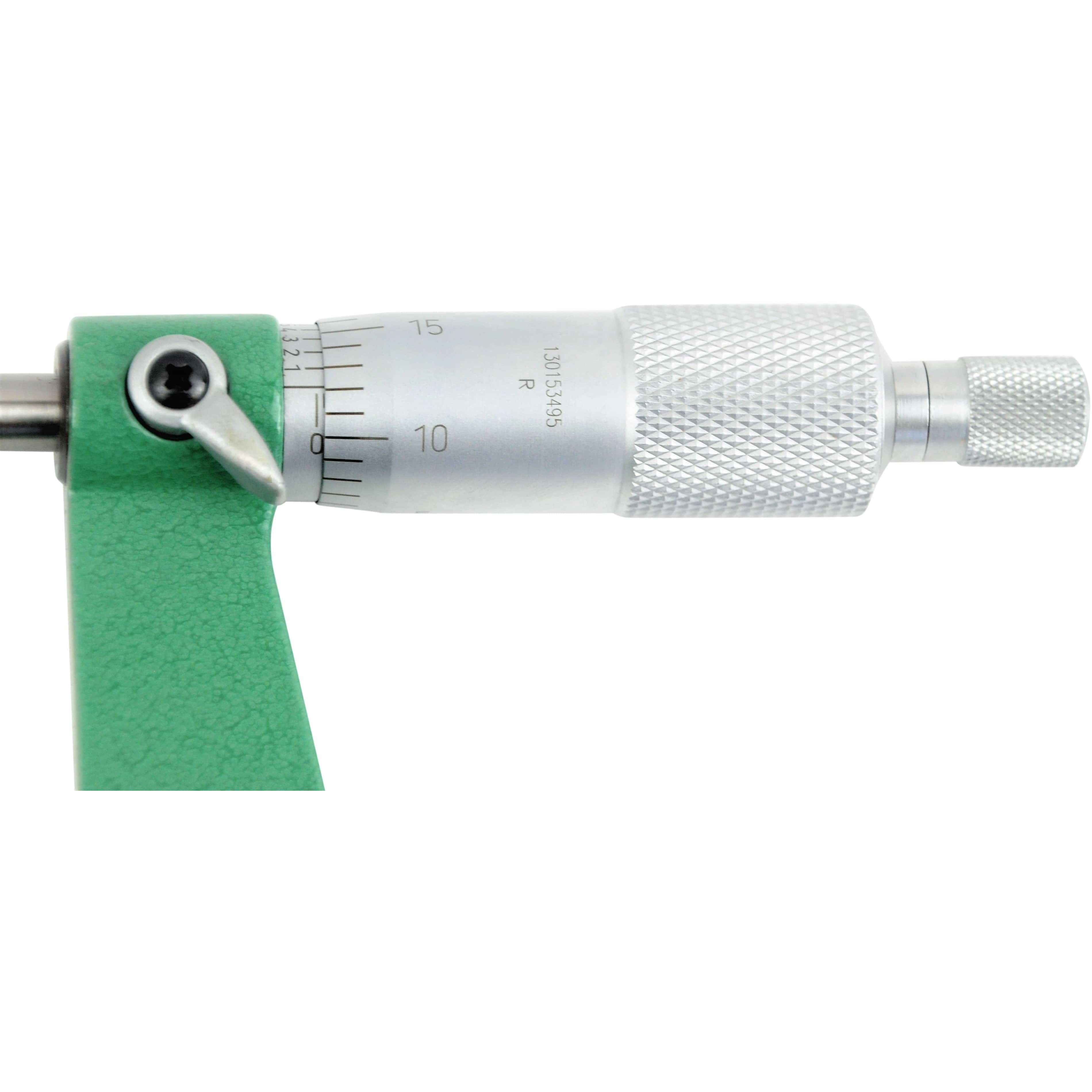

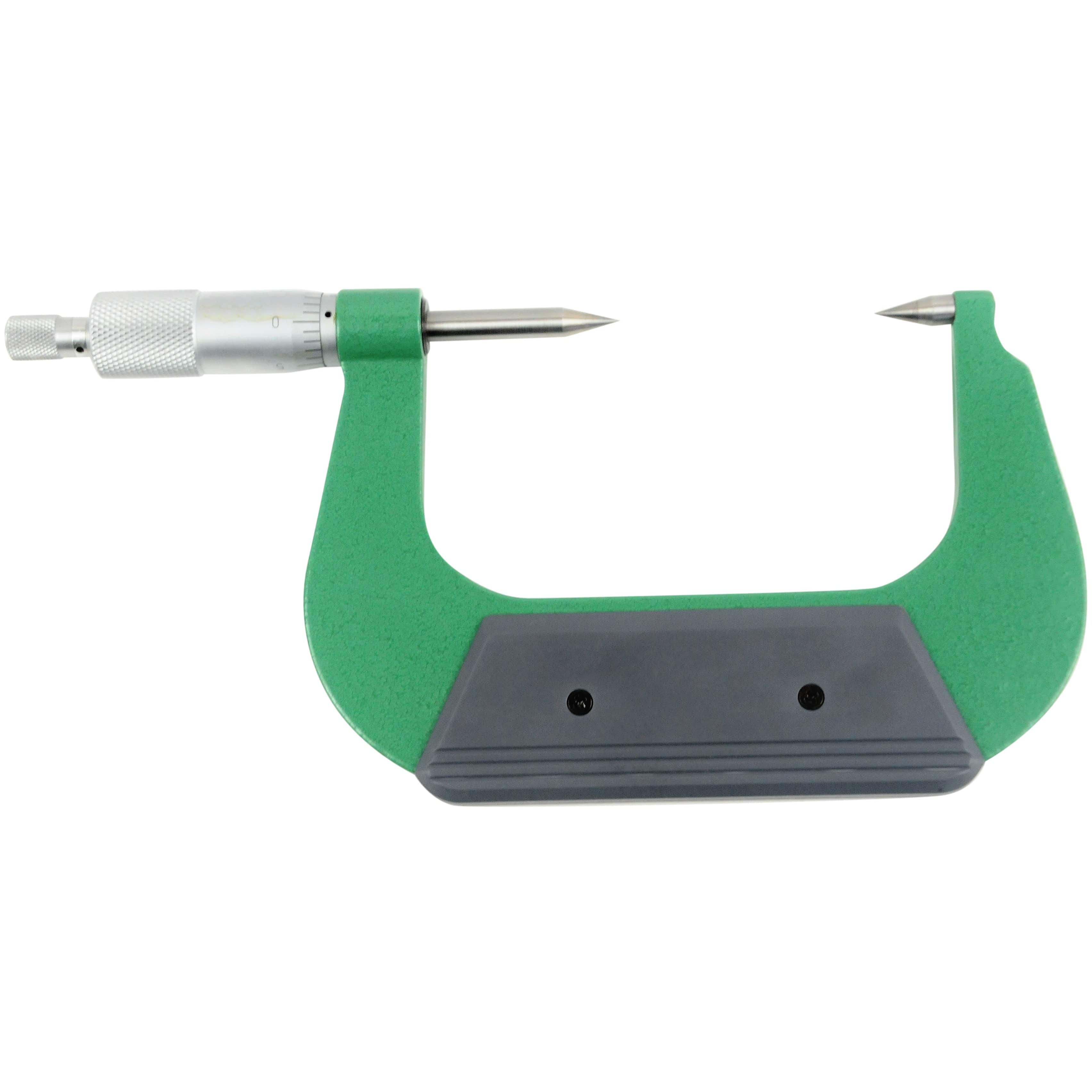

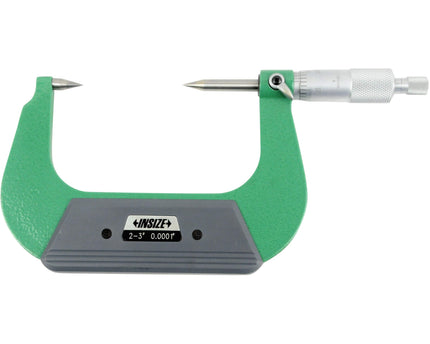

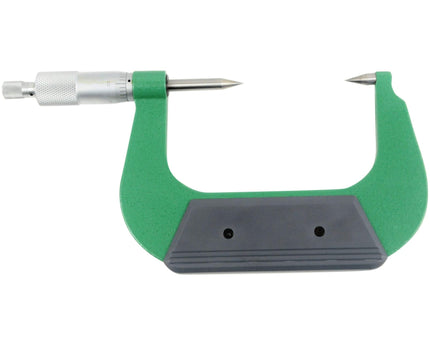

Insize Point Micrometer

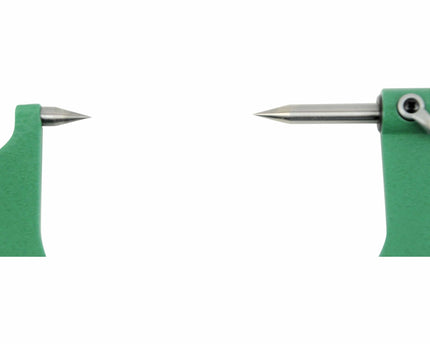

The Insize Point Micrometer is designed for precise measurement of small and difficult-to-access features such as drill web thickness, narrow grooves, and keyways. The pointed carbide measuring tips ensure accurate contact in confined areas where standard flat anvils are unsuitable, making this instrument ideal for machining, inspection, and toolroom applications.

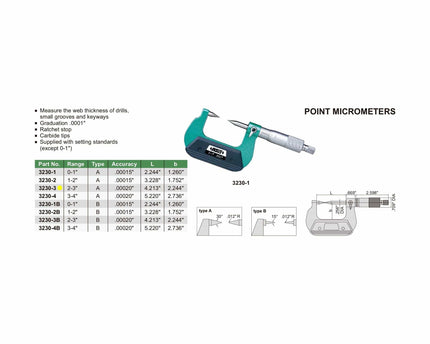

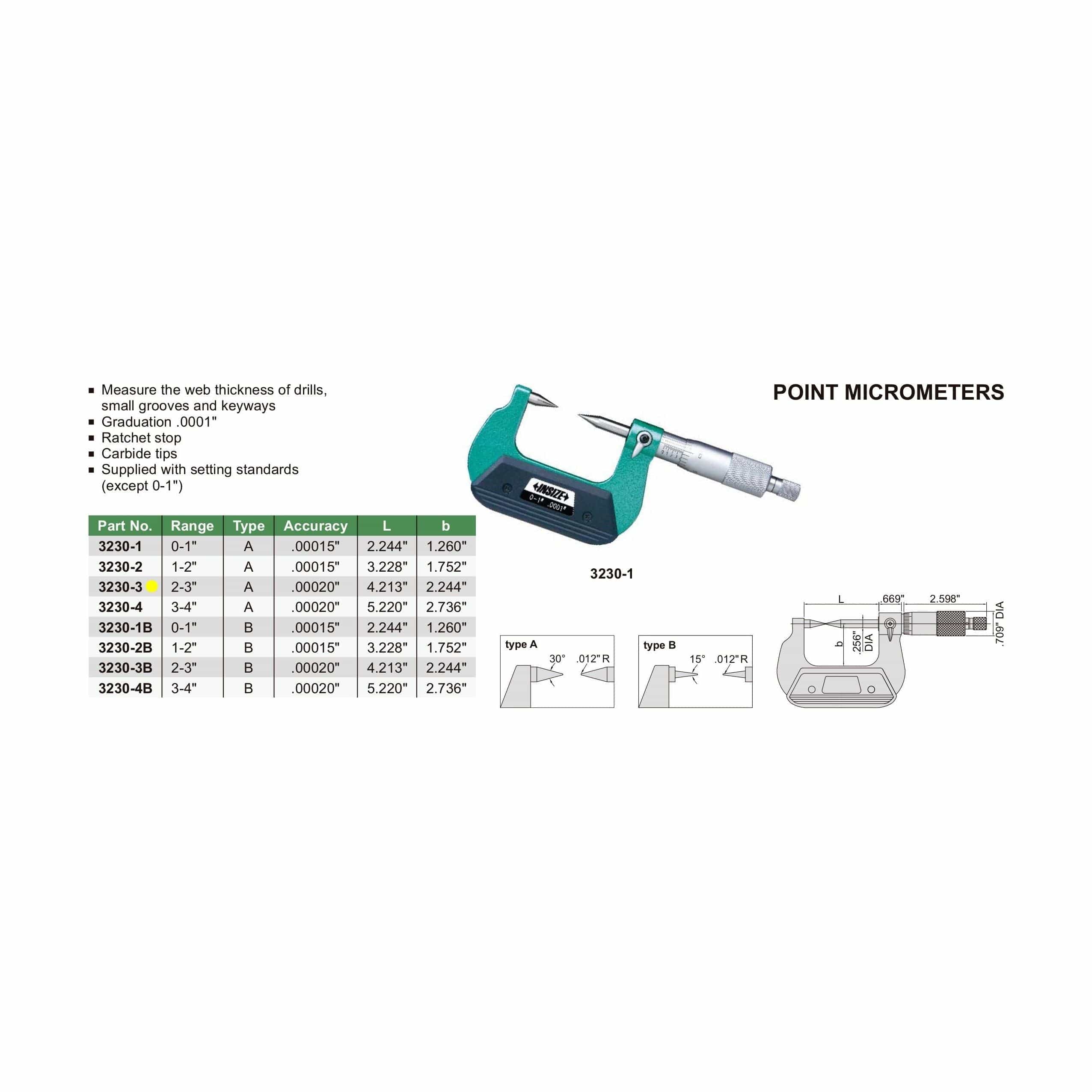

Specifications :
-
Part No: 3230-3
-
Measuring Range: 2–3"
-
Graduation: 0.0001"
-
Accuracy: 0.00020"
-

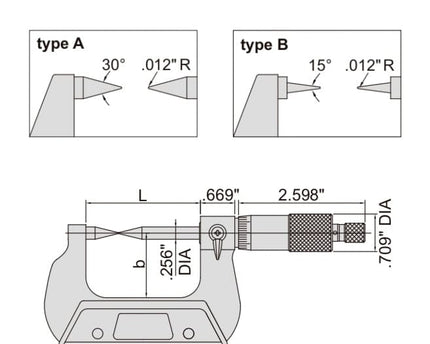

Type: Type A point micrometer
-

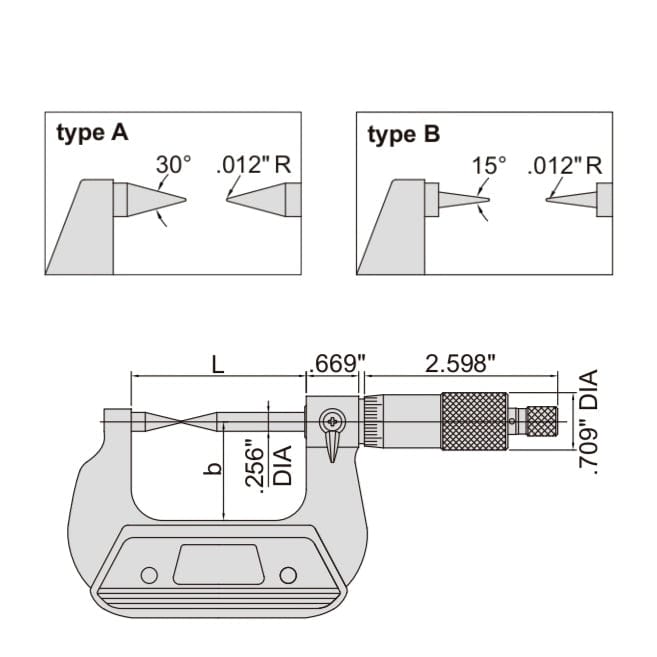

Length (L): 4.213"
-
Dimension (b): 2.244"
- Ratchet stop for consistent measuring force
-

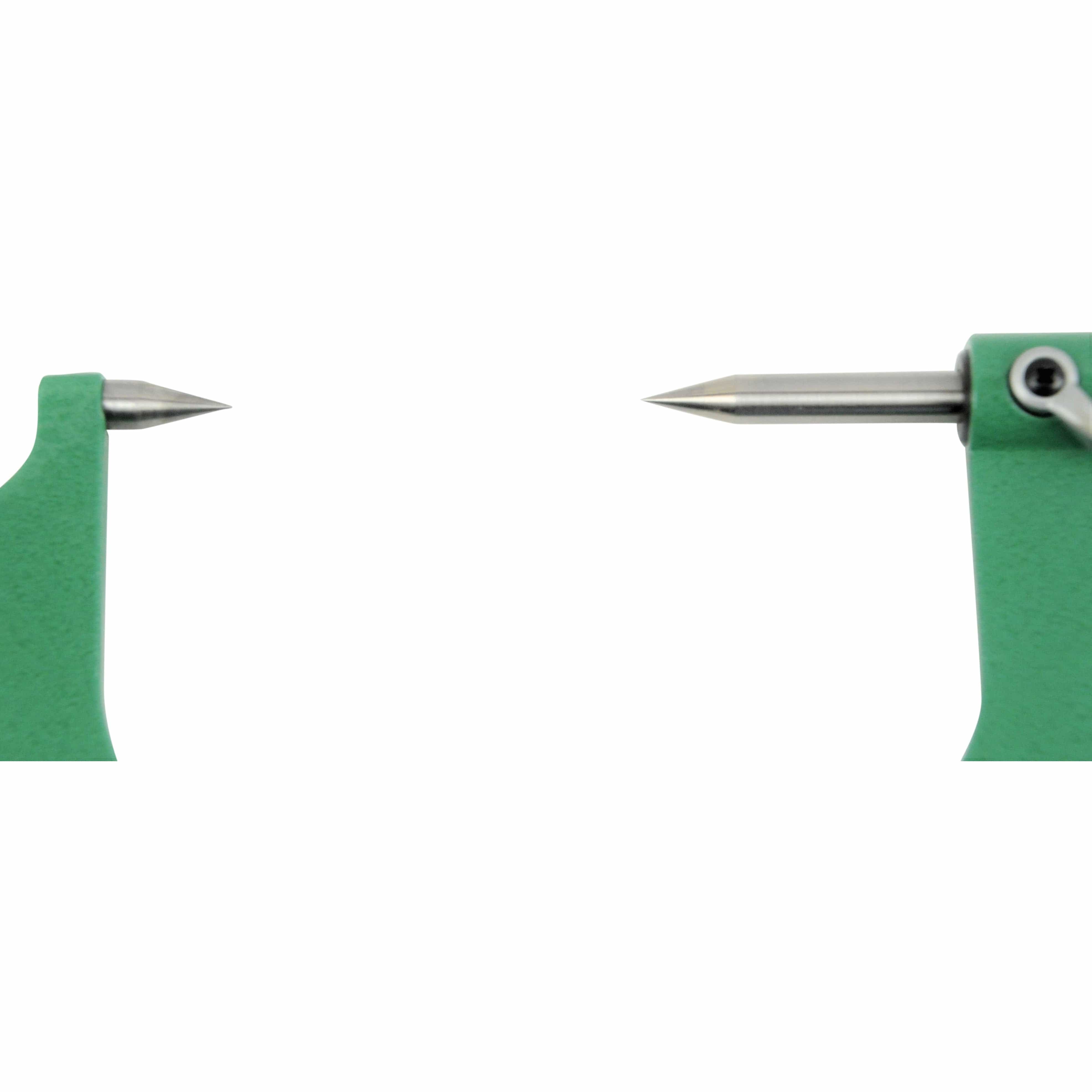

Measuring Tips: Carbide

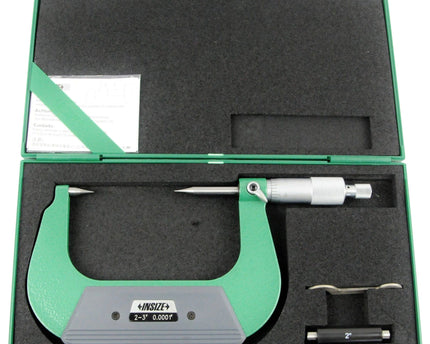

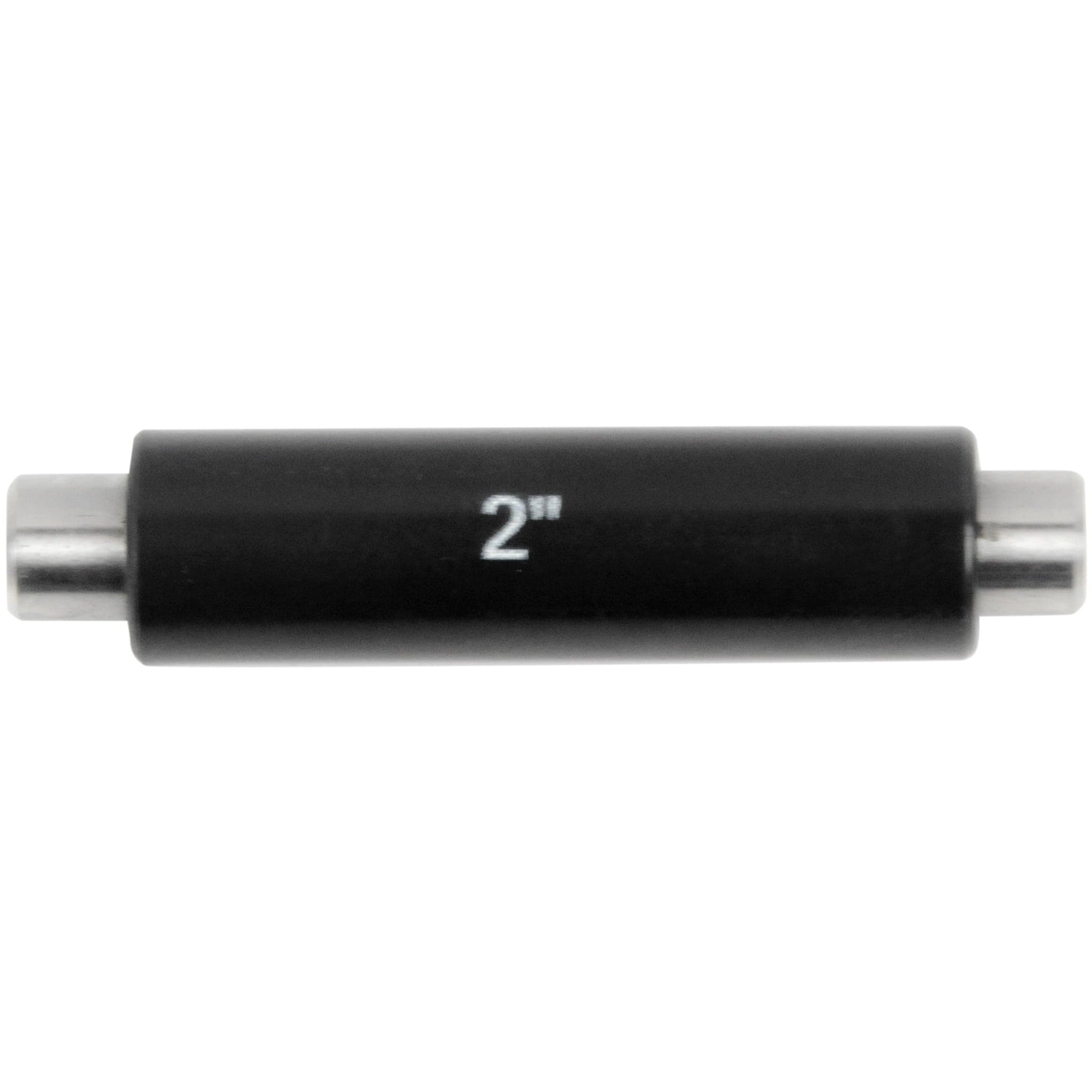

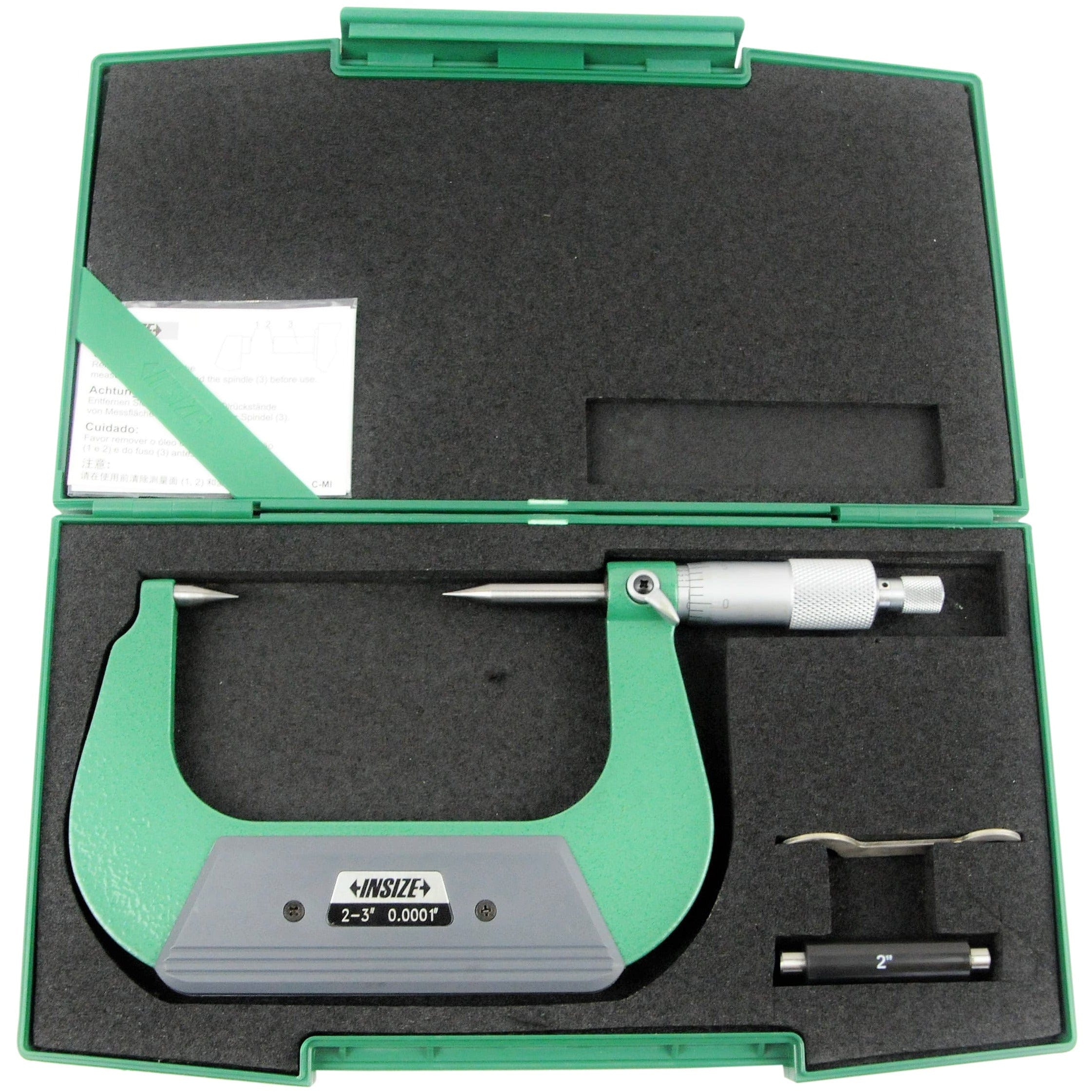

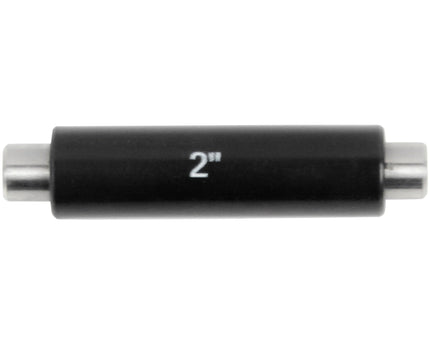

- Supplied with setting standards (except 0–1")
Well-designed, durable, and high-precision measuring tools suitable for specialised measurement tasks. Insize point micrometers provide dependable accuracy and ease of use when measuring fine features such as drill webs, small grooves, and keyways.
