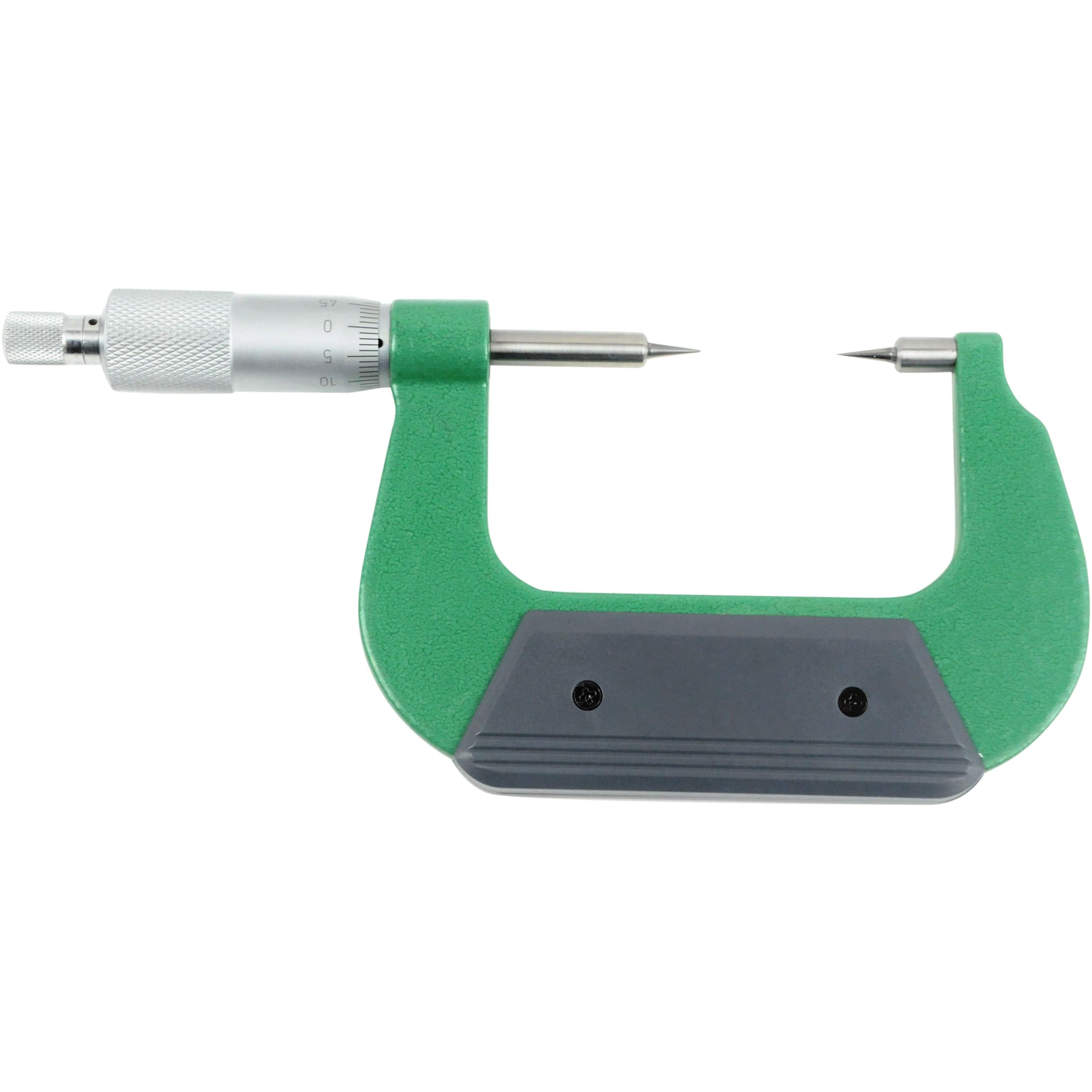

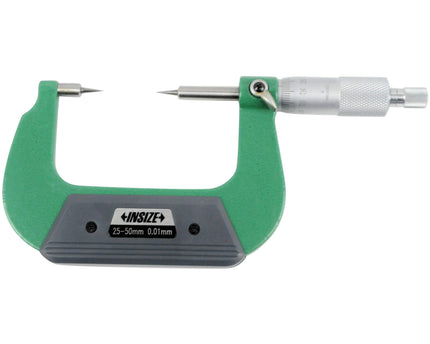

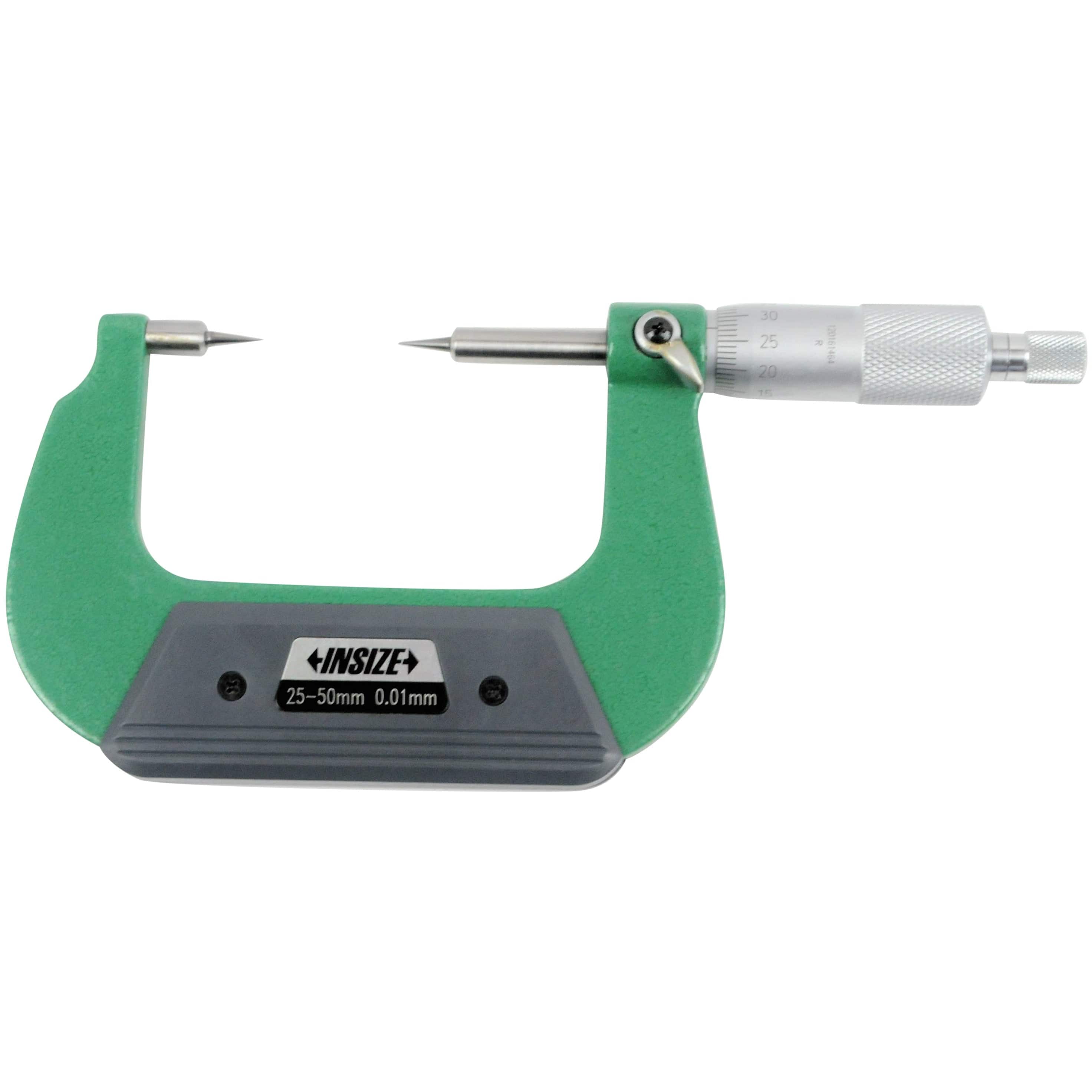

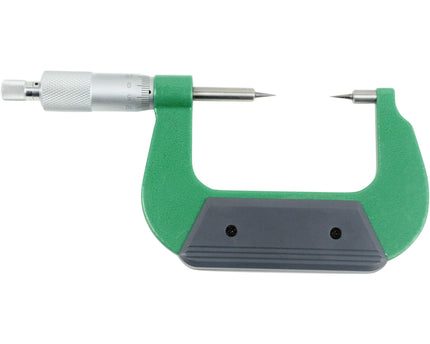

Insize Point Micrometer
The Insize Point Micrometer is engineered for accurate measurement of small and hard-to-reach features such as drill web thickness, narrow grooves, slots, and keyways. Equipped with pointed carbide measuring tips, this micrometer provides precise contact in confined spaces where standard flat anvils cannot be used, making it ideal for machining, inspection, and toolroom environments.

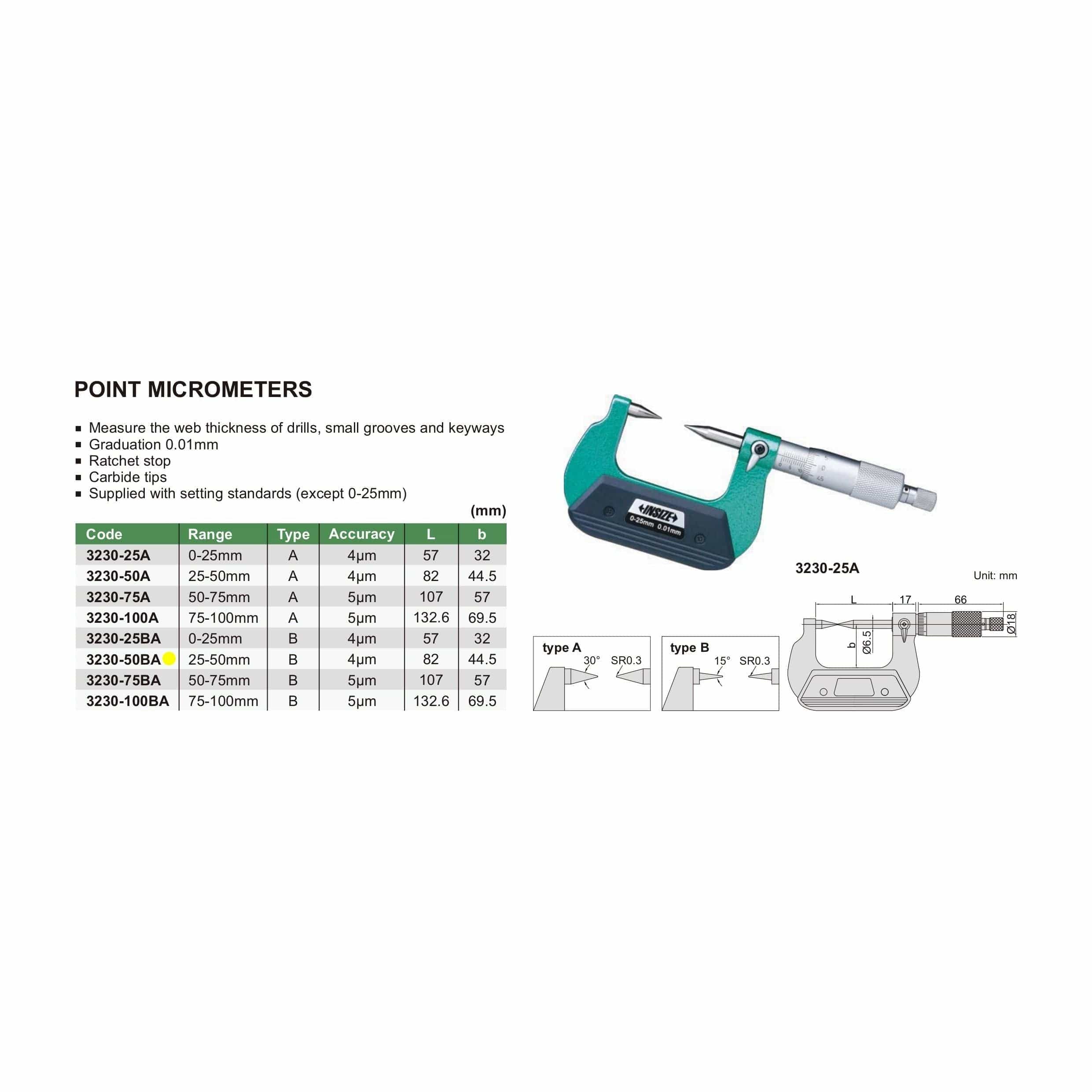

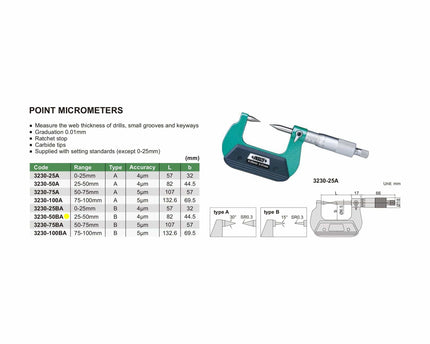

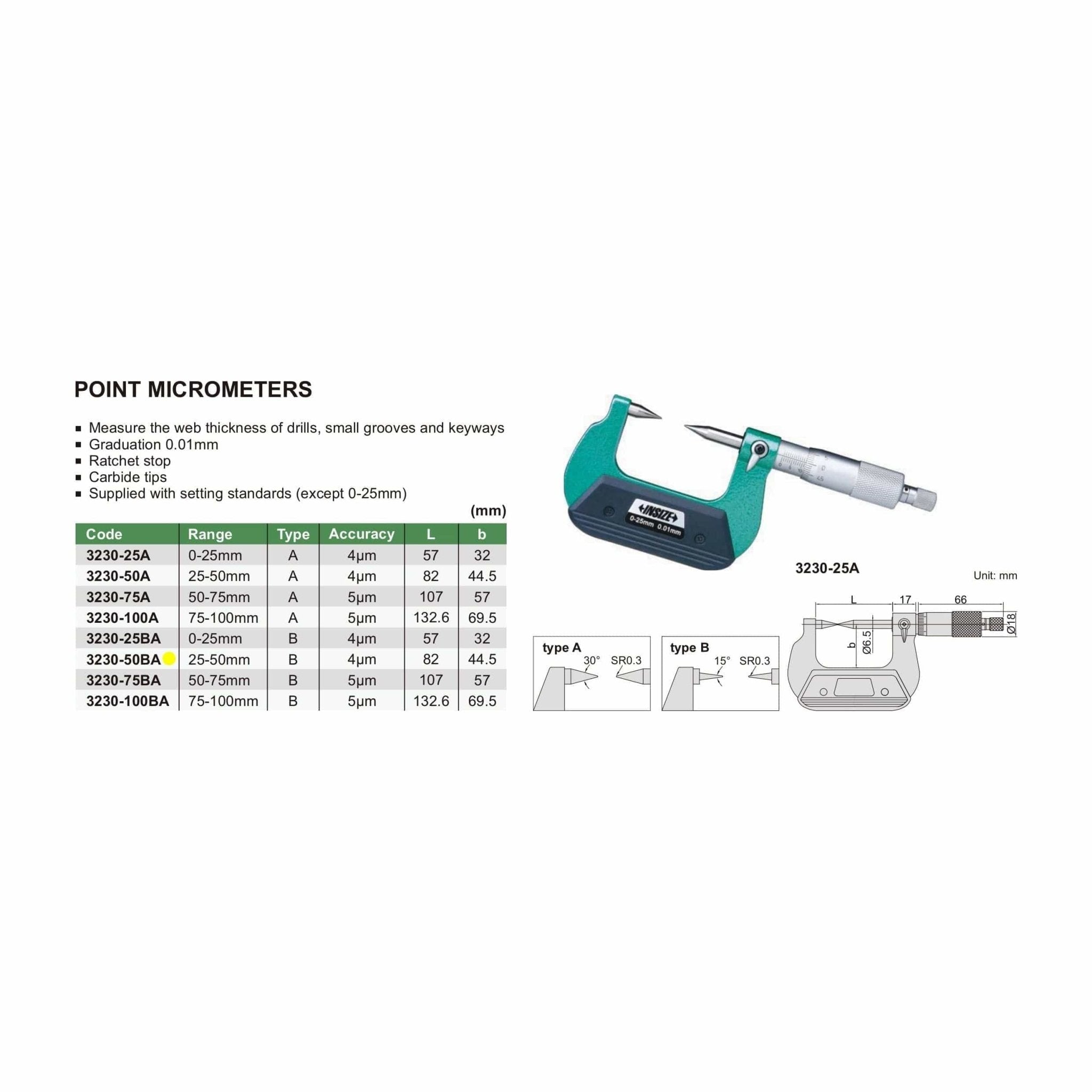

Specifications :
-
Part No: 3230-50BA
-

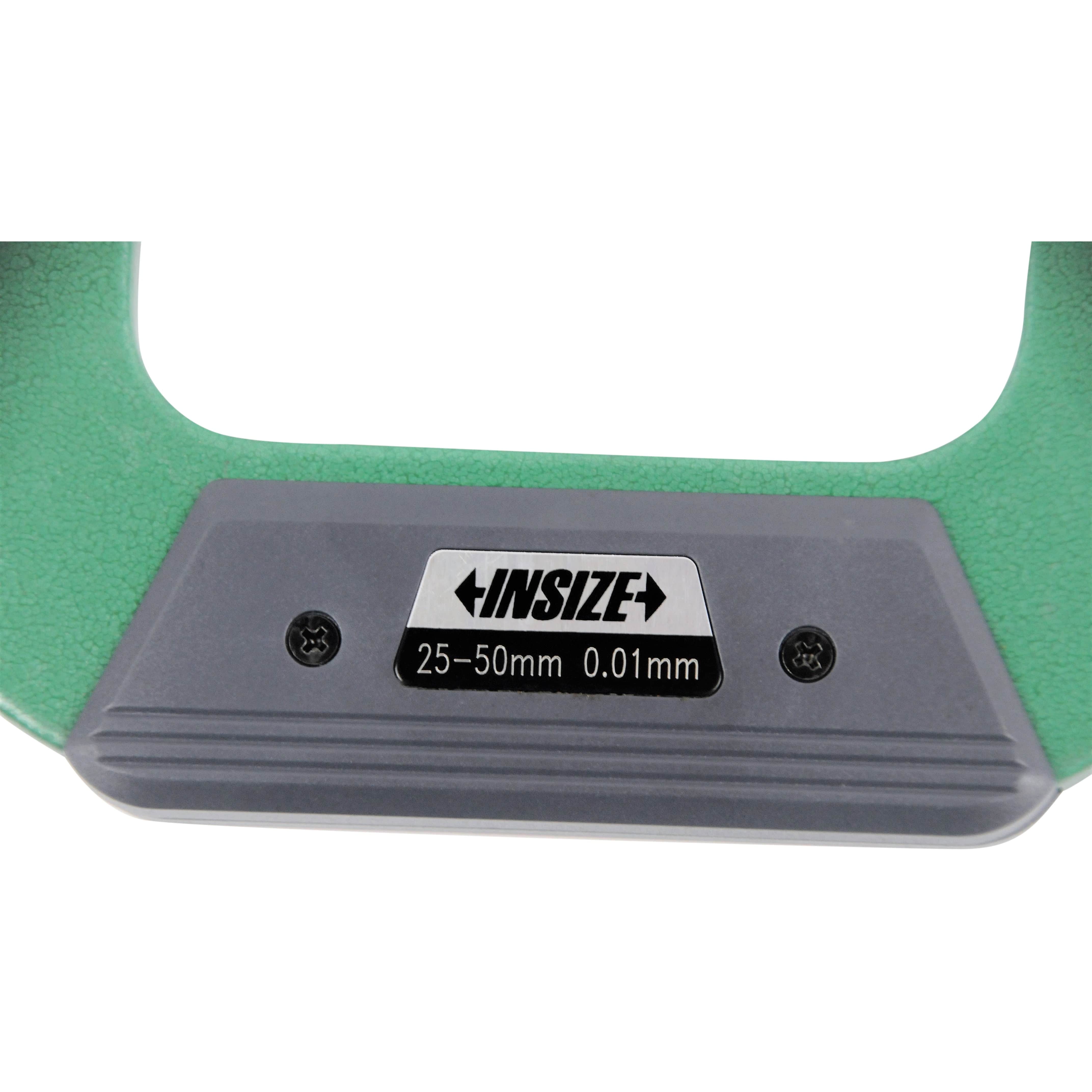

Measuring Range: 25–50mm
-
Graduation: 0.01mm
-

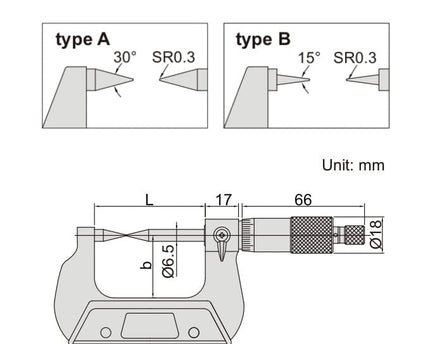

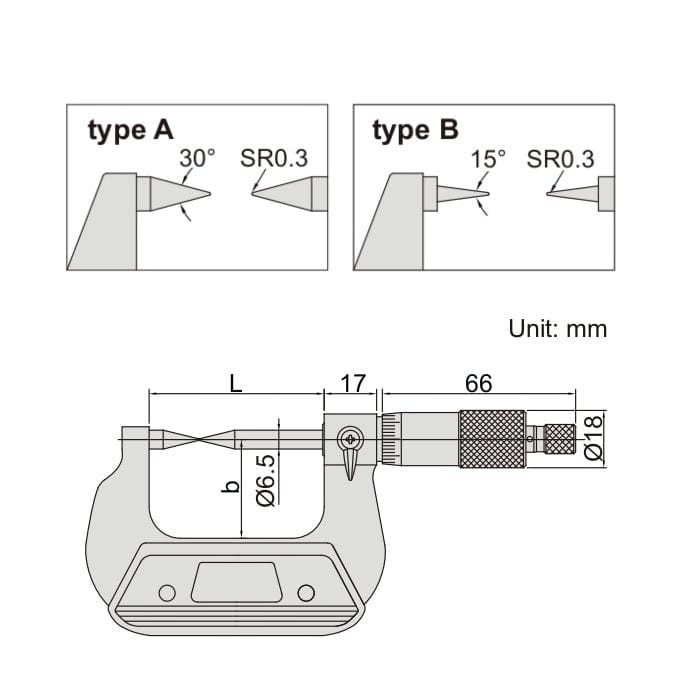

Type: Type B point micrometer
-
Length (L): 57mm
-
Dimension (b): 32mm

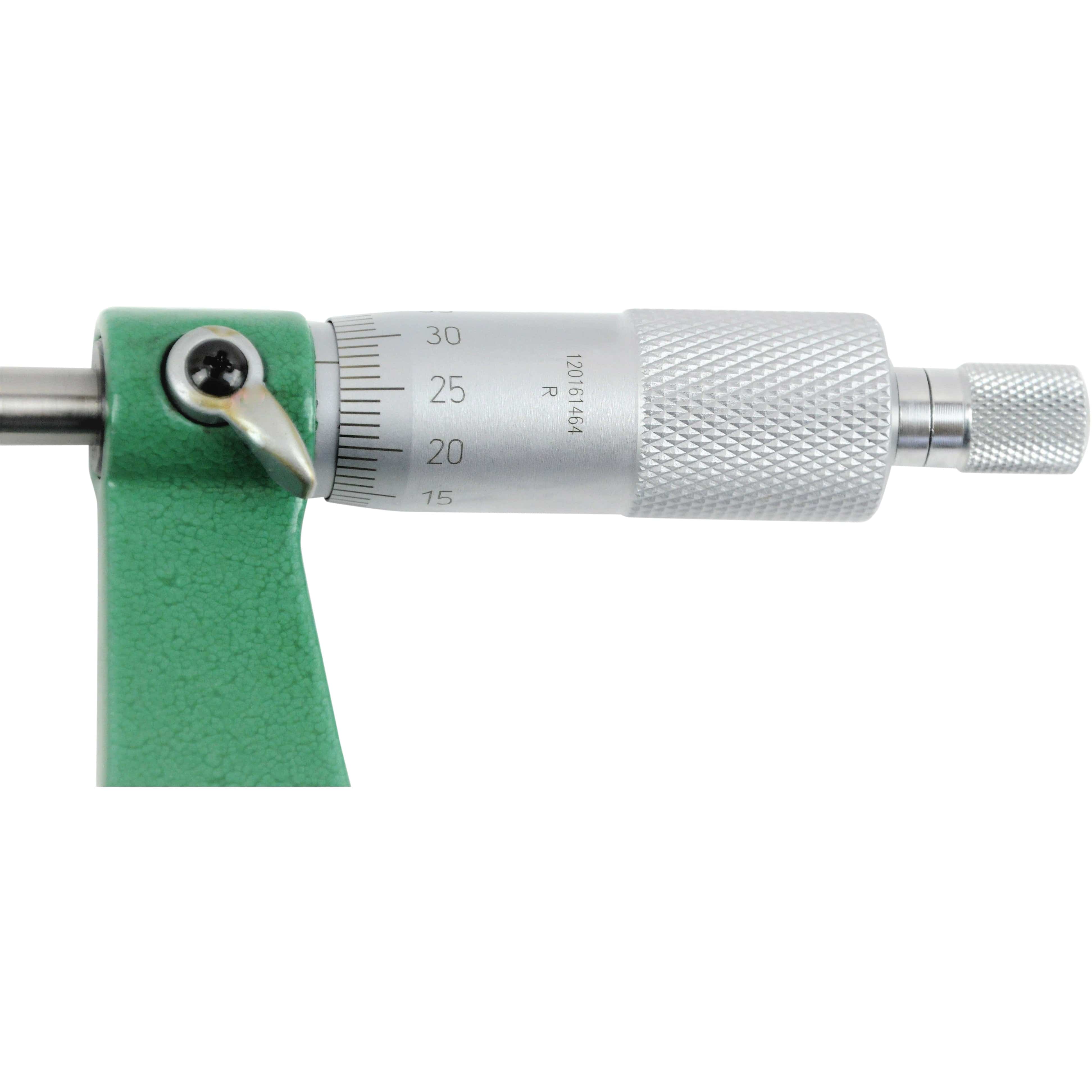

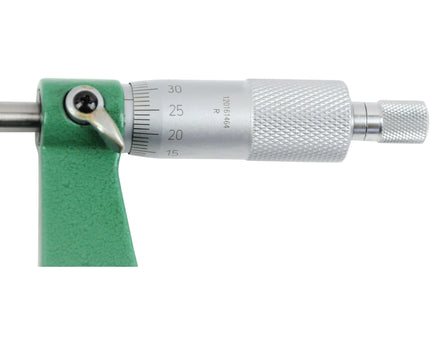

- Ratchet stop for consistent measuring force
-

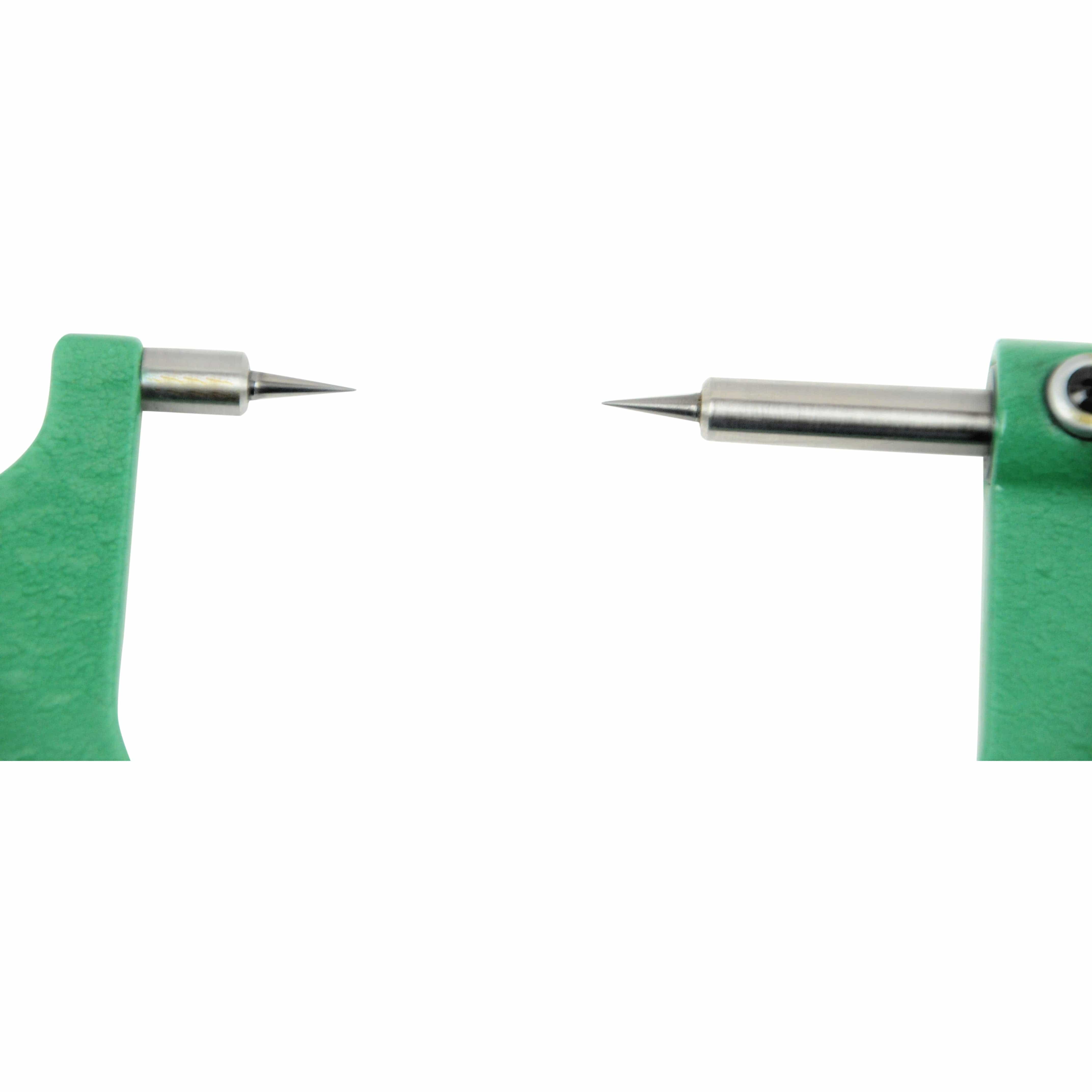

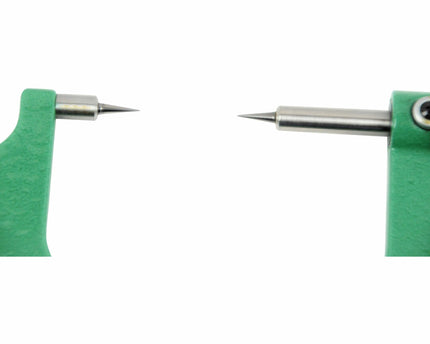

Measuring Tips: Carbide

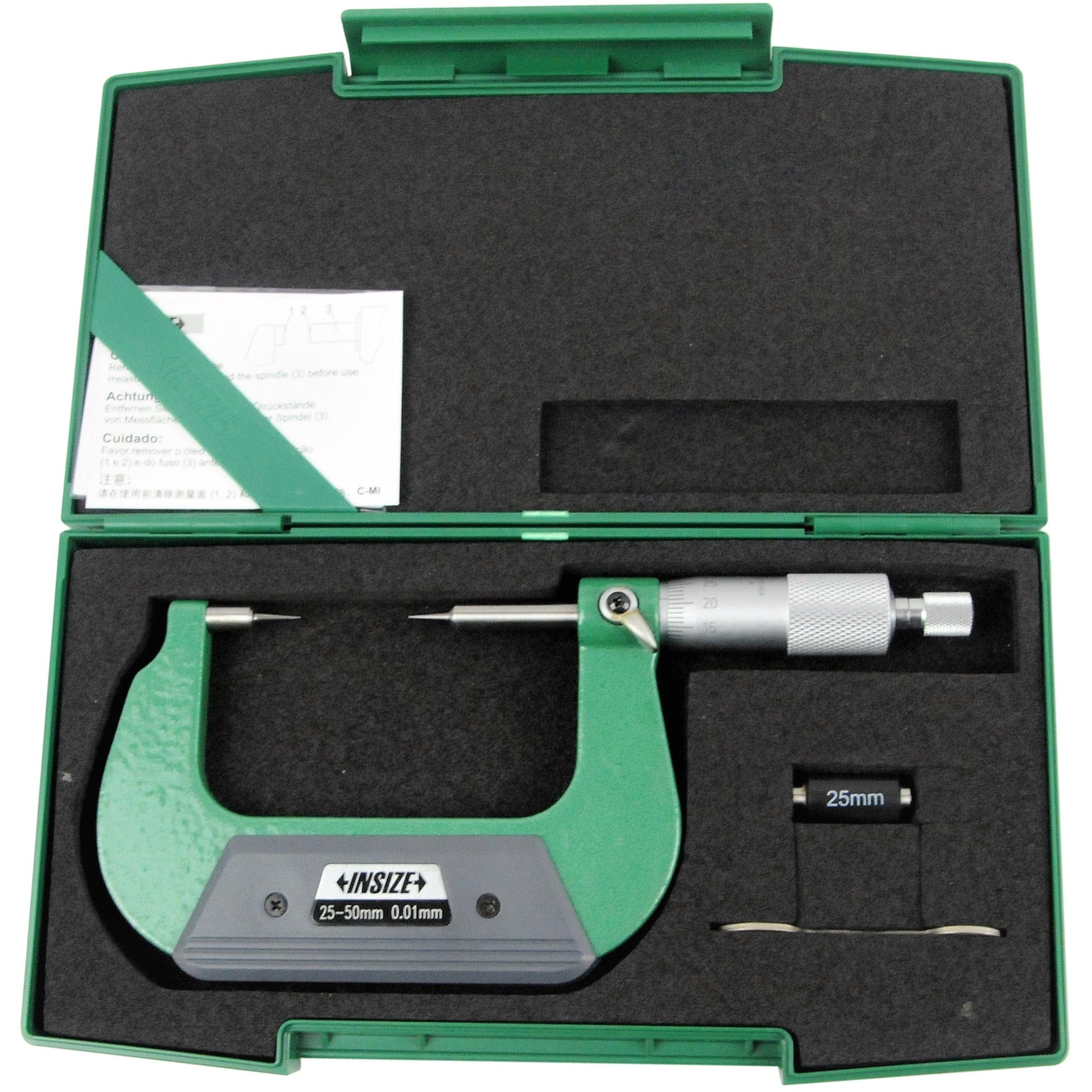

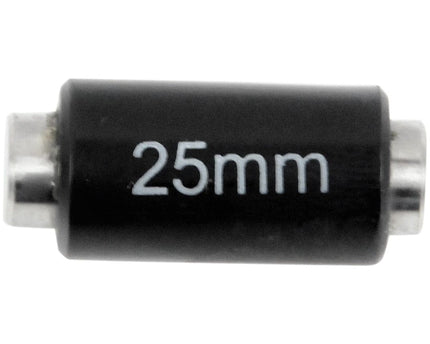

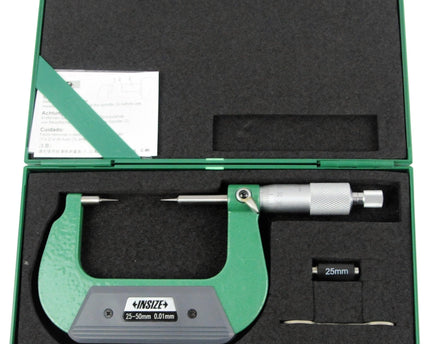

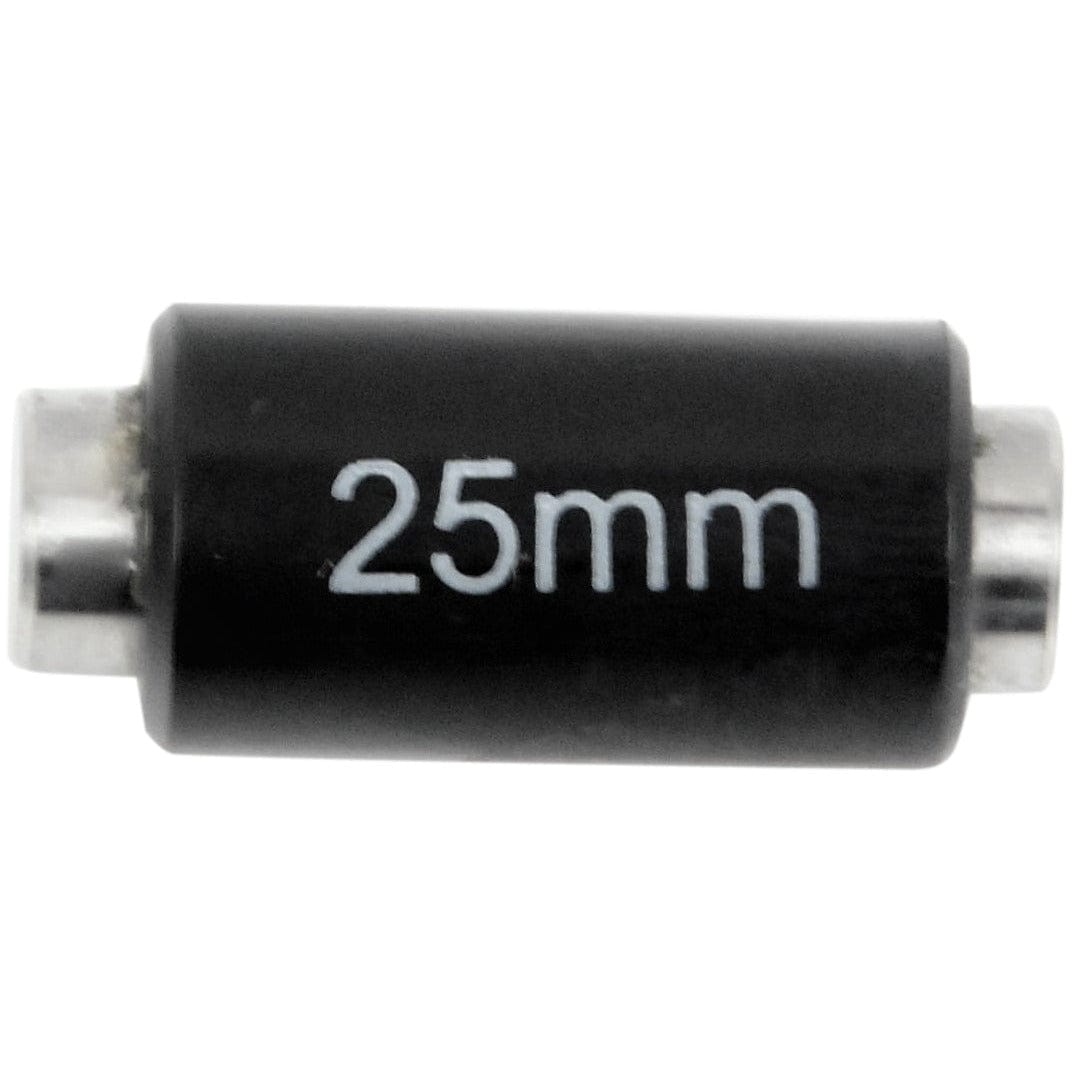

- Supplied with setting standards (except 0–25mm)
Well-designed, durable, and high-precision measuring tools suitable for specialised measurement tasks. Insize point micrometers deliver reliable accuracy and ease of use when measuring fine features such as drill webs, small grooves, and keyways.
