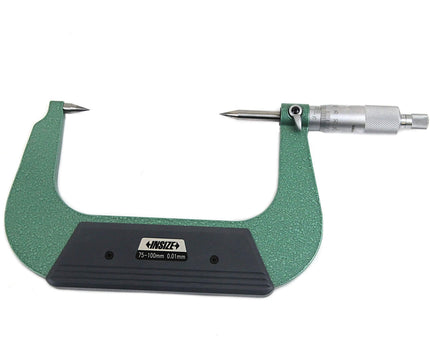

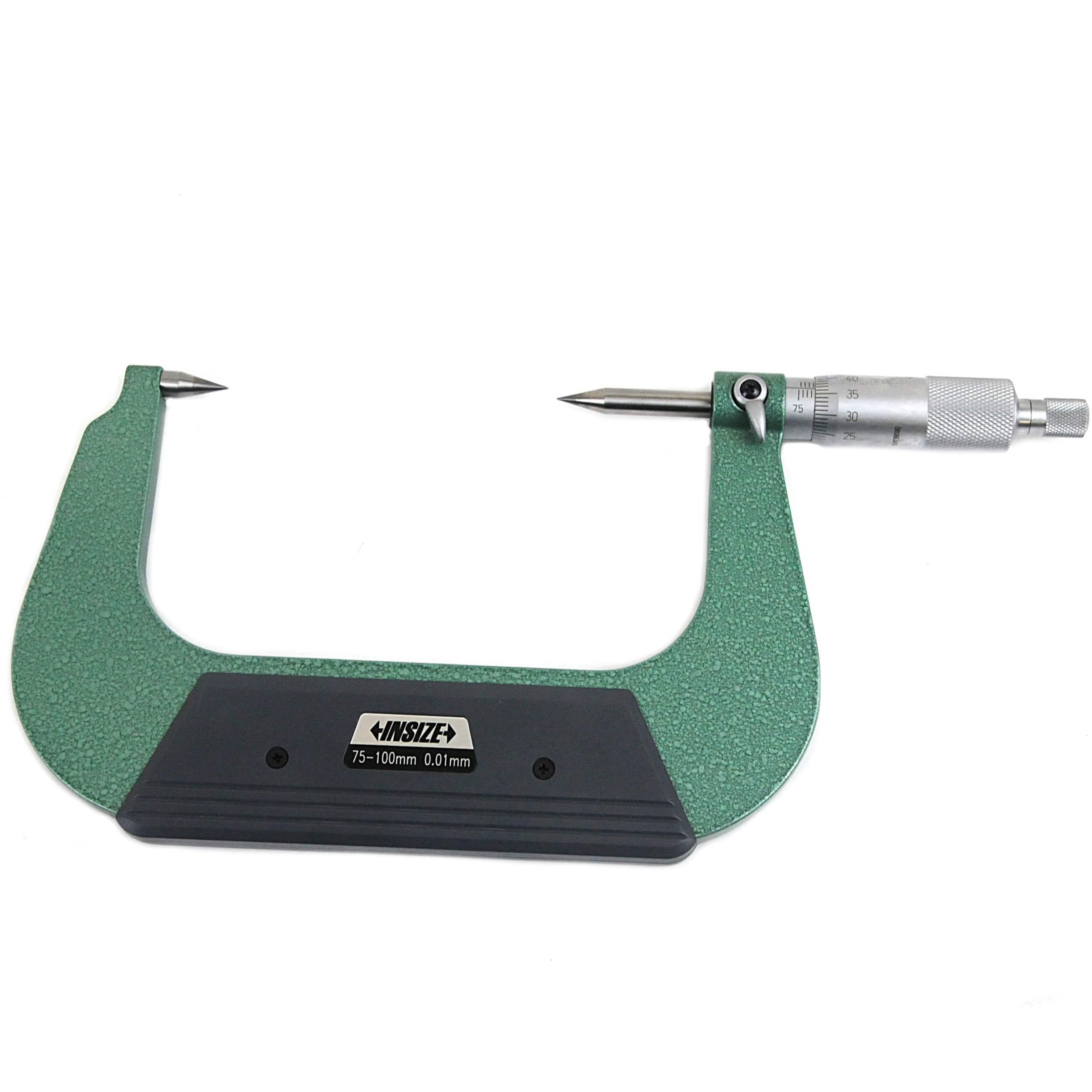

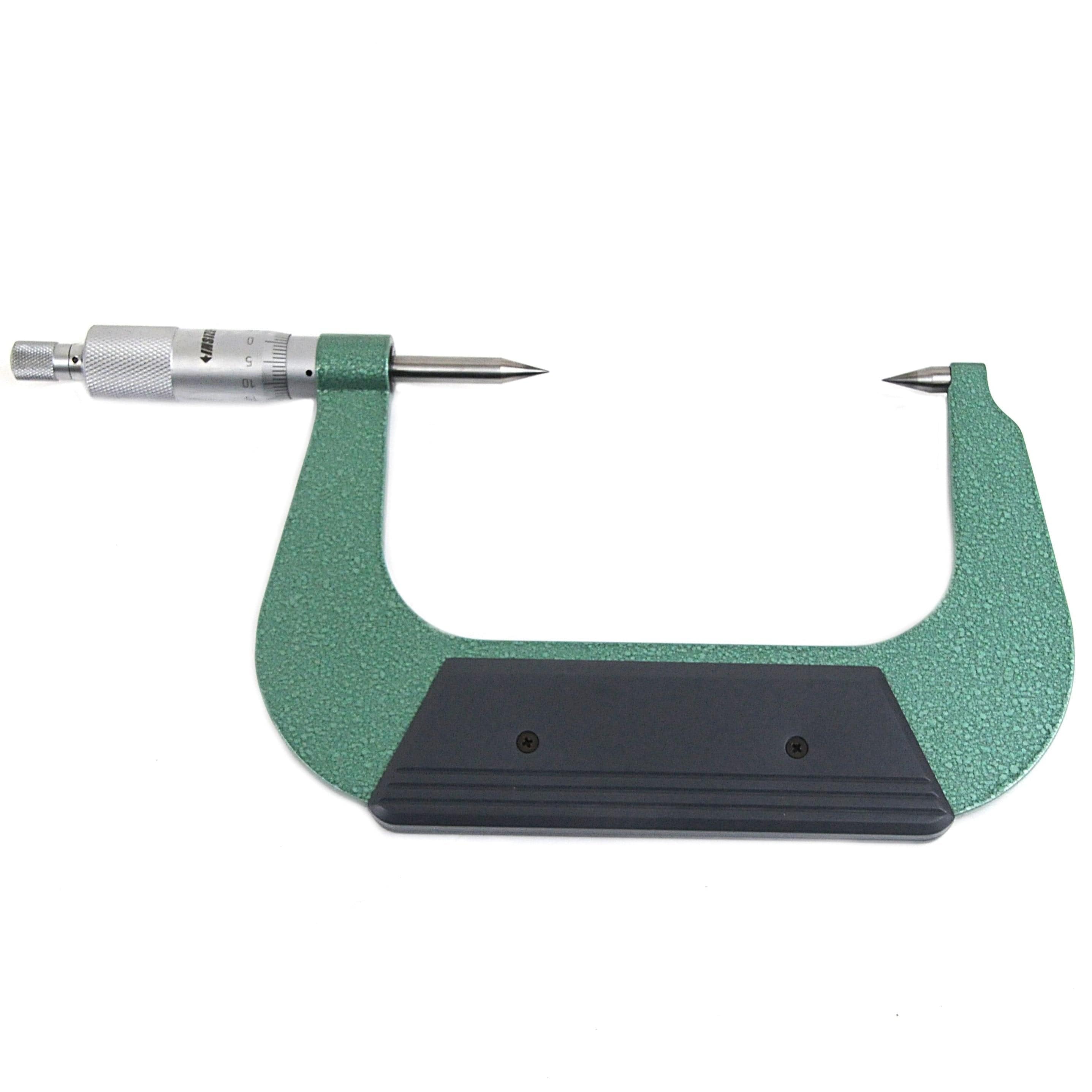

Insize Point Micrometer
The Insize Point Micrometer is designed for precise measurement of small features such as drill web thickness, narrow grooves, and keyways. Fitted with hardened carbide point tips and clear metric graduations, it provides reliable accuracy for specialised measurement tasks in machining, inspection, and toolroom applications.

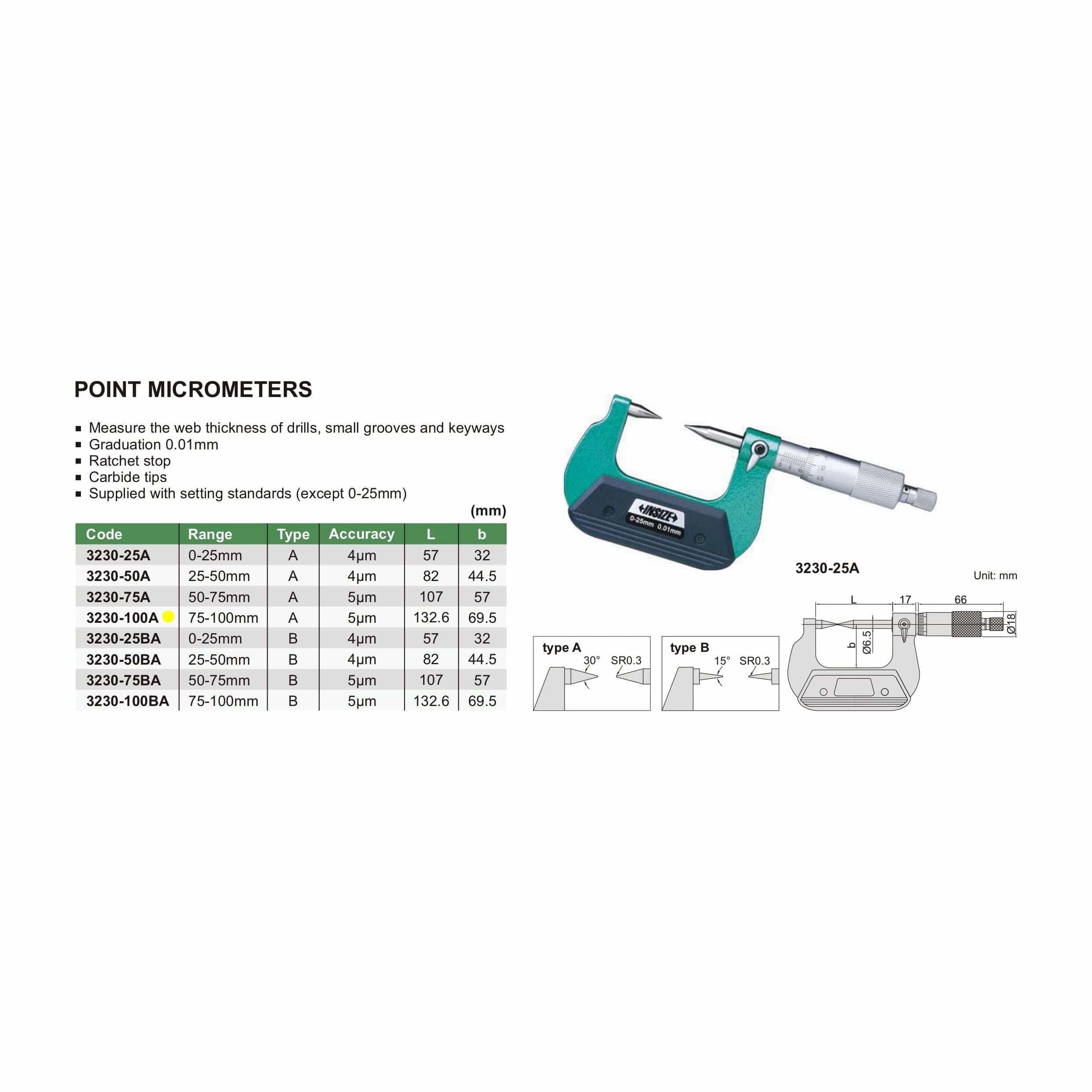

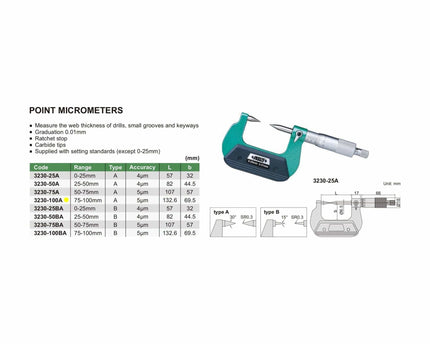

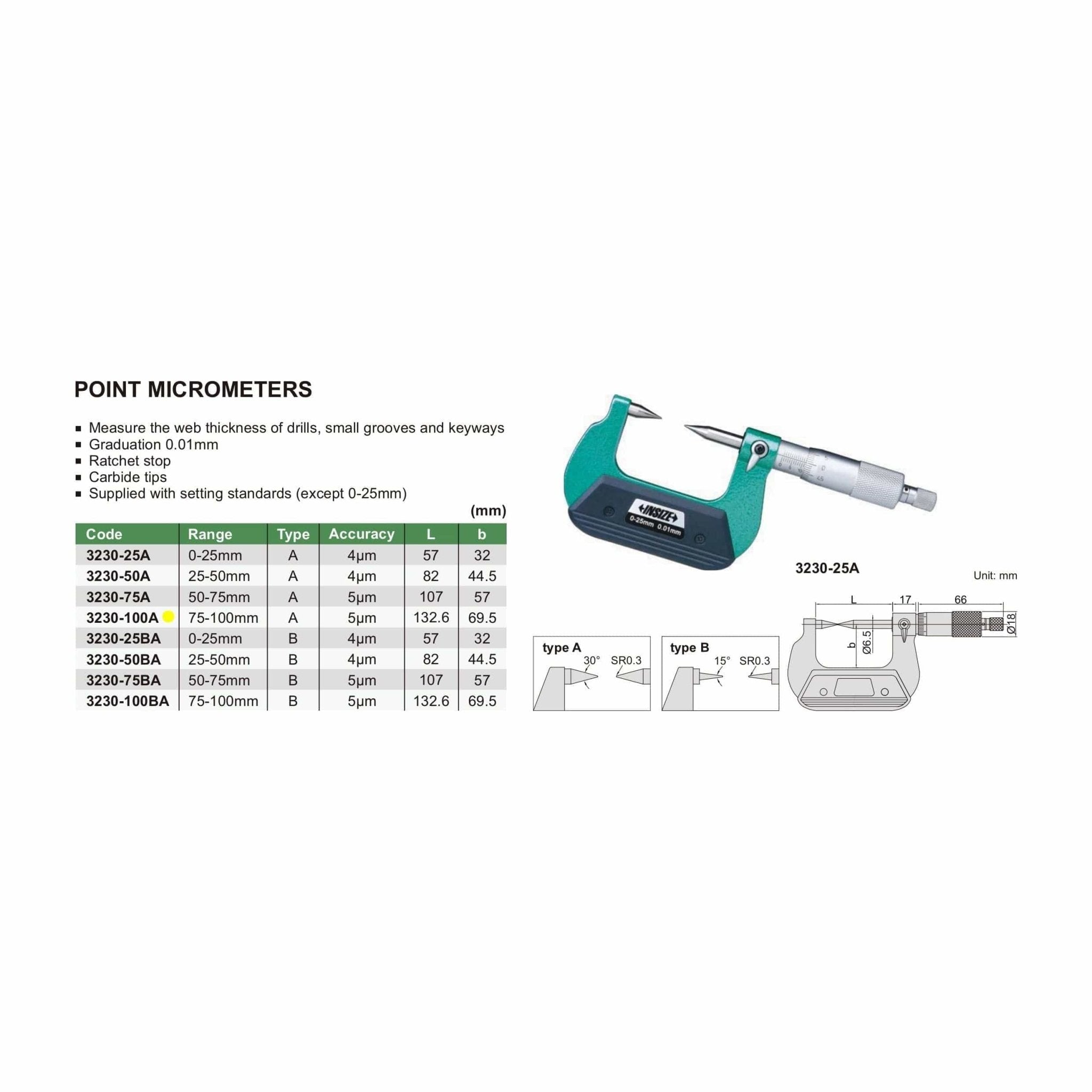

Specifications :
-
Part No: 3230-100A
-
Measuring Range: 75–100 mm
-
Graduation: 0.01 mm
-

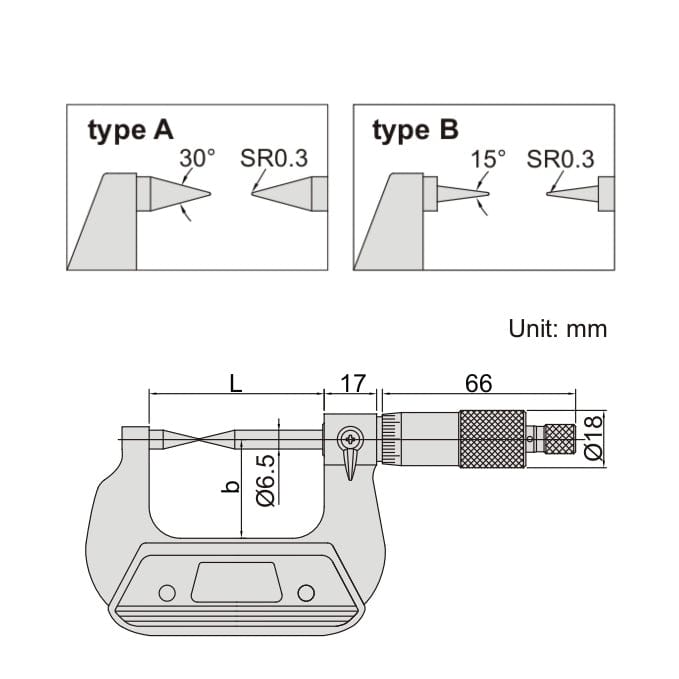

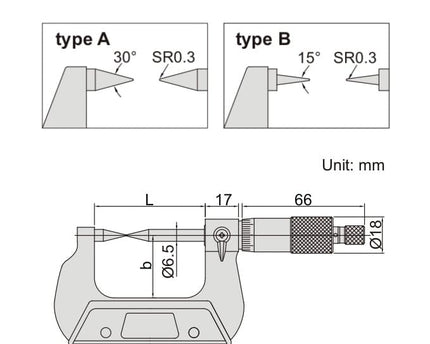

Type: Type A point micrometer
-
Length (L): 132.6 mm
-
Dimension (b): 69.5 mm
- Ratchet stop for consistent measuring force
-
Measuring Tips: Carbide

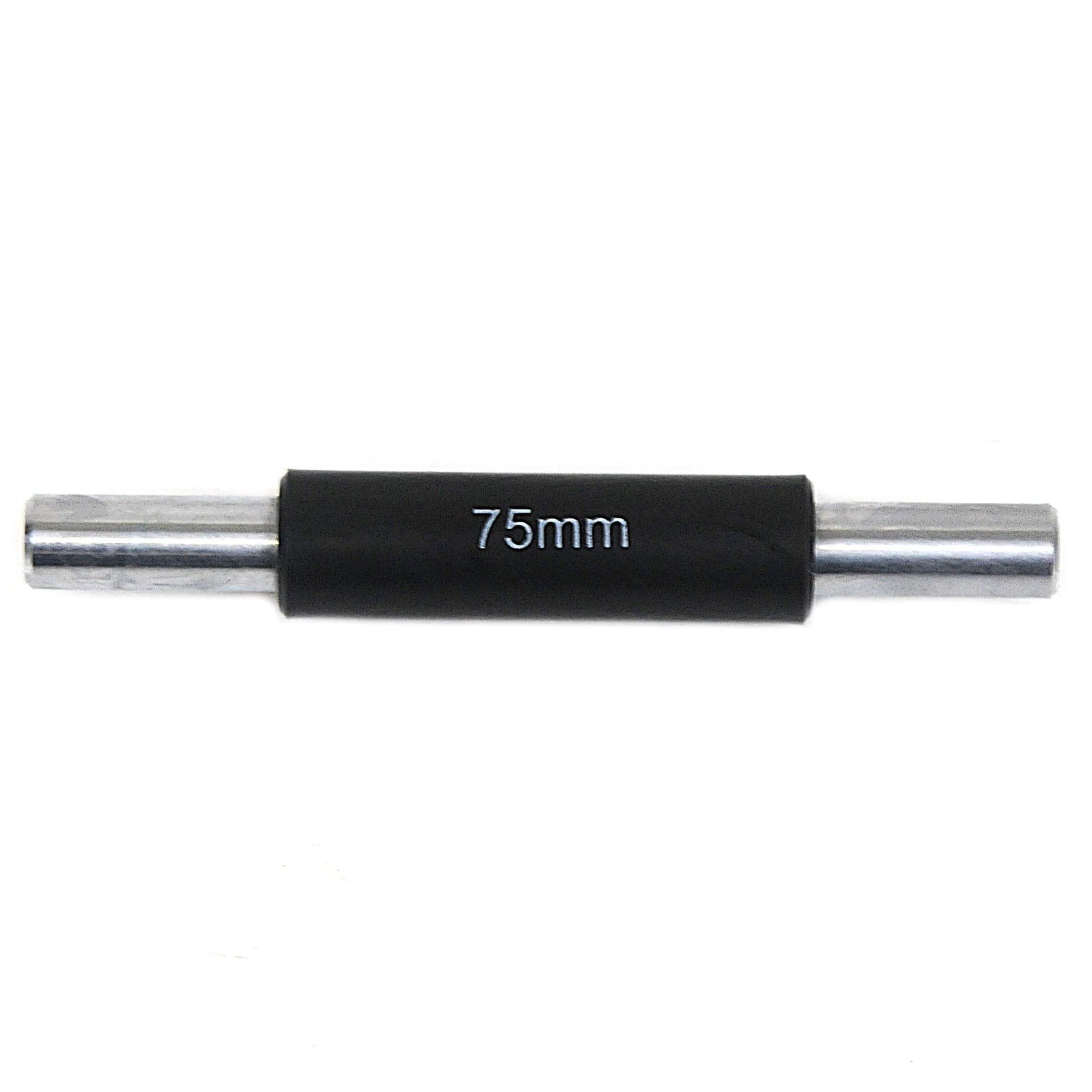

- Supplied with setting standards (except 0–25 mm)
Well-designed, durable, and high-precision measuring tools suitable for specialised measurement applications. Insize point micrometers deliver dependable accuracy and ease of use when measuring fine details such as drill webs, grooves, and keyways.
