Description

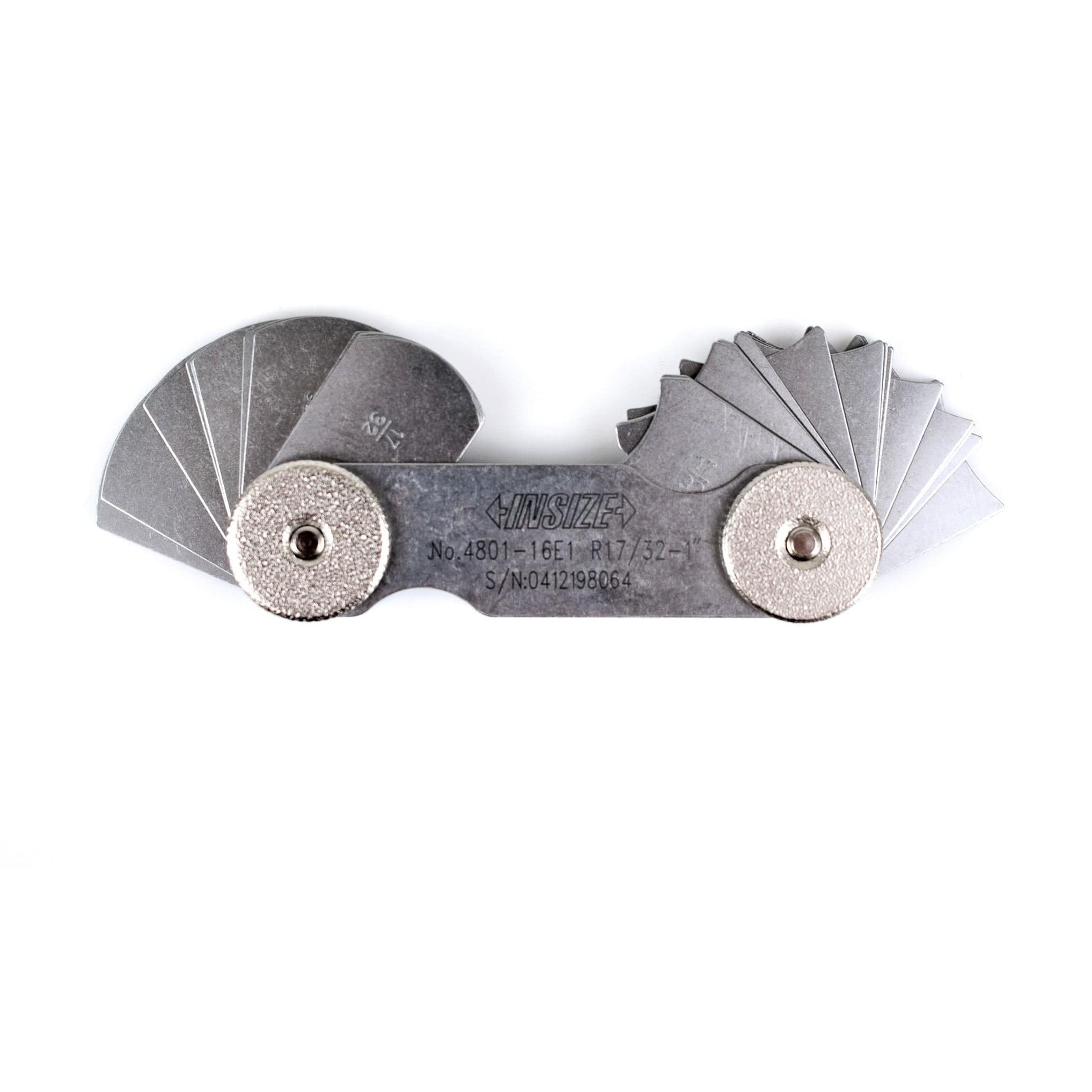

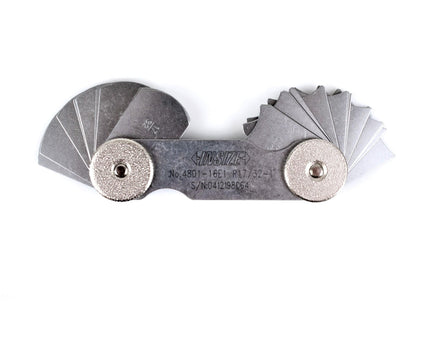

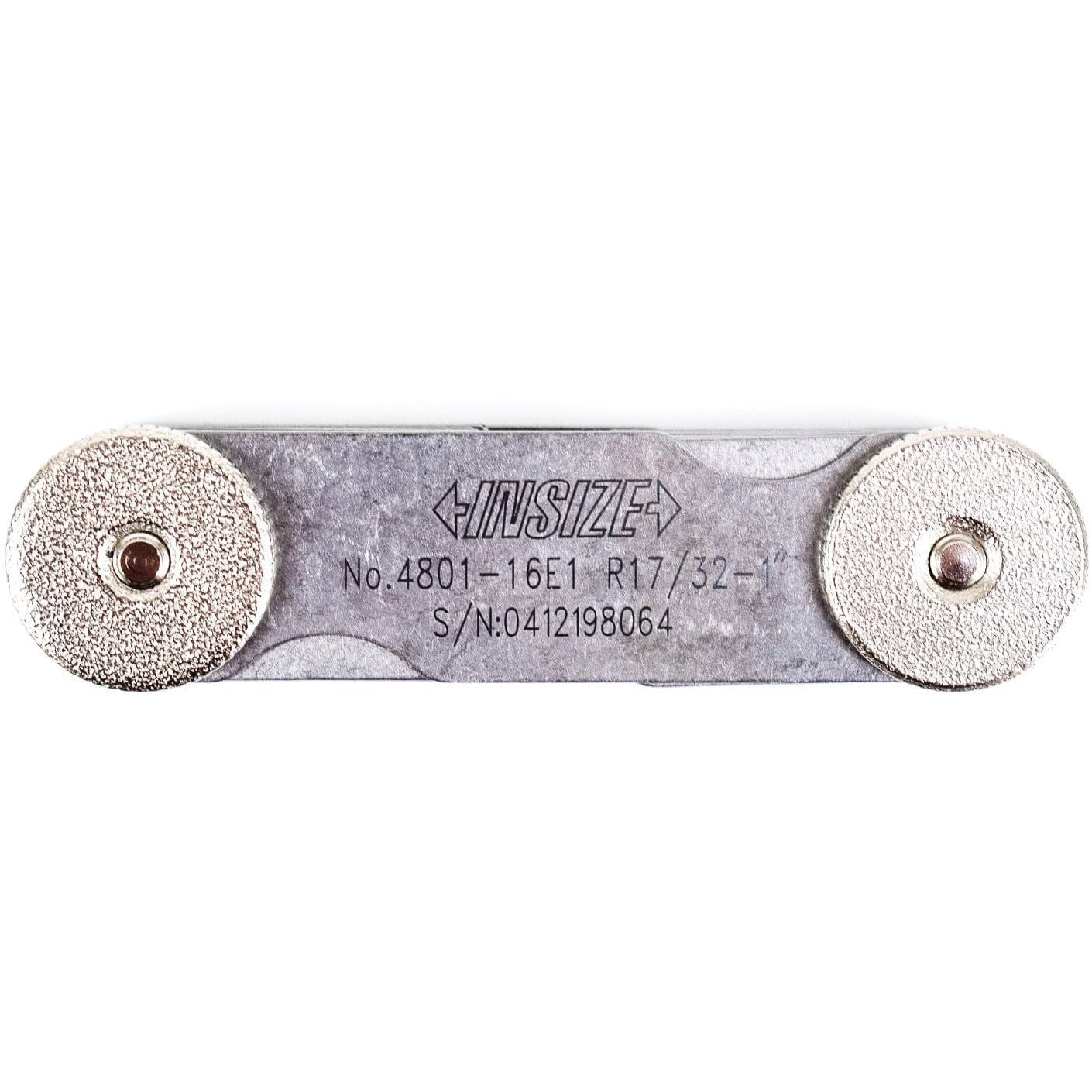

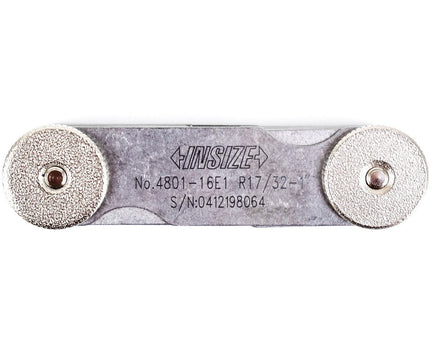

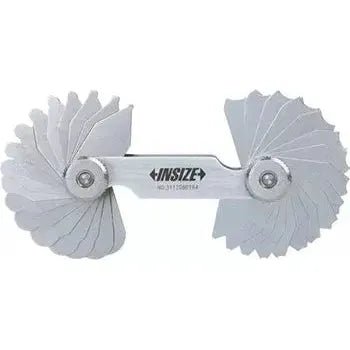

Insize Radius Gauge Set 17/32" – 1"
The Insize Radius Gauge Set is designed for accurate checking of internal and external radii on machined and fabricated components. This inch-based set allows quick comparison of curved profiles, making it suitable for inspection, toolroom, and general engineering applications.

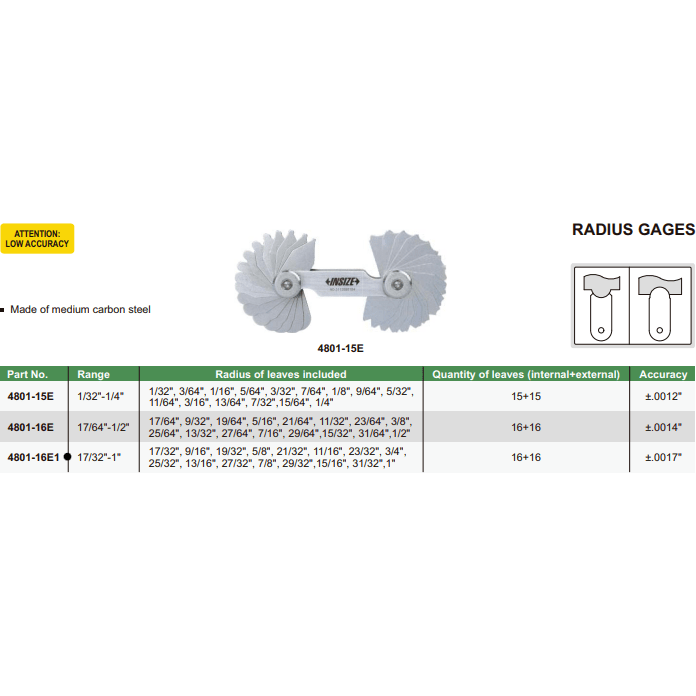

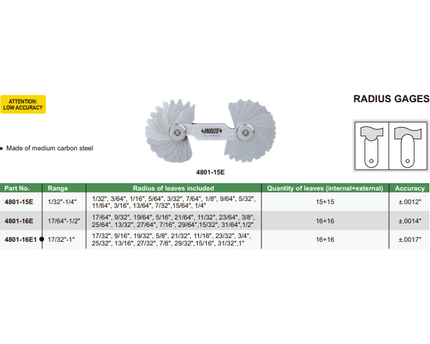

Specifications:
-
Part Number: 4801-16E1
-
Accuracy: ±0.0012"
-
Range: 17/32" – 1"
-
Radius Leaves Included: 17/32", 9/16", 19/32", 5/8", 21/32", 11/16", 23/32", 3/4", 25/32", 13/16", 27/32", 7/8", 29/32", 15/16", 31/32", 1"
-
Quantity of Leaves: 16 internal + 16 external
-
Material: Carbon steel
Manufactured for consistent accuracy and durability, this INSIZE radius gauge set provides reliable radius verification for precision measurement and quality control tasks.
