Description

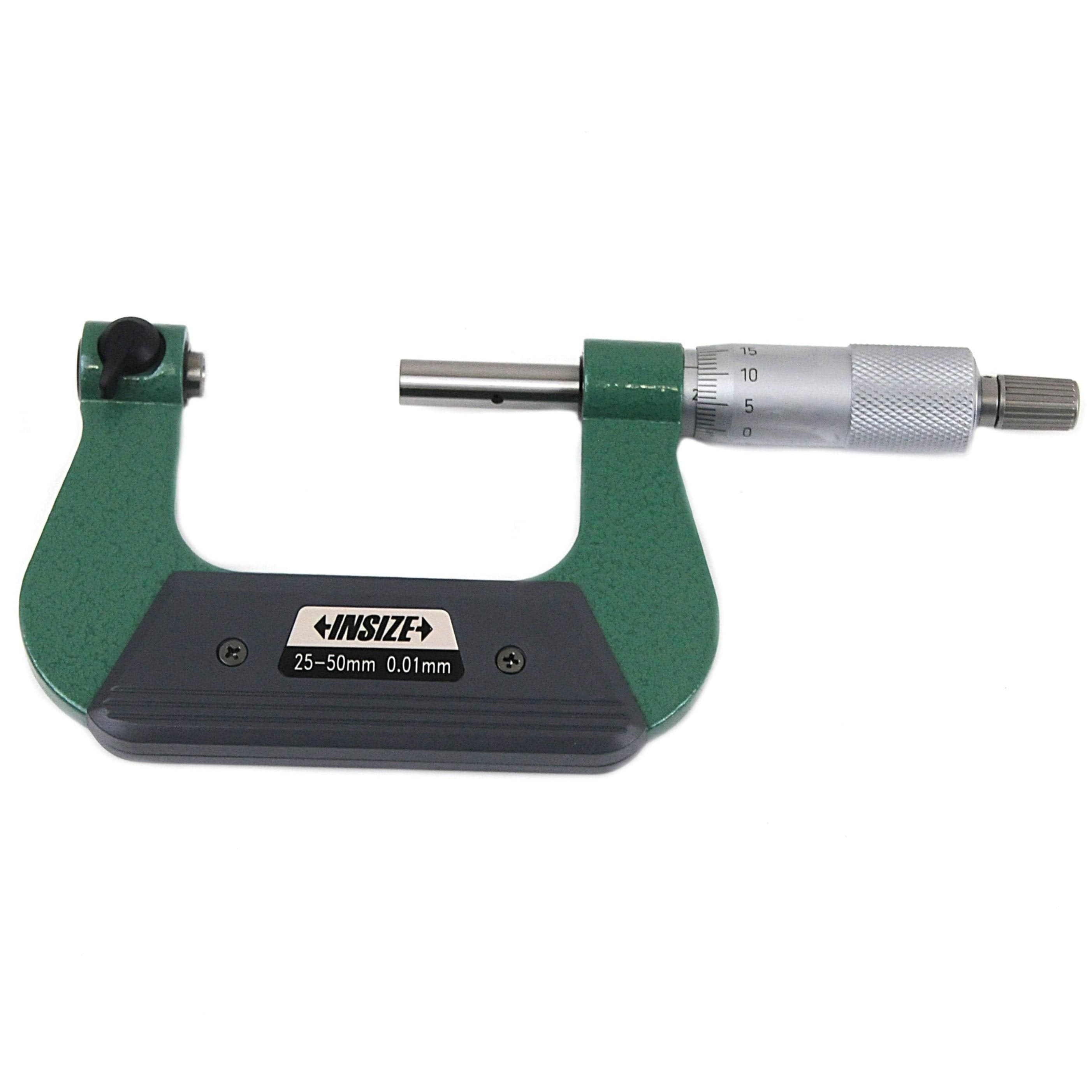

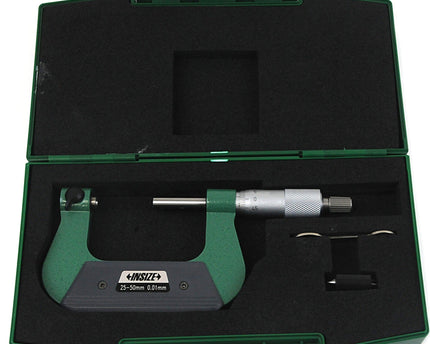

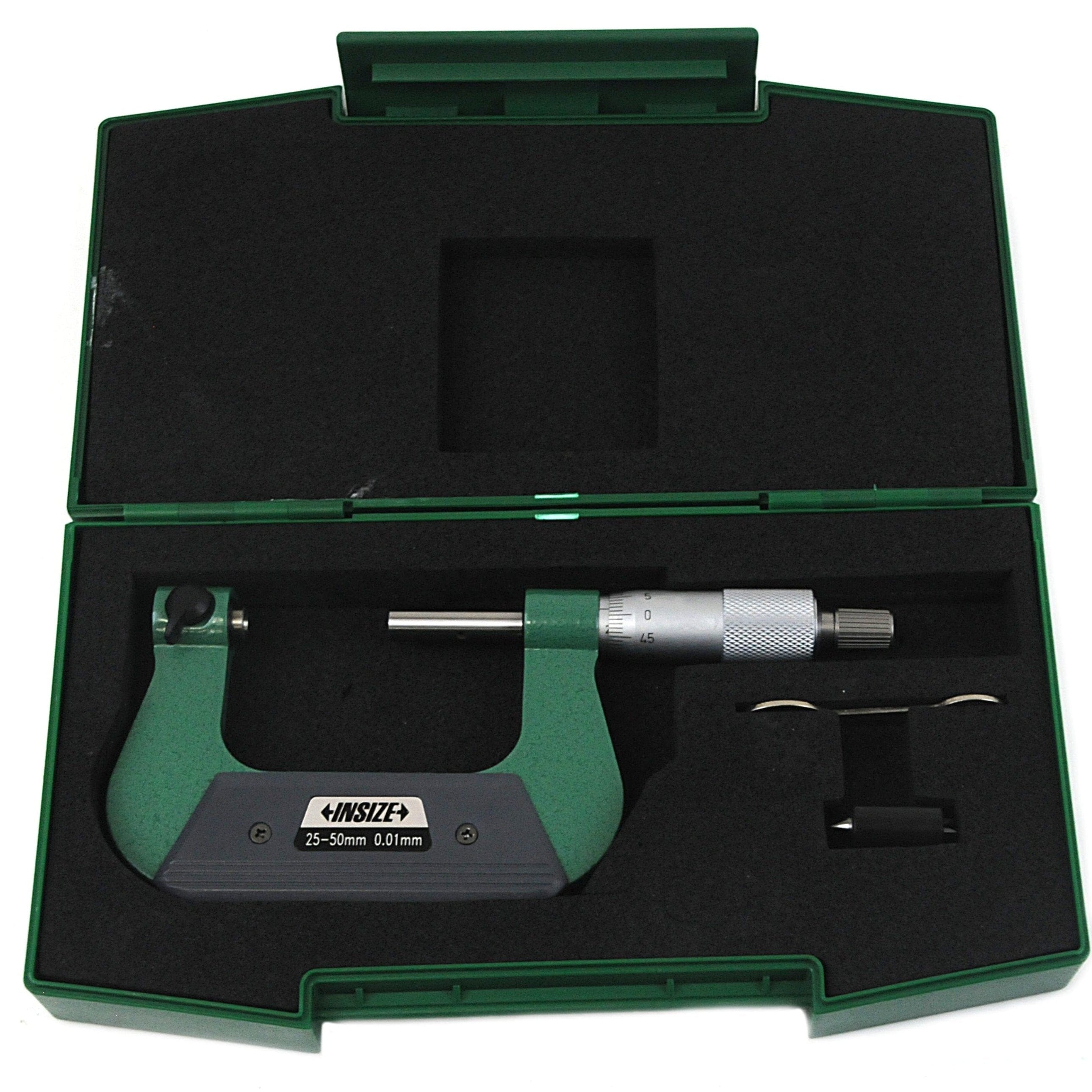

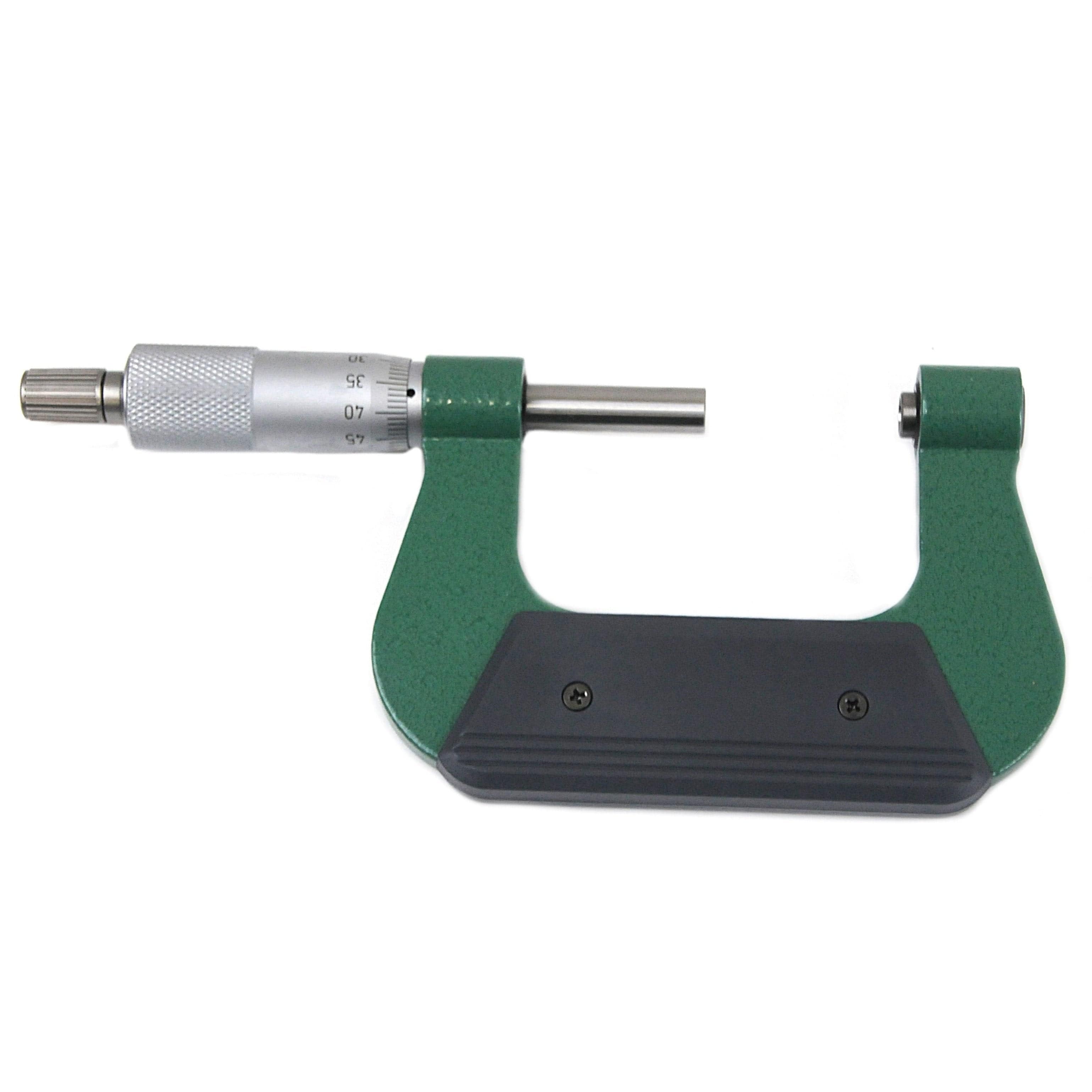

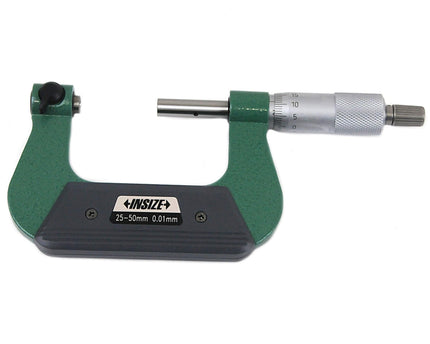

Insize 25–50mm Screw Thread Micrometer
The Insize 25–50mm Screw Thread Micrometer is a precision measuring instrument designed for accurate measurement of screw thread pitch diameters within the 25–50mm range. It is ideal for use in machining, inspection, and quality control applications where consistent and repeatable thread measurement is essential.
Featuring a non-rotating spindle, this micrometer ensures stable contact with thread flanks while reducing wear and rotational error. The ratchet stop provides uniform measuring pressure, minimising operator influence and improving measurement repeatability during critical thread inspection tasks.
Key Features:
-
Part Number: 3281-50A
-
Measurement Range: 25–50mm
-
Graduation: 0.01mm
-
Overall Dimensions:
-
Non-Rotating Spindle: Provides stable and accurate thread contact without rotational error
-
Ratchet Stop: Ensures consistent measuring pressure for accurate, repeatable readings
-
Supplied with 60° Setting Standards: Except for the 0–25mm model, for calibration and precision checking
-
Optional Accessories: 55° setting standards (Code 3281-SP) and measuring tips (Code 7381) available separately
*Note: Measuring tips are not supplied as standard.*
Well designed and built for durability, the Insize 3281-50A Screw Thread Micrometer is trusted by professionals in workshops, toolrooms, and inspection departments for accurate screw thread pitch diameter measurement. Insize micrometers are recognised for their precision, reliability, and ease of use.
